Компактные и средние погрузчики гусеничные колесные похожие на модели с корпусом Bobcat
- Категория: >>>
- Поставщик: Xiamen Runtx Machinery Co. Ltd.Xiamen Ltd.
Сохранить в закладки 1601243274944:
Описание и отзывы
Характеристики
Products Description
RTX380 wheel tracked skid steer loader

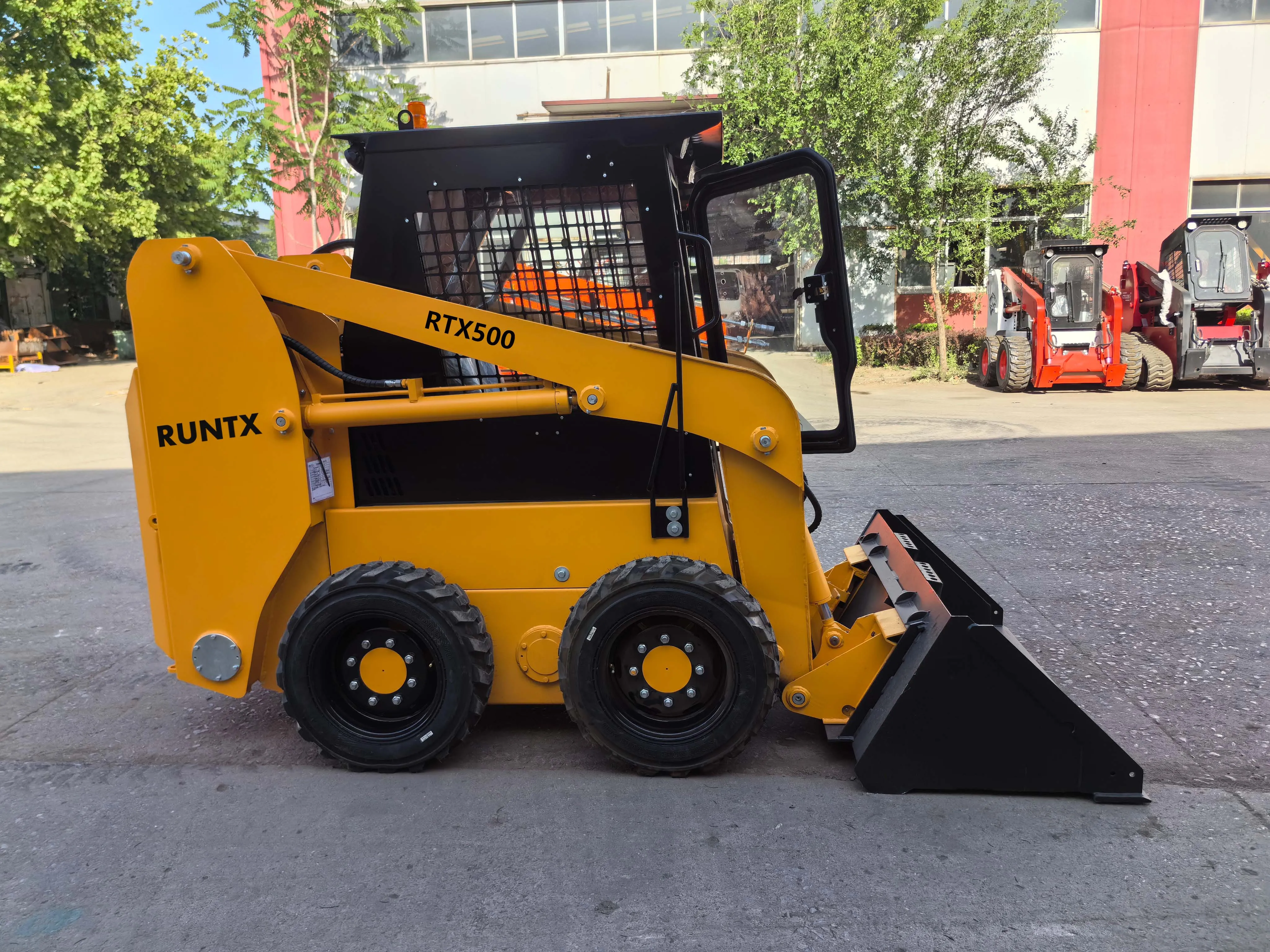

RTX500 wheel tracked skid steer loader
RTX700 wheel tracked skid steer loader

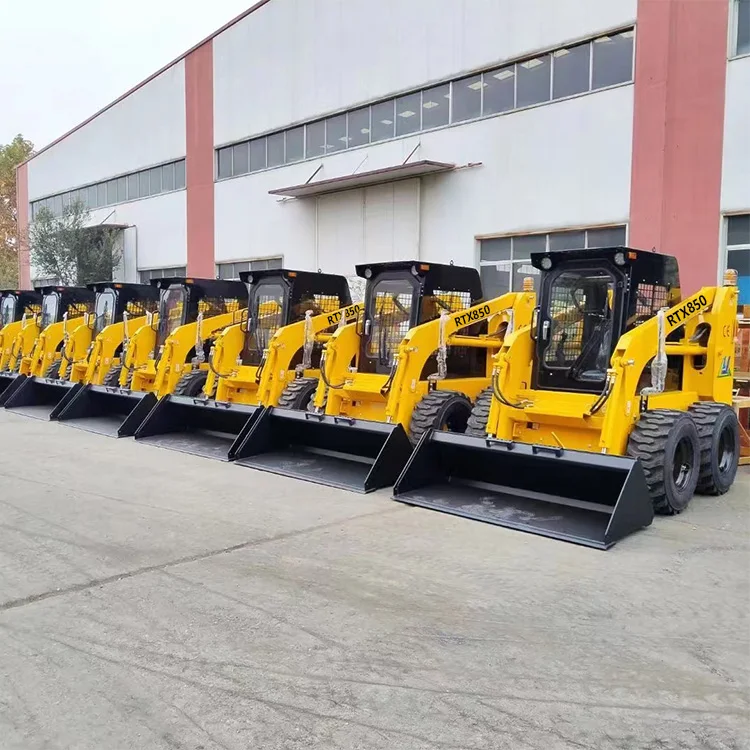

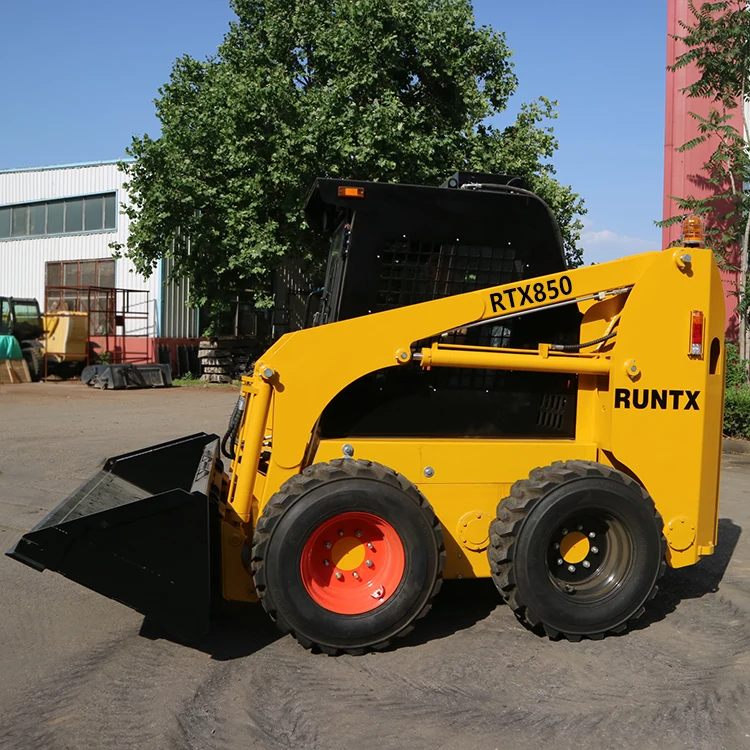

RTX850 wheel tracked skid steer loader
RTX1200S tracked skid steer loader

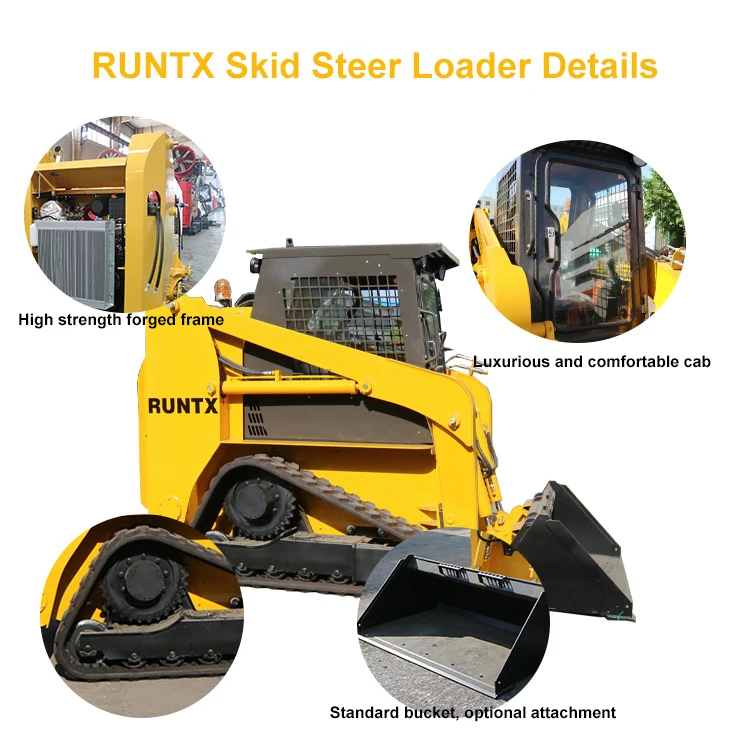

Products Details

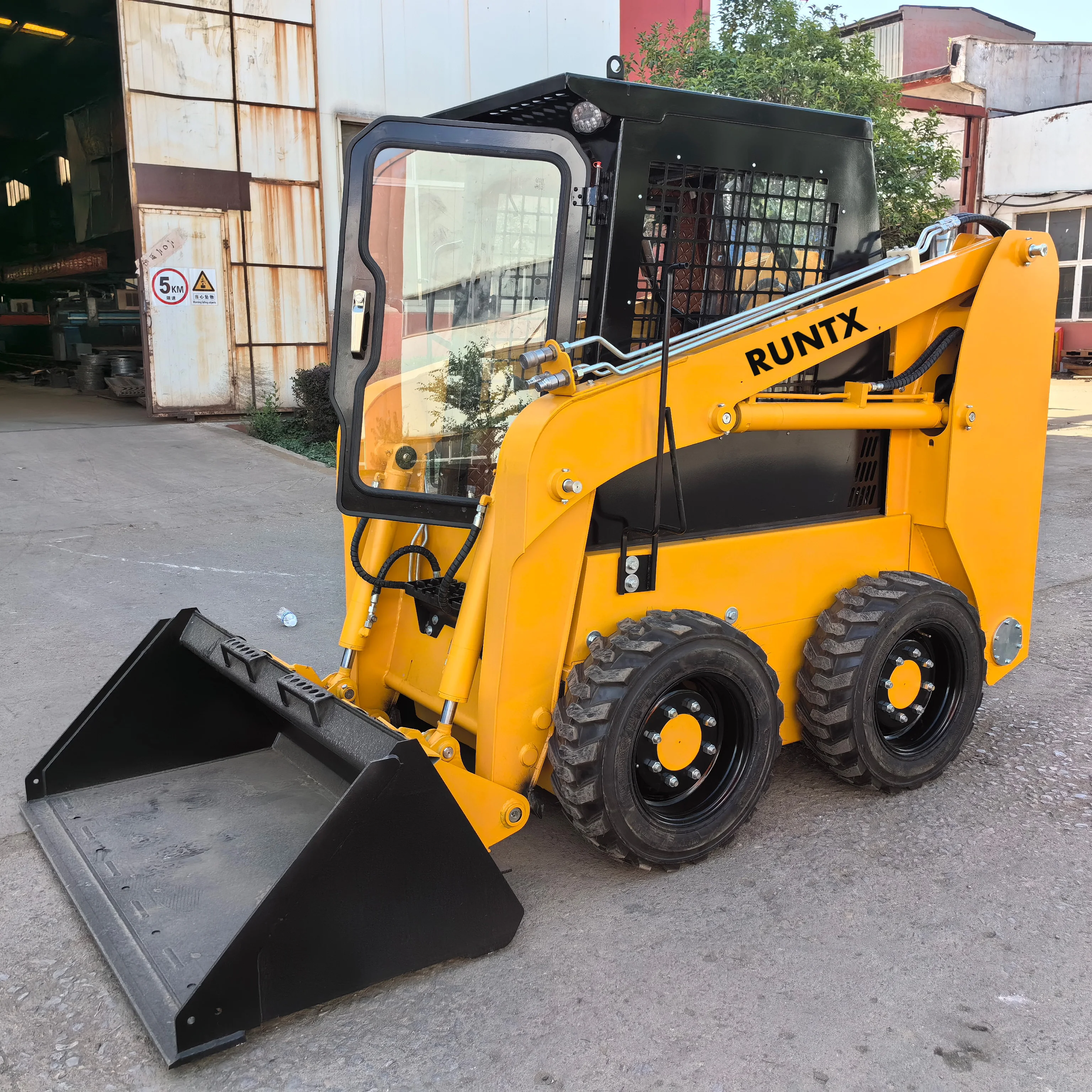

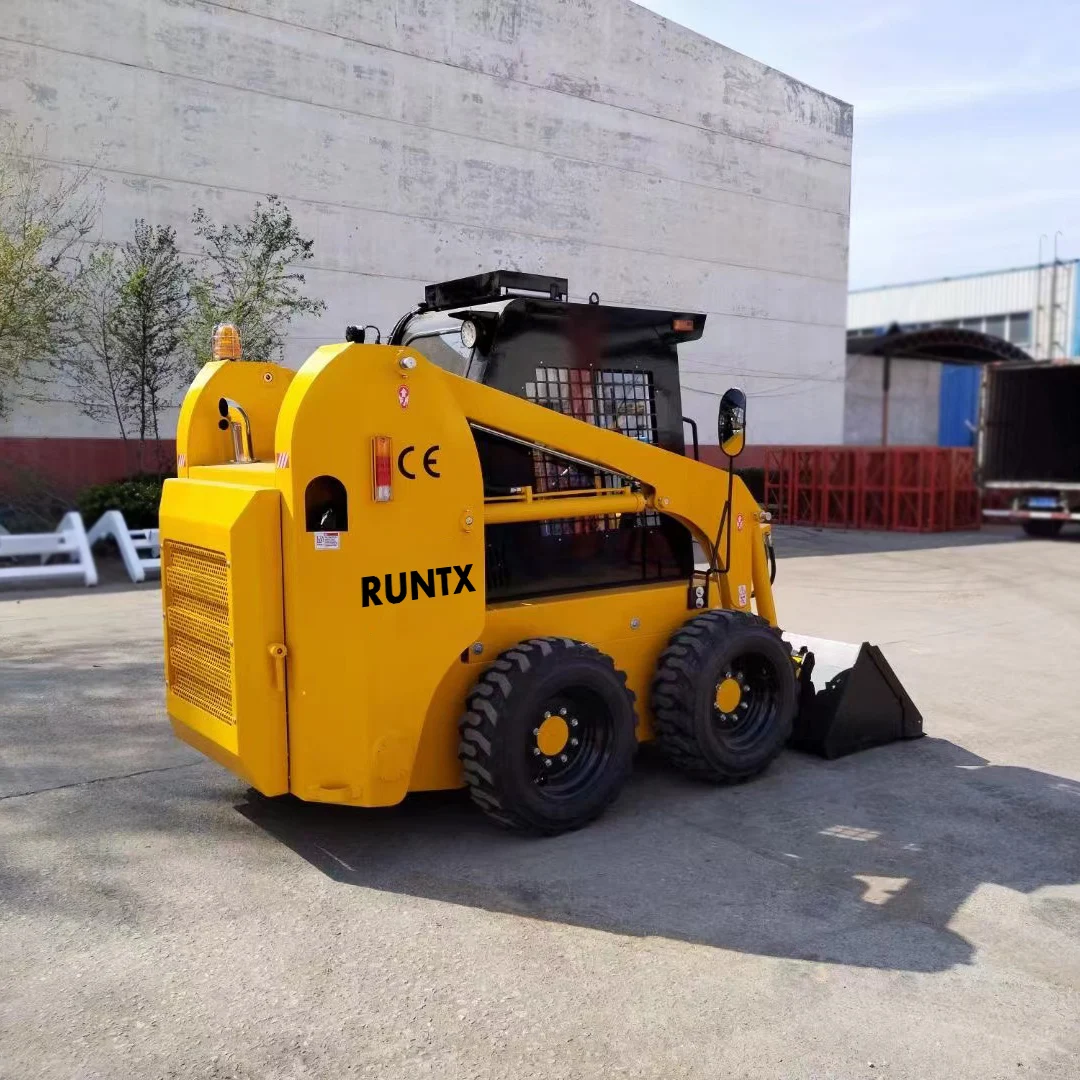

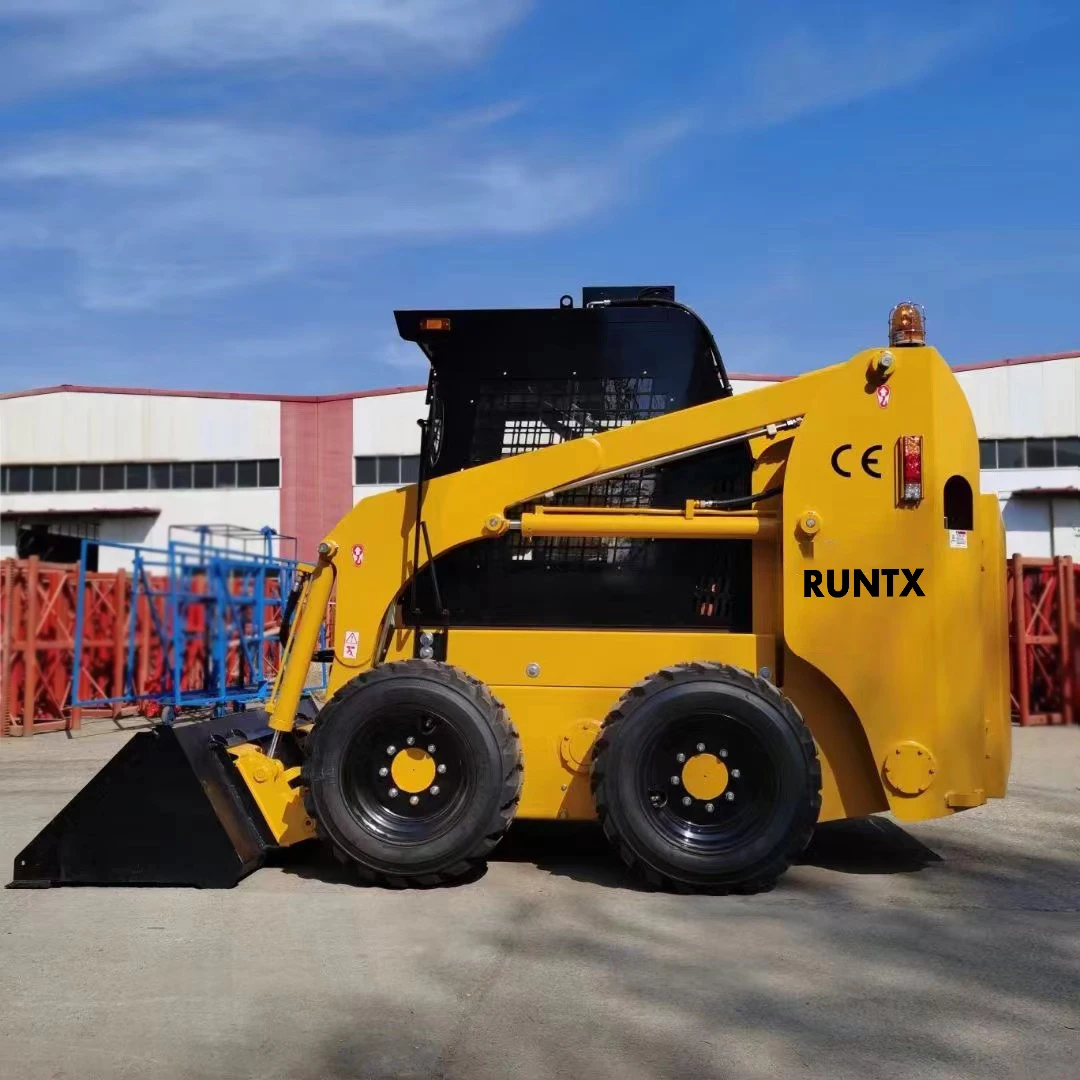

RUNTX brand Skid Stree Loader

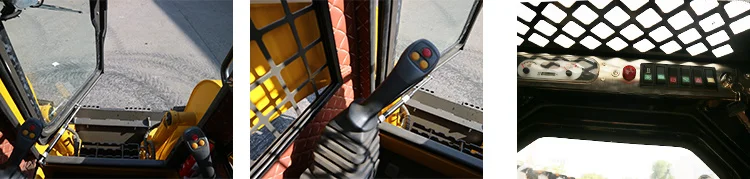

1.A set of anti-falling objects protects the cab to ensure safe operation design.
2.Standard equipped with a light and fast attachment replacement system.
3.High-strength forged frame and boom.
4.Advanced hydraulic control system.
5.The whole series can be customized according to customer requirements color, logo.

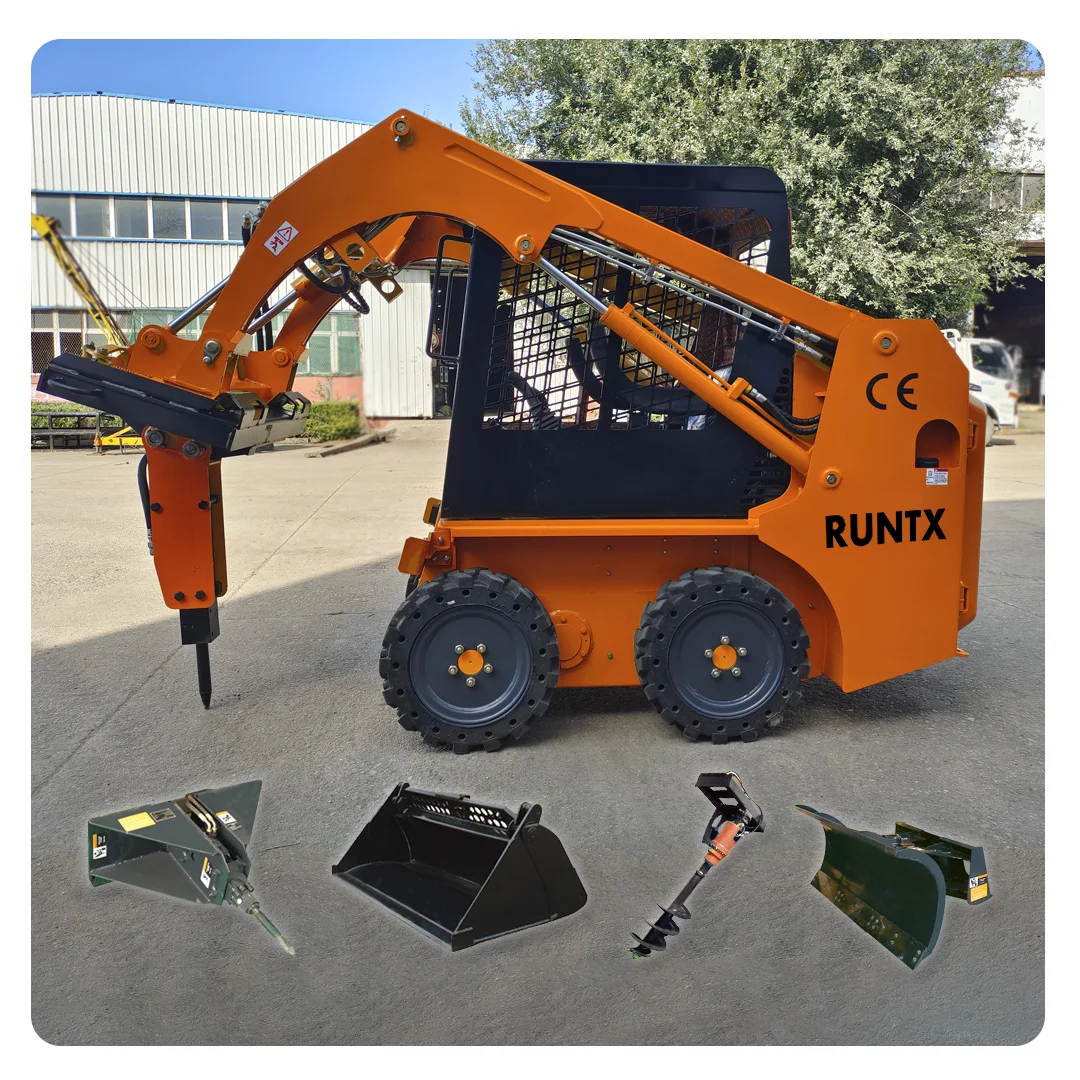

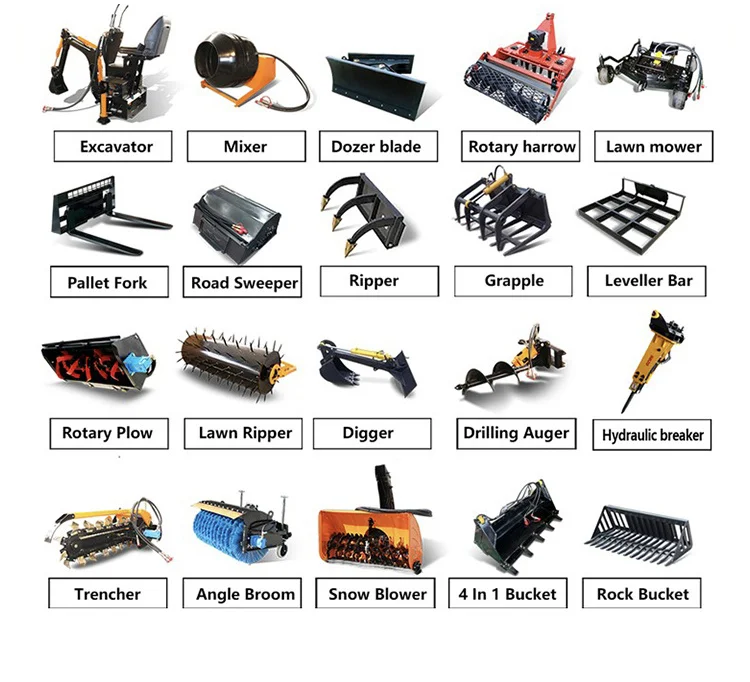

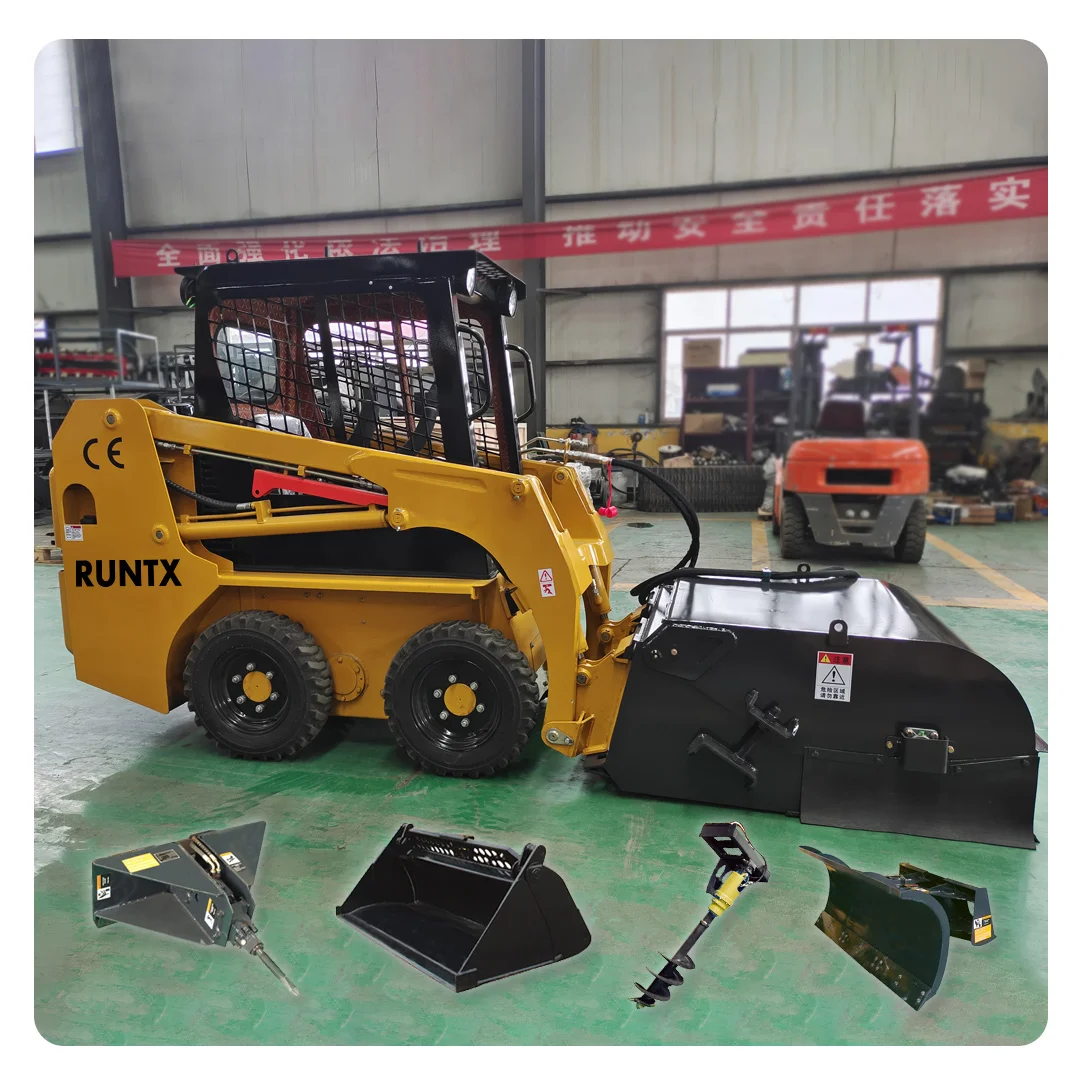

6.The whole series can be equipped with different attachments and engines
1.A set of anti-falling objects protects the cab to ensure safe operation design.
2.Standard equipped with a light and fast attachment replacement system.
3.High-strength forged frame and boom.
4.Advanced hydraulic control system.
5.The whole series can be customized according to customer requirements color, logo.
6.The whole series can be equipped with different attachments and engines
Product Paramenters

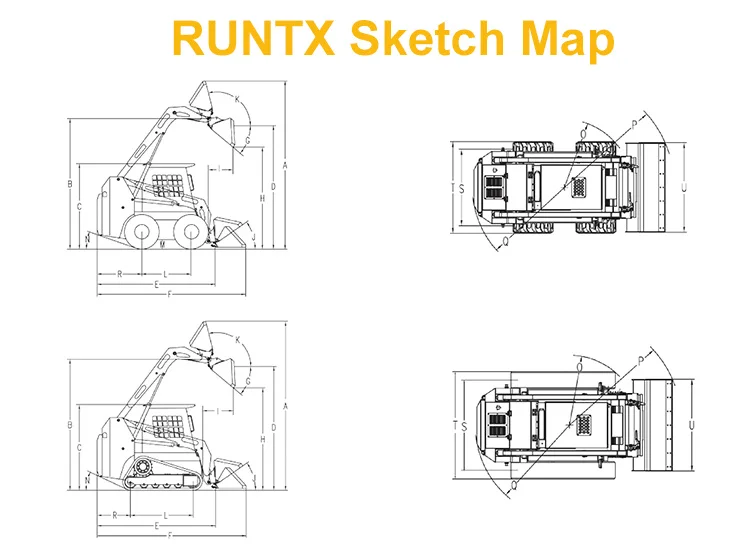

Model | RTX380 | RTX500 | RTX700 | RTX850 | |
Rated load | Kg | 380 | 500 | 700 | 850 |
Max. driving speed | Km/h | 7.8 | 10 | 12 | 12 |
Standard hydraulic flow | L/min | 60 | 60 | 62.5 | 75 |
High-flow hydraulic system(Option) | L/min | / | / | / | / |
Tire/ Track model | 23x8.5-15 | 8.5-15 | 10-16.5 | 12-16.5 | |
Engine rated power | Kw | 18.7 | 37 | 37 | 45 |
Fuel tank capacity | L | 40 | 60 | 70 | 80 |
Operating weight | Kg | 1370 | 2300 | 2700 | 2800 |
Bucket capacity | m³ | 0.16 | 0.3 | 0.4 | 0.4 |
Max. operating height | mm (A) | 3590 | 3300 | 3980 | 4000 |
Overhead guard height | mm (C) | 1820 | 2000 | 2140 | 2160 |
Length without bucket | mm (E) | 1945 | 2300 | 2640 | 2750 |
Overall length with bucket | mm (F) | 2580 | 2950 | 3420 | 3490 |
Max. dumping height | mm (H) | 1820 | 2050 | 2380 | 2400 |
Overall width without bucket | mm (T) | 900 | 1350 | 1720 | 1880 |
Overall width with bucket | mm (U) | 900 | 1400 | 1740 | 1880 |
Max. height to bottom of level bucket | mm (D) | 2380 | 2558 | 2913 | 2933 |
Dumping angle at max. height | ° (G) | 40 | 40 | 40 | 40 |
Bucket pin height | mm (B) | 2670 | 2725 | 3080 | 3100 |
Dumping distance | mm (I) | 450 | 790 | 700 | 750 |
Bucket reversal angle on the ground | ° (J) | 30 | 30 | 30 | 30 |
Bucket reversal angle at max. height | ° (K) | 104 | 104 | 104 | 104 |
Wheelbase | mm (L) | 801 | 897 | 991 | 991 |
Ground clearance | mm (M) | 125 | 140 | 185 | 205 |
Departure angle | ° (N) | 22 | 20 | 20 | 20 |
Turning radius without bucket | mm (O) | 971 | 1098 | 1168 | 1198 |
Front turning radius | mm (P) | 1730 | 1760 | 1958 | 1958 |
Rear turning radius | mm (Q) | 1010 | 1296 | 1630 | 1728 |
Rear axle to bumper | mm (R) | 610 | 964 | 1108 | 1208 |
Standard wheel tread width | mm (S) | 760 | 1080 | 1450 | 1500 |
Customization
Company Profile

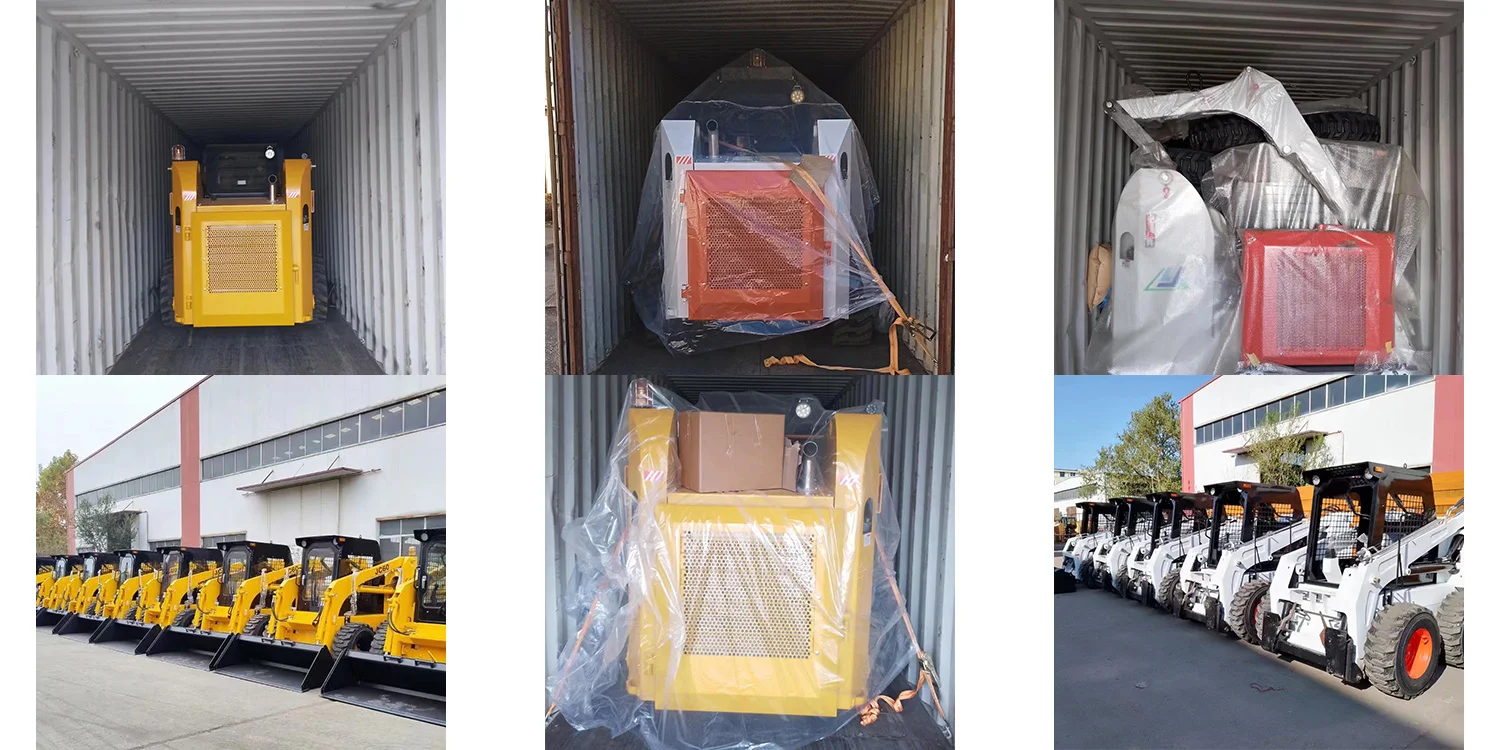

Shipping Packing
1.The whole car is wrapped with anti-scratch film
2.Fumigation-free wooden fixed module.
3.Secure and protect attachments with iron pallet racks.
2.Fumigation-free wooden fixed module.
3.Secure and protect attachments with iron pallet racks.
FAQ
1. Why choose us?
As a manufacturer,Runtx industrial is committed to offer not only skid steer loaders with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory ?
Runtx industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders,skid steer loader,excavator and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if
needed.
5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products,we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements to
your order.
6. Can we provide OEM service?
We can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
7. After-sales service
We can provide 12 months or 2000 working hours from BL date.
As a manufacturer,Runtx industrial is committed to offer not only skid steer loaders with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory ?
Runtx industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders,skid steer loader,excavator and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if
needed.
5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products,we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements to
your order.
6. Can we provide OEM service?
We can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
7. After-sales service
We can provide 12 months or 2000 working hours from BL date.
