Надежная буровая установка для разведки воды и газа глубина 100 м передовая гусеничная

Надежная буровая установка для разведки воды и газа глубина 100 м передовая гусеничная

Категория: >>>
Поставщик: Henan Yugong Machinery Equipment Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

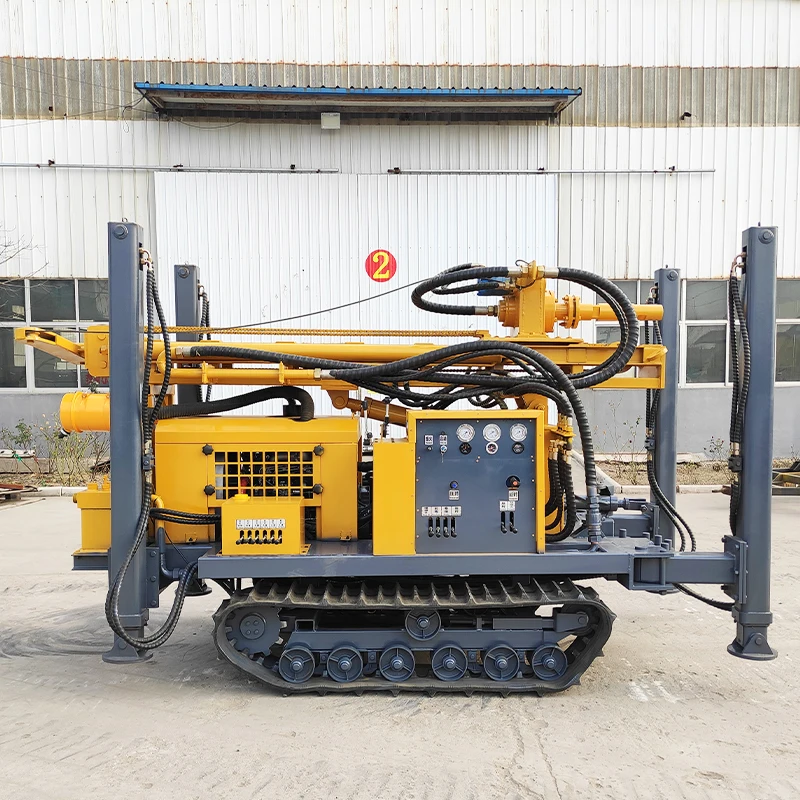

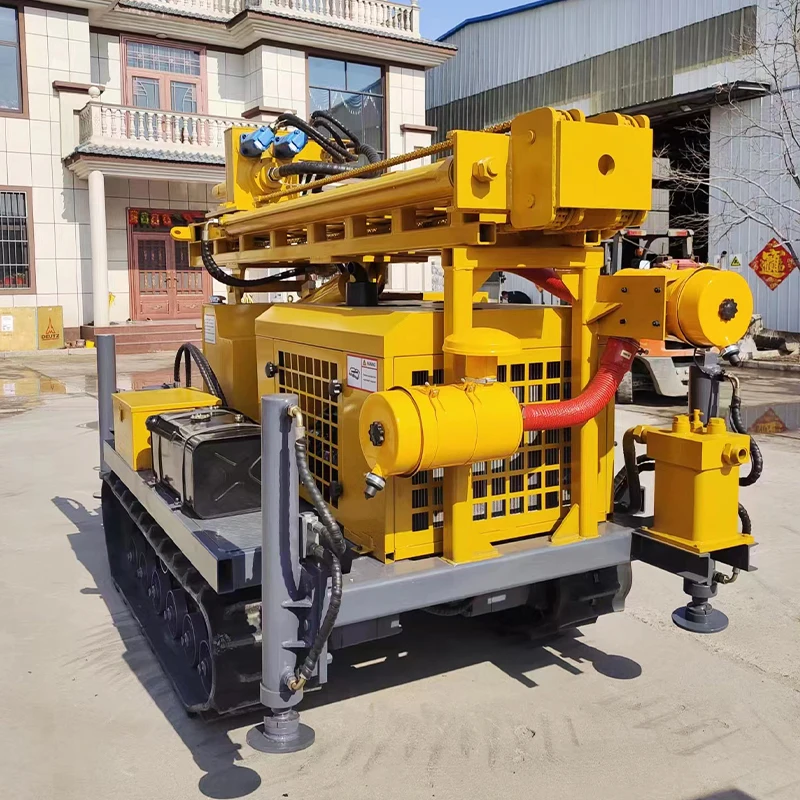

YG series water well drilling rig is a lightweight, efficient and multifunctional drilling equipment, The water well drilling rig is mainly applicable to industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexible wide application region etc.. Pneumatic well drill is especially suitable for water intake in mountainous and rocky strata. All drilling rigs are multifunctional, it can be used with air compressor, mud pump, even we can just use the dry hydraulic drilling method.The drilling rigs are not only designed for water drilling. They can be used in all conditions based on pore-forming purpose.

Model	YG-130	YG-200	YG-300	YG-400
Weight (Ton)	3	5.5	9	10
Drilling Diameter (mm)	100-219	140-305	140-325	140-350
Drilling Depth (m)	130	200	300	400
Walking Speed (Km/h)	0.8	2.5	2.5	2.5
Climbing Angles (°)	30	30	30	30
Equipped capacitor (Kw)	32	65	84	95
Using Air Pressure (Mpa)	1.45~2.5	1.7~3.0	1.7~3.3	1.7~3.5
Air Consumption (m³/Min)	17-29	17-30	17-35	17-35
Drilling Pipe Length (M)	1/1.5	1.5/2/3	1.5/2/3	1.5/2/3
Rig Lifting Force (T)	5	18	28	24
Dimension (mm)	4000#1450#2050	39001700 2350	55001950 2780	52002000 2780
