DANAU DCD-24/15CG-7T4 3600psi 248bar мойка для автомобиля электрическая высокого давления
430,00-440,00 $
Дизельный двигатель 32GPM канализационная струйная машина высокого давления
- Категория: >>>
- Поставщик: HeNan XuZhiYang Machinery CO. Ltd.HeNan Ltd.
Сохранить в закладки 1601243511921:
Описание и отзывы
Характеристики

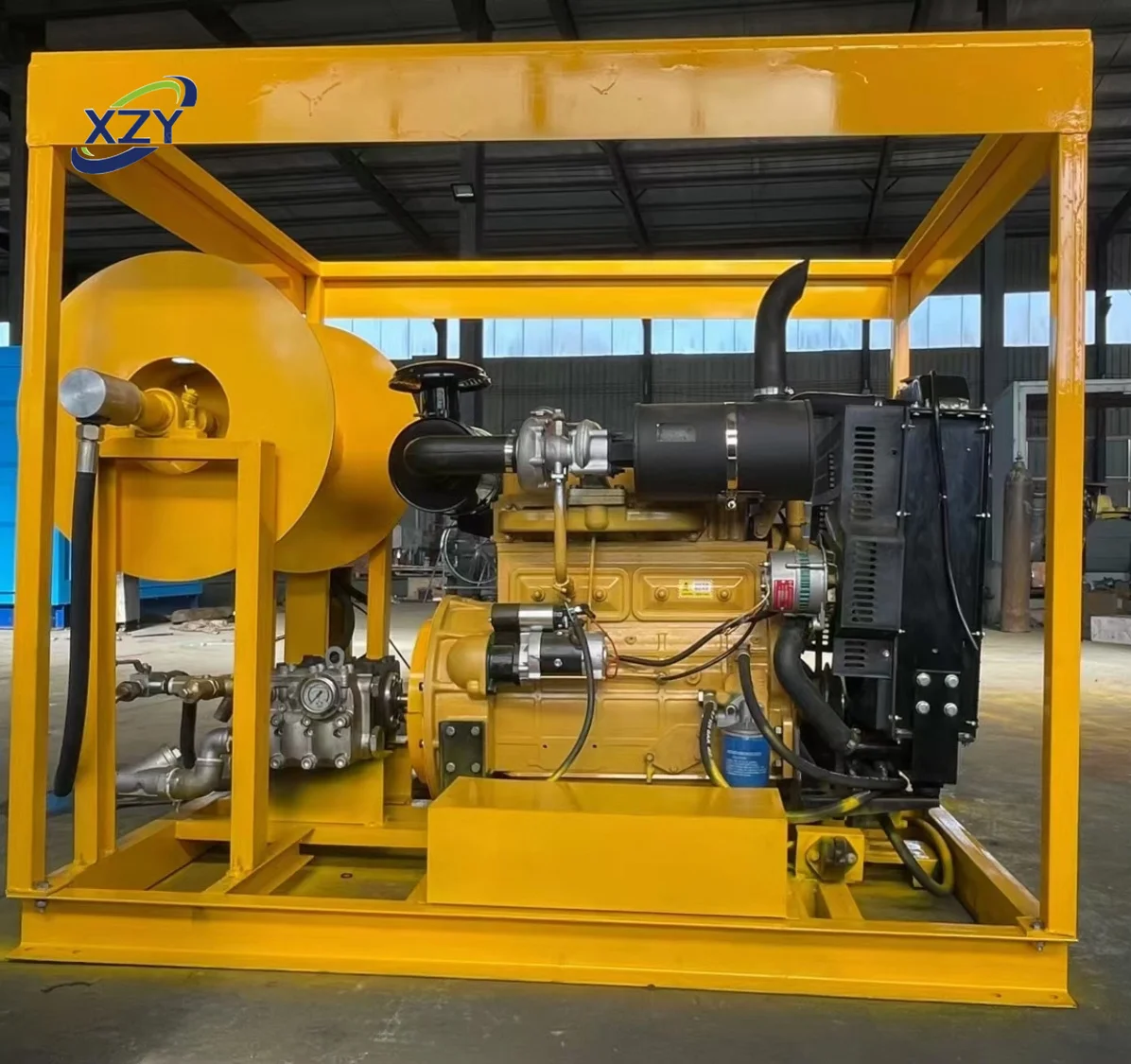

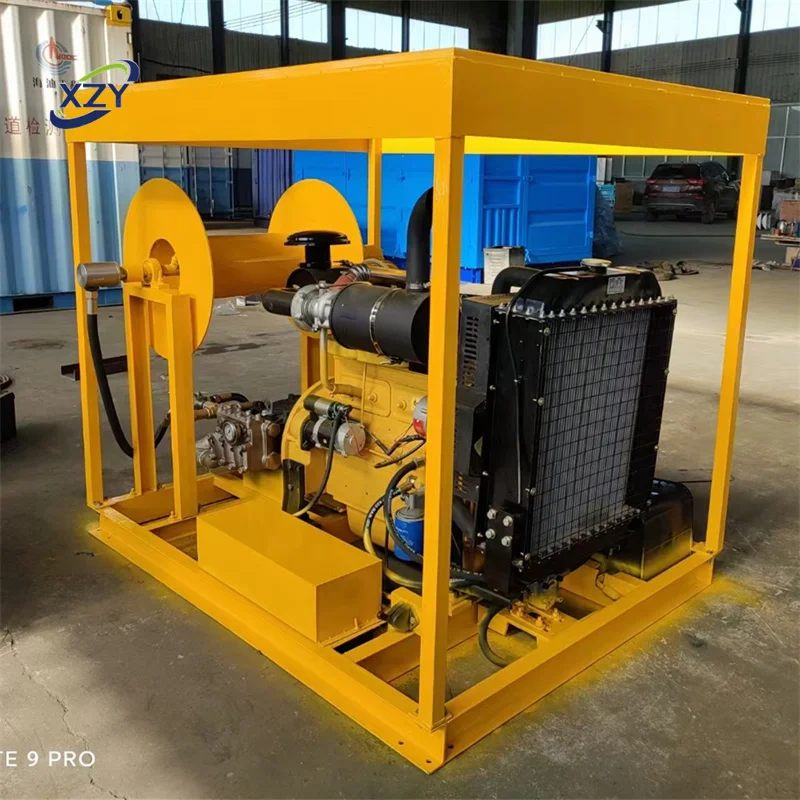

Sewer drain pipe cleaning machine
High pressure water jet cleaning machine, with large water flow 50-170L/min, pressure 24Mpa; use suitable pipe cleaning nozzle-multi hole jetting nozzle, better for sewer drain inner pipe cleaning, to unclog the blocked pipe.
Name | sewer drain pipe cleaner |
Engine drive | Diesel engine |
power | 33kw 41kw 145kw etc |
Rate pressure | 200bar -240bar-300bar |
water flow | 50L/min 85L/min 170L/min 250L/min 300L/min can be chosen |
hose reel | automatic hydraulic hose reel |
water filter | water inlet filter 80um |
how to choose | according to the pipe diameter you plan to cleaning |
Model | Rate pressure | Water flow | Electric power | Diesel power | cleaning pipe dia. |
XY4505 | 240MPa/240bar | 170 L/min | 90kw | 145kw | 100~1500mm |
XY2204 | 20Mpa/200bar | 85 L/min | 30kw | 41kw | 50~800mm |
XY1304 | 20Mpa/200bar | 50 L/min | 15kw | 28HP | 50~400mm |
Name: High pressur plunger pump
Rate pressure: 24Mpa/240bar
water flow:170 L/min
Pump speed： 405rpm
plunger diameter:40 mm
with pressure gauge
safety valve
for diameter 100-1200mm sewer drain pipe cleaning purpose
Name: diesel engine drive
Power: 41kw to 145kw, 264kw etc
Speed： 1500rpm
start type: electric start, 24v/45Ah
belt connect with high pressure pump
Name: Electric motor
power: 15kw-90kw; 3-phase, 380v/50Hz
Volt also can be customized
440v/460v/220v,etc
Speed： 1500rpm
contact with high pressure pump
customized automatic cleaning device
water spray gun cleaning
automatic cleaning device

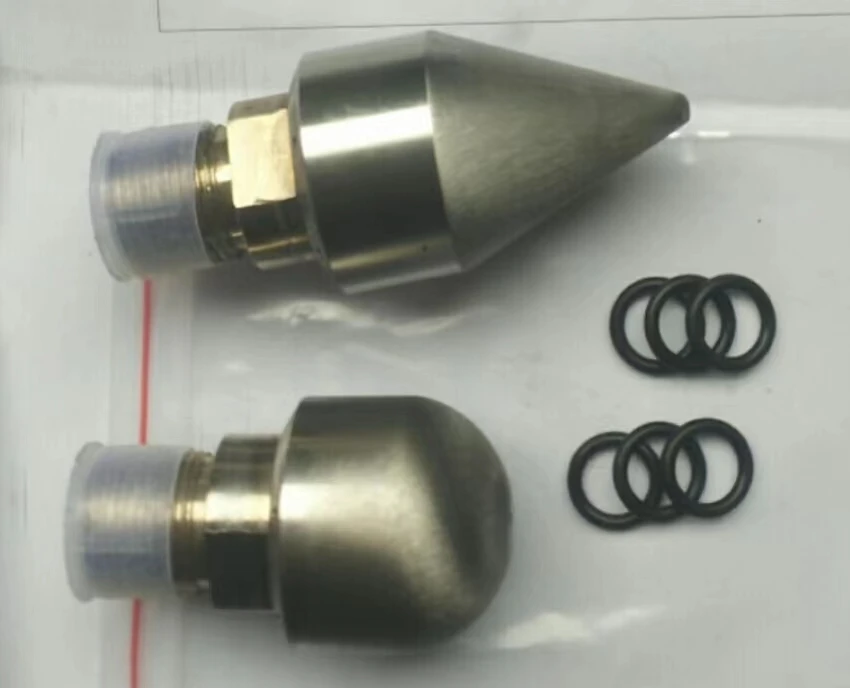

Mul-ti hole jetting nozzle
M22*1.5 thread
material: stainless steel
Size: DN20/30/40/50/80
Rotary pipe cleaning nozzle
connect: 1/2'' M22*1.5 or customized
mul-ti hole jetting, body rotary
high effect for pipe cleaning
large pipe cleaning nozzle
alumium material, light weight;
easy to be operate
for large diameter pipe cleaning
plastic pipe cleaning

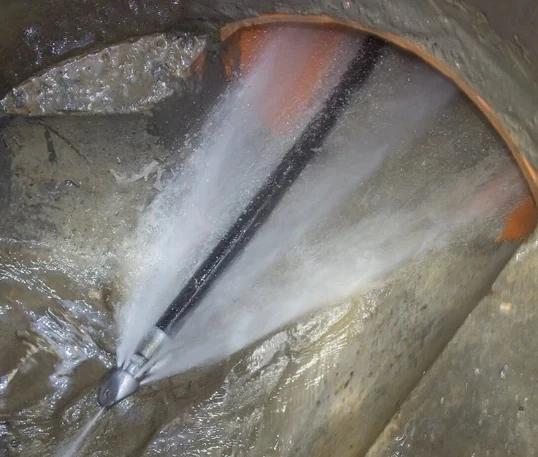

Municipal pipeline cleaning
sewer drain pipe cleaning
Overflow water spray gun
Pressure has 1500bar/2800bar
Overflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
High pressure rubber hose
Inner diameter:1/2'' , 3/8'', DN8, DN10, DN12, DN13; etc
Pressure: Max.2800bar;
material: ruber with wire winding inside
Barracuda nozzle / turbo nozzle
4-jet rotating nozzle
better for surface strong dirt cleaning
Flexible lance
Pressure 1500bar/2800bar/3035bar
Size: DN8-10-12mm;
Contact thead: M22*1.5 & M24*1.5
Length can be customized
Overflow foot control valve
Pressure has 1500bar/2800barOverflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
industrial Pipe Cleaning nozzle
Size: DN13,24,40, etc;
7-jet rotating nozzle;
Pressure: 1500bar/2800bar
for industrial inner pipe cleaning
Q1：What pressures and flow is suitable to sewer drain pipe cleaning?
A1：Pressure normally suggest 200bar~500bar;
Flow rates suggest 50-500L/min,
Flow rates suggest 50-500L/min,
pressure not need so higher, as big water flow us large pipe cleaning.
Q2: Are you trading company or manufacturer?
A2：We are manufacturer here for over 10years, can OEM machines according to customized request.
Q3:What's the cleaning type for the sewer drain pipe cleaning?
A3: a: use mul-ti hole jetting nozzle, go inside the pipe itself for inner pipe cleaning
b: use rotating nozzle, rotary during water jetting, so it will be better effect.
Q4:What type of water should be used in these machines?
A4:Clear water is recommended. Avoid using water with high mineral content or contaminants to prevent damage to the machine.
Q5:What are the power options for high-pressure water jetting machines?
A5: for road mark removal, suggest diesel engine drive will be more convenient;
also can choose Electric: Suitable for indoor use and quieter operation.
Q6:Can I customize a high-pressure water jetting machine for specific needs?
A6:Yes, many manufacturers offer customization options to tailor the machine for specific applications or requirements. Contact the manufacturer for details.
Q7:How do I choose suitable model?
A7:You can confirm your working purpose request, we have rich experience
Q8:How long is your delivery time?
A8:Normal 3-10 days; Customized order need to confirm with the seller.
Q9:What Certificate do you have?
A9:We can offer CO ( Certificate of Origin）， FA（Form A）, FE, FF; CE certificate,
Q10:Which is your shipping port?
A10: Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.
