JHEMCU F405 крыло INAV Полетный контроллер встроенный барометр гироскоп OSD Blackbox BEC для радиоуправляемых самолетов с фиксированным крылом
- Категория: >>>
- Поставщик: Shenzhen Xinjiaguo Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601243558581:
Описание и отзывы
Характеристики
Product Description

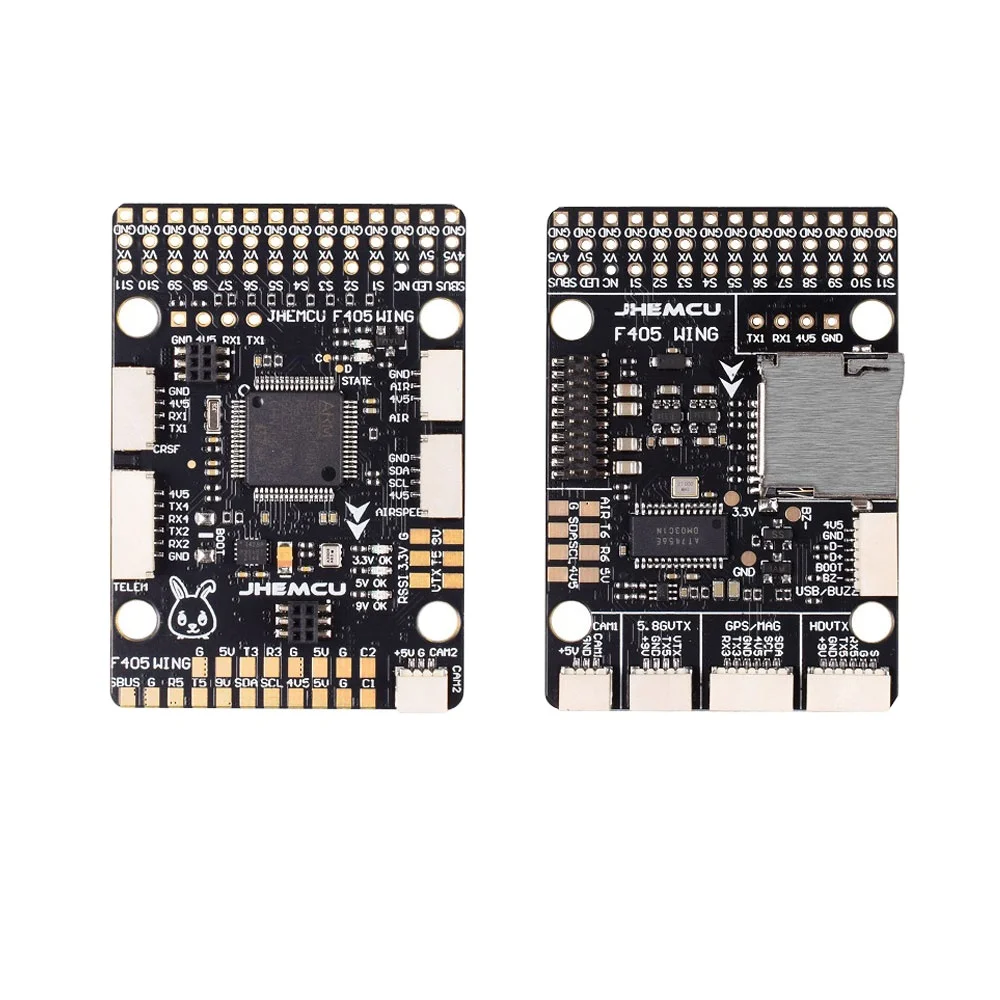

The main control uses F405 chip, 1MB FLASH, rich interface, full-featured. Built-in TF card holder, barometer, gyroscope, OSD,

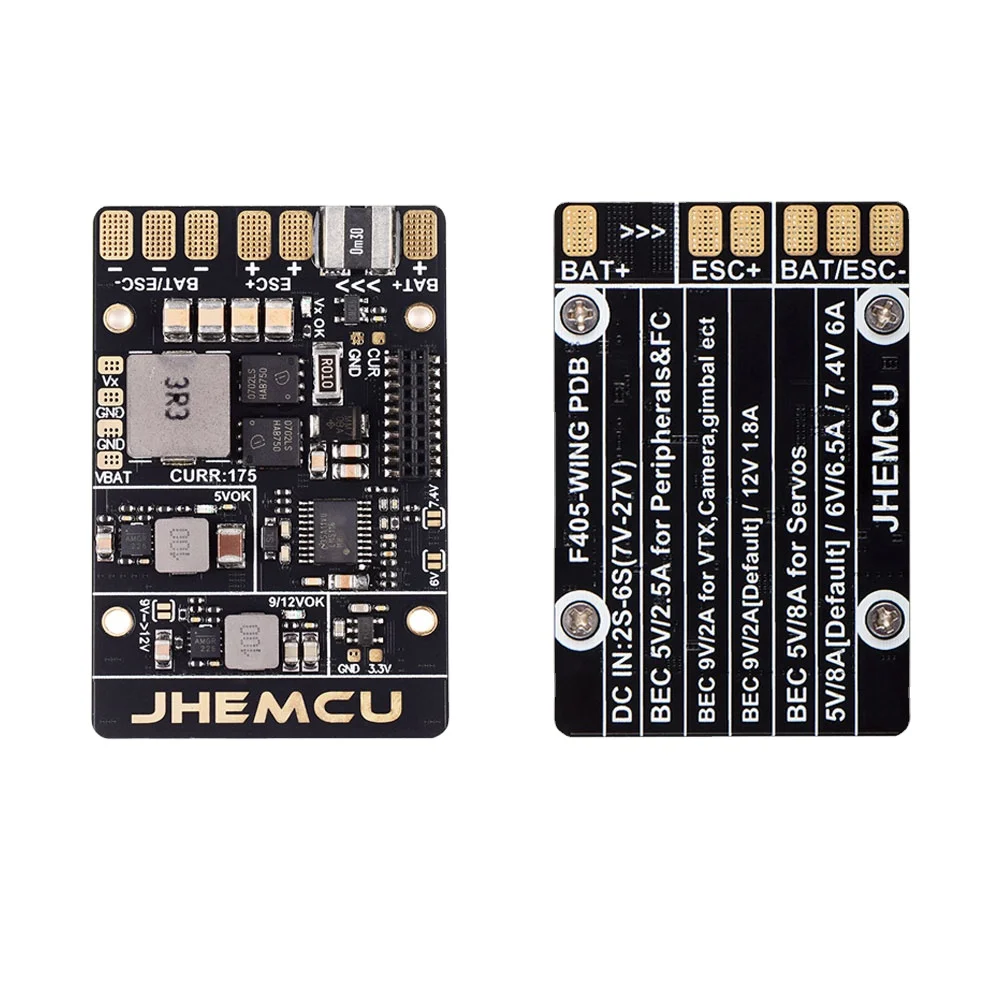

reserved interface socket, can be inserted or welded. With high current PDB board, built-in ammeter detection. Default 5V BEC
servo output 8A, can also be set to 6V/6.5A and 7.4V/6A servo power supply through the jumper pads of the PDB. 5V BEC is also
integrated on the PDB to power the flight controller and 9V BEC to power the mapping (can be switched to 12V). There is an

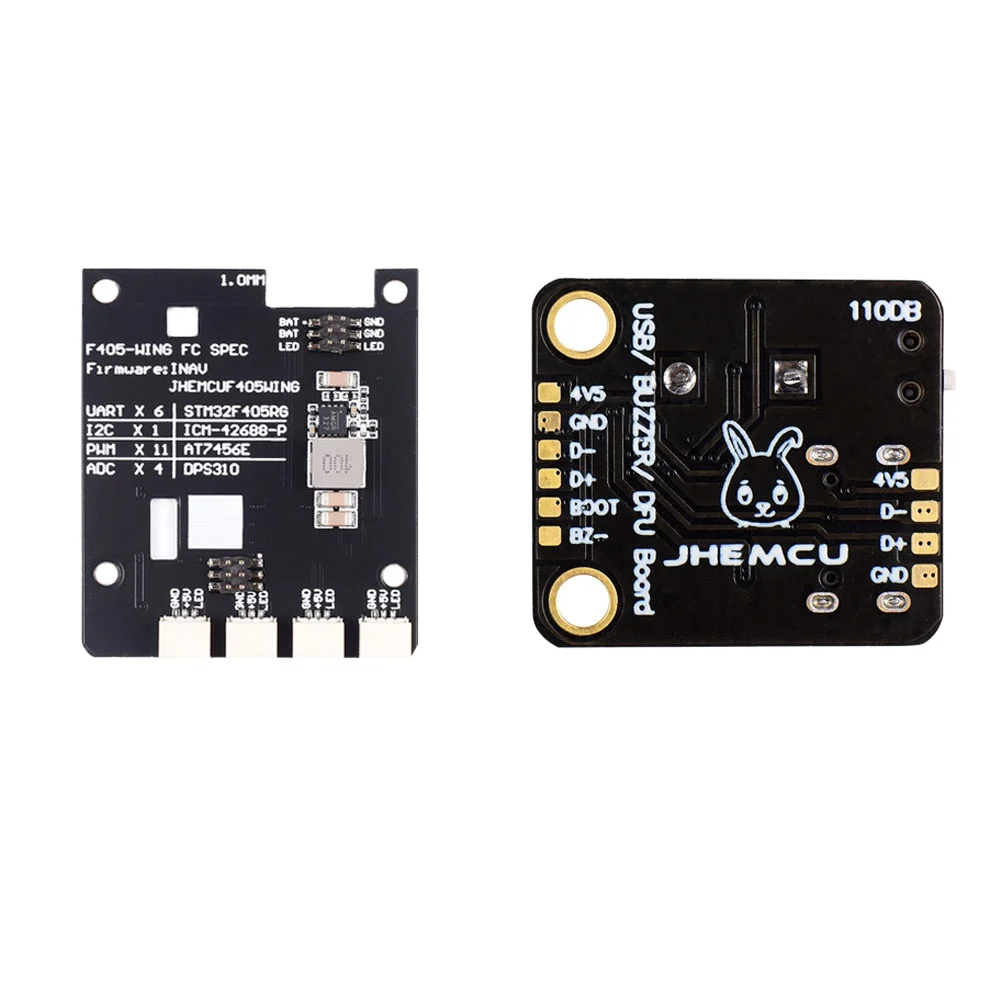

additional 3.3V LDO reserved. There is a separate 5V BEC on the LED board that can be connected to four WS2812 strips, and the

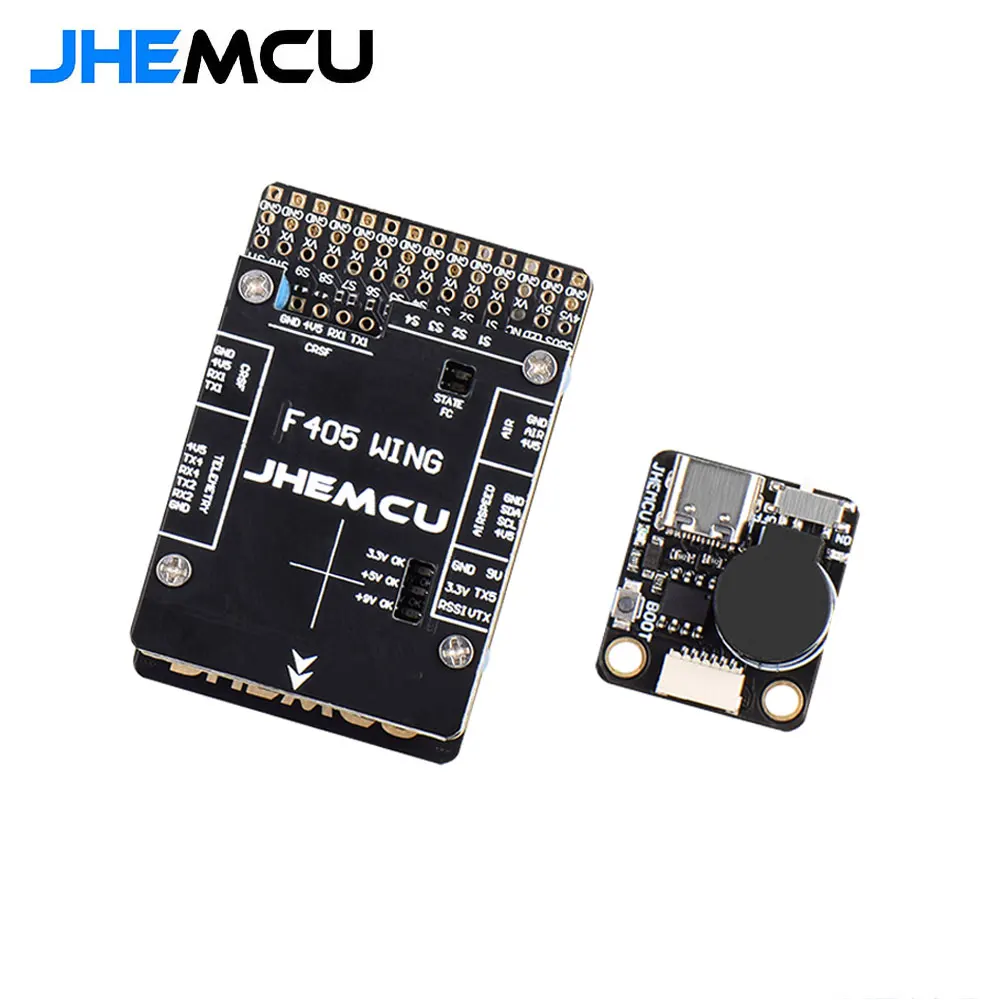

control signal is provided by the LED Strip on the F405. The extended USB interface board has a BOOT button, and a 110 dBm buzzer
with a switch to turn it off.
Note: Since the 6P plug line of the USB interface board and the line of the O3 sky end are both 6P, when connecting, be sure to
look at the type of line, don't plug in the wrong way to avoid burning the flight control or O3. the 6P line of the USB board is
the one with the green color in it.
CPU: STM32F405RG
Sensor: ICM-42688-P
Size: 54*36*16MM
Firmware version: INAV JHEMCUF405WING. HEX
Black box: self-provided TF card
Barometer: Support
OSD: Support
IIC: Support
UART: 6
BEC: 5V/8A for servo (switchable 6V/6.5A,7.4V/6A)
5V/2.5A for flight control, 9V/2A for mapping (switchable 12V/1.8A)
3.3V LDO 450MA
Mapping:Support analog mapping, support O3 and other HD sky side
Receiver:SBUS,IBUS,DSM2,DSMX, TBS, ELRS CRSF etc.
Support WS2812 programmable LED
Support buzzer
Built-in voltage and current sensor
reserved interface socket, can be inserted or welded. With high current PDB board, built-in ammeter detection. Default 5V BEC
servo output 8A, can also be set to 6V/6.5A and 7.4V/6A servo power supply through the jumper pads of the PDB. 5V BEC is also
integrated on the PDB to power the flight controller and 9V BEC to power the mapping (can be switched to 12V). There is an
additional 3.3V LDO reserved. There is a separate 5V BEC on the LED board that can be connected to four WS2812 strips, and the
control signal is provided by the LED Strip on the F405. The extended USB interface board has a BOOT button, and a 110 dBm buzzer
with a switch to turn it off.
Note: Since the 6P plug line of the USB interface board and the line of the O3 sky end are both 6P, when connecting, be sure to
look at the type of line, don't plug in the wrong way to avoid burning the flight control or O3. the 6P line of the USB board is
the one with the green color in it.
CPU: STM32F405RG
Sensor: ICM-42688-P
Size: 54*36*16MM
Firmware version: INAV JHEMCUF405WING. HEX
Black box: self-provided TF card
Barometer: Support
OSD: Support
IIC: Support
UART: 6
BEC: 5V/8A for servo (switchable 6V/6.5A,7.4V/6A)
5V/2.5A for flight control, 9V/2A for mapping (switchable 12V/1.8A)
3.3V LDO 450MA
Mapping:Support analog mapping, support O3 and other HD sky side
Receiver:SBUS,IBUS,DSM2,DSMX, TBS, ELRS CRSF etc.
Support WS2812 programmable LED
Support buzzer
Built-in voltage and current sensor
Specification
Product Model | ACM0125 |
Brand | JHEMCU |
MOQ | 2PCS |
