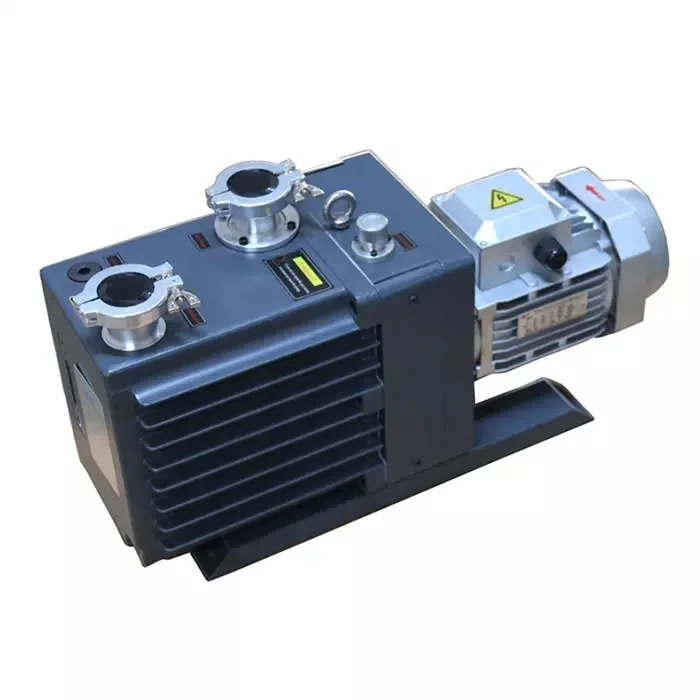

Prepump вспомогательный насос forepump роторная лопасть вакуумный насос для станции молекулярного насоса или лабораторного университета
17 155,76 ₽
2XZ 6C 6L/S Высокопроизводительный Насос с масляной смазкой вакуумный насос двухступенчатый высокой вращающейся лопастью для r lab.us
- Категория: >>>
- Поставщик: Taizhou Shouzhen Machinery Co. Ltd.
Сохранить в закладки 1601244067990:
Описание и отзывы
Характеристики
ABOUT SOUZ PUMP
SOUZ VACUUM is a comprehensive high-tech enterprises integrating R&D, production, sales and service of vacuum pumps.
With professional technical team to help every customer to get the most suitable and cost-effective vacuum solutions and vacuum pumps.
We always perseveres in innovative work to develop better products.
SOUZ VACUUM,covering an area of 100000 square meters production plant ,has hundreds of employees and 50 sets modern processing equipments.In order to provide high quality products,SOUZ VACUUM imported Japan Tsugami processing center for processing pump rotor and Japan Okuma vertical processing center for processing pump body,Hexagon coordinate measuring instrument and so on.
Moreover, on the basis of digestion of imported Germany technology and substitution with SOUZ VACUUM improved technology. The key components of vacuum pump were choosen from international well-known brands to make the overall performance to achieve the international level. We can provide alternative basically spare parts to some well-known brands of vacuum pumps.
The acceptance rate of product will be raised by improvement of process's quality control.
With professional technical team to help every customer to get the most suitable and cost-effective vacuum solutions and vacuum pumps.
We always perseveres in innovative work to develop better products.
SOUZ VACUUM,covering an area of 100000 square meters production plant ,has hundreds of employees and 50 sets modern processing equipments.In order to provide high quality products,SOUZ VACUUM imported Japan Tsugami processing center for processing pump rotor and Japan Okuma vertical processing center for processing pump body,Hexagon coordinate measuring instrument and so on.
Moreover, on the basis of digestion of imported Germany technology and substitution with SOUZ VACUUM improved technology. The key components of vacuum pump were choosen from international well-known brands to make the overall performance to achieve the international level. We can provide alternative basically spare parts to some well-known brands of vacuum pumps.
The acceptance rate of product will be raised by improvement of process's quality control.
High Efficiency Motor
Adopts 100% copper coil.
Reliable performance and Stable running.
High Quality Vanes
Vanes are a key part of Rotary vane vacuum pump.
Vanes quality is important. Glass fiber / carbon fiber.

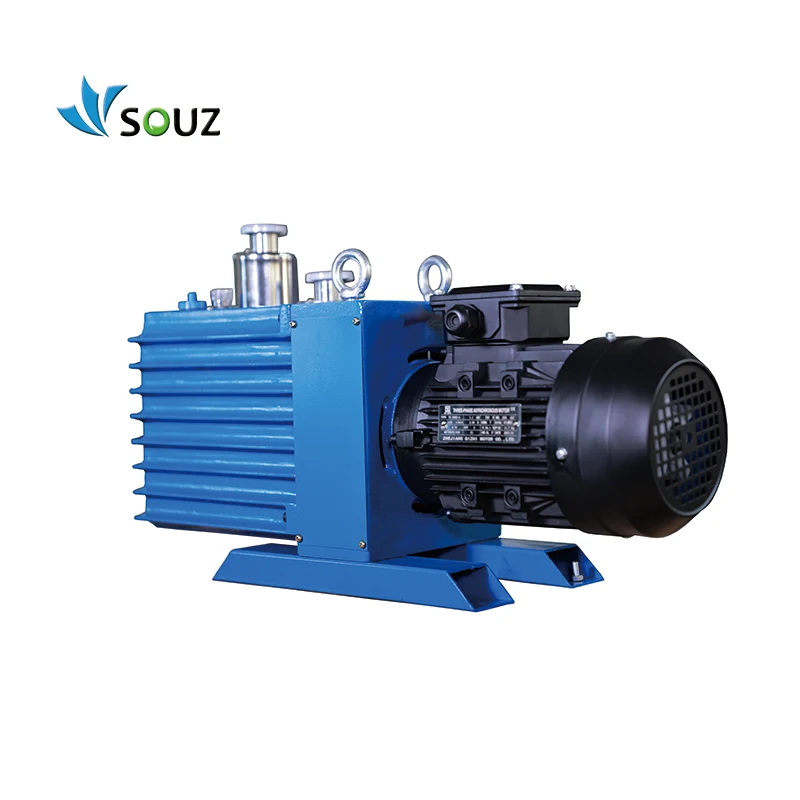

SOUZ Vacuum Pump 2XZ Two-stage Oil Lubricated Rotary Vane vacuum pumps
SOUZ VACUUM Rotary vane vacuum pumps are available in single- and two-stage versions and can be operated with different types of lubrication or dry-running.
With its two-stage rotary vane pumps, SOUZ Vacuum has offered two very successful ranges for many years now. Their long life and pumping speed are the outstanding properties of these pumps.
Two-stage rotary vane pumps can be used in the pressure range between 100 hPa and a pressure roughly a decade above the final pressure.
2XZ series vacuum pump cover a pumping speed range of 1.3 to 275 m3/h.
2XZ series vacuum pump cover a pumping speed range of 1.3 to 275 m3/h.
T series vacuum pump is an updated model on the basic of 2XZ model, covering a pumping speed range of 8m3/h to 60m3/h.
Lightweight, quiet, and compact, they feature an anti-suckback valve and gas ballast knob, quick disconnect ISO/KF fittings for inlet and outlet, and are ideal for a variety of applications.
Oil helps seal the clearance between the vanes and the housing in SV Series, 2XZ/T series,2XZ series vacuum pumps.
A choice of versions provides the right variant for every application.
Single stage oil flooded rotary vane vacuum pump : SV008-SV630
Two stage oil lubricated rotary vane vacuum pump : 2XZ-2C~2XZ-25C. T8~T60 ; 2X-4A-2X-100A
Benefits:
1. Ideal low cost replacements for Varian, Leybold, Pfeiffer, Edwards or other brands.
2. Well ventilated, cool running pumps minimize oil backstreaming and thermal degradation
3. Positive oil feed system enables optimal pump lubrication
4. Low operating costs
5. Single Phase Motors available
Typical applications are found in sectors:
1. Ideal low cost replacements for Varian, Leybold, Pfeiffer, Edwards or other brands.
2. Well ventilated, cool running pumps minimize oil backstreaming and thermal degradation
3. Positive oil feed system enables optimal pump lubrication
4. Low operating costs
5. Single Phase Motors available
Typical applications are found in sectors:
1. * Analytics (mass spectrometry, electron microscopy)
2. * Coating technology (surface protection, decorative films, display units)
3. * Vacuum metallurgy (vacuum soldering, vacuum sintering)
4. * Leak detection technology (vacuum systems, packaging)
5. * Research institutes (elementary particle physics, fusion research, laser applications)
6. * Lighting industry (light bulb manufacture)
7. * Medicine/pharmaceutical technology (plasma sterilization, freeze drying)
4. * Leak detection technology (vacuum systems, packaging)
5. * Research institutes (elementary particle physics, fusion research, laser applications)
6. * Lighting industry (light bulb manufacture)
7. * Medicine/pharmaceutical technology (plasma sterilization, freeze drying)
PRODUCT FAMILY | ROTARY VANE VACUUM PUMP VERSION | OIL-LUBRICATED OR DRY-RUNNING | CHARACTERISTICS |
SV | Single-stage | Oil-lubricated | Proven and reliable. 8m3/h-630m3/h |
2XZ | Two-stage | Oil-lubricated | Reliable medium vacuum. 2L/S-25L/S |
T | Two-stage | Oil-lubricated | Reliable medium vacuum. 8m3/h-60m3/h |
2X | Two-stage | Oil-lubricated | Robust pump. 4L/S-100L/S |
ZBW | / | Dry-running | Reliable vacuum. 16m3/h-360m3/h |

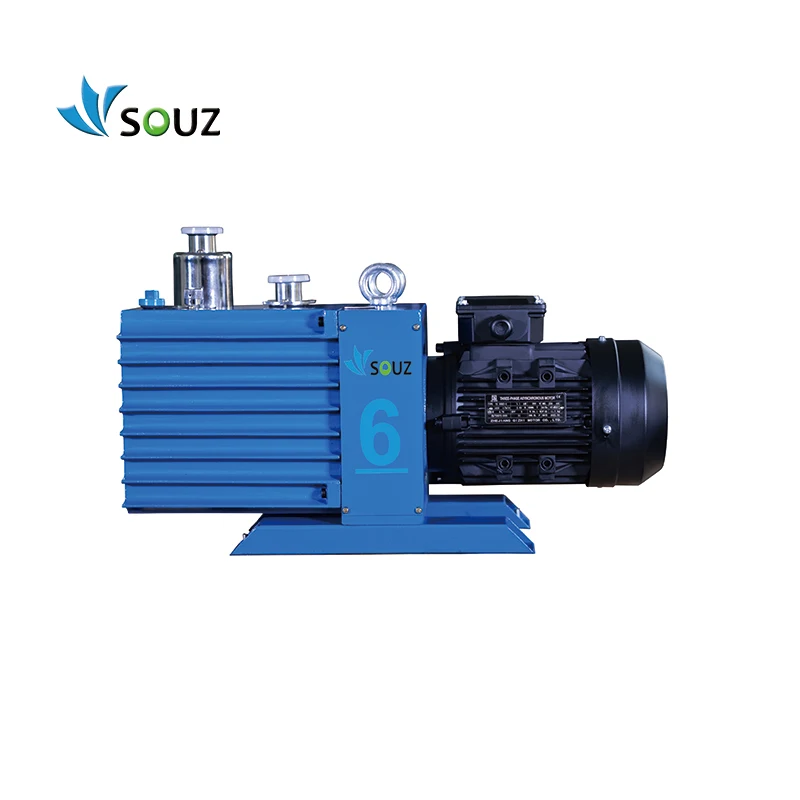

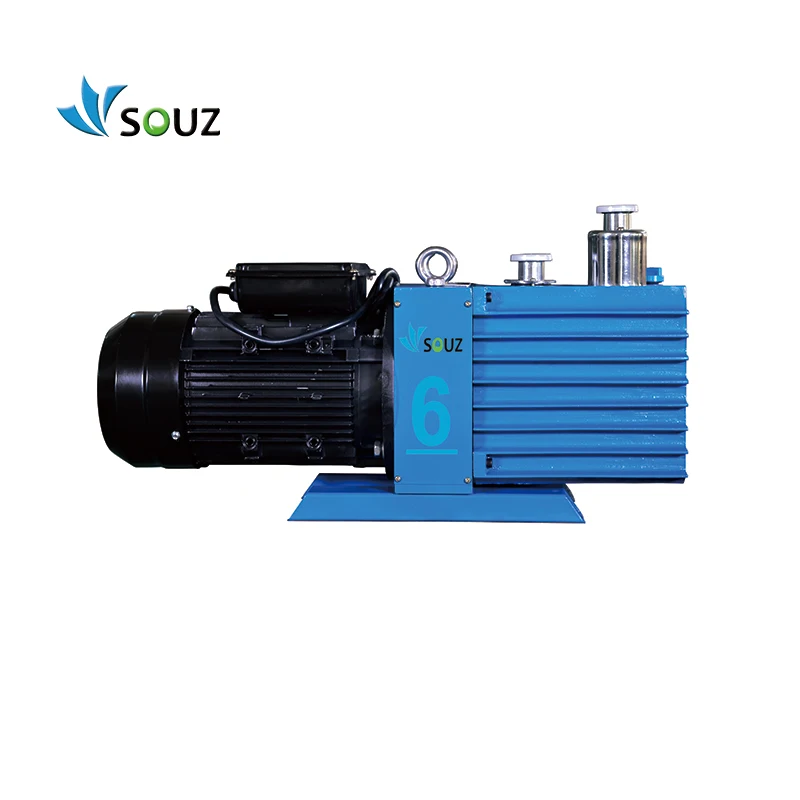

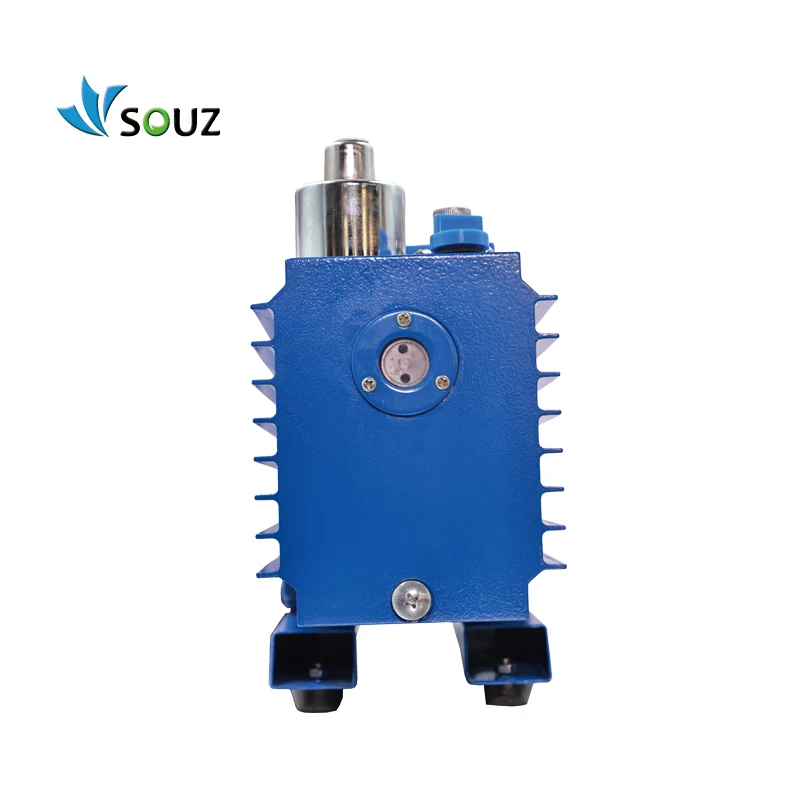

SOUZ VACUUM 2XZ-6C model two stage oil sealed rotary vane vacuum pump | ||||||
Model | Capacity | Ultimate vacuum | Motor power | |||
2XZ-6C | 6 L/S -50hz 7.2L/S-60hz | 1.33Pa | 1.1 KW | |||
Inlet diam. | Rotary speed | Oil consumption | Noise | |||
KF25 | 1400 RPM-50HZ 1720RPM-60HZ | 2 L | 70dB(A) | |||
Cooling method | Package weight | Package size | Package material | |||
Air cooling | 50 KG / 55 KG | 76*34*43 cm | Plywood Case | |||
2XZ-6C 6L/S High Performance Pump Oil Lubricated Vacuum Pump Two Stage High Rotary Vane Vacuum Pump for lab.using | ||||||
2XZ Series Rotary Vane Vacuum Pumps | ||||||||||||||
Specs./ Model | 2XZ-2C | 2XZ-4C | 2XZ-6C | 2XZ-8C | 2XZ-15C | 2XZ-25C | ||||||||
Capacity | 50HZ | 2 L/S ( 7.2m3/h) | 4L/S (15m3/h) | 6L/S ( 22m3/h) | 8L/S (30m3/h) | 15L/S (54m3/h) | 25L/S (90m3/h) | |||||||
60HZ | 2.4L/S (8.6m3/h) | 4.8 L/S (18 m3/h) | 7.2L/S (26m3/h) | 9.6 L/S (35m3/h) | 18L/S (65m3/h) | 30L/S (108m3/h) | ||||||||
Max.vacuum | Pa | 1.33 Pa | 1.33 Pa | 1.33 Pa | 1.33 Pa | 1.33 Pa | 1.33 Pa | |||||||
Rotary speed | 50HZ | 1400 RPM | 1400 RPM | 1400 RPM | 1400 RPM | 1400 RPM | 1400 RPM | |||||||
60HZ | 1720 RPM | 1720 RPM | 1720 RPM | 1720 RPM | 1720 RPM | 1720 RPM | ||||||||
Motor power | KW | 0.37 KW | 0.55 KW | 1.1-3phase 1.5-1phase | 1.1-3phase 1.5-1phase | 1.5KW | 3KW | |||||||
Voltage | 220V /380V | 220V/380V | 220V /380V | 220V /380V | 380V | 380V | ||||||||
Inlet diam. | KF25 | KF25 | KF25 | KF40 | KF40 | KF50 | ||||||||
Noise | dB(A) | 65 | 68 | 68 | 70 | 70 | 70 | |||||||
Oil capacity | L | 1 L | 1.2 L | 2 L | 3 L | 4 L | 5 L | |||||||
Find More information from SOUZ VACUUM
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2: How can i storage the vacuum pump?
A2: Drain off the vacuum oil completely before kept in dry,clean indoor with temperatures between 0 -40℃.
Q3: Does this pump equipped with gas ballast valve ?
A3: Of course, all of our 2XZ series vacuum pump equipped with gas ballast valve.
Q3: Is the pump supplied with vacuum oil?
A3: Yes, all oil vacuum pumps are supplied with the first charge of 100# vacuum oil that sealed in a bottle in order to avoid leaks during the transportation. But not supplied if shipping by Airplane.
Q4: What are your payment terms?
A4: 30% T/T deposit, 70% against documents, or L/C at sight.
Q5: How long is your warranty?
A5: One year except the consumable spare parts.
Q6.Can I use any oil in my vacuum pump?
A6. NO. Vacuum pump MUST be using vacuum pump oil, no other motor oil,gear oil. .
Q7. Any other good service your company can provide?
A7. Yes,we can provide good after-sale and fast delivery.
A3: Yes, all oil vacuum pumps are supplied with the first charge of 100# vacuum oil that sealed in a bottle in order to avoid leaks during the transportation. But not supplied if shipping by Airplane.
Q4: What are your payment terms?
A4: 30% T/T deposit, 70% against documents, or L/C at sight.
Q5: How long is your warranty?
A5: One year except the consumable spare parts.
Q6.Can I use any oil in my vacuum pump?
A6. NO. Vacuum pump MUST be using vacuum pump oil, no other motor oil,gear oil. .
Q7. Any other good service your company can provide?
A7. Yes,we can provide good after-sale and fast delivery.
Похожие товары
Электрический/Мини Вакуумный насос серии N, запасные части для холодильного оборудования, одинарный/Воздушный вакуумный насос
5 179,10 ₽ - 5 610,69 ₽

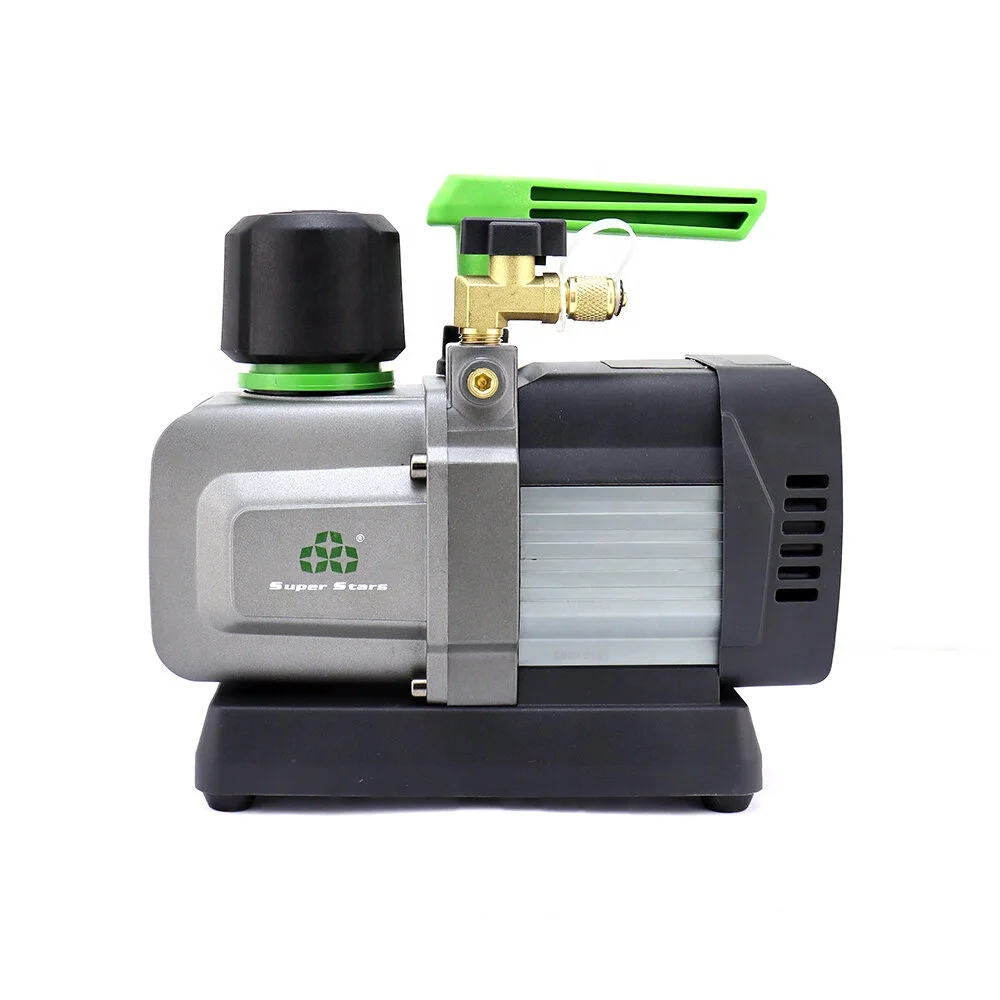

ST-2BM супер звезда Интеллектуальный двойной вакуумный насос 2.5CFM 50 Гц 60 Гц встроенный электромагнитный безопасный взрывозащищенный вакуумный насос без блесток
7 337,06 ₽ - 7 444,95 ₽
Горячая Продажа Портативный бесшумный вакуумный насос лабораторный вакуумный насос без масла
9 376,32 ₽ - 9 700,02 ₽

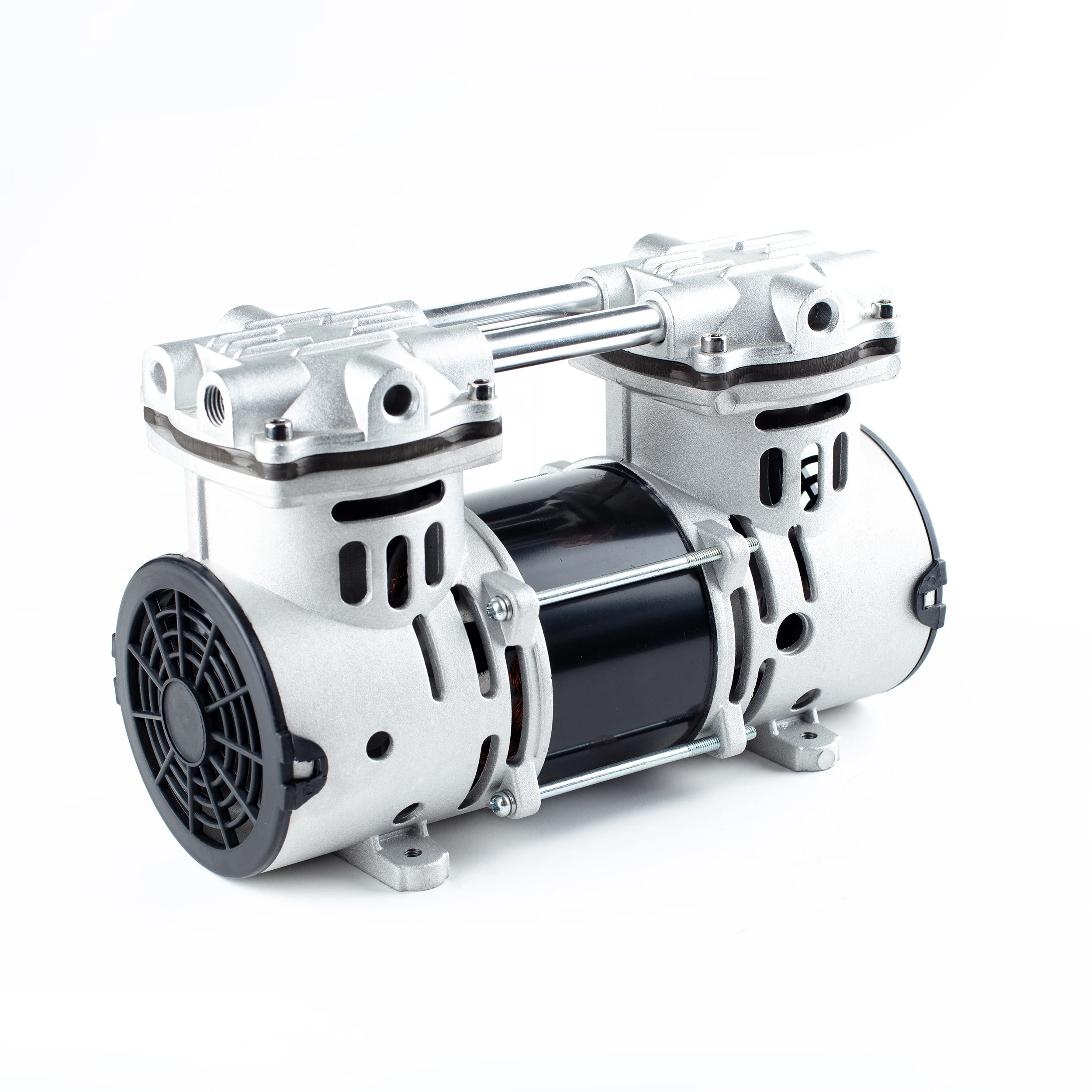

JINSUI, безмасляный вакуумный насос, масляный менее воздушный насос, 200 Вт, лабораторный всасывающий вакуумный насос, компрессор, двигатель
6 020,70 ₽ - 6 344,40 ₽

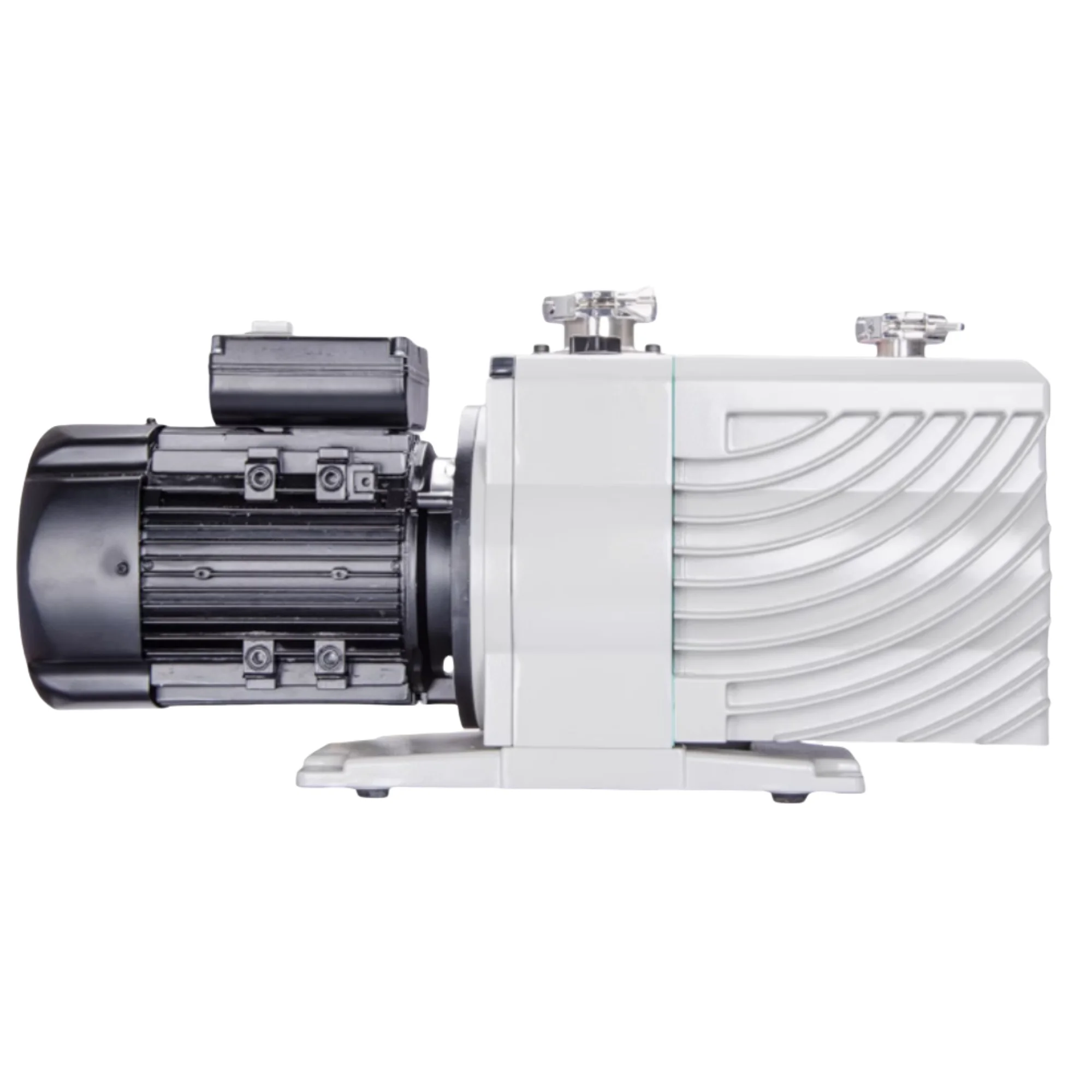

Высококачественный вакуумный насос с вращающейся лопастью, воздушный вакуумный насос, TRP-6 с двойной ступенью
