Гибридная солнечная панель 3Kw 24V 3Kva/3000W Mppt солнечный инвертор Гибридный солнечный инвертор с контроллером Mppt заряда
16 409,01 ₽ - 18 487,49 ₽
ЕС запас 6 2 кВт двойной выход 6200 ВА солнечный инвертор MPPT управление 48 В гибридный с разделенной фазой
- Категория: >>>
- Поставщик: Shanghai Huijue Network Communication Equipment Co. Ltd.
Сохранить в закладки 1601244171504:
Описание и отзывы
Характеристики
Product Paramenters
High frequency inverter data sheet | ||||
Model | GA5548MH | |||
Input | Phase | L+N+PE | ||
Nominal Voltage | 208/220/230/240VAC | |||
Voltage Range | 154-264VAC±3V（Normal Mode) 185-264VAC±3V（UPS Mode） | |||
Frequency Range | 50Hz/60Hz(Adaptive) | |||
Output | Rated Power | 5500W | ||
Output Voltage(AC) | 208/220/230/240VAC±5% | |||
Output Frequency | 50/60Hz±0.1% | |||
Waveform | Pure sine wave | |||
Transfer Time( Optional) | 10ms for computer , 20ms for home appliances | |||
Peak power | 11000VA | |||
Overload | Battery Mode： 1min@102%~110% Load 10s@110%~130% Load 3s@130%~150% Load 200ms@>150% Load | |||
Peak efficiency (battery mode) | >94% | |||
Battery | Rated voltage | 48Vdc | ||
Constant voltage charging voltage (Optional) | 56.4Vdc | |||
Floating charge voltage (Optional) | 54Vdc | |||
charger | PV charging method | MPPT | ||
PV max input power | 5500W | |||
MPPT tracking range | 120~430Vdc | |||
Max PV input voltage | 500Vdc | |||
Max PV charging current | 100A | |||
Max AC charging current | 100A | |||
Max charging current | 100A | |||
Display | LCD display | Operating mode/load/input/output, etc. | ||
Communication port | RS232 | 5PIN/Pitch2.0mm, baud rate 2400 | ||
Expansion & configuration port | 2×5PIN/Pitch2.54mm, lithium battery BMS communication card, WIFI card, dry contact card, etc. | |||
Parallel interface | Optional | |||
Environmental parameters | Operating environment temperature | 0~40℃ | ||
Operating environment humidity | 20%~95%（Non condensing） | |||
Storage temperature | -15~60℃ | |||
Altitude | The altitude should not exceed 1000m, derating above 1000m, up to 4000m, refer to IEC62040 | |||
noise | ≤50db | |||
Certifications | EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 | |||
Product Description
·The H series multi-function inverter/charger is a compact device that combines the functions of an inverter, MPPT solar charger, and battery charger to provide uninterrupted power support.
·At the same time, this inverter supports different types of batteries such as lead-acid and lithium-ion.
·With its user-friendly LCD display, users can easily configure settings such as battery charging current, AC/solar charger priority, and acceptable input voltage for various applications.
·At the same time, this inverter supports different types of batteries such as lead-acid and lithium-ion.
·With its user-friendly LCD display, users can easily configure settings such as battery charging current, AC/solar charger priority, and acceptable input voltage for various applications.
High frequency inverter
• High frequency inverter,lighter weight with higher efficiency
• Output power factor PF=1
• lithium battery activation start function with ac and solar mode
• Parallel function to expansion power

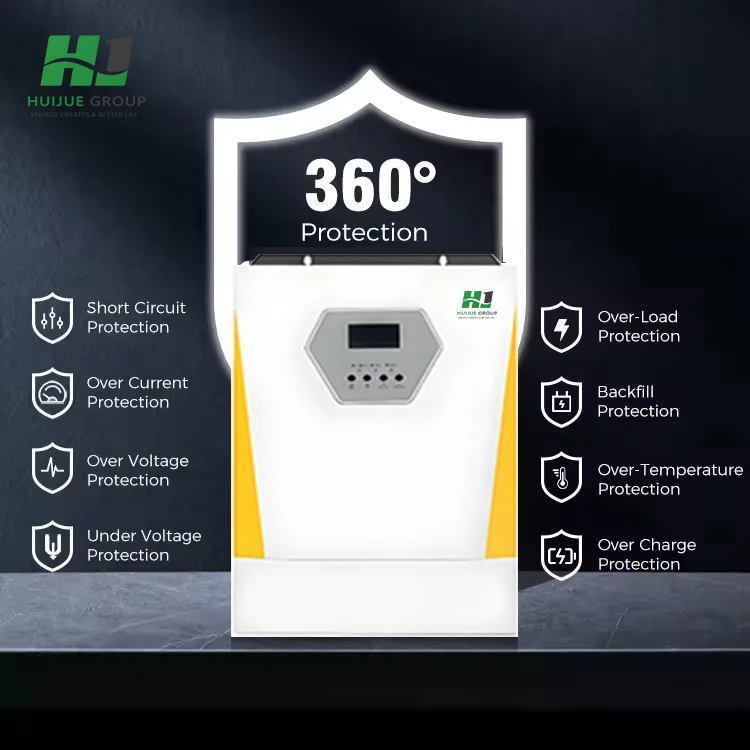

• Higher solar charging efficiency and battery protection
• Pure sine wave output, adaptable to different loads
• 450V high PV input
• Optional WIFI function
• Working with or without battery
• Output power factor PF=1
• lithium battery activation start function with ac and solar mode
• Parallel function to expansion power
• Higher solar charging efficiency and battery protection
• Pure sine wave output, adaptable to different loads
• 450V high PV input
• Optional WIFI function
• Working with or without battery
According to your needs, please feel free to contact us and know about other possible system architectures.

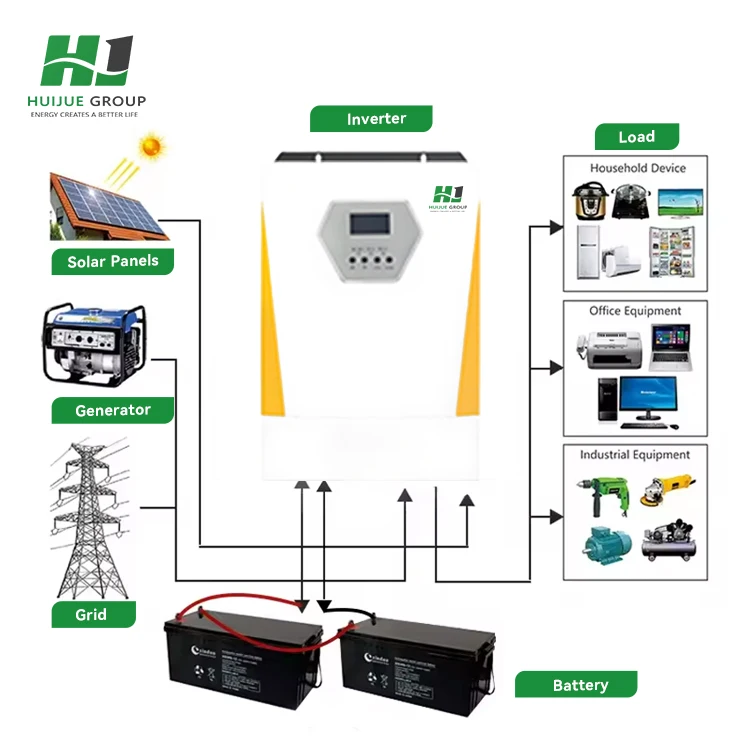

This inverter can power various electrical appliances in home or office environments, including light tubes, fans, refrigerators, air conditioners, and other motor-type appliances.
This inverter can power various electrical appliances in home or office environments, including light tubes, fans, refrigerators, air conditioners, and other motor-type appliances.
Remind:
To ensure the appropriate matching of the battery capacity for the system, it is crucial to consider the specific usage requirements of the load and application scenarios. Failing to do so can result in either insufficient battery capacity or excessive waste of power generation.
For more information, please consult the manual recommendation or CONTACT our online
customer service.
To ensure the appropriate matching of the battery capacity for the system, it is crucial to consider the specific usage requirements of the load and application scenarios. Failing to do so can result in either insufficient battery capacity or excessive waste of power generation.
For more information, please consult the manual recommendation or CONTACT our online
customer service.
Company Profile
Customer Photos
Certifications
Shipping&Packing&Payment
FAQ
Q1: Why you should choose us?
---More than 20 years Electrical Equipment factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 1-2 years warranty and 1% spare parts for free
---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001, ISO14001, CE, ROHS, UL, and so on
---All series product pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ,1 pc for sample checking is available.
Q7. Do you support OEM?
---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
---More than 20 years Electrical Equipment factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 1-2 years warranty and 1% spare parts for free
---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001, ISO14001, CE, ROHS, UL, and so on
---All series product pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ,1 pc for sample checking is available.
Q7. Do you support OEM?
---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Похожие товары
Гибридный солнечный инвертор 5 кВт 10 кВт, однофазный/трехфазный инвертор солнечной энергии, цена, сетчатый инвертор с ограничителем 2000 Вт
16 409,01 ₽ - 18 487,49 ₽
Однофазный Гибридный инвертор, 6 кВт, 8 кВт, 10 кВт
16 409,01 ₽ - 18 487,49 ₽

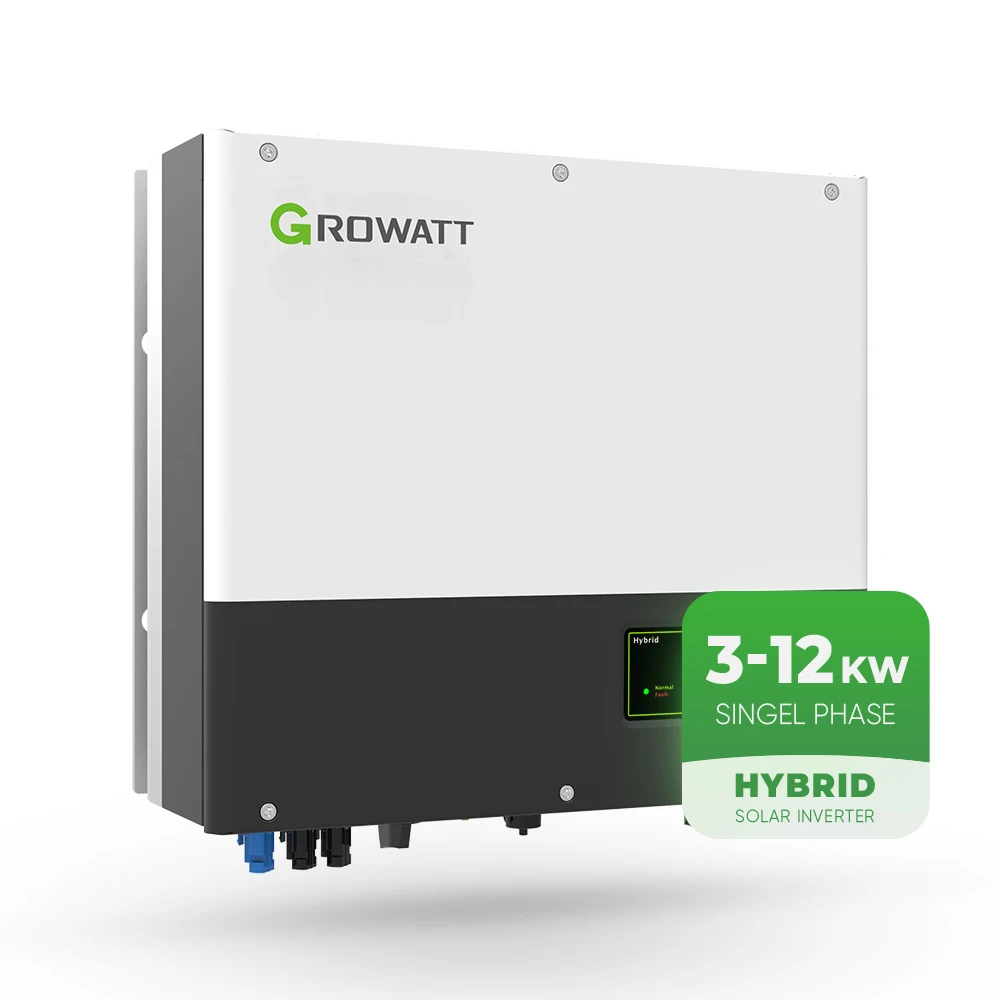

Гибридный инвертор Growatt, 24Vdc 230Vac 30 кВт, сетевой инвертор Growatt
65 526,65 ₽ - 185 859,39 ₽
4 кВт 6 кВт 7 кВт 8 кВт 10 кВт двойной выход от сети солнечный инвертор 24 В 48 В чистый синусоидальный Гибридный солнечный инвертор с контроллером MPPT
16 409,01 ₽ - 18 487,49 ₽
Новейший 3 кВт 5 кВт солнечный гибридный инвертор 450VDC Pv вход параллельный 9 единиц рабочий Wi-Fi монитор солнечное управление Char
16 409,01 ₽ - 18 487,49 ₽

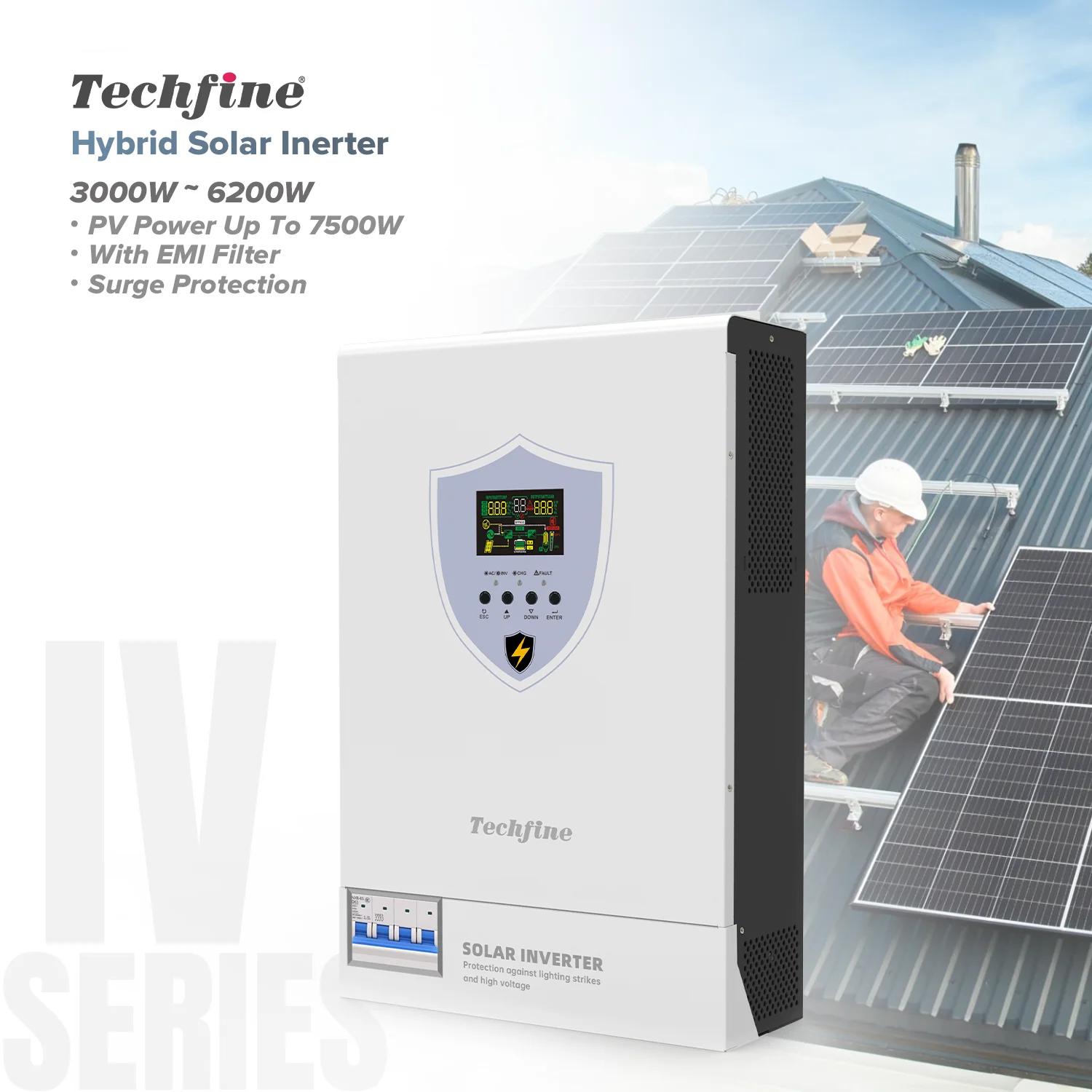

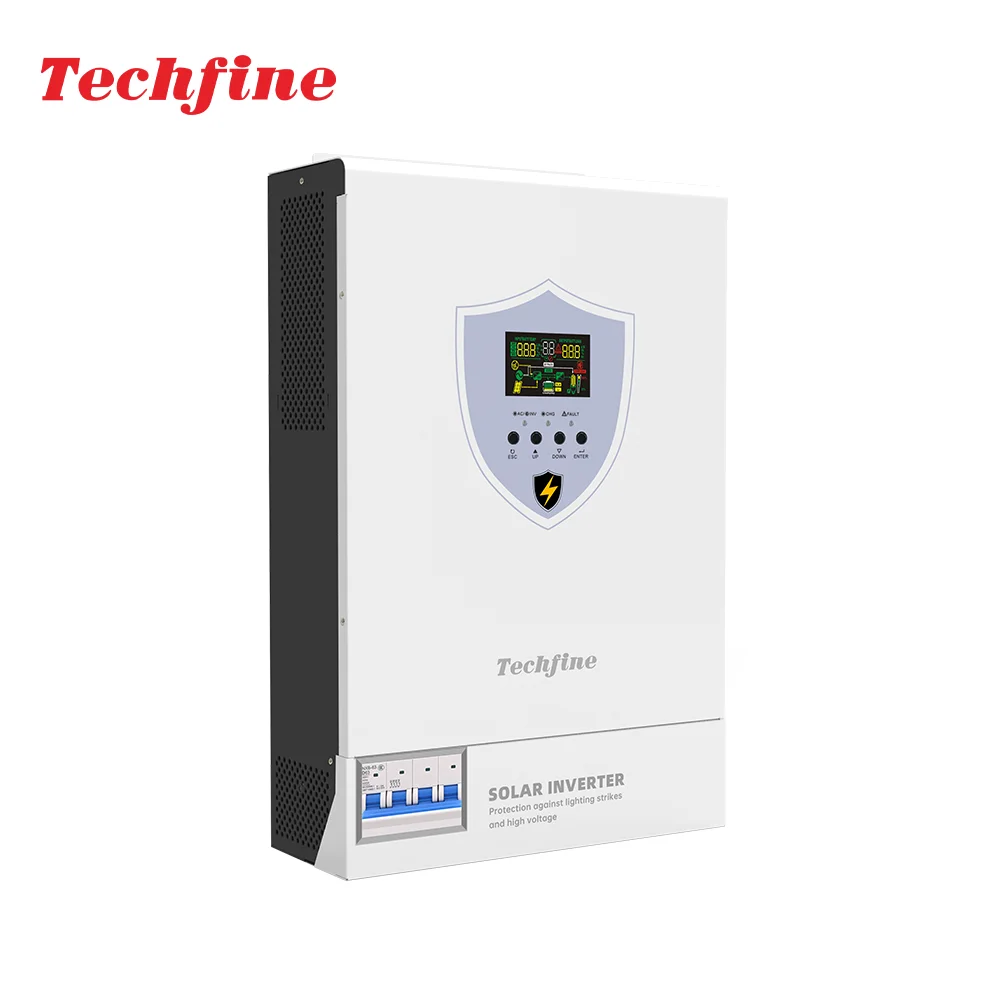

Домашний Двойной выход с молниезащитой 3 кВт 3,6 кВт 5,5 кВт 6,2 кВт 24 В солнечный инвертор Чистый синусоидальный 120A MPPT с фильтрацией EMI
