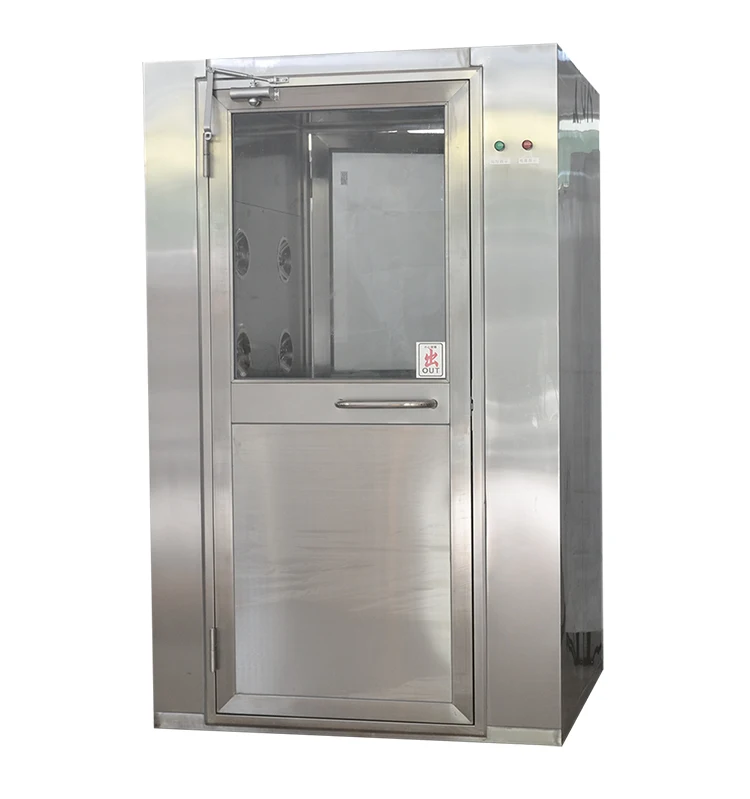

Воздушный ключ профессиональный электронный блокирующий воздухонепроницаемая коробка для модульного динамического канала чистой комнаты
30 543,92-31 675,17 ₽
Без пыли индивидуальный материал интеллектуальная система стандартная электронная персональный угловой воздушный Душ для мастерской Gmp
- Категория: >>>
- Поставщик: Dongguan Yichang Refrigeration Technology LimitedDongguan Limited
Сохранить в закладки 1601244293019:
Описание и отзывы
Характеристики
Product Description
* High velocity shower jets in excess of 25m/s ensure efficient scrubbing action to remove particulate matter.
* Operating modes can be programmed in the field.
* Control panel supervises all functions.
* HEPA filter, filtration achieves > 99.99% typical efficiency at 0.3 micron particles.
* A disposable pre-filter G4 extends the life of the main filter.
* An emergency stop button is mounted on sides of the shower.
* Auto-Inductive when people come into the booth and the air nozzle begin to work.
* Permanently lubricated direct drive centrifugal blowers are used in conjunction with stainless steel air nozzles.
* Interlock Door System.
* Operating modes can be programmed in the field.
* Control panel supervises all functions.
* HEPA filter, filtration achieves > 99.99% typical efficiency at 0.3 micron particles.
* A disposable pre-filter G4 extends the life of the main filter.
* An emergency stop button is mounted on sides of the shower.
* Auto-Inductive when people come into the booth and the air nozzle begin to work.
* Permanently lubricated direct drive centrifugal blowers are used in conjunction with stainless steel air nozzles.
* Interlock Door System.
Engineer drawing
Feature:
1. Fully auto controlled by computer, 2 mechanical interlocking door, automatically blow and shower.
2. Duration for showering can be adjusted from 0 second to 99 seconds with time display and voice prompt. It is easy to operate with membrane touch switches.
3. Floor and nozzles are made of quality stainless steel.
4. 99.99%@0.3μm, Efficiency can reach 99.99%@0.3μm with Pre filter and Hepa filter.
5. Air velocity can up to 25m/s. professional and fast design, non-standard products.
1. Fully auto controlled by computer, 2 mechanical interlocking door, automatically blow and shower.
2. Duration for showering can be adjusted from 0 second to 99 seconds with time display and voice prompt. It is easy to operate with membrane touch switches.
3. Floor and nozzles are made of quality stainless steel.
4. 99.99%@0.3μm, Efficiency can reach 99.99%@0.3μm with Pre filter and Hepa filter.
5. Air velocity can up to 25m/s. professional and fast design, non-standard products.
Alternative Configuration:
a. Stainless steel construction
b. Intercom
c. Ultraviolet sterilizing lamp/yellow light
d. Buzzer
e. Non-flooring-plate design (easy for light- weight vehicle in and out)
f. Automatic door
g. Non-standard air shower cleanroom is available
b. Intercom
c. Ultraviolet sterilizing lamp/yellow light
d. Buzzer
e. Non-flooring-plate design (easy for light- weight vehicle in and out)
f. Automatic door
g. Non-standard air shower cleanroom is available
Production test & proceeding
1. There are 10 automatic welding machines, and 2 laser welding machines.
2. Full welding instead of spot welding.
3. Equipment verification support.
4. Process:
Product Design - Laser Cutting - CNC Bending - Automatic Welding - Polishing - Testing & Commissioning
2. Full welding instead of spot welding.
3. Equipment verification support.
4. Process:
Product Design - Laser Cutting - CNC Bending - Automatic Welding - Polishing - Testing & Commissioning
Specification
Model | JY-AR-1290 | JY-AR-1500 | JY-AR-2000 | JY-AR-2500 | |||
External size | 1240*1000*2100 | 1240*1500*2100 | 1240*2000*2100 | 1240*2500*2100 | |||
internal size | 790*1000*1950 | 790*1500*1950 | 790*2000*1950 | 800*2500*1950 | |||
power supply | AC,1PH,220V 50/60HZ or AC, 3PH, 380V, 50/60HZ | ||||||
consumed power | 1100w | 1500w | 2200w | 2500W | |||
No of nozzles | 12pcs | 18pcs | 24pcs | 48pcs | |||
air speed | 20-25m/s | ||||||
air shower time | 0-99s adjustable, standard is 10s | ||||||
HEPA FILTER | H13 or H14, 99.99%@0.3um or 99.995%@0.3um | ||||||
material | SUS304, SUS201, baking finished optional | ||||||
NO. of person capacity | 1-2 | 2-3 | 3-4 | 4-6 | |||
Remark | specification can be customized according to customer's requirement | ||||||
Stainless steel 304
Stainless steel 201
External:cold steel coated Internal: SUS304/SUS201

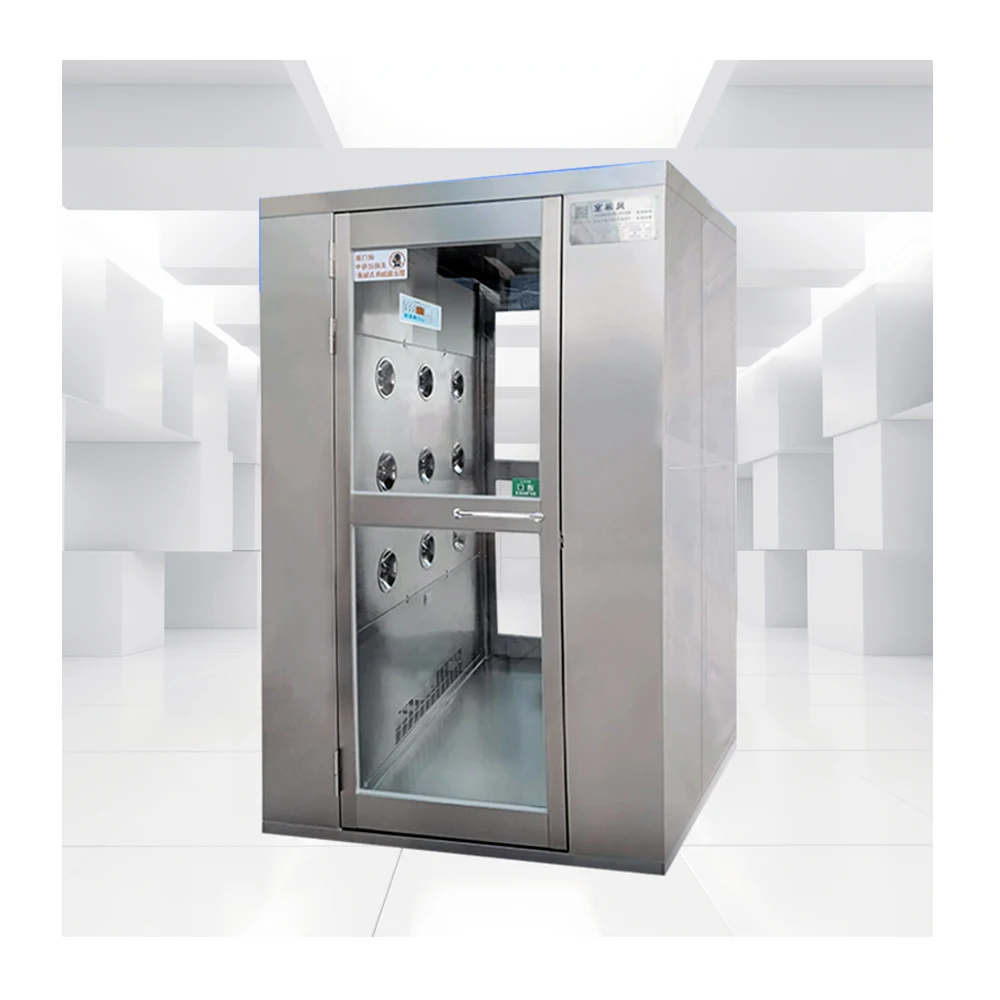

Single person air shower | |
External size | 1290*1000*2050mm |
Internal size | 790x1000x1930mm |
Material | Baking steel |
HEPA Filter size | 610*610*50 ,1pc |
Nozzle | 12pcs |
Power supply | 1100W, 380V(220V optional) |
Roller door air shower | |
External size | 2000*3000*2050mm |
Internal size | 1500*2900*1960mm |
Material | SUS304/201 |
HEPA Filter size | 610*610*120 |
Power supply | 2400W,380V(220V optional) |

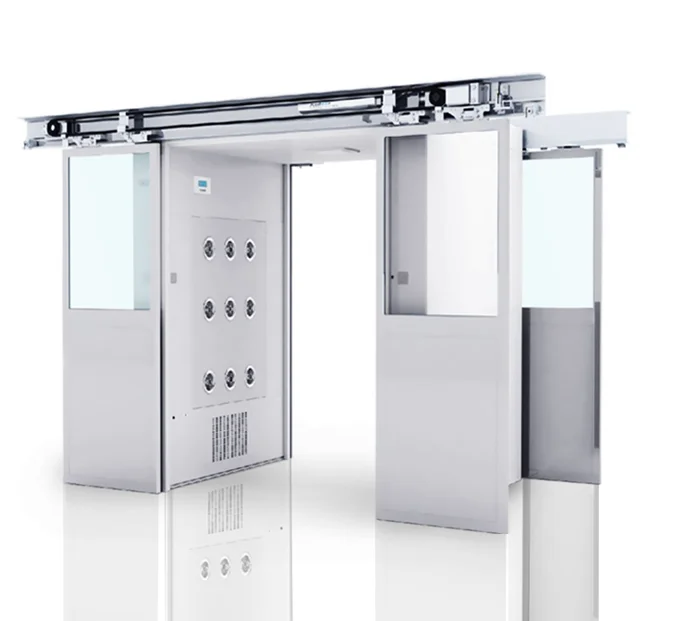

Sliding door air shower | |
External size | 1800*1500*2240mm |
Internal size | 800*1400*1960mm |
Material | High-Quality 1.2 mm Cold-Rolled Steel Plate |
HEPA Filter size | 610*610*120 |
Nozzle | 24pcs |
Power supply | 1500W,380V(220V optional) |

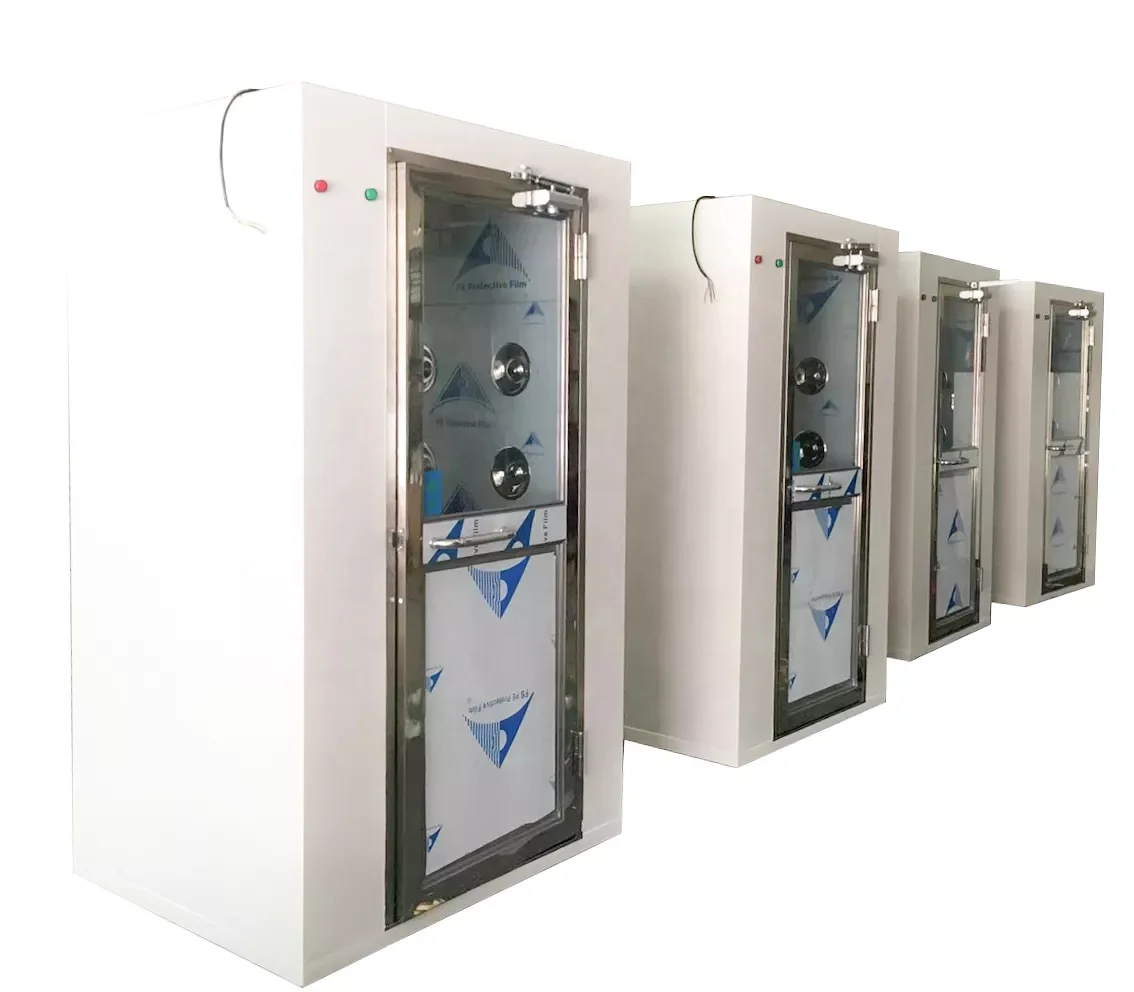

Customized product display
OEM, OEM Production services.
Independent R&D team, one-stop solution for cleanroom projects.
Related Products
Company Profile
Certification
Packing & Delivery
carton/plywood case
Our Service
FAQ
1. who are we?
We are based in Guangdong, China, start from 2019,sell to Western Europe(30.00%),North America(30.00%),Africa(20.00%),South
America(10.00%),Southeast Asia(10.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy frrom us?
We are based in Guangdong, China, start from 2019,sell to Western Europe(30.00%),North America(30.00%),Africa(20.00%),South
America(10.00%),Southeast Asia(10.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy frrom us?
Clean room equipment, doors, clean room sandwich panel and operating room etc.
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,Western Union,Cash;
Language Spoken:English,Chinese
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,Western Union,Cash;
Language Spoken:English,Chinese
