Система для сбора шерсти волоконного типа с маятниковым барабаном
- Категория: >>>
- Поставщик: Hebei Guangxing Machinery Technology Co. Ltd.
Сохранить в закладки 1601244308946:
Описание и отзывы
Характеристики
Specification
Product name | Cotton Collection Pendulum |
Diameter | 5000mm |
Drum center elevation | 4900mm |
Speed | 40~120 m/min |
Conveyor belt width | 2800mm |
Power | 49.6KW |
Slewing bearing | customized, providing centralized lubrication |
Color | Customer's Requirement |
Type | Automatic |
Usage | Collection |

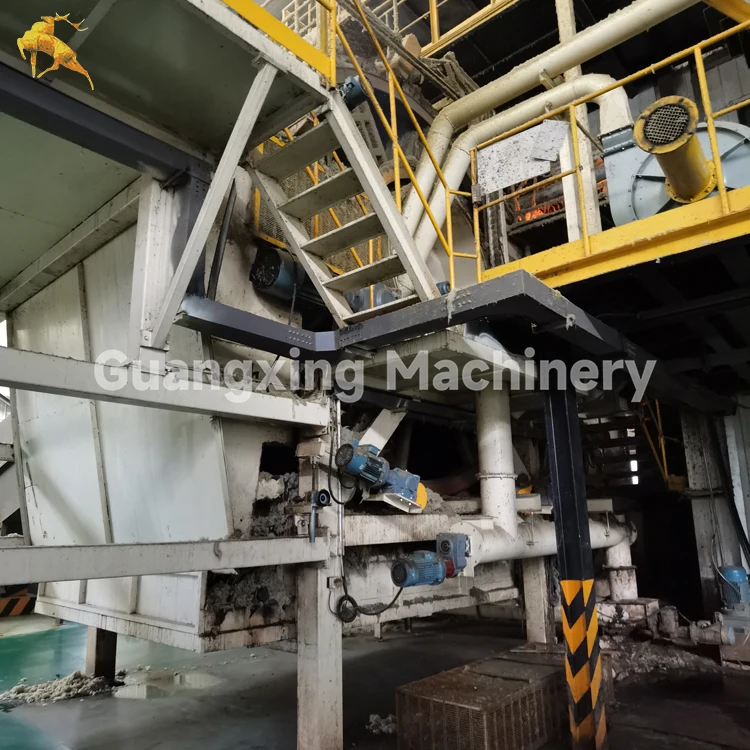

The drum-type cotton collecting machine consists of a slag and cotton separation part (including a slag removal roller, a slag ball baffle, a slag removal collection box, a slag collection reamer, etc.), a cotton collection part (including a cotton
collection chamber, a negative pressure air box, a hollow shaft, a rotary Support, drum transmission system, etc.), screen
cleaning device (including automatic cleaning car, high-pressure cleaning pump, three sets of cleaning rollers, high-pressure cleaning water gun, blow-drying device, etc.), cotton lifting system, automatic refueling and lubrication system, automatic slag discharge Device (including inner reamer, outer reamer, lower reamer, double reamer, single reamer, inner scraper, outer scraper) and other components. The frame is a steel structure, the transmission system is bearing transmission, the drum is equipped with a mesh plate, and a negative pressure air induction chamber is installed under the mesh plate. Under the action of the fan, a negative pressure is formed in the air induction chamber, and the cotton fibers are pulled down. On the stencil. The fan filters and empties through the settling chamber of the negative pressure room.
collection chamber, a negative pressure air box, a hollow shaft, a rotary Support, drum transmission system, etc.), screen
cleaning device (including automatic cleaning car, high-pressure cleaning pump, three sets of cleaning rollers, high-pressure cleaning water gun, blow-drying device, etc.), cotton lifting system, automatic refueling and lubrication system, automatic slag discharge Device (including inner reamer, outer reamer, lower reamer, double reamer, single reamer, inner scraper, outer scraper) and other components. The frame is a steel structure, the transmission system is bearing transmission, the drum is equipped with a mesh plate, and a negative pressure air induction chamber is installed under the mesh plate. Under the action of the fan, a negative pressure is formed in the air induction chamber, and the cotton fibers are pulled down. On the stencil. The fan filters and empties through the settling chamber of the negative pressure room.
Item | Parameter |
Diameter of Wool Collecting machine | 5600mm |
Width of Wool Collecting Machine | 2500mm |
Operation Speed | 50 –120m / min |
Speed Reducer Power | 15 KW |
Blowing Fan | 3KW |
Cleaning/Drying Fan | 18.5 KW |
Negative Pressure Fan | 315 KW |

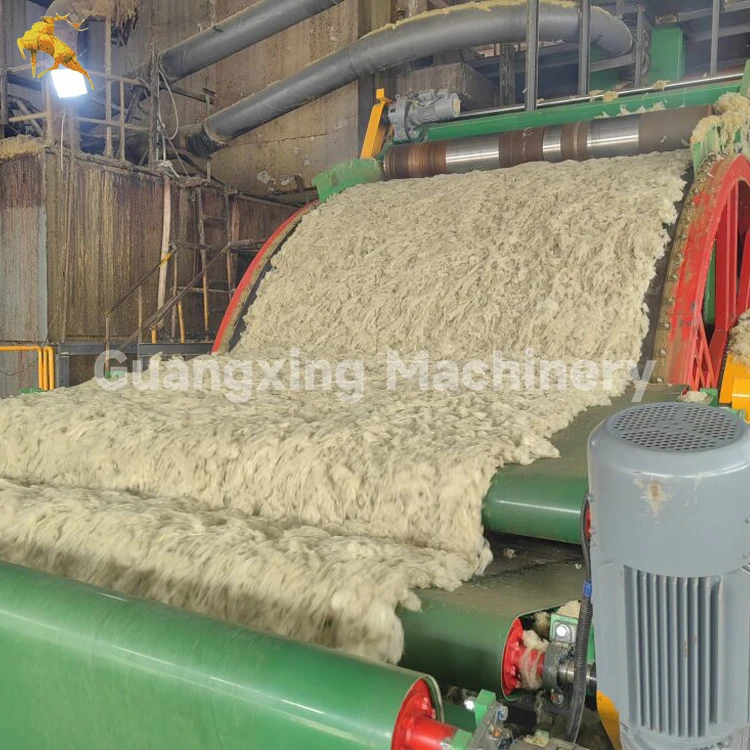

Wool fibres are pulled off onto the net board. Wool collecting machine collects wool fibres from centrifugal machine onto the net belt, forming a uniform layerof original wool fibre blanket, which is then transformed to pendulum wool allocating conveyor.
Company Profile
Hebei Guangxing Machinery Technology Co., Ltd. was founded in 1987. It is a professional manufacturer of exterior wall insulation equipment and composite panel equipment. It is the largest and most competitive enterprise in the same industry in China.
The rock wool production line, polyurethane rock wool color steel composite panel production line and EPS phenolic foam production line developed by our company have all reached the international advanced level and have passed ISO9001 quality management system certification. The products sell well in more than 30 provinces, cities and autonomous regions, and are exported to Europe, Central Asia and Southeast Asia. With first-class technology and first-class products, the company provides customers with high-quality services from product design, research and development, production, installation training to after-sales. It is regarded by the majority of users as an excellent enterprise that "keeps its promise and values service", and has been awarded the famous brand product of Hebei Province. welcome experts, friends, new and old customers from all walks of life to patronize and communicate with us to create brilliance and win-win future together.
Customer Photos
Shipping
FAQ
Q: Where is the factory located?
A: We are located in Xinji, Hebei Province, near Beijing airport. You could fly to Beijing Airport, we could pick you there.
Q: Do you accept on-site inspection to check your machine and your factory?
A: Before shipment, every equipment will be trail tested in our factory, we invite all the client to do on-site inspection during
trail testing.
Q:What payment terms do you prefer?
A: T/T, L/C, West Union, Cash etc.
Q:How long is the validity of quotation?
A:Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
Q: What payment terms do you prefer?
A: T/T, L/C, West Union, Cash etc.
Q:How long is the validity of quotation?
A:Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
Q:What is your delivery time?
A:Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 1-3
month,It depend on the order quantity.
Q:Do you provide OEM/ODM Service?
A:Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
Q:How can we ensure quality?
A:The final inspection is always carried out before shipment.
Q:How to install the equipment after purchasing?
A:We will provide a professional installation video to illustrate.Also provide a manual.
Q:Do you offer a guarantee?
A:Yes, we guarantee our product for one year. Provide after-sales service support with and agricultural technical support.
Q:What is your MOQ?
A:1Sets
A: Before shipment, every equipment will be trail tested in our factory, we invite all the client to do on-site inspection during
trail testing.
Q:What payment terms do you prefer?
A: T/T, L/C, West Union, Cash etc.
Q:How long is the validity of quotation?
A:Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
Q: What payment terms do you prefer?
A: T/T, L/C, West Union, Cash etc.
Q:How long is the validity of quotation?
A:Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
Q:What is your delivery time?
A:Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 1-3
month,It depend on the order quantity.
Q:Do you provide OEM/ODM Service?
A:Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
Q:How can we ensure quality?
A:The final inspection is always carried out before shipment.
Q:How to install the equipment after purchasing?
A:We will provide a professional installation video to illustrate.Also provide a manual.
Q:Do you offer a guarantee?
A:Yes, we guarantee our product for one year. Provide after-sales service support with and agricultural technical support.
Q:What is your MOQ?
A:1Sets
