Станок для лазерной резки волокна SUDA, простота в эксплуатации для металла, нержавеющая сталь, высокая точность, волоконно-лазерная резка, распродажа
1 240 824,70 ₽ - 1 564 518,10 ₽
Китай высокой мощности лазерной резки 12000 Вт цена/ЧПУ волоконно лазерный резак листового металла
- Категория: >>>
- Поставщик: Jinan Huaxia Machinery Equipment Co. Ltd.
Сохранить в закладки 1601244448170:
Описание и отзывы
Характеристики
Product Description

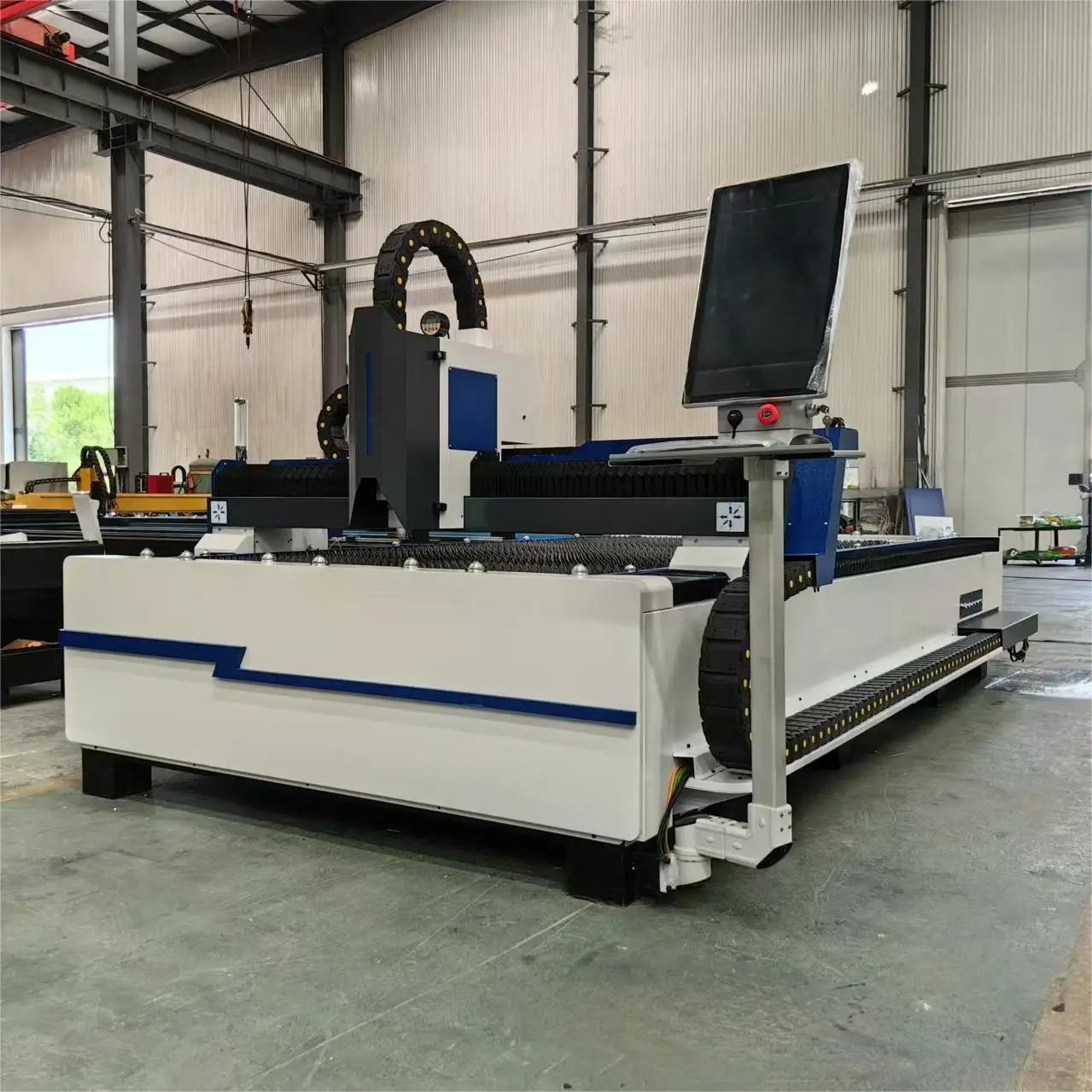

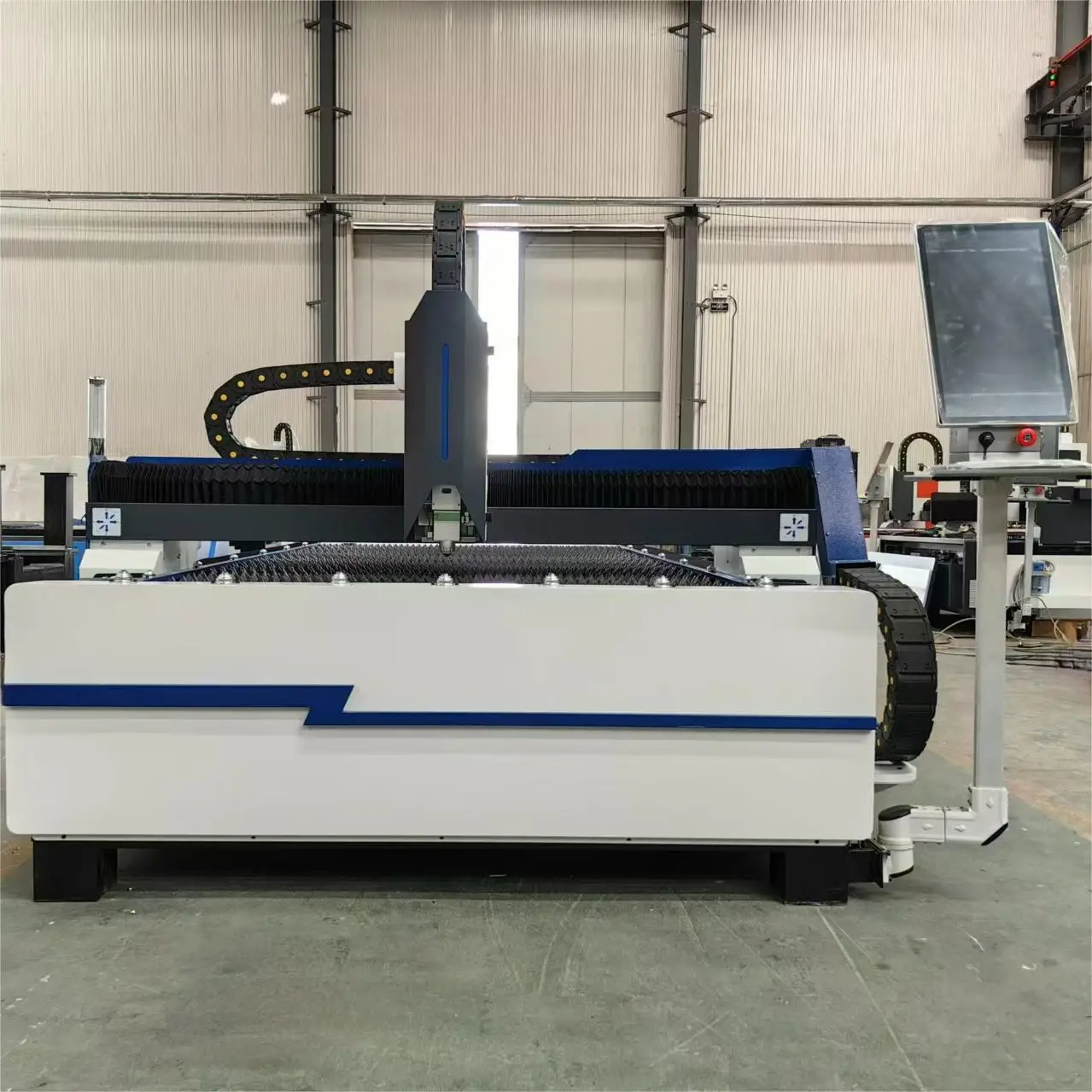

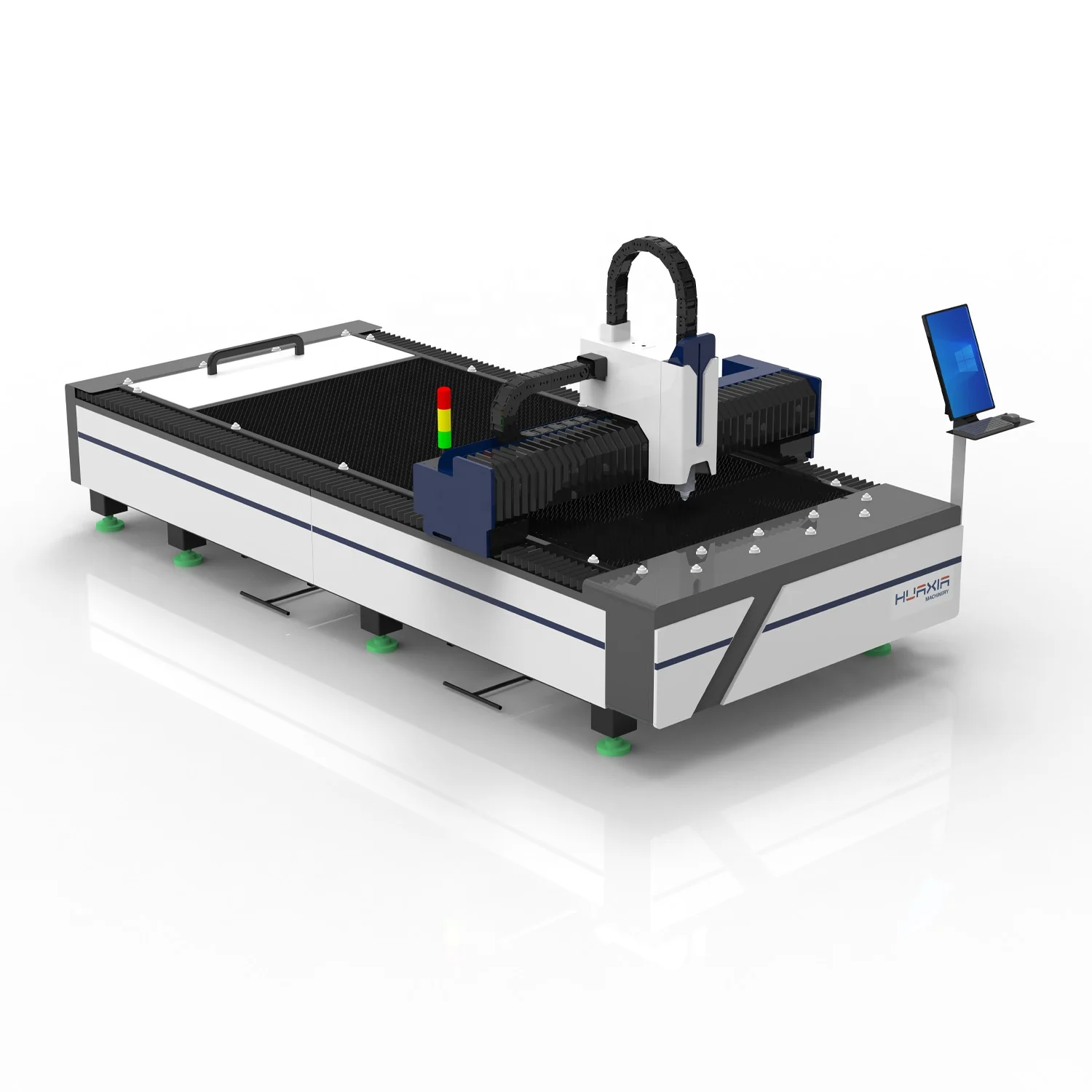

HUAXIA Metal Sheet CNC Fiber Laser Cutting Machine
Metal Plate Laser Cutter
Machine Features：
1.High performance laser equipment, stable operating system, so that the cutting effect to achieve the best.
2. Perfect cooling, lubrication, dust removal system to ensure stable, efficient and durable machine operation.
3. Single table, equipped with auxiliary loading and unloading plate function, improve processing efficiency.
4. Large size closed box, improve the dust removal effect, avoid light pollution.
5. Automatic height adjustment performance, keep the focal length constant, excellent and stable cutting effect
6. Gantry type structure, embedded cast aluminum beam, so that the equipment strong rigidity, good stability, good anti-knock performance.
2. Perfect cooling, lubrication, dust removal system to ensure stable, efficient and durable machine operation.
3. Single table, equipped with auxiliary loading and unloading plate function, improve processing efficiency.
4. Large size closed box, improve the dust removal effect, avoid light pollution.
5. Automatic height adjustment performance, keep the focal length constant, excellent and stable cutting effect
6. Gantry type structure, embedded cast aluminum beam, so that the equipment strong rigidity, good stability, good anti-knock performance.
Details and Advantages
Main parameter
Model | HXF-3015/4015/4020/6020 |
Working Area | 3000*1500mm (customizable) |
Laser Generator | Raycus/IPG/MAX |
Laser Power | 1000w/1500w/2000w/3000w/4000W/6000W |
Location Accuracy | ±0.01mm |
Repeat Location Accuracy | ±0.01mm |
Max Moving Speed | 140m/min |
Materials Thickness | Max 40mm |
Machine Color | Customizable |
Machine Warranty | 3 Years |
Applicable Materials | Stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titaniu metc metal plate |
Specified voltage and frequency | 380V/50Hz~60Hz/60A(Customizable) |
Fiber Laser Cutting Machine Description:
1. Laser power: 1000W, 1500W, 2000W, 3000W, 4000W, 6000w, 10000w, 12000w, etc.
2. Laser generator: JPT, RAYCUS, MAX, RECI, IPG etc.3. Cutting materials: Iron, aluminum, carbon steel, stainless steel, copper, hardware and another metal sheet materials.
4. Other machine optional parts can be chosen, such as, rotary axis, exchange working table, full cover, etc.
5. China fiber laser machine cutting manufactuers, low cost and best quality, with CE, ISO etc certificates.

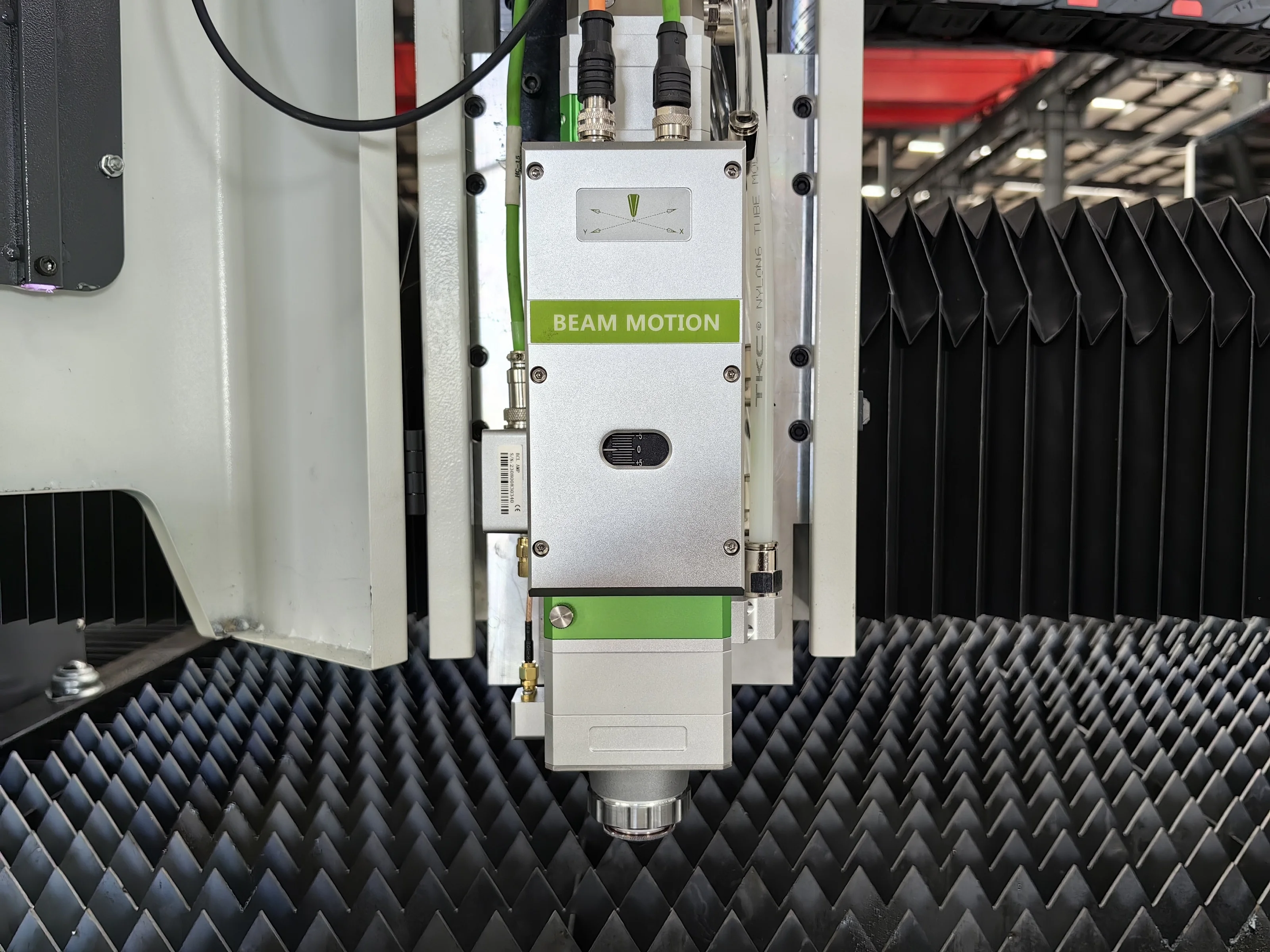

Auto-focus laser head
The laser head is made of high quality materials in accordance with advanced technology. Professional laser cutting head, stable and reliable technology, completely sealed inside the laser head, can avoid dust pollution to the optical part. The protective lens is installed in a drawer, which is convenient for replacement.
Laser cutting CNC system
The special CNC system of intelligent laser cutting machine is adopted to realize automatic edge searching, automatic typesetting, automatic focusing, automatic cutting, convenience and efficiency.
A set of software specially customized for laser cutting industry, easy to use, rich in functions, suitable for various processing occasions.
High precision bed
High quality square tube welding and three pass welding process are adopted, which are sturdy and durable. The structural materials are annealed at high temperature to eliminate internal stress, so that the machine bed can maintain good mechanical properties such as tensile strength, toughness, hardness and deformation resistance.
Laser generator of famous brand. Higher photoelectric conversion efficiency, more stable beam quality, stronger anti-high-reflection ability, to achieve better cutting results
Driver system. High precision servo motor, high-precision reducer, high-precision guide rail and rack are used to ensure the high speed and acceleration of the whole machine.
Laser cutting machine equipped with independent water cooling system, efficient cooling, protect the laser head and generator constant temperature operation.

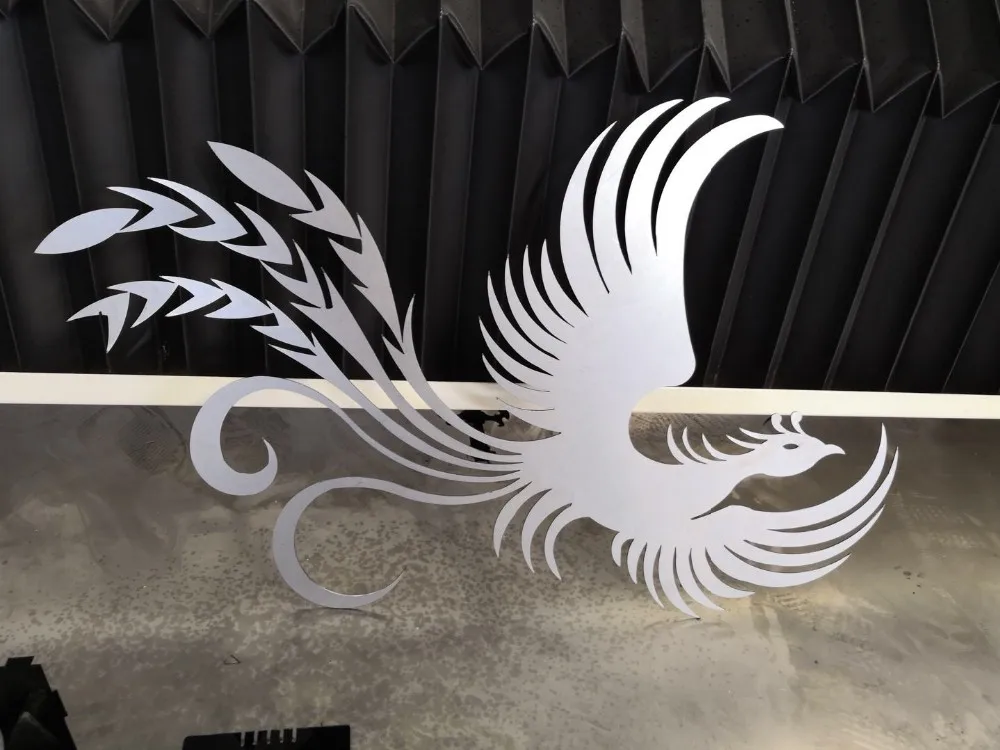

Cut Sample
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel , Mild Steel Plate, Carbon Steel, Alloy Steel
Plate, Spring Steel, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
Plate, Spring Steel, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
Different cutting thickness depends on different laser power selection in sheet metal laser cutting machine.
Applicable to the industry
Why choose us
Company Information
Packing & Delivery
FAQ
Q1. How can I get the suitable machine ?
Please tell us the materials you need to process , and the materials size like the length , width and thickness , we will suggest suitable machine according to your requirement.
Q2. What about the after-sale service for this machine?
We support 24 hours online service, and can use remote control to help you check and solve the problem. And we also support door service to install and teaching.
Q3. How do I install the machine after I receive it?
We have prepared a complete user manual, installation preparation guide and installation video. These documents will be sent to you in advance and you can prepare according to them. After the machine arrives, we will set up an online group where our engineers will be available to guide you, and we will stay online 24 hours a day.
Q4. Does the machine have CE , ISO and other safety certificates?
All our machines has safety certificates. You can ask for the electronic version of the certificate with our sales staff.
Q5. What is the delivery time for the machine?
Fast delivery. The delivery time for most machine models is usually within 15-30 working days.
Q6. Why should you buy from us not from other suppliers?
Our company has 20 years experience in this field ,owns 4 automatic production lines, and the annual production capacity of laser cutting machines exceeds 1,500 units. All machines passed the European CE authentication, ISO 9001 certificate .
Please tell us the materials you need to process , and the materials size like the length , width and thickness , we will suggest suitable machine according to your requirement.
Q2. What about the after-sale service for this machine?
We support 24 hours online service, and can use remote control to help you check and solve the problem. And we also support door service to install and teaching.
Q3. How do I install the machine after I receive it?
We have prepared a complete user manual, installation preparation guide and installation video. These documents will be sent to you in advance and you can prepare according to them. After the machine arrives, we will set up an online group where our engineers will be available to guide you, and we will stay online 24 hours a day.
Q4. Does the machine have CE , ISO and other safety certificates?
All our machines has safety certificates. You can ask for the electronic version of the certificate with our sales staff.
Q5. What is the delivery time for the machine?
Fast delivery. The delivery time for most machine models is usually within 15-30 working days.
Q6. Why should you buy from us not from other suppliers?
Our company has 20 years experience in this field ,owns 4 automatic production lines, and the annual production capacity of laser cutting machines exceeds 1,500 units. All machines passed the European CE authentication, ISO 9001 certificate .
