AVA-P10

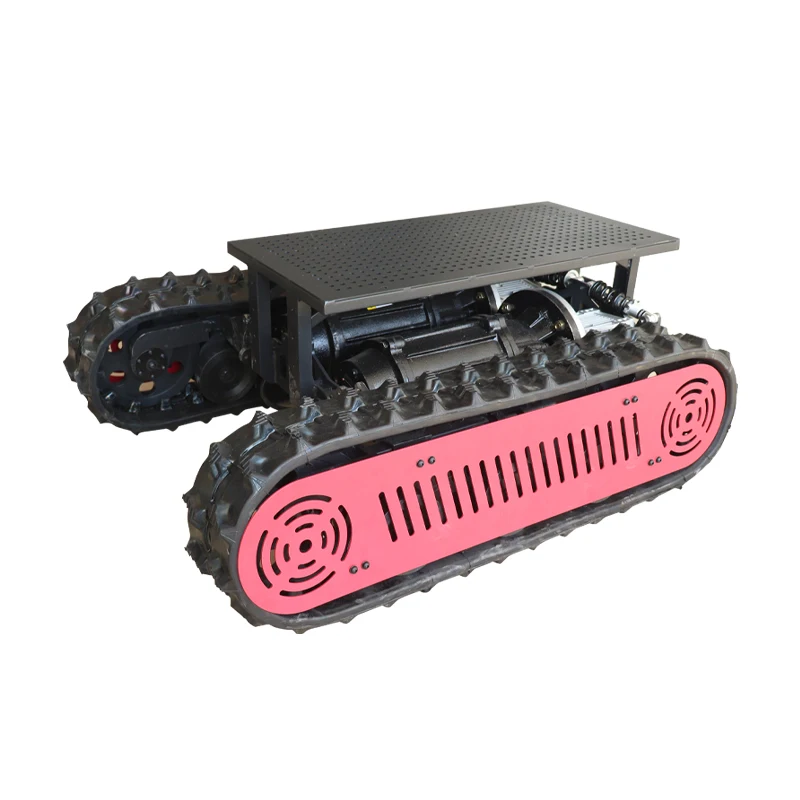

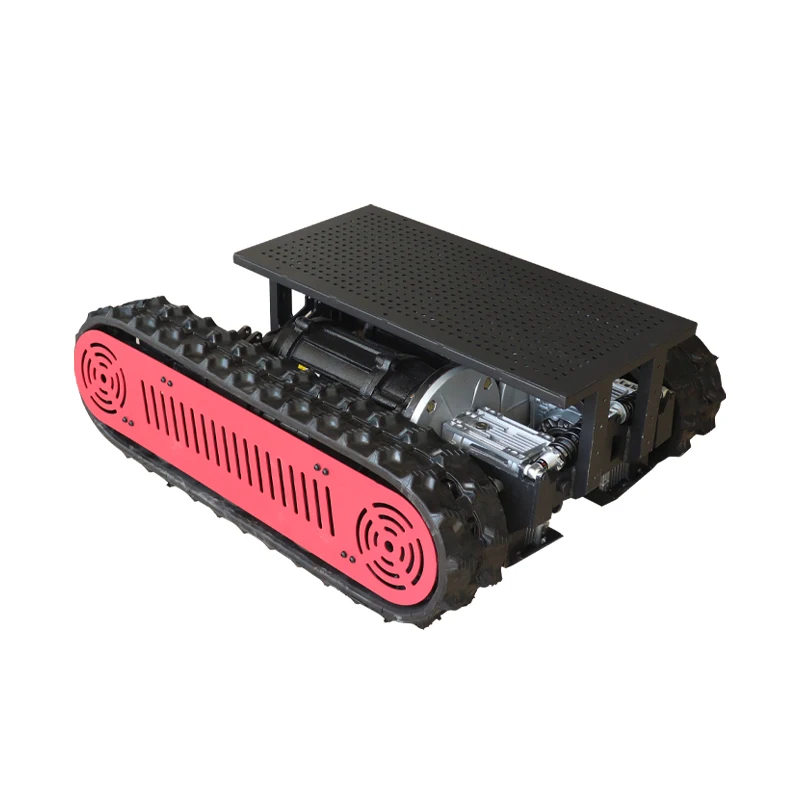

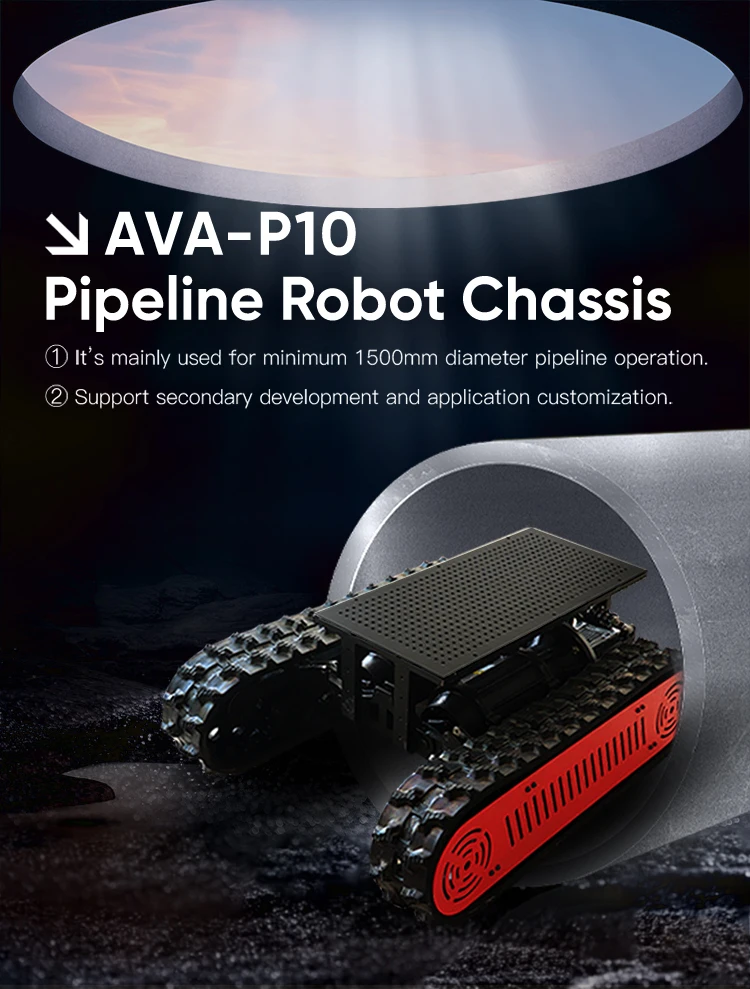

The Pipeline Robot Chassis is mainly used for operations in 1500mm diameter horizontal pipelines. It can be equipped with cameras, detection equipment, etc.

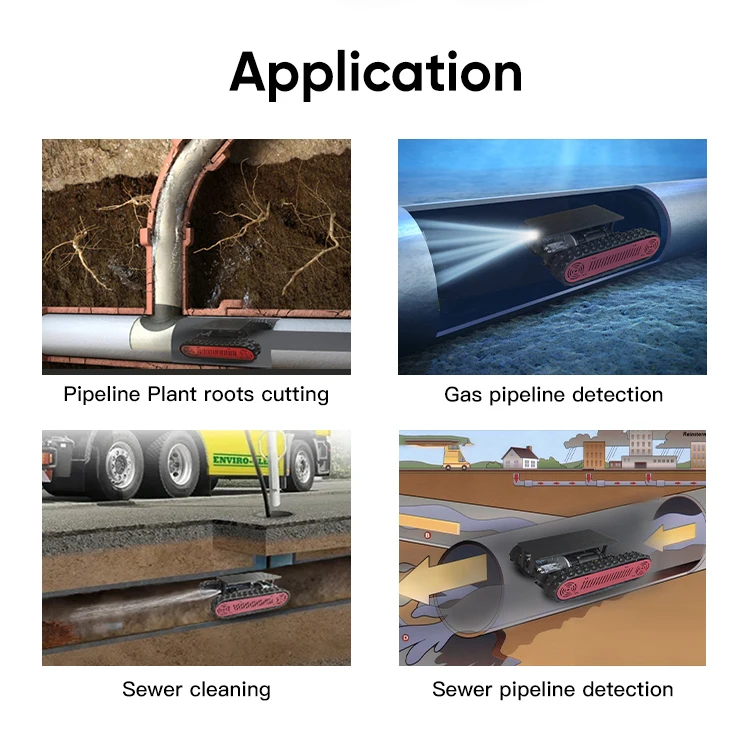

Application:
It’s mainly used for minimum 1500mm diameter pipeline operation.
Support secondary development and application customization.
1. Pipeline Plant roots cutting
2. Sewer cleaning
3. Sewer pipeline detection
4. Urban pipe network laying
5. Gas pipeline detection
6. Pipe garbage collecting
It’s mainly used for minimum 1500mm diameter pipeline operation.
Support secondary development and application customization.
1. Pipeline Plant roots cutting
2. Sewer cleaning
3. Sewer pipeline detection
4. Urban pipe network laying
5. Gas pipeline detection
6. Pipe garbage collecting
Parameters | ||||||
Dimension: | 1100*710*420mm | Cable winder size: | 1200*950*1150mm | |||
Drive wheel diameter | 260mm | Travel speed: | 4km/h | |||
Track width | 150mm | Cable length: | 50m (can be customized to 600m) | |||
Maximum operating power: | 3KW*2 | Maximum climbing grade: | 30° | |||
Control mode | Cable control | Maximum track span: | 800mm | |||
Robot self-weight: | 210Kg (approximate) | Cable winder self-weight: | 190Kg (approximate) | |||
Waterproof grade: | IP68 (50m， 150m, can be customized for 300m depth underwater) | |||||
Advantages:

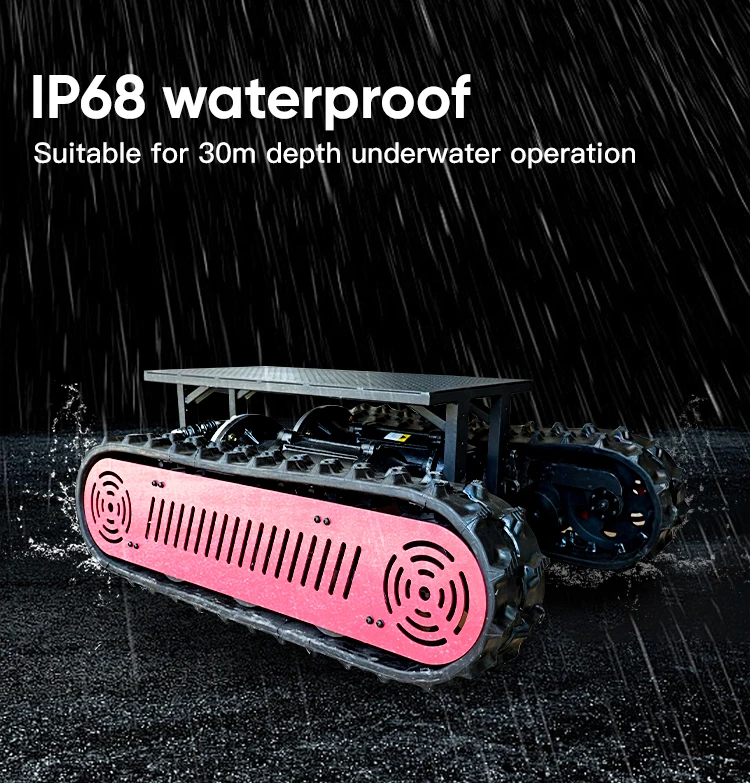

1. Oil seal motor, suitable for 30m depth underwater operation.
2. The tracks can adjust the angle automatically to fit the round pipe, strong grip, suitable for both square and round pipes.
3. The front can be equipped with siphon mud pump, reamer, high-pressure water gun and other cleaning tools to cut the plant
roots and other sediments at the pipe junction.
4. High-voltage drive, standard wire control distance 50 meters, maximum 600 meters.
5. Optional remote controller.

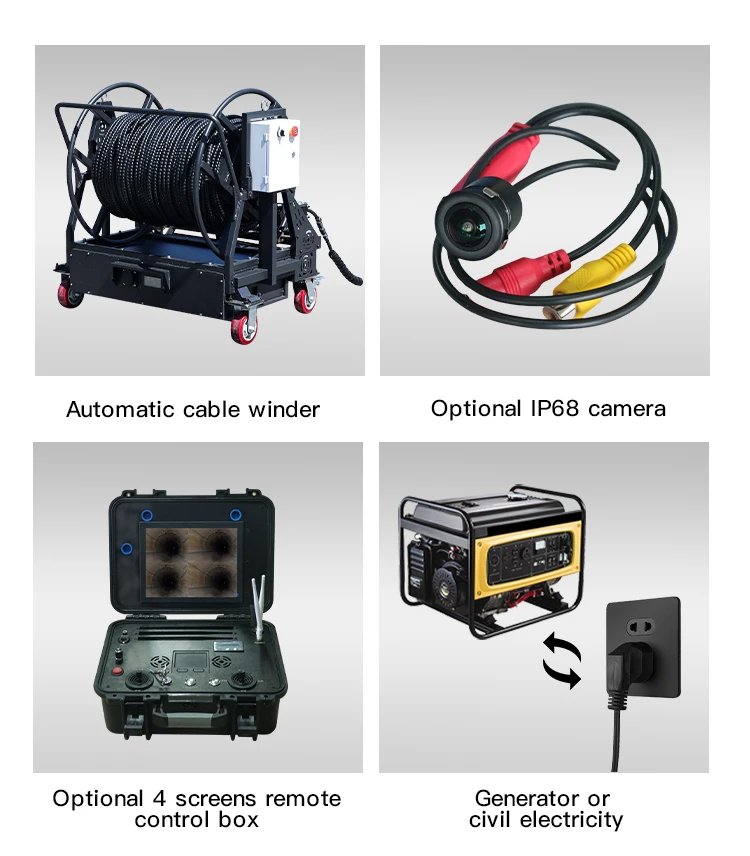

6. Optional IP68 underwater camera, visual operation.
1. Oil seal motor, suitable for 30m depth underwater operation.
2. The tracks can adjust the angle automatically to fit the round pipe, strong grip, suitable for both square and round pipes.
3. The front can be equipped with siphon mud pump, reamer, high-pressure water gun and other cleaning tools to cut the plant
roots and other sediments at the pipe junction.
4. High-voltage drive, standard wire control distance 50 meters, maximum 600 meters.
5. Optional remote controller.
6. Optional IP68 underwater camera, visual operation.
Packing and Shipping
Within 3-5 working days
Services | ||
1 year warranty for main parts | During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight. | |
Spare Parts | most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients. | |
Operation and Maintenance | we will offer you detailed operation manual, ensuring you can use it perfectly. | |
Online support | Video technical support | |
Online Service | your question will be answer within 24 hours during working days, 48 hours during holiday. | |
Zhengzhou Defy Mechanical & Electrical Equipment Co,. Ltd.
is a leading robot manufacturer in China, offering robots and mobile solutions for robotic products. With great development, we have established one-stop solutions for global clients, with our own R&D department, Q&C department, production department, sales department, and after-sales department.
20 years experience of R&D;
9 years professional exporting experience;
11-50 skilled sales service staff;
10 senior engineers and 15 middle-level engineers in the field of mechanical, machinery, electricity&AC.
is a leading robot manufacturer in China, offering robots and mobile solutions for robotic products. With great development, we have established one-stop solutions for global clients, with our own R&D department, Q&C department, production department, sales department, and after-sales department.
20 years experience of R&D;
9 years professional exporting experience;
11-50 skilled sales service staff;
10 senior engineers and 15 middle-level engineers in the field of mechanical, machinery, electricity&AC.
FAQ：
1.Does your machine have great quality and favorable price?
Sure,we offer good quality and cheap price products.
2.How is your service?
We offer professional pre-sales, in-sales and after-sales service for customers. Any of your tiny need will be satisfied in 24 hours.
3.How about the MOQ?
1 set.
4.What's the warranty of machine?
One year warranty for main machine.
5.When the machine can be shipped?
Within 3-5 working days after receiving full payment.
