Горячая продажа оцинкованная металлическая железная проволока поставляемая с завода аппаратная продукция
82 655,72-86 099,70 ₽
Высокопрочный 16 мм 26 мм оцинкованный стальной трос (6x36 конструкция) Сверхмощный идеально подходит для промышленного применения
- Категория: >>>
- Поставщик: Tianjin Hardware Co. Ltd.Tianjin Ltd.
Сохранить в закладки 1601244561538:
Описание и отзывы
Характеристики
Products Description

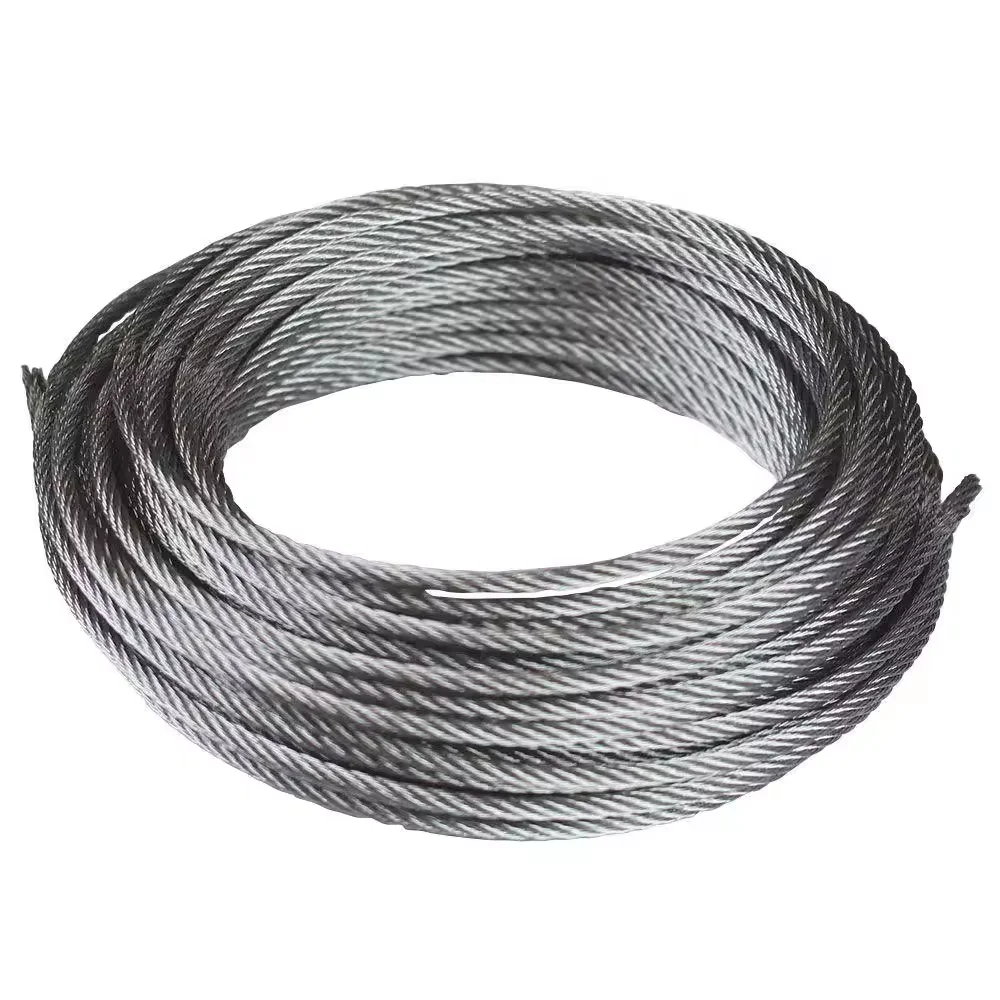

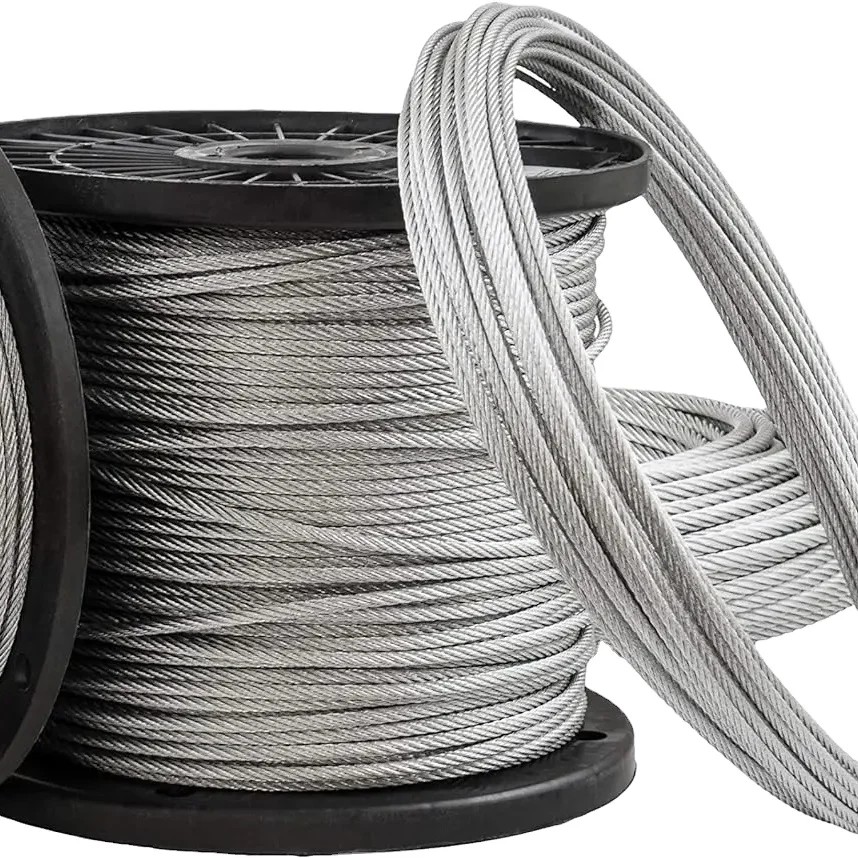

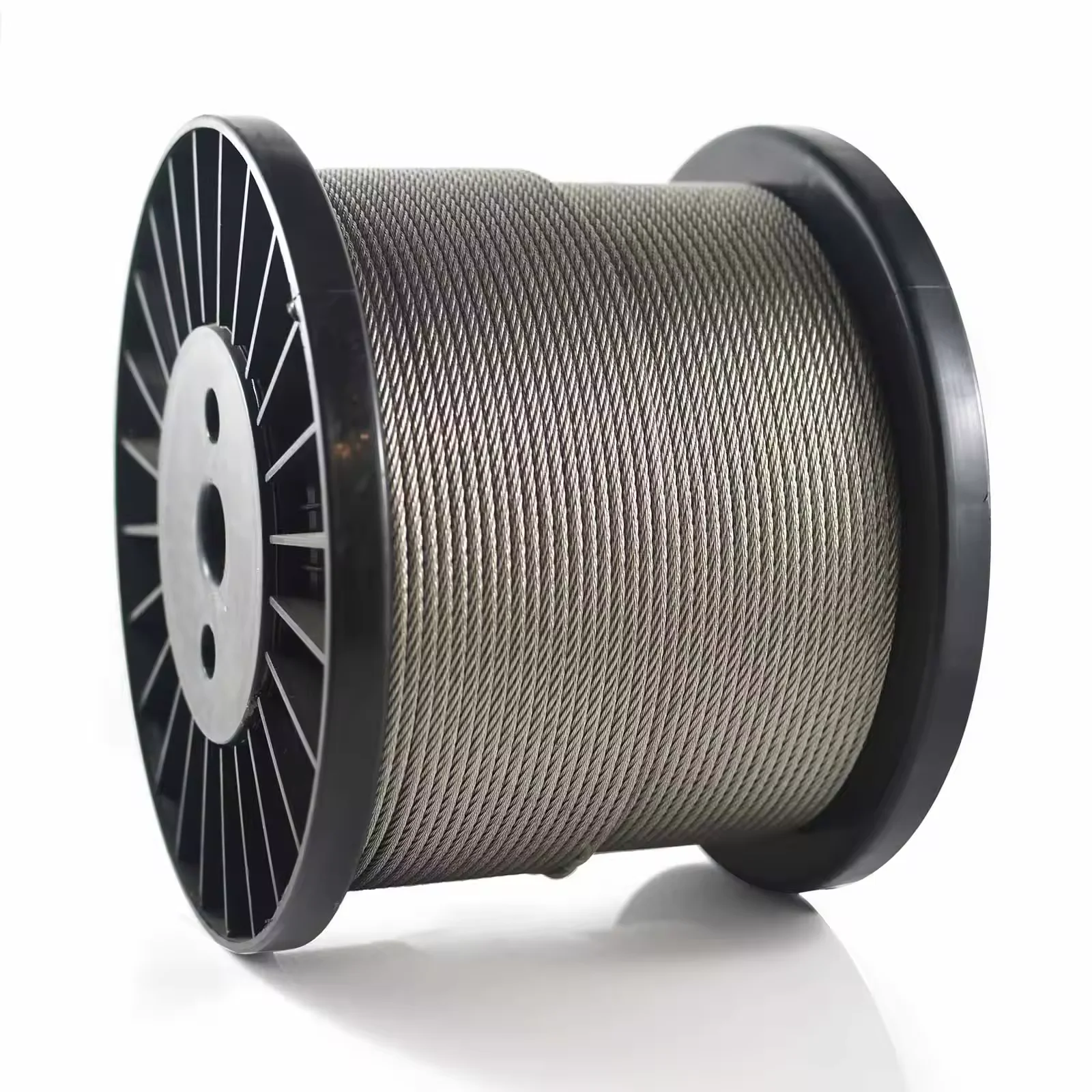

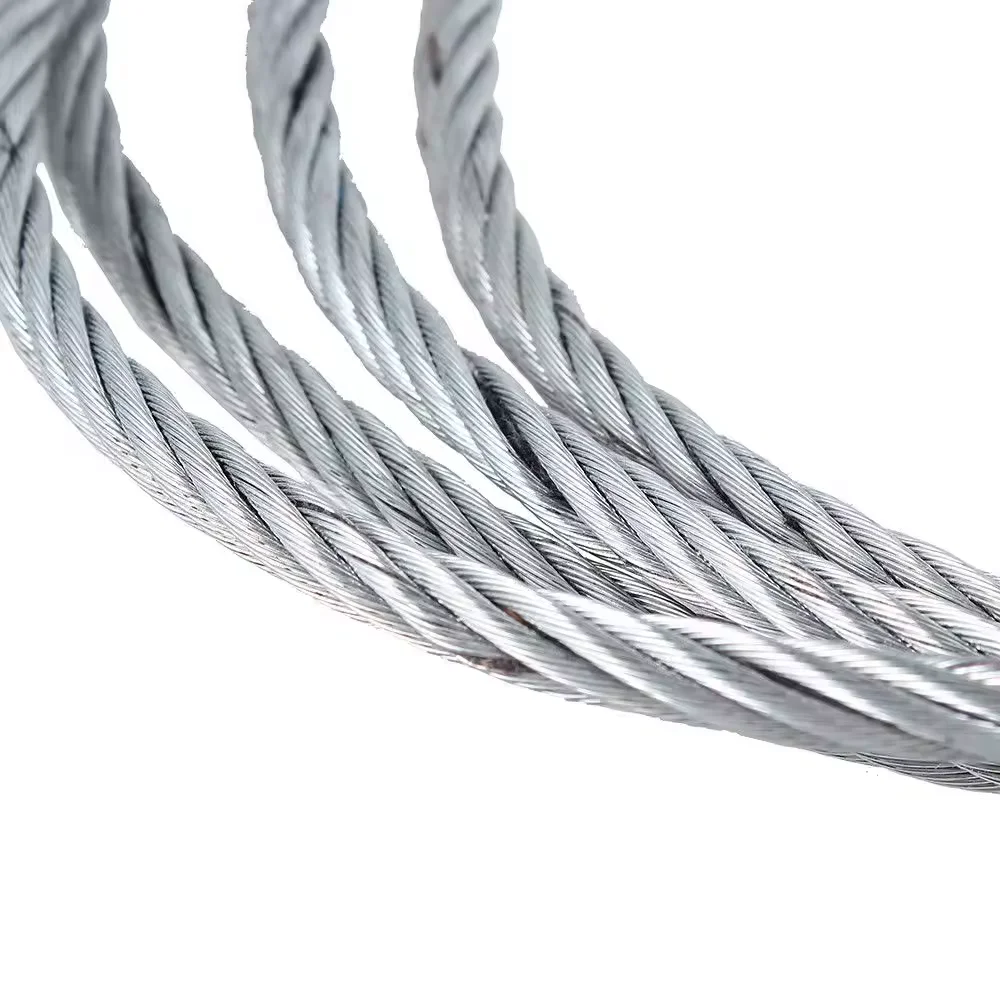

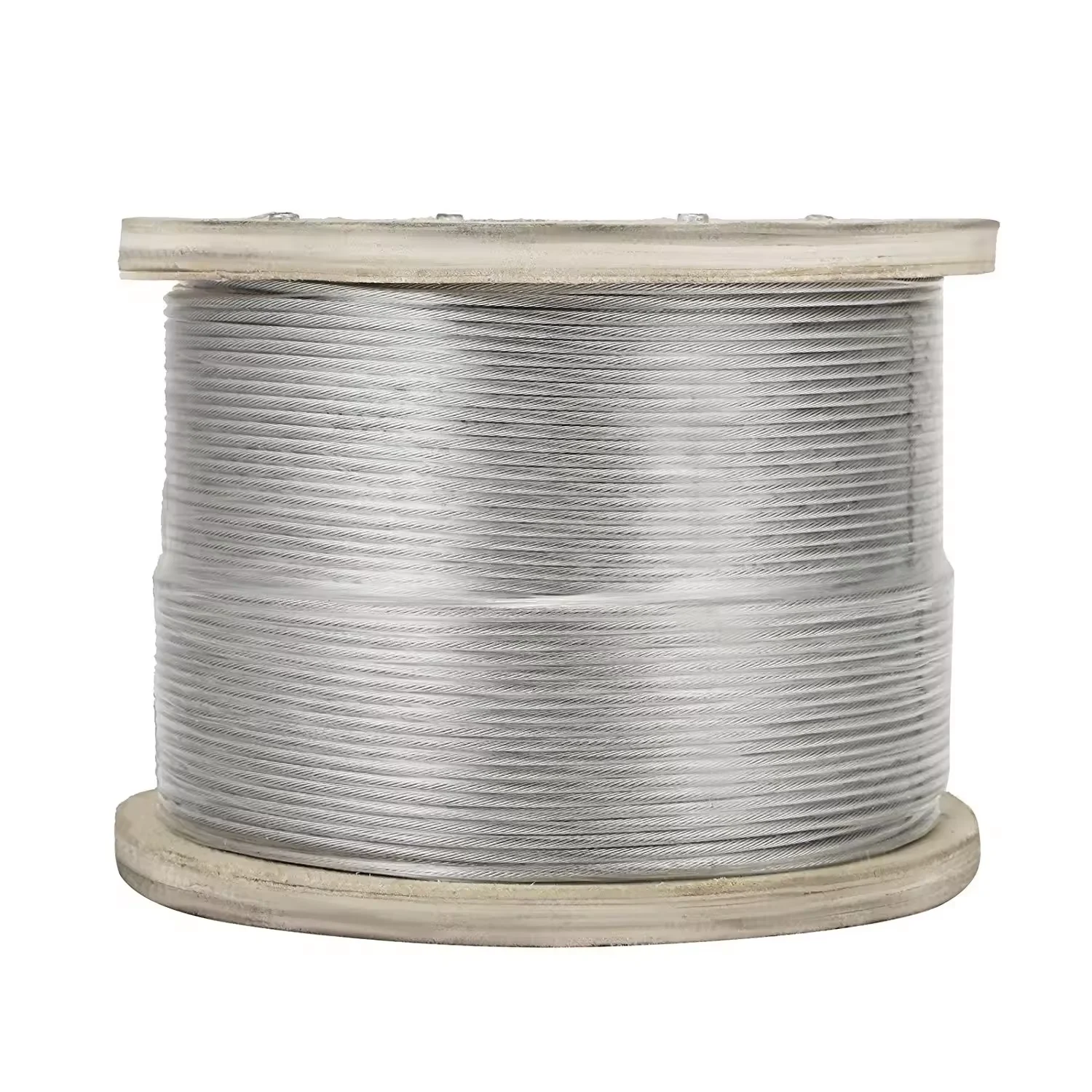

3/32 inch Galvanized Steel Wire Rope Aircraft Cable 7x7 - Versatile Uses in Construction Outdoors, Marine Rigging, Agriculture, and Industrial Applications - 500 ft
Wire rope is a complex mechanical device that has many moving parts all working in tandem to help support and move an object or load. In the lifting and rigging industries, wire rope is attached to a crane or hoist and fitted with swivels, shackles or hooks to attach to a load and move it in a controlled matter. It can also be used to lift and lower elevators, or as a means of support for suspension bridges or towers.
Wire rope is a preferred lifting device for many reasons. Its unique design consists of multiple steel wires that form individual strands laid in a helical pattern around a core. This structure provides strength, flexibility, and the ability to handle bending stresses. Different configurations of the material, wire, and strand structure will provide different benefits for the specific lifting application.
3/32 inch Galvanized Steel Wire Rope Aircraft Cable 7x7 - Versatile Uses in Construction, DIY, Outdoors, Marine Rigging, Agriculture, and Industrial Applications - 500 ft
At Tianjin Hardware, we offer all different kinds of wire rope from all of the leading manufacturers. We sell the
highest-quality wire rope and rigging products because product quality and operating safety go hand-in-hand. We have one of the largest and most complete inventories of rigging and lifting products to suit your lifting needs.If you’re looking for a standard or custom specified wire rope for your lifting project, contact a Lifting Specialist at Tianjin Hardware
highest-quality wire rope and rigging products because product quality and operating safety go hand-in-hand. We have one of the largest and most complete inventories of rigging and lifting products to suit your lifting needs.If you’re looking for a standard or custom specified wire rope for your lifting project, contact a Lifting Specialist at Tianjin Hardware
Product Name: | SS304 SS316 1×7 1×19 1×37 Galvanized Steel Wire Rope | ||||||
Standard: | EN12385/MIL/GB | ||||||
Material: | Galvanized Steel Wire Rope | ||||||
Contruction: | 1×7 wire rope/1×19 wire rope/1×37 wire rope | ||||||
Surface: | Galvanized Steel Wire Rope | ||||||
Size: | 1.0---60mm | ||||||
Tensile Strength: | 1570MPA/1670MPA/1770MPA/1870MPA | ||||||
Breaking Load: | Depends on Tensile Strength | ||||||
Length: | 500Ft/152m, 1000Ft/305m, 2000Ft/610m 100m, 500m,1000m | ||||||
Application : | Chain Hoist, Stage, Aircraft, Marine, Lifting | ||||||
Package: | Wooden Reel, Plastic Reel, Coil Packing, Sea worthy Packing | ||||||
Specifications
Reference Picture
Workshop
Quality Control
Salt Spray Test
Breaking Load Test
Breaking Load Test
Application
FAQ
1. What is wire rope?
Broader conversion coating availability for increased performance and colour options
Brighter, more aesthetically appealing, deposits
Wire rope is a flexible steel cord that is extremely strong. Typical uses for wire rope are: hoisting,
towing,and anchoring heavy loads. The core is the foundation of a wire rope. The three most commonly used core designations are: fiber core (FC), independent wire rope core (IWRC), and wire strand core (WSC).
2. What are the factors affecting the selection of wire rope?
1) Strength-resistance to breaking (The wire rope should be strong enough to handle the maximum potential load including safety factors)
2) Resistance to bending fatigue (Fatigue is caused by repeatedly bending rope around drums, sheaves, etc. A wire
rope with strands made up of many small wires will be more resistant to fatigue, but less resistant to abrasion)
3) Resistance to vibrational fatigue (Energy is absorbed at the end fittings or at the tangent point where the rope contacts the sheave)
4) Resistance to abrasion (Abrasion occurs when a rope is dragged over the ground or other surfaces. A wire rope with strands made of fewer, larger wires will be more resistant to abrasion, but less resistant to fatigue)
5) Resistance to crushing (During use, a wire rope may encounter crushing forces or be struck against hard objects. This can cause the rope to become flattened or distorted, resulting in premature breakage. Wire rope must have sufficient lateral stability to withstand the crushing pressures it may encounter. Regular lay ropes have greater lateral stability than Lang's lay, and six strand wire ropes have greater lateral stability than eight strand)
6) Reserve strength (Combined strength of all the wires contained within the strands)
3. What are options in the finished rope lay?
The finished rope has either a right or left hand lay, which refers to the direction in which the strands were wrapped around the core.
towing,and anchoring heavy loads. The core is the foundation of a wire rope. The three most commonly used core designations are: fiber core (FC), independent wire rope core (IWRC), and wire strand core (WSC).
2. What are the factors affecting the selection of wire rope?
1) Strength-resistance to breaking (The wire rope should be strong enough to handle the maximum potential load including safety factors)
2) Resistance to bending fatigue (Fatigue is caused by repeatedly bending rope around drums, sheaves, etc. A wire
rope with strands made up of many small wires will be more resistant to fatigue, but less resistant to abrasion)
3) Resistance to vibrational fatigue (Energy is absorbed at the end fittings or at the tangent point where the rope contacts the sheave)
4) Resistance to abrasion (Abrasion occurs when a rope is dragged over the ground or other surfaces. A wire rope with strands made of fewer, larger wires will be more resistant to abrasion, but less resistant to fatigue)
5) Resistance to crushing (During use, a wire rope may encounter crushing forces or be struck against hard objects. This can cause the rope to become flattened or distorted, resulting in premature breakage. Wire rope must have sufficient lateral stability to withstand the crushing pressures it may encounter. Regular lay ropes have greater lateral stability than Lang's lay, and six strand wire ropes have greater lateral stability than eight strand)
6) Reserve strength (Combined strength of all the wires contained within the strands)
3. What are options in the finished rope lay?
The finished rope has either a right or left hand lay, which refers to the direction in which the strands were wrapped around the core.
Regular lay means the individual wires were wrapped around the centers in one direction and the strands were wrapped around the core in the opposite direction. Lang's lay means the wires were wrapped around the centers in one direction and the strands were wrapped around the core in the same direction. The length of lay is measured as the distance in inches for one strand to go completely around the rope one time.
4. What is the advantage of Electrogalvanizing
Lower thickness deposits to achieve comparable performance4. What is the advantage of Electrogalvanizing
Broader conversion coating availability for increased performance and colour options
Brighter, more aesthetically appealing, deposits
Recommend Products
Похожие товары
Тяжелая пробивая боксерская сумка вешалка с поворотом на 360 ° настенное потолочное крепление деревянная балка крюк для бокса кронштейн
677,32-861,00 ₽
Высокоточный алюминиевый модуль HENGTAI с ЧПУ крепежная втулка неокисляющая
21,82 ₽
Полировочные диски для Ibc 1000 литров 304 из нержавеющей стали
63,14-204,35 ₽
Замок с защелкой
1 377,60-1 469,44 ₽

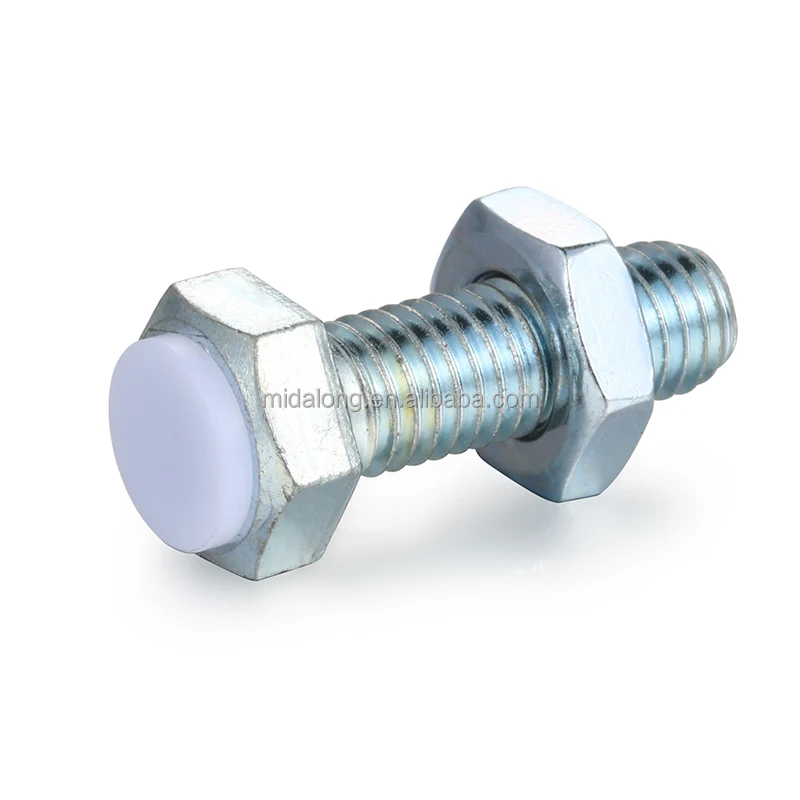

TDB56 с полиацетальным стопорным болтом типа фиксированного буферного болта PUST8-20/25/30/35
105,62 ₽

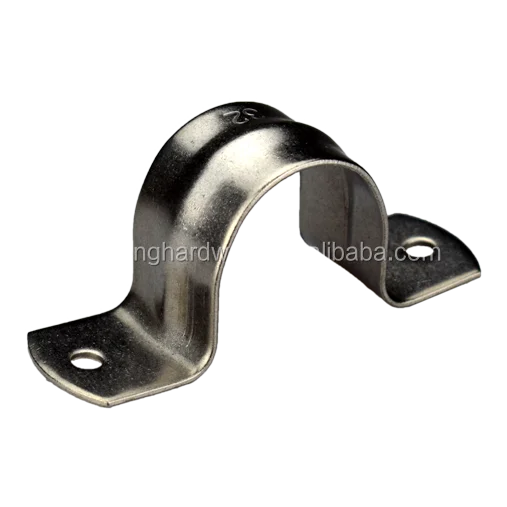

Полусиденья трубы из нержавеющей стали в стиле AU NZ зажим 20 мм 25 32
5,74 ₽

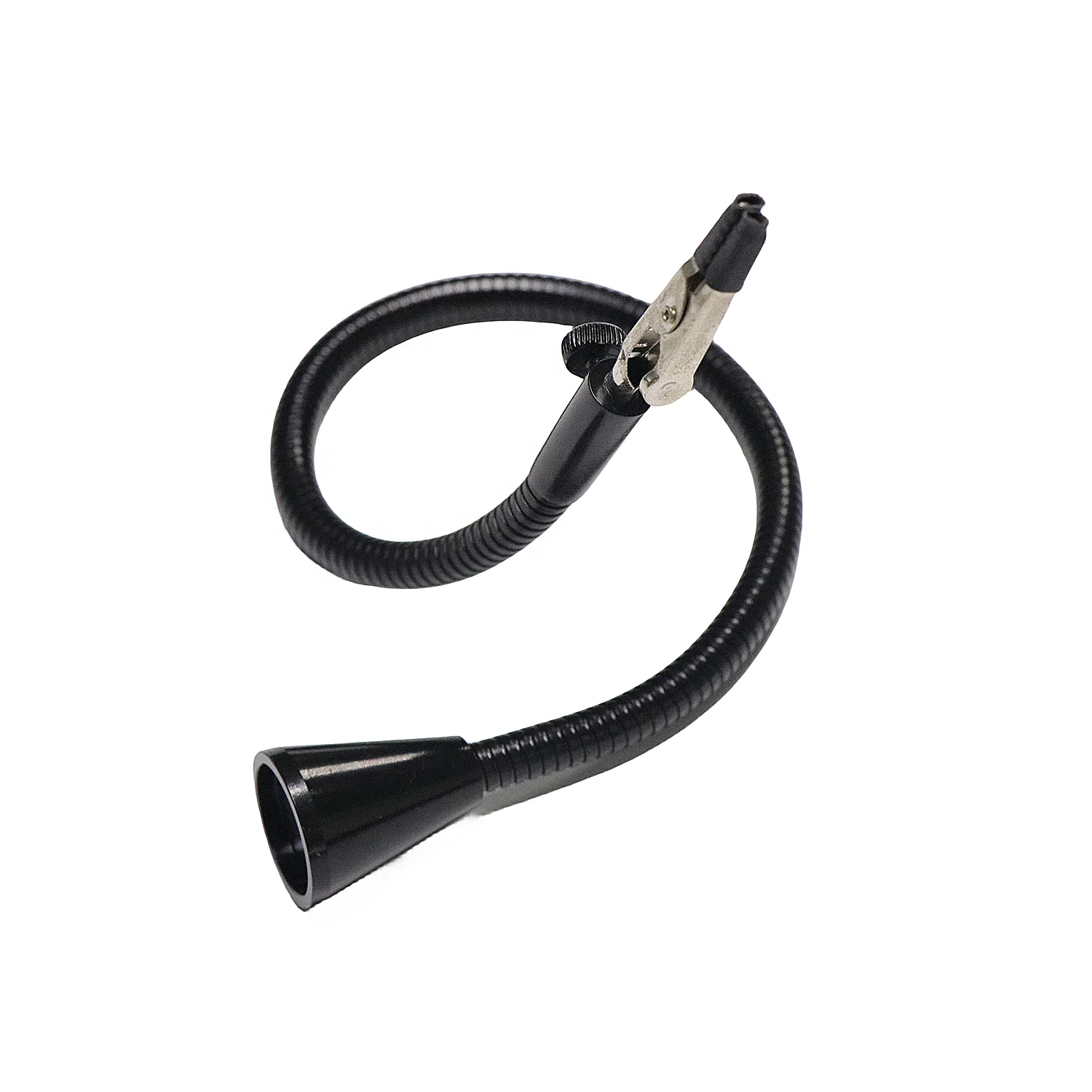

Медицинская Гибкая гусиная шея и жесткая рука с силиконовым покрытием
