Products Description

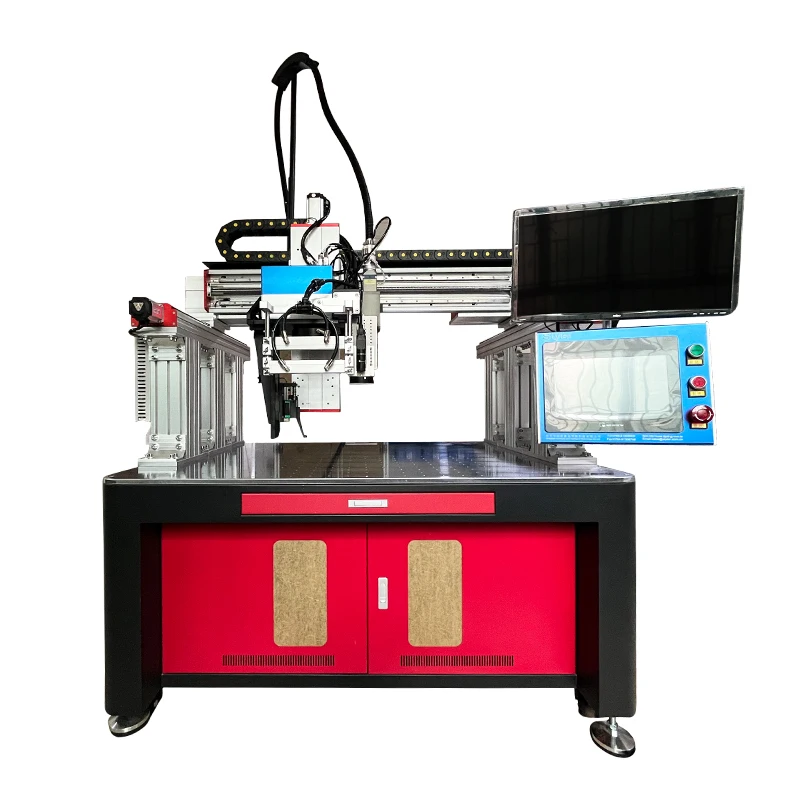

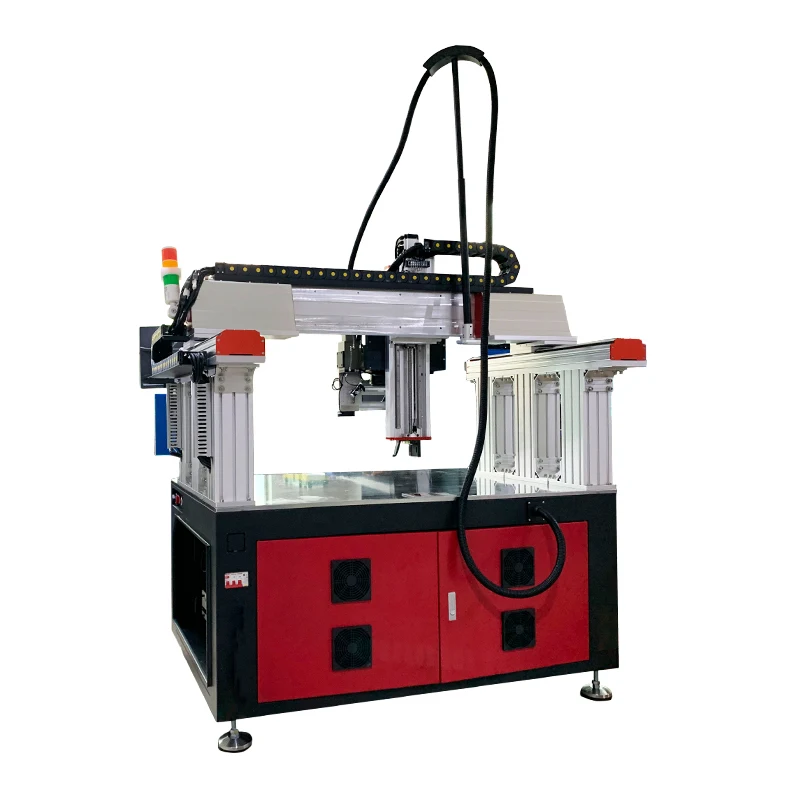

3000W Laser galvanometer gantry welding machine
Compared with traditional lasers, fiber lasers have higher photoelectric conversion efficiency, lower power consumption and higher beam quality. Fiber lasers are compact and ready to use. Due to its flexible laser output, it can be easily integrated with the system
equipment.
equipment.
Name | Specification & Parameter |
Laser Brands | GW China Tier 1 Brand |
Nominal output power | 3000W |
Emission Wavelength | 1060～1080nm |
Emission Wavewidth | 1.5～5nm |
Cooling Method | Water cooling（Pure water or Drinkable Water，Water Temperature；21～25℃） |

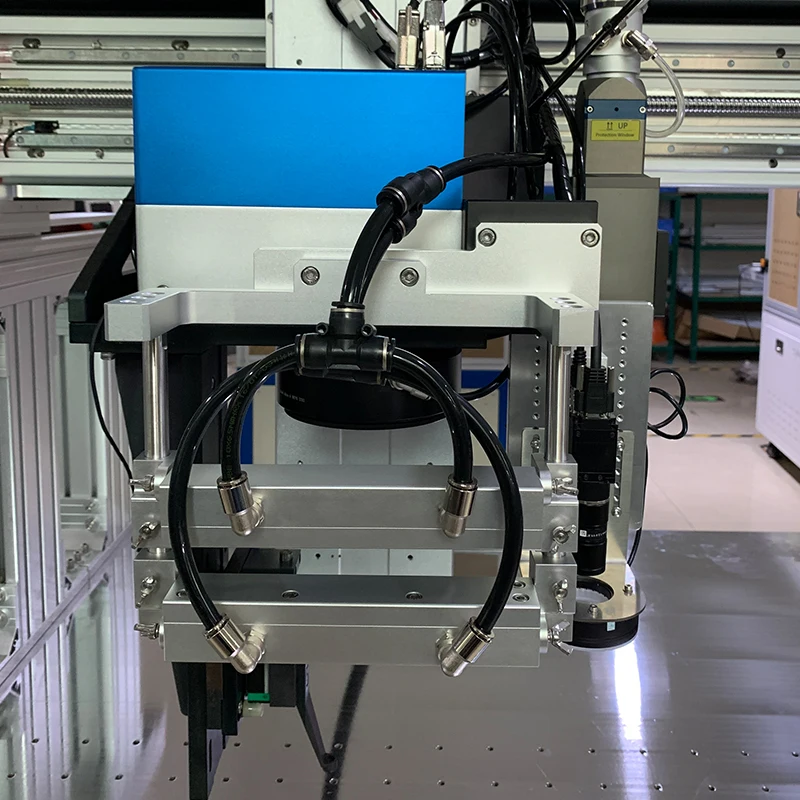

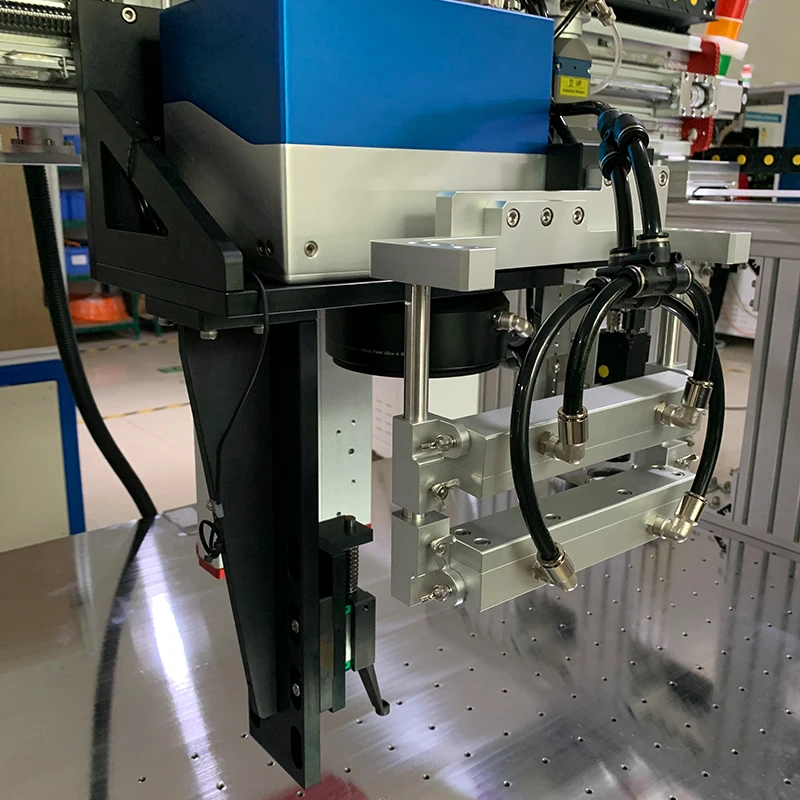

Laser head | Galvo Laser Head |
Equipment Capacity | UPH=20 |
Compatible Welding Material (To ensure compatibility on different material, please refer to actual welding performance) | Nickel Plate+Nickel Plate，0.1-2mm Copper Nickel Plate+Aluminium，0.1-1.5mm Stainless Steel，0.3-3.5mm Copper+Copper，0.1-1.0mm Aluminium+Aluminium，0.5-2.5mm Copper-Aluminum Composites，0.1-1.5mm |
Max. Compatible Battery Pack Size | L800*W400*H300mm |
Solder Joint Adhesion | ＞1200N |
Solder Joint Overcurrent | ＜0.5C |
Solder Joint Penetration | <2.5mm |
Welding Operating Mode | X,Y robotic arm（Effective Distance1000x600mm）Customizable |
Equipment Grafting Rate | ＞98% |
Yield Rate | 99.9%。 |
Equipment Size | 1600*1400*2400mm（Reference Only） |
Power Supply | AC220V/50HZ 2.1KW AC380V/3L+N+PE/50H 20KW±10% Fluctuation |

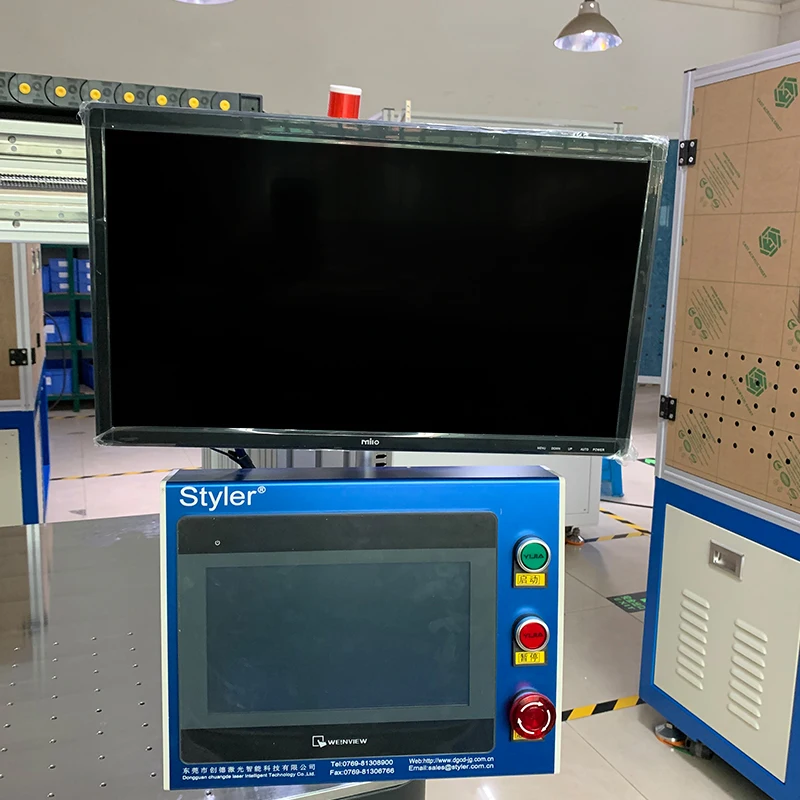

Computer & Monitor | Yanhua i3 256G 8G Storage 、Microsoft Win10 System、19 Inch Monitor |
Software Requirement | Provide configurable IP input port, meet Yada station control requirements, detailed Log recording function (convenient for device problem location) |
Power | 22.1KW |
Ground Load | 750Kg/m² |
Maintenance | 1 Year（2 Years Maintenance Program is available by Request） |
Equipment Features
➢ Good Beam Quality
➢ Highly Reliable
➢ High power stability
➢ Adjustable continuously Power Welding mode, fast switching response
➢ Maintenance-free operation
➢ High electro-optical conversion efficiency
➢ Adjustable Frequency
➢ Highly Reliable
➢ High power stability
➢ Adjustable continuously Power Welding mode, fast switching response
➢ Maintenance-free operation
➢ High electro-optical conversion efficiency
➢ Adjustable Frequency
Why Choose Us
Styler have a professional engineering and technical service team, provide lithium battery PACK automatic production line, lithium battery assembly technical guidance, and technical training.
We can provide you with a full line of equipment for battery pack production
We can provide you with a full line of equipment for battery pack production
We can provide you with the most competitive price directly from the factory
We can provide you with the most professional after-sales service 7*24 hours
Company Profile
FAQ
FAQ
—
1. Who are we?
We are based in Guangdong, China, start from 2010,sell to Domestic Market(50.00%),North America(15.00%),South America(5.00%),Eastern Europe(5.00%),Western Europe(5.00%),Southeast Asia(3.00%),Oceania(3.00%),Eastern Asia(3.00%),South Asia(3.00%),Mid East(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(2.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Lithium Battery Assembly Automation Line,Battery Spot Welding Machine,Battery Sorting Machine,Battery Comprehensive Tester System,Battery Aging Cabinet
4. Why should you buy from us not from other suppliers?
We have a strong technical R&D team and have been working in the lithium battery assembly and manufacturing industry for many years with rich experience. The company now has a variety of specifications and models of machinery and equipment, various series
5. What services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2010,sell to Domestic Market(50.00%),North America(15.00%),South America(5.00%),Eastern Europe(5.00%),Western Europe(5.00%),Southeast Asia(3.00%),Oceania(3.00%),Eastern Asia(3.00%),South Asia(3.00%),Mid East(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(2.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Lithium Battery Assembly Automation Line,Battery Spot Welding Machine,Battery Sorting Machine,Battery Comprehensive Tester System,Battery Aging Cabinet
4. Why should you buy from us not from other suppliers?
We have a strong technical R&D team and have been working in the lithium battery assembly and manufacturing industry for many years with rich experience. The company now has a variety of specifications and models of machinery and equipment, various series
5. What services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal;
Language Spoken:English,Chinese
Похожие товары

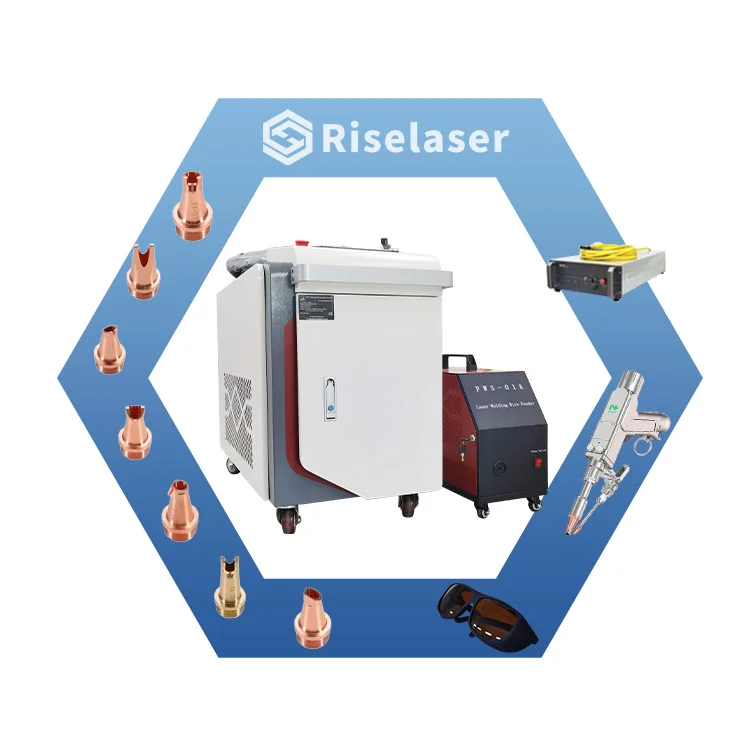

2024 прямые продажи с завода, высокая экономичная функция 3 в 1, Новый волоконно-лазерный сварочный аппарат

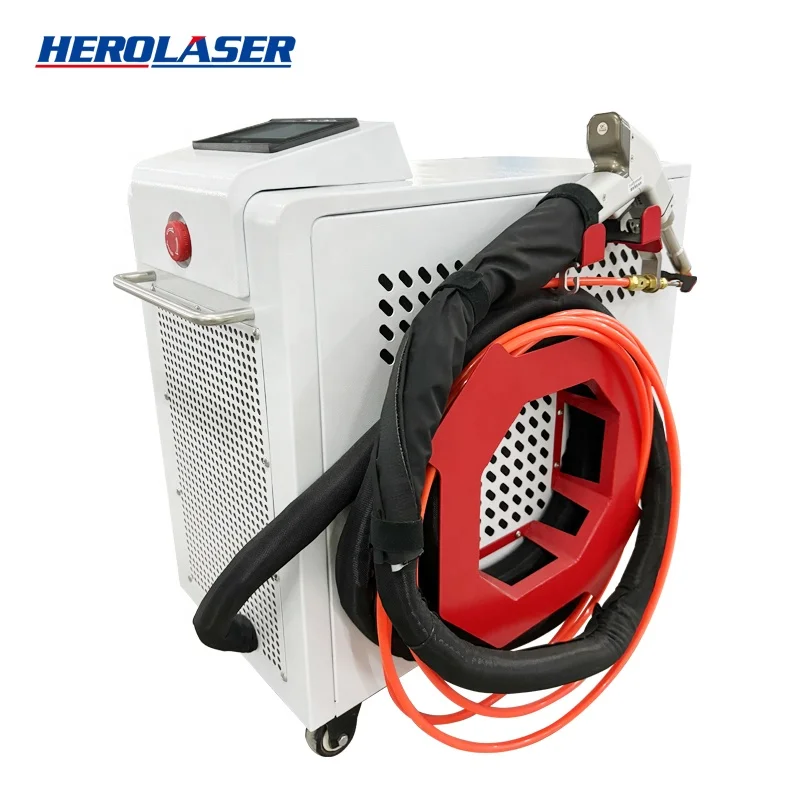

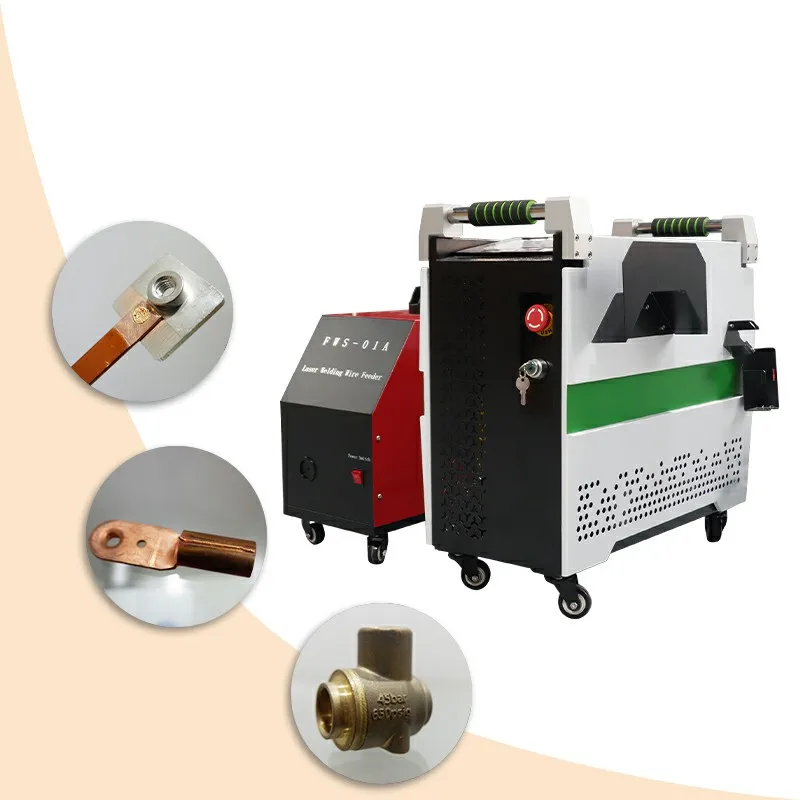

Самая дешевая цена для металла портативный лучший продавец ручной металлический с воздушным охлаждением волоконно-лазерный сварочный аппарат
3 000,00 $ - 3 500,00 $
Прямые продажи с фабрики 1500 Вт 3 в 1 с воздушным охлаждением углеродистая сталь Алюминиевый металлический лазерный сварочный аппарат
7 417,00 $ - 7 617,00 $

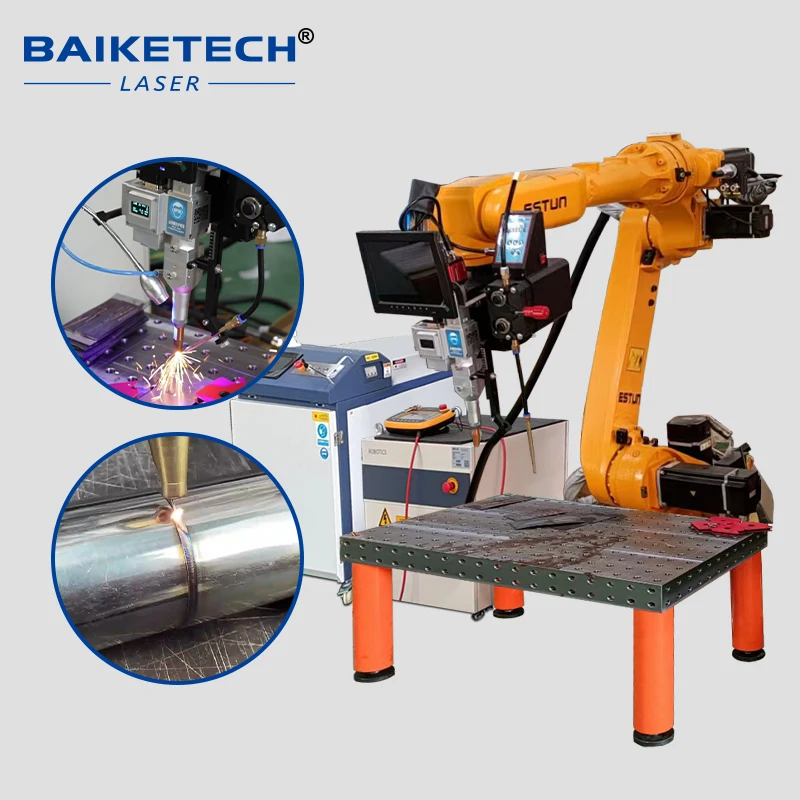

3 кВт ЧПУ промышленный робот рука 6 оси волоконно-лазерный станок для резки сварочный аппарат 3D робот рука

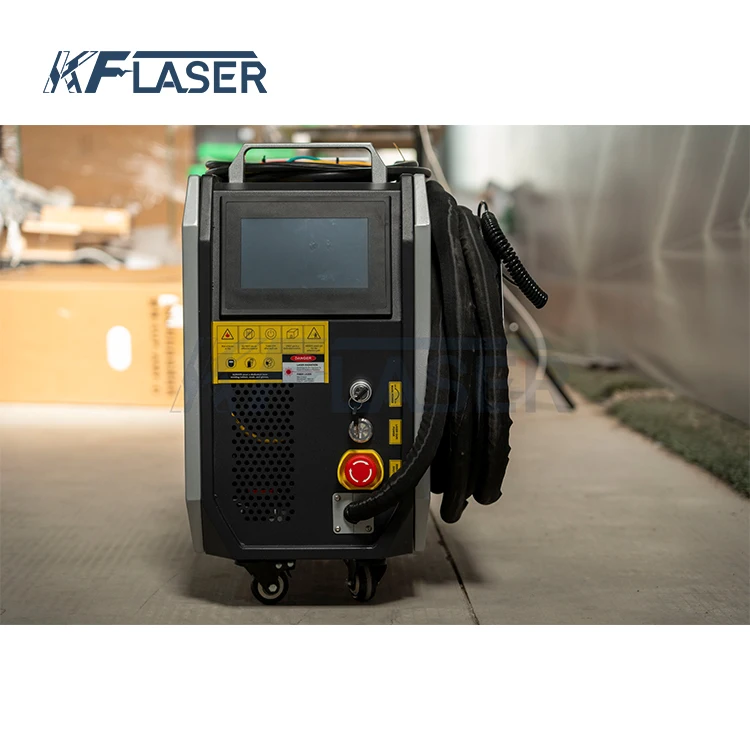

Ручной металлический из нержавеющей стали, углеродистый Утюг, алюминий, медь, латунь, светодиодная лампа, волоконно-лазерная сварка, сварочные аппараты, паяльные машины

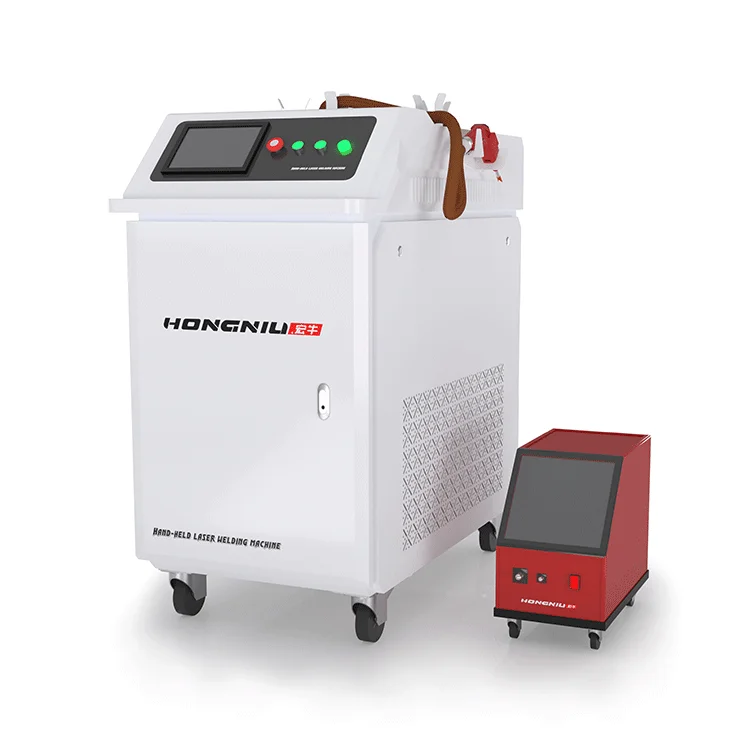

Hongniu Лазерная 1500 Вт 2000 Вт 3000 Вт Raycus источник волоконно-лазерная сварочная машина для резки и очистки 3 в 1 функции
5 200,00 $ - 5 400,00 $

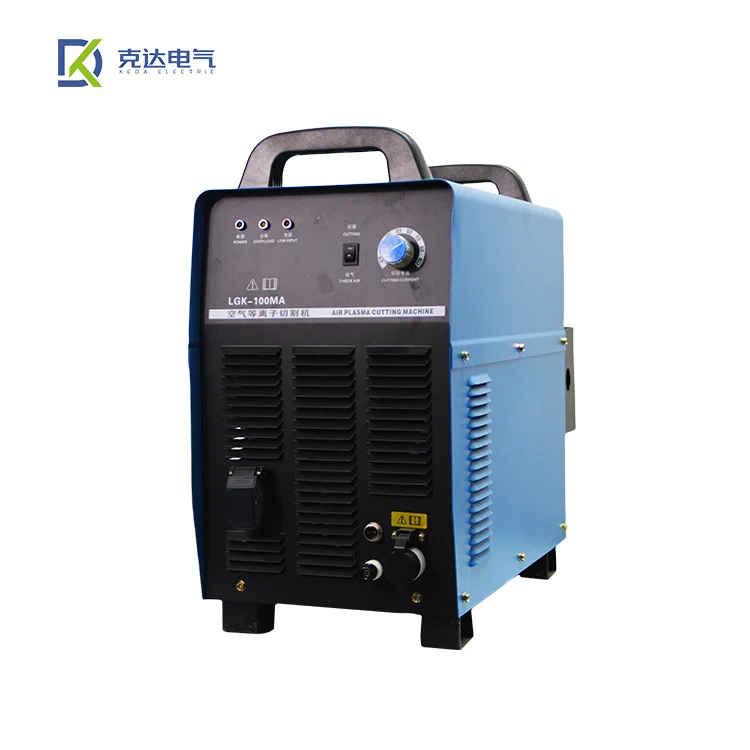

Rland CUT100MA инверторный плазменный генератор плазменной резки
