Mechanical or Retractable PVC Fabric Curtain Loading Dock Door Seal or Dock Shelter for Logistics Warehouse Loading Bays
Product Description

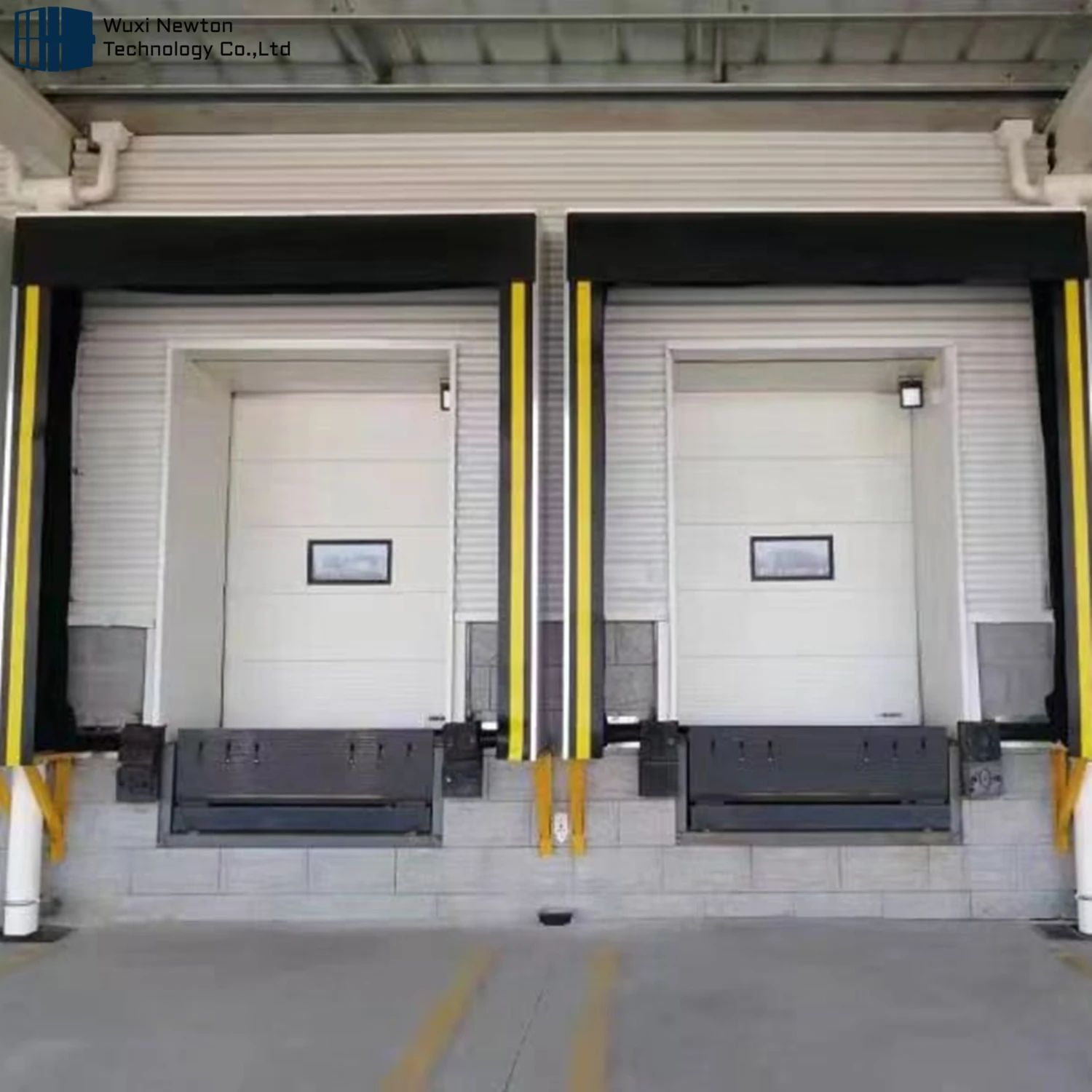

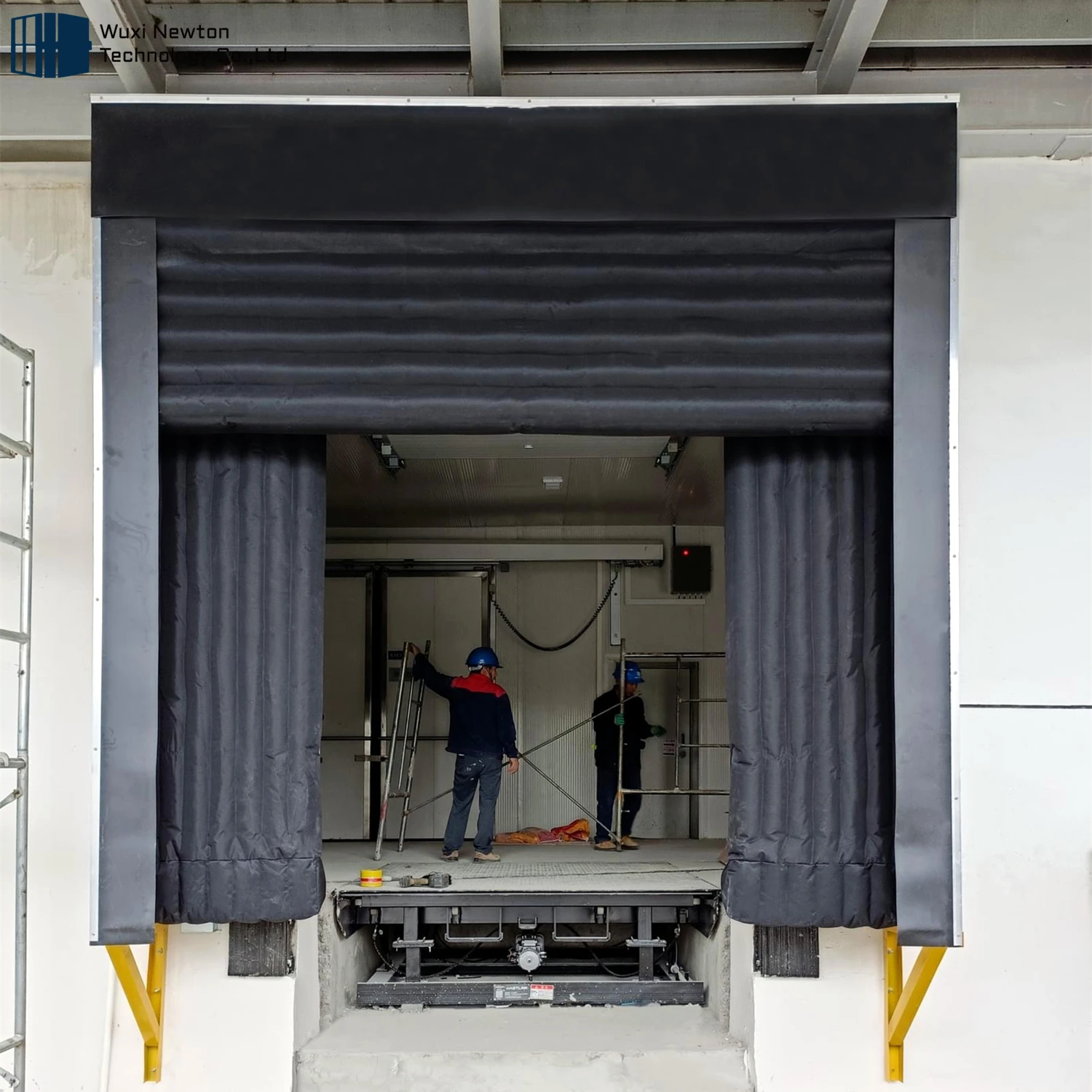

Inflatable dock shelter
The adjustable range of the Inflatable Dock Shelter is very large, which is very suitable for occasions where the size of the
truck changes greatly. The inflatable door seal tightly surrounds the freight car compartment, and its excellent sealing
effectively prevents cold air from entering the warm room or hot air from entering the cold storage, thereby achieving energy
saving. After the loading and unloading is completed, the blower is turned off, and the airbag will quickly and efficiently
discharge the gas in the airbag under the action of the counterweight and the built-in tensioning rope. Excellent thermal
insulation, sealing, high efficiency and other properties make the inflatable door seal applied to heat preservation and air tight
Places with high requirements, such as cold chain logistics, food, pharmaceutical and other industries
truck changes greatly. The inflatable door seal tightly surrounds the freight car compartment, and its excellent sealing
effectively prevents cold air from entering the warm room or hot air from entering the cold storage, thereby achieving energy
saving. After the loading and unloading is completed, the blower is turned off, and the airbag will quickly and efficiently
discharge the gas in the airbag under the action of the counterweight and the built-in tensioning rope. Excellent thermal
insulation, sealing, high efficiency and other properties make the inflatable door seal applied to heat preservation and air tight
Places with high requirements, such as cold chain logistics, food, pharmaceutical and other industries
SPECIFICATION | ||||||||
Width (mm) | 3410, 3610 | |||||||
Height (mm) | 3300, 3800, 4900 | |||||||
Moving range of top air bag | 900 (1200) | |||||||
Moving range of side air bag | 600 | |||||||
Top mask | 500 | |||||||
Side mask | 200 | |||||||
Profile color | Aluminum intrinsic color (RAL9006) | |||||||
Control model | Switch / Platform control unit | |||||||
PARAMETER | ||||||||
Power supply | 380V/50Hz | Thickness | 3mm | |||||
Power | 0.75KW | Unit weight | 3.6kg/m | |||||
Control unit | Outside | Airbag | 0.5mm | |||||
Protectoin class | IP54 | Material | Cordura 1000 | |||||
Aigbag average time | 30s | Thickness | 0.5mm | |||||
Working temperature | -35°C ~ +70°c | Unit weight | 0.4kg/m | |||||
PVC curtain | 3.6kg/m | The largest tensile ability | >290N/mm2 | |||||

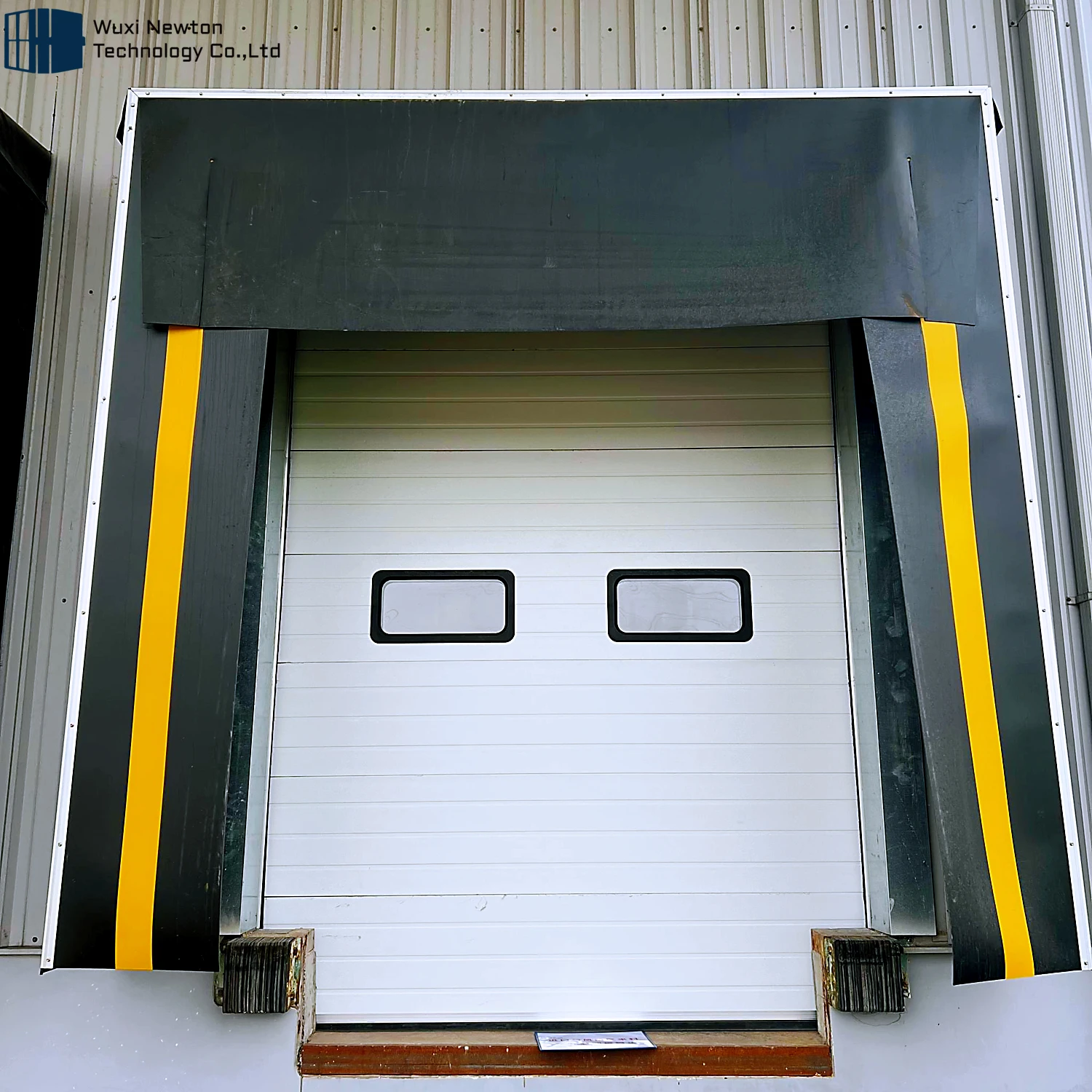

Mechanical dock shelter
This type is closed by the high elastic door seal to the vehicle, which is suitable for large vehicles. It can protect goods and
avoid exterior air and dust entering the room during the loading and loading process, it can work for vehicles with various
container sizes.
avoid exterior air and dust entering the room during the loading and loading process, it can work for vehicles with various
container sizes.
SPECIFICATION | ||||||||
Width (mm) | 3000, 3200, 3400 | |||||||
Height (mm) | 3000, 3200, 3400, 4400 | |||||||
Thickness | 3mm | |||||||
Standard configuration | Single layer | |||||||
Optional configuration | Double layer | |||||||
Profile color | Aluminum intrinsic color (RAL9006) | |||||||
PARAMETER | ||||||||
Front curtain | Side PVC curtain | |||||||
Longitudinal tensile force | >550N | Tensile resistance | 250N | |||||
Transverse Tensile force | >900N | Thickness | 0.5mm | |||||
Ultimate tensile strength | 250N/mm2 | Weight | 0.7kg/mm | |||||
Metal friction coefficient | 0.3 | Working temperature | -35°C ~ +70°c | |||||
PVC friction coefficient | 0.4 | Aluminum alloy frame | ||||||
Thickness | 3mm | Back-end profile size | 50*44mm | |||||
Weight | 3.6kg/mm | Front end profile size | 45*44mm | |||||
Working temperature | -35°C ~ +70°c | Frame size | 50*25*2.5mm | |||||

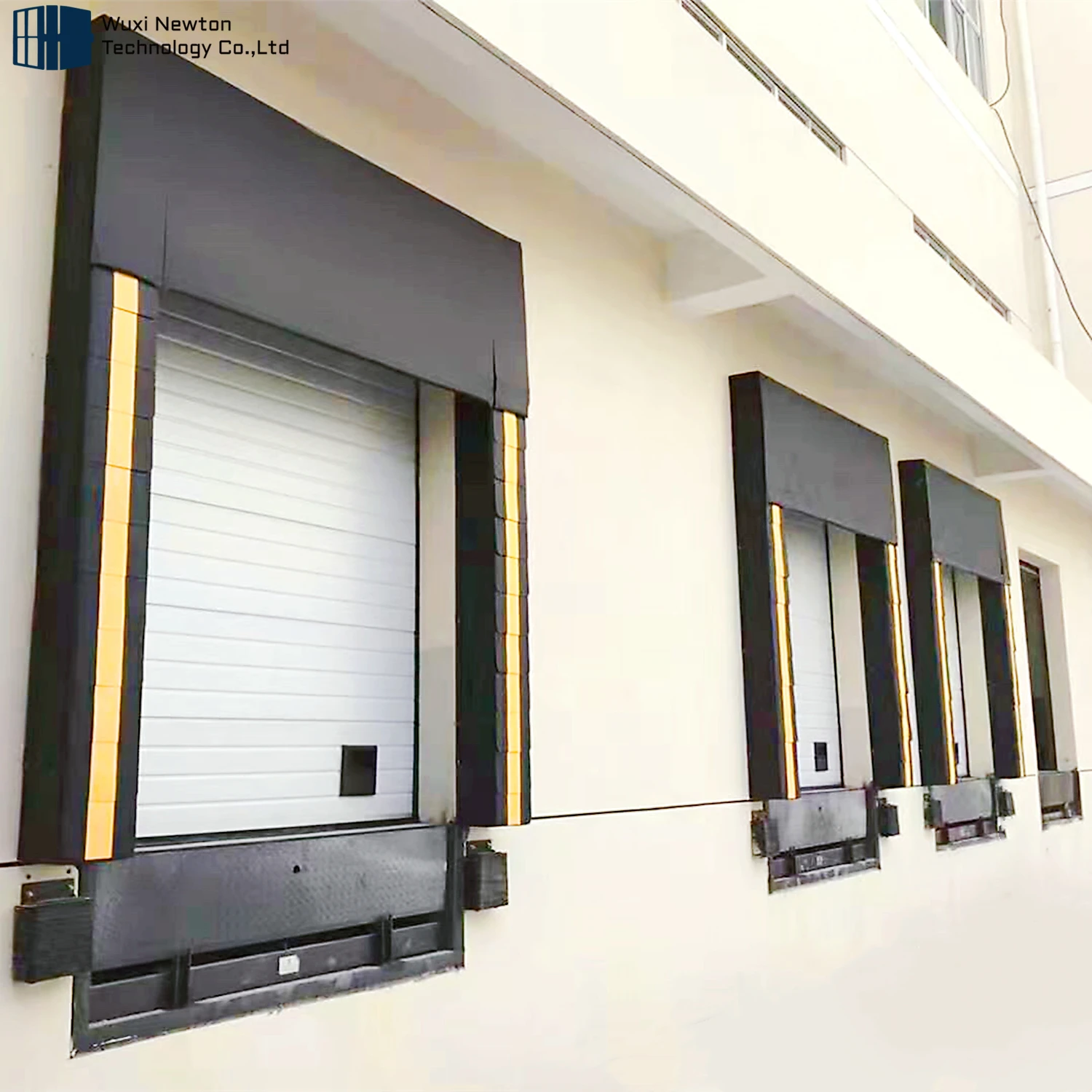

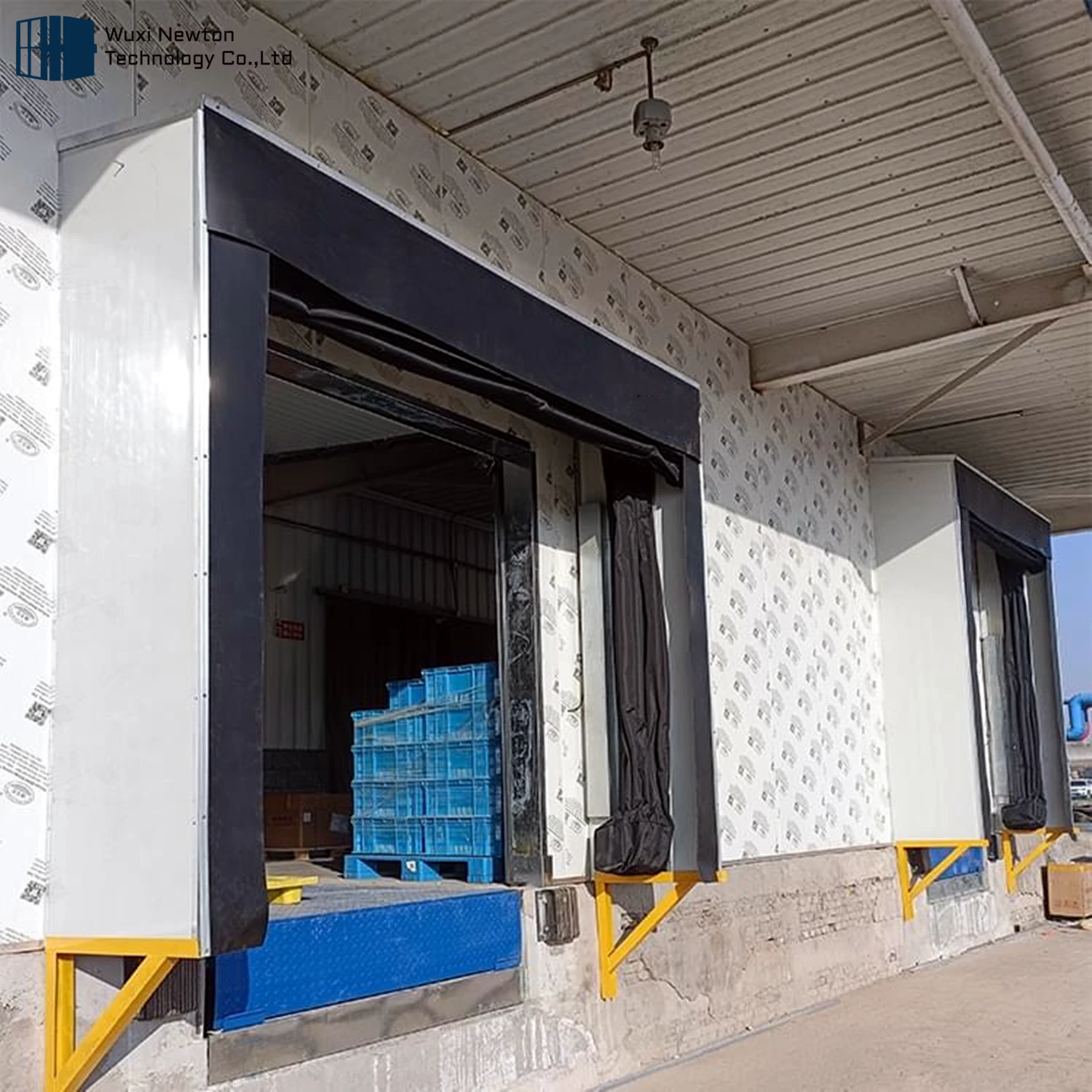

Sponge dock shelter
The fireproof sponge filled inside the Sponge Dock Shelter has excellent thermal insulation performance, and is especially
suitable for low-temperature preservation or freezing loading and unloading ports. It can reduce the heat exchange of cargo
circulation and loading and unloading in a limited way, greatly reduce the cooling energy consumption and save energy costs.
suitable for low-temperature preservation or freezing loading and unloading ports. It can reduce the heat exchange of cargo
circulation and loading and unloading in a limited way, greatly reduce the cooling energy consumption and save energy costs.
CONFIGURATION | ||||||||
Top sponge seals | 1 pc | The fabric is made of wear-resistant vinyl crude fiber material. The lining is filled with high elasticity sponge pad, with 98% restorability and flexibility in -40 ℃ environment. | ||||||
Vertical sponge seals | 2 pcs | Positive distribution wear-resistant louver folds, providing additional wear protection, effectively extending the life of the door seal; The middle of the reflective strip with a warning, with better security. | ||||||
Hardware | 1 set | Surface galvanized anti-rust treatment, an increase of product durability | ||||||
PARAMETER | ||||||||
Width (mm) | 3000, 3200, 3400 | Thickness of side PVC sheet | 0.5mm | |||||
Height (mm) | 3000, 3200, 3400 | Height of top PVC curtain | 1000mm | |||||
Dock shelter depth | 250mm | Width of side PVC curtain | 300,mm | |||||
Sponge thickness | 25/20mm | Frame | High quality steel strips,covered by transparent PVC or Color PVC material | |||||
PVC color | Black/Blue | |||||||
Thickness of front PVC sheet | 0.9mm | Operating temperature | -35°C ~ +70°c | |||||
Packing & Delivery
Qualified plywood for LCL; and Qualified carton or pallet for FLC, however, we are able to provide the package according to your specified requirements.
Recommend Products
Company Profile
Wuxi Newton Technology Co., Ltd is established in 2000 with 5 million CNY registered capital, with 5000 sqm production area andmore than 100 employees. Our company locates at Wuxi city, Jiangsu Province, which is nearby Shanghai city.
Our management team and R& D technicians focus on the automatic door industry more than 15 years, we specialize in all kinds of automatic doorsdesign, manufacture, installation and after-sale services, such as automatic/manual industrial folding doors, commercial foldingdoor, sectional garage doors, sectional industrial doors, full view aluminum sectional door, high speed PVC door, hard metal highspeed door, high speed fold-up door, zipper self-repairing high speed door, thermal insulated high speed door, sectional dooropener, hydraulic dock leveler, different types of dock shelter etc.
Nowadays, our products stands for high quality, durability,functionality, appealing appearance and competitive pricing in the market. Based on our rich experience, we will response to eachcustomer's enquiry with our friendly, professional, prompt service. We are continuously rewarded for our efforts by customersexpressing their satisfaction.
FAQ
Q. What's the payment term?
A. We accept TT,30% deposit and 70% balance is paid against Bill of loading.
Q. If customization is available?
A. Yes, we provide the customization service as per your requirement.
Q. Can I get the sample?
A. Yes, we can provide the sample for your evaluation, the shipping cost is on your side.
Q . What's the lead time?
A. Normally, our lead time is 10-15 days upon receiivng the deposit.
Q .Are you the manufacturer?
A. Yes, we are the manufacturer in this industry more than 20 years and we have cooperated with the customers from all over the world.
