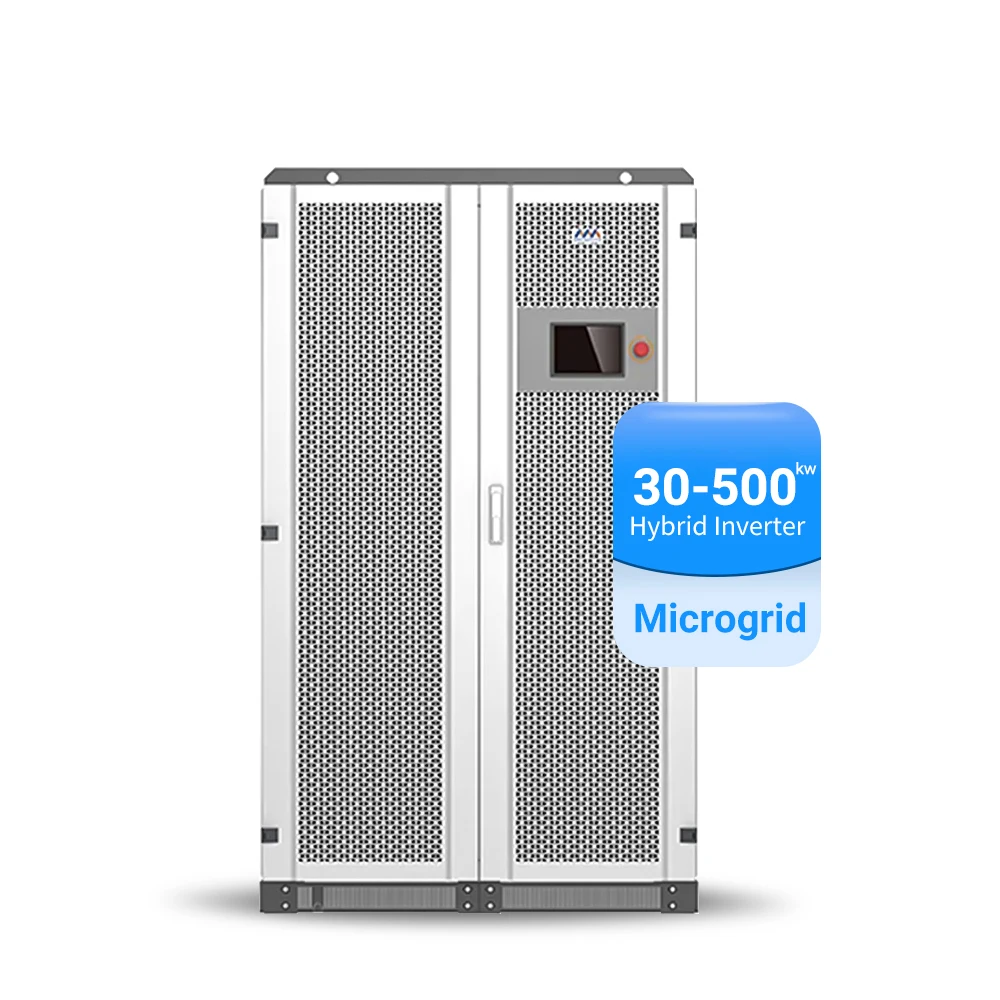

Megarevo высоковольтный MPS030-500Megarevo солнечный гибридный инвертор солнечной системы
3 900,00-6 500,00 $
Deye однофазный 1 трехфазный 5 кВт 6 8 10 12 16 чистый синусоидальный Гибридный солнечный инвертор
- Категория: >>>
- Поставщик: Hefei Senxia Solar Energy Technology Co. Ltd.Hefei Ltd.
Сохранить в закладки 1601245065980:
Описание и отзывы
Характеристики
Overview

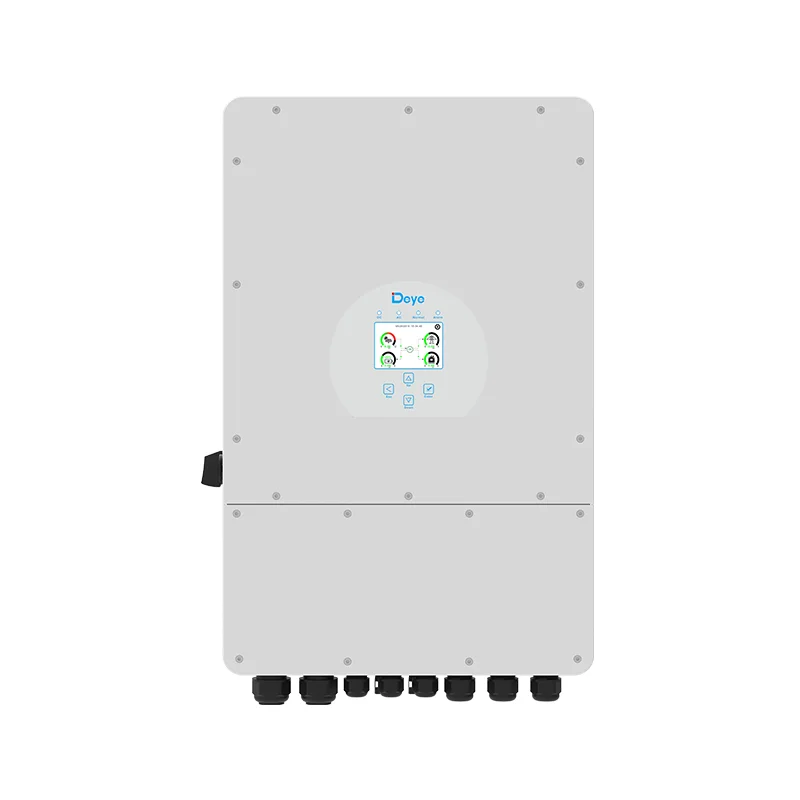

The Deye Three Phase Hybrid Inverter, encompassing models SUN-5K-SG04LP3-EU, SUN-6K-SG04LP3-EU, SUN-8K-SG04LP3-EU, SUN-10K-SG04LP3-EU, and SUN-12K-SG04LP3-EU, is a sophisticated energy management solution designed for both residential and commercial solar power applications. This series of inverters is engineered to integrate solar power generation with battery storage, ensuring optimal energy utilization and enhancing overall system efficiency.
System Parameter
Model | SUN-5K -SG04LP3-EU | SUN-6K -SG04LP3-EU | SUN-8K -SG04LP3-EU | SUN-10K -SG04LP3-EU | SUN-12K -SG04LP3-EU | ||||
Battery Input Data | |||||||||
Battery Type | Lead-acid or Lithium-ion | ||||||||
Battery Voltage Range (V) | 40-60 | ||||||||
Max. Charging Current (A) | 120 | 150 | 190 | 210 | 240 | ||||
Max. Discharging Current (A) | 120 | 150 | 190 | 210 | 240 | ||||
Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||||||||
Number of Battery Input | 1 | ||||||||
PV String Input Data | |||||||||
Max. PV Access Power (W) | 10000 | 12000 | 16000 | 20000 | 24000 | ||||
Max. PV Input Power (W) | 6500 | 7800 | 10400 | 13000 | 15600 | ||||
Max. PV Input Voltage (V) | 800 | ||||||||
Start-up Voltage (V) | 160 | ||||||||
MPPT Voltage Range (V) | 200-650 | ||||||||
Rated PV Input Voltage (V) | 550 | ||||||||
Max. Operating PV Input Current (A) | 13+13 | 26+13 | |||||||
Max. Input Short-Circuit Current (A) | 17+17 | 34+17 | |||||||
No. of MPP Trackers/ No. of Strings MPP Tracker | 2/1+1 | 2/2+1 | |||||||
AC Input/Output Data | |||||||||
Rated AC Input/Output Active Power (W) | 5000 | 6000 | 8000 | 10000 | 12000 | ||||
Max. AC Input/Output Apparent Power (VA) | 5500 | 6600 | 8800 | 11000 | 13200 | ||||
Rated AC Input/Output Current (A) | 7.6/7.2 | 9.1/8.7 | 12.1/11.6 | 15.2/14.5 | 18.2/17.4 | ||||
Max. AC Input/Output Current (A) | 8.4/8 | 10/9.6 | 13.4/12.8 | 16.7/15.9 | 20/19.1 | ||||
Max. Continuous AC Passthrough (grid to load) (A) | 45 | ||||||||
Peak Power (off-grid) (W) | 2 times of rated power, 10s | ||||||||
Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||||||||
Rated Input/Output Voltage/Range (V) | 220/380V, 230/400V 0.85Un-1.1Un | ||||||||
Rated Input/Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 | ||||||||
Grid Connection Form | 3L+N+PE | ||||||||
Total Current Harmonic Distortion THDi | <3% (of nominal power) | ||||||||
DC Injection Current | <0.5% In | ||||||||
Efficiency | |||||||||
Max. Efficiency | 97.6% | ||||||||
Euro Efficiency | 97% | ||||||||
Equipment Protection | |||||||||
Integrated | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level | ||||||||
Surge Protection Level | TYPE II(DC), TYPE II(AC) | ||||||||
Interface | |||||||||
Communication Interface | RS485/RS232/CAN | ||||||||
Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | ||||||||
General Data | |||||||||
Operating Temperature Range (℃) | '-40 to +60℃, >45℃ Derating | ||||||||
Permissible Ambient Humidity | 0-100% | ||||||||
Permissible Altitude | 2000m | ||||||||
Noise (dB) | ≤55 | ||||||||
Ingress Protection(IP) Rating | IP 65 | ||||||||
Inverter Topology | Non-Isolated | ||||||||
Over Voltage Category | OVC II(DC), OVC III(AC) | ||||||||
Cabinet Size (WxHxD mm) | 422×658×254 (Excluding Connectors and Brackets) | ||||||||
Weight (kg) | 38 | ||||||||
Type of Cooling | Intelligent Air Cooling | ||||||||
Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | ||||||||
Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | ||||||||
Safety / EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||||||

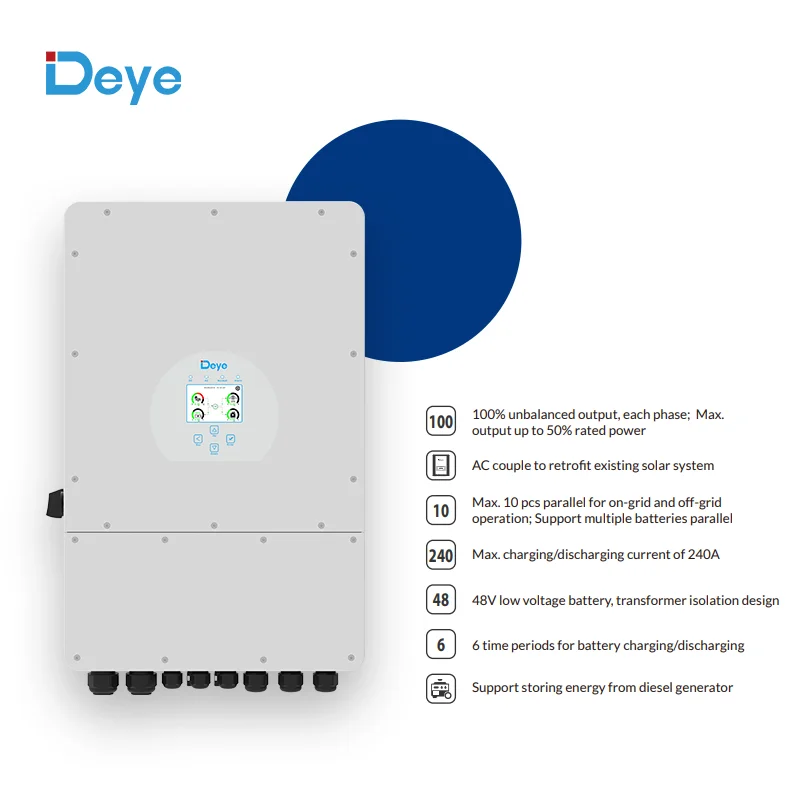

SUN 5/6/8/10/12K-SG is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.
Product Display
Product & Details
Certifications
Company Profile
Company Profile
Hefei Senxia Solar Energy Technology Co., Ltd. was established in 2021, a professional and leading manufacturer of High quality Solar Energy System . Sunshare SOLAR is located in Hefei City, Anhui Province, one of the main production bases of the photovoltaic industry in the world. jinko, JA, GCL, Sungrow and BYD all sit here . Sunshare SOLAR has been certified by Alibaba several years ago. The business covers the R&D, production and sales of PV modules residential, commercial and large scale solar plants. We supply turn-key service for domestic customers and all the materials for overseas markets.
Global sales network is attracting more and more customers from worldwide. In 2023, the company achieved sales vloume with USD 1billion.
For residential and commercial solar energy system, Sunshare SOLAR cooperate with famous brands in the world, like Huawei, Sungrow, Solis, Growatt, GoodWe ,Hopewind, Sofar ,Deye and etc to supply quality inverters .
FAQ
Q1: Can the product be shipped to my area?
We are committed to exporting our products to markets all over the world, be it Central/South America, Europe, Middle East and Africa (EMEA), Southeast Asia (SEA), South Asian Subcontinent and Rest of Africa (SSA), and Australia (AU).
Q2:How about the delivery date?
10 days for 1 pcs, 15 days for 15pcs，we need to negotiate if your needs ≥200pcs.
Q3: What kind of payment method is used?
100% TT or maximum we can accept 30% TT in advance and 70% TT upon goods ready before shipment.
Q4:What's the warranty?
We promise to provide 5 years of product quality assurance, and have a professional team to solve the technical problems you encounter in the process of use.
Q5:What's the mode of transport?
International section is generally sea transport, after entry we will use multimodal transport of rail, barge.
Contact
Похожие товары

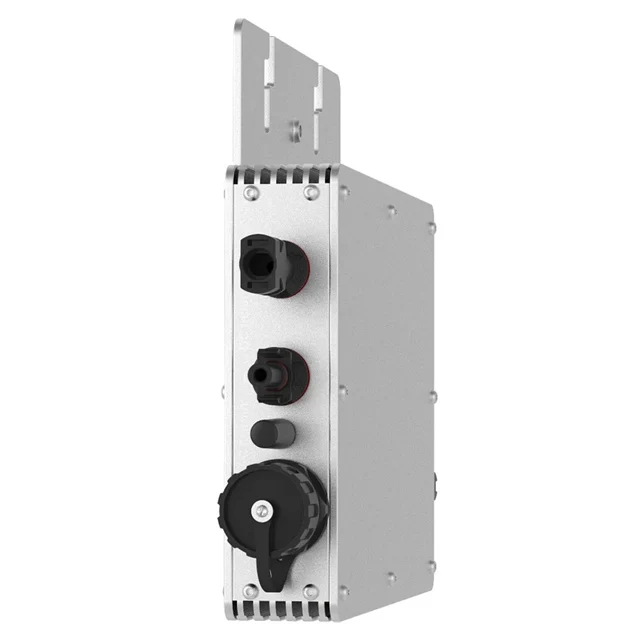

Vde 4105 солнечные панели Nep Micro Inverter Bdm 300w со встроенными инверторами

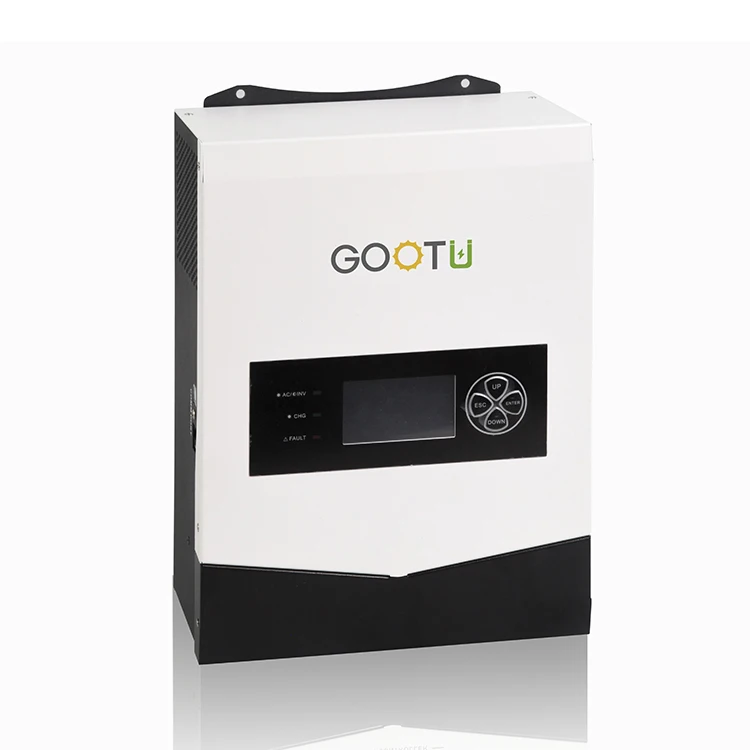

GOOTU 1 кВА 220 2 3 автономный солнечный инвертор 12 В 24 до в Инвертор солнечной энергии
138,88-149,99 $

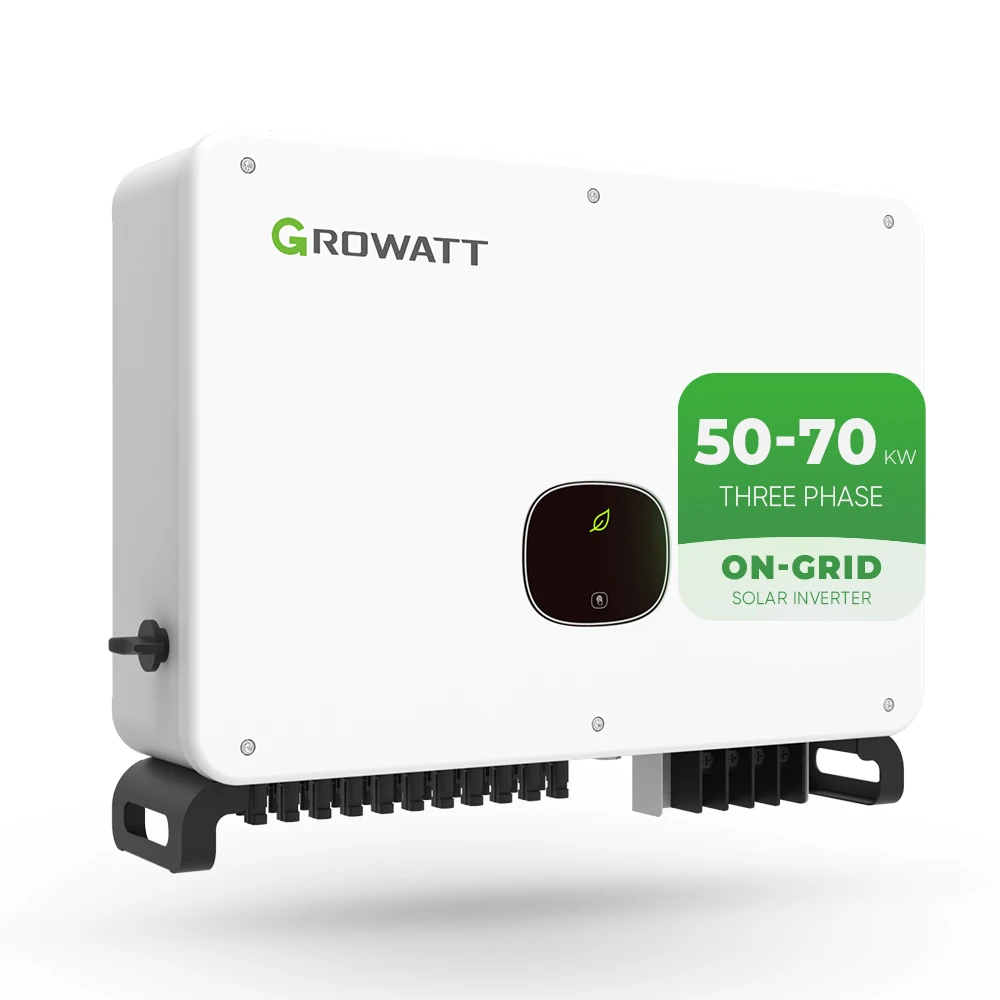

Growatt Ongrid солнечный инвертор 30 кВт 50 60 70 встроенный по хорошей цене
1 810,00-1 999,00 $
Новый продукт PV вход 120A MPPT on/off Grid 6.2KW 48V солнечный гибридный инвертор
120,00-159,00 $
Новый продукт PV вход 120A MPPT on/off Grid 6.2KW 48V солнечный гибридный инвертор
120,00-159,00 $

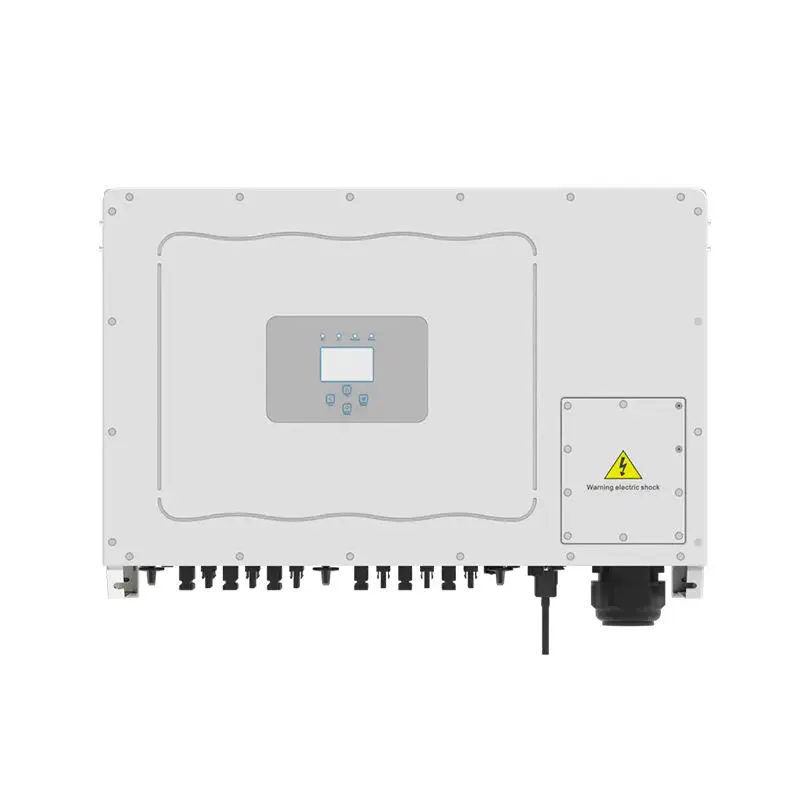

Deye на сетке инвертор SUN 70 кВт 75 80 90 100 110 G03 стандарт ЕС трехфазный Солнечный
