Product Description

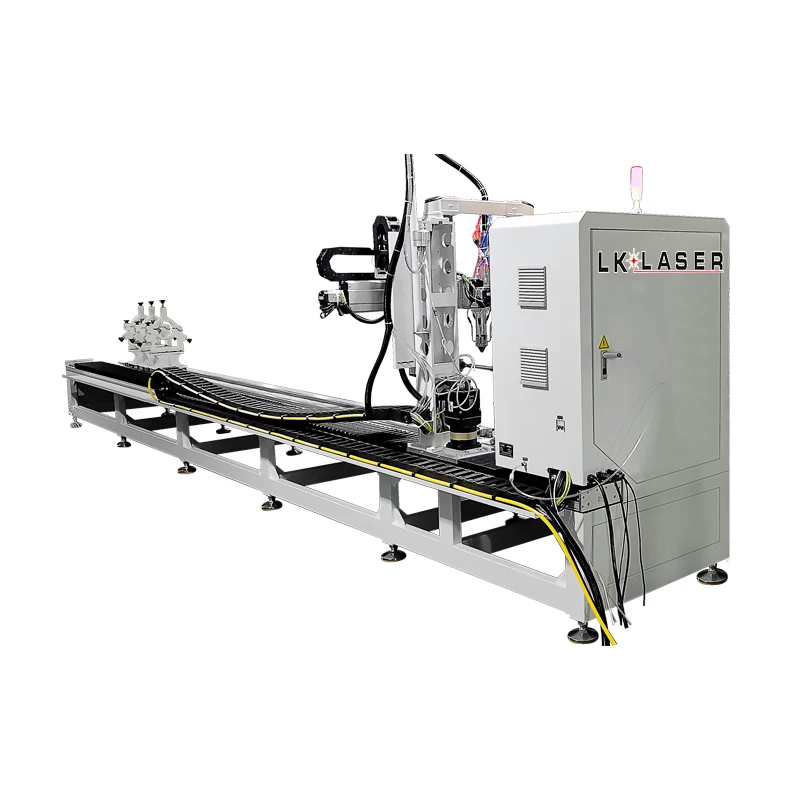

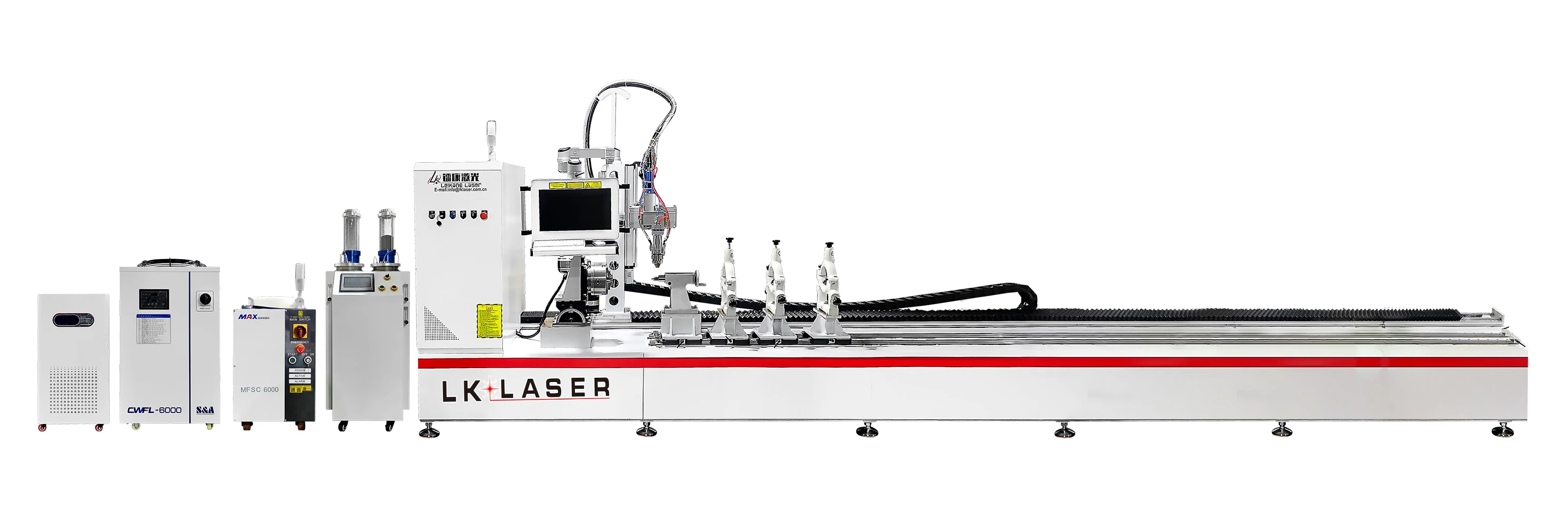

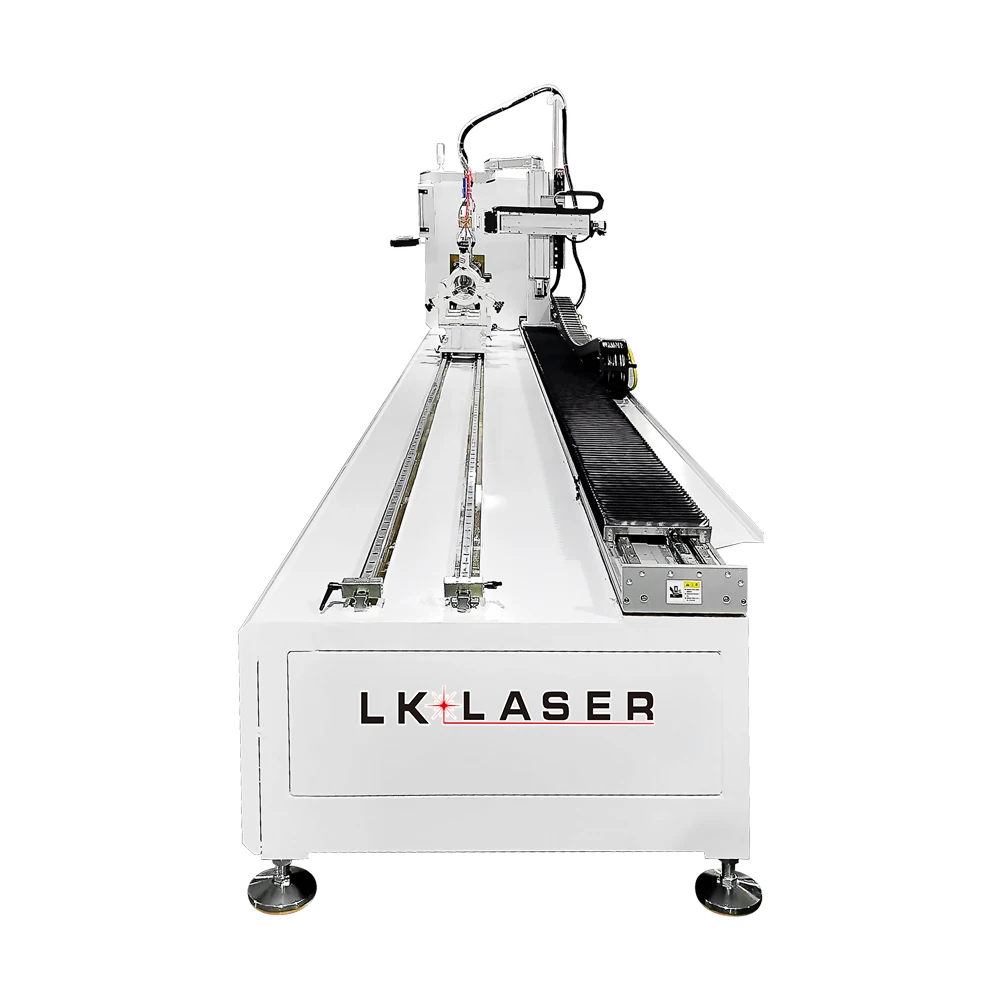

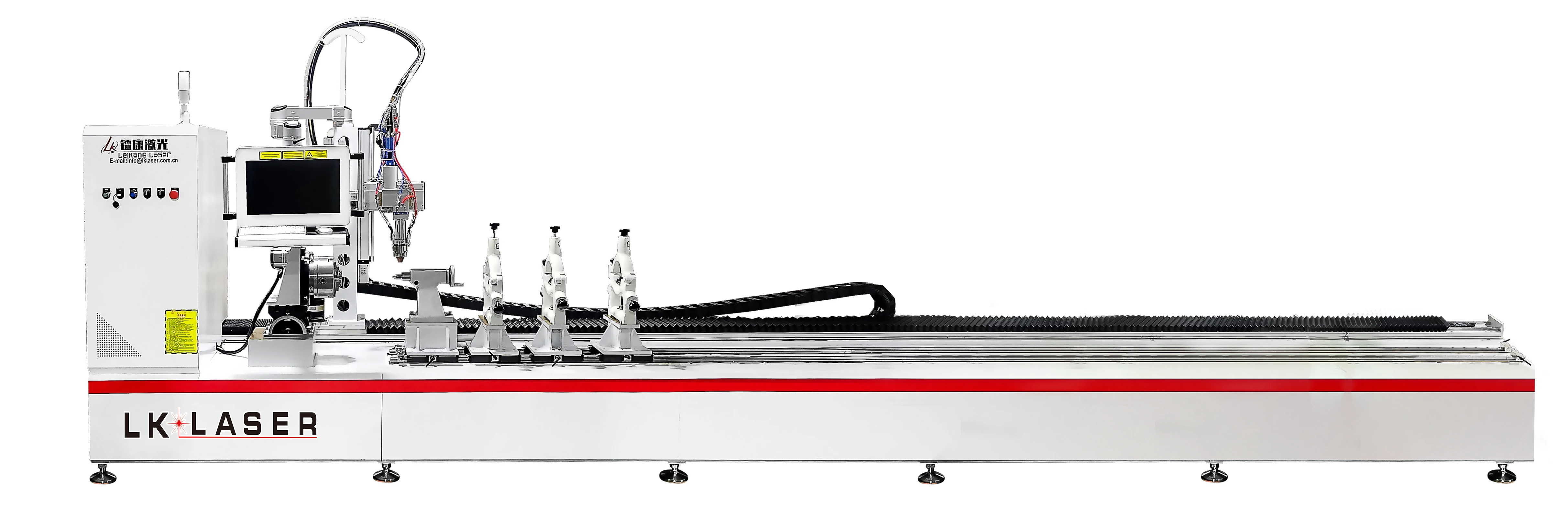

CNC Laser Cladding Machine
Compared with traditional processes such as electroplating, spraying, surfacing and vapor deposition, the laser cladding machine has a uniform and dense cladding layer with few microscopic defects, high bonding strength with the substrate, low dilution rate, small heat-affected zone and small thermal deformation. In addition, laser cladding can be processed without contact and is automated. The cladding thickness and cladding area are controllable, which can greatly improve the wear resistance of the product, extend its service life and reduce costs.
Specification
Model | LK-JQ |
Laser Type | continous fiber laser |
Laser wavelength | 1070nm |
Laser power | 3000W /6000W options |
Power adjustment range (%) | 0-100(Gradient adjustable) |
XYZ axis | 5000x500x300mm |
Blow gas | Air/ Argon gas |
Cooling method | Water Cooling |
guide | taiwan TBI |
Head type | cladding head |
positioning accuracy | +-0.1mm |
max speed | 0.3m/s |
max rotation speed | 300rpm/minutes |
additional axis wobble range | 0~100mm |
laser output power | ≤6000W |
cladding beam range | 0.1~3.0mm( reference) |
cooling method | water cooling |
powere voltage | AC 380V+-5% 50/60Hz |
General power | 41.5KW |

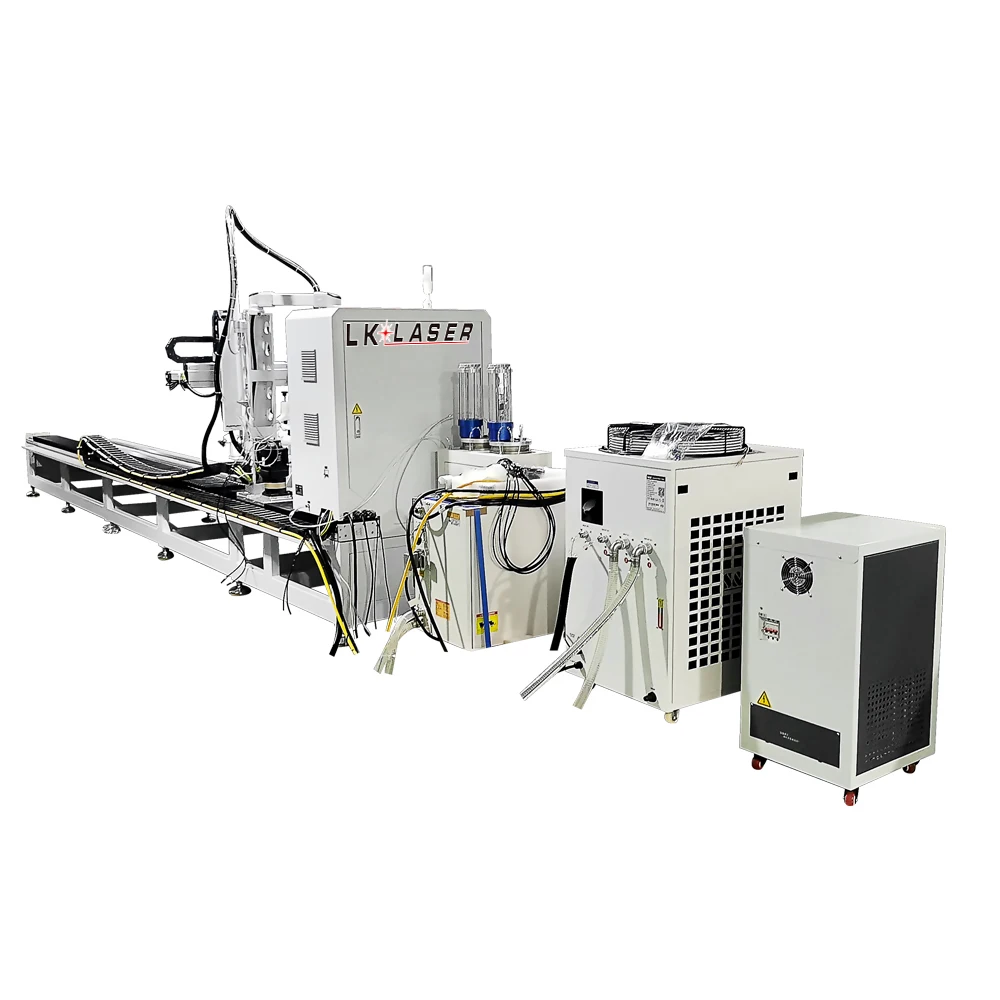

Laser cladding system
laser cladding machine for metal powder delivery and apply optical fiber transmission and beam expanding technology to guide light focusing, realize fully enclosed transmission or optical fiber transmission, and realize highly integrated control of optical, mechanical, electrical, powder and control integration; Combined with robot hands (people), miniaturization can realize mobile online services to meet the needs of different levels. It can be predicted that in addition to traditional fiber laser technology, new high-power semiconductor laser cladding equipment and processes will gradually develop and meet the needs of high-quality surface engineering, and become an important part of laser surface treatment.
Working Principle:
Laser cladding involves feeding a coating material (in powder or wire form) into the path of a focused laser beam. The laser melts the coating material and a thin layer of the substrate surface, creating a metallurgical bond between the two. As the laser moves, it deposits a continuous layer of the coating material on the substrate, forming a clad layer with improved surface properties.
Laser cladding involves feeding a coating material (in powder or wire form) into the path of a focused laser beam. The laser melts the coating material and a thin layer of the substrate surface, creating a metallurgical bond between the two. As the laser moves, it deposits a continuous layer of the coating material on the substrate, forming a clad layer with improved surface properties.
Material Compatibility: Ensure the coating material is compatible with the substrate to achieve the desired properties and performance.
Laser Parameters: Proper adjustment of laser parameters (power, speed, focus) is crucial for achieving optimal results.
Cost: Initial investment in laser cladding equipment can be high, but the long-term benefits and cost savings in maintenance and repairs often justify the expense.
Safety: Proper safety measures, including protective eyewear and ventilation, should be in place to protect operators from laser exposure and fumes.
If you need more detailed information or have specific requirements for laser cladding, feel free to ask!
Laser Parameters: Proper adjustment of laser parameters (power, speed, focus) is crucial for achieving optimal results.
Cost: Initial investment in laser cladding equipment can be high, but the long-term benefits and cost savings in maintenance and repairs often justify the expense.
Safety: Proper safety measures, including protective eyewear and ventilation, should be in place to protect operators from laser exposure and fumes.
If you need more detailed information or have specific requirements for laser cladding, feel free to ask!
Packing & Delivery
1.Standard plywood case, its compressive strength and bearing quality is better.
2.the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3.when importing, the plywood case is with fumigation-free, the procedure is simple.
4.Delivery Detail: within 3-5 days after received your payment
2.the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3.when importing, the plywood case is with fumigation-free, the procedure is simple.
4.Delivery Detail: within 3-5 days after received your payment
