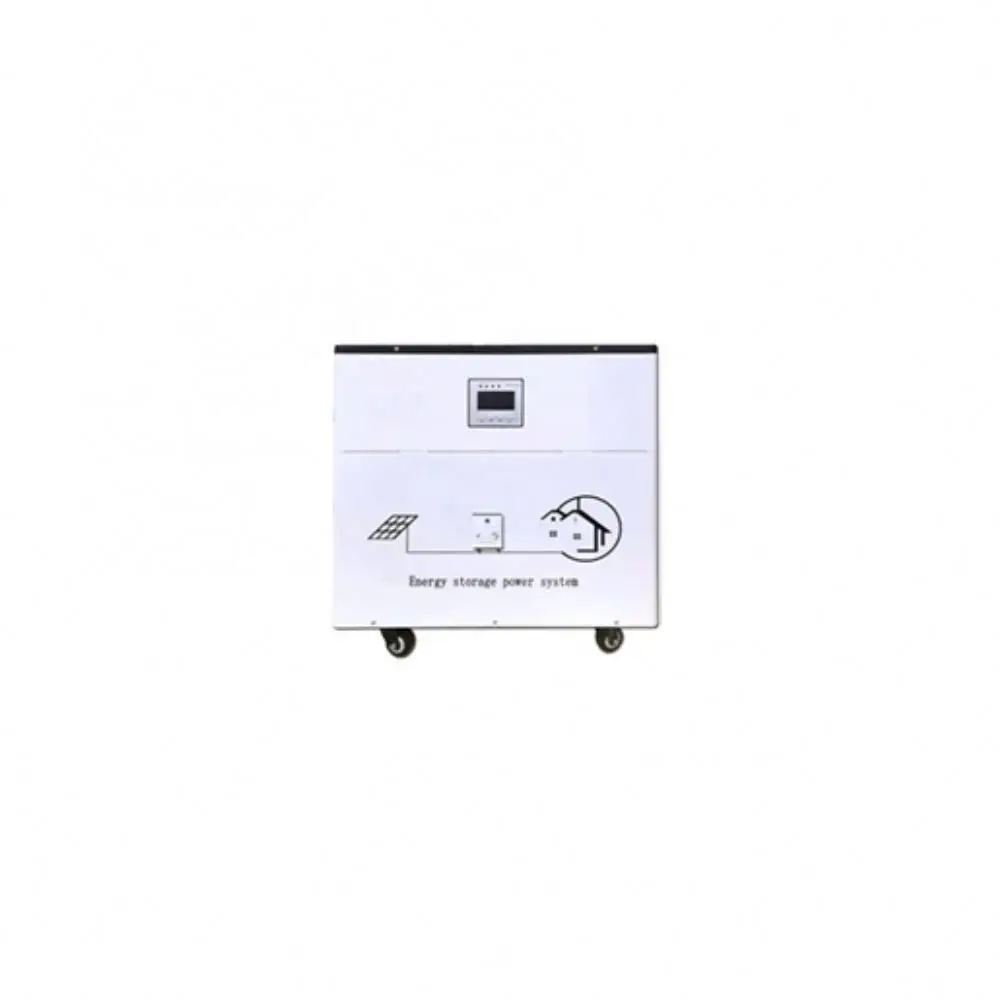

Home Use Off Grid Solar Generator 3kwh 6kwh With Affordable Price household solar generator
Technical Data
System model | Model | NV-ESP2000-4800 | NV-ESP3000-6000 | |
Basic configuration | Solar panels | 450W*3PCSMono | 375W*4PCSMono | |
Inverter | 2000W | 3000W | ||
Battery | 2PCS*200AH(bulit-in) | 2PCS*250AH(bulit-in) | ||
Inverter parameter | Rated output power(W) | 2000W | 3000W | |
Output voltage(V) | 220V/230V/240Vac±5% | 9.35A | ||
Frequency(Hz) | 50Hz/60Hz±0.5Hz | 17.01% | ||
Output Wave | Pure sine wave | 0~+3% | ||
Battery Input | 24Vdc | All-in-one | ||
AC Input | 165-265Vac±5% | 1 set | ||
Charging Current(A) | 20A | MPPT | ||
Transfer Efficiency | ≧88% | On/Off/Hybrid grid | ||
Life time | 10 Years | 3KVA | ||
Max input power(W) | 1600W | 1600W | ||
Max input voltage(V) | 150Vdc | |||
MPPT | 36-50Vdc | 36-50Vdc | ||
Charging Current(A) | 60A | 15KWH | ||
Charging Efficiency | 98% | 1 piece | ||
Charger Type | MPPT(bulit-in) | 1 set | ||
Solarpanels parameter | Rated power(W) | 450W | 375W | |
Voltage at pmax(Vmp) | 34.3Vdc | 34.3Vdc | ||
Open-circuit voltage(voc) | 40.98Vdc | 40.2Vdc | ||
Current at pmax(Imp) | 12.65A | 10.94A | ||
Lifetine | 25 years | |||
Battery parameter | BatteryType | GELBattery(bulit-in) | ||
Batterycap | 200ah*2=4800WH | 250AH*2=6000WH | ||
Components
Solar Panels
25 years Warranty
Perc/Bifacial/HJT solar panels are available
Highest conversion efficiency over 21%
Anti-reflective and anti-soiling surface power
loss from dirt and dust
Excellent mechanical load resistance
PID Resistant,High salt and ammonia resistance
Perc/Bifacial/HJT solar panels are available
Highest conversion efficiency over 21%
Anti-reflective and anti-soiling surface power
loss from dirt and dust
Excellent mechanical load resistance
PID Resistant,High salt and ammonia resistance
Main Disconnect Box
DC Disconnect
AC Disconnect
Battery Disconnect
PV Combiner
Flexible Inputs Optional
IP65 Protection Degree
AC Disconnect
Battery Disconnect
PV Combiner
Flexible Inputs Optional
IP65 Protection Degree
On/Off grid Hybrid Inverter
5 years standard warranty
Max.Efficiency 99.6%,European efficiency 99%
Integrated DC switch for added safety protection
Power factor continuously adjustable
Transformer-less design and high power density, off lighter and more convenient installation
Flexible communication connection, support RF WIFI Wifi&GPRS available for IOS and Android
Built-in MPPT solar charger
High PV input voltage range
Max.Efficiency 99.6%,European efficiency 99%
Integrated DC switch for added safety protection
Power factor continuously adjustable
Transformer-less design and high power density, off lighter and more convenient installation
Flexible communication connection, support RF WIFI Wifi&GPRS available for IOS and Android
Built-in MPPT solar charger
High PV input voltage range
Batteries
Prior choice with Nova Lithium Battery Powerwall 48V 100Ah/150Ah/200Ah/300Ah
BMS matched with most inverters
Optional choice with GEL/AGM 2V/12V series
BMS matched with most inverters
Optional choice with GEL/AGM 2V/12V series
Mounting Bracket
Residential Roof(Pitched Roof)
Commercial Roof(Flat roof&workshop roof)
Ground Solar Mounting system
Vertical wall solar mounting system
All aluminum structure solar mounting system
Car parking solar mounting system
Commercial Roof(Flat roof&workshop roof)
Ground Solar Mounting system
Vertical wall solar mounting system
All aluminum structure solar mounting system
Car parking solar mounting system
Accessories
PV Cable 4mm2 6mm2
AC Cable
DC Switches
AC Breaker
AC Cable
DC Switches
AC Breaker
PV Tools
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
Related Products
Product packaging
1) 27pcs/pallet package for solar panel, 1 or 2 pieces /carton box
2) 270pcs/20'GP package for solar panel, 1 or 2 pieces /carton box
3) 594pcs/40'HQ package for solar panel, 1 or 2 pieces /carton box
2) 270pcs/20'GP package for solar panel, 1 or 2 pieces /carton box
3) 594pcs/40'HQ package for solar panel, 1 or 2 pieces /carton box

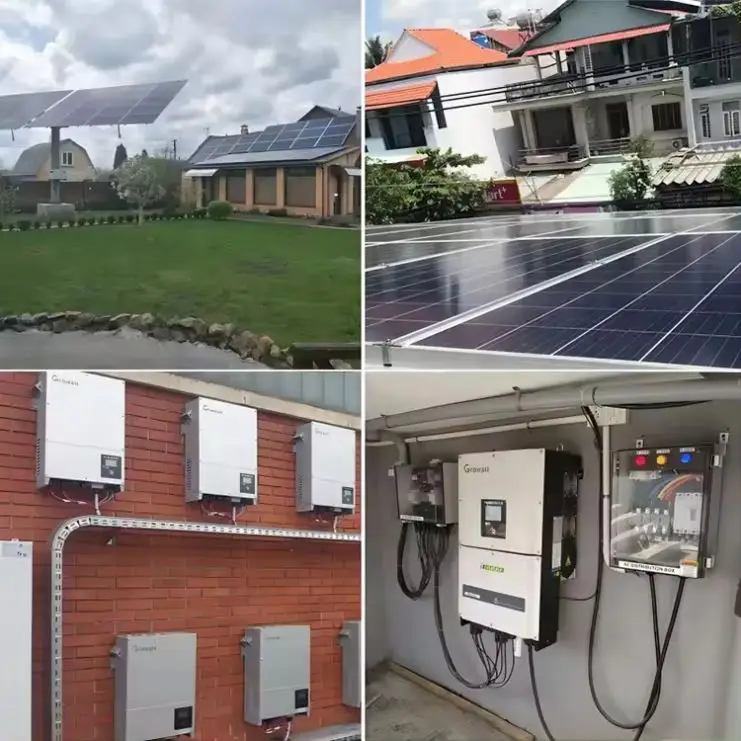

Product Application
1. For Home, solar farm, industrial, camping, DIY
2. For Energy systems, power station
3. For RV, Boats marine, street light, travel, Portable generator
2. For Energy systems, power station
3. For RV, Boats marine, street light, travel, Portable generator
Company Profile
Nova Energy Co.,Ltd., one of the subsidiaries of Nova Energy Group, is a high-tech enterprise incorporate R&D, production and sales of Mono solar panel, Poly solar panel, Half cell solar panel, Bifacial solar panel, All black solar panel, Full screen solar panel, Shingled solar panel, Double glass solar panel, On grid solar system, Off grid solar system, Hybrid solar system and Solar Battery
Over decades of R&D and integration in the new energy industry, Nova factories covers over 30,000m2 production areas with above 600 skilled workers and 60 senior engineers, implements the strict quality inspection and control system and ISO9001 quality management system; up to now, Nova is capable of providing one-stop customized power solutions, OEM/ODM services and quick mass-production with automatic production capacity more than 100,000pcs cells and 40,000pcs panels every day; Most our products are international patented and CE, RoHS, ETL, BIS, KC, PSE, TUV, UL, UN38.3 and MSDS certified
"Sincere cooperation, Bravery in innovation and Strive for excellence" is the company spirit, we adhere to the management philosophy of "Market Oriented,Customer focused and Innovation driven" and persist on the company mission of supplying people life with our intelligent mobile and endless power source to exceed customers' expectations, "Customer satisfaction, Technology innovation and Society advancement" is the company value
Nova performs the company mission of supplying people life with our green and endless power source of solar panel, energy storage battery and power solutions, builds cooperation with national chemistry research Institutes and universities, becomes the vertical integrated manufacturer from energy production, energy storage and energy application
Over decades of R&D and integration in the new energy industry, Nova factories covers over 30,000m2 production areas with above 600 skilled workers and 60 senior engineers, implements the strict quality inspection and control system and ISO9001 quality management system; up to now, Nova is capable of providing one-stop customized power solutions, OEM/ODM services and quick mass-production with automatic production capacity more than 100,000pcs cells and 40,000pcs panels every day; Most our products are international patented and CE, RoHS, ETL, BIS, KC, PSE, TUV, UL, UN38.3 and MSDS certified
"Sincere cooperation, Bravery in innovation and Strive for excellence" is the company spirit, we adhere to the management philosophy of "Market Oriented,Customer focused and Innovation driven" and persist on the company mission of supplying people life with our intelligent mobile and endless power source to exceed customers' expectations, "Customer satisfaction, Technology innovation and Society advancement" is the company value
Nova performs the company mission of supplying people life with our green and endless power source of solar panel, energy storage battery and power solutions, builds cooperation with national chemistry research Institutes and universities, becomes the vertical integrated manufacturer from energy production, energy storage and energy application
Quality Control
1. 100% Cells Sorting
Ensure Colour and Power Difference.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.
2. 100% Visual Inspection
Before and After Lamination
Most stringent acceptance criteria and 0 defective tolerance,
Intelligent alarm and stop mechanism in case of any deviation or errors.
Most stringent acceptance criteria and 0 defective tolerance,
Intelligent alarm and stop mechanism in case of any deviation or errors.
3. 100% EL Testing
Before and after Lamination
Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and panel.
Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and panel.
4. "0" defectives tolerated
0 Defects Objective Before Shipment.
Most stringent acceptance criteria and 0 defectives tolerance
Ensure the best modules on the market- guaranteed!
Most stringent acceptance criteria and 0 defectives tolerance
Ensure the best modules on the market- guaranteed!
5. 100% Optimal Testing
Ensure 3% Positive Power Tolerance
Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow constantly.
Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow constantly.
FAQ
Q1. What's the warranty of NOVAPOWER solar energy system 3000w?
A1: 26 years if there is quality problem caused by non-artificial reason, FREE replacement is provided
Q2. How fast you can transport the solar panels system samples and the lead time of bulk order?
A2: 3~12 working days for samples, 7~15 working days for bulk order
Q3. Are you able to customize the solar panel dimension, energy and voltage?
A3: Yes, we have advanced machines, related expertise to customize any solar panel dimension, energy and voltage
Q4. Why choose NOVAPOWER solar panel system for home?
A4:
1) 26 years warranty; Free Replacement
2) Custom service
3) 100% Test Before Shipment
4) 0 defective rate tolerated
5) The Highest energy efficiency
6) Integrated manufacturer from solar Cell to Panel
7) CE/RoHS/TUV/MSDS/UN38.3/ETL/BIS/KC certified
8) 14+ years R&D and manufacturing experiences from energy production, energy storage to energy application
A1: 26 years if there is quality problem caused by non-artificial reason, FREE replacement is provided
Q2. How fast you can transport the solar panels system samples and the lead time of bulk order?
A2: 3~12 working days for samples, 7~15 working days for bulk order
Q3. Are you able to customize the solar panel dimension, energy and voltage?
A3: Yes, we have advanced machines, related expertise to customize any solar panel dimension, energy and voltage
Q4. Why choose NOVAPOWER solar panel system for home?
A4:
1) 26 years warranty; Free Replacement
2) Custom service
3) 100% Test Before Shipment
4) 0 defective rate tolerated
5) The Highest energy efficiency
6) Integrated manufacturer from solar Cell to Panel
7) CE/RoHS/TUV/MSDS/UN38.3/ETL/BIS/KC certified
8) 14+ years R&D and manufacturing experiences from energy production, energy storage to energy application
