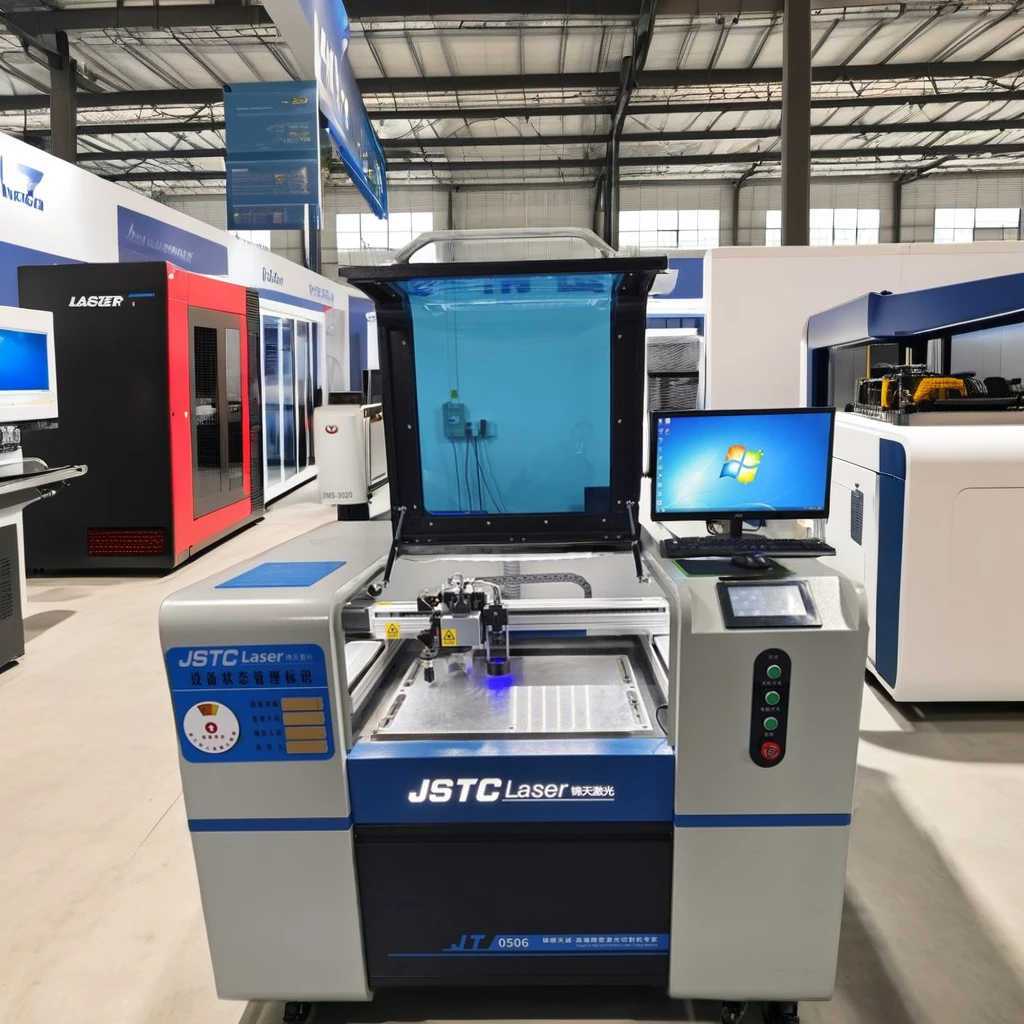

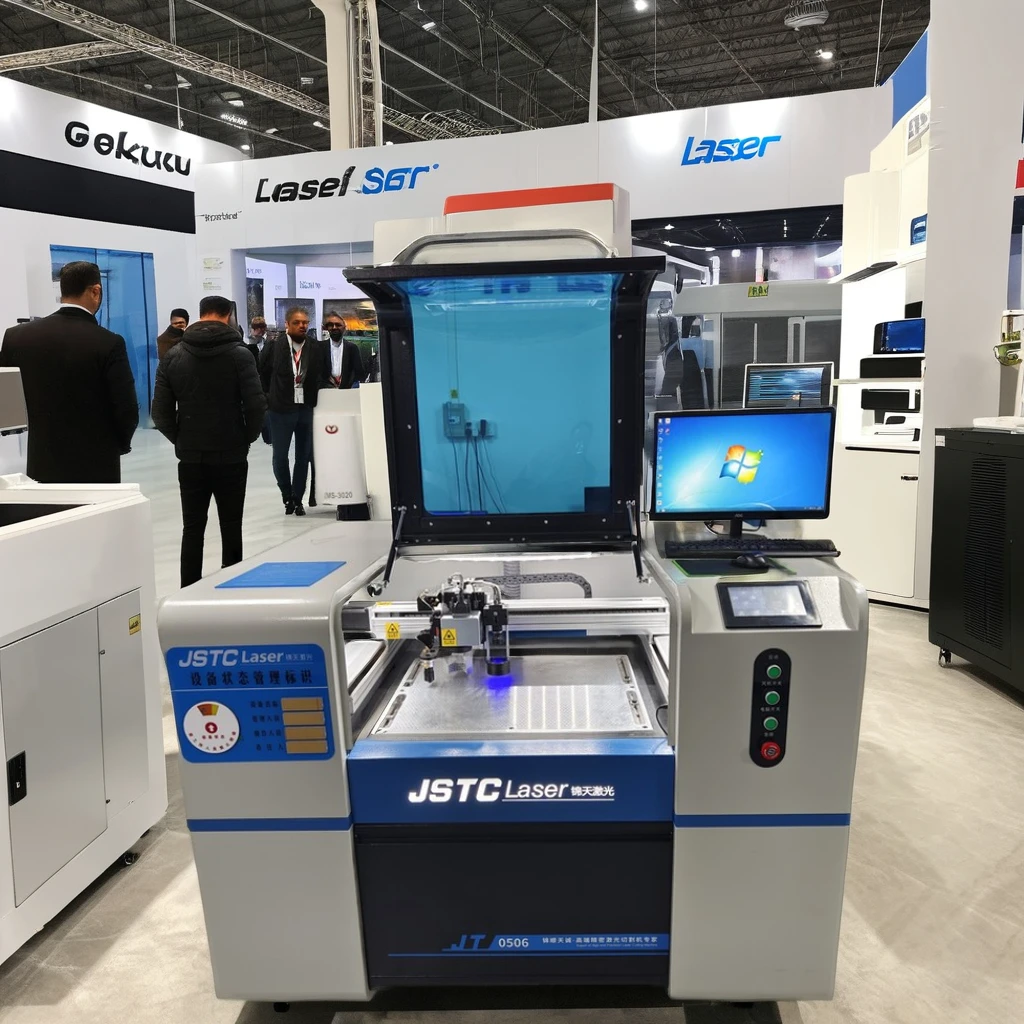

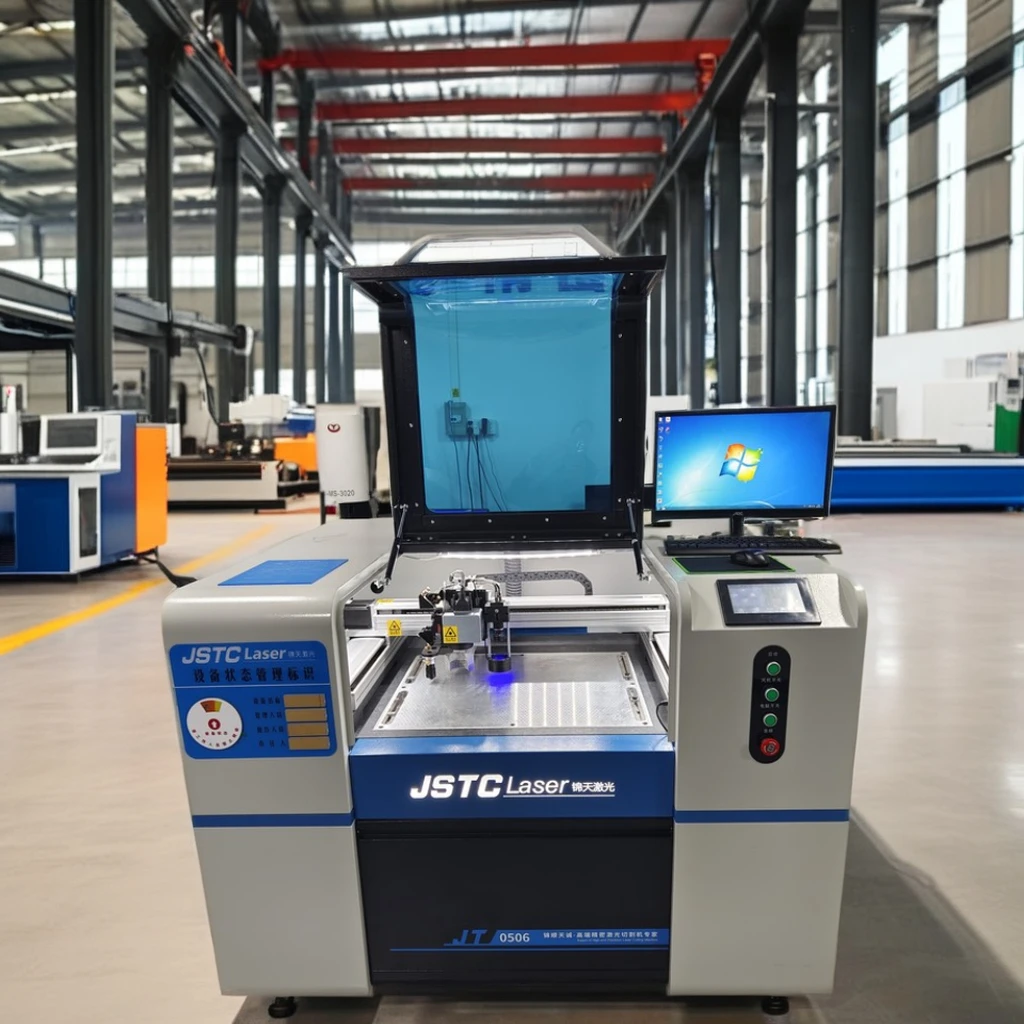

JT-0607 (60W) marble platform gantry dual-drive structure JT-0607 (60W): marble platform gantry dual-drive structure. Non-metallic materials (PET, TPU, OCA, ITO, PMMA anti-seep film and other non-metallic materials (PET, TPU, OCA, ITO, PMMA anti-seep film, etc.). Laser cutting processing is based on CAD drawing data import equipment. Laser cutting processing is based on CAD drawing data import equipment.
1. The computer drawing is transferred to the laser machine to complete the processing graphics required by DXF, and the equipment is formed and cut after debugging for different materials.
2. Equipment running speed: 100mm-800mm/s
3. Deep accuracy during molding: +/-0.02mm
4. Cutting accuracy: +/-0.05mm Repeat accuracy +/-0.01mm
5. Processing graphic radius: 05mm

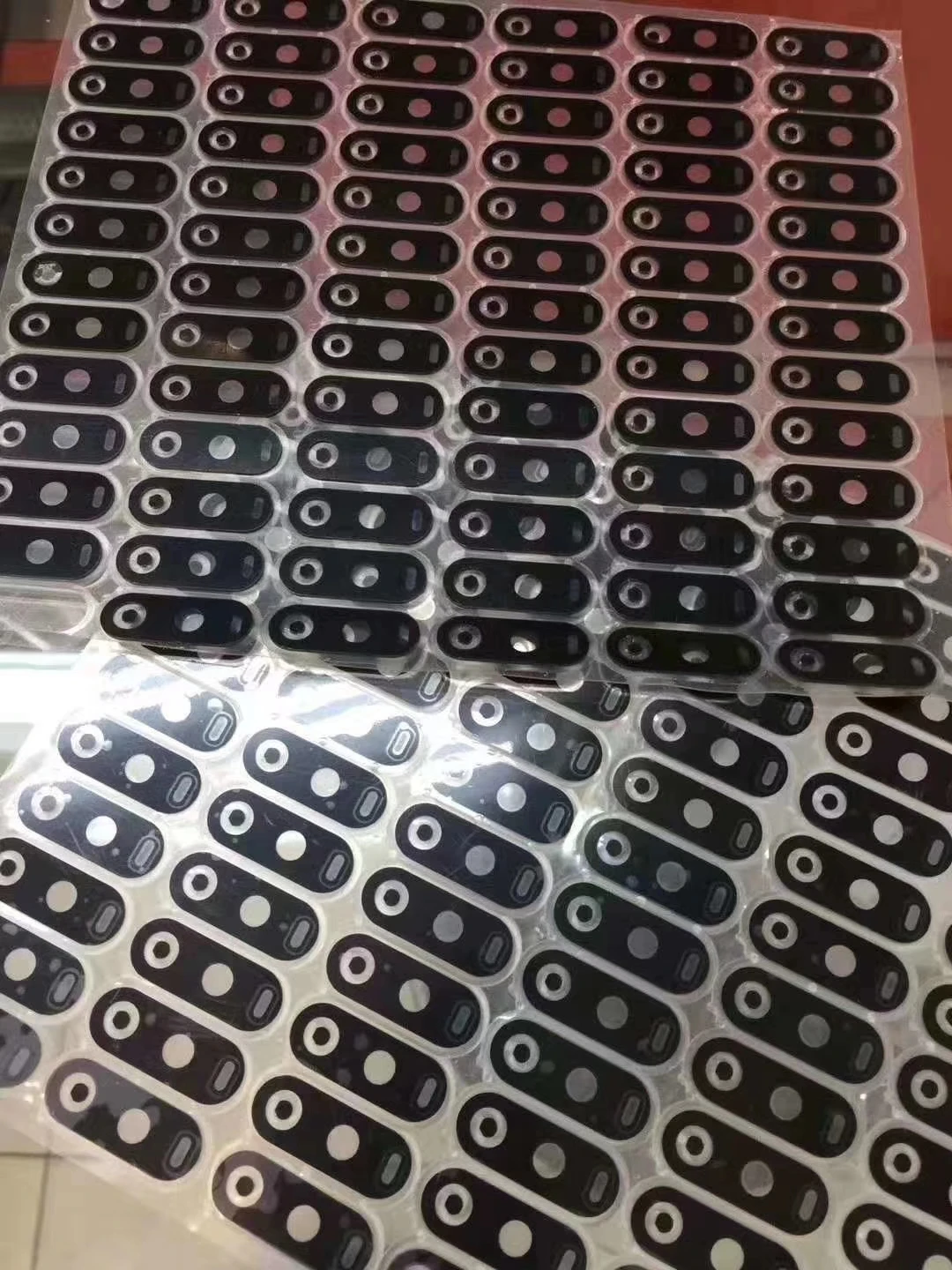

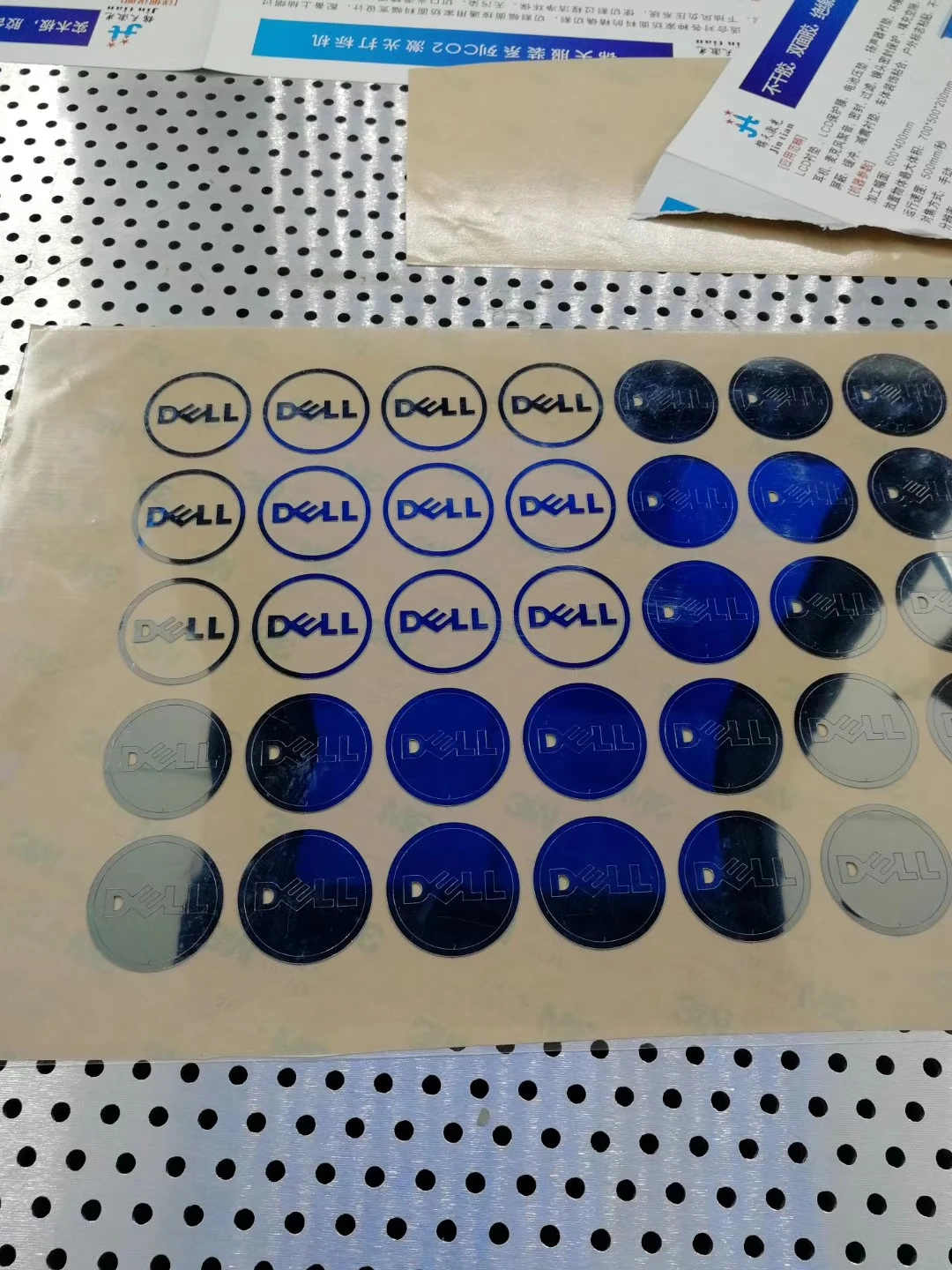

6. Cutting method: the product is completely broken and half broken (two layers of products, the bottom film is continuous, and the surface of the product is completely broken)
7. A CO2 laser machine must be used to cut into a laser machine device with a set shape.
8. For different products, it can be equipped with CCD target capture function to achieve accurate positioning and cutting without manual positioning.
9. The processing method is imported into the equipment according to the CAD drawing data, adjusted to the most suitable processing condition parameters, and then start processing and production.
10. Final accuracy of equipment processing products: +/-0.05mm, thickness of processing materials: 0.1-3.0mm, effective processing area: 600*700.
Equipment size: 1500 (L) mm*1650 (W) mm*1200 (H)mm
Processing width; 600mm×700mm. Incoming method; compatible with sheet coils. Processing materials; non-metallic materials such as PET/PMMA/OCA anti-peep
Material thickness; 0.1-3.0mm. Deep accuracy during molding: +/-0.02mm
Cutting accuracy +/-0.05mm, repetition accuracy ±0.01mm
Processing patterns; straight lines, slashes, curves
Range of vibration mirror
65MM (flight cutting)
