6 кВт 4 солнечный гибридный инвертор 48vDC 24VDC Гибридный mppt 6000 Вт чистый синусоидальный контроллер заряда 120A вне сети
35 091,17-37 634,01 ₽
Быстрое отправление | Люментер 48 В 6 кВт чистый синусоидальный солнечный гибридный инвертор с сенсорным экраном двойной MPPT 6000 Ватт низкий уровень шума 4 дБ
- Категория: >>>
- Поставщик: Hangzhou Lumentree New Energy Co. Ltd.Hangzhou Ltd.
Сохранить в закладки 1601245420345:
Описание и отзывы
Характеристики
Details Images
Key Features
Products Description
Hybrid Solar Inverter
6.0KW
Product size: 515x420x140mm
Packing size: 628x538x232 mm
G.W/N.W: 19Kg/15.5Kg
Product size: 515x420x140mm
Packing size: 628x538x232 mm
G.W/N.W: 19Kg/15.5Kg
The Hybrid Inverter is a highly efficient power management equipment that allows the user to hit those‘parity’ targets by managing power flow from multiple sources such as solar, main electrical grids, generator, and effectively storing and releasing electric power to meet the demand of utility usage.

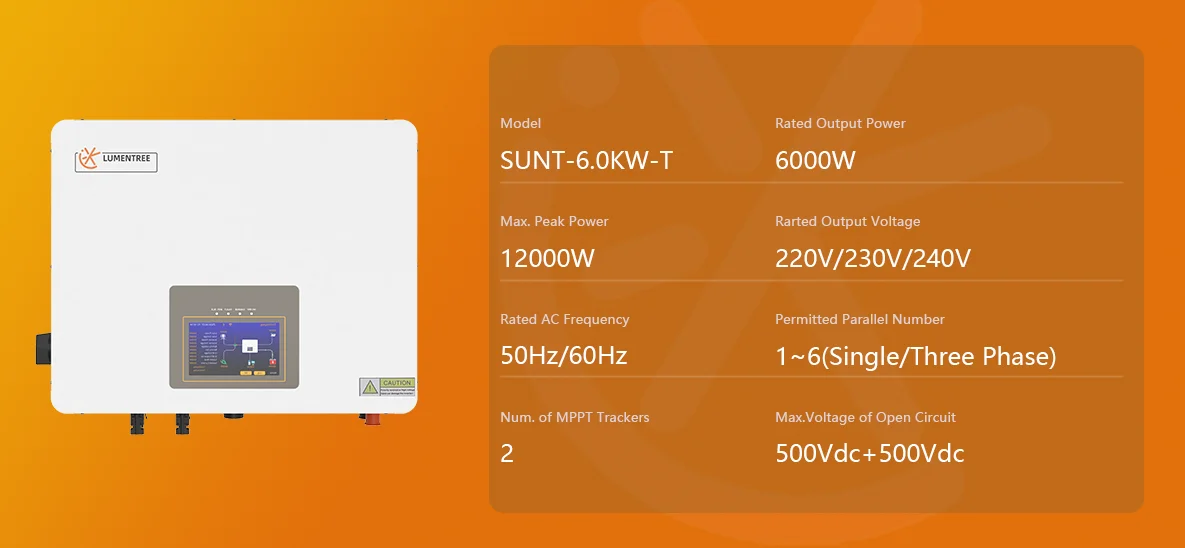

Model | SUNT-6.0KW-T | |||
Battery Input Parameters | ||||
Supported battery type | Li-lon or Lead-acid | |||
Nominal battery voltage (V) | 48 | |||
Battery input voltage range(V) | 40~60 | |||
Max.charge voltage (V) | ≤60(Configurable) | |||
Max.charge current (A) | 100(Configurable) | |||
Max. discharge current (A) | 130 (Configurable) | |||
Battery capacity (Ah)(Recommend) | 100~2000 | |||
Charge for Li-lon battery pack | Communicating with BMS of the battery pack | |||
PV String Input Parameters | ||||
Max. DC input power (W) | 4000 x 2 = 8000 | |||
Max. DC input voltage (V) | 500 | |||
MPPT voltage range (V) | 120-450 | |||
Start-up voltage (V) | 150 | |||
Max. input current (A) | 15 x 2 = 30 (2 MPPT channels) | |||
AC Output Parameters (Back-Up) Feed to essential load | ||||
Max. output power (W) | 6000 | |||
Max. output apparent power(VA) | 6000 | |||
Peak output apparent power(VA) | 12000 | |||
Max. output current (A) | 26 | |||
Nominal output frequency/voltage | 50/60(+/-0.2%)Hz; 220/230/240 (Configurable)single phase | |||
Max. Bypass Current(A) | 40 | |||
Shift Time(Bypass and inverter) (ms) | 10 | |||
Output THD (Resistor load) | ＜3% | |||
AC input parameters (On-grid) Bypass to essential load/ Charge the battery/ Feed to home load | ||||
Max. input power (W) Bypass to essential load/Charge the battery | 6000 | |||
Max.output power (W) Feed to home load | 6000 | |||
Max. apparent input power (VA) Bypass to essential load/Charge the battery | 6000 | 5000 | ||
Max. apparent output power (VA) Feed to home load | 6000 | 5000 | ||
Nominal input/output voltage (V) | 220/230/240(Auto adjusted to fit home gird) single phase | |||
Nominal input/output frequency (Hz) | 50/60(Auto adjusted to fit home gird) | |||
Max. bypass current(A) | 40 | |||
Shift time(Bypass and inverter) (ms) | 10 | |||
Efficiency | ||||
Max. Efficiency | 97.6% | |||
Max. Battery to Load Efficiency | 94.0% | 11000 | ||
Europe Efficiency | 97.0% | |||
MPPT Efficiency | 99.9% | |||
Protection | ||||
Battery over charge protection | ✔ | |||
Battery low charge protection | ✔ | |||
Over temperature protection | ✔ | |||
Output over load protection | ✔ | |||
Output short circuit protection | ✔ | |||
Output over voltage protection | ✔ | |||
Certifications & Standards | ||||
Grid regulation | VDE-AR-N4105, UNE217001,G100 | |||
Safety EMC/ Regulation | IEC/EN61000-6-1/3; IEC/EN62109-1/2 | |||
Ingress Protection | IP20 | |||
Operating Temperature range(℃) | -25~60 | |||

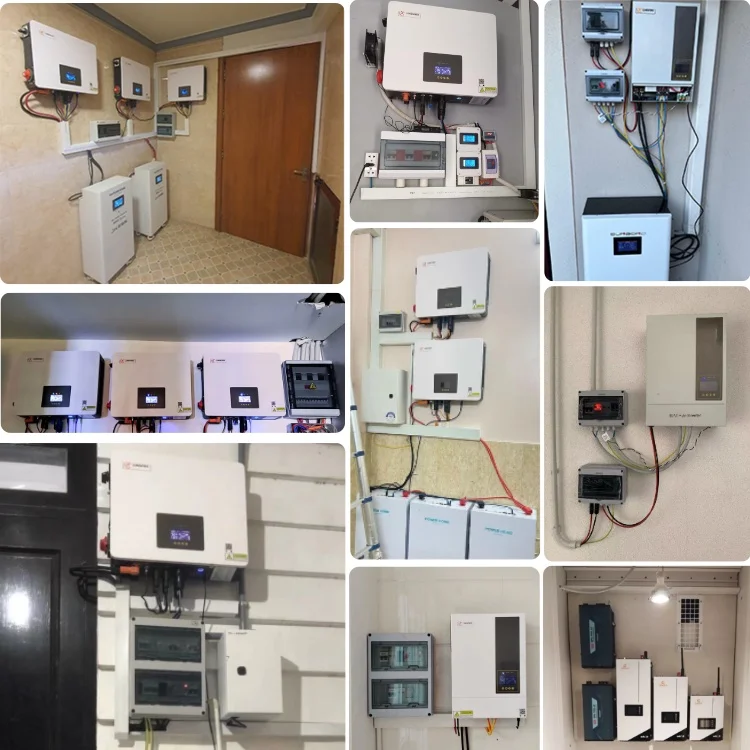

Installation Case
Packaging & Delivery
OPP bag with EPE foam, carton
One piece per carton
Packing size: 630*540*235 mm
G.W: 20kg
G.W: 20kg
Company Profile
Lumentree is founded by a group of engineers who believe humanity's future depends on sustainable energy. The enterprise strives to become a top-tier provider of renewable energy solutions, with the research and manufacturing of quality and reliable products at its core.
The company is dedicated to offering comprehensive inverter solutions, including hybrid, on&off grid inverters, as well as all-in-one systems, along with lithium batteries, and photovoltaic materials.
Heavily influenced by the engineering backgrounds of the founders, Lumentree heavily promotes an academic atmosphere both inside and outside the organization. Inside, it sparks curiosity from the development team to find the best designs possible by challenging the status quo. Outside, it pushes the sales team to work closely with the customers and speculate pain points from their prospectives to offer unparalleled service. The principle of product&customer first of Lumentree creates the sense of urgency to give our utmost effort at leading product innovation and to deliver customer satisfaction.
Our customers from the Americas, Europe, Asia, and all across the globe, have appraised our product for its reliability, user-friendliness, and cost-effectiveness.
With their unanimous recognition and our belief in harnessing the power of a sustainable future, we are filled with confidence that we will grow into a significant driving force in global energy transitions.
FAQ
Q1. Are you manufacturer or trading company?
A: We are a R&D and manufacturer. "LUMENTREE" is a registered brand can take OEM&ODM orders as well.
Q2. What is the time of warranty of solar inverter?
A: 10 years.
Q3. Why choose us?
We can provide competitive price, high quality standard, customized service and technical support.
Q4.Can you provide sample for testing market?
A:Yes. We also accept sample orders. Sample details please contact our sales.
Q5. What service can we provide?
Accepted Delivery Terms: EXW, FOB, CIF, CIP, DAP ;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T
Q6. What is your terms of payment?
1: 100% payment through alibaba.
2. 30% T/T prepaid, 70% by the copy of Bill of lading.
3. Or according to negotiation.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test and we can provide product test report.
Q8. Can we do OEM/ODM services?
Yes, we can. We can customize the product logo, packaging materials, etc
We have 20 engineers with more than 10 years of research and development experience, can jointly develop customized products to meet your unique requirements for products. At the same time, we have noise rooms and laboratories to provide necessary conditions for research and development.
Product advantage UPS 4ms Switching Time Bluetooth/Wifi Function CT(current transformer ID) 10 years product warranty Max bypass
current 40A Even people without a electricity license can read the savings and set it up easily.
Company advantage 20 engineers with 10 years of R&D experience Overseas After-sales Service Team One-to-one Pre-sale Service
OEM/ODM Structure Design Package Design House electricity consumption scheme design
current 40A Even people without a electricity license can read the savings and set it up easily.
Company advantage 20 engineers with 10 years of R&D experience Overseas After-sales Service Team One-to-one Pre-sale Service
OEM/ODM Structure Design Package Design House electricity consumption scheme design
