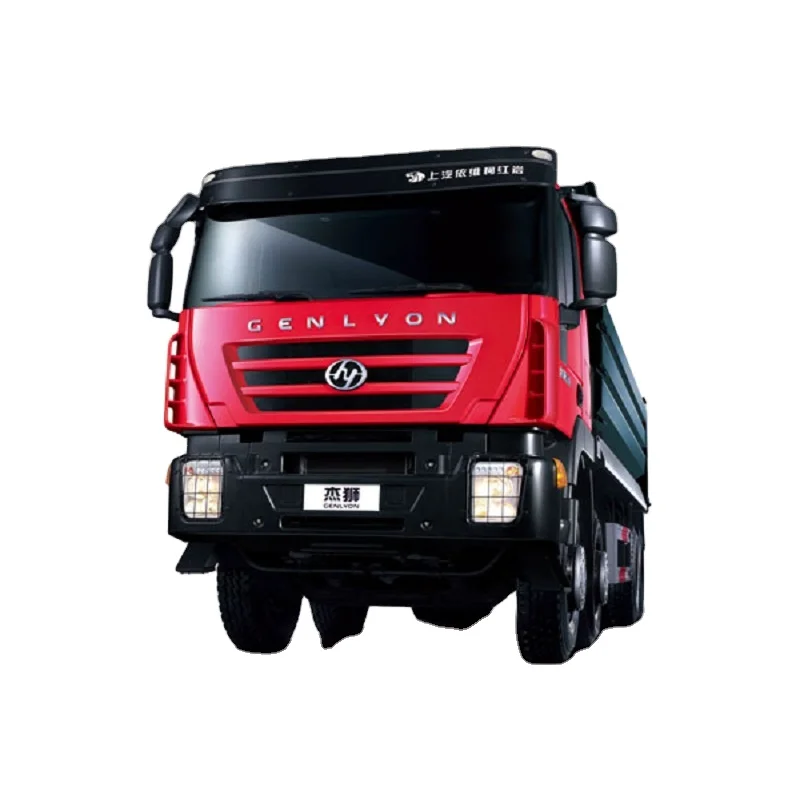

Самосвал Hongyan Genlyon IVECO 8x4 Euro4, 12 колес 80 тонн, Прямая поставка с завода, низкая цена, самосвал для тяжелых работ
2 297 261,40 ₽ - 6 563 604,00 ₽
Сверхмощный 10 колесный самосвал мощностью 30 тонн для строительного мусора
- Категория: >>>
- Поставщик: Jinan Quanyu Import And Export Co. Ltd.
Сохранить в закладки 1601245484327:
Описание и отзывы
Характеристики
Sinotruk New Design HOWO TIPPER DUMP Truck
Our Main Products Heavy Trucks, electric vehicles and Construction Machinery. include Howo tractor trucks, dump trucks, trailer truck,Fire trucks, water tank trucks, concrete mixer trucks, special trucks,truck parts and Motor grader,wheel loader, roller loader. we can supply these for you with good quality and competitive price.
Product Description
Specification
SINOTRUK HOWO 6x4 DUMP TRUCK SPECIFICATIONS | ||||
Truck Model | ZZ3257V3847B1(Left Hand Drive ) | |||
Truck Brand | SINOTRUK-HOWO | |||
Dimension (LxWxH) (unloaded)mm | 8645×2550×3450 | |||
Body | Carriage Internal Dimension:5600x2300x1500mmSteel thickness of Carriage：Floor:10mm/Side:8mmHydraulic Lift of Carriage：Front LiftSteel:Q345 | |||
Approaching angle/ Departure angel (°) | 19/23 | |||
Overhang (front/rear) (mm) | 1500/1870 | |||
Wheel base (mm) | 3825+1350 | |||
Max. Driving speed (km/h) | 75 | |||
Front axle loading capacity (kg) | 9500 | |||
Rear axle loading capacity(kg) | 2*16000 | |||
Curb weight (kg) | 12750 | |||
Gross vehicle weight | 30000 | |||
Cab Model | SINOTRUK HW76 Lengthen cab,single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner. | |||
Engine Model | Model | WP12.400E201(EURO II),400hp,6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | ||
Rated Power(kw/rpm) | 294/2100 | |||
Make WEICHAI, Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan | ||||
Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | |||
Transmission | Model | SINOTRUK HW19710 transmission ,10 forward and 2 reverse | ||
Brake system | Service brake | Dual circuit compressed air brake | ||
Parking Brake (emergency brake) | Spring energy, compressed | |||
Steering system | Model | BOSCH Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving) | ||
Front axle | SINOTRUK VGD95 Front Axle,new 9.5-ton front axles of equipped with drum brakes. | |||
Rear axle | SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers. | |||
Wheels &Tire | Rims:8.5-20 10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire. | |||
Electrical system | Electrics Operating voltage | 24V,negative grounded | ||
Starter | 24V,7.5 Kw | |||
Alternator | 3-phase,28V,1500 W | |||
Batteries | 2x12 V,165 Ah | |||
horn,headlamps,fog lights,brake lights,indicators and reverse light. | ||||
Oil Tank | 300L fuel tank | |||
Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. | |||
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice | ||||
1 Factory price, more competitive than agent price.
2 Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
2 Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
3 Warranty: One year or 100 000k which comes to the first for the engine, gear box, and axles.
4 After-sales: Professional after-sales team sovle your difficult or special questions within 3working days or 5 working days, and all spare parts are available for your urgent use.
5 Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.
Recommend Products
About Product Description
SINOTRUK HOWO Euro 2 20T/30T/40T/50T/70T Dump Tipper Trucks
Horsepower: 340hp/380hp/400hp/420hp
Original Price: FOB, CIF
Promptly Delivery: 30-45 days
Original Price: FOB, CIF
Promptly Delivery: 30-45 days
Cargo Body Type: Rectangle Cargo Body, Bucket shape body, U type upper body, Boat type upper body
Excellent After-sale Service and Customization Service
Company Profile
SINOTRUK is located in Jinan city and was founed in 1956.It once manufactured china's first heavy duty truck. Our company belong to SINOTRUK sales department and we have specialized in sinotruk trucks and spare parts for many years.The famous brand of sinotruk are HOWO series,HOWO A7 series,HOHAN series.We can supply tractor truck,dump truck,cargo truck,concrete mixer truck,fire tanker truck,water truck,fuel tank truck,bulk cement truck,sewage suction truck and also different types of semi trailers.
In 1960,sinotruk introduced technology using on engine and axle from Austria.Later,sinotruk established cooperation withGerman man group and wobaco company.Today,sinotruk has developed into china's largest heavy duty truck manufacturing base and made significant contributions to the development of china's heavy duty truck industry and national economic growth.SINOTRUK has an
annual output of 180,000 vehicles and 200,000 engines capacity.
We have not only the certificate and license of truck export and also strict quality management, fast and convenient channel of
goods delivery, strict examination in quality and quantity of products, professional packing, professional and reliable loading
goods, on-time delivery and competitive prices. If you want to buy these products, please contact us.
We sincerely hope to cooperate with you to expand market in your country!
annual output of 180,000 vehicles and 200,000 engines capacity.
We have not only the certificate and license of truck export and also strict quality management, fast and convenient channel of
goods delivery, strict examination in quality and quantity of products, professional packing, professional and reliable loading
goods, on-time delivery and competitive prices. If you want to buy these products, please contact us.
We sincerely hope to cooperate with you to expand market in your country!
Packing & Delivery
It's the specialized ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.
Bulk carrier ship
It's the specialized ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.
Container ship
It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so
sometimes, we have to use container ship.
Main Products
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
12. Semi Trailer
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
12. Semi Trailer
FAQ
Q: Are you Dealer or Factory ?
A: We are the subsidiary factory of Sinotruk and adopt the strict quality control system which the high quality of the truck.
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok, but we need take apart the truck and you should reinstall in your country.
Q: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q: I want to be your agent in my country, is that ok?
A: It’s ok, if your quantity is big, we will consider. For the first time 50 units is ok.
Q. How about your company's service, especially after-sale service?
A: SINOTRUK has been in this field for nearly 60 years and has strong production and distribution capability, we can satisfy your demand within 3-7 days. We always do our best to solve all the problems and put our customer's interests in the first place.
Q: What is your payment terms?
A: You can choose to the 30% prepaid and 70% paid before delivery or you can choose the LC 100% at sight.
A: We are the subsidiary factory of Sinotruk and adopt the strict quality control system which the high quality of the truck.
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok, but we need take apart the truck and you should reinstall in your country.
Q: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q: I want to be your agent in my country, is that ok?
A: It’s ok, if your quantity is big, we will consider. For the first time 50 units is ok.
Q. How about your company's service, especially after-sale service?
A: SINOTRUK has been in this field for nearly 60 years and has strong production and distribution capability, we can satisfy your demand within 3-7 days. We always do our best to solve all the problems and put our customer's interests in the first place.
Q: What is your payment terms?
A: You can choose to the 30% prepaid and 70% paid before delivery or you can choose the LC 100% at sight.
1. MOQ: 1 unit
2. Optional payment terms: T/T or L/C
T/T: 30% deposit by T/T, 70% balance should be paid before shippment.
L/C: 30% payment advance, 70% L/C at sight.
3. Parts of famous brand can be adopted by your requirement.
4. Delivery time: Within15 workdays after receiving 30% deposit of T/T
2. Optional payment terms: T/T or L/C
T/T: 30% deposit by T/T, 70% balance should be paid before shippment.
L/C: 30% payment advance, 70% L/C at sight.
3. Parts of famous brand can be adopted by your requirement.
4. Delivery time: Within15 workdays after receiving 30% deposit of T/T
Похожие товары

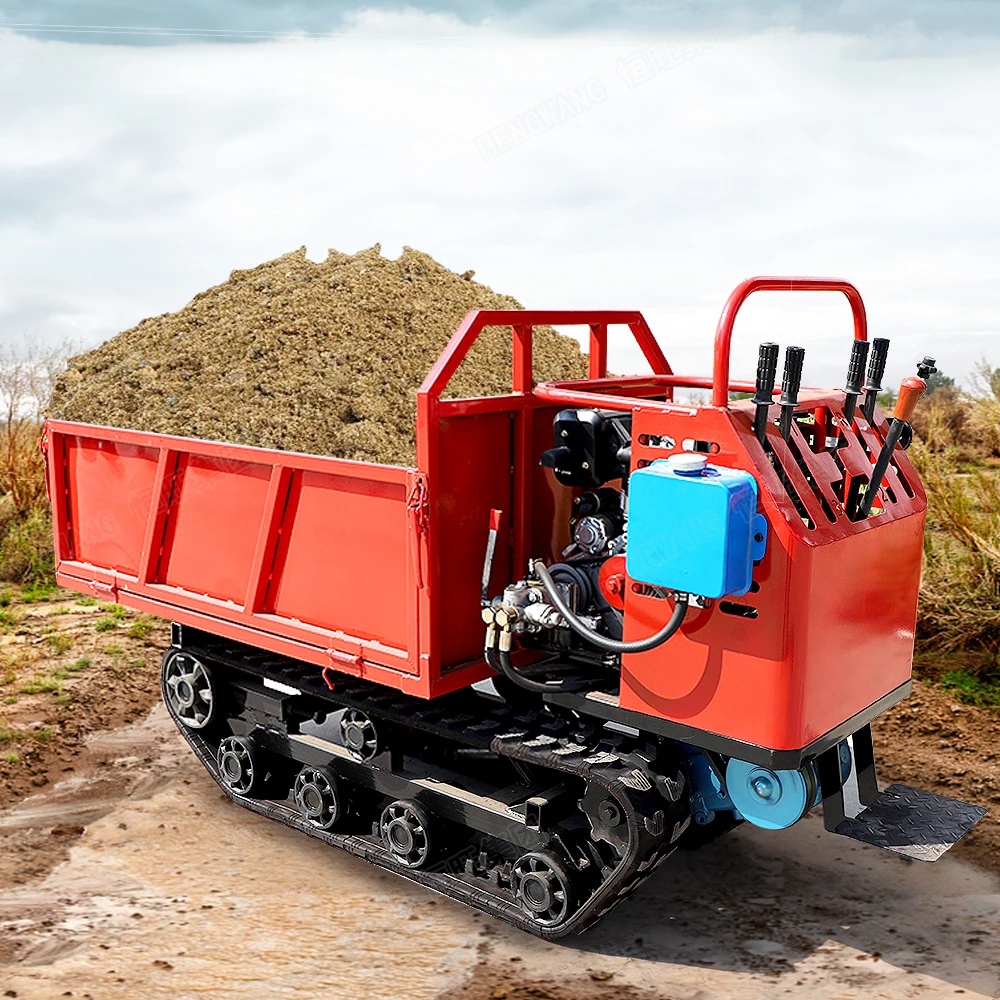

Гусеничный самозагружающийся гусеничный самосвал для домашнего сада, гусеничный самосвал с большой емкостью
83 735,18 ₽ - 131 583,86 ₽
Самосвал большой вместимости, 45 тонн, 60 тонн, 8 х4
280 047,11 ₽ - 437 573,60 ₽
Хорошее состояние 371hp Howo 10 Wheeler тяжелый грузовик с ручным управлением Weichai 30 тонн Подержанный самосвал низкая цена Подержанный грузовик распродажа
Хорошее качество sinotuck Howo Самосвал 6*4 10-колесный самосвал 371 л.с. грузоподъемностью 30 тонн.
875 147,20 ₽ - 1 312 720,80 ₽

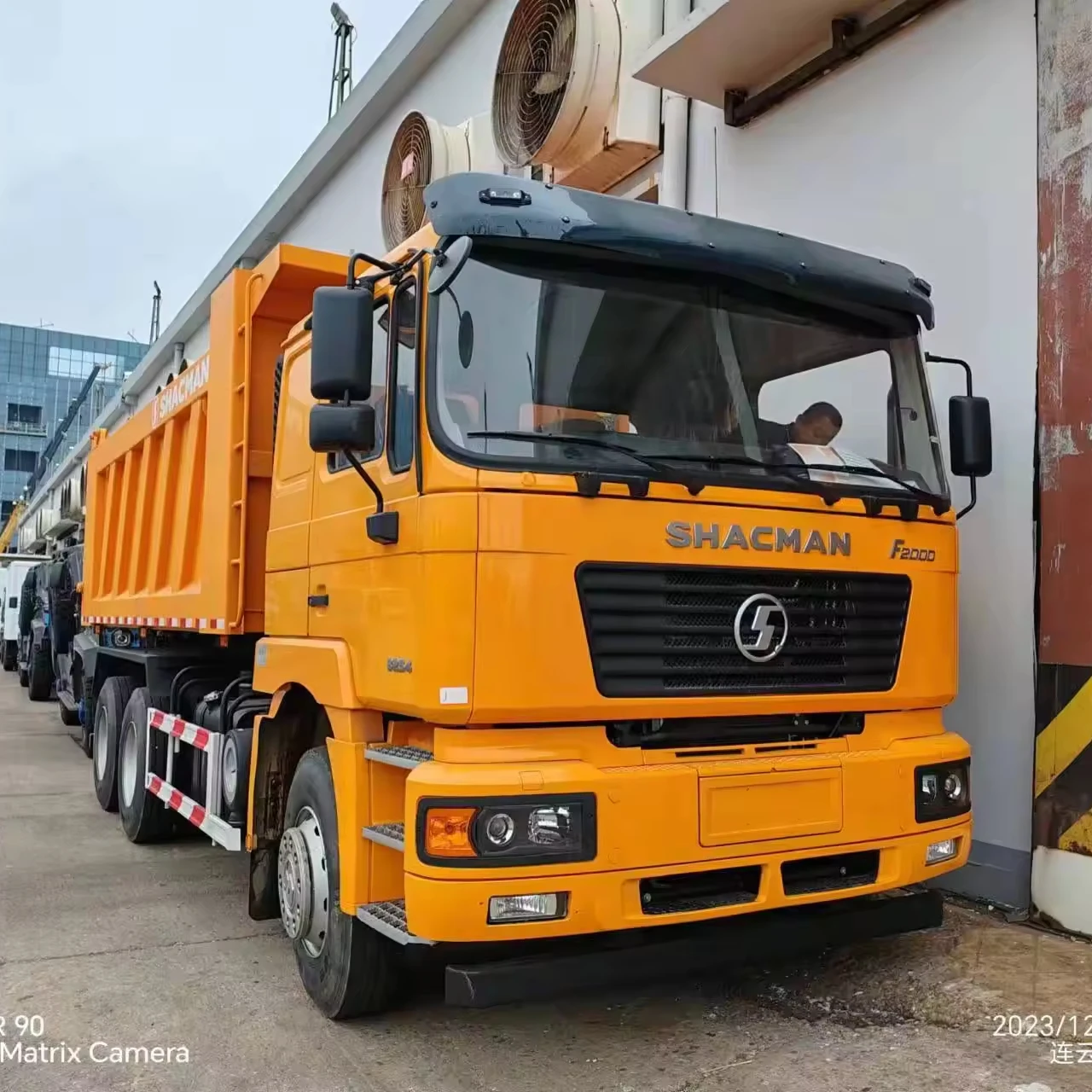

Самосвал Shacman shacman F2000 6*4 в алгерии
4 692 976,86 ₽ - 4 922 703,00 ₽
Самосвал Sinotruck HOWO 6X4 самосвал 8X4 самосвал 10 колесных колёс 30 тонн 50 тонн грузоподъемностью 371 л.с. 375 л.с. ручной левый тяжелый самосвал
765 753,80 ₽ - 875 147,20 ₽

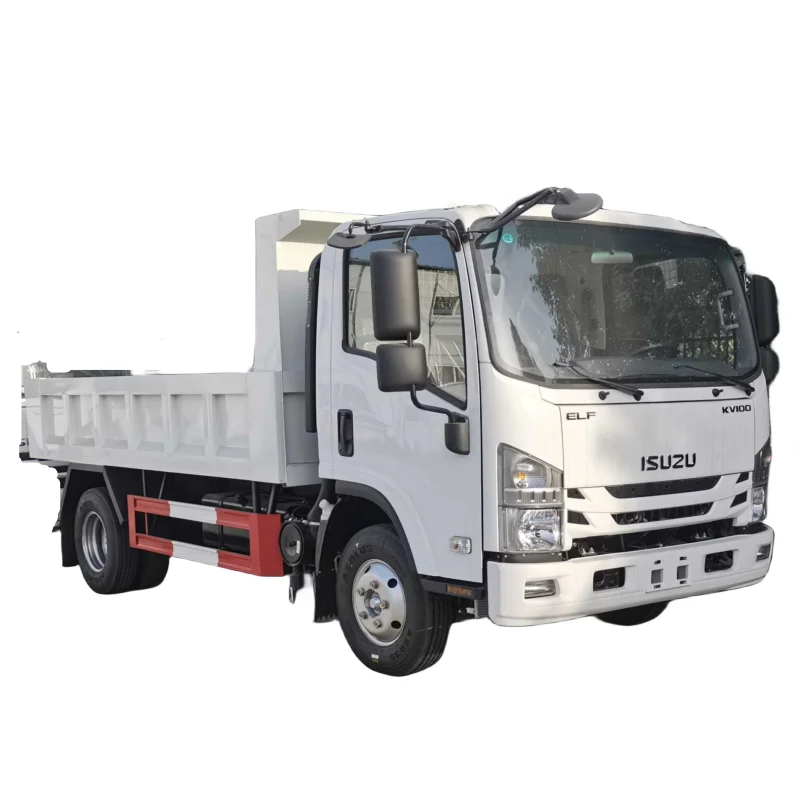

Заводская цена, самосвал ISUZU 4x2, 6 колес, небольшой самосвал, грузоподъемность 6 тонн
