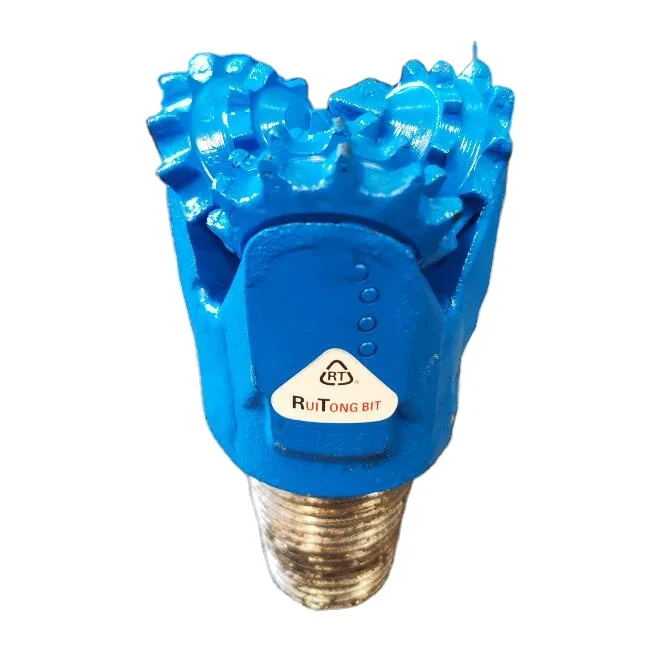

Высококачественный трехслойный измельченный зуб IADC217, используемый для мягкого формирования
72 199,65 ₽ - 75 481,45 ₽

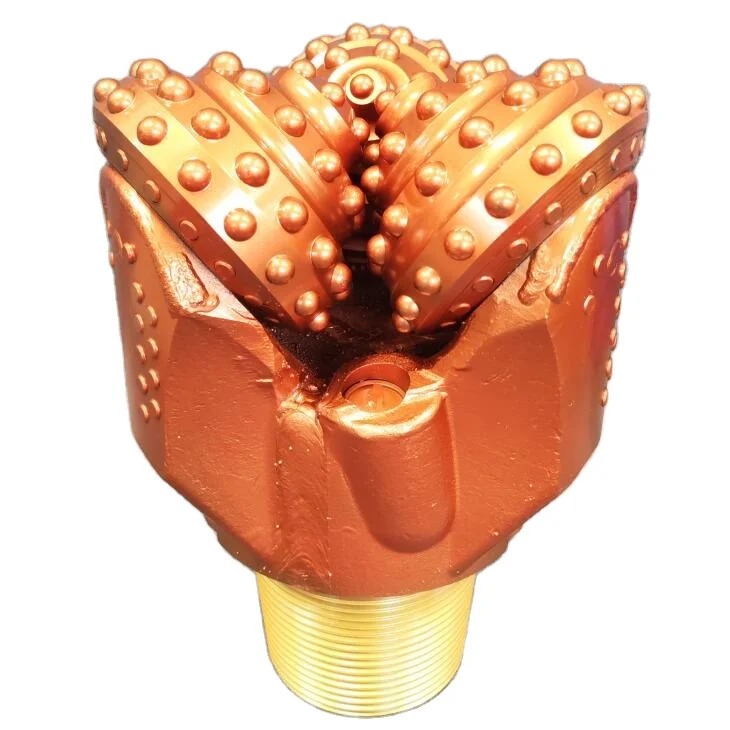

Высококачественное сверло трехконическое трехконусное долото Tci конусное ролика/каменное для сверления
- Категория: >>>
- Поставщик: Hejian Ruida Petroleum Material Co. Ltd.
Сохранить в закладки 1601245547700:
Описание и отзывы
Характеристики
Introduction

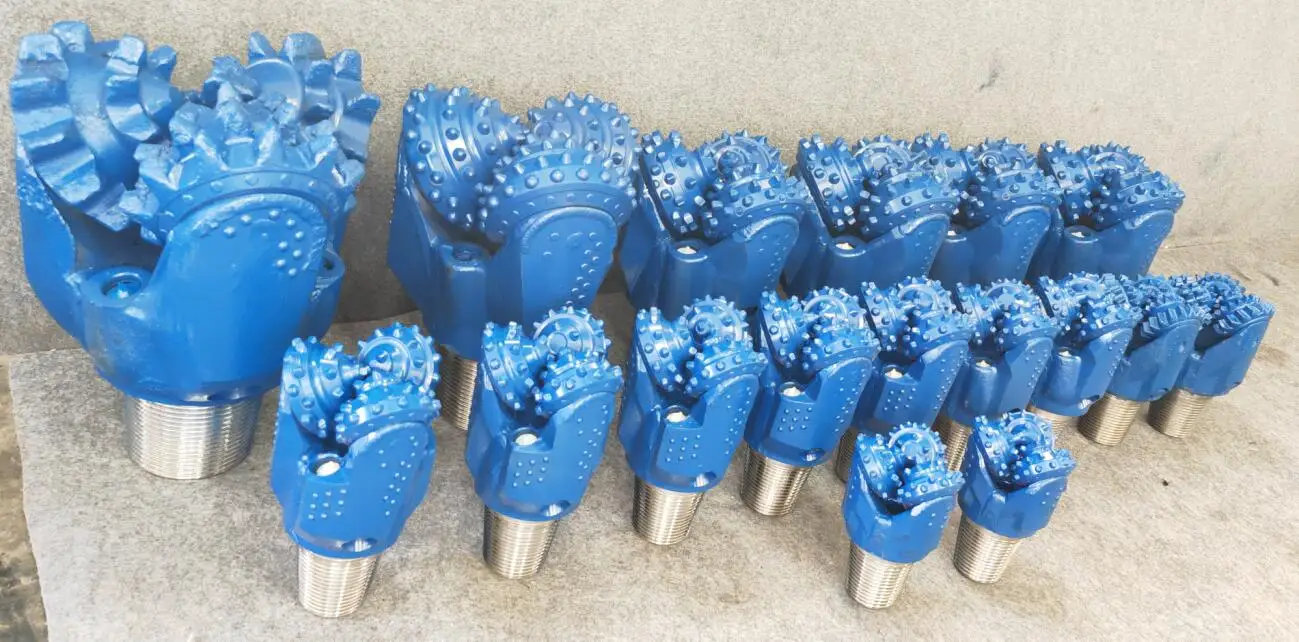

1. Sizes: 3 7/8’’ to 36’’is available.
2. Application: Suitable for oil, natural gas, geothermal industrial and water well drilling, HDD projects, etc.
3. Cutting structure:Reinforcing the comprehensive mechanical properties of cutting tooth by using high quality tungsten carbide inserts of new formula and new techniques of insert bit. Unique widened crest insert improved the bit aggressivity and penetration rate.
4. Gauge protection structure:The multiple heel position with gauge trimmer on the heel, tungsten carbide and hardfacing on the shirttail, strengthened spear point will enhance the gauge protection.
5. Bearing structure: High precision journal bearing with two thrust faces. Ball locked cone. Hardfaced head bearing surface. Cone bearing inlaid with friction reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved, and suitable for high rotary speed.
2. Application: Suitable for oil, natural gas, geothermal industrial and water well drilling, HDD projects, etc.
3. Cutting structure:Reinforcing the comprehensive mechanical properties of cutting tooth by using high quality tungsten carbide inserts of new formula and new techniques of insert bit. Unique widened crest insert improved the bit aggressivity and penetration rate.
4. Gauge protection structure:The multiple heel position with gauge trimmer on the heel, tungsten carbide and hardfacing on the shirttail, strengthened spear point will enhance the gauge protection.
5. Bearing structure: High precision journal bearing with two thrust faces. Ball locked cone. Hardfaced head bearing surface. Cone bearing inlaid with friction reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved, and suitable for high rotary speed.
IADC | WOB kN/mm | RPM (r/min) | Suitable formation | |||
417 | 0.35~0.90 | 140~70 | Very soft with low compressive strength and high drillability,such as shale,clay,sandstone and conglomerate,etc. | |||
437 | 0.35~0.95 | 140~60 | Very soft with low compressive strength and high drillability,such as shale,clay,sandstone and conglomerate,etc. | |||
517 | 0.35~1.05 | 120~50 | Soft with low compressive strength and high drillability,such as shale,clay,sandstone and soft limestone,etc. | |||
537 | 0.35~1.05 | 110~40 | Medium soft with low compressive strength and harder abrasive stringers,such as hard shale,hard gypsolyte,soft limestone,sandstone and dolomite with stringers,etc. | |||
617 | 0.35~1.05 | 80~40 | Medium hard with high compressive strength and thick&hard stringers,such as hard shale,limestone, sandstone and dolomite,etc. | |||
637 | 0.70~1.20 | 70~40 | Medium hard with high compressive strength and high abrasiveness,such as limestone,dolomite, sandstone and chert.ect. | |||
Note:The upper limits of WOB and RPM in above table should not be used simultaneously. | ||||||
Related products
Packaging & Shipping
Packing :wooden case or iron case ,also be packaged according to customer requirements.
Modes of transportation: by sea, by air or land transportation, Of course, a small amount can also by Express.
Company information
Hejian Ruida Petroleumn Material Co., Ltd. is located in Hejian city, Hebei province, the ancient city of the North China Plain,in the middle of Beijing, Tianjin and Shijiazhuang, with convenient transportation. The company is close to Huabei Ooilfield,which provides advantaged geographical conditions and human resources for the establishment and development of the company.
Our company has advanced production equipment, strictly abides by the standards of API (American Petroleum Institute) and ISO9001:2015 quality management system. Through many years of studying and refining of the imported technology, our company integrates a number of scientific research achievements with independent intellectual property rights, and great breakthroughs have been made in bottom hole flow field (CFD), profile optimization, tooth arrangement design, low torque design, materials and manufacturing processes. The product has better performance and wider range of adaptation.
The main products of our company are tricone bit, PDC drill bit, hole opener, core barrel, drill pipe and related drill tools.
Application fields includes oil well drilling, gas well drilling, geothermal well drilling, mining, geological survey,
hydrographic survey, water well drilling, HDD pipelines projects, foundation projects.
Our ultimate goal is always the same as our customers, that is, "to minimize drilling costs per meter and maximize benefits for the drilling contractor."
Application fields includes oil well drilling, gas well drilling, geothermal well drilling, mining, geological survey,
hydrographic survey, water well drilling, HDD pipelines projects, foundation projects.
Our ultimate goal is always the same as our customers, that is, "to minimize drilling costs per meter and maximize benefits for the drilling contractor."
FAQ
1. Is your company a distributor or a manufacturer?
A: Yes.We are a professional Rock Bits manufacturer RUITONG BIT in China.
2. How about your products?
A.Yes All our activities are accredited to ISO 9001:2008 both in products and services, at the same time, mature production technology ensuring the quality satisfy international request. We have many high quality prducts.
3.what is the Packaging & Delivery?
A:We used high quality export carton or standard export woodern case
4.what is the time about the delivery?
A:The lead time depend on quantity of order. Usually shipped by sea, small order or urgent order we can send you by air after received your agreement. According the distance from China to vour port usually from China to European about 25 days. To West of American 20 days.
5. How to order the products?
A: Send the inquiry with detail item description or with Model number. If there is no packing demand we take it as sea-way packing. If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.
Похожие товары
Высококачественное Коническое долото, трехконусное долото Tci, коническое долото/роликовое Коническое долото для бурения скважин на воду
100 641,93 ₽ - 101 735,87 ₽
9 7/8 дюймов IADC637 высококачественный трехконический бит для бурения скважин
123 614,55 ₽ - 126 896,35 ₽
Новинка, 6 1/2, трехконическое долото для бурения водяной скважины
83 138,99 ₽ - 85 326,86 ₽
Новый трехколесный бит для зубчатых стальных зубьев мельницы для мягких и средних образований
66 729,98 ₽ - 67 823,91 ₽

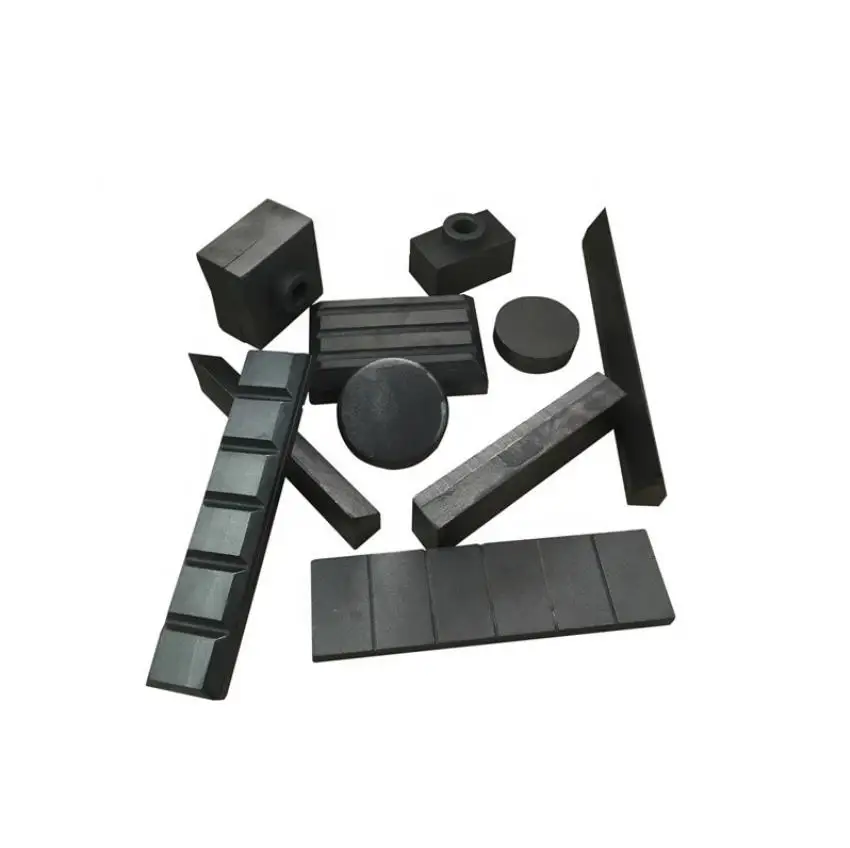

CB100 ковш для погрузчика, износостойкие детали, белый Железный ламинированный CB50 износостойкий брусок
382,88 ₽

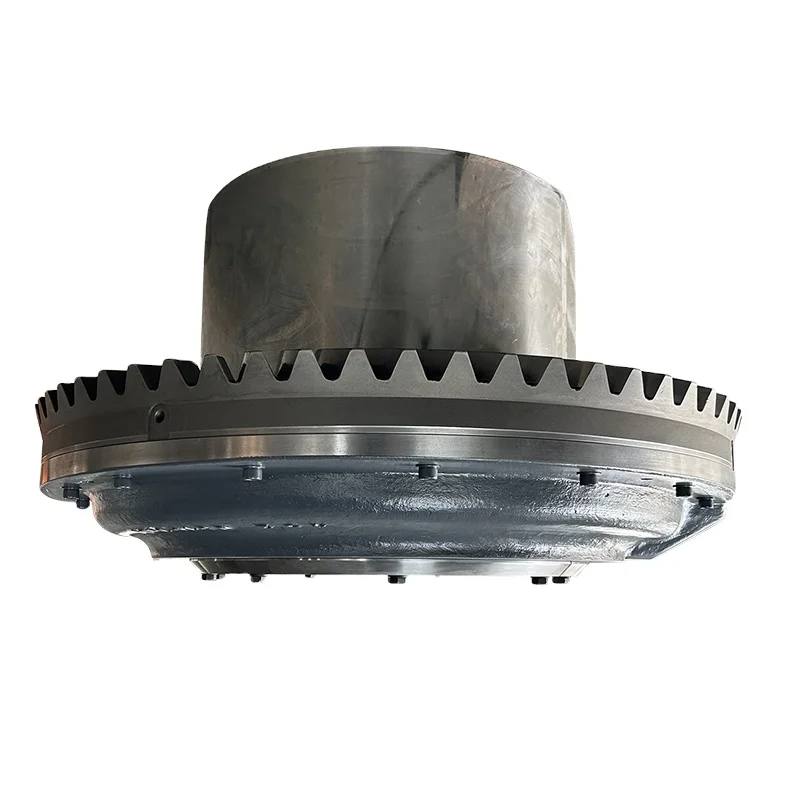

Эксцентричная втулка для конусной дробилки
21 878,68 ₽ - 22 972,62 ₽

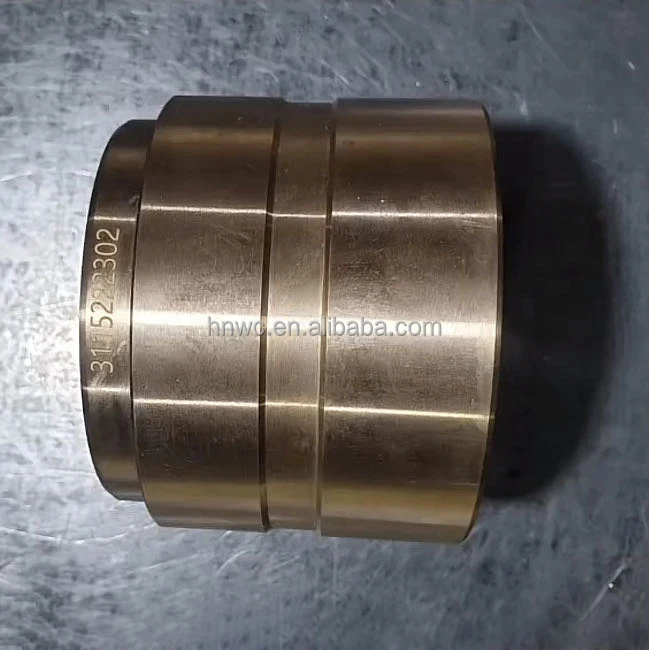

3115222302 паяный хвостовой Медный рукав, детали для буровой установки, энергетическое и горнодобывающее оборудование, 1838 полицейский 2550
