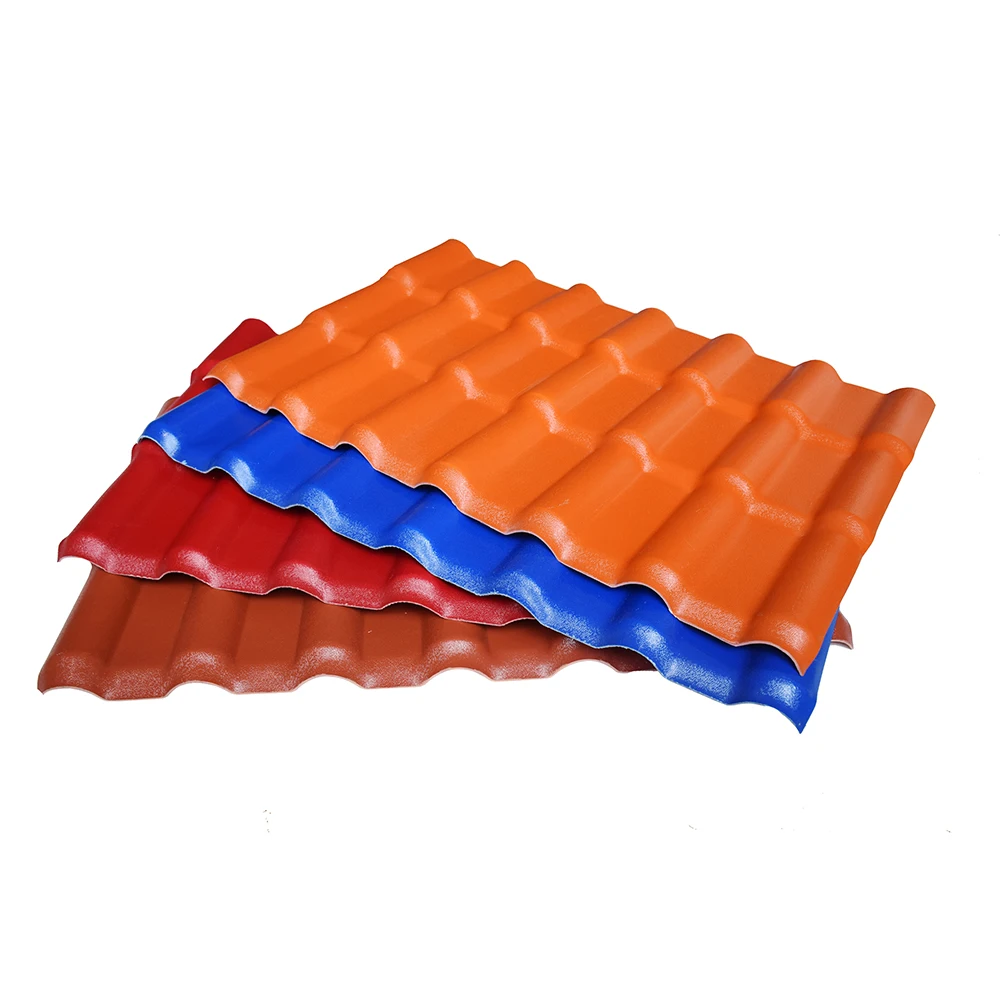

Synthetic resin tile, Classical resin tile, Chinese-style resin tile, using ASA high weather resistant engineering plastic (ASA high weather resistant engineering plastic of SABIC,one of the world's top 500 Enterprises) and PVC (polyvinyl chloride resin) as main material, mixing anti-UV agent, shielding agent, antioxidant, modifier and other super weathering chemical ingredients.

The product adopts Europe advanced triple extrusion technology for one-off processing,including

1.The surface layer-ASA layer

2.The middle layer- backbone layer

3.The bottom layer- abrasion resistance layer

Product details

Product Features

1. Weather resistant/Heat insulation/Thermal insulation performance:

Heat conductivity coefficient:0.325W/m.k  ( Eg. outdoor 40°,indoor 32°)

2. Anti-Corrosion :

Soak in salt,alkali and various acids below 60% for 24 hours without chemical reaction,the same type, non-discolouring , no crack.

3. Sound -proof :

Under the influence of external noise such as heavy rain and strong wind ,it has good noise absorption effect.

4. Super-strong impact resistance:

After testing, a kilogram of steel ball falls freely from a height of three meters,and the product will not crack.

5. Flame resistance/Strong fire resistance:

Synthetic resin tile main materials in PVC resin oneself belong to flame retardant materials,the national fireproof department to examine fire performance reach even over B1 level.

6. Insulating property:

The insulation products are still intact after electric shock,and are safer to use in mountainous areas and regions with high lightning incident.

7. Easy installation:

Light weight,assemble and unassemble (each square meter need 4-6 waterproof accessories)

8. Environment friendly /Green and environmental protection:

No asbestos or any other radioactive elements,recyclable,completely in conformity with environmental protection

Profiles

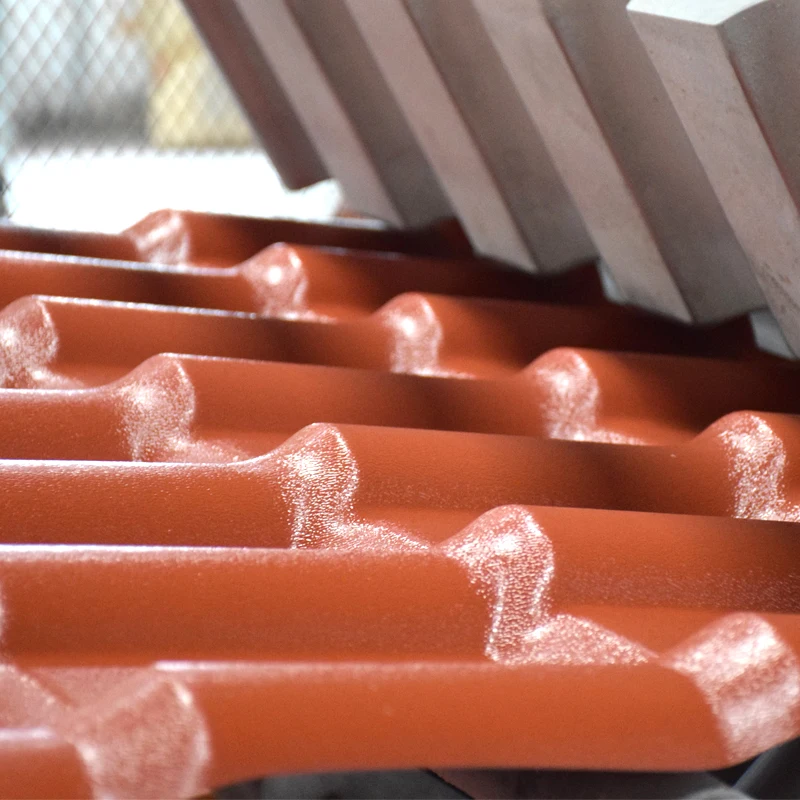

There're major four kinds of profiles of synthetic resin tile: Spanish resin tile, Roma resin tile,Chinese style resin tile,Classical resin tile.

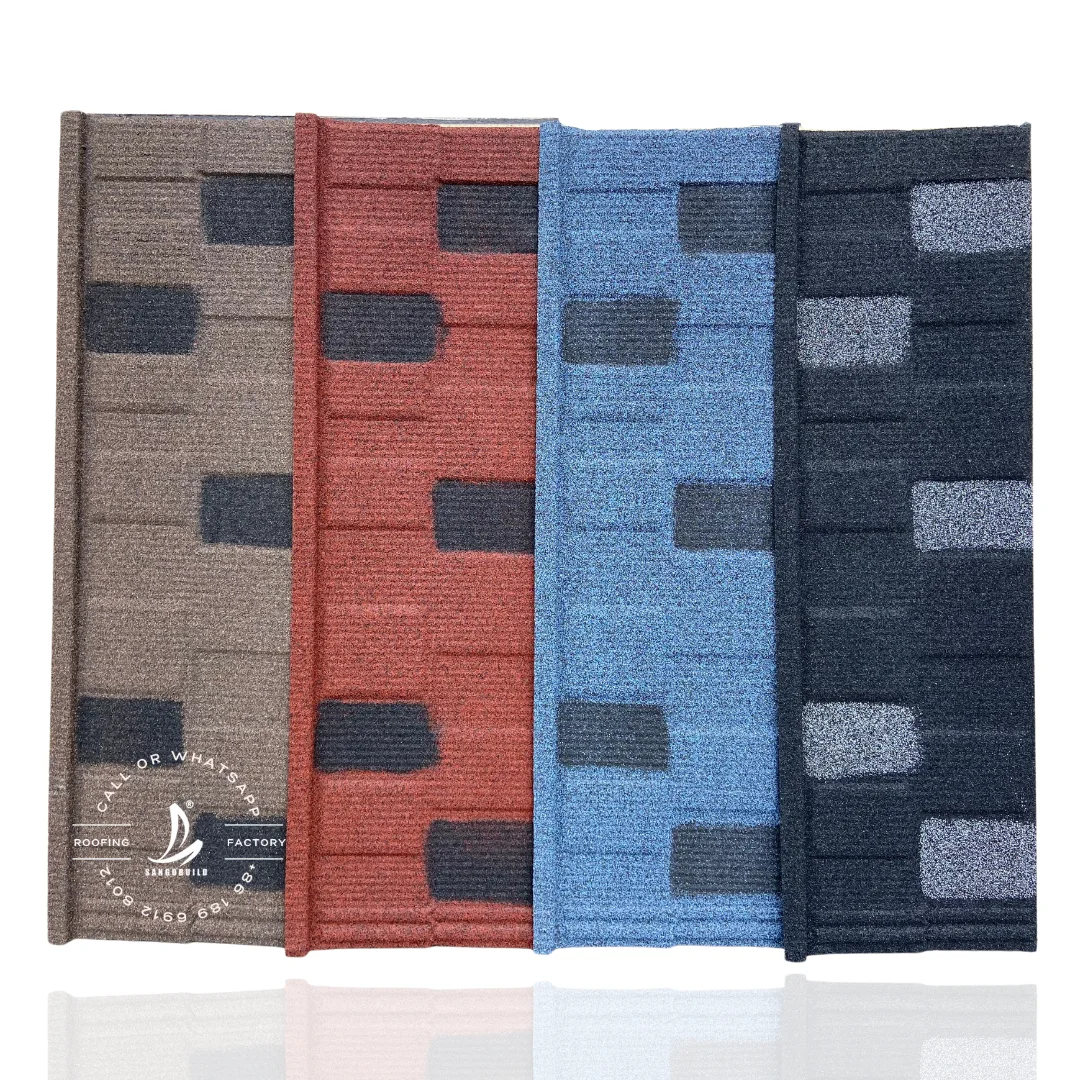

Colors

Various Color Options Available, Customized Color also can be made if the QTY is big

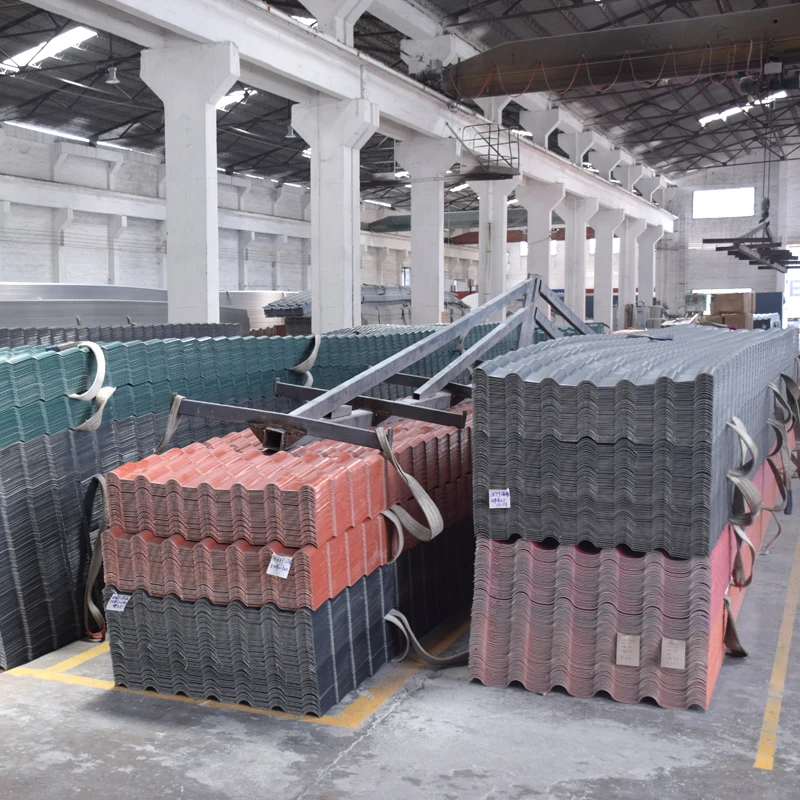

Production Process
We adhere to strict production quality management. Make sure every order
are inspected by our inspectors.

Packing&Shipping
Suggest the length less than 5.75 meters for 20'GP container.
Suggest the length less than 11.75 meters for 40'GP/HQ container.
Suggest overall weight less than 28 tons per container.

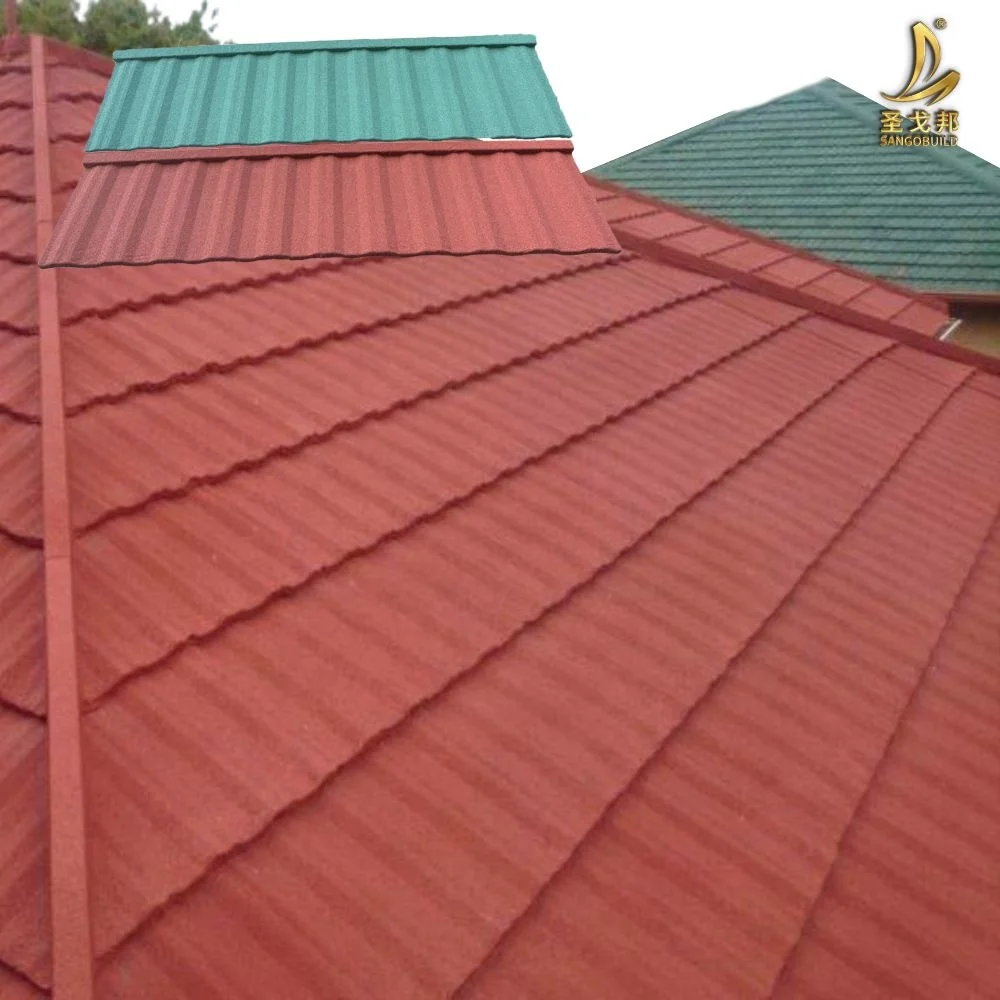

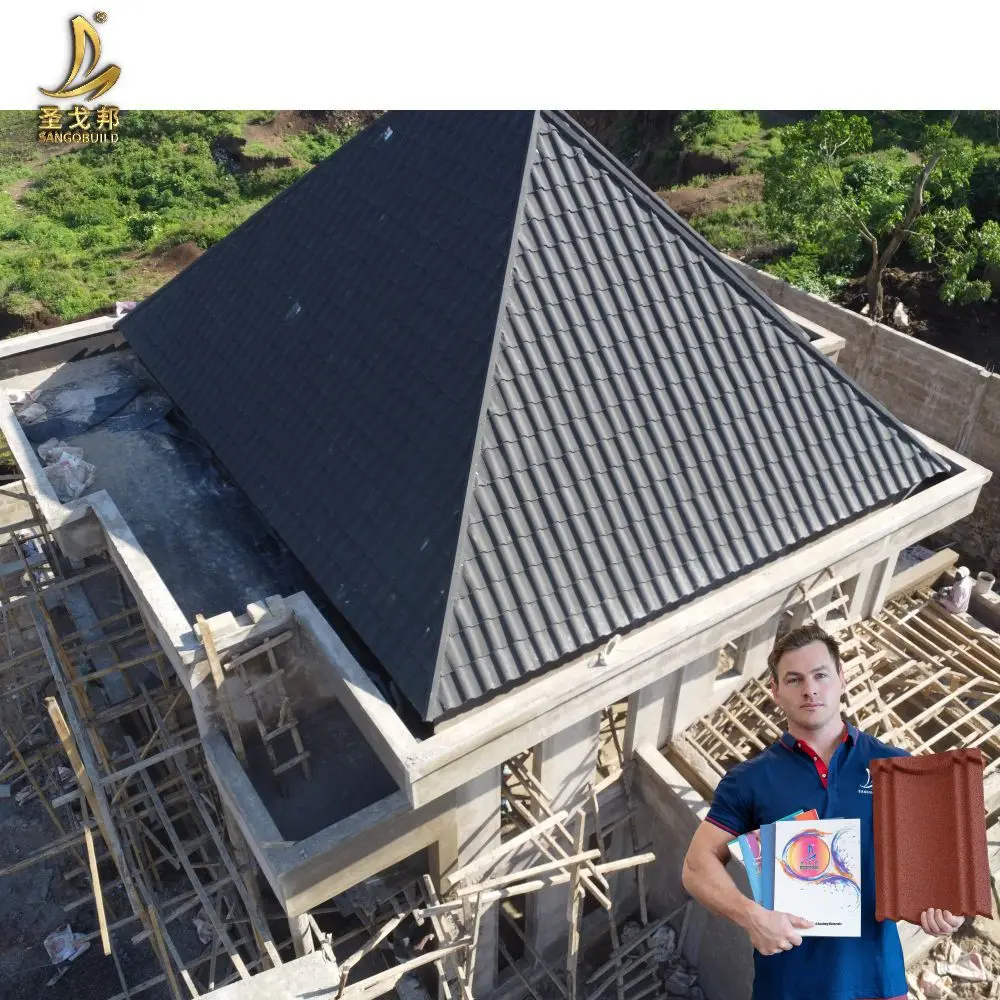

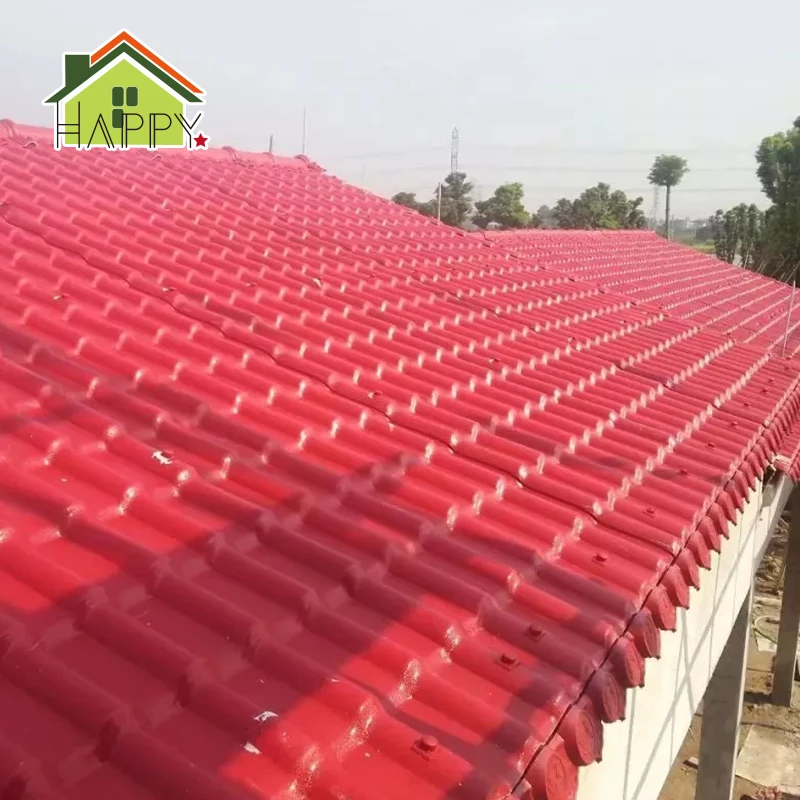

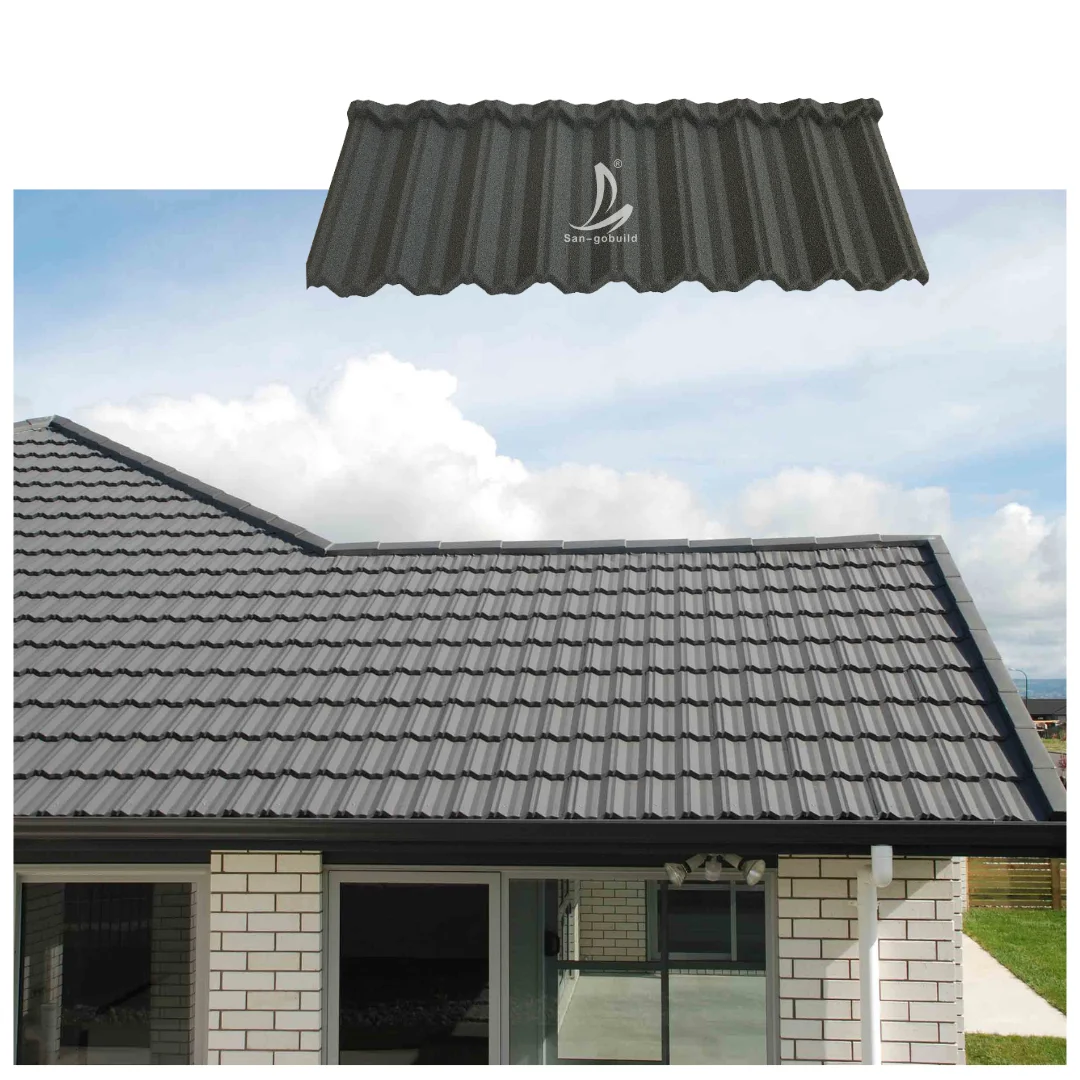

Product Application

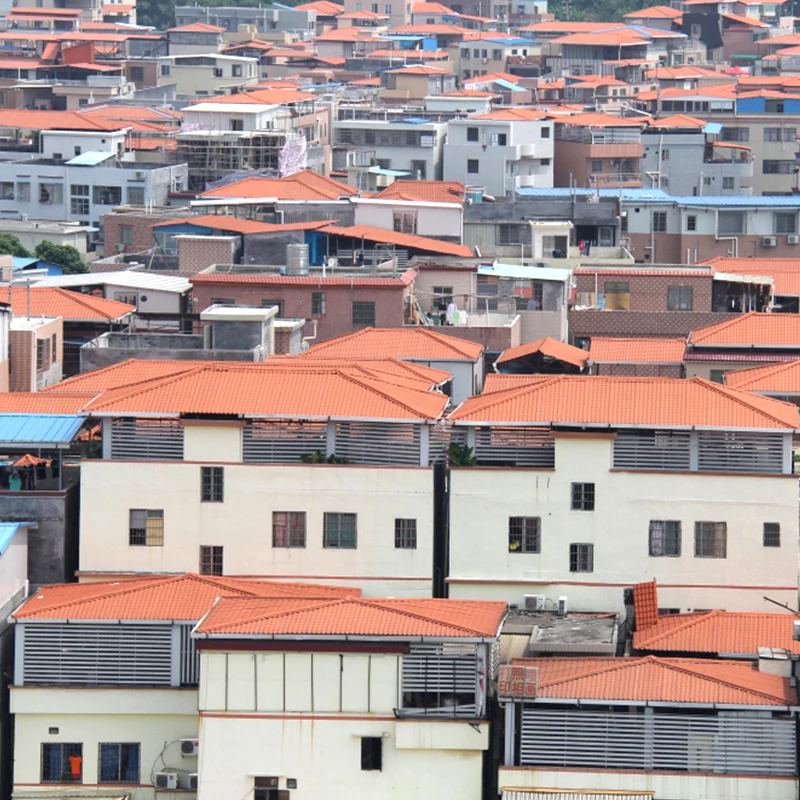

Widely use for Villa, Residential roof, Beautiful Countryside, Tourist Attraction, Old House Renovation, Garden, etc...

Installation and notes

1.Purline can choose square tube(60x40x3mm) or sections steel(100x50x20x3mm) or anticorrosive flitch(60x40mm)

2.The space of purlines is 660mm.The purline are arranged from bottom to top.

3.Refer to the local wind direction,and install the main tile in the reverse direction.Erect a tile wave,and do it on both sides at the same time.When installing the main ridge tiles,cut a part of the first ridge tile before installation.

4.When installing,the joining place between the main ridge and the tilted ridge tile should be sawed to be even.install the main ridge tile and the tilted ridge tile before installing the 3-tee.the fixed parts are special fittings.

5.When fixing,must drill holes at first with the bore diameter2-3mm more than the fixing screw diameter.

Certificates&Test Reports

FAQ
1. Are you manufacturer?
A: Yes, we're manufacturer,so we can provide competitive price.

2. Can I add customized logo on the products?
A: Yes, customized logo can be added to the tiles.

3. What's the order lead time?
A: The lead time for 1 container products is 10~15 days.

4. What trading terms you usually work with?
A: We can do with EXW, FOB, CIF, CNF

5. Will you provide us the roof tiles installation instruction?
A: Yes, we will provide our customer the installation guidlines.

6. Why choose us?
A: We've been producing PVC roof tiles for many years. Our producing technoligy is very sophisticated.We also pay highly attention on product quality, timely delivery and after-sales service.
