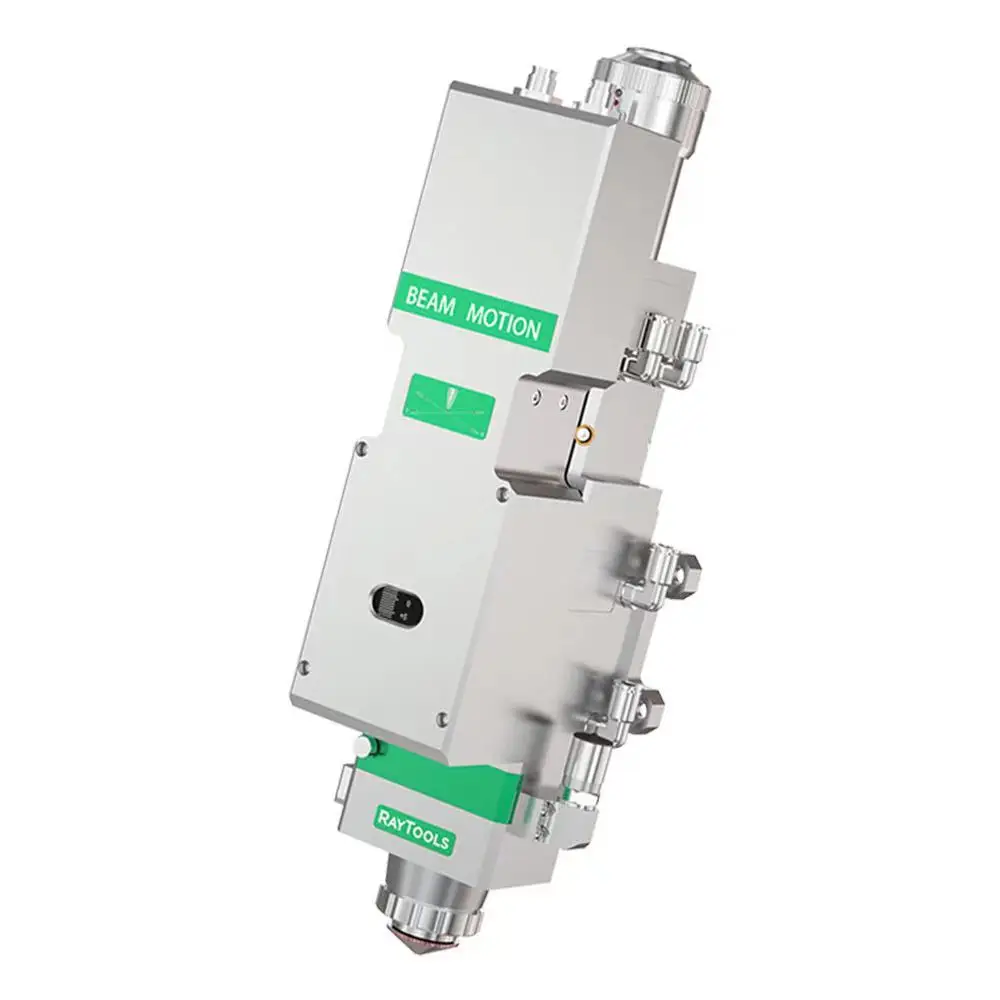

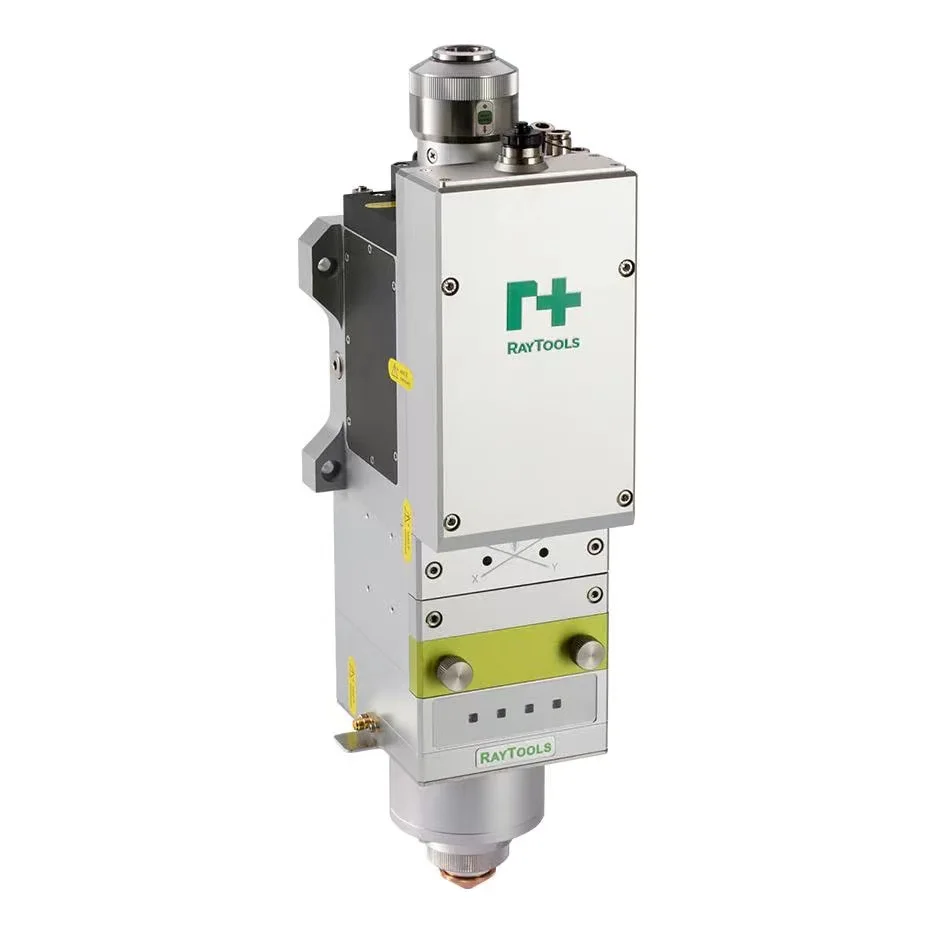

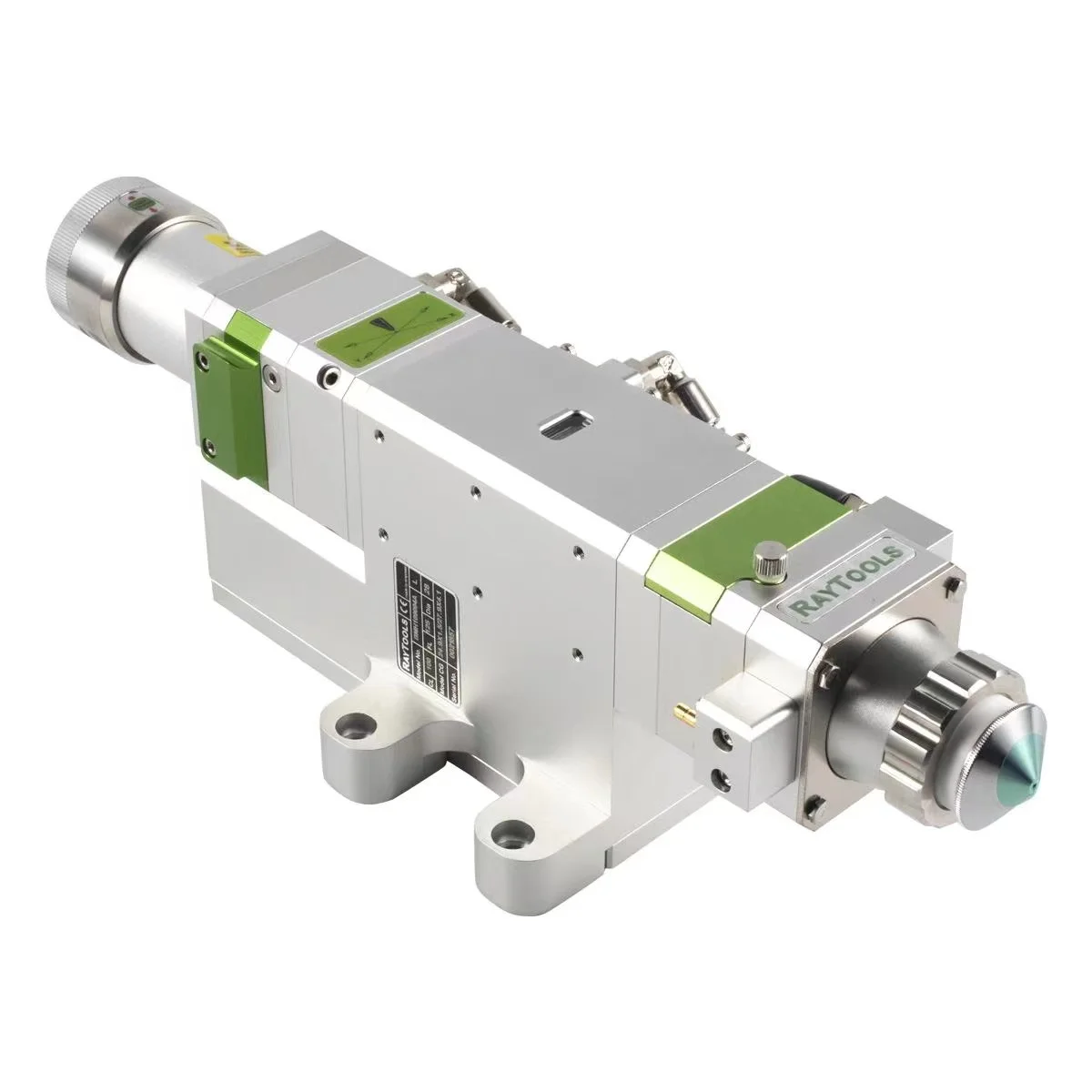

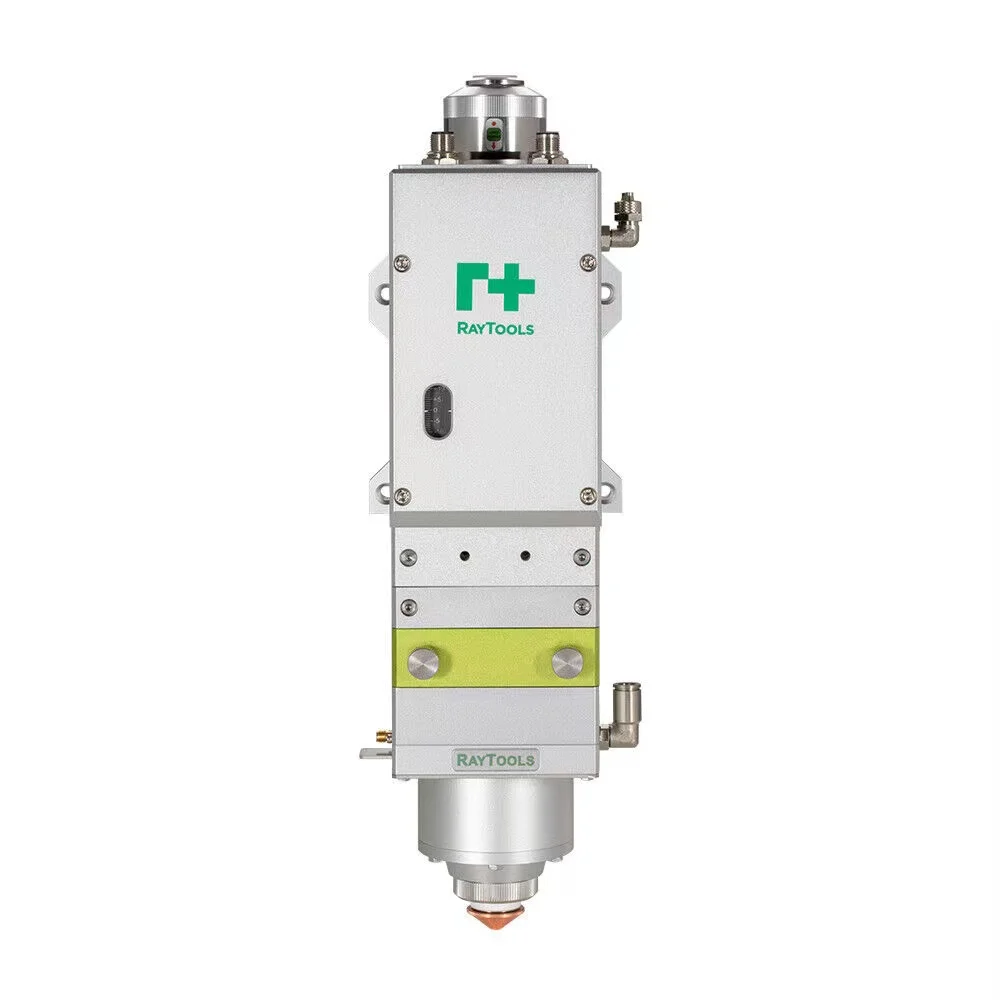

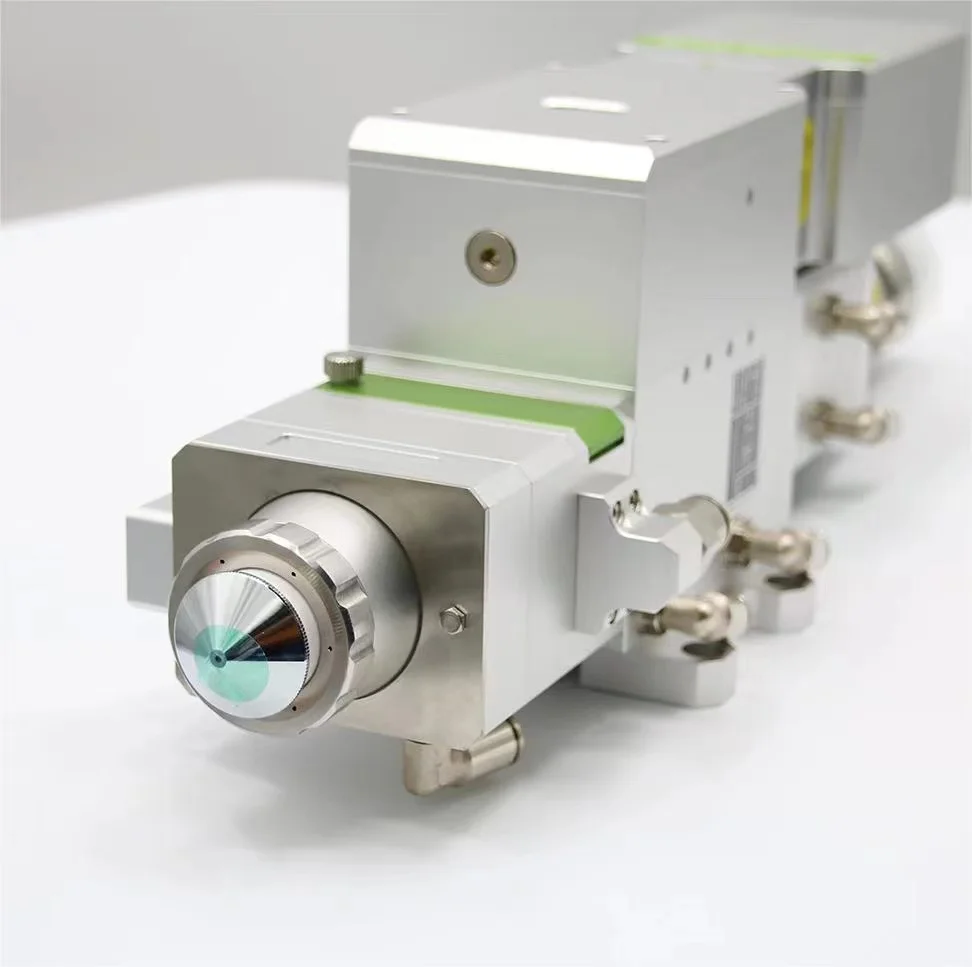

Головка для лазерной резки Raytools 3 кВт 6 BM06K BM110 BM111 raytools лазерная режущая головка

Описание и отзывы

Характеристики

1.Multiple Cover Glass Protection

Three cover glasses to protect focusing &collimation lens.

2.Auto Focusing

Automatic focusing, reducing human intervention, MAX focusing speed 170mm/s,Repeat accuracy 0.05mm.

3.Exellent Dustproof

IP65 class dustproof, patented protection cover glass catridge, All-body anti-dust design.

4.High-Speed Cutting

Cuts 12mm SUS304 at0.7m/min@3000W,Cuts 12mm Q235 at 1.2m/min@3000W.

1.Excellent Design

Optimized optical configuration and smooth and efficient air flow design significantly improve cutting quality and efficiency

2.Auto Focusing

Automatic focusing, reducing human intervention, automatic focusing range -12~+10mm,adjustment accuracy 0.05mm.

3.Multiple Cover Glass Protection

Collimation adds a protective lens to effectively protect the collimating lens.

4.Drawer Lense Assembly

Fast and simple replacement of protective lenses.

5.High Adaptability

With QBH, QD and other types of optical fiber interfaces, it can be adapted to various mainstream laser devices.

1.Fast Zoom

Using collimation and focusing, compared with focusing and focusing, the focus moves

faster and the focusing range is larger.

2.Intelligent Monitoring

With the temperature monitoring function of the lower protective lens, the temperature data can

be displayed in real time through the mobile APP or computer desktop window, and the overtem-

perature output alarm can effectively protect the optical path system of the cutting head.

3.Excellent Design

The integrated body design ensures sealing. Improve the QBH,G5 fiber interface, improve the compatibility of the laser, and no longer get stuck due to water leakage,rust, etc.

4.High Efficiency Cooling

Collimation and focusing lenses are both water cooled. Increase air flow cooling for nozzle, effectively protect the nozzle and ceramic part and the lifetime.

5.Multiple Cover Glass Protection

Four protective lenses are designed to effectively reduce the pollution caused by replacing the optical Excellent Design fiber and the protective lens, and greatly prolong the service life of the collimating and focusing lenses

Shandong Mann Machinery Equipment Co., Ltd. was founded in 2008. Its factory and headquarters are located in Shandong, China. It has 7000 square meters of factory buildings and more than 300 workers

As a modernized enterprise with high technology and self-management export, we are of solid financial base and great capability for production, research and development.
The main foreign markets are more than 30 countries and regions, such as the United States, Germany, Spain, Russia, Singapore and so on. Advanced equipment and strict management both contribute to the excellent quality of productsEAQ:
1.Can I visit you?
Sure. If you're a volume buyer and would like to visit our in-house products and production line, please contact us to make an appointment.

2.Do you have enough stock?
Sure. We have enough stock .You can contact our salesperson to get stock at any time.


3. Do you give a warranty of your products?
Yes, if there are any quality issues, you can contact us at any time and we can provide timely solutions.

4.How about your after service?
 Technical support by phone, e-mail or MSN around the clock.

5. Which port is the nearest from your company?
 The Qingdao port is the nearest
