JHV1 домашняя литиевая батарея для хранения солнечных батарей Lifepo4 солнечная панель батареи 307 2 В 16 кВтч
- Категория: >>>
- Поставщик: Samu Taike (shanghai) Electronic Co. Ltd.
Сохранить в закладки 1601246157059:
Описание и отзывы
Характеристики

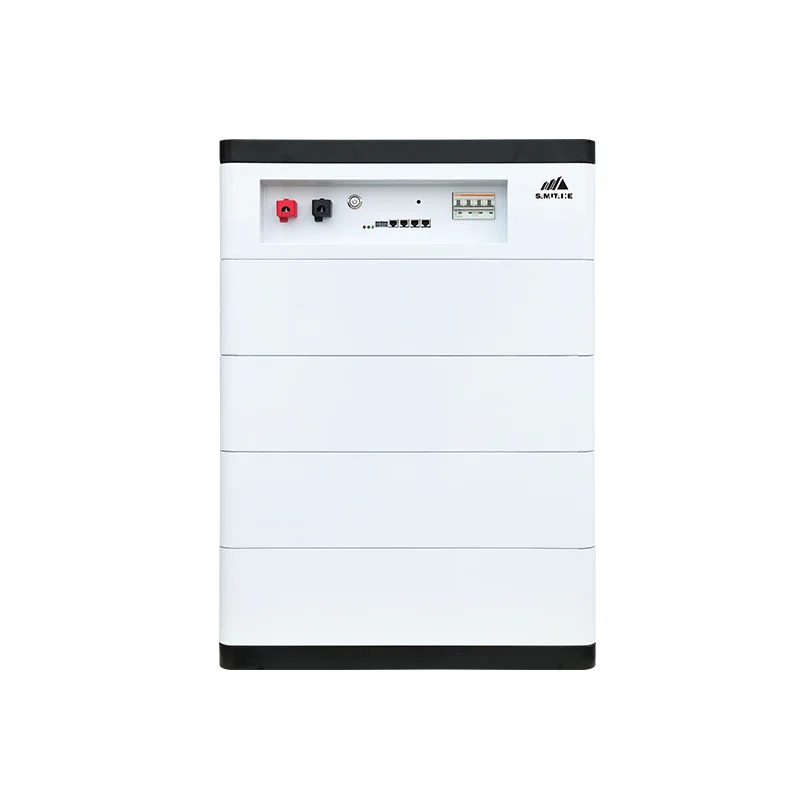

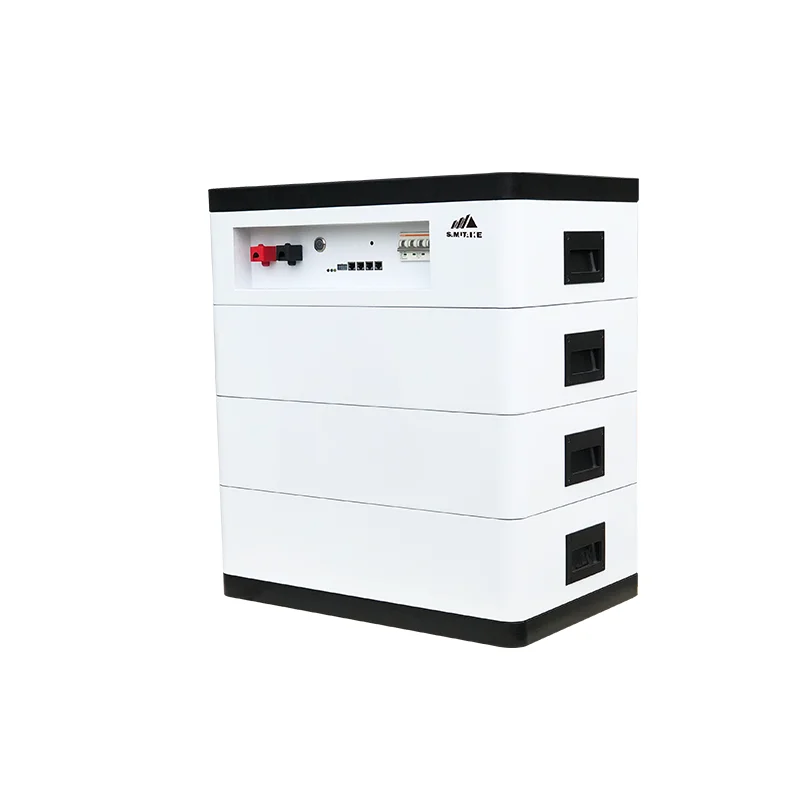

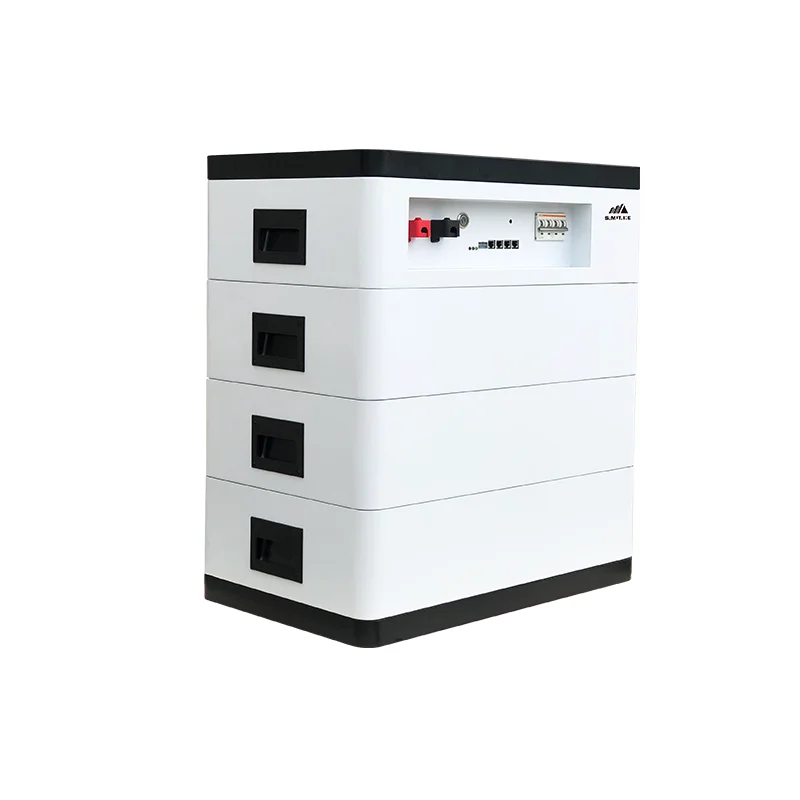

This product adopts the stackable plug and play design, which not only effectively solves the security risks during user use, but also greatly saves the installation and operation and maintenance costs. Comprehensive and multi-level battery protection strategies and fault isolation measures to ensure the safe operation of the system, cloud monitoring and maintenance of system information to give users a good power experience, widely used in small business and home energy storage.
Stack design allows flexible battery expansion
Multiple clusters are parallel. A maximum of eight battery packs can be connected in parallel.
Chinese and English display summary of all PACK information; Screen direct selection inverter communication protocol
Model | JHV1-P11 | JHV1-P16 | JHV1-P22 | JHV1-P27 | |||
Battery module | BAT-5.32(32S1P102.4V52Ah) | ||||||
Numbers of modele | 2 | 3 | 4 | 5 | |||
Rated power(kWh) | 10.64 | 15.96 | 21.28 | 26.6 | |||
Overall dimensions(D*W*H)mm | 420*625*625 | 420*625*800 | 420*625*945 | 420*625*1150 | |||
Weight(kg） | 101 | 151.5 | 202 | 252.5 | |||
Nominal volt(V) | 204.8 | 307.2 | 409.6 | 512 | |||
Working volt range(V) | 179.2~233.6 | 268.8~350.4 | 358.4~467.2 | 358.4~584 | |||
Charging volt(V) | 230.4 | 345.6 | 460.8 | 576 | |||
Standard charging current(A) | 25 | ||||||
Maximum discharging current(A) | 25 | ||||||
Control Module | PDU-HV1 | ||||||
Working temperature range(℃) | Charging：0~55；Discharding：-20~55 | ||||||
Working humidity range (%RH) | ≤95 (Without condensation) | ||||||
Heat-dissipating method | Natural heat dissipation | ||||||
Communication mode | CAN/485/Dry connect | ||||||
Battery Voltage Range (V) | 179.2~233.6 | 268.8~350.4 | 358.4~467.2 | 448~584 | |||
Note: The above data is subject to change without prior notice.
Samutaike (Shanghai) Electronic Co, Ltd. was established in 2015 and is a national high-tech enterprise. It is a supplier of smart city. cloud computing,intelligent microgrid engineering, big data system solutions, and green energy. The company specializes in lithium battery energy storage PACK integration, household energy storage solutions, and solutions for large-scale energy storage applications in domestic and foreign markets. The company provides one-stop services to address peak shaving and valley filling. photovoltaic and energy storage integration. wind-solar-diesel-storage integration. etc. The company has a solid foundation in the research. manufacturing, and development of high-tech electrical products such as photovoltaic, energy storage. UPS uninterruptible power supply, emergency power supply. micro module integrated data center, intelligent microgrid, and embedded software. The company always adheres to "technology + quality + service" as the cornerstone of its core competitiveness, pro- viding high-efficiency, intelligent, and integrated quality products and comprehensive services for global users.
Samutaike has a complete management system, and the company has successively passed the ISO9001 quality management system certification. ISO14001 environmental manage- ment system certification, iSO45001 occupational health and safety management system certification, and ISO27001 information security management system certification: it has also passed the China Energy Saving Product Certification, Tel Certification, Public Security Bureau Fire Certification (3C). European CE Certification. and Goods Transport Conditions Identifica- tion.
SMTK always aims to meet customer needs, is committed to improving service quality and value, takes customer service as the ultimate concept, and establishes an all-round. high-quality and standardized customer service system.
It has formed a service structure from pre-sales telephone consultation,on-site environ- mental survey. power supply scheme design. to after-sales installation and commissioning. use and maintenance, technical training, and spare parts support.
A number of professional and skiled engineers are ready to provide you with one-stop service and support at any time, helping customers to truly obtain a power supply solution with high practicability and reliability, maximizing investment value, and allowing custom- ers to enjoy the high-quality service level.
It has formed a service structure from pre-sales telephone consultation,on-site environ- mental survey. power supply scheme design. to after-sales installation and commissioning. use and maintenance, technical training, and spare parts support.
A number of professional and skiled engineers are ready to provide you with one-stop service and support at any time, helping customers to truly obtain a power supply solution with high practicability and reliability, maximizing investment value, and allowing custom- ers to enjoy the high-quality service level.
Q1. Are you a manufacturer?
A. Yes, sir, we have our own factory, the price is factory direct.
Q2. Can I have a sample order?
A. Yes,welcome sample order to test and check quality.
Q3. What about the lead time?
A. Sample 5-10 days, mass production time 3-5 weeks depending on order quantity.
Q4. Do you have any MOQ limit?
A. Yes, but low MOQ. 1~10pcs sample order is available.
Q5. How do you ship the goods and how long does it take to arrive?
Q6. How to proceed with an order?
A. 1st, please let us know your requirements or application. 2nd, We offer our quota-
tion. 3rd, customer confirms the samples and make a deposit for formal order. 4th, We
produce your order.
Q7. Can you print my logo on the product?
A. Yes. Please supply us the artwork before mass production.
Q8. How about after-sales service?
A. Yes, sir, we have our own factory, the price is factory direct.
Q2. Can I have a sample order?
A. Yes,welcome sample order to test and check quality.
Q3. What about the lead time?
A. Sample 5-10 days, mass production time 3-5 weeks depending on order quantity.
Q4. Do you have any MOQ limit?
A. Yes, but low MOQ. 1~10pcs sample order is available.
Q5. How do you ship the goods and how long does it take to arrive?
A. We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Bigger
order shipped by sea.
order shipped by sea.
Q6. How to proceed with an order?
A. 1st, please let us know your requirements or application. 2nd, We offer our quota-
tion. 3rd, customer confirms the samples and make a deposit for formal order. 4th, We
produce your order.
Q7. Can you print my logo on the product?
A. Yes. Please supply us the artwork before mass production.
Q8. How about after-sales service?
A. We will provide you with a 3 years warranty. If there are any problems, please let us know and we will provide you with a positive solution.
