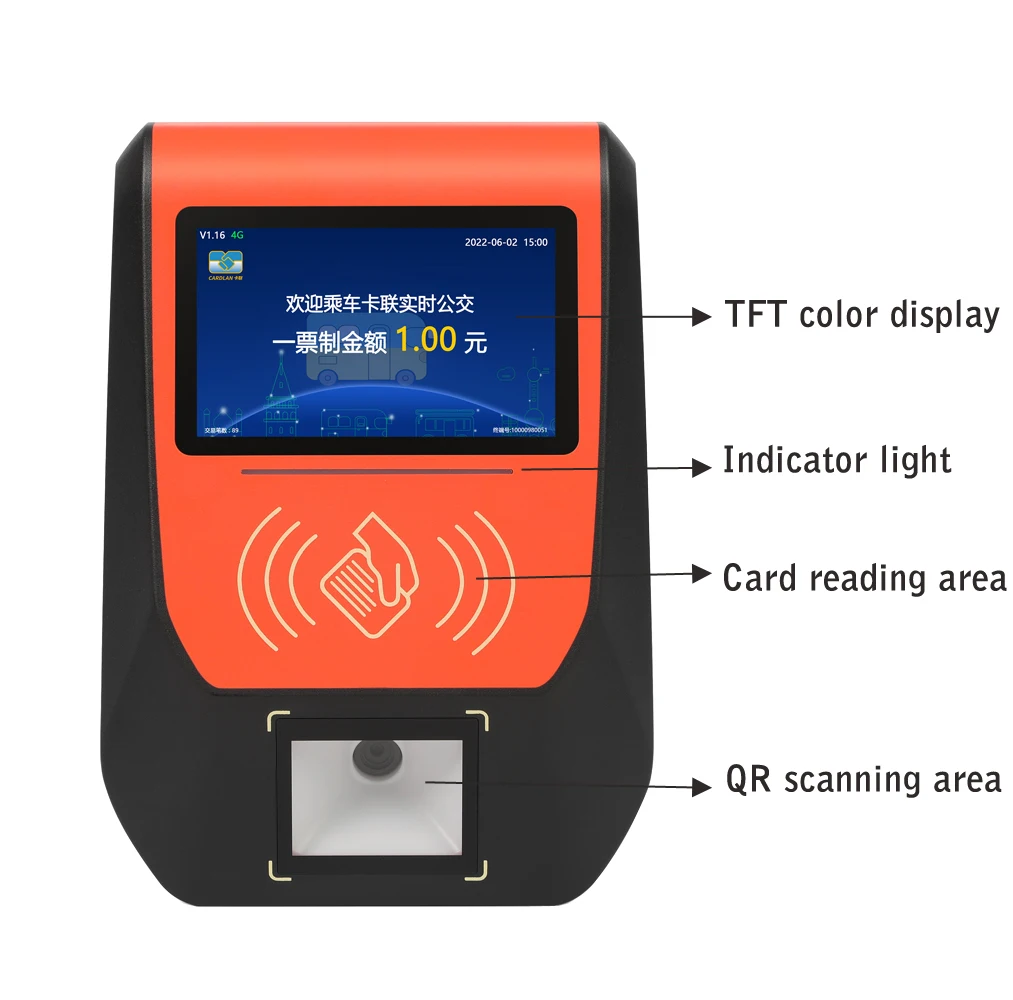

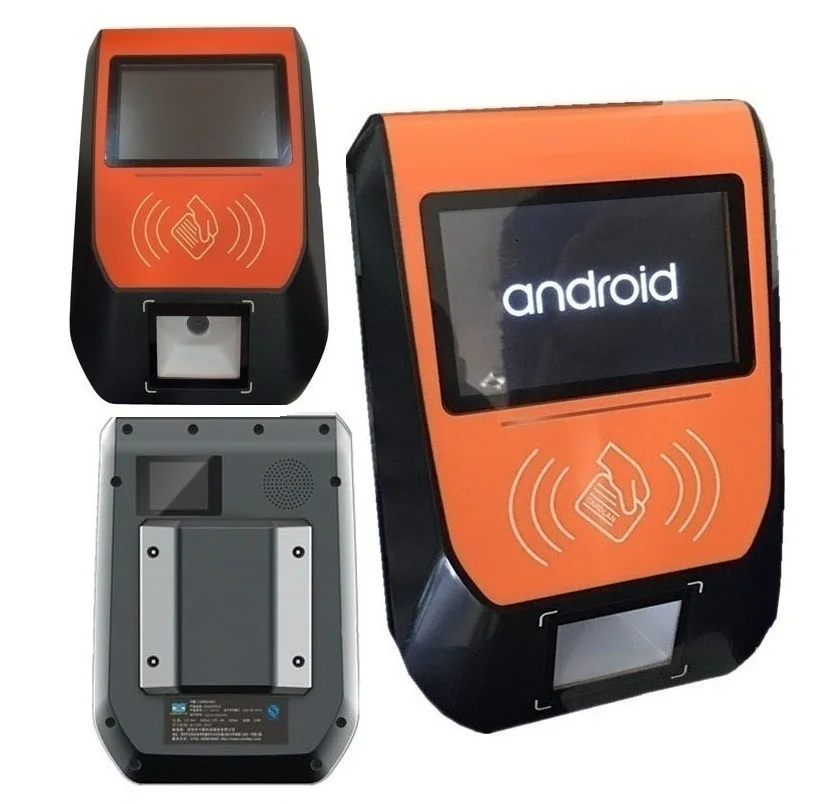

Factory Card Reader with qr code scaner

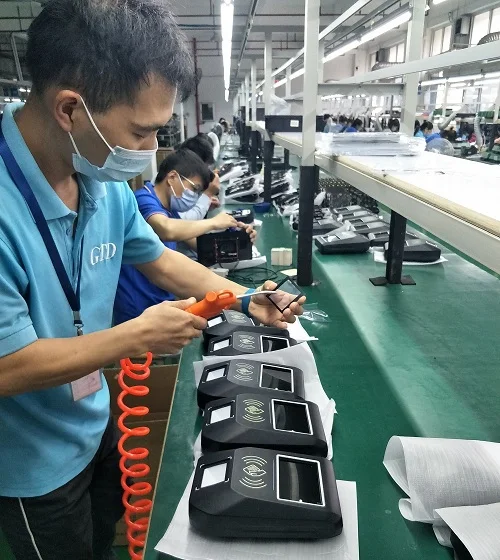

Shenzhen Cardlan Technology Co. Ltd was established in 2000 in Shenzhen Longgang District.We specialize in manufacturing high-quality bus POS systems, fare collection POS systems, urban all-in-one card systems, intelligent internet information systems and other RFID systems. Cardlan has done so many kinds of project in foreign countries, such as Myanmar, Cambodia, United Kingdom, Chile, Zimbabwe, Thailand, United States, Tajikistan,Dubai, Russia,Qatar...

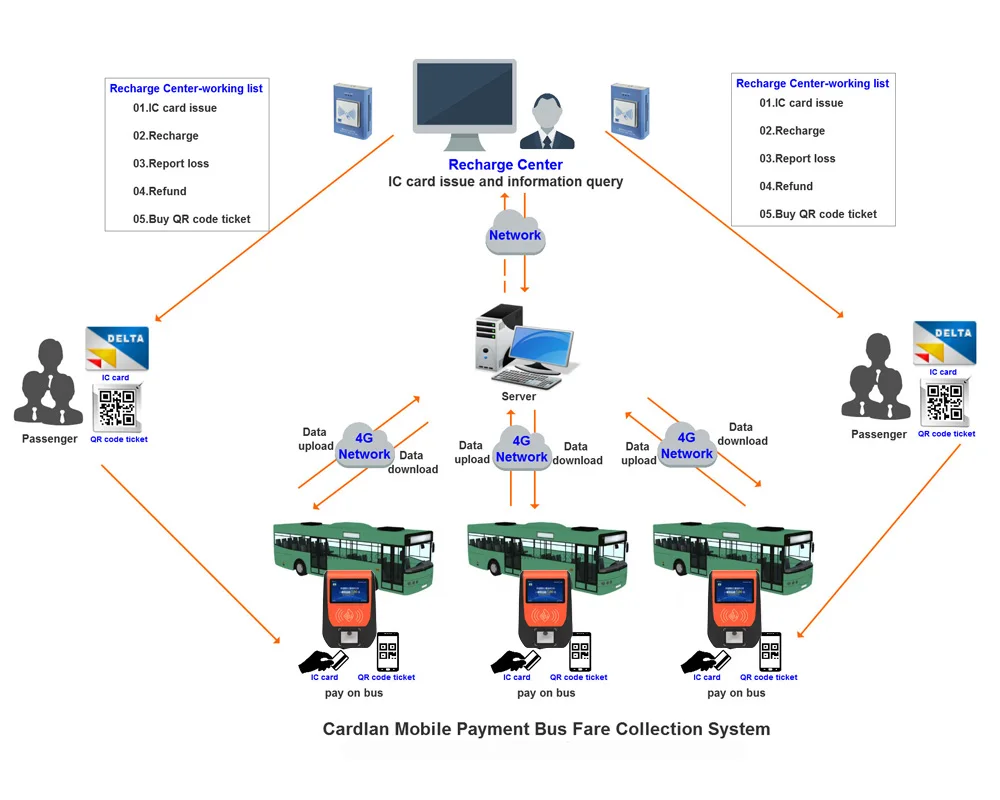

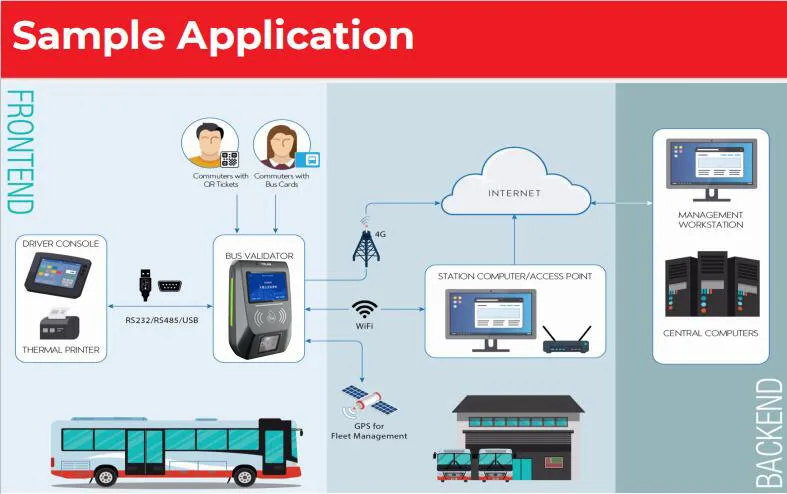

 How the system works?

Application:

Main Functions of IC Card Public Transport Charge System

* Super flexible and changeable automatic charge function: The IC card public transport charge system supports various consumption methods including tens types of public transport IC card like common card, student card, senior card, employee card, and driver card, E-wallet, and commutation ticket.
* High reliable card payment record: For successful card payment, IC card public transport charge system will record the card number, card payment time, consumption amount (times), balance and consumption type.
* Parameter setting function: It is easy to set terminal number, ticket price and card permission on IC card public transport charge system.
* Time correction function: IC card public transport charge system can directly correct time by collector.
* Super capacity blacklist processing function: IC card public transport charge system is with a capacity of storing 520,000 blacklists. All the passenger cards recorded on IC card public transport charge system blacklist are prohibited using on IC card public transport charge system.
* Super humanized operation income automatic counting: IC card public transport charge system is equipped with the automatic counting function for drivers’ operating income, capable of recording the operating income of the driver and ticket agent after their check-in; the driver and ticket agent can inquire the operating income of the current shift.

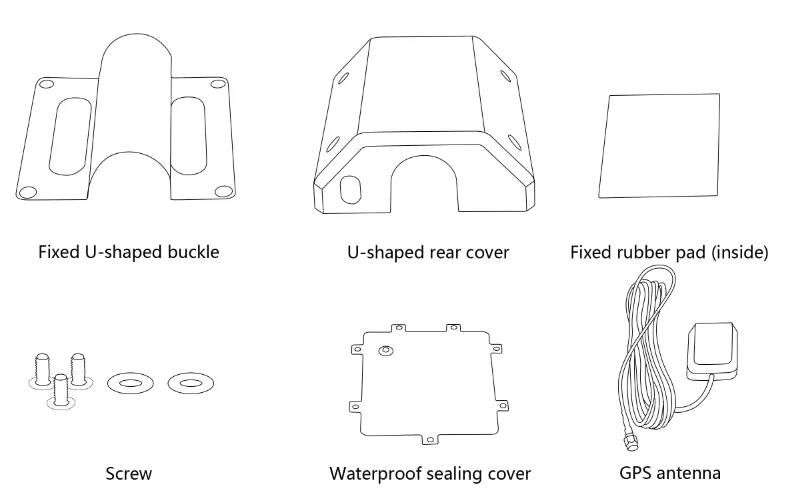

1.Accessories of Bus validator

  1. Power Wire (Quantity: 1, Specification: 2.5 meters)

  2. Fixed U-shaped buckle (quantity: 1 unit)

  3. U-shaped rear cover (quantity: 1 unit)

   4. Fixed rubber pad (inside)(quantity: 1 pic)

   5. Screw(quantity: 4 units)

  6. Waterproof sealing cover (quantity: 1 unit, optional)

  7. GPS Antenna (quantity: 1 unit, optional)

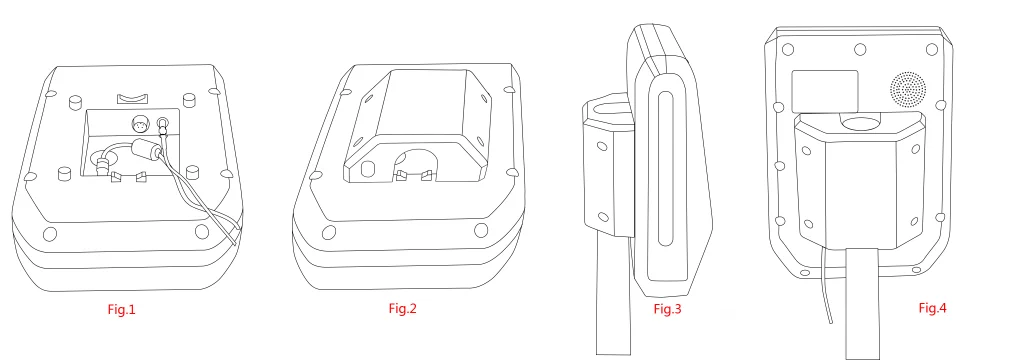

2. Installation steps

Step 1: Confirm the location of the installation.

Step 2: Connect the power and cord tightly.

Step 3: Fix the bus validator on the corresponding iron pillar or armrest with U-button, as shown in the figure below.

3. Wiring instructions for power lines

Special power supply: the positive pole of the battery on the brown wire and the negative pole of the battery on the blue wire.

Note: Brown positive and blue negative.

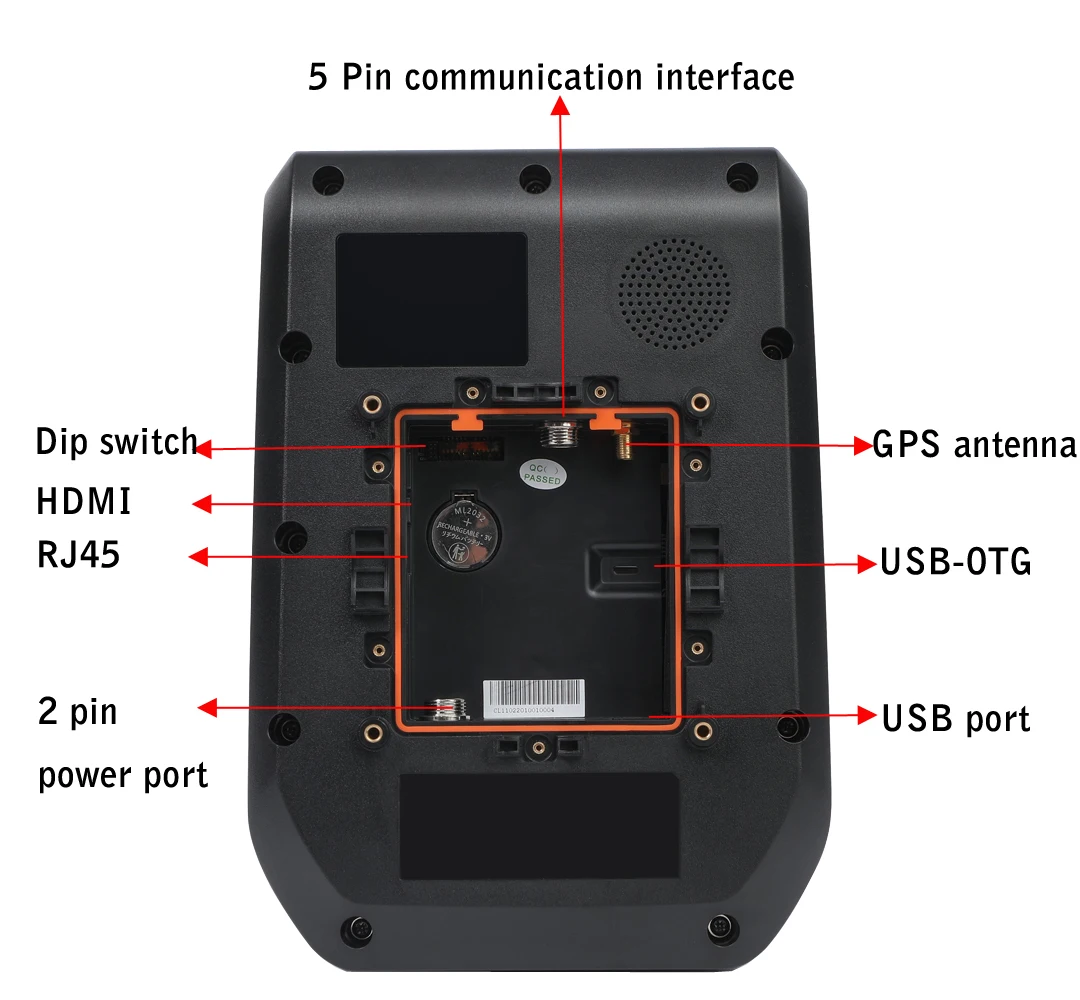

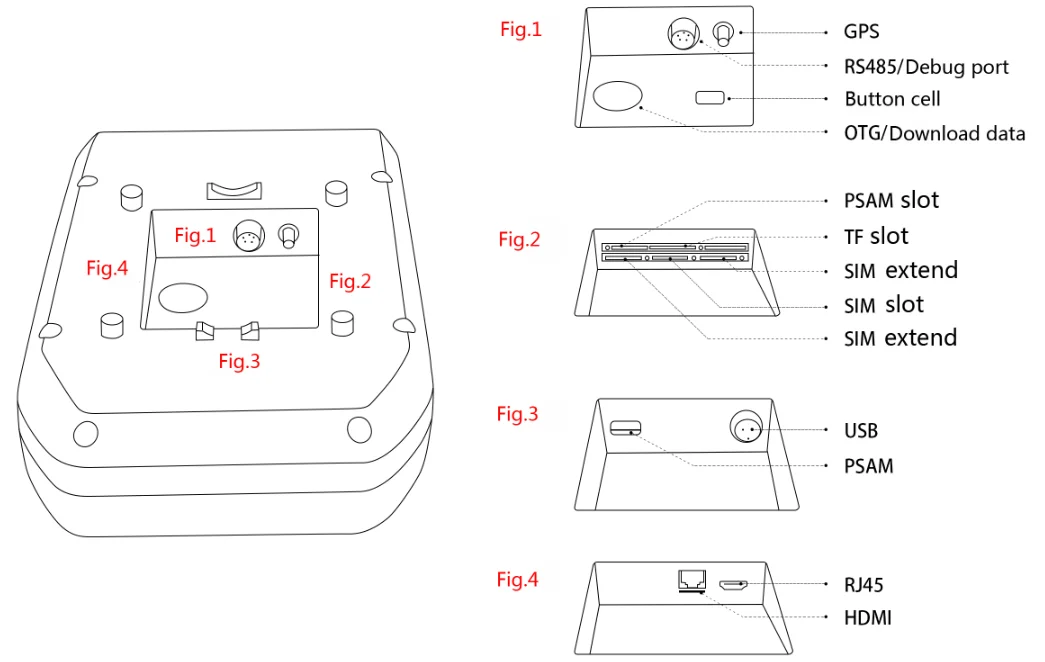

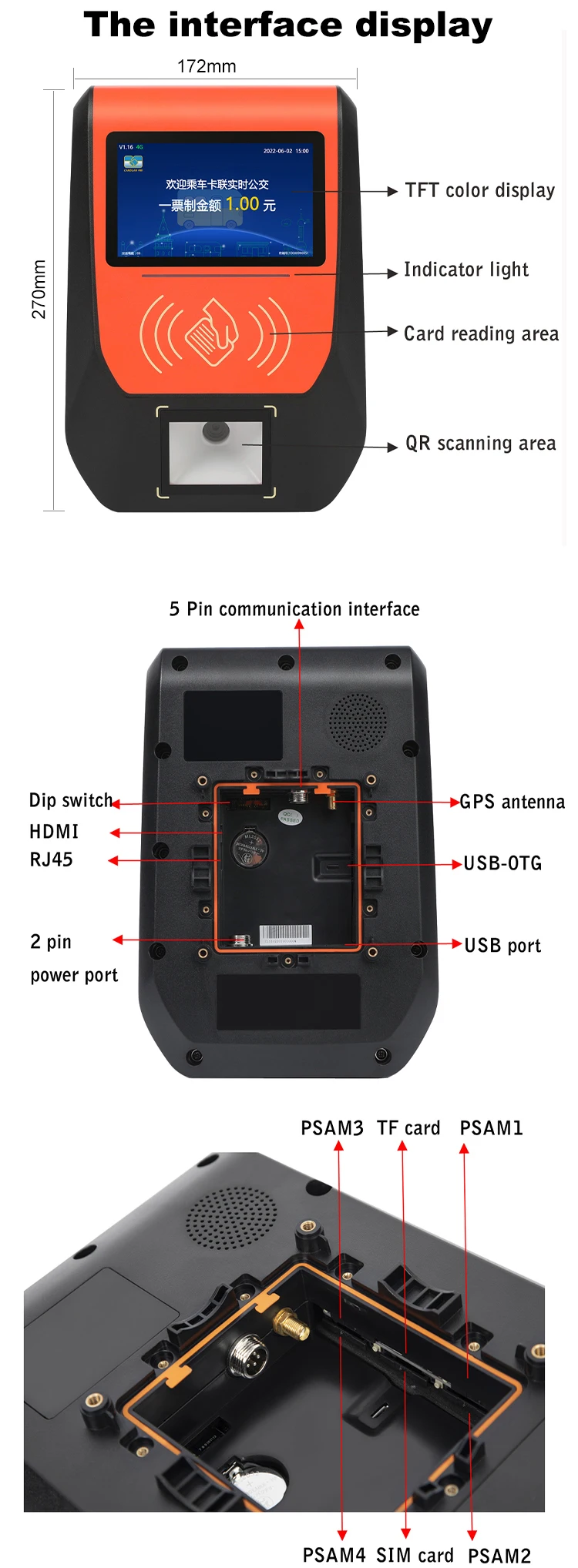

4. Interface Description

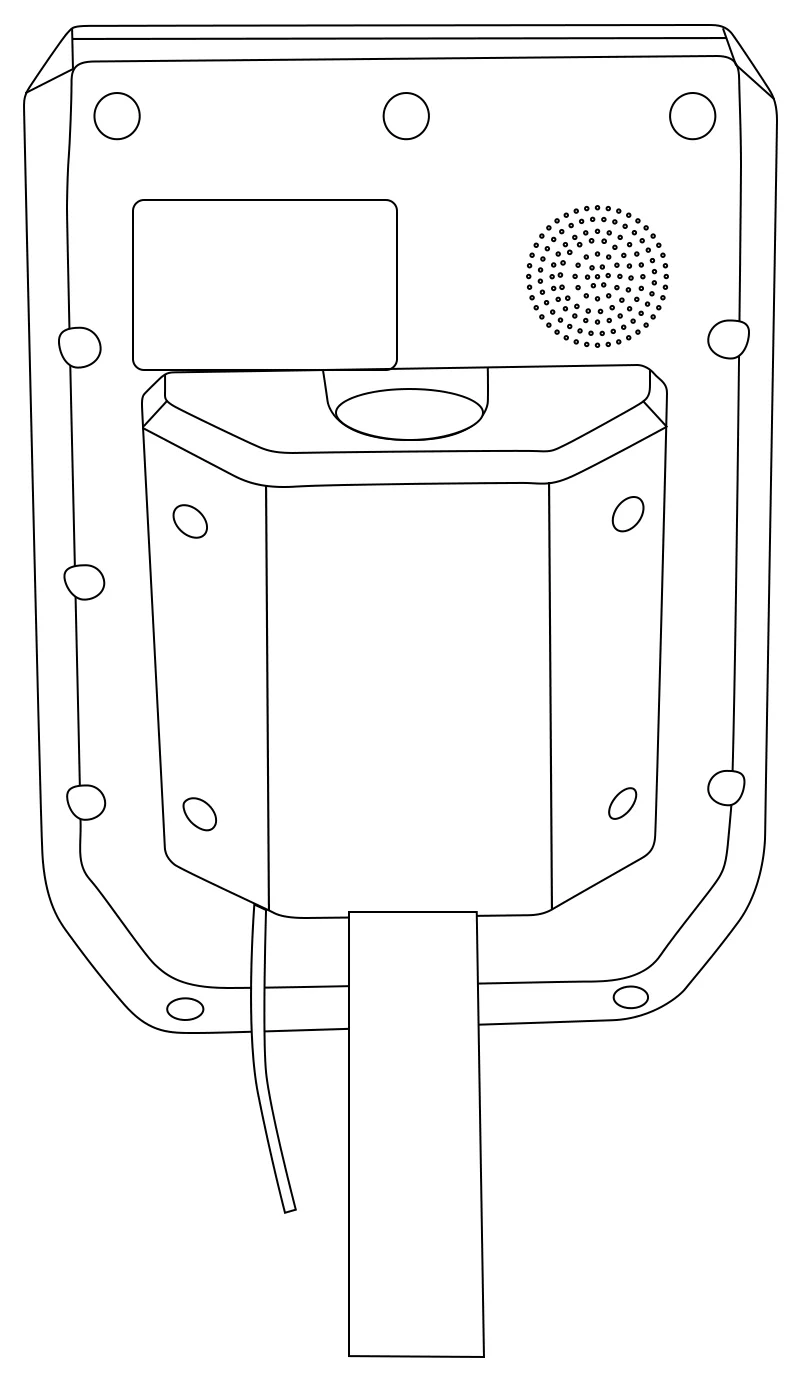

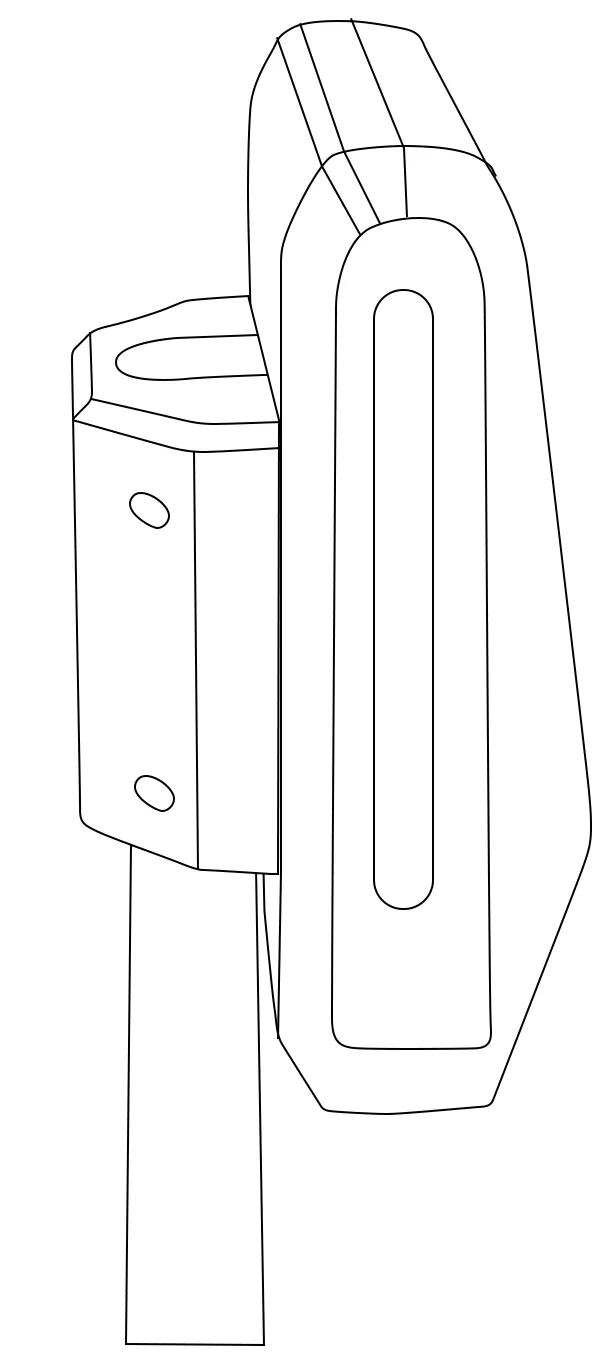

5. Drawing after Installation

Strictly hightemperature/low temperature testing, Vibration testing, to make sure products can meet the extreme environment on bus.

Our hardware have got CE/FCC approvals, and if you have any more questions, please contact Kathy at +86-13530321253,she can speak English, welcome inquiry!~

Q: Are you trading company or manufacturer?

A: We are factory  for public transportation payment ,which include hardware and software.

Q: Do you sell the machine and management software system together?

A: We can sell them together , also you can only buy hardware machine or system.

Q: How to set the machine and the software management ?

A: we can provide you the whole set instruction book of the machine and the system, you can do as the instruction. wealso can send engineers to your country to set up the machine and adjust the whole system for you.

Q: Do you provide samples for testing?

A: yes, we could offer the samples for your inspection,and also offer SDK for your secondary development.

Q: what is your payment terms?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% TT in advance,balance payment before delivery.
