Конвейерная лента для масштабного производства конвейерная ленточная система автоматизации склада
- Категория: >>>
- Поставщик: Zhengzhou Huaye Heavy Industry & Machinery Co. Ltd.
Сохранить в закладки 1601246846523:
Описание и отзывы
Характеристики
Product Overview

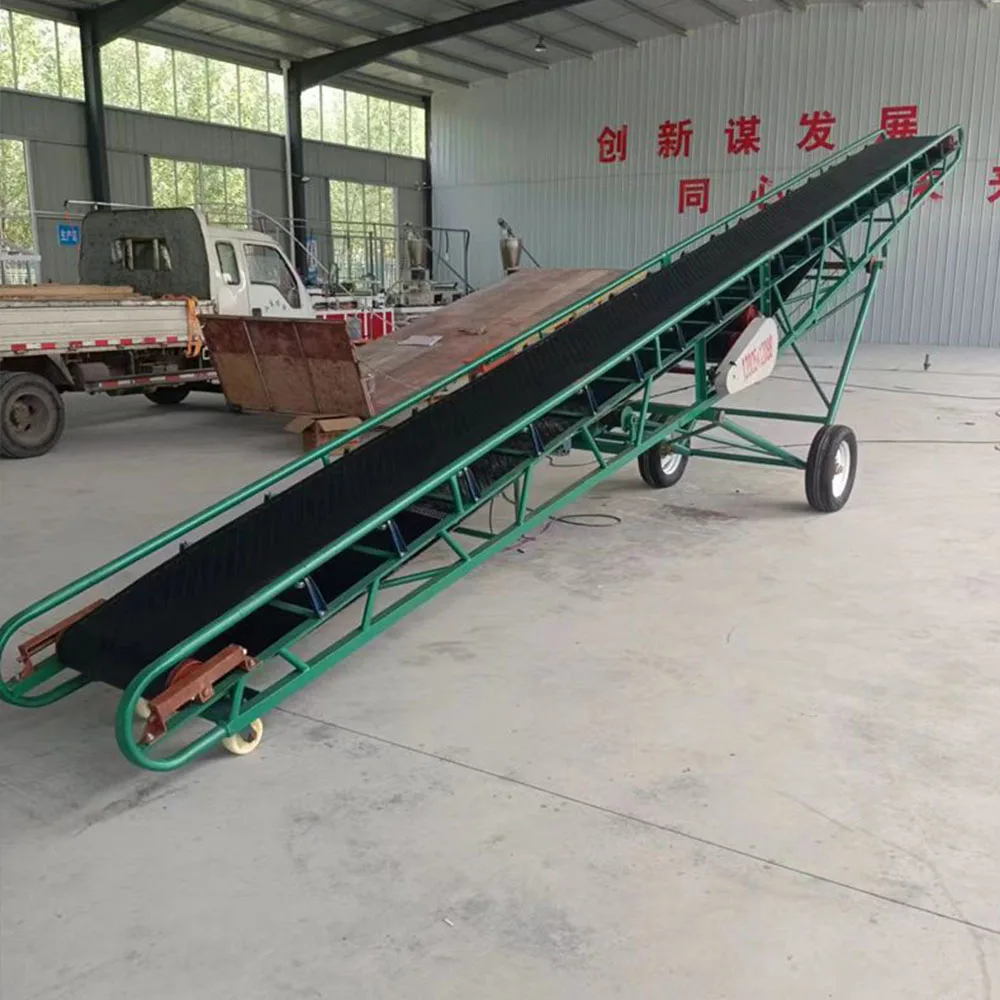

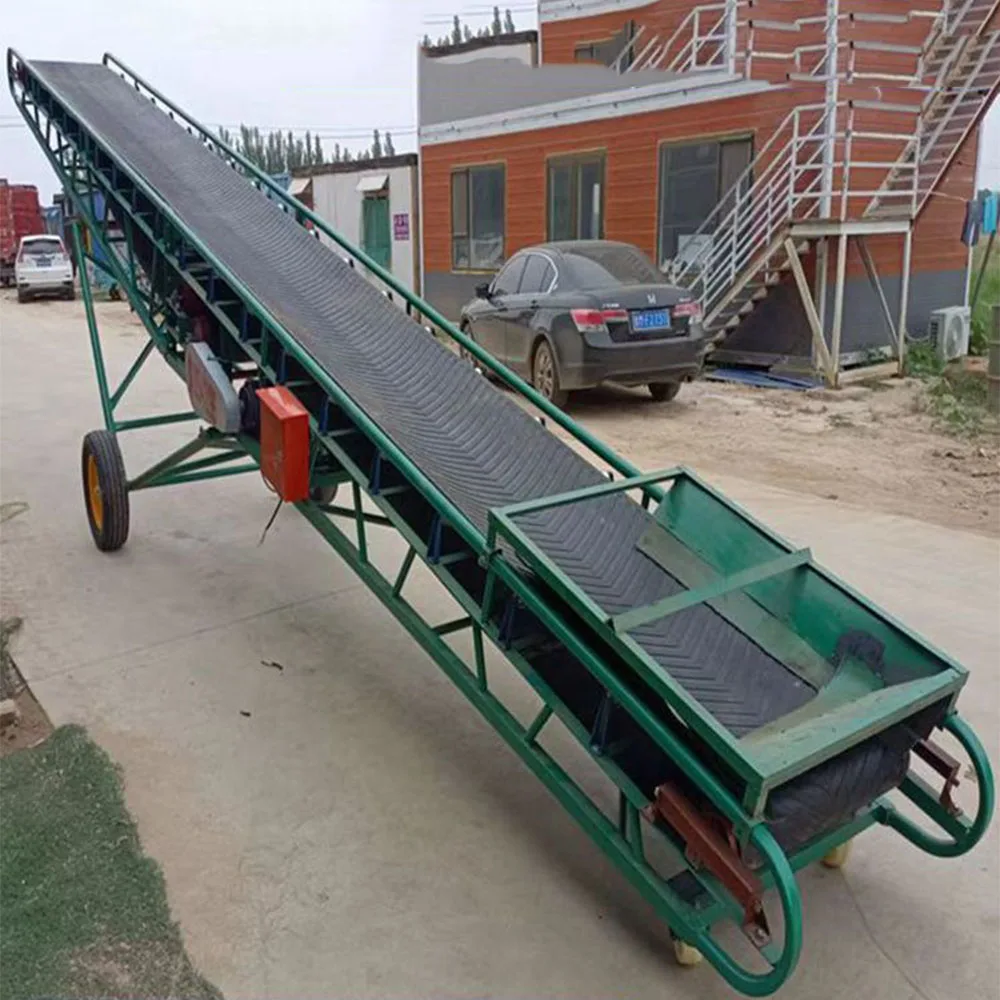

BELT CONVEYOR
A conveyor is a material handling machinery that continuously transports materials along a certain route, also known as a continuous conveyor. Conveyors can be used for horizontal, inclined, and vertical conveying, and can also form spatial conveying routes, which are generally fixed. The conveyor has a large conveying capacity, long transportation distance, and can also complete several process operations simultaneously during the conveying process, so it is widely used.
FEATURES AT A GLANCE
1. Belt conveyors have low power consumption.
2.The conveyor line of the belt conveyor has strong adaptability and flexibility.
3.Belt conveyors can flexibly receive materials from one or more points, and can also unload materials to multiple points or sections.
Working principle:

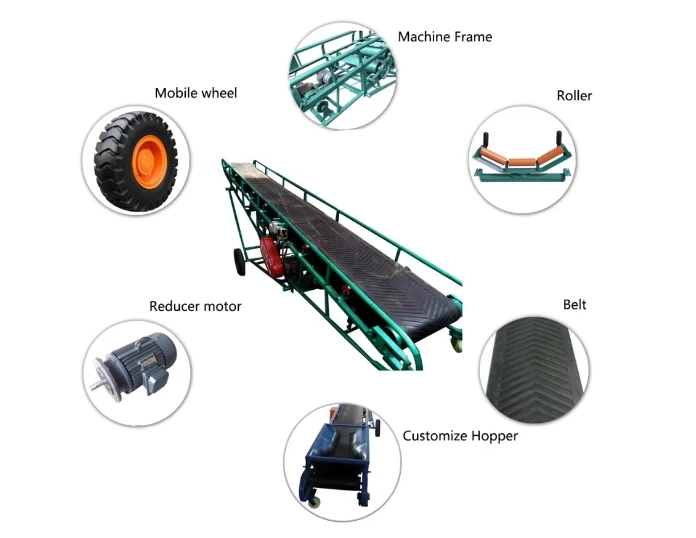

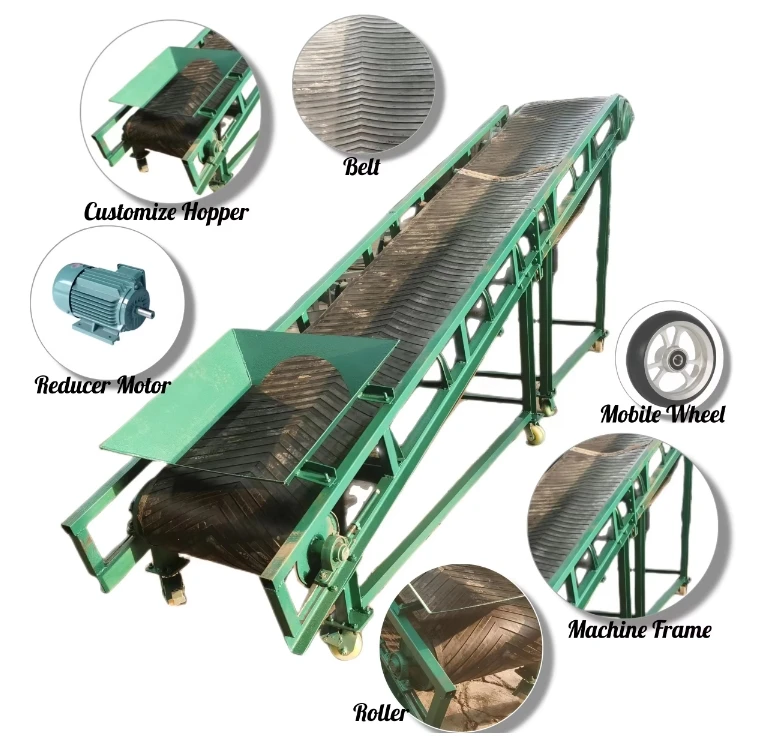

A belt conveyor mainly consists of two end rollers and a closed conveyor belt tightly fitted onto them. The drum that drives the conveyor belt to rotate is called the drive drum (transmission drum); Another drum that only changes the direction of the conveyor belt movement is called a reversing drum. The driving drum is driven by an electric motor through a reducer, and the conveyor belt is dragged by the frictional force between the driving drum and the conveyor belt. The driving drum is usually installed at the discharge end to increase traction and facilitate dragging. The material is fed into the feeding end and falls onto the rotating conveyor belt, which is driven by the friction of the conveyor belt to be transported to the unloading end for discharge.
PRODUCT SPECIFICATIONS
Belt width(mm) | Belt length(m)/Power(kw) | Belt speed(m/s) | Capacity(t/h) | ||||
500 | ≤12/3 | 12-20/3-5.5 | 20-30/5.5-7.5 | 1.25-2.0 | 40-80 | ||
650 | ≤12/4 | 12-20/4-5.5 | 20-30/5.5-11 | 1.25-2.0 | 80-120 | ||
800 | ≤10/4 | 10-15/4-5.5 | 15-30/5.5-15 | 1.25-2.0 | 120-200 | ||
1000 | ≤10/5.5 | 10-20/5.5-11 | 20-40/11-22 | 1.25-2.0 | 200-320 | ||
1200 | ≤10/7.5 | 10-20/7.5-15 | 20-40/15-30 | 1.25-2.0 | 290-480 | ||
1400 | ≤10/11 | 10-20/11-22 | 20-40/22-45 | 1.25-2.0 | 500-1200 | ||
SIMILAR PRODUCTS
Business Cooperation
We sincerely welcome every valued client from home and abroad to visit our company and enter into long term business relationship with every friend.
FAQ
1. Q: Can I visit your factory? A: Yes. Many domestic and overseas customers visited our factory every year.
2. Q: What about the warranty of your equipment? Do you supply spare parts?
A: Our warranty is 1 years(12 months), and we can supply spare parts also.
3. Q: Do you provide after-sales service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.
4. Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All
of our engineers have passport.
5. Q: Do you provide a production flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for stone-crushing plants and various ores
beneficiation lines.
6. Q: Can you test our sample raw material?
A: Yes. You can send your samples to us for testing and analysis.
7. Q: Have you made the whole stone crushing line?
A: Yes. We have made many large&small scale stone crushing line at home and abroad.
2. Q: What about the warranty of your equipment? Do you supply spare parts?
A: Our warranty is 1 years(12 months), and we can supply spare parts also.
3. Q: Do you provide after-sales service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.
4. Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All
of our engineers have passport.
5. Q: Do you provide a production flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for stone-crushing plants and various ores
beneficiation lines.
6. Q: Can you test our sample raw material?
A: Yes. You can send your samples to us for testing and analysis.
7. Q: Have you made the whole stone crushing line?
A: Yes. We have made many large&small scale stone crushing line at home and abroad.
Похожие товары

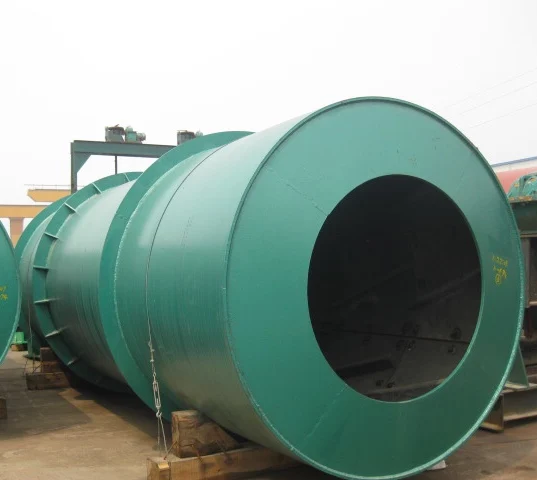

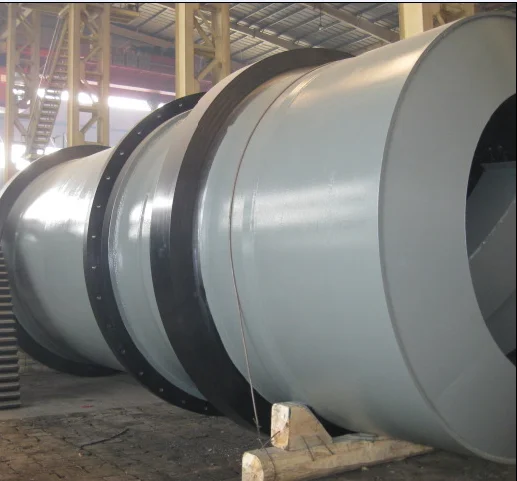

Цилиндрический смеситель вращающийся
11 006 690,00 ₽

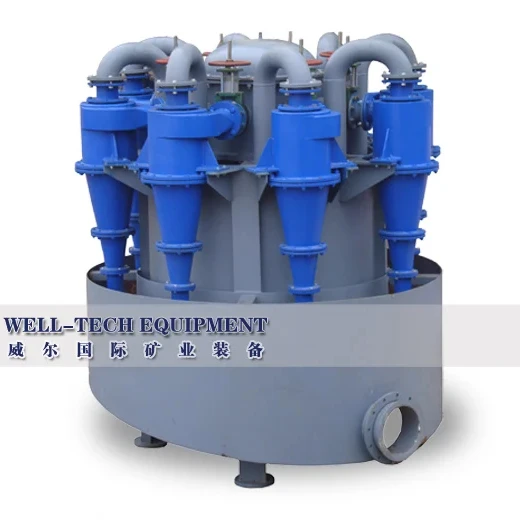

Гидроциклонный сепаратор полиуретановый очиститель грязи оборудование для классификатора мелкого размера золота
550 334,50 ₽

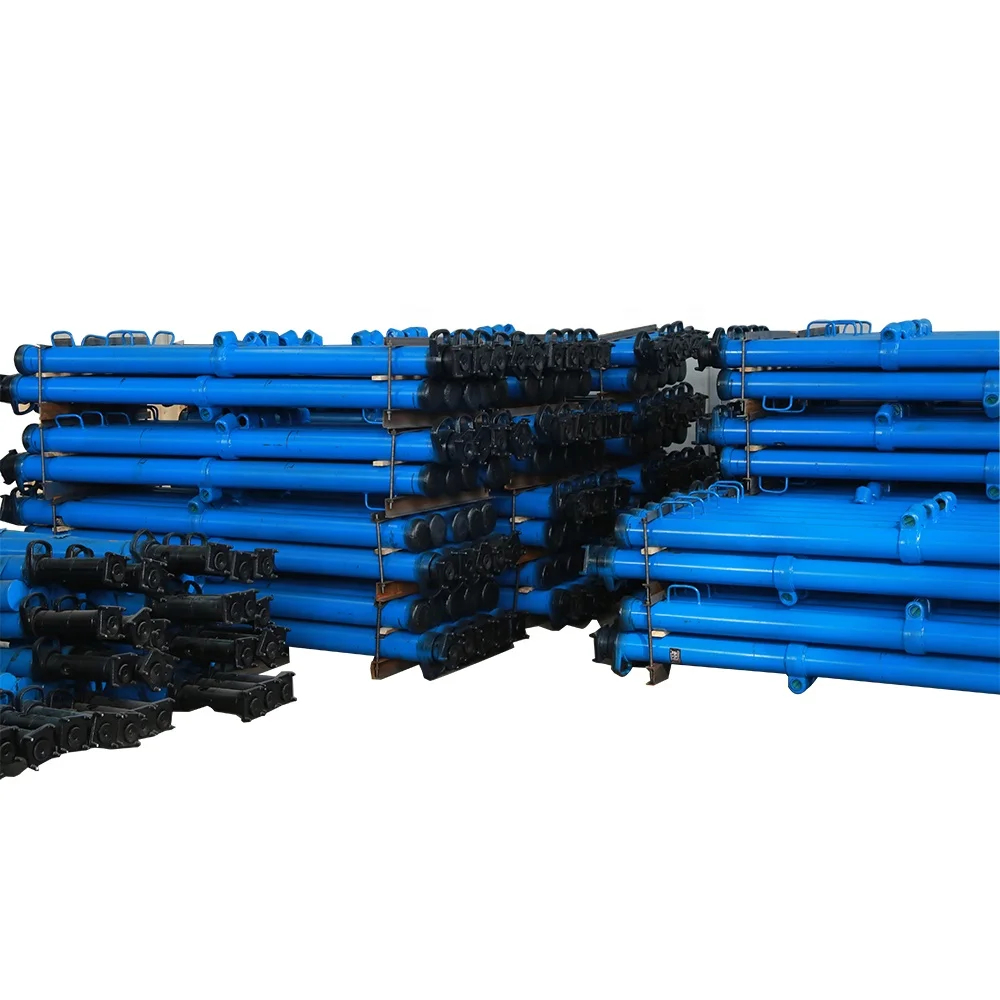

Одиночная гидравлическая опора DN внешняя в угольной шахте
8 874,20 ₽ - 13 311,30 ₽

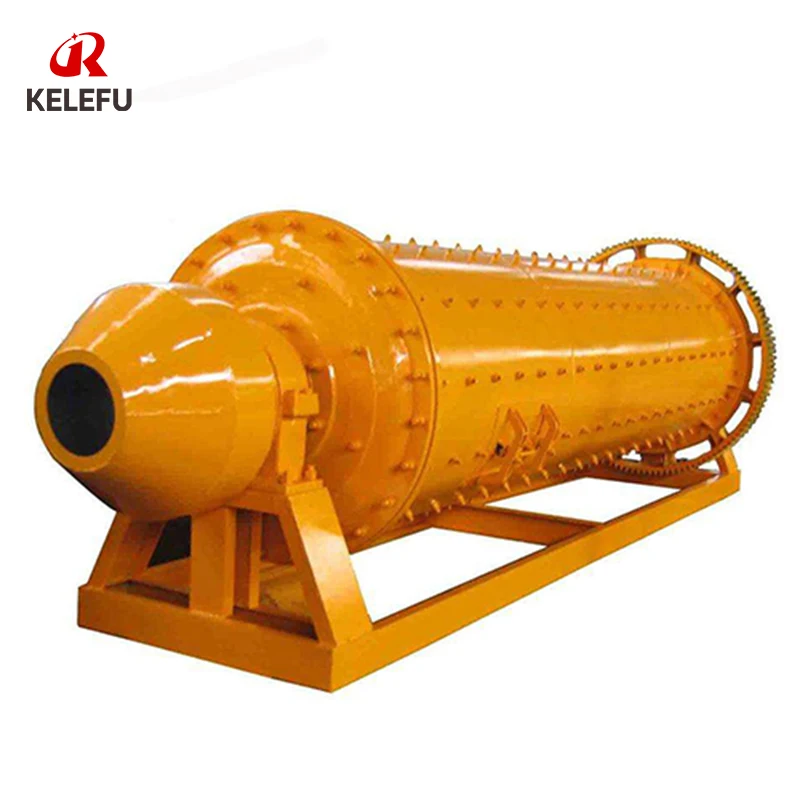

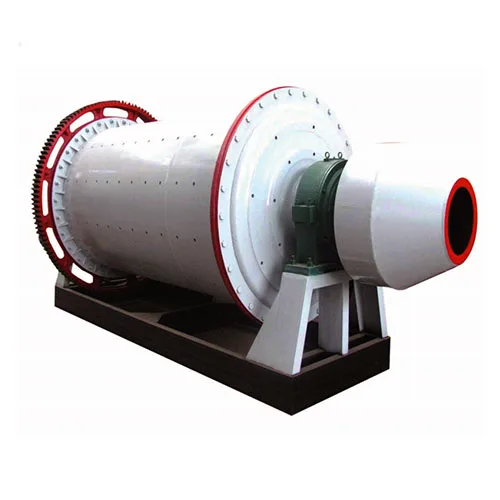

Шаровая мельница для золотой руды
741 217,56 ₽ - 1 093 301,44 ₽
Шаровая мельница стальная Шлаковая шаровая обогащение руды алюминиевая зола измельчитель оборудование для горнодобывающей промышленности
713 893,92 ₽ - 1 077 004,62 ₽
Китай шаровая мельница производитель стальной шлак цена
717 746,26 ₽ - 1 084 489,17 ₽

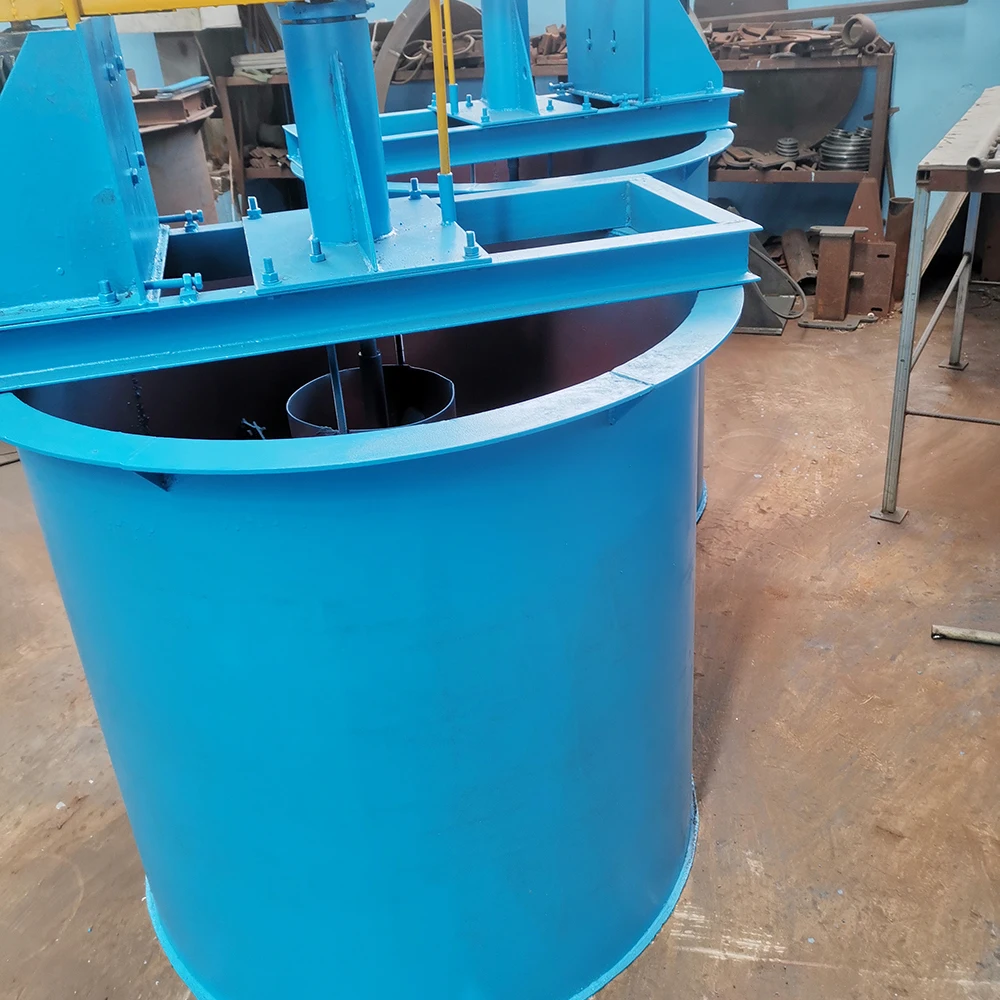

Высококачественный резервуар для выщелачивания цианида с золотистой шламовой литиевой рудой
