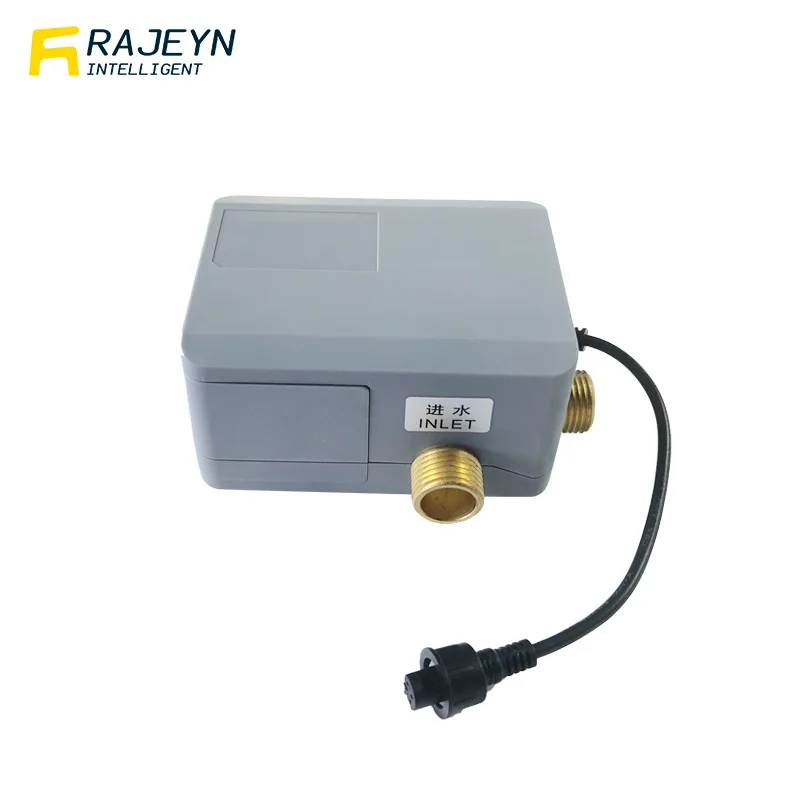

Латунный блок управления переменного/постоянного тока с Корпусами батареи и трансформатором для бассейна автоматические сенсорные краны

Product Feature

1) There are four different working modes in one PCB/Sensor, including sensor faucet, sensor urinal, sensor toilet and sensor shower, which can be automatically switched by a remote controller.

2) Adjustable sensor distance and flush duration by remote controllers.

3) Low power consumption.4AA alkaline batteries life circle is about 60,000, lasting about 1.5 years.

4) Glue potting with strong moistureproof function.

5) High anti-interference and anti-vibration performance.

6) We have more than 50 different sensor eyes and different wires for selection.

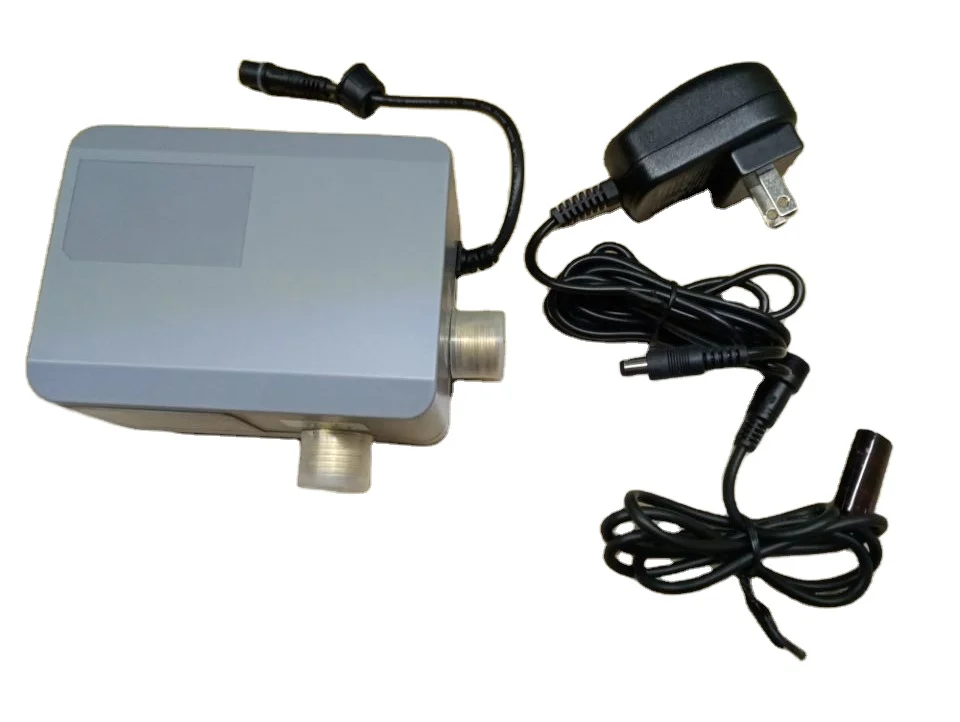

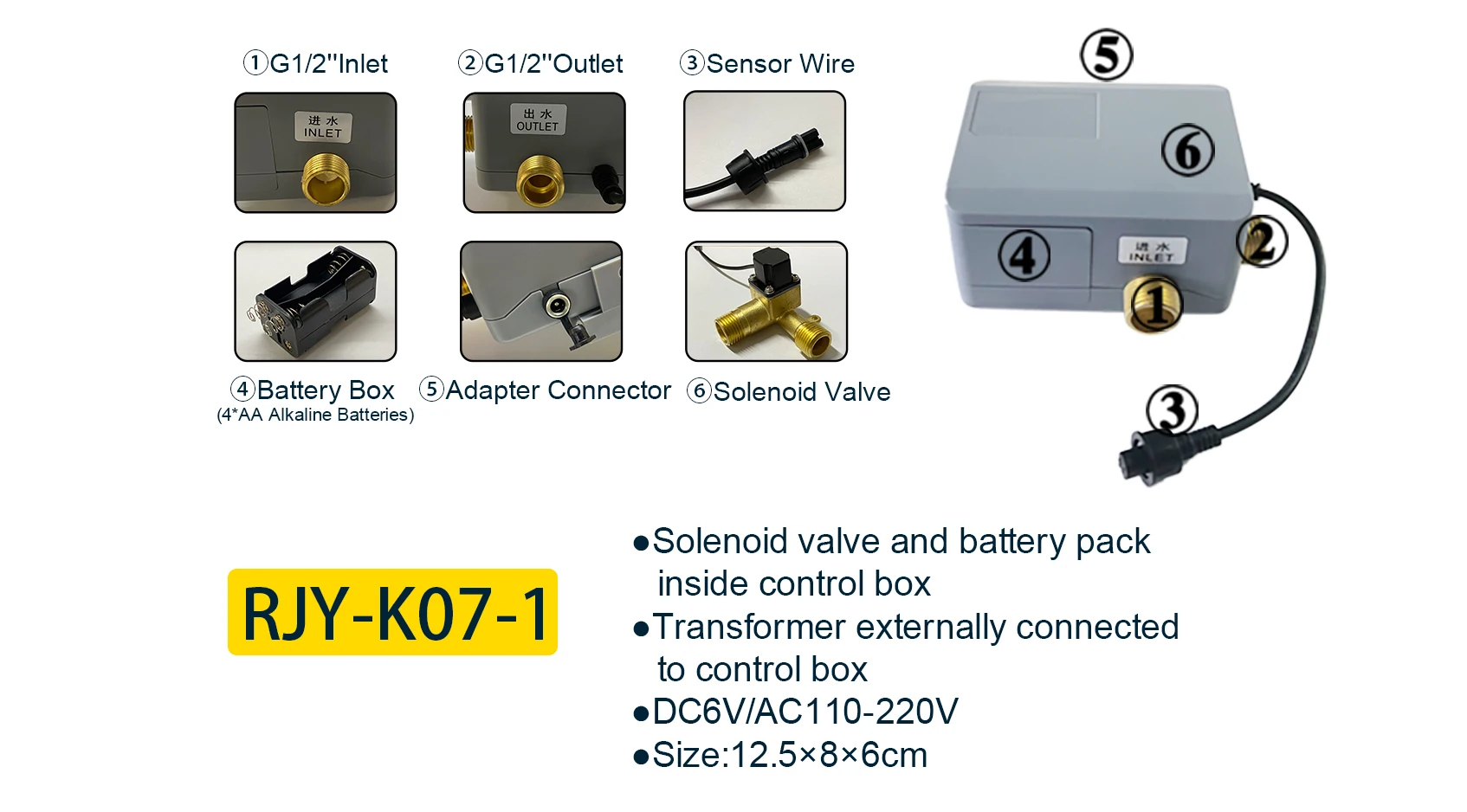

Following components are included in the control box

1) Solenoid valve

A solenoid valve is a device that allows or restricts water from passing through it. It has a built-in magnetic latch that opens and closes whenever an electric signal is sent or received from the infrared sensor.

2) Battery Case

The battery case holds 4 AA alkaline batteries, which means DC 6V voltage. The battery can be used in conjunction with the Main power supply. For example, if the power goes, the DC battery power will automatically take over. The battery should last up to 2 years on an average usage of 3000 cycles per month (Av. 100 cycles a day). Or there’s a transformer.

3) Transformer (Optional)

Besides battery case, you can add a transformer to the control box, which indicates main power supply, saying 110V or 220V.

4) Wires for Connection

There are wires connecting power supply and sensor as well as solenoid and sensor. The sensor cable is connected to the solenoid valve (to receive signals from the infrared) and to the power supply in order to get necessary current needed for activation.
