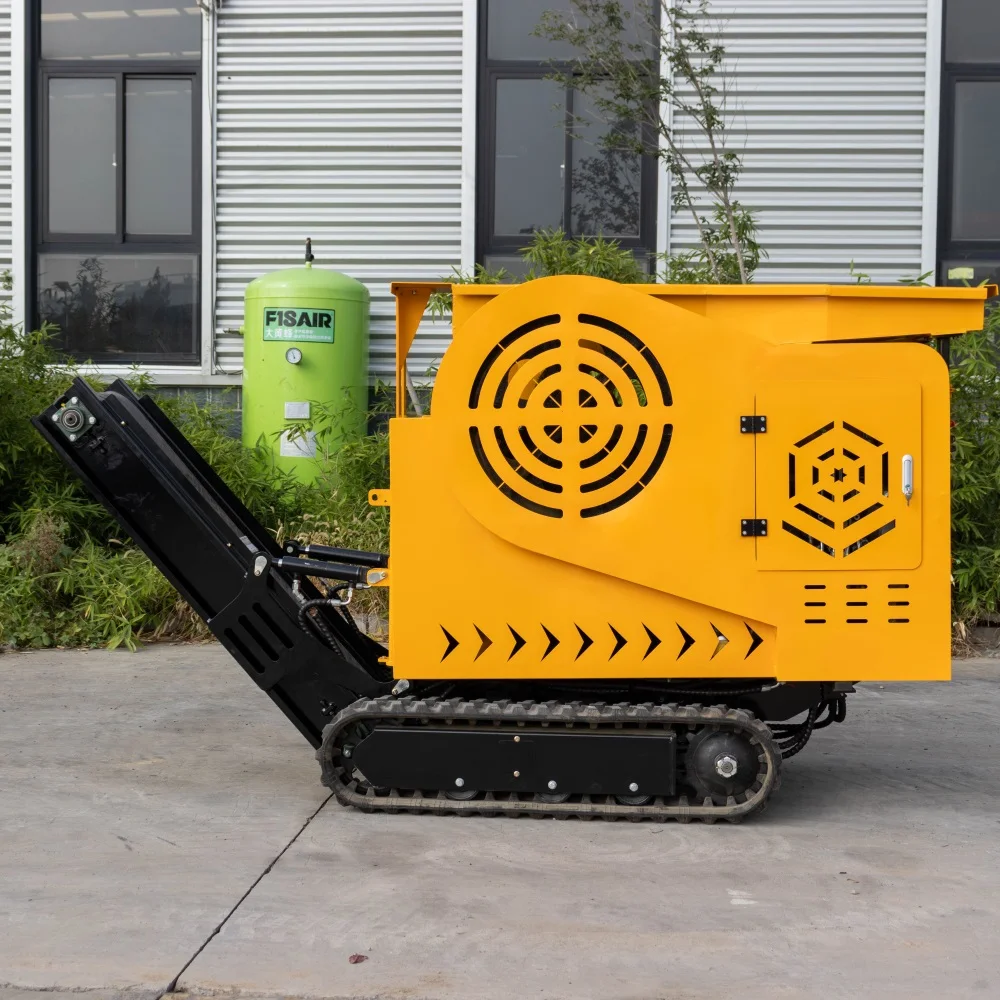

Передвижная гусеничная машина для дробления камня
231 148,00-346 722,00 ₽

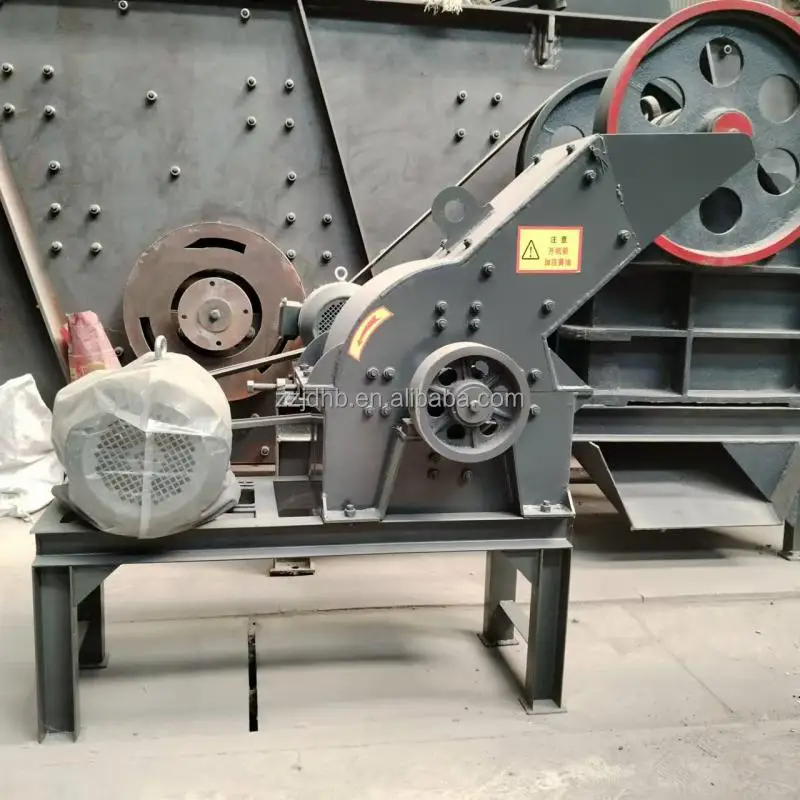

Оптовая цена небольшая молотковая дробилка камнедробилка Известняковая
- Категория: >>>
- Поставщик: Zhengzhou Juding Environmental Protection Equipment Co. Ltd.Zhengzhou Ltd.
Сохранить в закладки 1601247487681:
Описание и отзывы
Характеристики

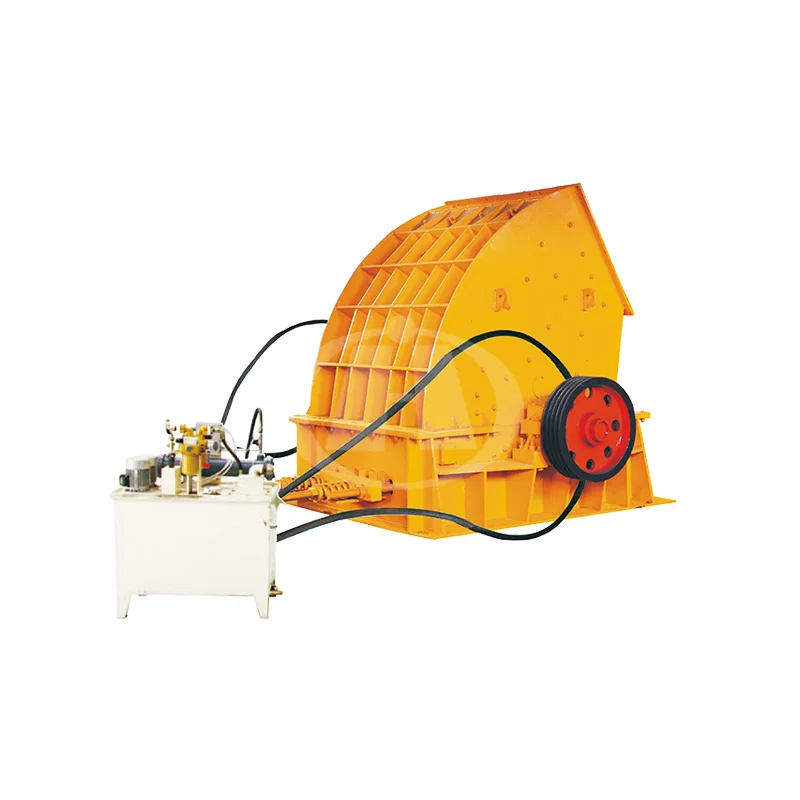

Hammer crusher is a commonly used crushing equipment with large crushing ratio (generally 10-25, high up to 50), high production capacity, uniform product, less powder phenomenon, low energy consumption per unit product, simple structure, light equipment,easy operation and maintenance, etc. It is suitable for fine crushing of medium hardness and brittle materials in mining, cement,coal, metallurgy, building materials, highways, and combustion.The material discharge size can be adjusted by change the gap of the gridscreen, to meet the different needs of different users.Heavy hammer crusher can be directly used for material crushing without initial crushing.
Working Principle：
The Motor Drives The Rotor In The Crusher Rapidly. Raw Material Enters The Crusher Through The Feed Inlet And Is Impacted, Cut And Ground By The High Speed Hammers. There Is A Screen Below The Rotor Assembly, So Material With Dimensions Smaller Than The Screen Mesh Is Screened Out, While Other Materials Are Further Hammered Until They Reach A Standard Size. The Size Of The End Product Can Be Adjusted By Changing The Screen Mesh, And The Gap Between The Rotor Assembly And The Screen Mesh Can Be Adjusted To Suit Different Requirements.
DFM Report | |||||||||
Process review stage | project | serial number | Specific content | Requirements | |||||
experience | one | Simulate customer use | Normal use, safety hazards | ||||||
two | Cooperation, matching degree | Is it reasonable to cooperate with related products | |||||||
Power performance | three | Connector method | Plug, power supply method | ||||||
four | sound | Motor, operating noise | |||||||
overall appearance | five | joint | gaps, scratches | ||||||
six | Material | reasonable use | |||||||
seven | surface | Processing method | |||||||
After product disassembly | After-sales maintenance evaluation | eight | Disassembly process | After-sales maintenance difficulty | |||||
Structural parts | nine | Outsourced materials | List key materials and formulate subsequent inspection and control plans | ||||||
ten | homemade materials | List key materials and set key process control points (targeting weak internal processes and error-prone locations) | |||||||
eleven | Material material | According to the product definition, evaluate whether the material material can meet the requirements | |||||||
twelve | rationality, risk | Based on the product definition, evaluate whether the structural application is reasonable | |||||||
thirteen | Outsourced materials | List key materials and formulate subsequent inspection and control plans | |||||||
fourteen | homemade materials | Inspection plan, inspection tool design | |||||||
fifteen | Material material | According to the product definition, evaluate whether the material material can meet the requirements | |||||||
sixteen | rationality, risk | Based on the product definition, evaluate whether the structural application is reasonable | |||||||
seventeen | Hidden danger | Assess whether risks exist and set control points | |||||||
eighteen | Appearance | Confirm whether the function and appearance of the product after assembly are the same as before disassembly | |||||||
Hammer Crusher Main
Parts Display
2：Motor
3：Belt Pulley
4：Wear-resistant Tile Seat
5: Customized V-belts
6：Rotor
Wear-resistant Hammer
Motor
Belt Pulley
Wear-resistant Tile Seat
Customized V-belts
Rotor
Features Of Hammer Crusher Machine：
1 The Hammer Head Of The Hammer Crusher Introduces Foreign Advanced Technology And Adopts New Technology For Casting, Which Is
More Wear-Resistant, Impact-Resistant And Prolongs Its Service Life.2 The Hammer Crusher Machinery Can Adjust The Grate Gap According To The Size Of The Material To Meet The Different Needs Of
Different Users.
3 The Body Of The Hammer Crusher Equipment Adopts A Fully Sealed Device, Which Has Less Dust Pollution In The Workshop, And Is
Safe And Reliable.
4 Large Crusher Ratio And High Production Efficiency
More Wear-Resistant, Impact-Resistant And Prolongs Its Service Life.2 The Hammer Crusher Machinery Can Adjust The Grate Gap According To The Size Of The Material To Meet The Different Needs Of
Different Users.
3 The Body Of The Hammer Crusher Equipment Adopts A Fully Sealed Device, Which Has Less Dust Pollution In The Workshop, And Is
Safe And Reliable.
4 Large Crusher Ratio And High Production Efficiency
Quality: Due to high requirements for mechanical quality, raw materials selection, processing，assembly of industrial control over the industry standard, using the new design, quality manage-ment system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment.
Service: continuous and efhcient after-service for the customer support. 24 hours service with.
Model | Max Feeding Size(mm) | Discharging Size(mm) | Capacity(t/h) | Motor Power(kw) | Weight(t) |
PC200*300 | 125*250 | 0-8 | 1-3 | 5.5 | 0.2 |
PC240*450 | 240*450 | 0-8 | 5-7 | 7.5 | 0.4 |
PC320*510 | 320*510 | 0-8 | 7-10 | 15 | 0.55 |
PC400*600 | 400*600 | 0-8 | 10-15 | 22 | 0.8 |
PC600*600 | 600*600 | 0-15 | 20-30 | 30 | 1 |
PC600*800 | 600*800 | 0-15 | 30-50 | 55 | 1.8 |
PC800*1000 | 800 | 0-15 | 50-80 | 75 | 2.8 |
PC1000*1000 | 1000 | 0-15 | 80-100 | 110 | 4.5 |
Process Flow Chart
Zhengzhou Juding Environmental Protection Equipment Co., Ltd. is an enterprise focusing on the research and development, manufacture, sales and service of mining machinery equipment and automation equipment. The main products are: mobile crushing plant, sand making machine, sand washing machine, all kinds of crushers, vibrating screen, feeder and related accessories. The products are widely used in mining, building materials, highway, railroad, bridge, chemical industry, metallurgy, refractory materials and other industries, and are exported to Vietnam, North Korea, Central Africa, the Middle East and other countries and regions. The company adheres to the enterprise tenet of “integrity, innovation, enterprise and win-win”, takes the market as the guide and customer satisfaction as the purpose, pursues excellence and continuous improvement.
Q1: Are you a factory or a trading company?
Q2: Where have your products been exported to?
A: We are factory.
Q2: Where have your products been exported to?
A:Our products have been sold to South Asia, Africa, South America and the Middle East.
Q3:How can I help my customers install their equipment?
A:Our senior engineers will video guide you through installation,commissioning and initial production.
Q4: What is the availability of wearing parts?
A:We offer our customers wearing parts at the most favourable prices. If there is a problem that you cannot handle, we will send
atechnician to your location, so you will be responsible for all related costs.
Q5: What about after-sales service?
A:All products are guaranteed for 12 months.
A:We offer our customers wearing parts at the most favourable prices. If there is a problem that you cannot handle, we will send
atechnician to your location, so you will be responsible for all related costs.
Q5: What about after-sales service?
A:All products are guaranteed for 12 months.
