Products Description

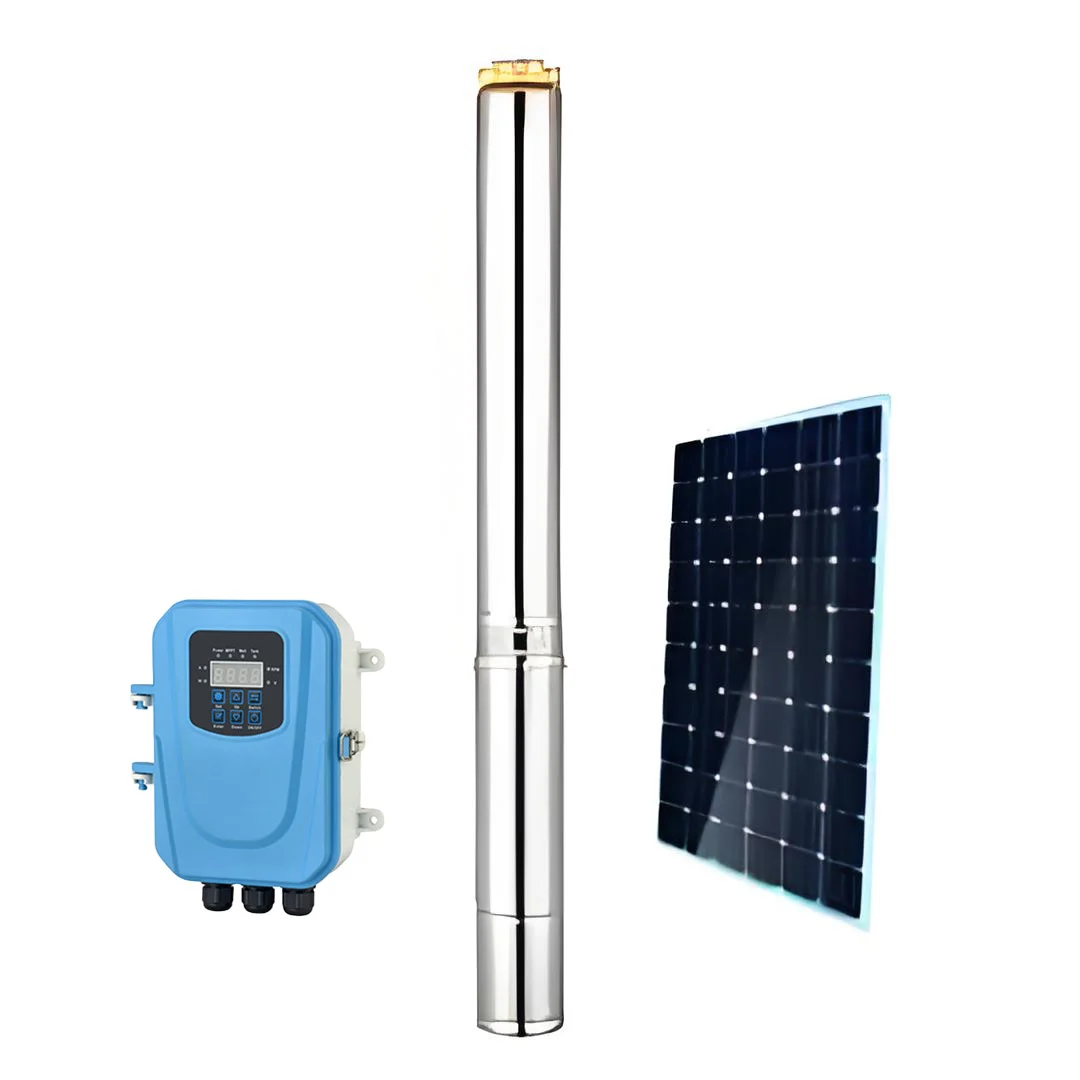

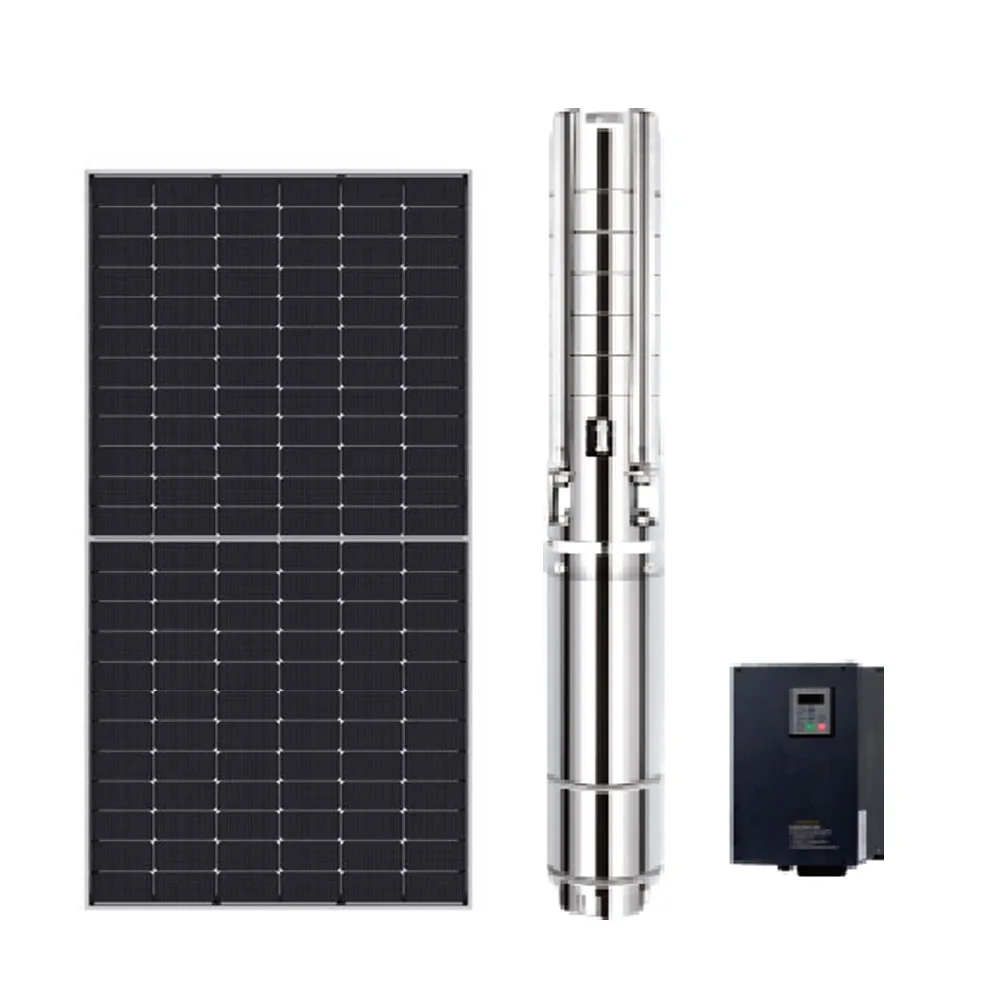

Solar water pump
A solar pump uses solar energy to drive pumps for agricultural irrigation, household water, industrial supply, livestock watering,
and fountains. It converts solar energy into electricity via solar panels, powering a motor to extract and transport water. Solar pumps are eco-friendly, energy-efficient, and reduce operating costs. They are easy to install,maintain,and are highly reliable, ensuring continuous water supply in various environments.
How to calculate the head (or head height)?
1. If there is water tank, the distance is H=H1+H2+L/10
2.If there is no water tank, the distance is H=H1
You can also inform customer service of your specific usage conditions to help you select the appropriate model
Advantages of AC/DC Solar Pumps
1. High Efficiency: Equipped with a DC brushless permanent-magnetic synchronous motor, these solar pumps achieve high speed and efficiency.

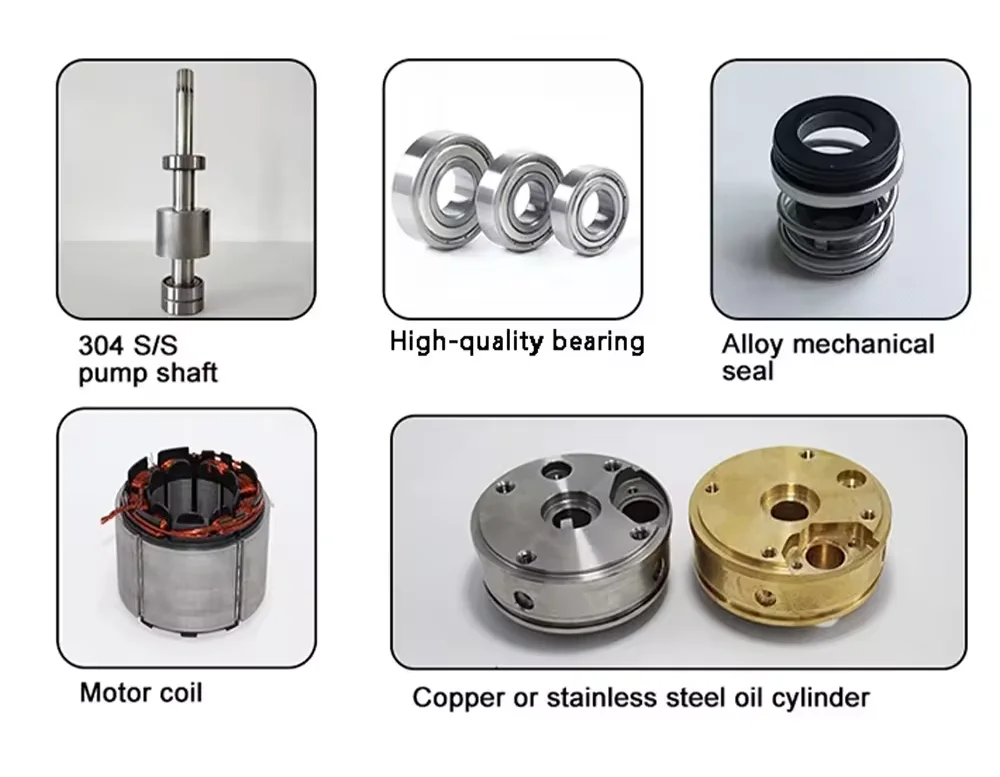

2. Durable Construction: Featuring a 304 stainless steel pump shaft, high-quality bearings, and an alloy mechanical seal for long-lasting performance.
3. Improved Motor Efficiency: The motor coil is produced using an automatic winding machine with centralized winding technology, significantly enhancing motor efficiency.
4. Intelligent Protection: Includes smart water shortage protection, automatically stopping the pump when there is no water in the well and restarting after 30 minutes.
5. Advanced Controller: The controller offers MPPT functionality, frequency conversion, automatic operation, and is both waterproof and leak-proof.
6. Versatile Power Options: Can be connected to AC power on rainy or cloudy days, ensuring continuous operation and solving energy problems effectively.
2. Durable Construction: Featuring a 304 stainless steel pump shaft, high-quality bearings, and an alloy mechanical seal for long-lasting performance.
3. Improved Motor Efficiency: The motor coil is produced using an automatic winding machine with centralized winding technology, significantly enhancing motor efficiency.
4. Intelligent Protection: Includes smart water shortage protection, automatically stopping the pump when there is no water in the well and restarting after 30 minutes.
5. Advanced Controller: The controller offers MPPT functionality, frequency conversion, automatic operation, and is both waterproof and leak-proof.
6. Versatile Power Options: Can be connected to AC power on rainy or cloudy days, ensuring continuous operation and solving energy problems effectively.
Product Paramenters
Voltage(V) | DC110V |
Warranty | 1 YEAR |
Max Head | 180m |
Outlet Dia(Inch) | 1.25 inch or 1.5 inch |

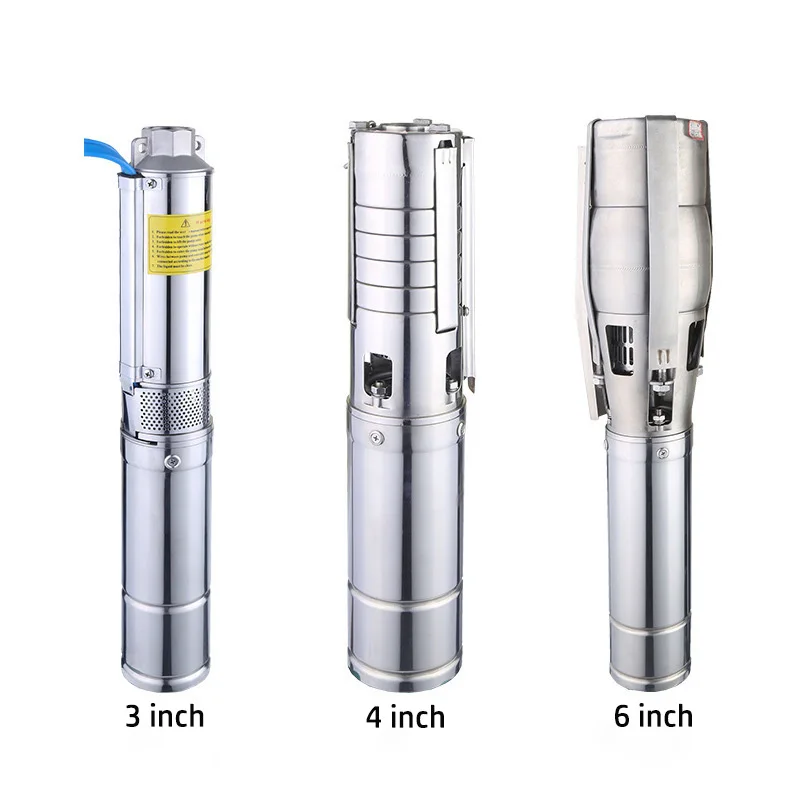

Pump dia | 3 inch |
Max Flow rate(m ³/h) | 3800 liter per hour |
Model | 3DPC3.8-180-110-1500 |
Power | 2100 watt |
Materials | Stainless steel/Brass |
Brand name | QU SHENG |

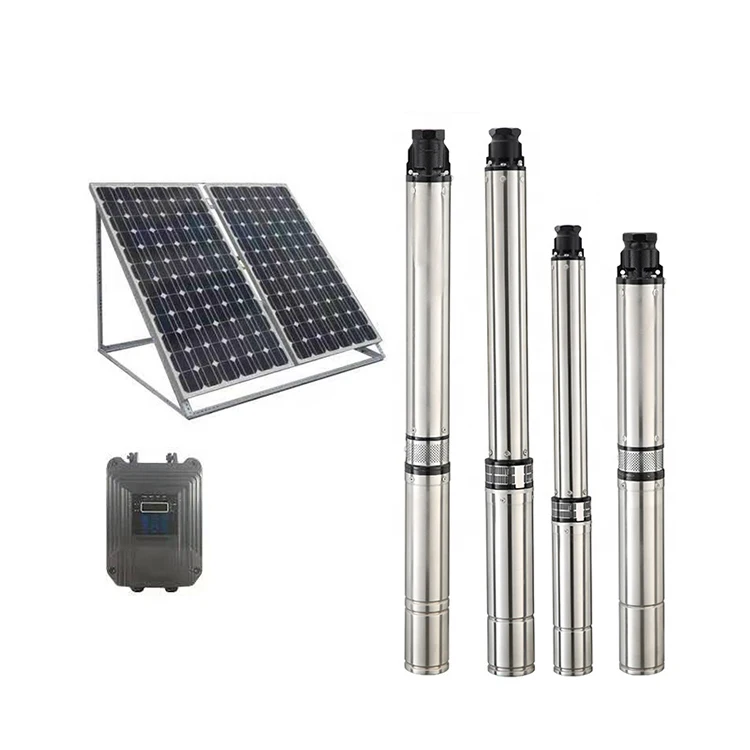

In addition to this model of water pump, we can also offer a variety of other models based on your requirements. Please contact our sales team for more details.
Low pressure DC fountain pump model
Model | Power(W) | Optimum input voltage（DC） | Voltage(V) | Max Flow rate(m ³/h) | Max Head(m) | Outlet Dia(foot) | Pump(Inch) |
3DPC3-25-24-200 | 200 | 30V-48V | 24 | 3 | 25 | 1.25‘’ | 3 |
3DPC3-35-24-300 | 300 | 30V-48V | 24 | 3 | 35 | 1.25‘’ | 3 |
3DPC3.5-47-48-400 | 400 | 60V-90V | 48 | 3.5 | 47 | 1.25‘’ | 3 |
3DPC3.5-80-48-600 | 600 | 60V-90V | 48 | 3.5 | 80 | 1.25‘’ | 3 |
3DPC3.5-80-72-600 | 600 | 90V-120V | 72 | 3.5 | 80 | 1.25‘’ | 3 |
3DPC3.5-95-48-750 | 750 | 60V-90V | 48 | 3.5 | 95 | 1.25‘’ | 3 |
3DPC3.5-95-72-750 | 750 | 90V-120V | 72 | 3.5 | 95 | 1.25‘’ | 3 |
3DPC3.8-123-72-1100 | 1100 | 90V-120V | 72 | 3.8 | 123 | 1.25‘’ | 3 |
3DPC3.8-123-110-1100 | 1100 | 110V-150V | 110 | 3.8 | 123 | 1.25‘’ | 3 |
3DPC3.8-155-110-1300 | 1300 | 110V-150V | 110 | 3.8 | 155 | 1.25‘’ | 3 |
3DPC3.8-180-110-1500 | 1500 | 110V-150V | 110 | 3.8 | 180 | 1.25‘’ | 3 |

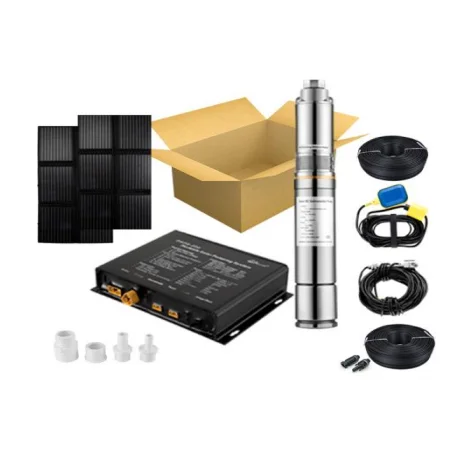

What We Get For You (Package Include):
- 1 x DC brushless solar Pump with 2m cable
- 1 x Pump controller with MPPT function
- 1 x Stainless steel float switch (sensor for the tank)
- 1 x Pump outlet joint connector
- 1 x Splice kit for cable join
Application
Drinking water supply
Water Storage
Animal Husbandry
Fountain
Deep Well Water
Agricultural Irrigation
HOT SALES
ABOUT US
Company introduction
Chongqing Qusheng Electronic Technology Co., Ltd., founded in 2011, specializes in water feature equipment R&D and manufacturing. Our factory produces digital water curtains, laminar fountains, jumping fountains, water pumps. We have a skilled product development and project design team committed to delivering high-quality products and comprehensive water feature solutions. Our experienced on-site after-sales engineering team completes over 100 projects annually, ensuring smooth project execution and customer satisfaction. Our products are exported to various countries and regions and are praised for their quality and after-sales service. We prioritize innovation, quality, and integrity, and look forward to collaborating with you to advance the water feature industry.
Why Choose Us
①Rich Experience: We have accumulated over ten years of experience in the solar pump industry, deeply understanding market demands and technological trends. Our professional team can provide you with the most suitable solutions.
②Superior Product Quality: We strictly control every production stage, utilizing advanced manufacturing processes and high-quality raw materials to ensure that each solar pump operates stably and efficiently.
③Technological Innovation: We have a strong R&D team that continuously invests in technological innovation and product improvement.Our solar pumps are always at the forefront of the industry in terms of efficiency, durability, and environmental friendliness.
②Superior Product Quality: We strictly control every production stage, utilizing advanced manufacturing processes and high-quality raw materials to ensure that each solar pump operates stably and efficiently.
③Technological Innovation: We have a strong R&D team that continuously invests in technological innovation and product improvement.Our solar pumps are always at the forefront of the industry in terms of efficiency, durability, and environmental friendliness.
④Customized Service: We understand that each customer’s needs are unique, so we offer tailored solutions. From selection and design to installation and commissioning, our expert team provides professional guidance and support throughout the entire process to ensure the smooth execution of your project.
⑤Comprehensive After-Sales Service: We not only provide high-quality products but also focus on after-sales service. Our dedicated after-sales team offers timely technical support and maintenance services to ensure your solar pump system always operates at its best.
⑤Comprehensive After-Sales Service: We not only provide high-quality products but also focus on after-sales service. Our dedicated after-sales team offers timely technical support and maintenance services to ensure your solar pump system always operates at its best.
Package
Packed with bubble bag, carton package, wooden cases
Packing Details:
Outer Packaging: high-quality strong export wooden boxInner Packaging: bubble bag to protect the controller and water pump from damage during transportation
FAQ
1. Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
What is the flow and head ? And the power?
What is the voltage and frequency of three phase electricity ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you
A: Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
What is the flow and head ? And the power?
What is the voltage and frequency of three phase electricity ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you
2. Q:Can I purchase samples first?
A:Yes, samples can be purchased. Production of samples takes 5-7 days, with advance payment
required. The cost will be refunded upon placing a bulk order.
3. Q:What products can you buy from us?
required. The cost will be refunded upon placing a bulk order.
3. Q:What products can you buy from us?
A:We offer solar water pumps, low/high pressure pumps, Deep-well pump, fountain pumps.
4. Q:How is shipping arranged?
4. Q:How is shipping arranged?
A:If you do not have a freight forwarder, we provide professional shipping services at competitive
rates, including sea, rail, and air freight.
5. Q:Can I receive the best possible price?
rates, including sea, rail, and air freight.
5. Q:Can I receive the best possible price?
A:We are dedicated to supporting our customers’ business needs. Please contact me to discuss and negotiate the best pricing.
6. Q:After-Sales Service
6. Q:After-Sales Service
A:We offer a 12-month warranty policy.
7. Q:What services can you get from us?
A:If necessary, we will guide you to install, debug, remind you of the matters needing attention during use, and the matters needing attention during later maintenance; Help you with pre-sale, in-sale and after-sales services.
8. Q:What value-added services can be provided?
A:You can buy fountain water fountain, fountain water pump,solar water pump, nozzles needed for work, etc. from our company, hoping to save you time and cost; You can also integrate a complete set of systems according to your requirements, debug the corresponding parameters for you, and reduce your technical requirements as much.
A:You can buy fountain water fountain, fountain water pump,solar water pump, nozzles needed for work, etc. from our company, hoping to save you time and cost; You can also integrate a complete set of systems according to your requirements, debug the corresponding parameters for you, and reduce your technical requirements as much.
Похожие товары
GRANDFAR оптовая продажа Электрический Вертикальный многоступенчатый насос из нержавеющей стали погружной водяной на солнечной энергии
20 860,07-23 114,28 ₽
Профессиональное производство от RIDA 2 3 4 дюйма бесщеточный двигатель постоянного тока Солнечная насосная система водяной насос для скважин на солнечной батарее
5 960,36-14 304,87 ₽
Hober 1100W 1.5hp Солнечный DC питание водяной погружной насос для орошения
14 066,45-18 715,54 ₽
Полный комплект водяных насосов из нержавеющей стали крыльчатка инверторный насос Система переменного тока постоянного Солнечный глубокий колодец Водяной Комплект
17 344,65-20 646,69 ₽

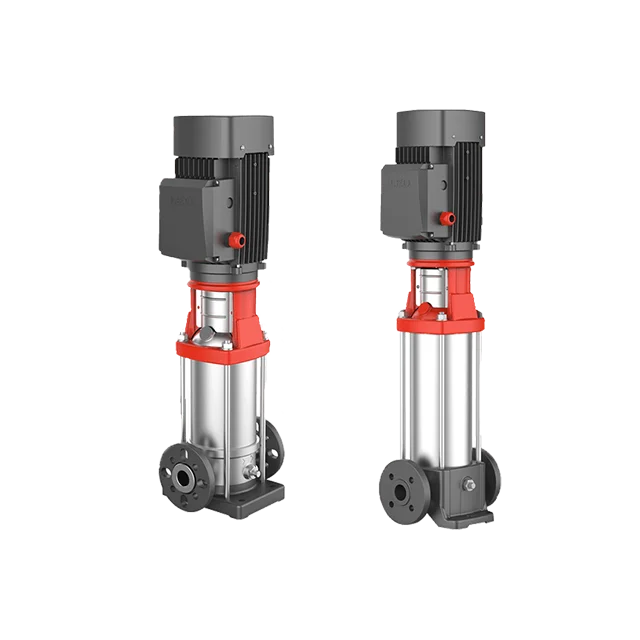

Вертикальные многоступенчатые водяные насосы высокого давления LEO AC LVR: эффективны для водоснабжения в высотных зданиях
