50w Fiber Laser Engraver Steel Laser Marking Machine Desktop Laser Engraver For Steel
Products Description
BLUETIMES Fiber laser deep engraving marking machine is a type of laser engraving machine which adopts a fiber laser source for metal deep marking or engraving. BLUETIMES fiber laser engraver is the best way to engrave metals without tools.
Laser marking equipment is designed for laser marking and engraving, but depending on the material and thickness they can even CUT.
Fiber laser deep engraving machine is also known as laser metal engraving machine, metal laser engraving machine, laser etching machine for metal, laser deep engraving machine, deep laser etching machine, laser metal deep etching machine, metal laser deep engraving machine, metal laser engraver, laser metal engraver, laser etcher for metal.
Laser Marking Machine allows us to permanently mark a surface with incredible speed. We can work with all kinds of materials with sharp marks. Through “laser marking” we achieve different finishes in the materials depending on the procedure and the configuration we carry out. Laser marking enables fast, high-quality finishes with complex details.
Laser marking equipment is designed for laser marking and engraving, but depending on the material and thickness they can even CUT.
Specification
MODEL | FLM-R20/30/50/70/100-GS |
POWER | 20w 30w 50w 70w 100w |
FIBER LASER SOURCE | RAYCUS/MAX/JPT(optional) Desktop Laser Marking Machine |
BEAM QUALITY | M2<1.2 |
OUTPUT POWER | 10% - 100% |
(continuously to be adjusted) | |
OUTPUT FREQUENCY | 20KHz-100KHz |
(continuously to be adjusted) | |
POWER STABILITY (8h) | <± 1%rms |
FOCUS SPOT DIAMETER | <0.01mm |
MARKING AREA | ≤400*400mm (customized) |
ENGRAVING DEPTH | 1.2mm |
DEPTHENGRAVING SPEED | 800 standart characters / second |
MINIMUM LINE WIDTH | 0.012mm |
MINIMUM CHARACTER | 0.1mm |
REPEATED ACCURACY | ±0.003mm |
SUPPORT SOFTWARE | Coreldraw, AutoCAD, Photoshop |
SYSTEM OPERATION | windows7, windows8, windows10 |
COOLING MODE | Air Cooling |
ENVIRONMENT TEMPERATURE | 10℃~35℃ |
ENVIRONMENT HUMIDITY | 20%-80% |
POWER REQUIREMENT | 220V/ Singlephase/ 50Hz/ <400w span=""> |
LIFE OF LASER MODULE | 100,000Hrs |
WARRANTY | 2 Years |
PACKING SIZE | 760*510*680mm(30*20*27in) |
NET WEIGHT | 126KG |
Product Details

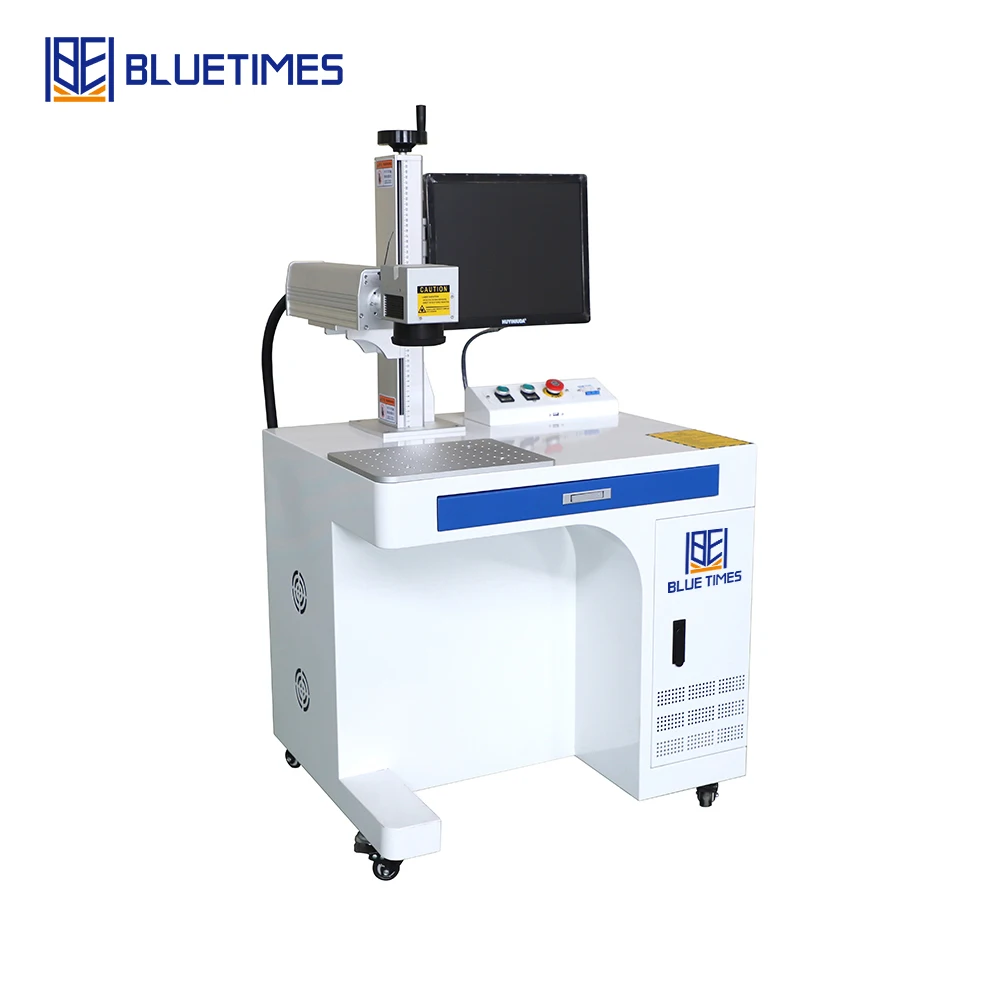

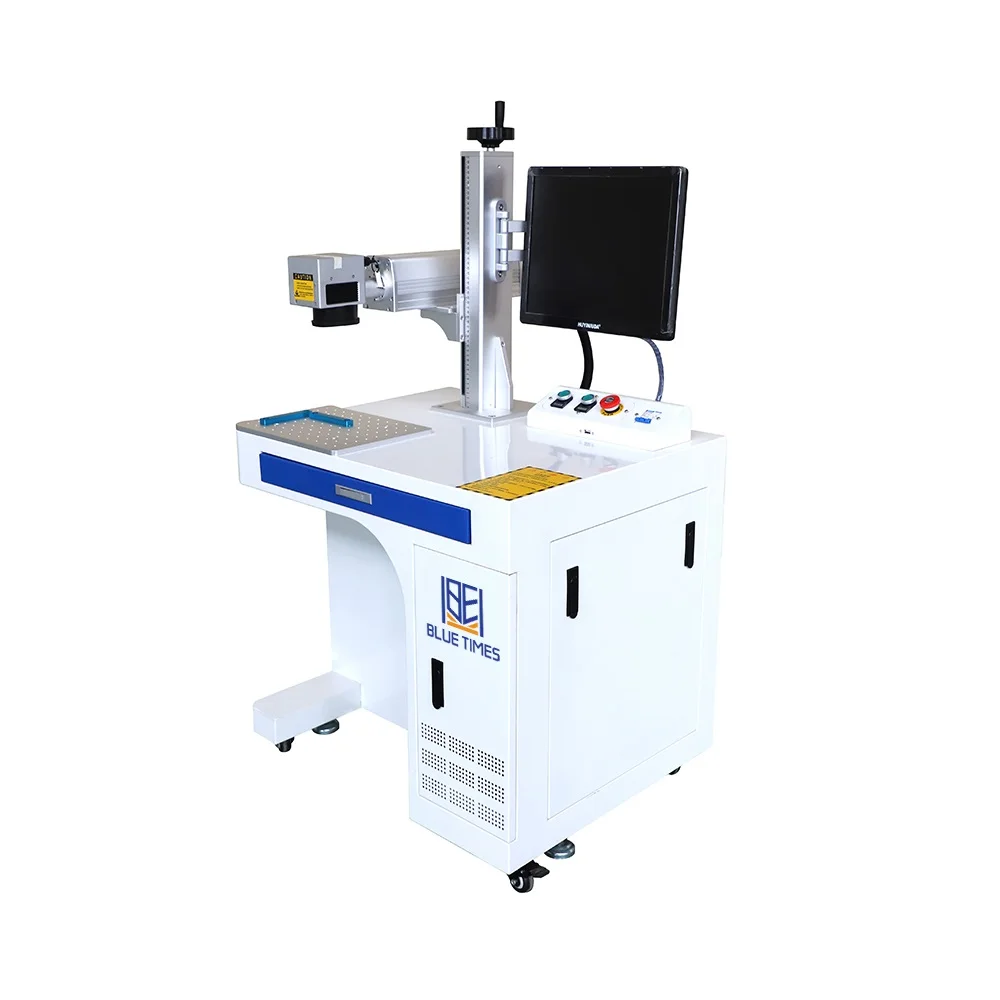

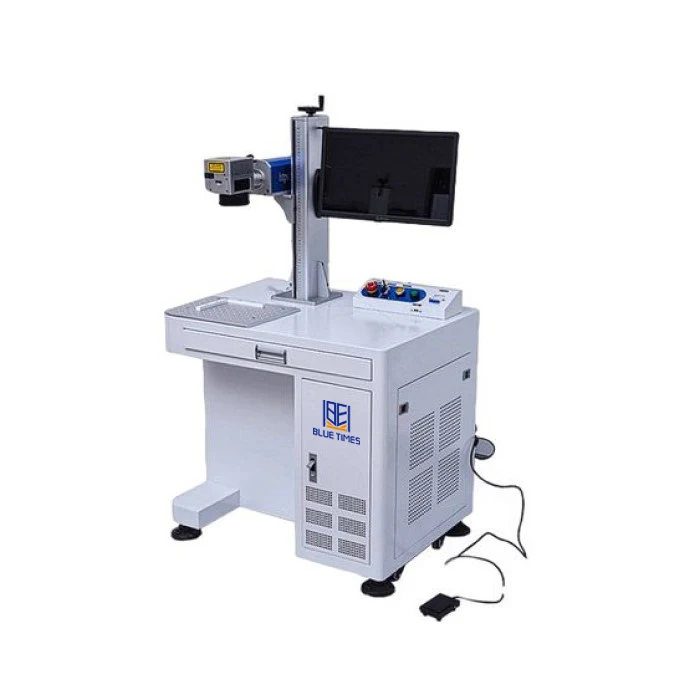

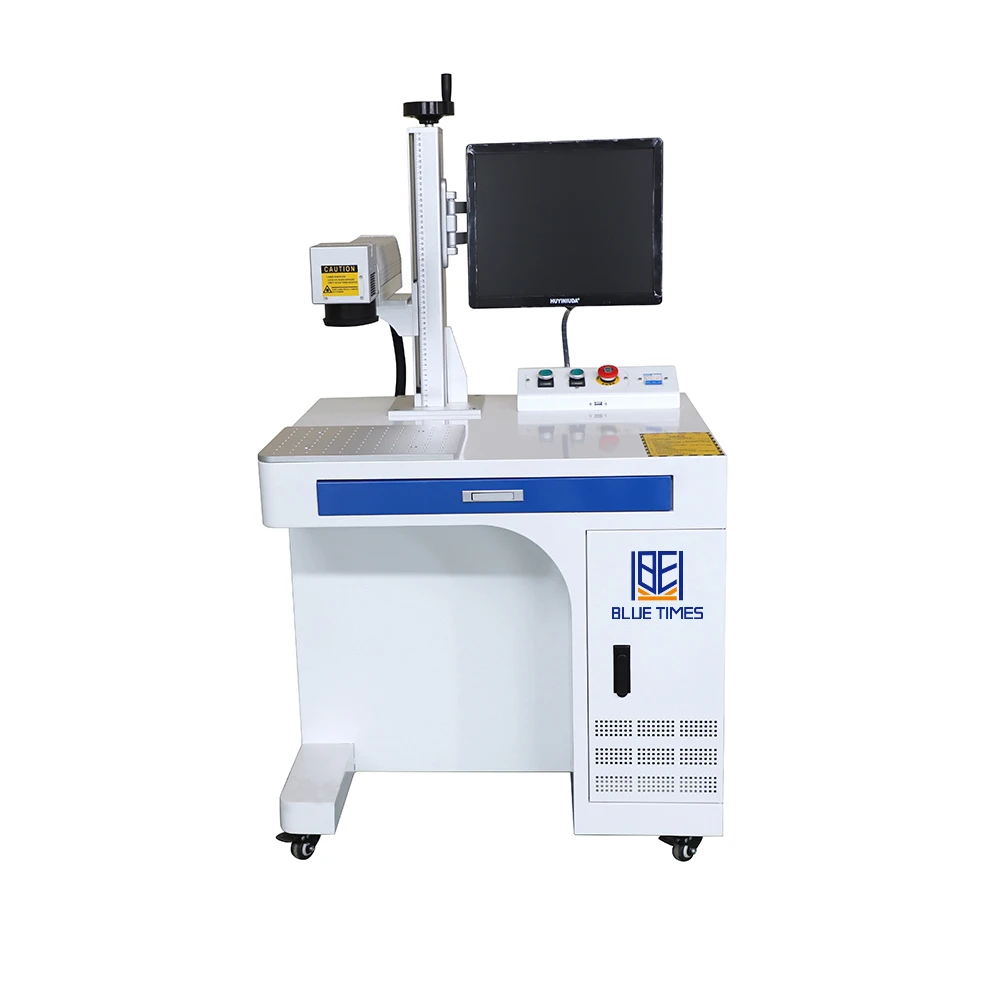

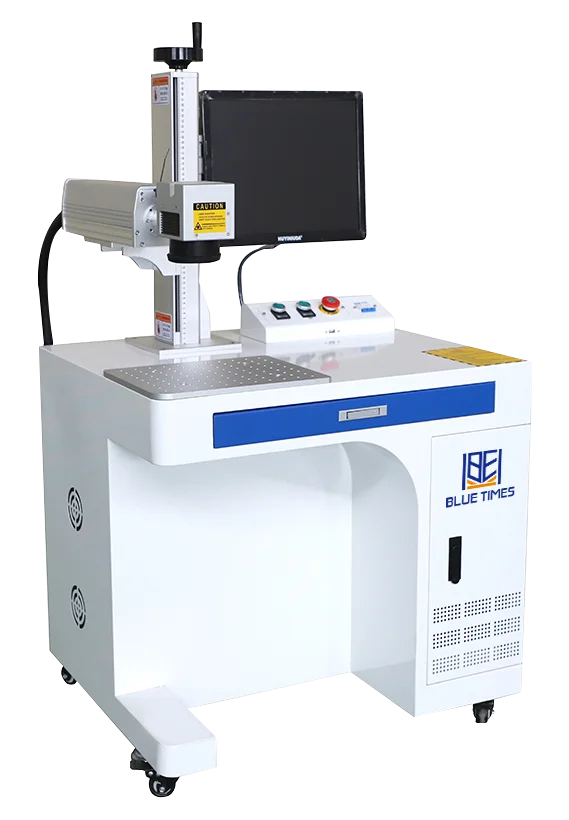

BLUETIME 20w 30w 50w 70w 100w FIBER LASER ENGRAVER
BLUETIMES FLM-R20/30/ 50/70/100-GS Fiber laser marking machine adopts Chinese most advanced fiber laser source and high-quality SINO-GALVO scanning system.
It can provide stable power output, perfect optical mode, good beam quality and high-speed marking, so users can get a perfect effect and high efficiency, which can fulfil massive production.
The advantages of this machine is as following: good looking, easy operation, no need material, no need maintenance, no faulty in long time working. So, it can meet the demand of industrial continuous work.
It can provide stable power output, perfect optical mode, good beam quality and high-speed marking, so users can get a perfect effect and high efficiency, which can fulfil massive production.
The advantages of this machine is as following: good looking, easy operation, no need material, no need maintenance, no faulty in long time working. So, it can meet the demand of industrial continuous work.
Fiber Laser Metal Engraving Machine Feature
Easy calibration of the machine
The Fiber laser marking machine has different red pointers that allow the part to be positioned at the ideal focal distance quickly
Quick preview
Our team allows you to preview the elements before being marked. We can see where we are going to carry out the work and thus position the part correctly.
Slotted work table
The system has a slotted table to position the part in the same place and thus increase productivity
High engraving speed
Motorized mirror system that allows marking up to 7000 mm / s.
High frequency range
Our lasers are of high quality and have a wide frequency range for more types of results and qualities.
Useful life up to 100,000 hours
All fiber lasers have a useful life of up to 100,000 hours which allows a much lower payback than other types of lasers.
Easy and quick installation
USB connected with computer easily.
Low Cost
high turnover ratio between electricity and laser, the whole machine power consumption is less than 500W, which is 1/10 of light pumping source laser.
The Fiber laser marking machine has different red pointers that allow the part to be positioned at the ideal focal distance quickly
Quick preview
Our team allows you to preview the elements before being marked. We can see where we are going to carry out the work and thus position the part correctly.
Slotted work table
The system has a slotted table to position the part in the same place and thus increase productivity
High engraving speed
Motorized mirror system that allows marking up to 7000 mm / s.
High frequency range
Our lasers are of high quality and have a wide frequency range for more types of results and qualities.
Useful life up to 100,000 hours
All fiber lasers have a useful life of up to 100,000 hours which allows a much lower payback than other types of lasers.
Easy and quick installation
USB connected with computer easily.
Low Cost
high turnover ratio between electricity and laser, the whole machine power consumption is less than 500W, which is 1/10 of light pumping source laser.
RAYCUS MAX JPT FIBER LASER SOURCE
Raycus is a affordable and stable brand laser manufacturer from China,Raycus fiber laser has the advantages of high reliability laser output,high pulse energy and high efficiency,lifespan up to 100,000 hours
JPT laser is focused on MOPA laser source in the early days,with the development of technology,then gradually also develops Q switched laser.In general,JPT laser has more advantages than Raycus in MOPA fiber laser.
Max laser is another affordable laser source manufacturer from China, but compared with Raycus,Max's laser stability and warranty
are a little bit.
are a little bit.
Laser Type | Raycus | Max | JPT |
Price | Low | Low | Medium |
Beam quality | Good | Good | Good |
Stability | Good | Good | Good |
Frequency Range | Good | Good | Large |
Engraving Result | Good | Good | Good |
Metal Material | Good | Good | Good |
Plastic | Low | Low | Good |
MOPA laser | Medium | Medium | Good |
Warranty | 2 years | 2 years | 2 years |
SINO-GALVO GALVANOMETER SCANNER
High quality laser scanning System makes the marking speed up to 7000mm/s. Red light focus function.
The model RC1001 SINO GALVO
scanner has the good running stability, high positioning accuracy, fast marking speed, strong anti-interference ability, the overall performance has reached the international leading level in this field.
Sino-Galvo RC1001 Features:
1.Stable Beam
2.high effciency
3.no distortion
4.high processing effciency
1064nm F-theta Field Lens
F-theta 1064nm Fiber Focus Lens
*Scan Field:
100X100mm
150X150mm
175X175mm
200X200mm
250X250mm
300X300mm(Recommend 70 watts power and above)
Field Lens For Laser Marking Machine
* High light transmittance, high output laser energy
* High-quality coating, good protection
* Not easy to damage. Long lasting operation
* High-quality coating, good protection
* Not easy to damage. Long lasting operation
ORIGINAL JCZ CONTROL BOARD
JCZ laser controller works with EZCAD2 software via USB2.0. It is one of the most popular lasers and galvo controllers in the market, with competitive price and high stability. It is compatible with most industrial laser sources like fiber, UV, CO2, and MOPA.
It is widely adopted by global laser system integrators for their laser marking engraving machine
It is widely adopted by global laser system integrators for their laser marking engraving machine
EZCAD2 CONTROL SOFTWARE
EZCAD2 software works with the JCZ controller: LMCV4 (USB2.0 Interface) or LMCPCIE ( PCI-E Interface). it is the most popular lasers and galvo control software, especially in the laser marking industry.
*Control marking parameters, such as laser power, laser speed, pulse width, engraving times, etc.*Vector and bitmaps can be imported.
*Red light preview or frame preview before engraving.
*Multiple engraving filling density and filling methods.
*Support Windows XP/7/10/11 (32 and 64 bits)
*Easy to use
1D Barcode | Code11, Code 39, EAN, UPC, PDF417... | ||||
New types of 1D Barcode can be added. | |||||
2D Barcode | Datamatix, QR Code, Micro QR Code, AZTEC CODE, GM CODE... | ||||
New types of 2D Barcode can be added. | |||||
Vector File | PLT,DXF,AI,DST,SVG,GBR,NC,DST,JPC,BOT... | ||||
Bitmap File | BMP,JPG,JPEG,GIF,TGA,PNG,TIF,TIFF... | ||||
Optional Parts & Accessories
1. 80 rotary: it is used to mark curved surfaces, such as pipes, pens, cylinders, ring objects
2. jewelry ring rotary: It is mainly used for jewelry rings and jewelry bracelets
3. XY table / XYZ table: You can manually move in the XY direction without moving the workpiece
4. Pen rotary table: It is mainly used to engrave multiple parts, such as pens
5. Smoke purifier
6. Metal holder: when cutting the metal sheet to fix the metal sheet
2. jewelry ring rotary: It is mainly used for jewelry rings and jewelry bracelets
3. XY table / XYZ table: You can manually move in the XY direction without moving the workpiece
4. Pen rotary table: It is mainly used to engrave multiple parts, such as pens
5. Smoke purifier
6. Metal holder: when cutting the metal sheet to fix the metal sheet
7.Lenovo Laptop
Product Display
BlueTimes-The Largest Laser Machine&Parts Manufacturer and Supplier in China
BlueTimes is the No.1 China Co2 & Fiber Laser parts and machine manufacturer, We produce laser marking machine, laser Engraving Machine, laser cutting machine, laser welding machine, a variety of laser equipment and Accessories. Types include fiber laser, CO2 laser, UV laser, 3D marking &engraving, MOPA laser.
Whether you’re a professional supplier, a Large material processing enterprise, or an inspiring workshop, we understand your need for pin-point precision with a pleasing price tag. Our machines and parts come equipped for every need.
As professional manufacturer, BlueTimes offers you laser machine directly. From us you can save a lot of money to buy good quality laser machines and parts other than buying from some traders.
You don’t have to worry about finding us even after many years.In the field of laser machine, BlueTimes continues to develop.This is a very important point for you because it gives you a sense of security. Up to now BlueTimes laser is serving more than 10,000 customers around the world. Quality and service are always our motto.And we would like to grow with customers to share the profits in future.
You don’t have to worry about finding us even after many years.In the field of laser machine, BlueTimes continues to develop.This is a very important point for you because it gives you a sense of security. Up to now BlueTimes laser is serving more than 10,000 customers around the world. Quality and service are always our motto.And we would like to grow with customers to share the profits in future.
Product Applications
Fiber Laser Marking Engraving Machines Application industry:
Jewelry, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment's, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.
Fiber Laser Engraver for Deep engraving and Metal cutting
BLUETIMES 20w 30w 50w 70w 100w fiber laser marking machine can cut gold, silver and other metal material, it can deep engraving on metal material too, thickness and deep can up to 2mm, it is very good for jewelry shop to make art items.
Fiber laser marking machine can work with most metal marking applications, such as Stainless Steel, Brass, Aluminium, Steel, Iron etc,
Engraving on plastic/leather/ceramic:
Fiber laser marking machine can engrave on many non-metal material, like ear tag, plastic, pvc, pc card, leather, etc.
Packaging & Shipping
Desktop Fiber Laser Marking Engraving Machine Packing List
Fiber laser Source: Raycus/Max/JPT 1 sets
High speed scanning galvanometer: Sino-Galvo 1 sets
Focusing lens: Wavelength/Sino-Galvo 1 sets
Marking software: EZCAD2 sets
Marking software: EZCAD2 sets
Indicator locator: Xi'an sapling 1 sets
Power switch Taiwan Meanwell 1 sets
Laser frame: Self-control 1 sets
Print foot: Customized 1 sets
Equipment switch: Shanghai Jia Jia 1 sets
Control computer(Order required ): desktop computer 1 sets
Instructions: Video, text and pictures 1 sets
Packaging & Shipping
Free parts inside the package: inner hexagon, foot switch, power cord, USB driver, goggles, 60 cm ruler, laser report
Packing Size : 870*750*1100 mm
Gross weight: 130KG
Standard export packing customized packing as your request We use hard boxes, your cargo will not be affected in any way
*Cleaning the laser marking machine
*Winding waterproof membrane to the laser marking machine
*Filled with pearl cotton
*Finally use the fixing strap to reinforce the wooden box
Packing Size : 870*750*1100 mm
Gross weight: 130KG
Standard export packing customized packing as your request We use hard boxes, your cargo will not be affected in any way
*Cleaning the laser marking machine
*Winding waterproof membrane to the laser marking machine
*Filled with pearl cotton
*Finally use the fixing strap to reinforce the wooden box
Portable RAYCUS MAX JPT Fiber Laser Engraver Shipping Method:
We can transport machine by sea/air freight or express by DHL EMS UPS etc. According to your requirement. Whether you choose air shipping or sea shipment, we will maximum reduce the volume of the package and it would help save a few shipping cost more or less.
Important Note:
The Shipping fee shown on the product detail page is just a rough count by the system, The Shipping Fee can be very different depends on the shipping method and the location. It does not represent the Precise Shipping Cost. Please contact us to get the accurate shipping fee for this product
FAQ
Q1: I know nothing about this machine, what type of machine should I choose?
A: To help you find the right machine, please provide the following information for reference.
1.Which material you want to mark ( Metal, silver, gold or others)?
2.What's your maximum marking area? ( 110*110mm, 175*175mm, 300*300mm...)
3.What kind of content you need to mark on(Number, letter, graph, QR code ...?
4.Do you have demand in marking depth?
Q2: When I got this machine, but I don’t know how to use it. What should I do?
A: Pls take it easy, the technology of this kind machines are already very mature, most of problems can be solved online, and the equipment is very stable, there is no need to worry about after-sales and quality problems.we will send operation video and manual for the machine.
Q3: Which control system is compatible this machines?
A: We used JZC Brand EZCAD control card and software. The wavelength is singapore import “Wavelength” Brand -Filed lens, which ensures high energy conversion rate .
The machine can work with Windows XP /Win7(32/64bits) /Win8(32/64bits)/Win10. The EZCAD software with strong compatibility that can support TTF Font, SHX, BMP, DWG ,DXF, AI, PLT and other format files output from CorelDraw, PS, AutoCAD, etc.
Q4:Could I make an free sample ?
A: Sure, pls send the vectorgraph marking file and samples to us.Or we can find same materials to test it. After sample finished, we can return it and also make videos,details photos for your reference.
Q5: If some problems happen to this machine, what should I do?
A: We provide 3 years machine warranty. During the 3-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage).
A: To help you find the right machine, please provide the following information for reference.
1.Which material you want to mark ( Metal, silver, gold or others)?
2.What's your maximum marking area? ( 110*110mm, 175*175mm, 300*300mm...)
3.What kind of content you need to mark on(Number, letter, graph, QR code ...?
4.Do you have demand in marking depth?
Q2: When I got this machine, but I don’t know how to use it. What should I do?
A: Pls take it easy, the technology of this kind machines are already very mature, most of problems can be solved online, and the equipment is very stable, there is no need to worry about after-sales and quality problems.we will send operation video and manual for the machine.
Our engineer will do training online. And we will send a USB together with the machine, which has included the full size operation software that you just need to connect the USB with you computer, then we have a video to teach you for how to install the program.
You can send your engraving details and demands to us, we will make test in the factory with your machine, and take some videos, save the details technical parameters that you can use it directly in the future.
Q3: Which control system is compatible this machines?
A: We used JZC Brand EZCAD control card and software. The wavelength is singapore import “Wavelength” Brand -Filed lens, which ensures high energy conversion rate .
The machine can work with Windows XP /Win7(32/64bits) /Win8(32/64bits)/Win10. The EZCAD software with strong compatibility that can support TTF Font, SHX, BMP, DWG ,DXF, AI, PLT and other format files output from CorelDraw, PS, AutoCAD, etc.
Q4:Could I make an free sample ?
A: Sure, pls send the vectorgraph marking file and samples to us.Or we can find same materials to test it. After sample finished, we can return it and also make videos,details photos for your reference.
Q5: If some problems happen to this machine, what should I do?
A: We provide 3 years machine warranty. During the 3-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage).
After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q6: What’s consumables of laser marking machine?
A: It does not have consumable. It’s very economical and cost effective.
Q7: What’s package, will it protect the products?
A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
Q8: What’s delivery time?How is the shipping method?
A: 1.Standard model 3 - 7 working days after receiving the payment.
Shipping by DHL Fedex TNT, delivery to airport or by sea.
Q9: How about the documents after shipment?
After shipment, we'll send all original documents to you by DHL, TNT etc., including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
Q10: What payment terms can you accept?
A: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Visa,Master Card, Cash etc. We can receipt
currency as GBP,USD,EUR,AUD and RMB.
Q6: What’s consumables of laser marking machine?
A: It does not have consumable. It’s very economical and cost effective.
Q7: What’s package, will it protect the products?
A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
Q8: What’s delivery time?How is the shipping method?
A: 1.Standard model 3 - 7 working days after receiving the payment.
Shipping by DHL Fedex TNT, delivery to airport or by sea.
Q9: How about the documents after shipment?
After shipment, we'll send all original documents to you by DHL, TNT etc., including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
Q10: What payment terms can you accept?
A: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Visa,Master Card, Cash etc. We can receipt
currency as GBP,USD,EUR,AUD and RMB.
Похожие товары
Инновационная волоконно-лазерная система для маркировки гравировки и динамической 3D-окраски (цвет 100 Вт JPT 60 30 50 Вт) Заводская
320 170,44 ₽ - 331 210,80 ₽
Лазерная маркировочная машина для шкафа 20 Вт 30 50
Лазерная маркировочная машина точная гравировка доступный товар 20 Вт 30 50 волоконно-оптический лазерный станок (настольный)
Оптовая Продажа лазерная маркировочная машина 30 Вт ювелирные изделия настольная
Настольный волоконный лазер делая машину 50 Вт с хорошей ценой пока нет отзывов
Волоконно-маркировочная машина лазерная маркировочная и гравировальная 3D динамический цвет Mopa 100 Вт JPT 60 30 50
320 170,44 ₽ - 331 210,80 ₽

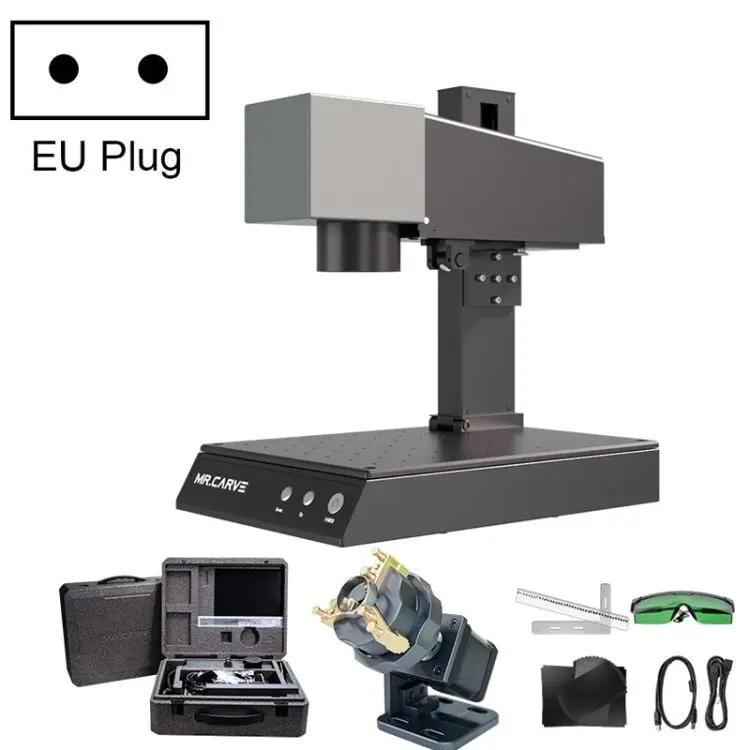

Mr Carve M1 Pro мини маркировочная машина DAJA волоконно-лазерная гравировальная с логотипом 3D для металлов
Новые поступления
Новинки товаров от производителей по оптовым ценам
Рекламный надувной самолет украшение для костюма самолета ходячие костюмы продажи
C100 % восковая ткань с принтом китайские поставщики поставляют настраиваемые печатные африканские восковые ткани
0,93-0,97 $
Прямые продажи с фабрики могут быть оптовые складные тележки для покупок Удобные и уличные продуктовые
8,39-9,89 $
Hantek щупы осциллографа автоматический Тестовый Кабель Ht30a Bnc к банану двойная Банановая головка многоцелевое автомобильное
3,10-3,44 $
Горячая распродажа ручная работа традиционная деревянная урна для домашних животных квадратная коробка золы собак и кошек персонализированная Лучшая цена
Промышленная серия CL Бесшумная цепь стальная зубчатая Фланцевая контактная звездочка соединяющая бесшумные цепи
1-1,50 $
Irdmco экологически чистый минималистичный прямоугольный деревянный ящик для хранения стеллаж поделок и детских игрушек Домашняя мебель гостиной
Технология сенсорных перчаток и аксессуары для детей от дождя холода M725132-334
1,07-1,40 $
