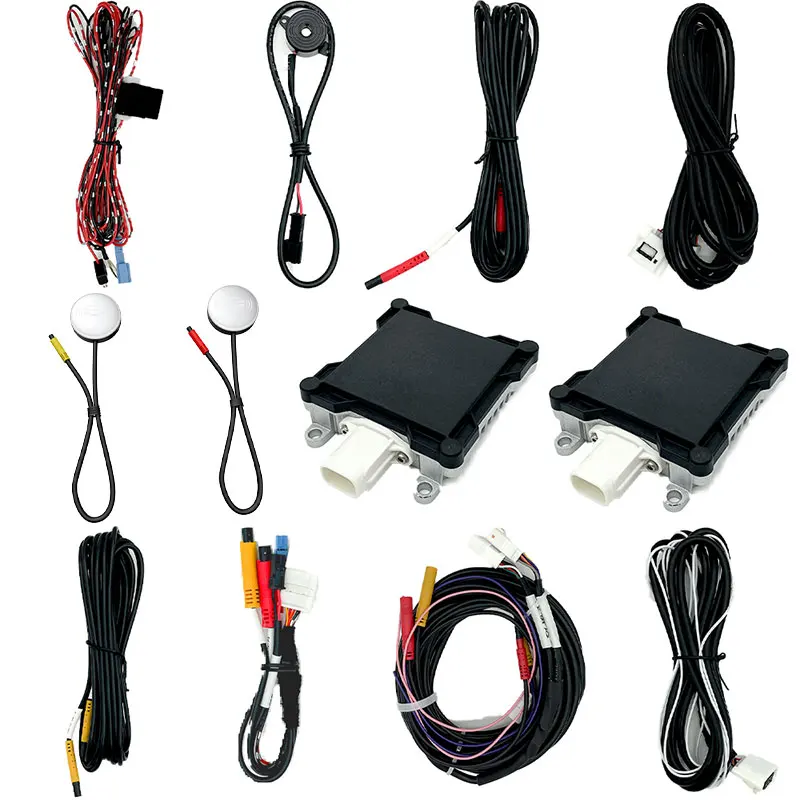

Система обнаружения слепых зон автомобиля для Audi MMI 3G A6 Q7 6 5 дюймов 24 ГГц радар двойной датчик заднего хода 12 В аксессуары
8 265,85 ₽ - 9 367,97 ₽
3D 360AVM камера с рыбьим глазом видеорегистратор ADAS DSM AI MDVR 8CH 4G GPS WiFi все в одном система контроля безопасности вождения грузовики
- Категория: >>>
- Поставщик: Shenzhen Richmor Technology Development Co. Ltd.
Сохранить в закладки 1601247802182:
Описание и отзывы
Характеристики
System Selling Points:
1) MDVR + AI All-In-One. Monitoring and Enhance Driving Safety at the same time.
2) Strongly Support ADAS+DSM+BSD. Further support HOD, 360 degree view, etc.
3) 8 channel full HD (1080P) video recording, H.265.
4) World first AI MDVR, 1.2T computing NPU ensures high accuracy and stable performance.
Applications
Widely applied in bus, coach, truck, logistics field.

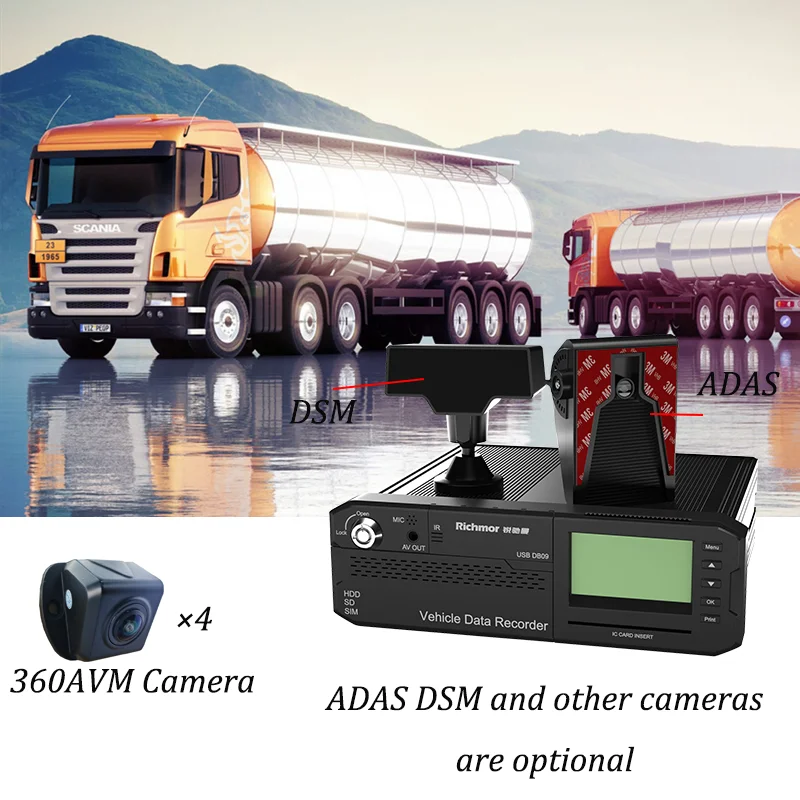

What does this system combine?
MDVR + ADAS cam + DSM cam + BSD cam + inner&outer Speaker.
Product details perspective display
Front +Side+Back .
Front +Side+Back .
AI function description

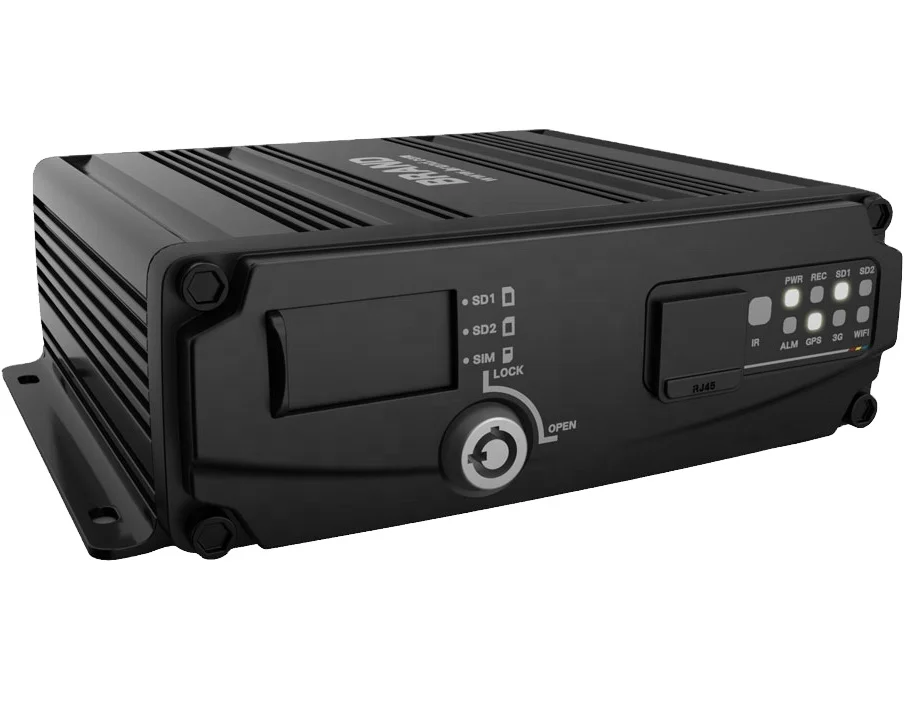

AI-Chipset MDVR
8CH Full HD + H.265 + GPS + 3G/4G + WIFI (optional).
8CH Full HD + H.265 + GPS + 3G/4G + WIFI (optional).
Algorithm is written inside the MDVR chipsets.
ADAS(Advanced Driving Assistance System)
System ADAS alerts accuracy is up to 99~ 100% high accuracy.
DSM(Driver Status Monitoring)
Behavior Detection: Eyes Closing/distraction/Smoking/Calling /Driving Absence supported.
Language: English/Russian/Spanish/Portuguese/customized .
Behavior Detection: Eyes Closing/distraction/Smoking/Calling /Driving Absence supported.
Language: English/Russian/Spanish/Portuguese/customized .
HOD (Hands Off Driving)
HOD is extending function from DSM.Give a complete of monitor of driver behaviour,fully improve fleet safety.
BSD (Blind Area Detection)
3-level pre-warnings/Distinguish Moving Objectives Intelligentl

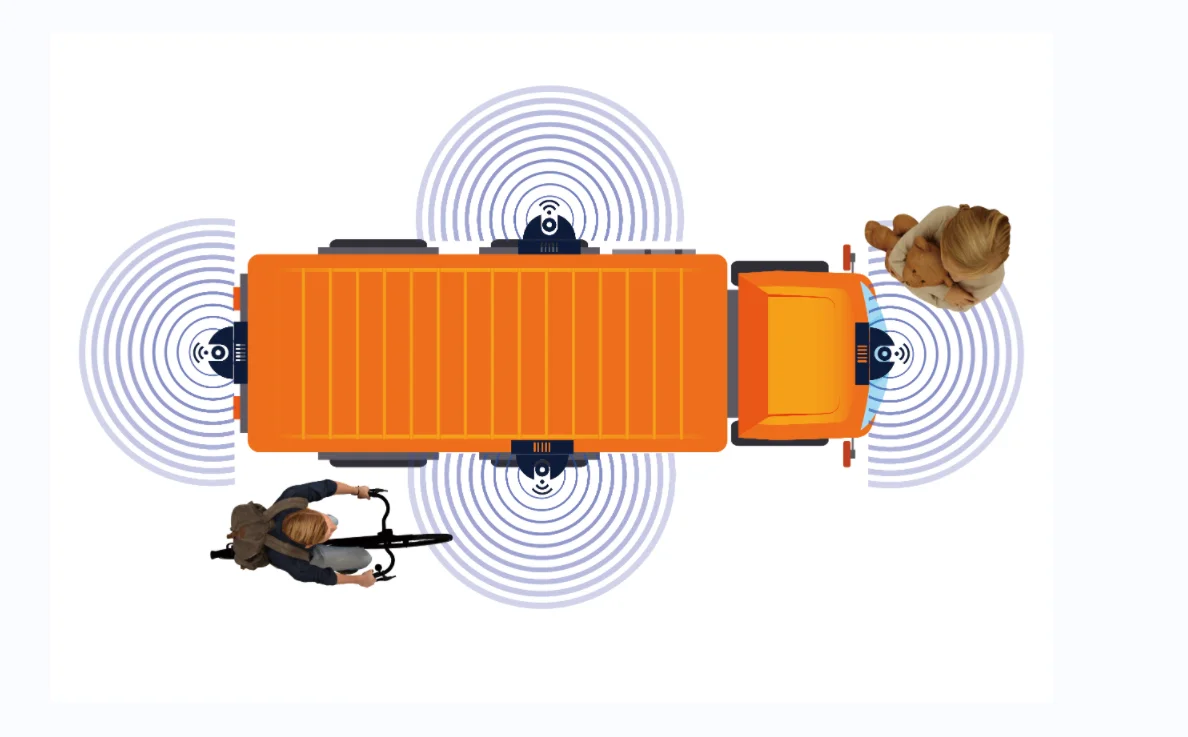

Installation Diagram
BSD camera supports installing on the left/right back/front side to adapt to different vehicles.
Supports dual BSD detection. Quick installation and easy parameter setup.
BSD camera supports installing on the left/right back/front side to adapt to different vehicles.
Supports dual BSD detection. Quick installation and easy parameter setup.
More AI function

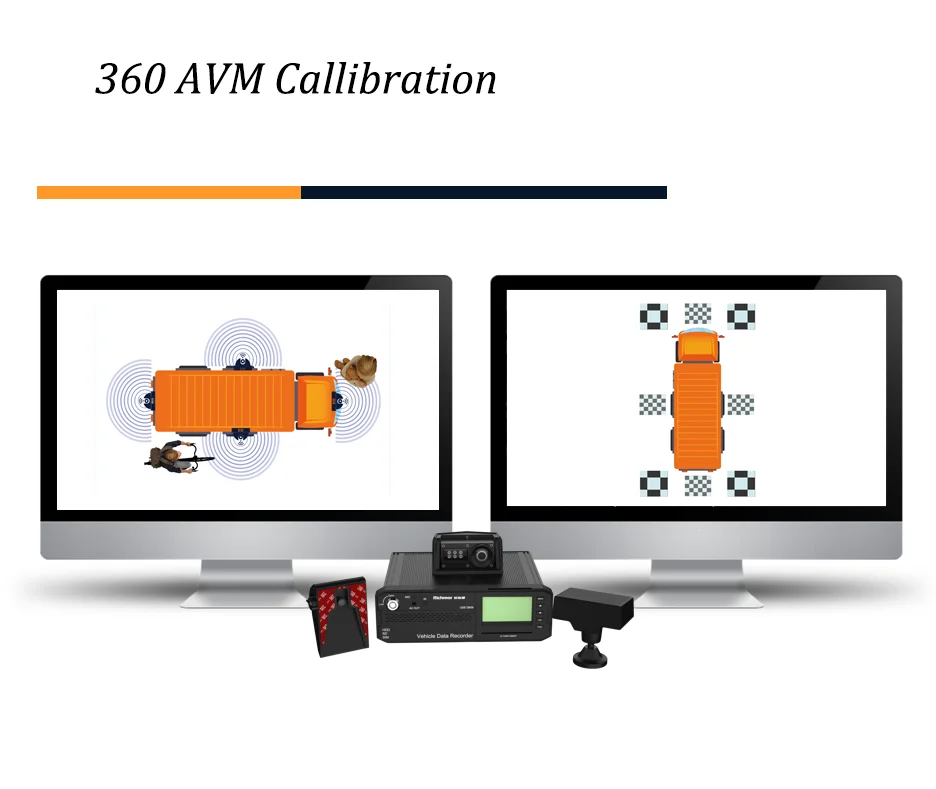

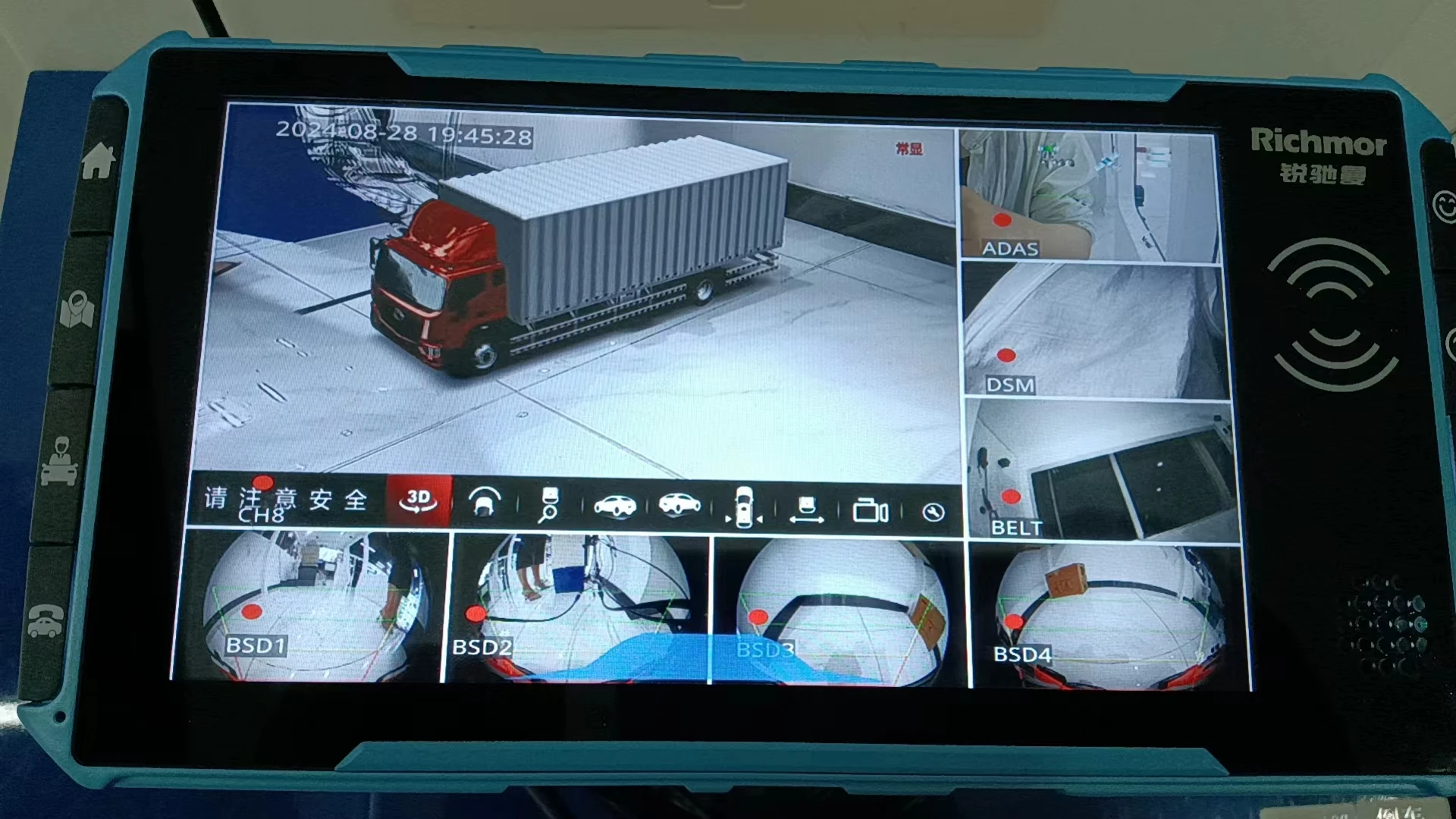

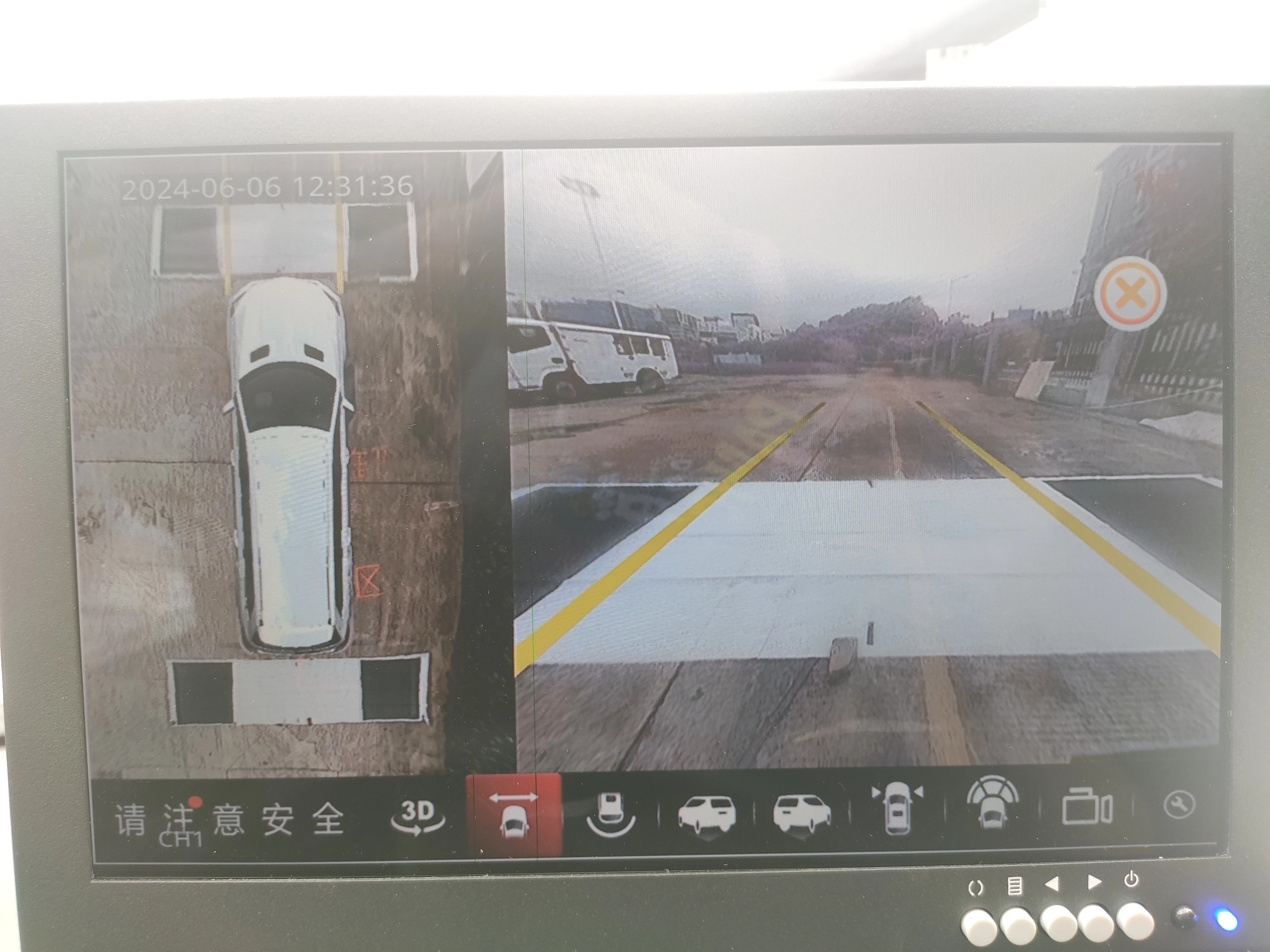

360-degree All round view and passenger counter.provide a full view of the statuation around the vehicle on the monitor.it also works as MDVR with real-time video recording with SD card /HDD storage.
360-degree All round view and passenger counter.provide a full view of the statuation around the vehicle on the monitor.it also works as MDVR with real-time video recording with SD card /HDD storage.
Specification
item | Parameter | value | |
Operation system | Embedded Linux | Linux | |
CPU Speed | 1.2GHZ | 1.2GHZ | |
Nor Flash Capacity | 32MB NOR+128M NAND | 32MB NOR+128M NAND | |
Ram Capacity | 1G | 1G | |
Video and codec | Video Input | 8 channel AHD HD analog input, aviation connection, 1.0Vp-p, 75Ω | |
Compression mode | Video Output | 2channel composite video output，1.0Vp-p，5 Ω, VGA input (optional), 1 channel / 2 channel / 5/4 picture segmentation / 9/6 picture segmentation | |
Video input | Preview | Support single CH /2 CH /4 CH /5 CH /6 CH /8 CH /9 CH splicing preview, support manual/event trigger full-screen display function | |
Video output | Resolution | 1080P/720P/D1/HD1/CIF,can be optional, max support 8channel 1080P | |
Communicate mode | Image Quality | 0-7 levels, 0 is the highest level, 7 is the lowest level. | |
Audio Input | Kbps for record | CIF: 256Kbps ~ 800Kbps,multilevel image quality can be optional D1: 400Kbps ~ 1Mbps, multilevel image quality can be optional 720P:640Kbps-2Mbps, multilevel image quality can be optional 1080P:1024Kbps-4Mbps, multilevel image quality can be optional | |
Audio output | Recording Mode | Default automatic recording, support ACC Power on、Manual recording、 alarm recording and etc | |
Video Output | Analog output | 1ch preposition analog output | |
API/SDK integration | 1ch postposition analog output(aviation) | ||
Audio Input | Input channel | 8CH | |
Warranty | AGC Control | Automatic | |
Sampling frequency | 8/16K | ||
Sampling accuracy | 16 | ||
Audio output | Interface Type | 4-core 12M-4B aviation connection/4-core 3.5mm headphone connection | |
Output channel | 3channel | ||
Mute | support | ||
Position | GPS/BD | Supports dual mode positioning | |
Precision | ≤10m(95%) | ||
Starting time | Warm reboot≤5s, cold reboot≤45s | ||
Repeat positioning | 1s | ||
Driving Record | Driving Record | 15 days or ≥100,000 | |
Power | +12V output current | 12V@1A | |
+5V output current | 5V@1A | ||
Alarm input | 6CH IO alarm input, 2CH AD input, 2CH pulse speed input; with alarm linkage function | ||
Alarm output | 2CH switch output, linkage sound and light alarm, oil cut-off, etc. | ||
Storage | Hard disc | Support large capacity 2.5 inch hard drive (maximum 2T) | |
SD card | 2 large-capacity SD card recordings, maximum 128G each, backup video, compensate video data security | ||
Company Profile
Shenzhen Richmor Technology Development Co., Ltd. is a TOP high-tech enterprise/ manufacturer specialized in digital and intelligent mobile video surveillance products, with rich experiences for developing, producing and selling over 13 years. Product Mainly includes 3G 4G SD card/HDD mobile DVRs, ADAS DSM BSD AI mobile DVRs, MINI DVRs, HD vehicle camera etc. As a professional manufacturer, we oncentrate ourselves on providing customers with most advanced technologies and products with highest quality.
Packing & Delivery
Contact
Sales Engineer: Ada Lin
Email: sales03 AT richmor.net
Whatsapp/skype: +86 18938073583
CompanvAddress:5th Floor D Building. Bantian International Centre.Bantian. Longgang District,Shenzhen
Website: //www.mdvrchina.com
//www.3gmdvr.com
Related Products
Похожие товары
Система обнаружения слепых зон автомобиля с двойным датчиком 24 ГГц для Audi A4 A5 S5 Q5 12 В аксессуары
7 825,01 ₽ - 9 367,97 ₽
Универсальная система обнаружения слепых зон с двойным датчиком 24 ГГц
6 502,47 ₽ - 7 604,58 ₽
Универсальная система обнаружения BSD LCA Комплект 77 ГГц микроволновая печь две Радиолокационные системы слепых зон
14 878,53 ₽ - 15 980,64 ₽
JY-X2 4-х канальный DVR с карьерный самосвал DSM видео Водителя GPS монитор антисон ADAS 4G сим-карту грузовики для горнодобывающей промышленности
33 063,39 ₽
PWAS система оповещения о приближении высокоточная Радиолокационная и сигнальная LS-RD1011
5 510,57 ₽ - 9 367,97 ₽

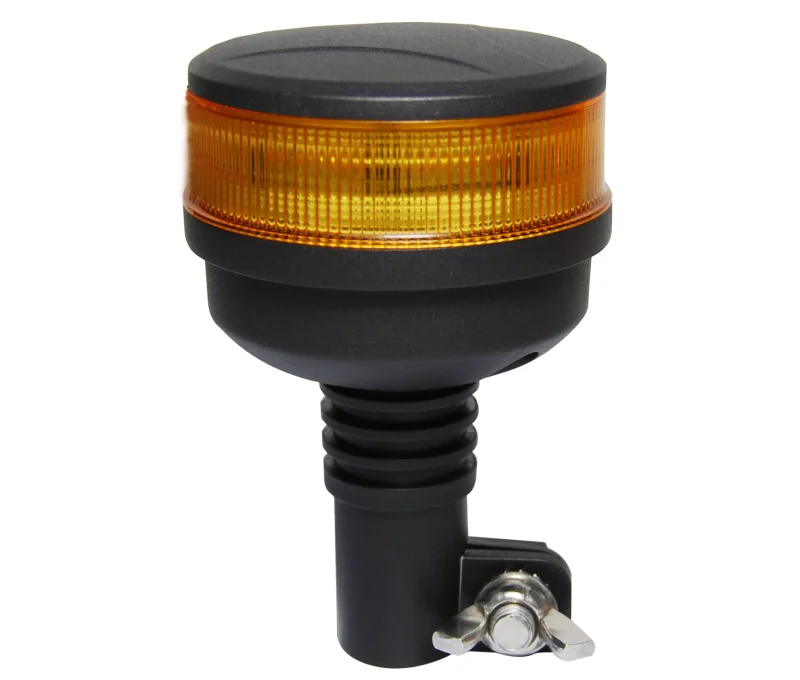

VEISE высококачественные СВЕТОДИОДНЫЕ сигнальные огни для трактора
