Машина для производства гипсовых блоков продукция высокого спроса рыночная цена продажа в Китае

Машина для производства гипсовых блоков продукция высокого спроса рыночная цена продажа в Китае

Категория: >>>
Поставщик: Shandong Dalu New Material Environmental Protection Technology Co. Ltd.

Цена:5 447 791,32 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Gypsum block making machine

----------- Free design drawings, technical discussion, select suitable gypsum block equipment.

------------- Since 1999 Experience in gypsum technology research.

We are not only a machinery provider

But an overall solution provider

Equipment specification for block production line:

Block thickness	80mm	100mm	120mm	150mm	200mm
Block thickness (w*h)	666(600)* 500mm	666(600)* 500mm	666(600)* 500mm	666(600)* 500mm	666(600)* 500mm
Block height	300~500 (mm) Adjustable	300~500 (mm) Adjustable	300~500 (mm) Adjustable	300~500 (mm) Adjustable	300~500 (mm) Adjustable
Solid/Hollow	Solid	Solid/ Hollow	Hollow	Hollow	Hollow
Lifting for one time	10,15,30 Pieces	12,20,42 Pieces	10,18,36 Pieces	8,16,30 pieces	6,12,24 Pieces
Number of lifting hydraulic cylinder	1,2,3	1,2,3	1,2,3	1,2,3	1,2,3
Number of sceraper hydraulic cylinder	2	2	2	2	2
Number of flip hydraulic cylinder	2	2	2	2	2
cavity partition material	Chrome-plated stainless steel or 45 carbon steel	Chrome-plated stainless steel or 45 carbon steel	Chrome-plated stainless steel or 45 carbon steel	Chrome-plated stainless steel or 45 carbon steel	Chrome-plated stainless steel or 45 carbon steel
Agitated leaf number	2,2,3	2,4,4	2,4,4	2,4,4	2,4,4
Worker	1~2	1~2	1~2	1~2	1~2
Power	27.5, 27.5, 32.5KW	27.5, 32.5, 43.5KW	27.5, 32.5, 43.5KW	27.5, 32.5, 43.5KW	27.5, 32.5, 43.5KW

Equipment characteristics:

The left and right walk of the block fixture is favorable for convenient transportation, convenient operation of workers and
equipment, and avoids the danger of workers operating equipment under the clamp and improves production capacity.
1. The utility model has the advantages of reasonable structure, low energy consumption, high output, small noise, convenient operation, small occupation area, and accurate product size.
2. The mould is made of hard chromium plating, which is not easy to rust and increase the service life.
3. Automatic telescopic fixture, automatically block blocks, put blocks, save manpower, reduce labor intensity.
4. The control system adopts touch screen and programmable controller PLC, equipped with data input and output device, real-time display system running state, found fault, prompt alarm. The control system has the self—locking function, avoids the misoperation to produce. The remote fault diagnosis can be realized by telephone connection, and the production of the customer can be carried out in real time.
5. The blocks are automatically metered into the mixer using a variety of additives, (equipment upgrades).
Process flow and configuration:Process flow and configuration:
Start control cabinet → automatic water mixing machine → raw material → screw conveyor → automatic metering hopper → special additive → pneumatic valve unloading materiai, mixing machine → start the hydraulic pouring molding box → automatic scraping groove → gypsum block forming ejector → automatic telescopic clamp block, electric vehicle transportation site → mechanical hand block into the dry site or drying room → packing → storage or production.

Process flow and configuration:

Building gypsum powder as raw materials: natural gypsum powder, desulfurization gypsum powder, phosphogypsum powder, special additive, fiber reinforced material, light agent material perlite, negative material, fly ash, etc..
The raw material is stirred by water and poured into shape. After drying, a new lightweight partition product - high precision gypsum block. The utility model is mainly used for frame structures and other non load bearing walls, and is generally used as an inner partition board.

Detailed Images

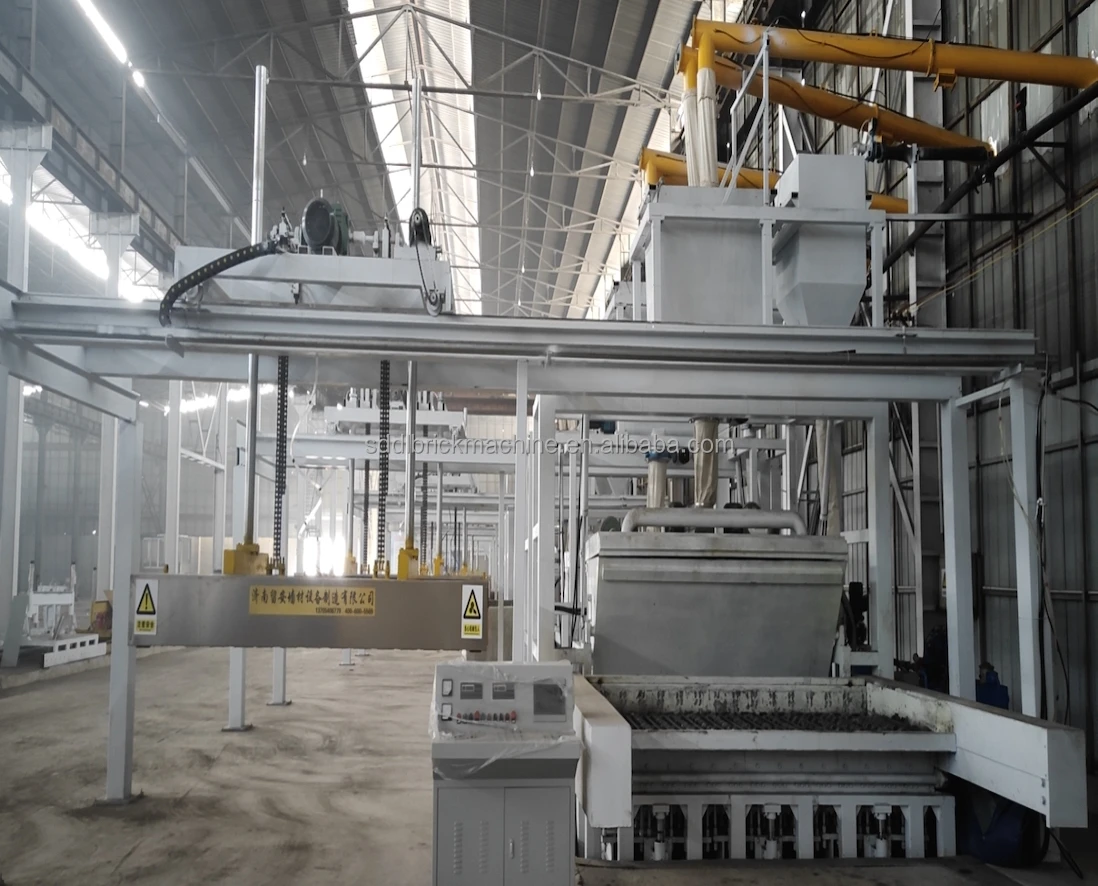

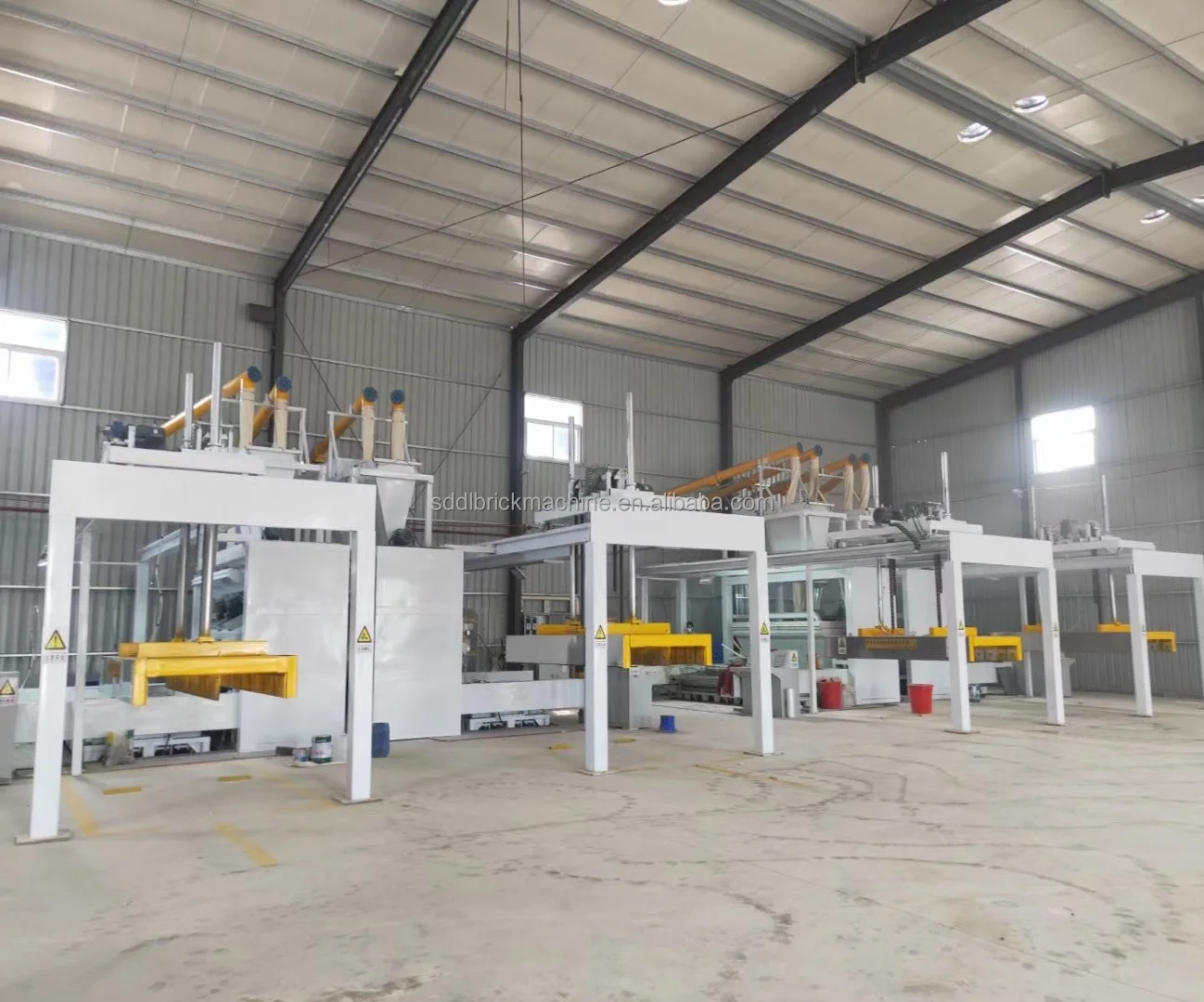

Gypsum block host machine

Stainless steel and steel polished hard chrome plated die block:

1. Gypsum block host, double row die cylinder ejecting block system, with synchronization system to avoid error.

2. High precision mold stainless steel hard chrome plating, mirror polishing technology, non-stick die.

3. Automatic lifting stainless steel scraper device, can be repeated scraping, block exquisite.

4. Production block square core tube, double seal, prevent leakage of slurry.

Fully enclosed Mixer (Environment-friendly Mixer)

1. Energy saving, environmental protection, high mixing efficiency, never burn the motor.

2. Sealed dust removal system, prevent dust leakage, good collection.

3. Bottom stainless steel.Hydraulic cylinder filling.

4. Reduce pollution, energy saving, environmental protection, and effectively collecting dust.

Mechanical fixture

1. Equipment clamp left and right walking, it's benefit for gypsum block transporting.

2. It is simple and convenient for workers to operate the equipment, avoiding the danger of workers standing under the clamp to operate the equipment.

3.High efficiency and power saving.

Forklift clamp

1. Save production time.

2. Easy to operate.

3. Palletizing gypsum blocks.

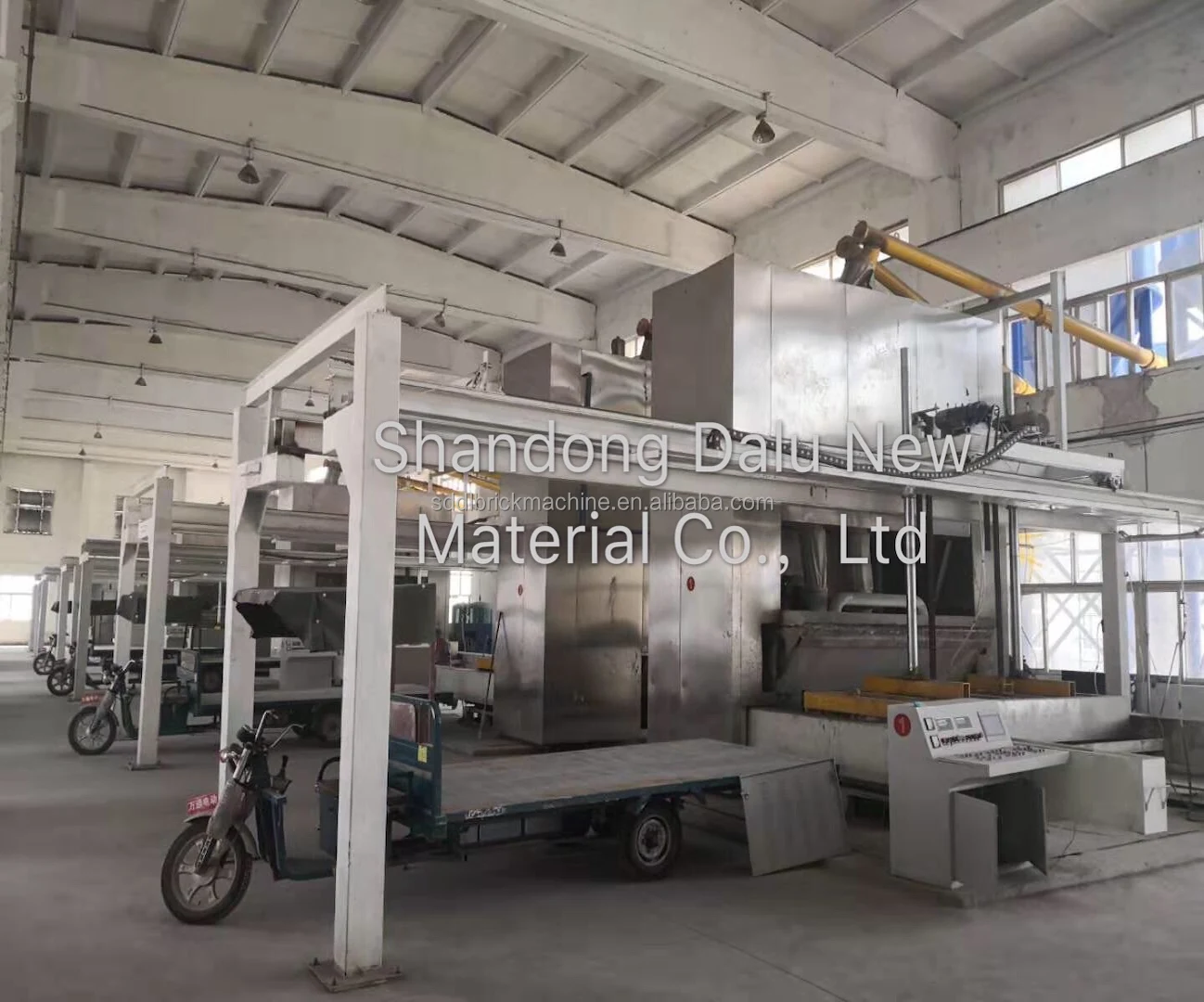

Production & Construction

(we provide is not only the machine BUT the whole system)

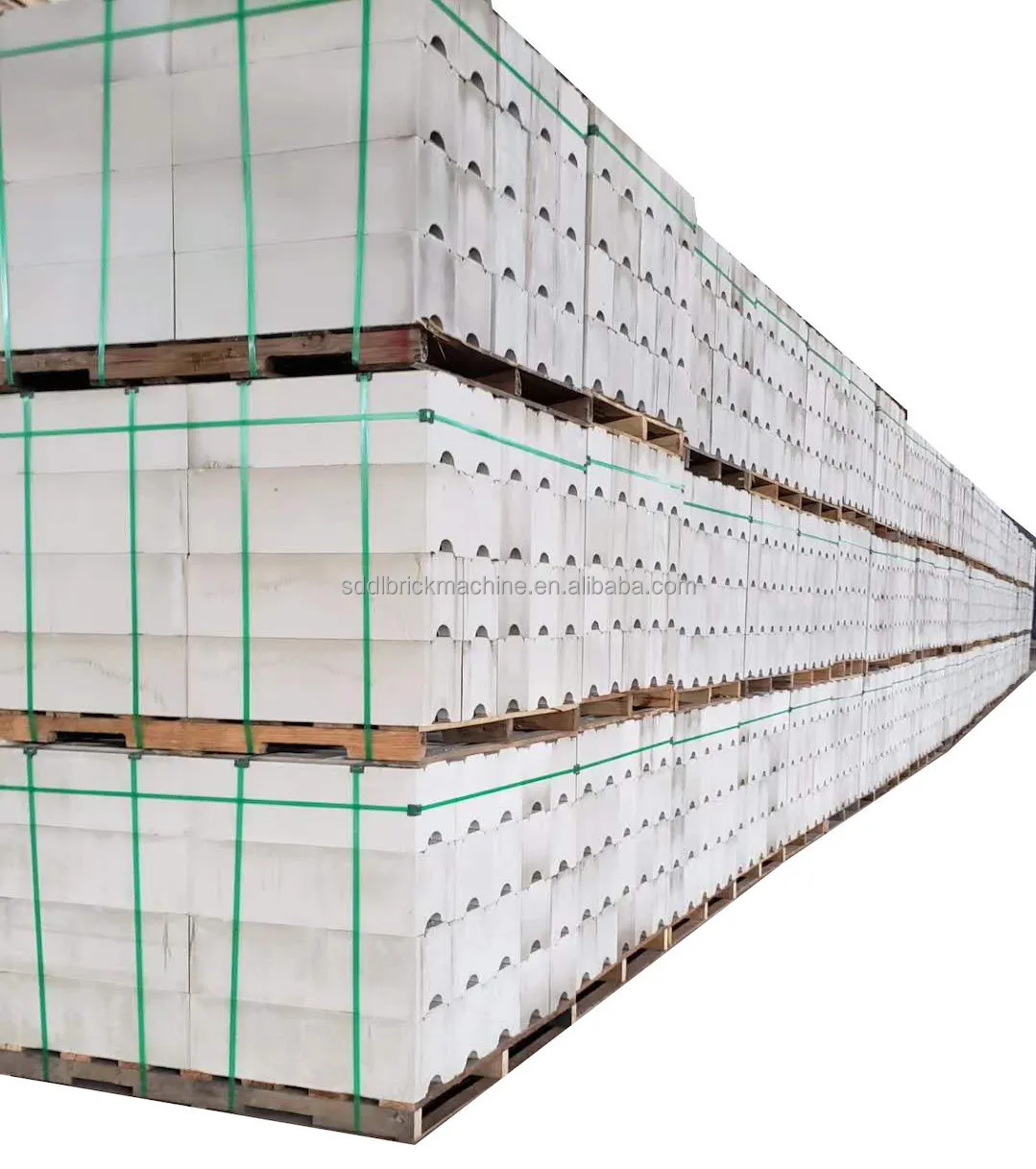

Packing & Delivery

DALU INTERNATIONAL selected each part carefully, we are strive to quality first when machine production and test each machine before delivery, pay attention to package,container transport,to make sure customer will receive the machines they ordered Intact.

How we ensure the fact installation?

1.In addition to engineers in our factory who can go abroad to install equipment, we have engineers in cooperation with our factory in Russia, the Middle East and South Asia. Customers can choose engineers from different countries.

2. Besides the Engineers, we provide the installation documents which accompany machine, we extra provide all the relevant documents to enhance your production.

How do we ensure consumable parts match after-sell?

1.At the time of delivery, we give some consumable parts free of charge, such as rubber rings, and customers can replace the wearing parts freely.

2. Next days, if customers need wearing parts, we still send them free of charge.

3. The damage rate of our parts is 1% per year, so customers don't have to worry about it.

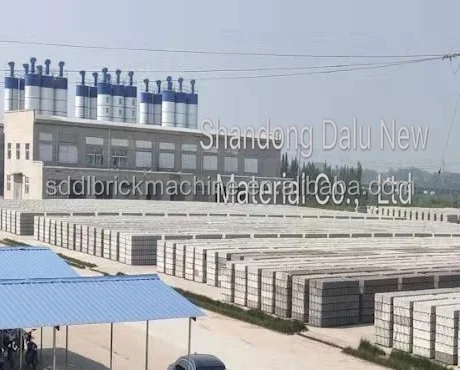

Our Company

Our company is a manufacturer which have 20 years rich experience in machine making and export. Our main products is brick makingmachine. Our company have passed CE certification and Our factory has more than 50 technology patents and more than 100 comprehensive certificates.

--------- 15 years experience in overseas market projects service

---------- Experience of 2000+ projects manufacture and install abroad and domestic

---------- Machine available in 20+ countries

We focus is customers demands, keep innovation, keep updating meet transcend custom-ers' requirements. We pursue extreme cost performance,not only price.

Our factory is a professional mechanical equipment manufacturer, production of energy conservation and environmental protection wall materials has been fully implemented lSO9001 quality standard system certification, flexible mode of operation, can be customized according to customer needs all kinds of gypsum block production line, composite insulation bricks block production line.

Our clients

Certifications

Our Service

Before payment

1. Free contact for the most suitable machine.
2. Free professional design, including plant layout, machinery diagram, equipment list, ect for each customer especially.

After sale service
1. We supply all technical surports for raw material supplier information.
2. Our process/ installation/ electricity engineers will stay at your plant until your workers know how to produce good products.
3. After installation, we will test your production, and sign agreement with your workers after succesfully testing.
4. 24 hours technical support by phone, email or skype (email or skype).
5. One years warranty period.
6. Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
7. By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.

Payment
♦ L/C, 30% deposit by T/T, 70% spare payment L/C.
♦ T/T, 30% deposit by T/T, 70% spare payment before shipment.
♦ Western Union or Paypal.

FAQ

1. When can we arrange shippment?

We usually arrange shippment within 20days after getting deopsit,
but customized machines should be more than 30days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.

Do you provide equipment operation training?

4.What is the gypsum block?
A: Gypsum Block is a kind of light walling material, made by Gypsum Powder and adhesive material, mixing with water and being molded and dried.

5.What is the advantage of Gypsum Block?
A: Environment-protection andEnergy-saving, right now they are the most popular in China now.

6.How many types of Gypsum Block so you have?

A:Hollow Gypsum Block and Solid Gypsum Block. Hollow blocks are more popular.

7.Normally where can I use the gypsum blocks?
A: It is widely used in building as inner partition wall.

8.Why we use them as partition wall?
A: Light weight / Fixed shape dimension / Fire-proof / Shock-proof / Heat insulation

9.What is the regular size of gypsum blocks?
A: The regular size of blocks is 666 (600)*500cm, the thickness will be 80 / 90 /100 /120 / 150 / 200mm, Definitely we can
modify other sizes too

10.What is your Gypsum Block’s performance?
A:Air sound insulation: 40.5db;
Fire resistance:186min;
Flatness: ≤1mm/m2;

11.What is the working capacity of your machine?
A: Normally 6-8 molds / hour

12.How does your machine come to me?How many parts do you have?
A:Molding machine / Mixer / Hydraulic station / Control panel / Screw conveyor / Water metering bin / Powder metering bin /Mechanical arm clamp / Ground clamp

13.What is your machine’s working voltage and power?
Voltage: 380V(+/-10%~15%), 3 phase

Power: 19KW-25KW
