Поддержка синхронного дисплея и асинхронного воспроизведения выход Светодиодный дисплей сетевой плеер colorlight A200
- Категория: >>>
- Поставщик: SHENZHEN LEDRGX ELECTRONICS CO. LTDSHENZHEN LTD
Сохранить в закладки 1601248281592:
Описание и отзывы
Характеристики
introduction to products

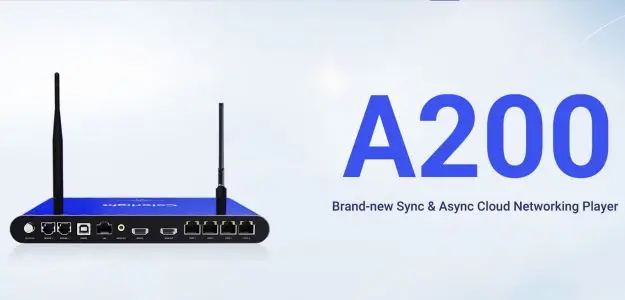

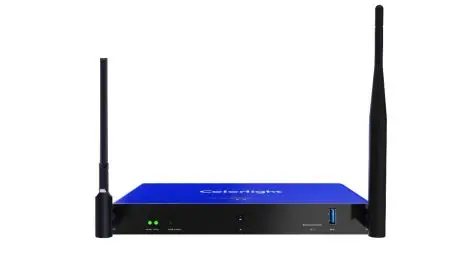

colorlight-A200
A200 is a new-generation cloud networking player that supports synchronous display andasynchronous playback. lt supports 4K H.265/H.264 hard decoding, 4K VP9 decodingplayback. Maximum load capacity2.3 million pixels andsupportup to 1920x1200@60Hz Based on the ColorlightCloud platform, functions such as player monitoring, programcreating, program scheduling, program centralized publishing, and multi-level privilegemanagement are supported.A200 supports networking methods like WiFi, LAN, 4G (optional), which enables rapiddeploymentofintelligent cloud management, multi-screen, multi-service, cross-regionalunified management. A200 has a permanent WiFi hotspot, and can connect to other WiFihotspots, Program management and parameter settings can be achieved via smartphone.tablet and PC.A200 supports command scheduling and LAN scheduling, and can achieveautomatic brightness setting to meet the brightness adjustment needs of variousoccasions.
With PlayerMaster, A200 offers program editing and publishing and program multiwindow arbitrary arrangement, allows for program materias playback such as videopicture, text, table, clock, streaming media, webpages, weather. Besides, itsupports plugand play content from USB flash drive, Program update and management can be achievedvia wired network. As a brand-new networking control system, A200 enjoys strong advantages in theapplication of outdoor commercial adverting screens, indoor government screen, publicplace information release screen, chain screen, doorstep screen, advertising plavers
With PlayerMaster, A200 offers program editing and publishing and program multiwindow arbitrary arrangement, allows for program materias playback such as videopicture, text, table, clock, streaming media, webpages, weather. Besides, itsupports plugand play content from USB flash drive, Program update and management can be achievedvia wired network. As a brand-new networking control system, A200 enjoys strong advantages in theapplication of outdoor commercial adverting screens, indoor government screen, publicplace information release screen, chain screen, doorstep screen, advertising plavers
product feature | ||
Loading capacityupto 2.3 million pixels,with maximum 4096 pixels in width or2560pixels in height. | Support 8bit Video source input Support color temperature adjustment Support better gray at low brightness Support 30/50/60/100/120frame rate | |
HDMl up to 1920x1200@60Hz. | Support pixelto-pixel calibration in brightness and chromaticity | |
Synchronous display or asynchronous playback, as well as the priority setting ofthese two modes. | Support screen rotation Support data group offset Support test input key Support power on the screen and gradually brighten Support no signal display status Supports quick firmware upgrade and quick release of correction coefficients Support any pumping row, pumping column and pumping point | |
Strong processing performance, 4KH.265/H.264 hard decoding, 4K VP9 decodingplayback | Supportloop redundancy Support ethernet cable status monitoring Support firmware program redundancyand readback Support 7x24h uninterrupted work | |
32GB storage, available 25G storage capacity. | ||
Fully compatible with conventional synchronous control system program managementand display configuration. | ||
Intelligent control, convenient management | USB flash drive can plug and play content and updates the list of programs. Synchronized playback of multiple screens (NTP synchronization). Scheduled commands, LAN-based scheduling and internet-based scheduling Ambienttemperature, humidity and brightness and otherparameters monitoring as well as automatic display brightnessadjustment | |
Convenient program management | Rich media materials, such as pictures, videos, texts, tables, clocks, stream media, webpages and weather. Support overlaying of multiple windows, whose size and location can be freely adjusted. Support multi-page playback, up to 32 program pages. | |
All-round control scheme | Manage player via different platforms like PC, smartphone, Pad Differentapplication softwarefor management, convenient forvarioussituations | |
Network communication | WiFi 2.4G frequency band, WiFi hotspot mode or WiFi client mode LAN, supports DHCP mode and static mode. 4G communication,4G network (optional). GPS positioning(optional) | |
Compare the same series of products
colorlight A series networked player product comparison
name | A100 | A200 | A2K | A4K | A60 |
operating system | Android | Android | Android | Android | Android |
Decoding capability | 4K | 4K | 4K | 4K | 4K |
Size (L*W*H) | 234.8*137.4*26/mm | 234.8*137.4*26/mm | 108*128*26 /mm | 215*94*32 /mm | 256.4*127.6*26.2/mm |
storage space | 32GB | 32GB | 32GB | 32GB | 32GB |
External storage expansion | Usb flash drive, maximum 256G | Usb flash drive, maximum 256G | Usb flash drive, maximum 256G | Usb flash drive, maximum 256G | Usb flash drive, maximum 256G |
Output Gigabit network port | Two ways | Four ways | × | × | Two ways |
Network port control area | 1.3 million pixels Maximum width 4096 pixels Up to 2560 pixels | 2.3 million pixelsMaximum width 4096 pixels Up to 2560 pixels | × | × | 1.3 million pixels Maximum width 4096 pixels Up to 2560 pixels |
HDMl input | √ | √ | × | × | √ |
HDMl output | 1920*1200@60hz | 1920*1200@60hz | 1920*1200@60hz | 3840*2160@60hz | × |
Cloud service cluster management | √ | √ | √ | √ | × |
LAN | One hundred Megabyte | One hundred Megabyte | One hundred Megabyte | giga | One hundred Megabyte |
4G/5G | √ | √ | √ | √ | × |
WIFI | √ | √ | √ | √ | √ |
Mobile phone WiFi control | √ | √ | √ | √ | √ |
Synchronized program | √ | √ | √ | √ | √ |
external sensor | √ | √ | × | × | √ |
streaming | √ | √ | √ | √ | √ |
Product Paramenters
A200 Product specification parameter
Dimensions (WxHxD) | ||||||||
Unboxed | 234.8mm(9.24")x26.0mm(1.02")x137.4mm(5.41") | |||||||
Boxed | 360.0mm(14.17")x93.0mm(3.66")x225.0mm (8.86") | |||||||
Weight | 66.0x25.4x8.4mm | |||||||
Net weight | 0.83kg(1.83lbs) | |||||||
Total weight | 1.70kg (3.75lbs) | |||||||
Electricalspecification | ||||||||
Power input | DC12V | |||||||
Rated power | 12W | |||||||
Operating environment | ||||||||
Temperature | 0%RH~95%RH,non-condensing | |||||||
Humidity | -20PC~65°C/-4°F~149°F | |||||||
Certification | ||||||||
CCC,CE, CE-RED,FCC,FCC-ID. *ifthe product does not havethe relevantcertifications required bythe countries orregions where it is to be soldplease contact Colorlightto confirmoraddressthe problem, 0therwise,the customer shall be responsibleforthe legal risks caused orColorlight has theright to claim compensation | ||||||||
Application scenario
colorlight-A200 products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.
Classification | Description |
Market type | Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens. |

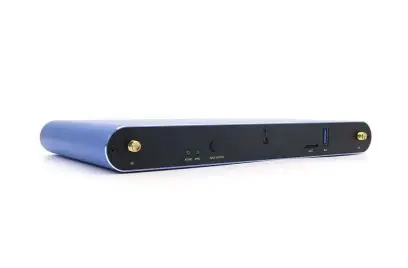

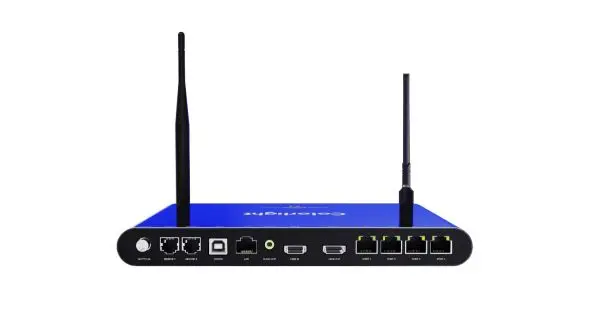

Picture display

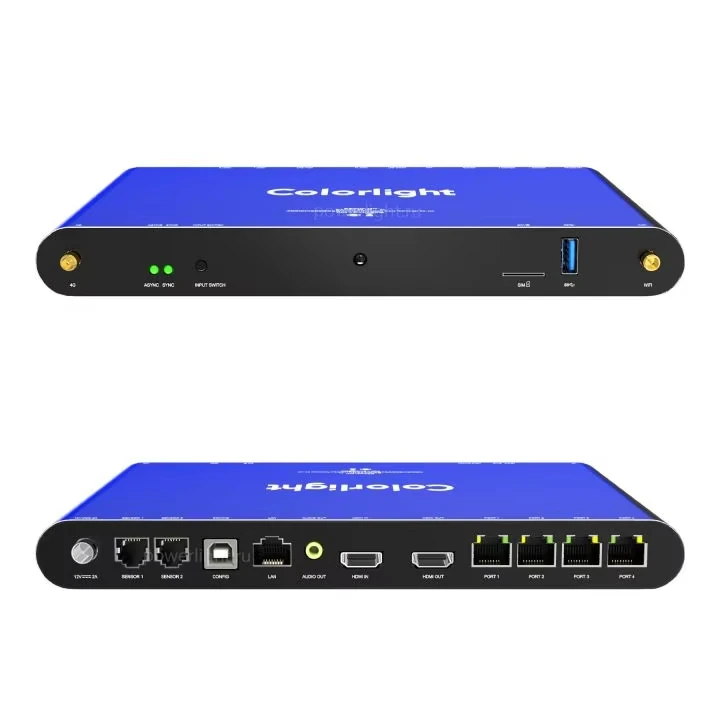

Product use
S/N | Name | Function | ||||
1 | 4G | Connect to 4G antenna (optional). | ||||
2 | ASYNC SYNC | Indicator of sync and async modes. | ||||
3 | INPUT SWITCH | Switch between sync and async modes | ||||
4 | IR | Receive information via infrared light (remote control, easy to operate) | ||||
5 | SIM | Micro-SlM card slot (use with 4G module). | ||||
6 | USB | USB 3.0,connect to USB flash drive or USB camera. | ||||
7 | WiFi | Connect to WiFi antenna,support 2.4G band. WiFi hotspot. WiFi client mode (connect to other WiFi routers). | ||||
8 | PORT1-4 | Ethernet output, connect to receiver cards of the display. | ||||
9 | HDMI OUT | Output sync or async HDMl signal. | ||||
10 | HDMIIN | Input sync HDMlsignal. | ||||
11 | AUDIO OUT | 3.5mm audio interface, HiFi stereo output. | ||||
12 | LAN | Ethernet port, connect to wired network. | ||||
13 | CONFIG | USB-B port,connect to the PC for debugging or programpublishing | ||||
14 | SENSOR 1/2 | RJll port,connect to the sensor for automatic brightnessadjustment or monitoring ambient light, smoke, temperature,humidity and air quality. | ||||
15 | DCIN | DC 12V power input. | ||||
Recommend Products
Packing&Shipping
We adopt the order - pick - delivery integration principle, that is, buy and send, customers place orders directly after the factory hair, so that products are protected.
In terms of packaging, we use air cases and cartons as one main packing body
Company Introduction
Похожие товары
Профессиональный Большой уличный фон для концерта сцены светодиодные видео настенные экраны панели дисплея уличных концертов
180,00 $

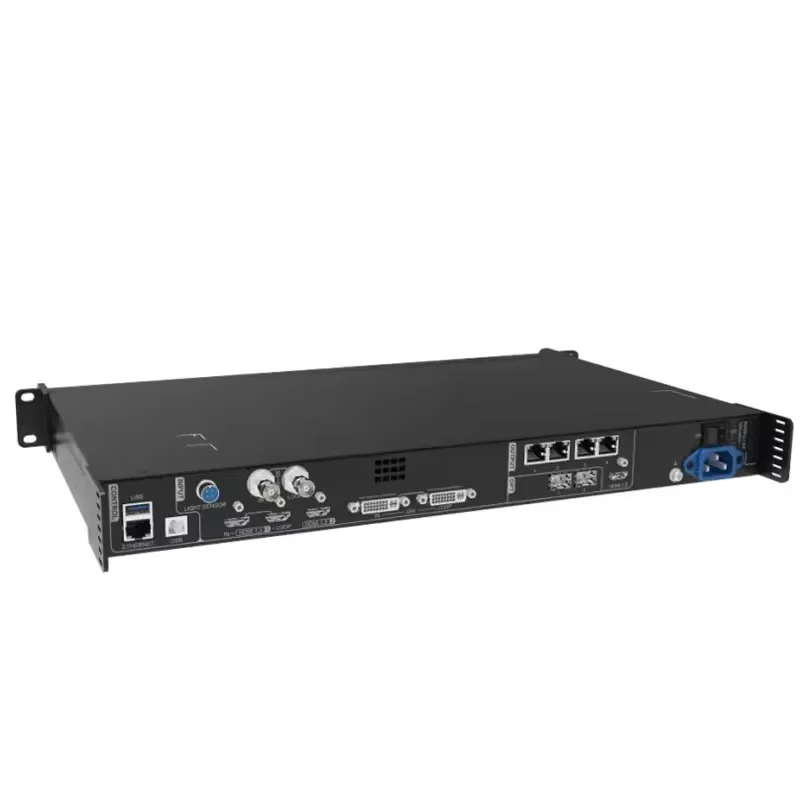

Лучшее качество Nova NovaStar видеопроцессор VX400/VX600/VX1000/VX16S светодиодный экран Все-в-одном контроллере
850,00-865,00 $

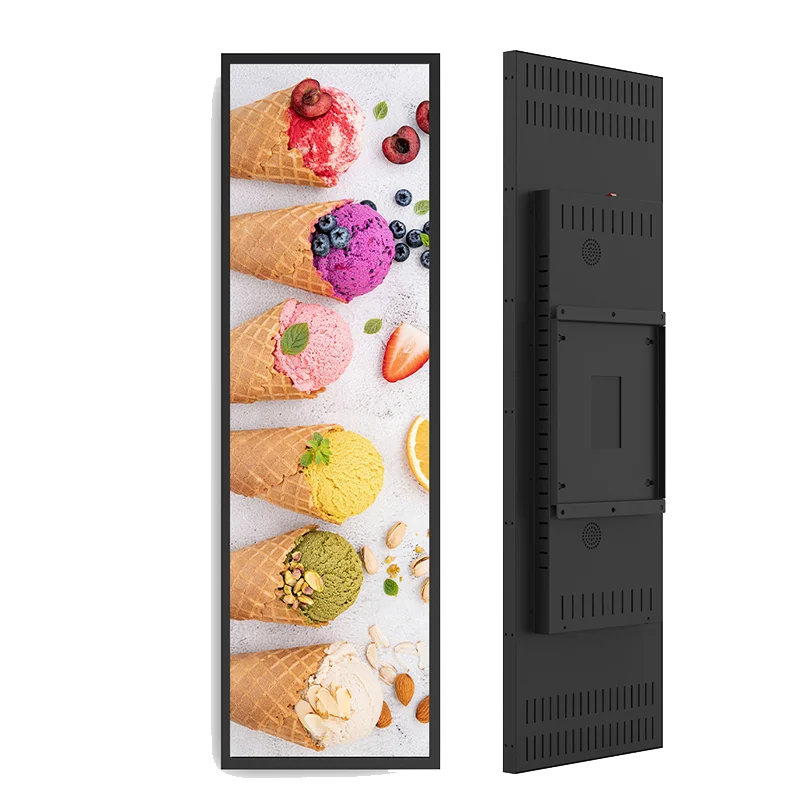

36 8 дюймов/бар экран рекламная машина ЖК-дисплей с длинным экраном полка для супермаркета черный металлический светодиодный фотографий внутренний SDK
480,00-510,00 $

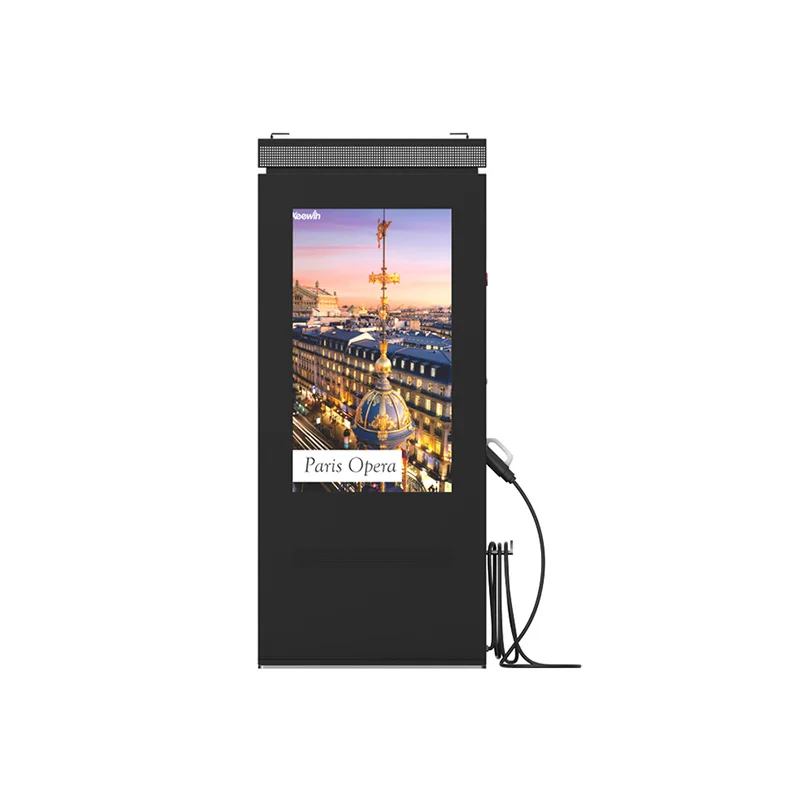

3000nits электрическая Автомобильная зарядная станция комбинированный тип 2 штекер цифровой рекламный плакат наружный ЖК-дисплей
Настенное крепление 10 1 13 3 15 6 18 5 21 23 27 дюймов рекламный дисплей День Неделя Месяц цифровой календарь
159,00-171,00 $

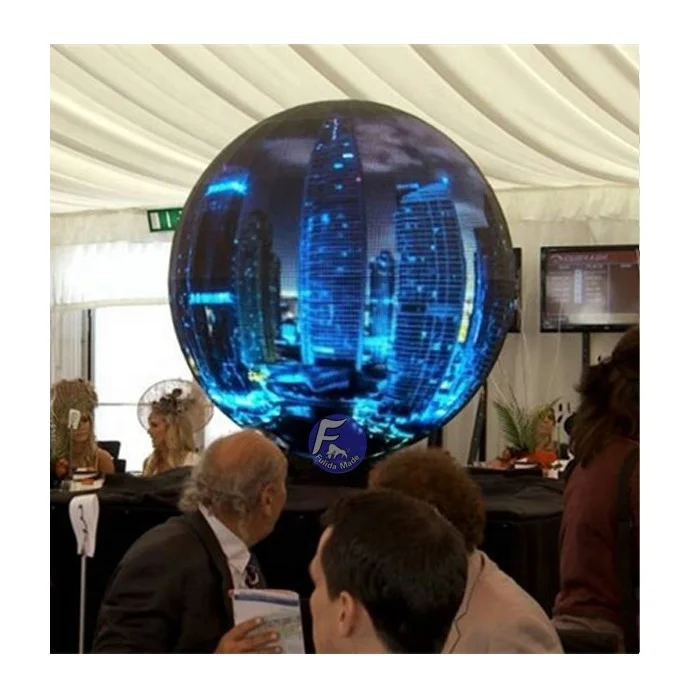

Гибкий светодиодный дисплей 360 градусов без мертвых углов реклама экран P1 P1.5 P1.875 P2 P2.5 P3 Led
13,00-16,00 $

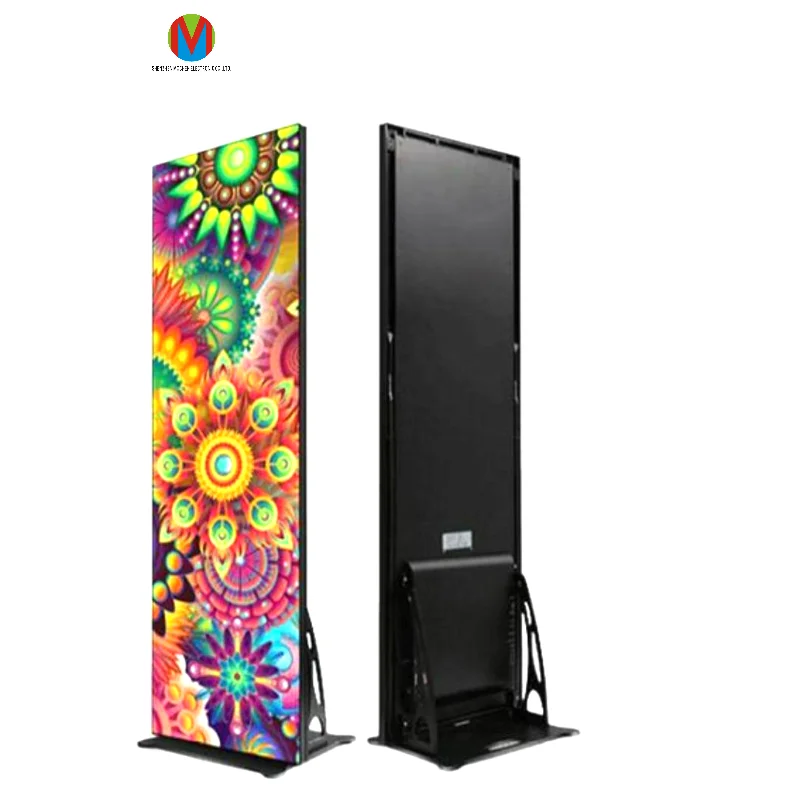

Полноцветный высокое разрешение для помещений GOB P1.5 P1.8 P2 P2.5 P3 напольная подставка светодиодный плакат экран рекламы
