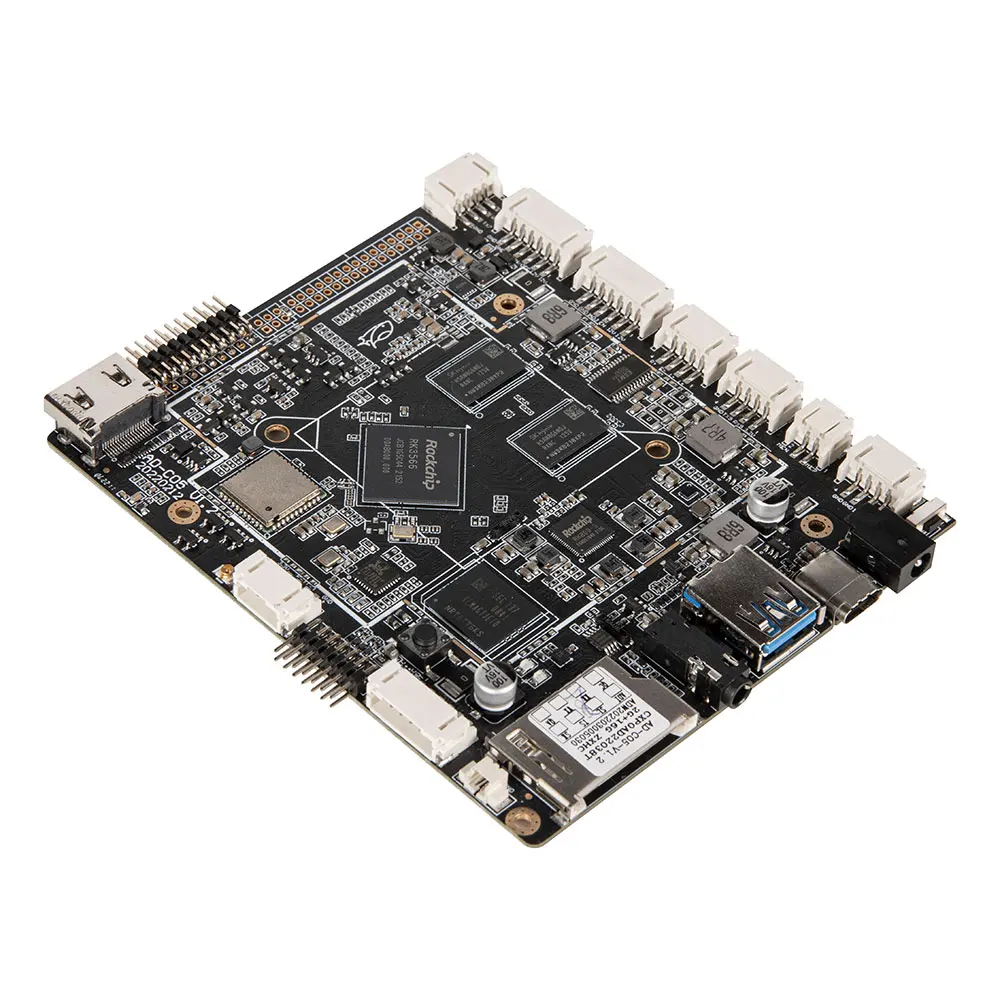

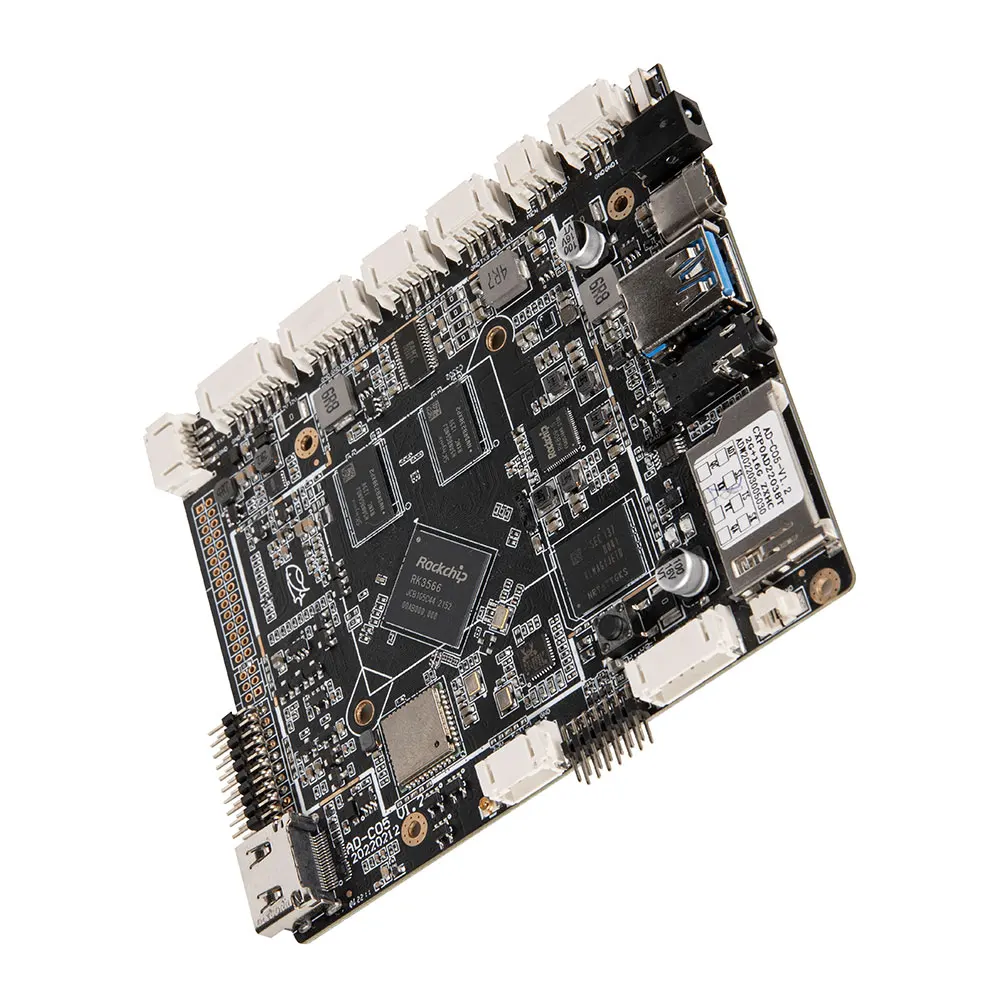

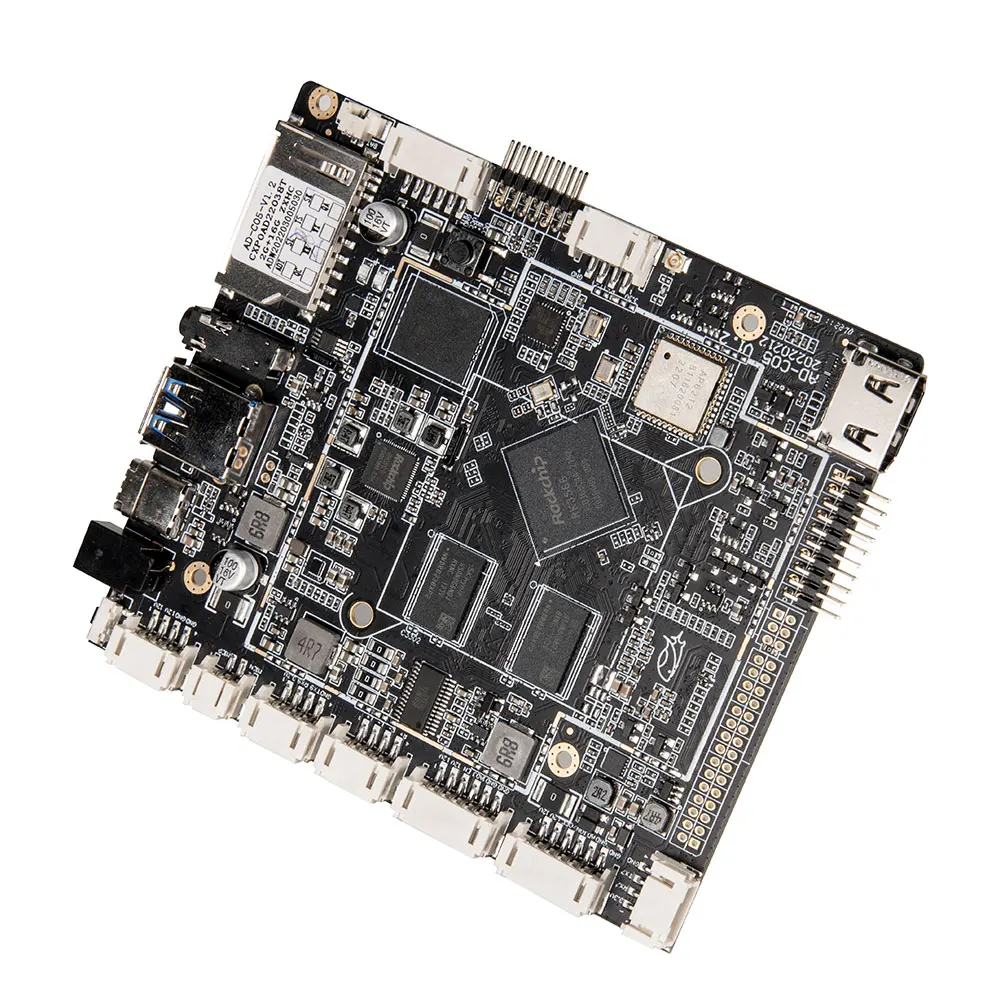

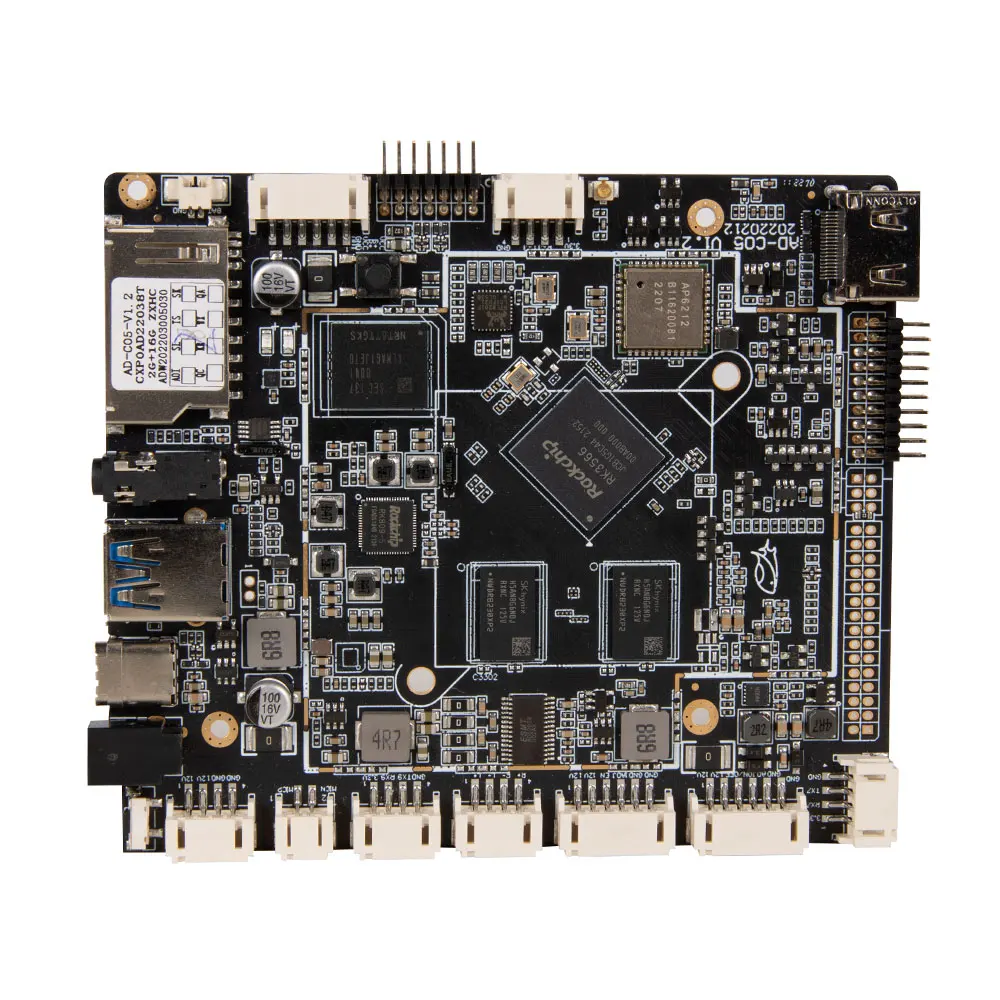

RK3566 четырехъядерный 64 битный Cortex A55 материнская плата емкостный сенсорный WIFI BT промышленная Встроенная системная
- Категория: >>>
- Поставщик: Shenzhen Sunchip Technology Co. Ltd.
Сохранить в закладки 1601248568166:
Описание и отзывы
Характеристики
Related products
Products Description
Product Parameter
Basic Hardware Specifications: | ||||
CPU | Rockchip RK3566 Quad-core 64-bit Cortex-A55 GPU Mali-G52 | |||
Main frequency | Up to 1.8GHz | |||
RAM | LPDDR3 1G/2G optional | |||
Built-in storage capacity | EMMC 8GB/16G/32G/64G optional | |||
Display interface | LVDS screen interface (single, 6-bit dual, 8-bit dual) Support maximum resolution 1920x1080, support 7"-84" display | |||
EDP screen interface | ||||
MIPI screen interface | ||||
Screen voltage | Support 3.3V/5V/12V optional | |||
Touch screen | Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch) Support USB multi-point infrared touch, multi-point acoustic touch, multi-point optical touch. | |||
Network | With RJ45 interface, supporting 10/100 Ethernet | |||
With Wifi & BT module, support Wi-Fi 802.11b/g/n protocol. Support BT4.0 | ||||
Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function | |||
Real Time Clock | External real time clock powered battery | |||
Interface device | Support MIPI interface camera, support up to 500W pixels | |||
2 USB HOST (sub board), 1 USB 3.0 (support usb camera @ 500W usb printer , USB stick , mouse , keyboard standard usb peripherals) | ||||
3 groups of serial ports. Support external serial device modules (3G module, NFC module, printer, card swiper, etc.) | ||||
SD card, supports up to 32GB | ||||
Class D amplifier: 3W*2 8 ohms, microphone support | ||||
HD 2.0 output | ||||
Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format | |||
Video | Support 4K 60fps H.265/H.264/VP9 video decoding; support 1080P 100fps H.265/H.264 video encoding; support 8M ISP | |||
Picture | Support JPG, BMP, PNG and other image formats to browse and support rotation / slideshow / picture zoom function | |||
Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V 3A | |||
Basic Software Specifications: | ||||
Operating System | Android 11 | |||
Basic Software Features | Web browsing, Web Chat, e-mail, e-books, resource management | |||
Sound mode | Clock, alarm clock, calculator, recording | |||
Language Support | Multilingual | |||
Recording | Support MP3, WMA format recording | |||
Tools | Calendar | |||
Alarm Clock | ||||
Calculator | ||||
Note | ||||
Weather+clock | ||||
Recording | ||||
File processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT | |||
E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 | |||
Schedule | Calendar | |||
Input | Standard Andriod keyboard with optional third-party input methods (Chinese, Korean, Japanese, etc.) | |||
Internet | Browser -ChromeLite | |||
Email | ||||
Gmail | ||||
System Management | APK installer | |||
Original Android system with open root access for product customization and development | ||||
Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended | ||||
Support OTA remote upgrade | ||||
System setting | ||||
Google Maps | ||||
Global time | ||||
Company Profile
Payment and Delivery
1.Packing: carton box or wood case
2.Payment methods: accept T/T,Western Union,Paypal and Cash.
3.RMA Policy: customer bear all the freight and duty charge to factory,and the factory afford return freight charge.
4.Warranty: 12 months warranty. Paid maintenance over 12 months.
5.Remark: ROHS, CE & FCC certificates in e-file format are available.
6.MOQ: 1pc, sample order are welcome for your evaluation.
FAQ
1) Q: Is SUNCHIP a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.
3) Q: How long is the warranty time?
A: 1 Year.
4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.
5) Q: Do you give any discounts ? A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.
6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!
