50 тонн hdd Машина Портативный сверлильный станок портативный

Сохранить в закладки 1601248622718:


Цена:9 980,00-19 000,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики

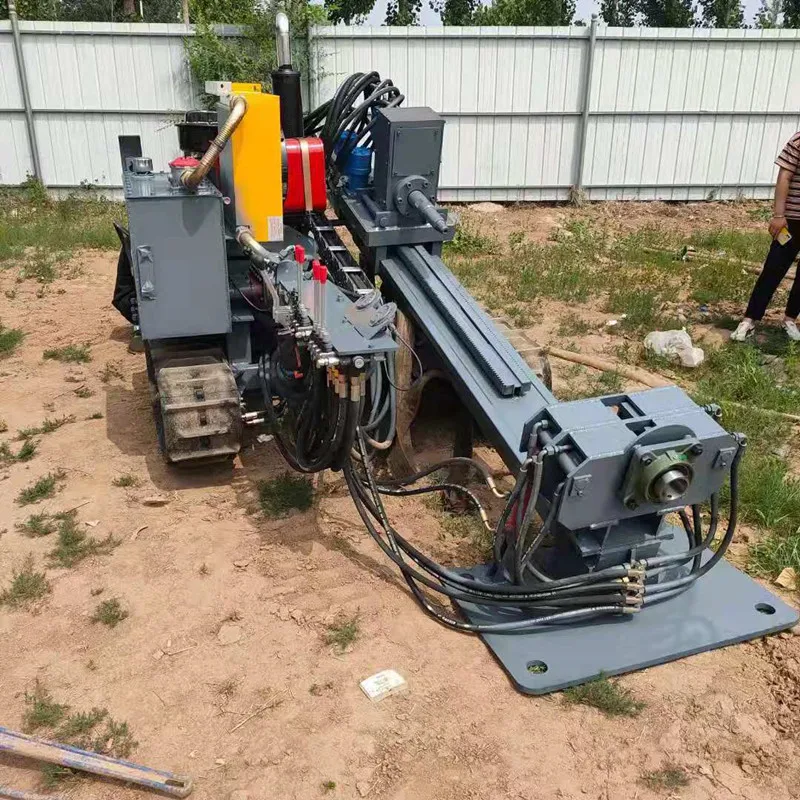

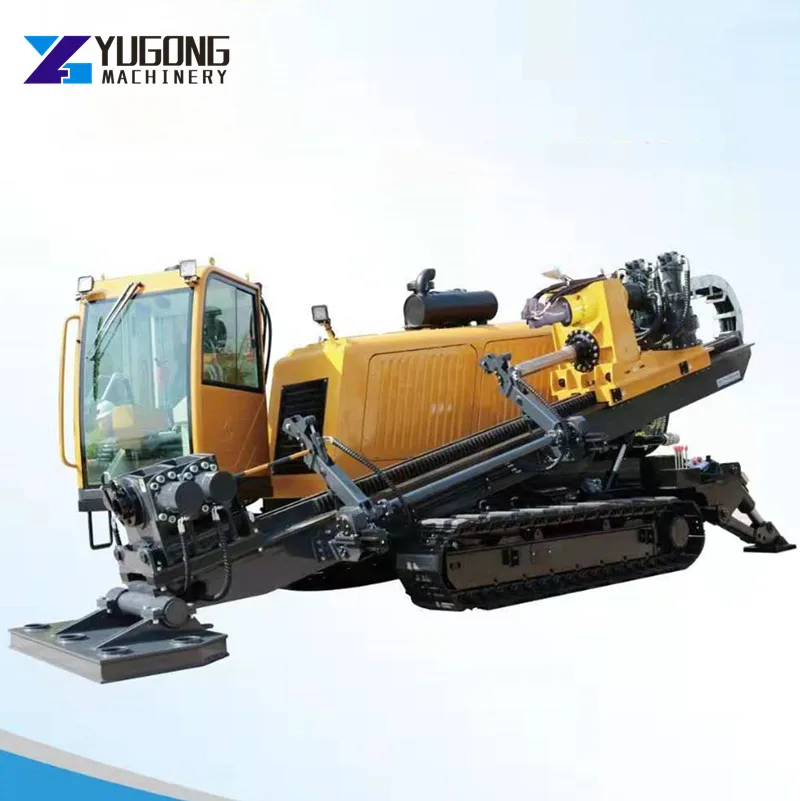

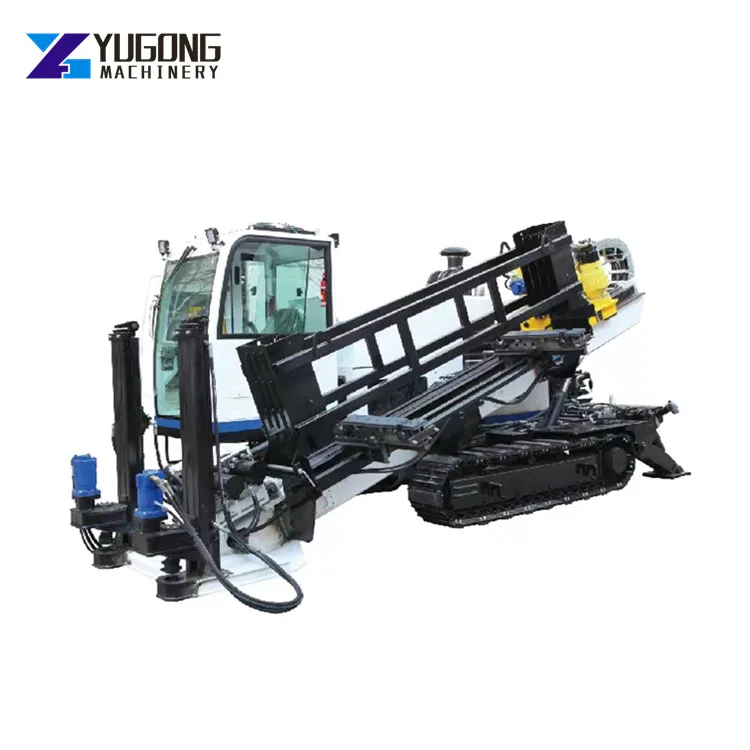

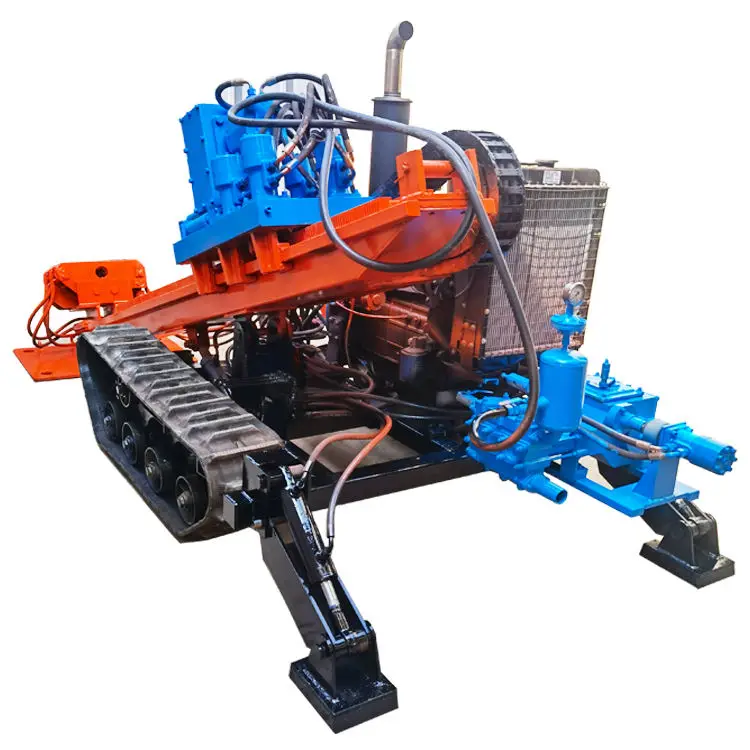

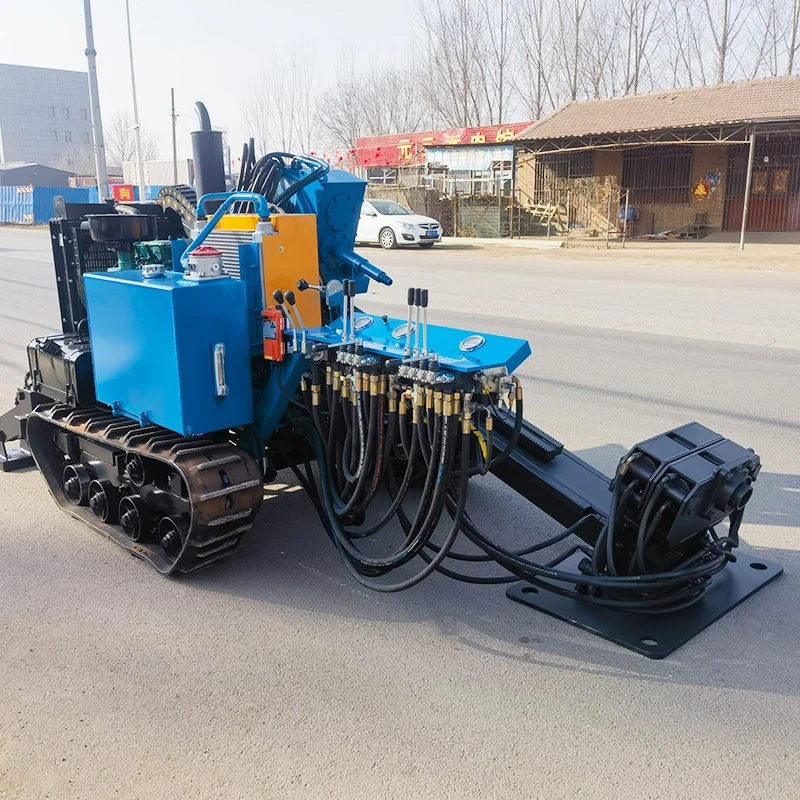

60t Underground Horizontal Direction Drilling Machine HDD Construction Rig Machine








Product Description








1.Do not obstruct traffic, do not damage the road.
2.High precision, can be turned, the depth can be adjusted at any time, and obstacles can be avoided.
3.City construction will pass three meters, and the river will reach 6-18 meters.
4.The project period is short, the construction personnel are less, it is safer and the cost is lower.










































Specification





























































































Model


YG-160A


YG-180


YG-280


YG-320


Engine rated power


100KW


97KW


160KW


140KW/160KW


Maxi. feed force


160/100KN


180KN


280KN


320KN


Maxi. torque


5000N.n


6000N.n


10000N.n


12000N.n


Power head speed


0-180r/min


0-140r/min


0-120r/min


0-140r/min


Moving speed of power head


30m/min


20m/min


20m/min


20m/min


Maxi. reaming hole diameter


Φ600mm


Φ600mm


Φ750mm


Φ800mm


Drill pipe diameter


Φ60mm


Φ60mm


Φ73mm


Φ73mm


Entry angle


10-23°


10-22°


10-23°


10-20°


Maximum mud flow


160L/min


250L/min


250L/min


320L/min


Overall quality


6700kg


8500kg


12500kg


11500kg


Dimensions


5.7*1.82*2.4m




6.4*2.27*2.34m


7.1*2.26*2.45m


7.1*2.26*2.45m
