Идеальный лазерный сварочный аппарат
216 871,80 ₽ - 487 961,55 ₽
Идеальный лазер Высокоточный мини Золотой Серебряный из нержавеющей стали небольшой лазерный сварочный паяльный станок для ювелирных изделий
- Категория: >>>
- Поставщик: Perfect Laser (wuhan) Co. Ltd.
Сохранить в закладки 1601248933897:
Описание и отзывы
Характеристики

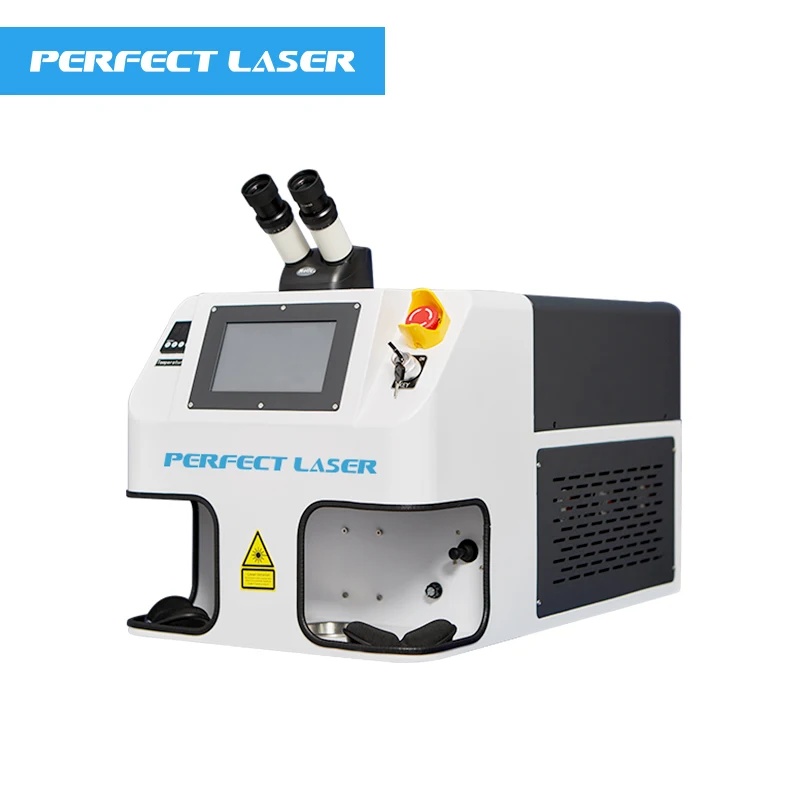

Perfect Laser - High Precision Mini Gold Silver Stainless Small Laser Jewelry Welding Laser Soldering Machine for Jewelry
(Model:PE-W100A)
Contact:Lucy Wechat/Whatsapp:+86136 5989 9108 Email : sales07(@)perfectlaser.net
Product Description
Perfect Laser’s PE-W100A is a new high-efficiency and high speed jewelry spot welding machine that can achieve various welding effects.
*Colorful HD CCD camera
*Compact design concept
*Easy to move
*Super light laser welder
Jewelry laser welder uses high energy laser pulse to heat the material in small areas locally.The energy of laser radiation diffuses to the interior of the material through heat conduction, melting the material and forming a specific melting pool.
This jewelry welder uses the world's very powerful automatic shading system, which eliminates the eye irritation during work time and reduces the sense of fatigue.
Due to its unique advantages, jewelry spot welding machine has been used in gold and silver jewelry processing and welding of micro and small part successfully .
*Compact design concept
*Easy to move
*Super light laser welder
Jewelry laser welder uses high energy laser pulse to heat the material in small areas locally.The energy of laser radiation diffuses to the interior of the material through heat conduction, melting the material and forming a specific melting pool.
This jewelry welder uses the world's very powerful automatic shading system, which eliminates the eye irritation during work time and reduces the sense of fatigue.
Due to its unique advantages, jewelry spot welding machine has been used in gold and silver jewelry processing and welding of micro and small part successfully .
Main Features:
1. The PE-W100A jewelry spot welding machine is very compact, can be put in desk, water chiller is integrated, plug to play.
2. Humanized design, ergonomic, long-time work without fatigue.
3. Small thermal impact area, high welding quality, welding joints pollution-free, high efficiency and environmental protection.
4. With a microscope and a CCD, double observation system, the CCD is built into the control screen, reducing the external space of the jewelry laser welder.
5. This jewelry spot welding machine adopts the British imported ceramic concentrating cavity, corrosion resistance, high temperature resistance, high photoelectric conversion efficiency, concentrating cavity life (8-10 years), xenon lamp life is more than 8 million times.
6. Energy, pulse width, frequency, and spot size can be adjusted in a large range to achieve a variety of welding effects.
7. This jewelry welder can weld narrow places, deep cavity repair welding, will not damage the surrounding walls.It does not deform the mold product or sink around the melting tank.
8. Special argon protection, the control system can freely adjust the inlet and exhaust time, the supplementary welding site and base material will not be oxidative burns.
2. Humanized design, ergonomic, long-time work without fatigue.
3. Small thermal impact area, high welding quality, welding joints pollution-free, high efficiency and environmental protection.
4. With a microscope and a CCD, double observation system, the CCD is built into the control screen, reducing the external space of the jewelry laser welder.
5. This jewelry spot welding machine adopts the British imported ceramic concentrating cavity, corrosion resistance, high temperature resistance, high photoelectric conversion efficiency, concentrating cavity life (8-10 years), xenon lamp life is more than 8 million times.
6. Energy, pulse width, frequency, and spot size can be adjusted in a large range to achieve a variety of welding effects.
7. This jewelry welder can weld narrow places, deep cavity repair welding, will not damage the surrounding walls.It does not deform the mold product or sink around the melting tank.
8. Special argon protection, the control system can freely adjust the inlet and exhaust time, the supplementary welding site and base material will not be oxidative burns.
Sample & Application
The jewelry spot welding machine mainly used for the punching and spot welding of gold and silver jewelry.
It can also be used in cold processing of high alloy steel, hot forging high alloy steel, nickel-containing tool steel, steel, copper alloy, brass, copper, high toughness aluminum and other advanced metal materials of welding alloy.
It can also be used in cold processing of high alloy steel, hot forging high alloy steel, nickel-containing tool steel, steel, copper alloy, brass, copper, high toughness aluminum and other advanced metal materials of welding alloy.
Machine Details
Specification
Model | PE-W100A | ||
Laser medium | Nd3+:YAG | ||
Laser Wavelength | 1.064 um | ||
The ratio of the expanding | 3X | ||
The focus length | 100mm | ||
Output power | 100W / 150W | ||
Pulse width | 0.2-15ms adjustable | ||
Pulse Repeated Frequency | 1-20Hz adjustable | ||
The biggest single pulse energy | 40J / 50J | ||
Running Environment | Temperature 5℃~30℃, humidity < 85%. | ||
Continuous Working Time | 24 hrs | ||
Continuous welding | - | ||
Water tank | integrated | ||
Ring light brightness adjustment | - | ||
Processing area manual focus knob | have | ||
Wheels | - | ||
Related Product
Packing & Delivery
Our service

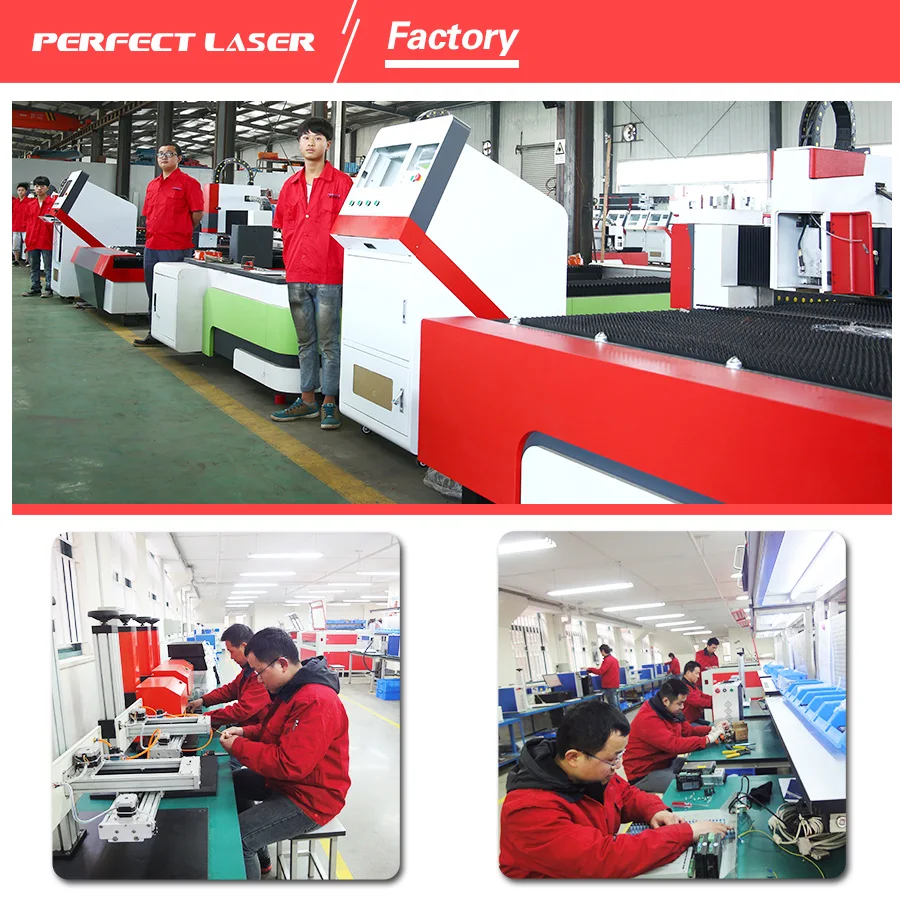

Company Profile
We, Perfect Laser, as a 21 years history industrial equipment manufacture in laser field, 13 year Golden Supplier in Alibaba, with CE/ISO certification, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Похожие товары

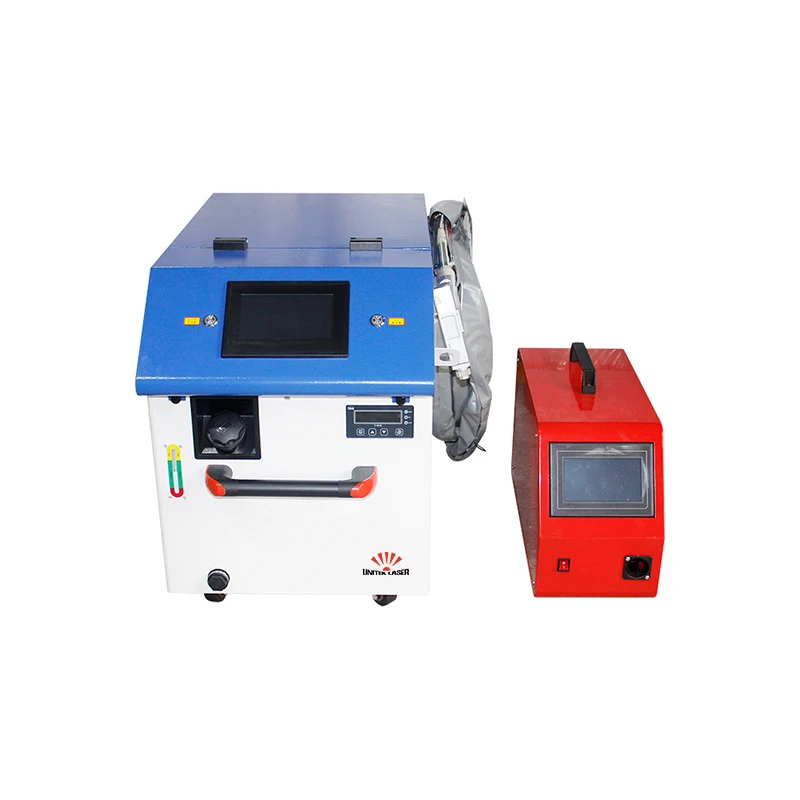

Esay, чтобы установить 2000 Вт 4 в 1 ручной непрерывный волоконно-лазерный сварочный аппарат с сертификатом CE по низкой цене

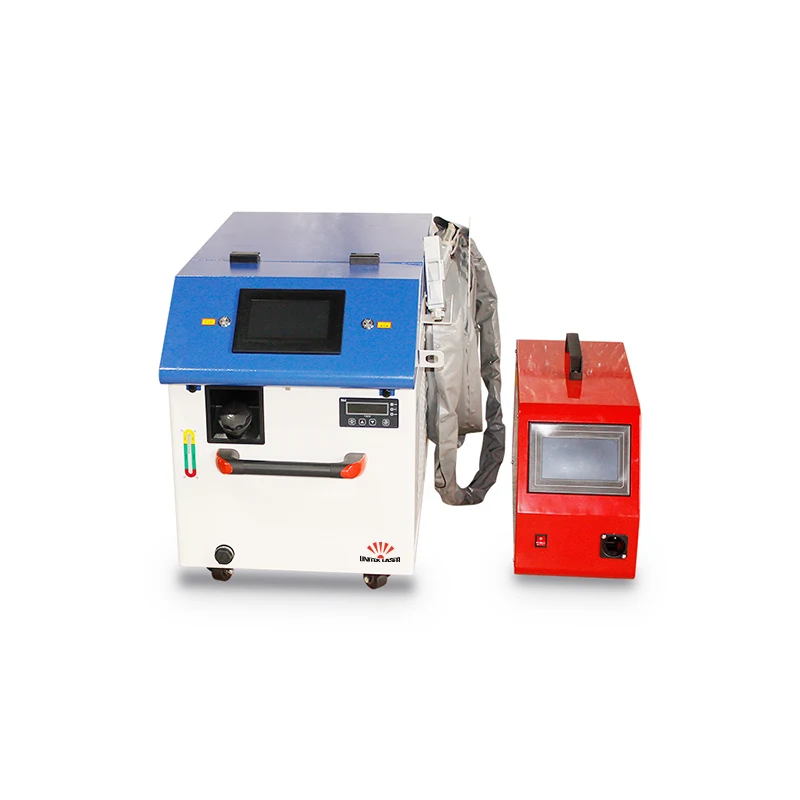

Простая в установке высокая потребность ручной волоконно-лазерная сварочная машина для очистки 4-в-1 с CE и хорошее обслуживание после продажи
4 в 1 лазерные сварщики волокна плесень лазерная сварочная машина
409 887,71 ₽ - 431 574,89 ₽

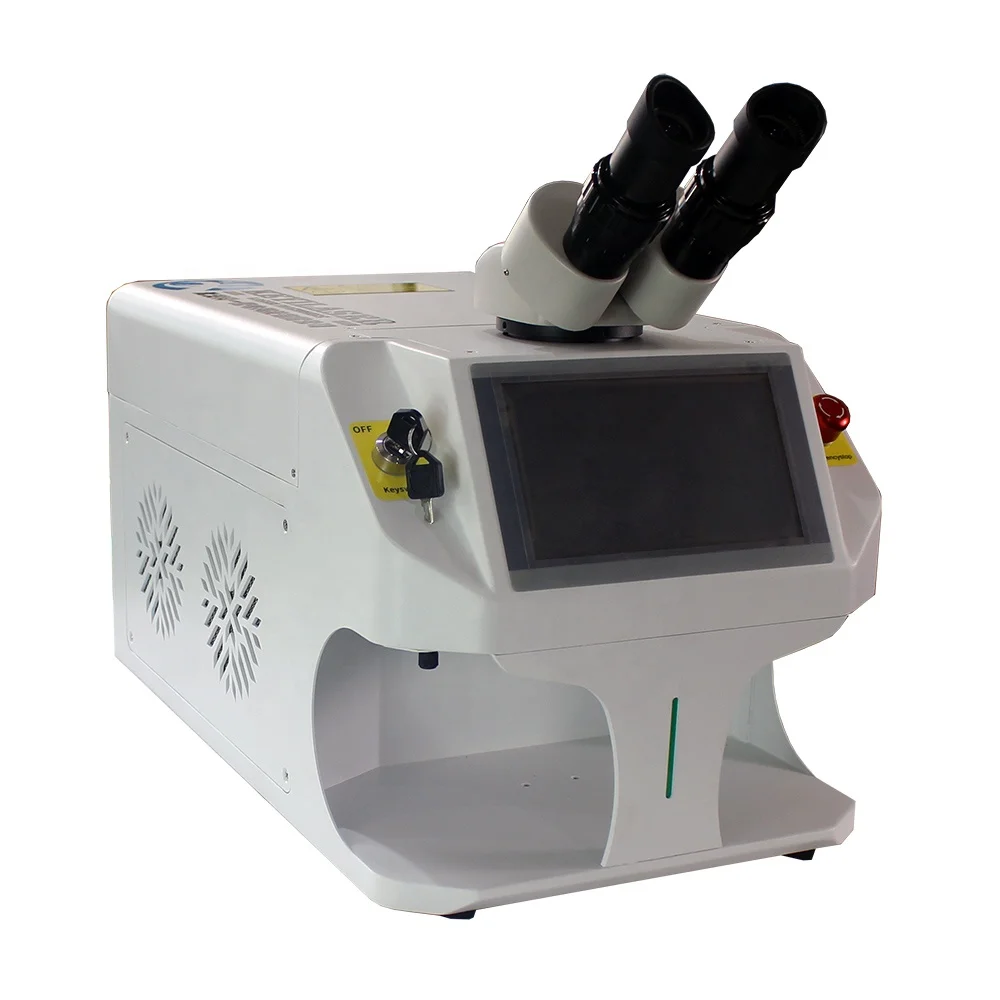

Настольный мини-сварочный аппарат для ювелирных изделий, портативный маленький лазерный сварочный аппарат для ювелирных изделий из нержавеющей стали, 100 Вт
336 151,29 ₽ - 357 838,47 ₽

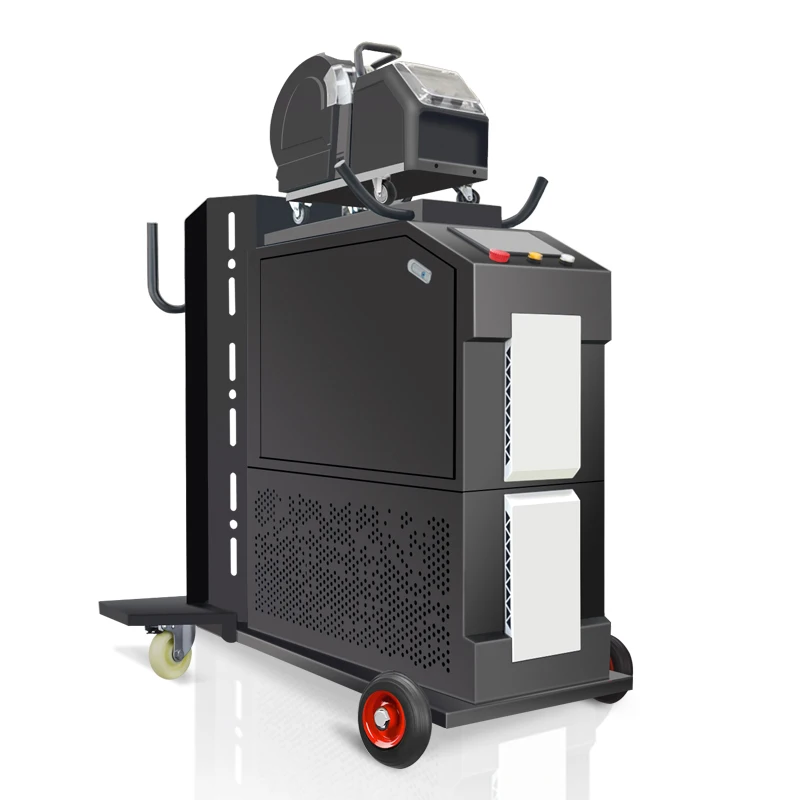

Прямая поставка с завода Ручной многофункциональный лазерный сварочный аппарат 1500 Вт 4 в 1 по заводской цене
