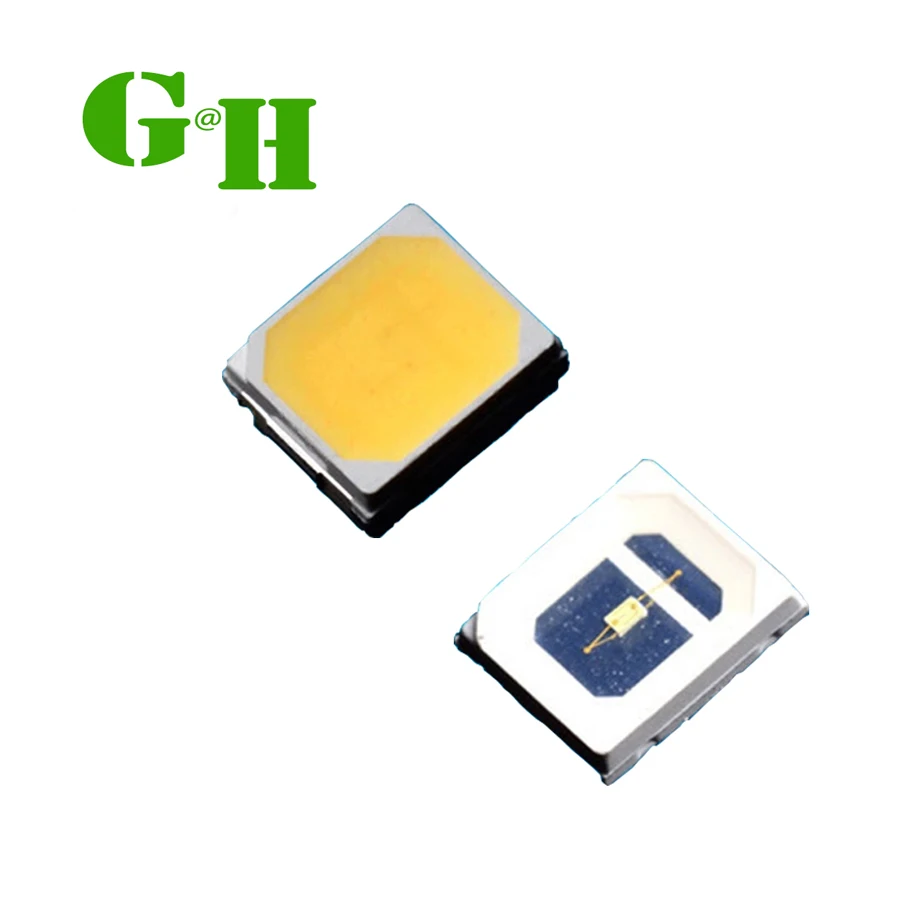

SMD 2835 Светодиодная белая Заводская розетка 0 5 Вт 75-85 лм RA CRI 80-90-95-98 3 В 150 мА высокая эффективность освещения
1,10 ₽ - 5,49 ₽
Прямая цена с завода RGB SMD 2835 Светодиодная лента для технической пайки SMD2835 5050 3535 Epistar светодиодный чип на заказ
- Категория: >>>
- Поставщик: Shenzhen Guanghaoming Technology Co. Ltd.
Сохранить в закладки 1601249006319:
Описание и отзывы
Характеристики
Products Description
Products Specifications
Guanghaoming manufacture the High Quality SMD LED, 2835 5730 3030 5050 available ,3V 6V 9V 18V 36V for choose, matching 0.1W 0.2W 0.5W 1W 2W high power,high lumens 24-34lm 45-55lm 65-70lm 110-120lm 120-130lm. At the same time support full spectrum and plant growth LEDs customized production.welcome to ask detail.

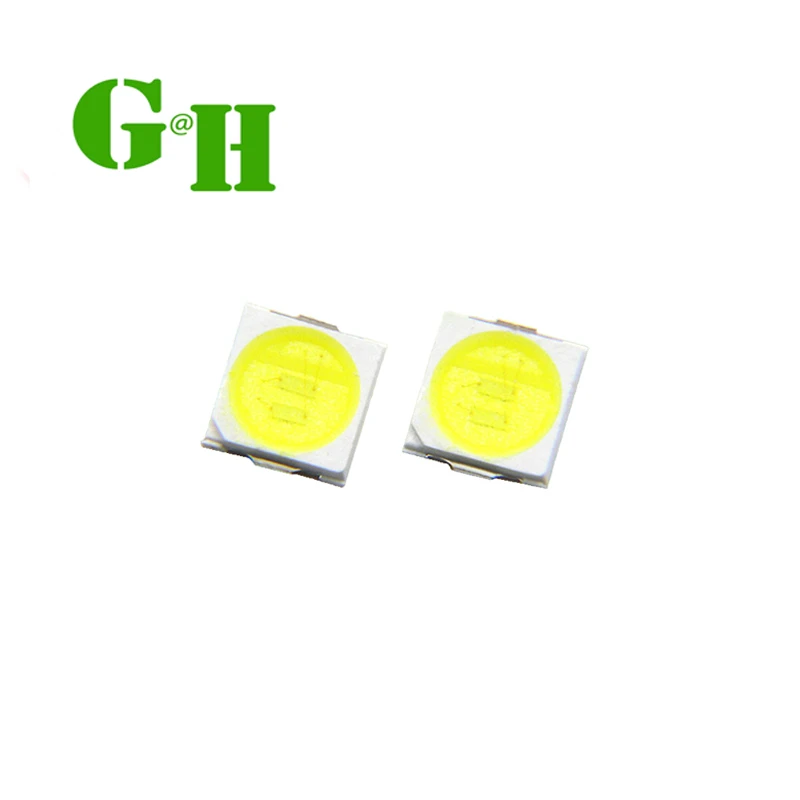

2835 smd high voltage 9V SMD LED Chip,0.5w high power led, 60ma 12*27mil chip size,60-70lm,Sanan chip. btw 1w also available.
2835 smd high voltage 9V SMD LED Chip,0.5w high power led, 60ma 12*27mil chip size,60-70lm,Sanan chip. btw 1w also available.
Model No. | GH-SMD02F3V-FC001 | Power | 0.2w |
Voltage | 2.0-3.4v | Current | 60mA |
Chip Brand | SANAN | Chip Size | 3*10*14mil |
Lifespan | 50000hours | Warranty | 3years |
Why Choose Us
Our Product Raw Material
GH LED smd 2835 use Epistar Sanan brand LED Chips, high lumen, strong anti-static ability, strong anti-attenuation ability, good consistency and not dead light.All chips by LM-80.
99.99%pure gold wire
JoBo brand Gold wire has the advantages of high conductivity, good thermal conductivity, corrosion resistance, good toughness and good chemical stability.
Glue
Dow Corning Glue imported from the United States, can be fixed in -65℃-338℃ environment for long-term use.Instant temperature resistance of 350℃.
Phosphors
Intematix phosphor has high brightness and zero light decay.High luminous efficiency YAG phosphors are characterized by their high luminous efficiency, good stability and consistency.
Copper Stick
Red copper bracket, because copper conductivity is very good, there will be a lead inside it, to connect the electrode inside the LED lamp bead, LED lamp bead packaging after forming, the lamp bead can be removed from the bracket, the copper foot on both ends of the lamp bead becomes the positive and negative pole of the lamp, used for welding to LED lamps or other LED products.
Electrical Optical Characteristics Testing And Color Reference
Each batch of Guanghaoming bead sample LEDs has passed high temperature, high humidity, cold and heat shock, aging test.
Color Reference
USA Energy Star IES LM-80 Color Reference Standard
Soldering Conditions
Soldering Conditions Number of reflow process shall be less than 2 times and cooling process to normal temperature is required
between first and Second soldering process.
between first and Second soldering process.
Cautions For Used
1)Static Electricity It is recommended that a wrist band or an anti-electrostatic glove be used when handling the LEDs.All devices,equipment and machinery must be properly grounded.Damaged LEDs will show some unusual characteristics such as the forward voltage becomes lower, or the LEDs do not light at the low current. Criteria : (VF > 2.0V at IF=0.5mA)
2)Moisture Proof Package It is recommended that moisture proof package be used .
3)Storage Before opening the package ,The LEDs should be kept at 30°C or less and 70%RH or less. The LEDs should be used within a year.
4)After opening the package, The LEDs should be soldered within 24 hours (1days) after opening the package
2)Moisture Proof Package It is recommended that moisture proof package be used .
3)Storage Before opening the package ,The LEDs should be kept at 30°C or less and 70%RH or less. The LEDs should be used within a year.
4)After opening the package, The LEDs should be soldered within 24 hours (1days) after opening the package
Application
Kown More Our Products
IC Driver And Electron Component
IC Driver electronic parts and components capacitance and resistance diode ect.
SMD LEDs Chip
SMD LEDs chips 2835 5050 5730 3030 3535 ,have make 250-1050nm wavelength light,UVC chips and Full spectrum plant light chip
COB LEDs Chip
COB LEDs Chips used strip Light And used different led lamps

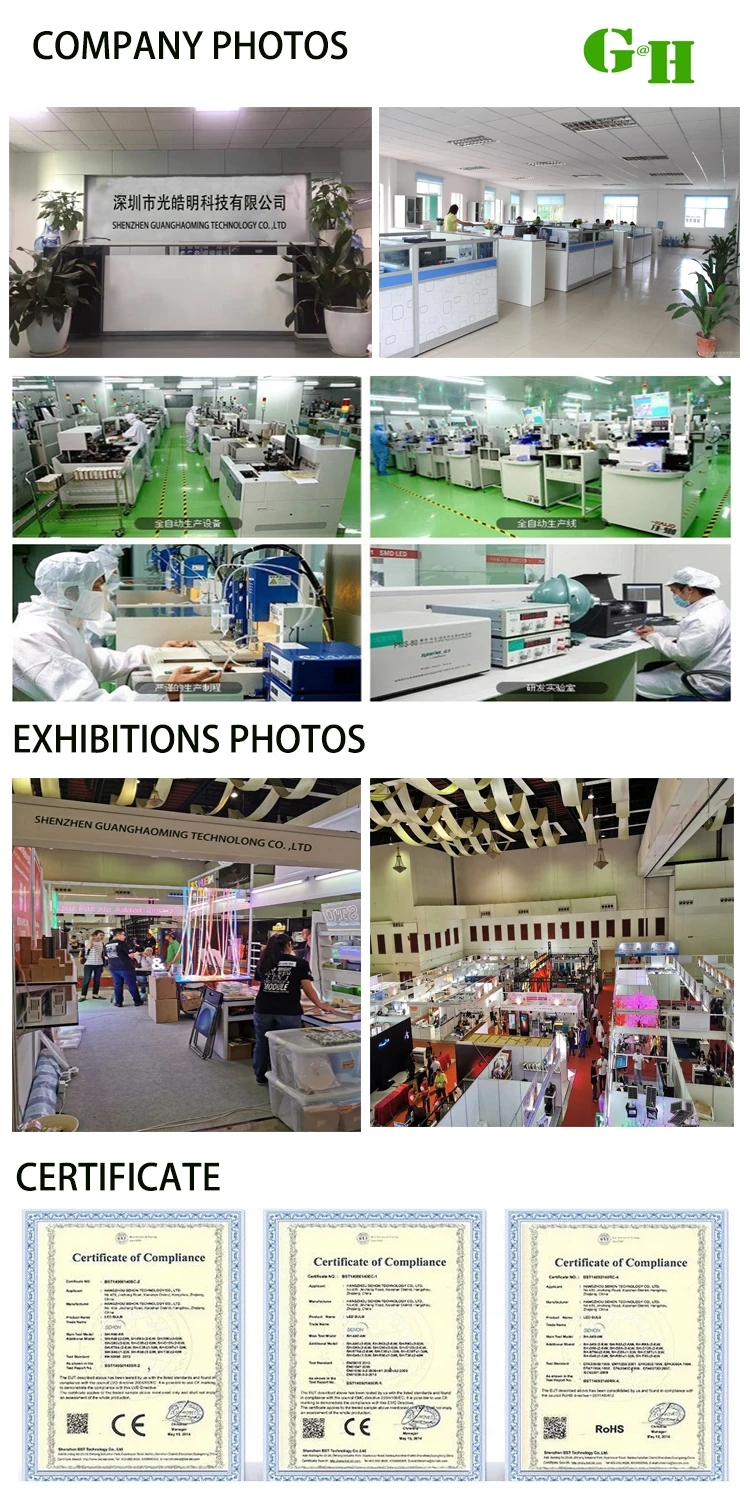

Compay Information
Shenzhen Guanghaoming Technology Co., Ltd
GH is a high-speed development company, concentrates on high quality and continual innovation..GH is a high-tech enterprise intergrating SMD LEDs Chips Light And SMD Driver IC R&D , production, technical support and after-sales service. GH has over 100 employees, includes 62 technical staffs. Workshop is approximately 3,000 square meters, yields a yearly capacity of 2,000,000 Kpcs products.The company holds ISO9001:2000 quality system, all products are compliant with SGS,CE, RoHS,LM-79,LM-80,EN62471. GH is devoting to provide energy saving and environmental friendly products to world-wide customers.
Certificate
The company holds ISO9001:2000 quality system, all products are compliant with UL TUV SGS,CE, RoHS,LM-79,LM-80,EN62471.
2019 Global Lighting Exhibition in Turkey
Turkey Global Lighting mainly showcases the matching and application of home commercial lighting and 5G smart era.
2018 Guangzhou Light Asia Exhibition
It mainly displays the perfect replacement of traditional lighting and modern lighting, as well as the development direction of the new generation of purple light and UVC lamp beads.
Packing & Shipping
Packing

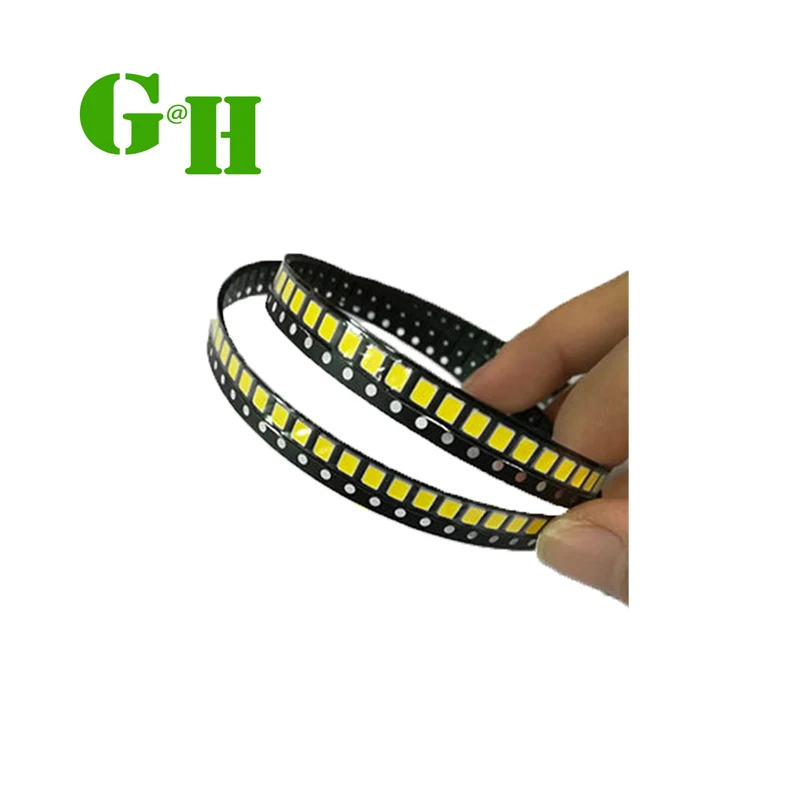

4000 piece/reel in an anti-static foiled bag. Or 16000 piece/reel in an anti-static foiled bag.
Carton Size:L240*W210*H90mm / 32Kpcs 1.5KG
Carton Size:L240*W210*H180mm / 68Kpcs 3KG
Carton Size:L390*W385*H270mm / 320Kpcs 13KG
Carton Size:L240*W210*H90mm / 32Kpcs 1.5KG
Carton Size:L240*W210*H180mm / 68Kpcs 3KG
Carton Size:L390*W385*H270mm / 320Kpcs 13KG
Shipping and payment
1. Payment: T/T, Western Union, Paypal,Alibab Pay.
2. Production lead time:5-7 working days.
3. Sample can be delivered in 3-5 days.
4. Shipping freight are quoted under your requests.
5. Shipping port: Shenzhen or Guangzhou Mainland China.
6. Discounts are offered based on other quantities.
2. Production lead time:5-7 working days.
3. Sample can be delivered in 3-5 days.
4. Shipping freight are quoted under your requests.
5. Shipping port: Shenzhen or Guangzhou Mainland China.
6. Discounts are offered based on other quantities.
FAQ
Delivery time:
1. Samples: 3-7 working days;
2. Bulk order: 7-15 working days.
3.We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive or by sea which takes about one month to arrive , depending on your actual requirements.
1. Samples: 3-7 working days;
2. Bulk order: 7-15 working days.
3.We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive or by sea which takes about one month to arrive , depending on your actual requirements.
Warranty:
2-3 years warranty
2-3 years warranty
Shipping Method:
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery;
2. By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery;
3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not urgent goods can choose this way.
4. Your shipping agent or forwarder.
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery;
2. By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery;
3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not urgent goods can choose this way.
4. Your shipping agent or forwarder.
After-Sale Service:
1. Quick reply on customers'questions;
2. If anything goes wrong with the products'quality, we will replace for you free and undertake the shipping cost.
3. Make you a happy ordering. Quality Control: 100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its;temperature after 24 hours’ lighting.Then after it is cool we again test 100% of the lamps to see if it still work well;Each lamp should pass all these QC procedures before shipping to customer.
1. Quick reply on customers'questions;
2. If anything goes wrong with the products'quality, we will replace for you free and undertake the shipping cost.
3. Make you a happy ordering. Quality Control: 100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its;temperature after 24 hours’ lighting.Then after it is cool we again test 100% of the lamps to see if it still work well;Each lamp should pass all these QC procedures before shipping to customer.
Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language;
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do OEM projects.
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language;
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do OEM projects.
Contact Information
