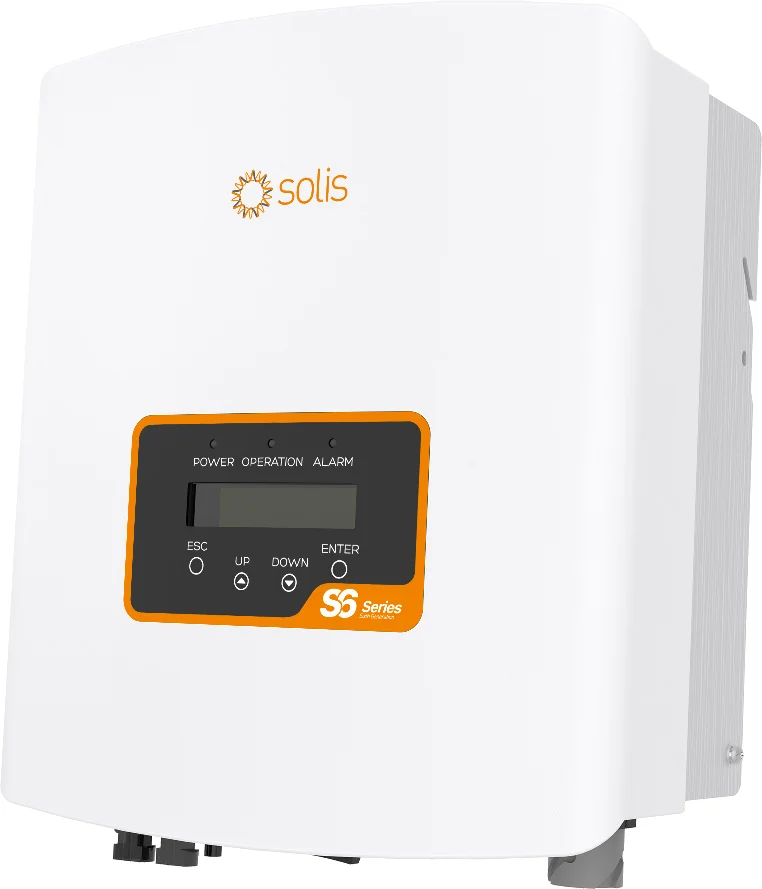

Solis однофазные сетчатые инверторы S6-GR1P (0 7-3 6) K-M S6-GR1P1K-M солнечные
24 182,20 ₽ - 28 508,37 ₽

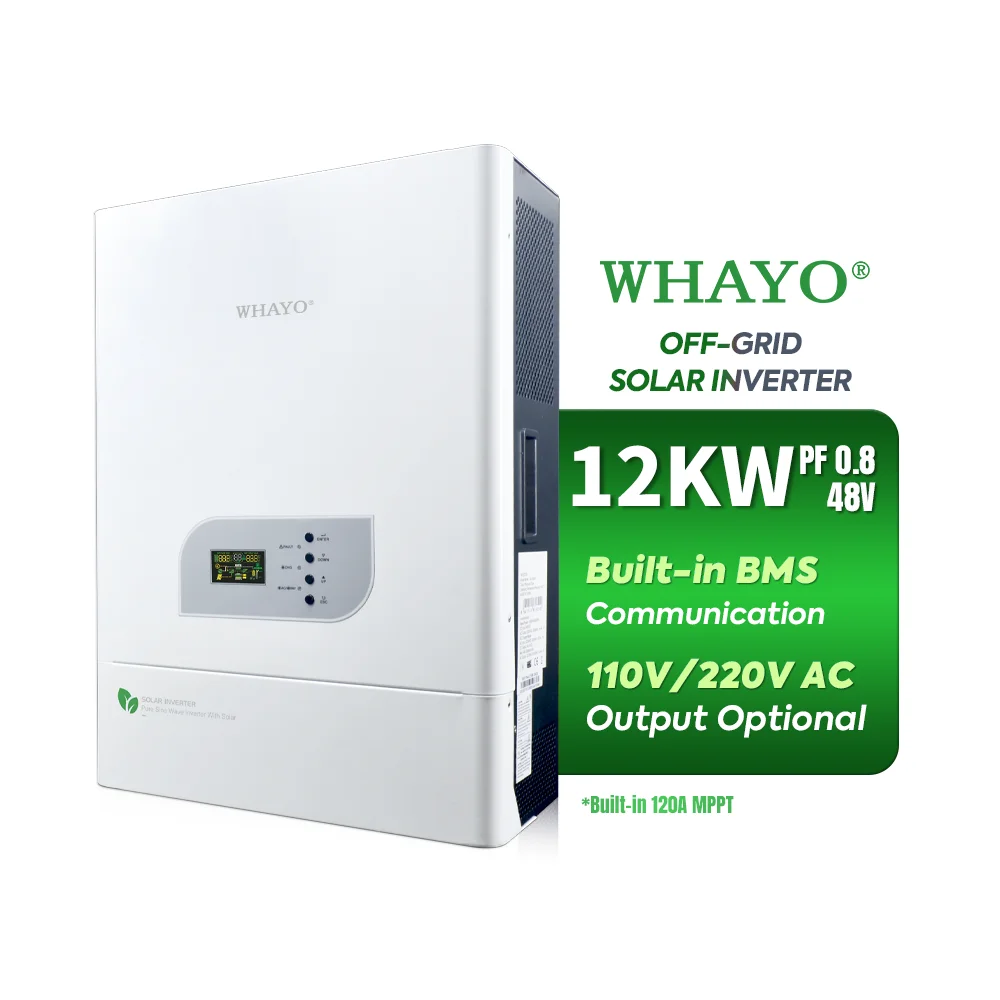

Whayo 6 3 кВт 8 10 12 автономный инвертор с контроллером зарядки MPPT для отечественных систем солнечной и ветровой энергии
- Категория: >>>
- Поставщик: Whayo Energy Technology Co. Ltd.
Сохранить в закладки 1601249203424:
Описание и отзывы
Характеристики
Products Description

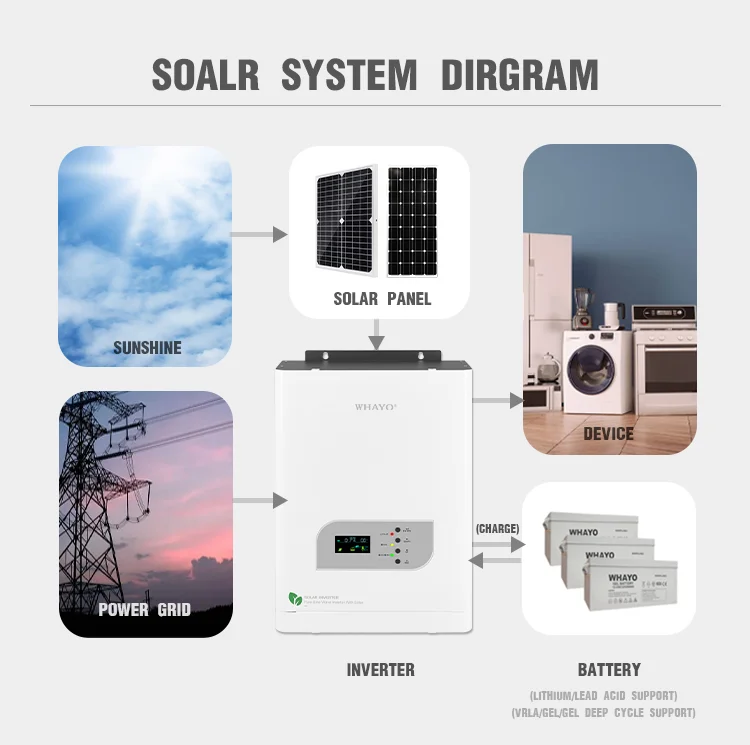

The VS series multi-function inverter/charger is a compact device that combines the functions of an inverter, MPPT solar charger,and battery charger to provide uninterrupted power support.
At the same time, this inverter supports different types of batteries such as lead-acid and lithium-ion.
With its user-friendly LCD display, users can easily configure settings such as battery charging current, AC/solar charger
priority, and acceptable input voltage for various applications.
According to your needs, please feel free to contact us and know about other possible system architectures.

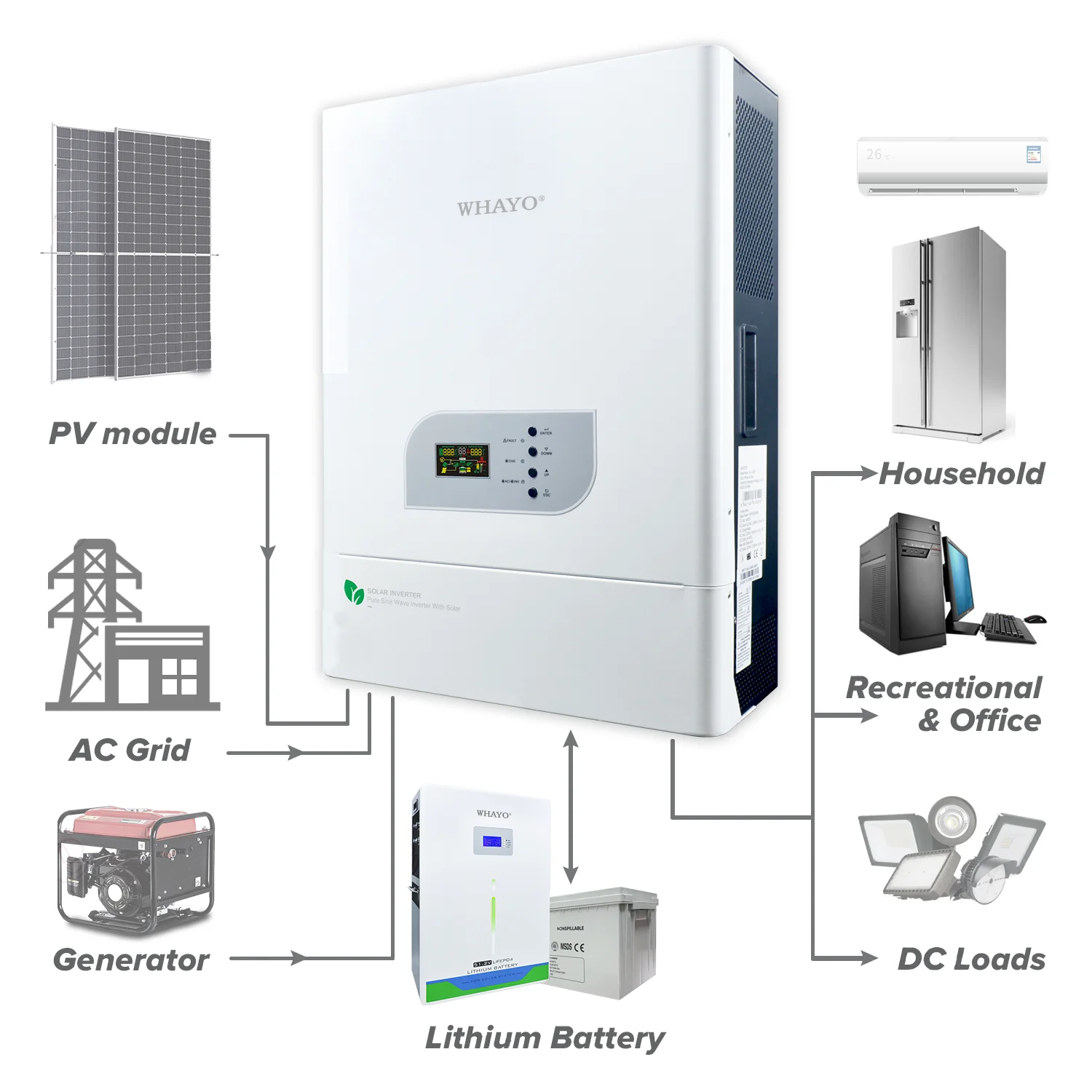

This inverter can power various electrical appliances in home or office environments, including light tubes, fans, refrigerators,air conditioners, and other motor-type appliances.
Specifications
Model | VS3024/48 M6 | VS4024/48 M6 | VS5024/48 M6 | VS6048 M8 | VS8048 M8 | VS10048 M8 | VS12548 M8 | ||||||
AC Input voltage | 220VAC(standard) | ||||||||||||
Input voltage range | 154-264VAC±3V(Nor Model)185-264VAC±3V(UPS model) 175-285VAC±3V(AVR Type) | ||||||||||||
Input frequency | 50/60Hz±5% | ||||||||||||
Out put power | 3000VA 2400W | 4000VA 3200W | 5000VA 4000W | 6000VA 4800W | 8000VA 6400W | 10000VA 8000W | 12500VA 10000W | ||||||
AC model output Voltage | The output voltage under the mains is the same as the input voltage(with AVR function 220V±10%) | ||||||||||||
Battery model output frequency | The output frequency under the mains is the same as the input frequency | ||||||||||||
Battery model output voltage | 220VAC±10% | ||||||||||||
Battery model output frequency | 50HZ or 60HZ±1% | ||||||||||||
Battery model output wave | Pure sine wave | ||||||||||||
Battery type | External lead-acid battery,Gel battery, water battery or Lithium battery | ||||||||||||
Battery voltage | 24/48VDC | 48VDC | |||||||||||
Battery charging voltage | 27/54VDC | 54VDC | |||||||||||
Maximum PV array power | 24V:1600W 48V:3200W | 6400W | |||||||||||
Solar input voltage range | 24V: MPPT 30V-150VDC 48V: MPPT 60V-150VDC | 48V: MPPT 60V-150VDC | |||||||||||
Maximum PV Display Open Circuit Voltage | 150VDC | 150VDC | |||||||||||
Maximum solar charging current | 60A | 120A | |||||||||||
Maximum AC Charge Current | 29A/15A | 35A/20A | 48A/24A | 29A | 38A | 48A | 60A | ||||||
Battery charging voltage range | 154-280VAC | ||||||||||||
load peak ratio | (MAX)3:1 | ||||||||||||
Operating temperature | 0℃~40℃ | ||||||||||||
Storage temperature | -15℃~45℃ | ||||||||||||
Relative temperature | -10℃~90℃ no condensation | ||||||||||||
Noise | ＜45dB | ||||||||||||
Company Profiles
Whayo Energy Technology Co., Ltd. is a leading enterprise specializing in the research, development, sales, and service of solar panels, solar inverters, solar batteries, solar systems, and energy storage systems. Established in 2008 and located in Hefei , Anhui Province, China, our company boasts a high-quality R&D and management team, along with advanced production and testing equipment.
With a commitment to providing high-quality energy storage products and services to global customers, we have developed a number of independently patented core technologies. These technologies include preparation methods for key materials such as lithium-ion battery cathode materials, anode materials, electrolytes, separators, and lithium-ion battery pack management systems, supercapacitor energy storage systems, fuel cell storage systems, and other core technologies. These offer significant advantages in improving energy storage product performance, reducing costs, and extending service life, laying a solid technical foundation for our company's sustainable development.
Our experienced staff are dedicated to strict quality control and thoughtful customer service, ensuring complete customer satisfaction. We have obtained CE, TUV, and ISO9001 ,ISO14001 certificates, and our products are sold nationwide and exported to customers in Europe, America, Asia, etc. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, our Customer Service Center is ready to discuss your purchasing requirements. Choose Whayo Energy Technology for innovative and reliable energy storage solutions.
Certifications
FAQ
Q: Are you a factory or trading company?
A: We are a professional manufacturer with our own factory and brand. We provide various OEM/ODM services to customers allover the world.
Q: Does the shipping way to our country include tax?
A: It depends on the country and the shipping way you choose. Most Asian countries, most European countries, the United States,and Canada have tax-included shipping channels if needed.
Q: How to proceed with an order?
A: Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly, customer confirms the samples and places a deposit for formal order. Finally, we arrange the
production and then delivery.
Q: What is your package like? Can I have a customized package?
A: We have the factory's current standard packaging, the customized printed logo should meet the buyer's requirements, theadditional cost will be borne by the buyer, please contact us for more details.
Q: Can we visit your factory before placing an order?
A: Of course there is no problem. We welcome you to visit the factory at any time.
A: We are a professional manufacturer with our own factory and brand. We provide various OEM/ODM services to customers allover the world.
Q: Does the shipping way to our country include tax?
A: It depends on the country and the shipping way you choose. Most Asian countries, most European countries, the United States,and Canada have tax-included shipping channels if needed.
Q: How to proceed with an order?
A: Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly, customer confirms the samples and places a deposit for formal order. Finally, we arrange the
production and then delivery.
Q: What is your package like? Can I have a customized package?
A: We have the factory's current standard packaging, the customized printed logo should meet the buyer's requirements, theadditional cost will be borne by the buyer, please contact us for more details.
Q: Can we visit your factory before placing an order?
A: Of course there is no problem. We welcome you to visit the factory at any time.
Похожие товары

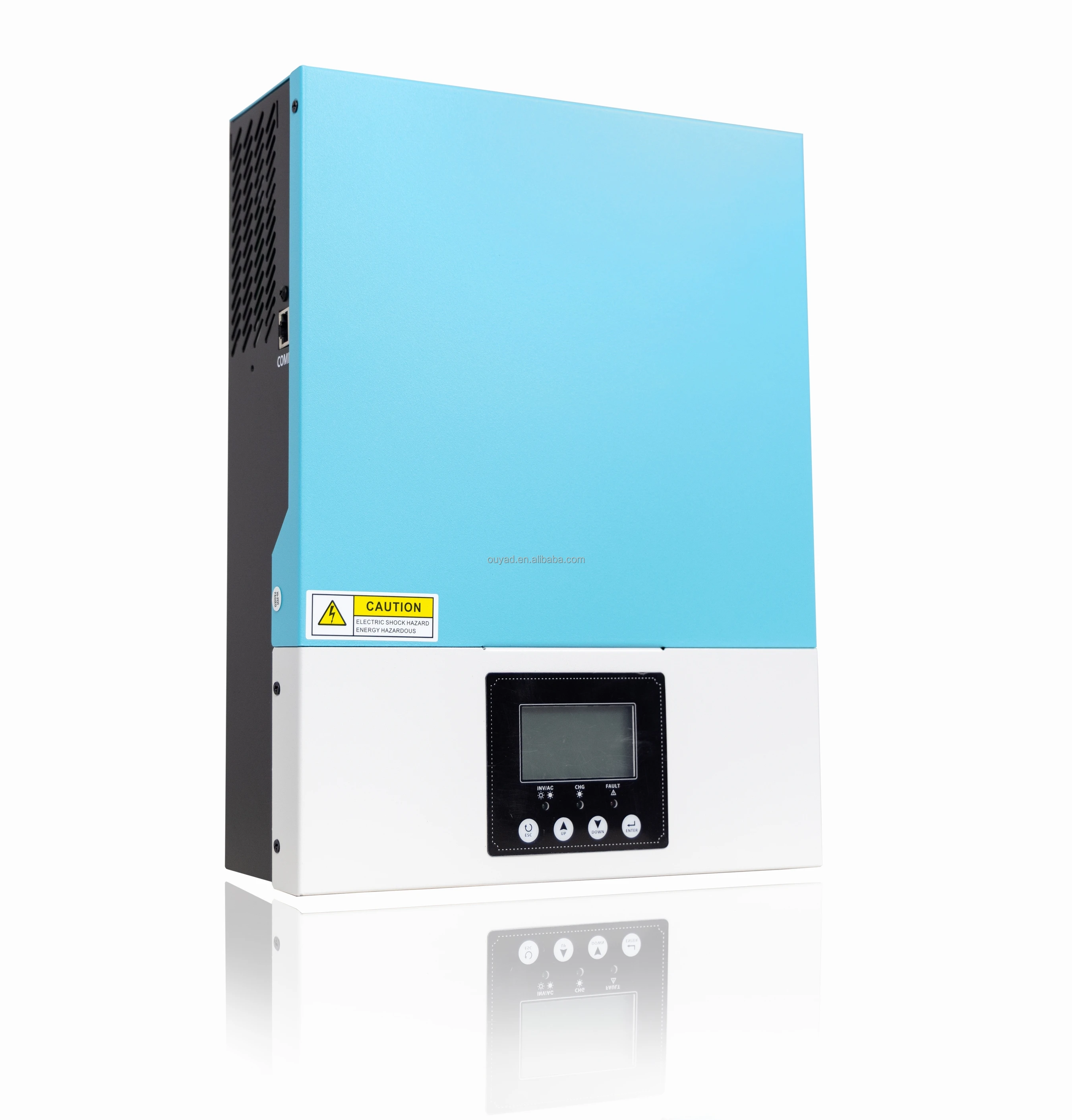

HY3032MN-L 3000 Вт mppt 80A с широким PV входом 24V Инвертор 50 60 Гц OEM волна чистая солнечная энергетическая система 220v
16 084,49 ₽ - 16 639,13 ₽

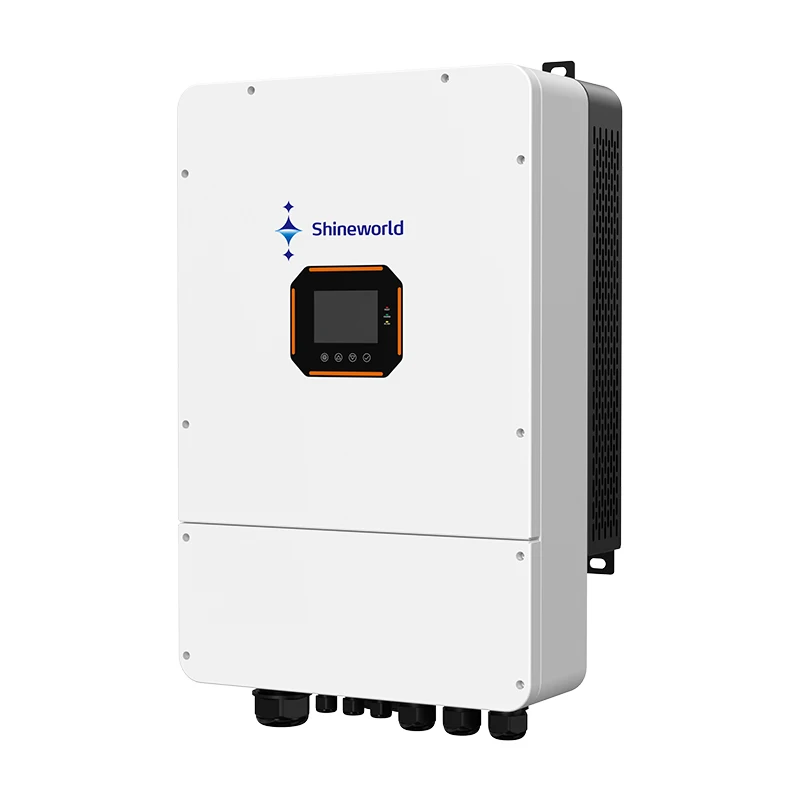

Гибридный солнечный инвертор Shineworld 5 кВА MPPT 450Vdc PV вход 220 В 48 кВт
44 260,08 ₽ - 53 910,77 ₽

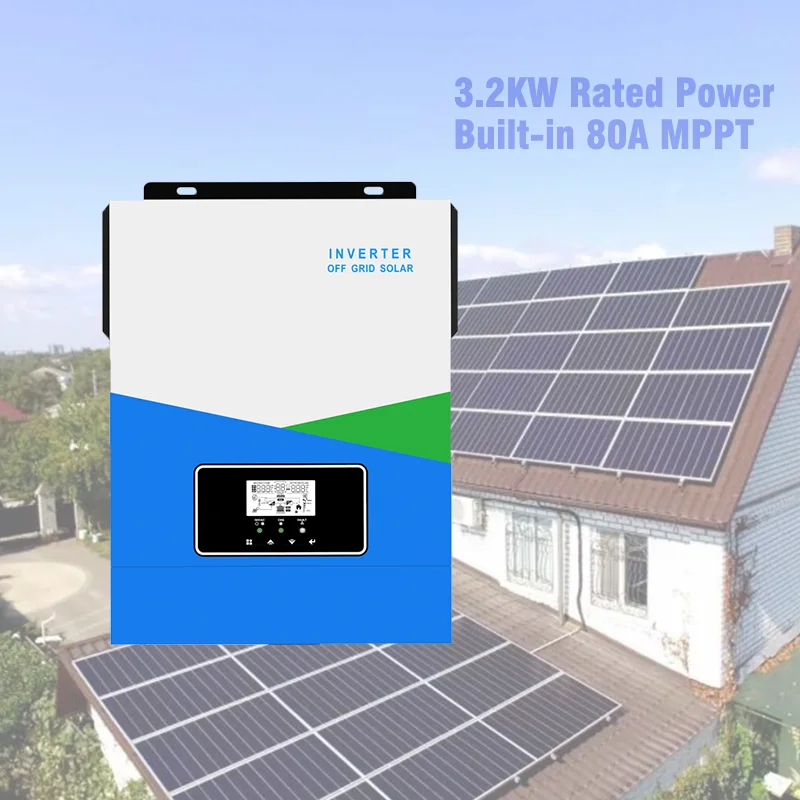

HMX 3.2KW выключенный Инвертор 24 В Wi-Fi удаленный мониторинг совместим с аккумулятором lifepo4 И Гелевой батареей

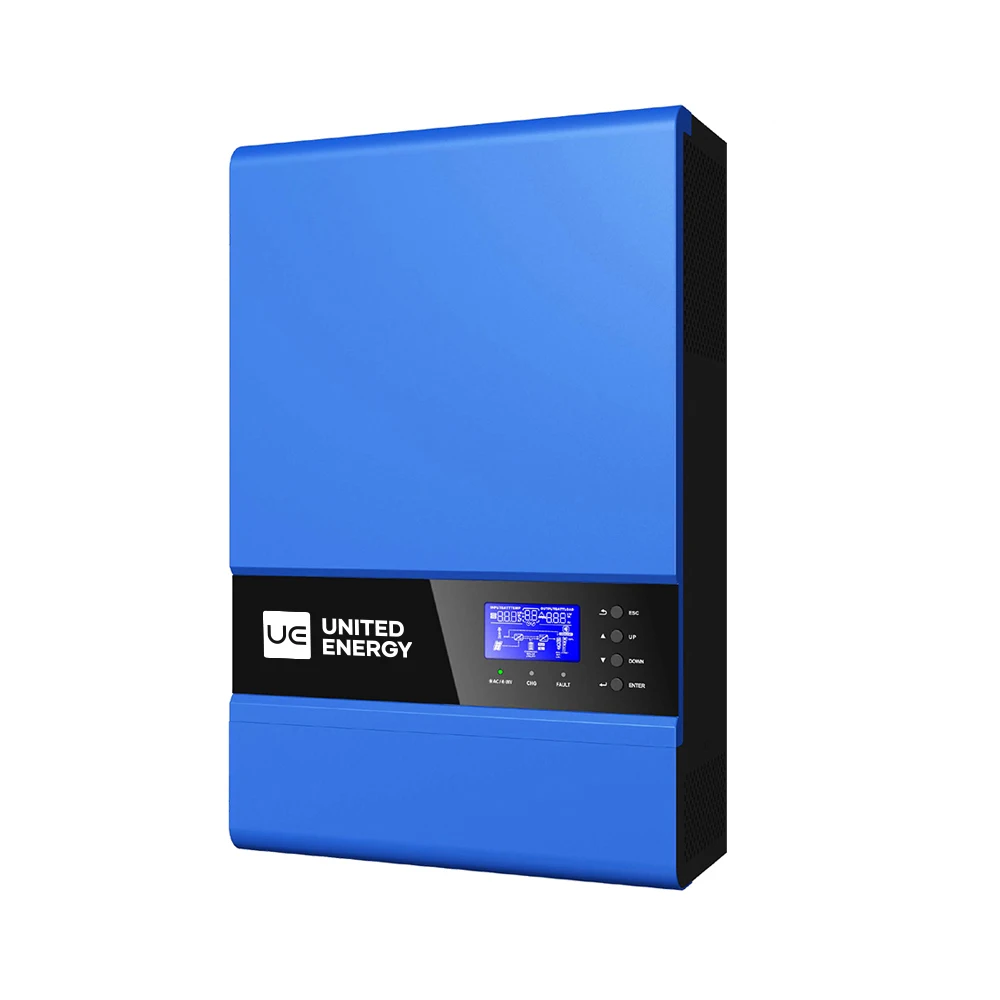

120VAC выключенный 3 5 кВт гибридный MPPT 100A контроллер солнечного заряда без батареи Wi-Fi монитор солнечный инвертор
36 092,49 ₽ - 40 843,51 ₽

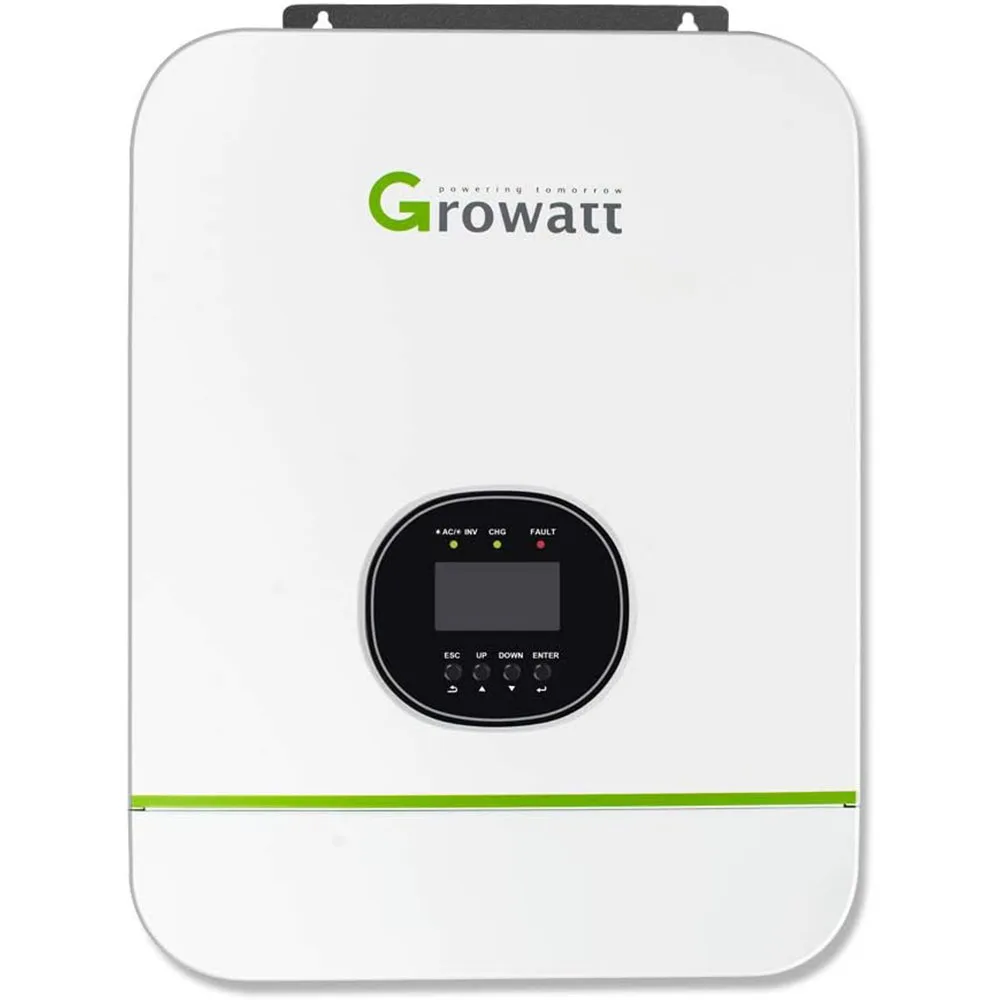

Off-Growatt 24V 48V 3000W 5000W однофазный SPF 3000TL LVM-48P Солнечный инвертор
27 731,88 ₽ - 33 278,25 ₽
Высокочастотный Mppt автономный солнечный инвертор 48 в 3 кВт 3000 Вт 5 5000 наличии ЕС
33 167,33 ₽ - 66 445,58 ₽

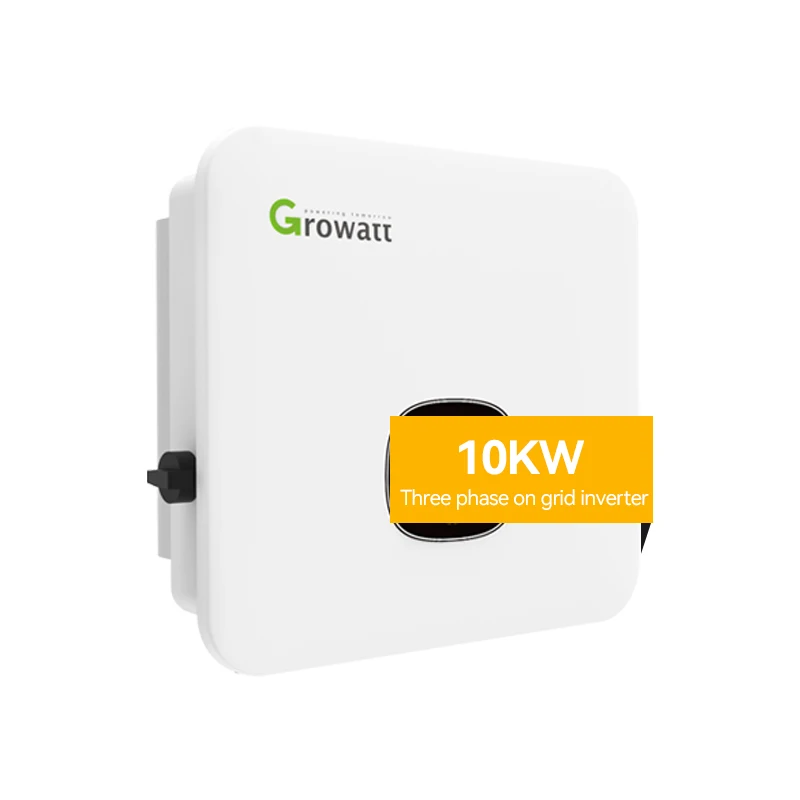

MOD 10KTL3-X инвертор для мониторинга на сетке 10kw солнечной системы
