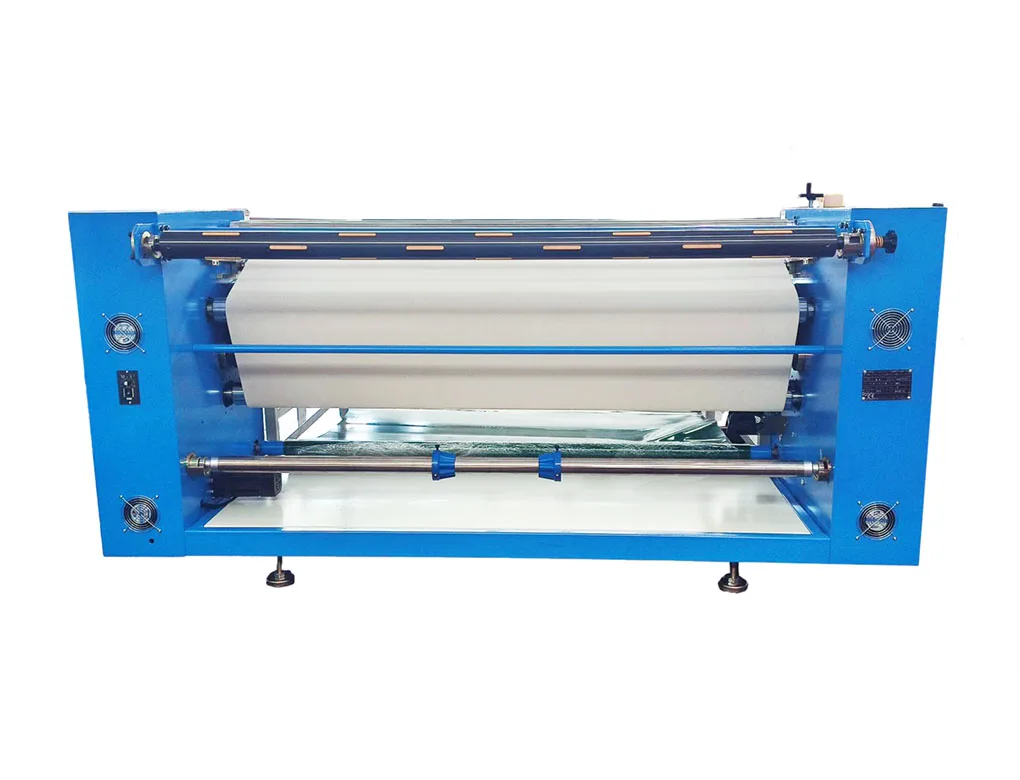

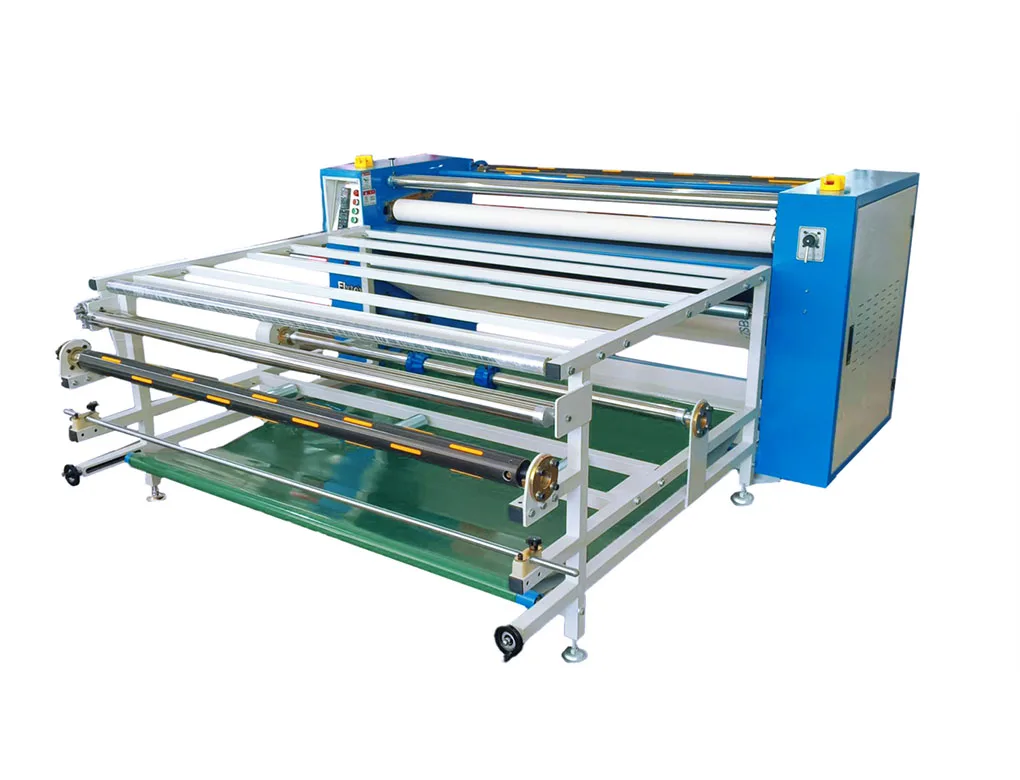

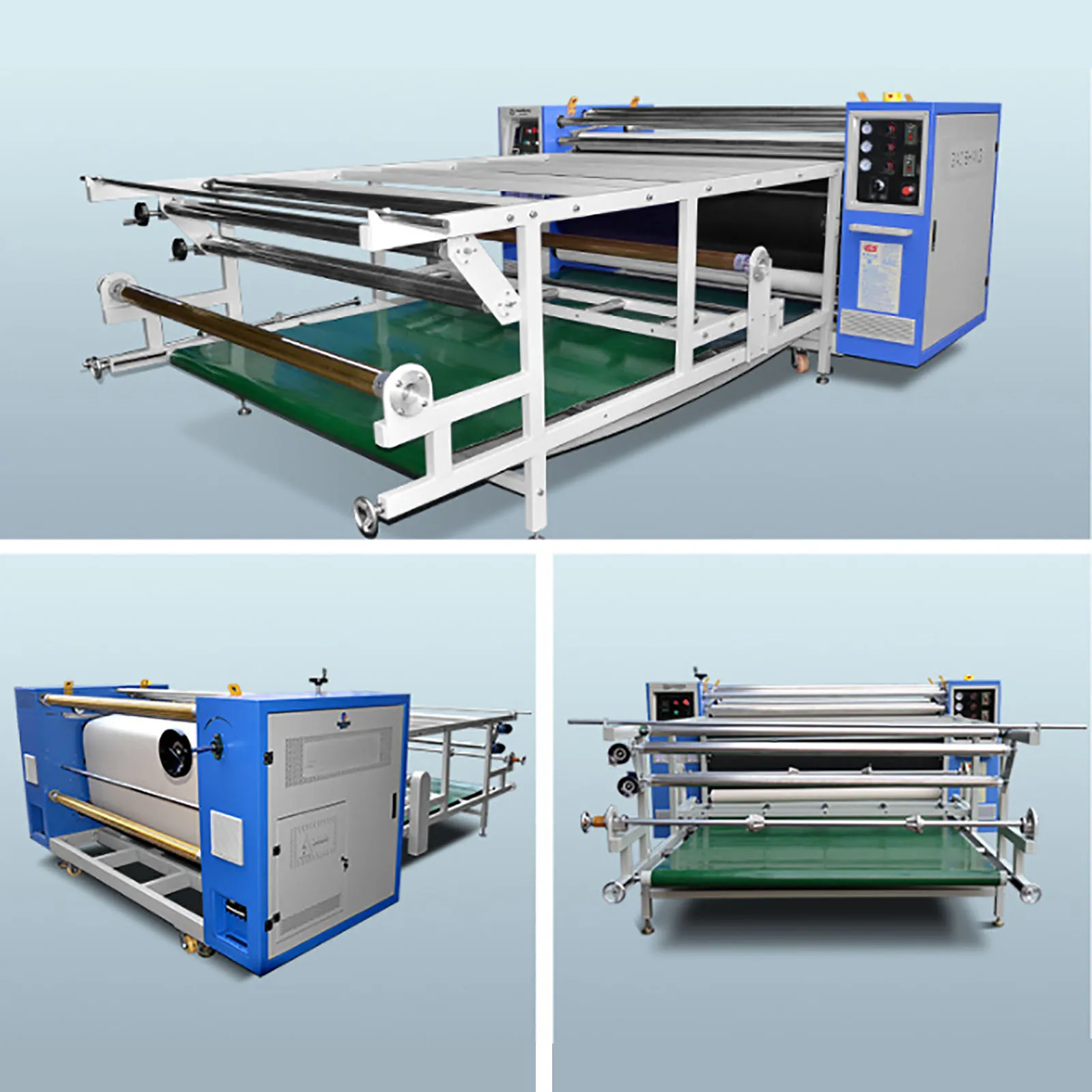

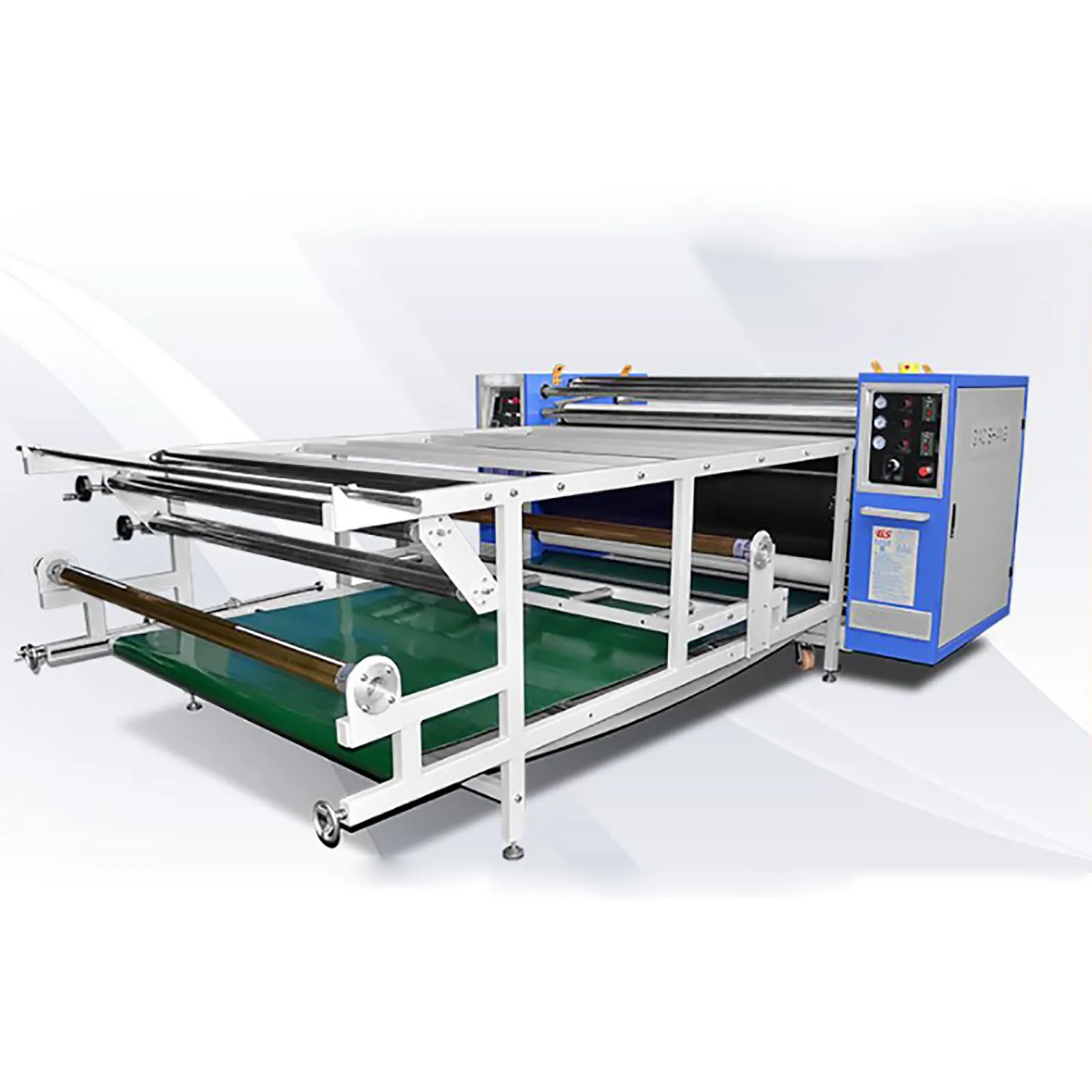

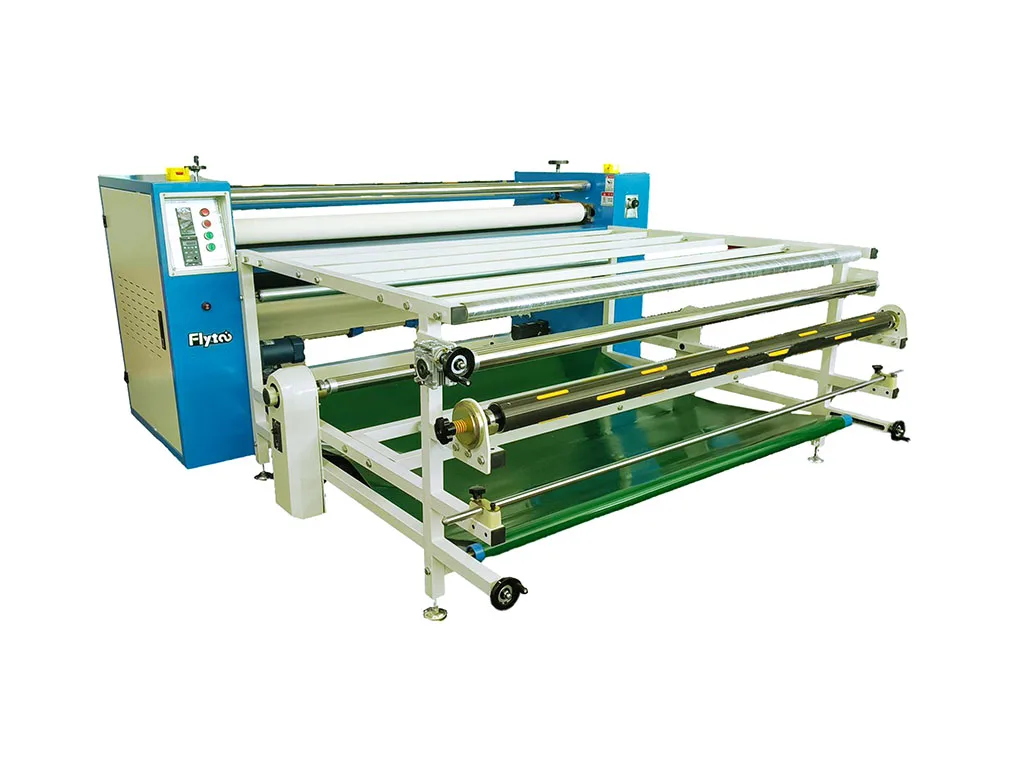

1700*600 мм многоцелевой роликовый теплообменник для футболок чехла телефона теплопередающей машины

Описание и отзывы

Характеристики

Model flytoo-ft-1700b-420mm flytoo-ft-1700b-600mm
Max working area 1700mm 1700mm
Drum diameter 420mm 600mm
Working speed 110-140m/ hours 140-220m/ hours
Oil heating mode
Power of the machine 24kw 48kw
Temperature Max 0- 399℃ 0- 399℃
Triphasic electrical requirement 220/380v ac 50hz triphasic electrical requirement 220/380v ac 50hz
Heating pipe 12 pz 24 pz
Working table/length 2650mm 3350mm
Packaging (LXWXH)-mm/ weight 2750x1100x1480mm /1780kg 269x124x172cm /1900kg
Glass size (l * w * h) XXXX 1895*1000*10mm * 2pza

This machine applies to large banners, flags, non-woven fabrics, apparel fabrics, towels, blankets, mouse pads and other products for sublimation transfer, especially continuous transfer printing for bales of cloth.

Features:
1. This machine adopts the carpet produced by "Shanghai joint venture factory" with United States imported dupont materials, thickness of 10mm,transfer effect is good and it can be used for long time.
2. The roller adopt 100% seamless roller,the outer roller is dealt with precision work, and then plated teflon, to ensure consistent temperature of each point. You can choose single cylinder or double cylinder. Double cylinder can heat more elasticity, chromatism, saving the power 20%-30%. Taiwan stainless steel heating pipe heat reservoir directly, reaching 200℃ within 45 minutes.
3. The side plate of machine adopts the thickness of 10mm stainless steel plates which is dealt with laser cutting.
4. Each tune off-axis is dealt with precision work and then plated platinum, error control is less than 2 u, so that the carpet does not go astray in normal conditions.

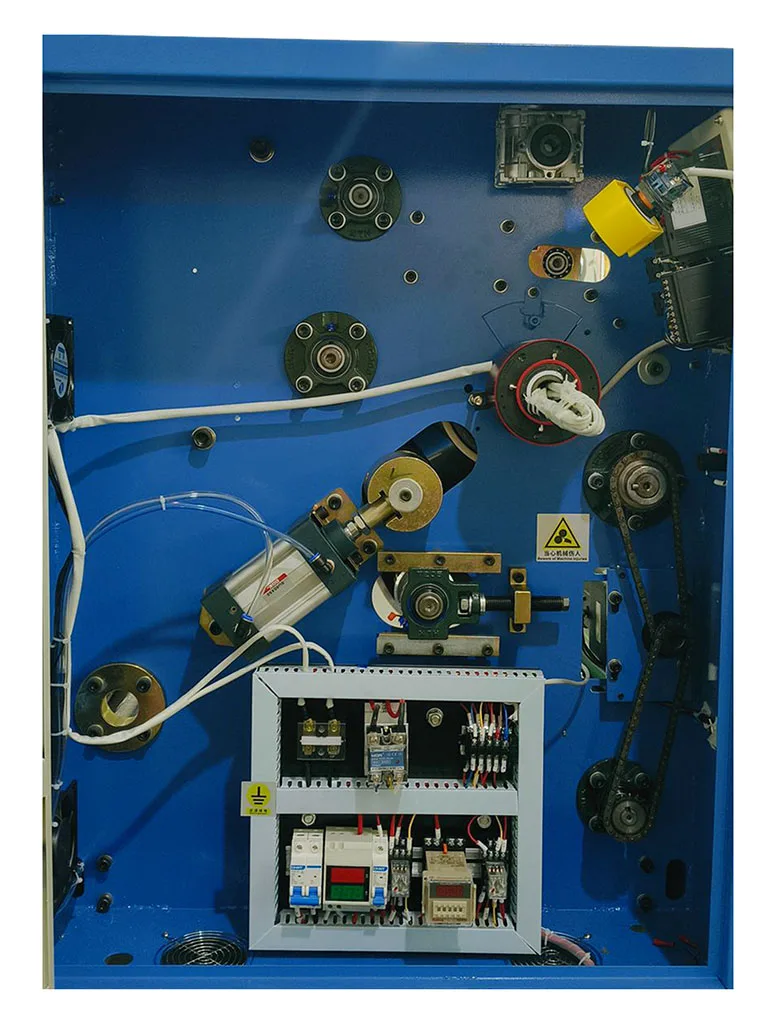

5. Electric control provides high-quality digital display with higher precision of temperature and time.
6. Imported frequency variable motor can adjust rating pressure speed according to different material transfer.
7. Carbon brush achieves conduction heating with more stable and safe electrical conductivity.
8. (pneumatic pressure achieves better effect of transfer printing with bright colors.)
9. (if shutdown or blackout happens, the carpet can separate from roller Tory for better protection of carpet and extending its service life.)
10. Transmission function of the transport tape can carry products to the behind of falsework after printing with advantages of high efficiency and power-saving. In addition, you can choose the direction of transmission. (candidate apply to pieces-cutting)
11. The machine has function of 3 placement and 2 collection which can be custom-made to suit customer's request. You can choose to put away or placed inflatable shaft for better positioning.
12. (multifunctional oil transfer roller printing machine is suitable for cut pieces, bales of cloth and clothing, bags, mouse pads, textile and so on. Roller diameter is optional: 420mm / 600mm / 800mm
Regular width: 1.2m/1.7m/2.0m/2.2m/2.5m. (it can be produced by customer's request)

Specifications:
Heating type :oil
Drum diameter :7.9in/200mm
Temperature range: 32℉ - 750℉/0° c - 399° c,suggested temperature under190℃ - 230℃ (374℉ - 446℉)
Power consumption :6kw
Power requirement: 220v, 50/60hz, 1 phase, 27a
Machine size :82.7in x 92.1in x 53.1in/2100mm x 2340mm x 1350mm
Table top size :47.2in x 59in/1200mm x 1500mm
Shipping dimensions: 84.6in x 36.6in x 52.8in/2150mm x 930mm x 1340mm
Weight (gw):2156lbs /980kg
