Регулятор зарядного устройства 40A12v 24v 48v Mppt
5 469,67 ₽ - 5 907,25 ₽
DEMUDA 12V 24V автоматический регулятор заряда батареи 20A солнечной энергетической системы PWM контроллер
- Категория: >>>
- Поставщик: Shenzhen Yonghui Fashion Co. Ltd.
Сохранить в закладки 1601249917862:
Описание и отзывы
Характеристики
Products Description
Description:
* Battery Voltage: 12V/24V, auto & Charge Current: 20A & Discharge

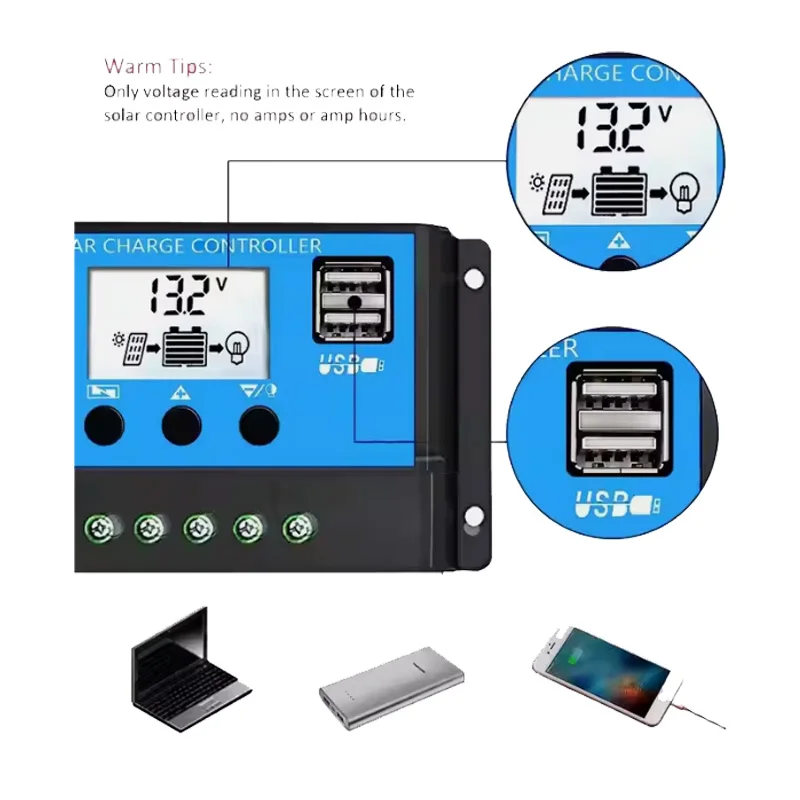

* USB Output: 5V/2A,Load Timer Setting ON/Off Hours
* PWM charge management.Extend battery life
* Adjustable charge/discharge control parameters, settable operating modes of loads
* Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection
* Battery Regulator control,charge / discharge safety protection

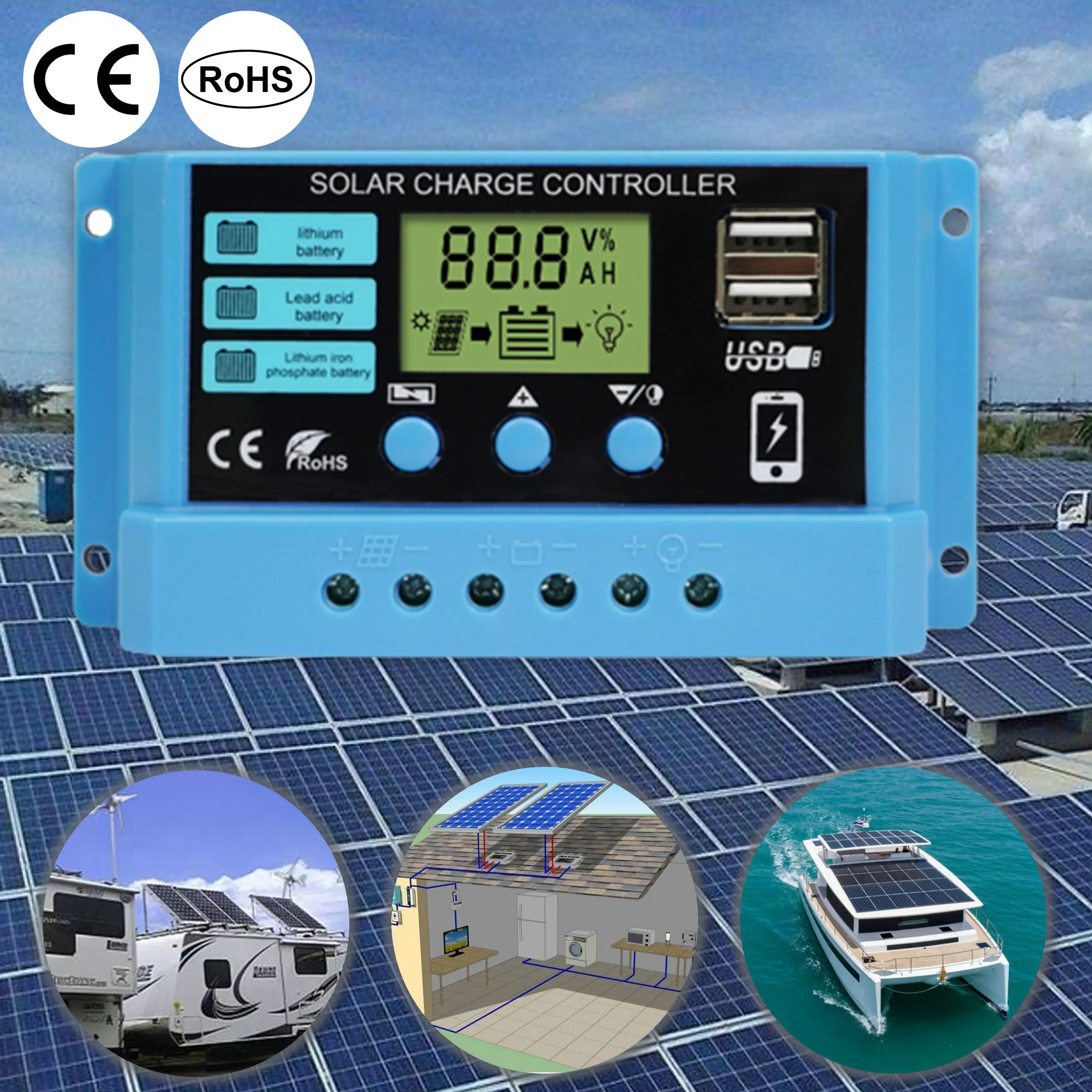

RBL solar controller is a kind of intelligent, multi-purpose solar charge and discharge controller.
Fixed LCD display with a very friendly interface is used in this product; various control parameters can be flexibly set, fully
meet your various application requirements.
Features:
1.Build-in industrial micro controller.
2.Big LCD display,all adjustable parameter.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual mosfet Reverse current protection ,low heat production.
Parameters:
1. Floating charge Voltage(HVD 13.3V-15V)
2. Recovery after under Voltage(LVD 11V-13.5V)
3.Under Voltage protection (RVD 9V-12.3V)
4.Load Mode(24hours,1-23hours,0hour)
5.Battery Option (GEL,LEAD-ACID,FLOODED)
* USB Output: 5V/2A,Load Timer Setting ON/Off Hours
* PWM charge management.Extend battery life
* Adjustable charge/discharge control parameters, settable operating modes of loads
* Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection
* Battery Regulator control,charge / discharge safety protection
RBL solar controller is a kind of intelligent, multi-purpose solar charge and discharge controller.
Fixed LCD display with a very friendly interface is used in this product; various control parameters can be flexibly set, fully
meet your various application requirements.
Features:
1.Build-in industrial micro controller.
2.Big LCD display,all adjustable parameter.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual mosfet Reverse current protection ,low heat production.
Parameters:
1. Floating charge Voltage(HVD 13.3V-15V)
2. Recovery after under Voltage(LVD 11V-13.5V)
3.Under Voltage protection (RVD 9V-12.3V)
4.Load Mode(24hours,1-23hours,0hour)
5.Battery Option (GEL,LEAD-ACID,FLOODED)

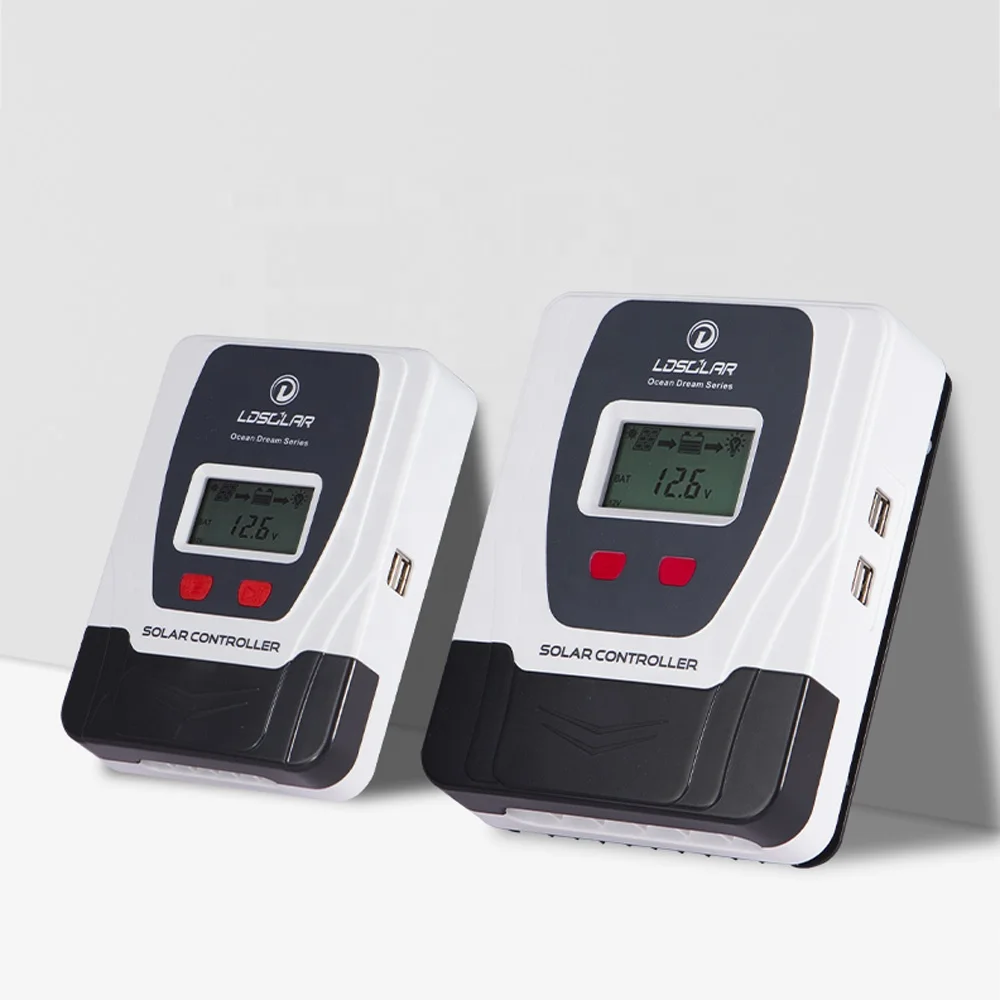

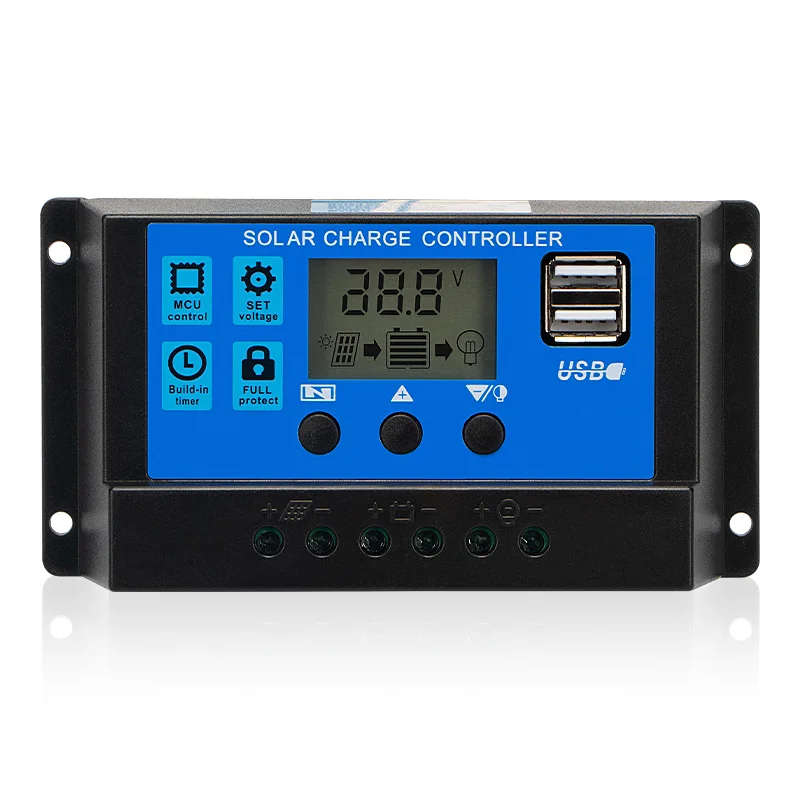

Product Show

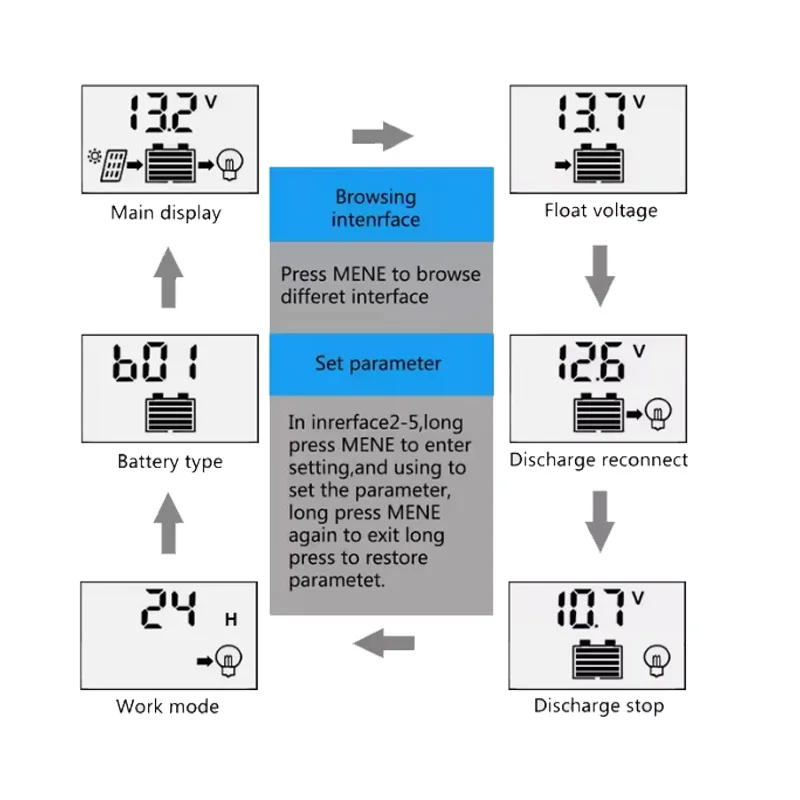

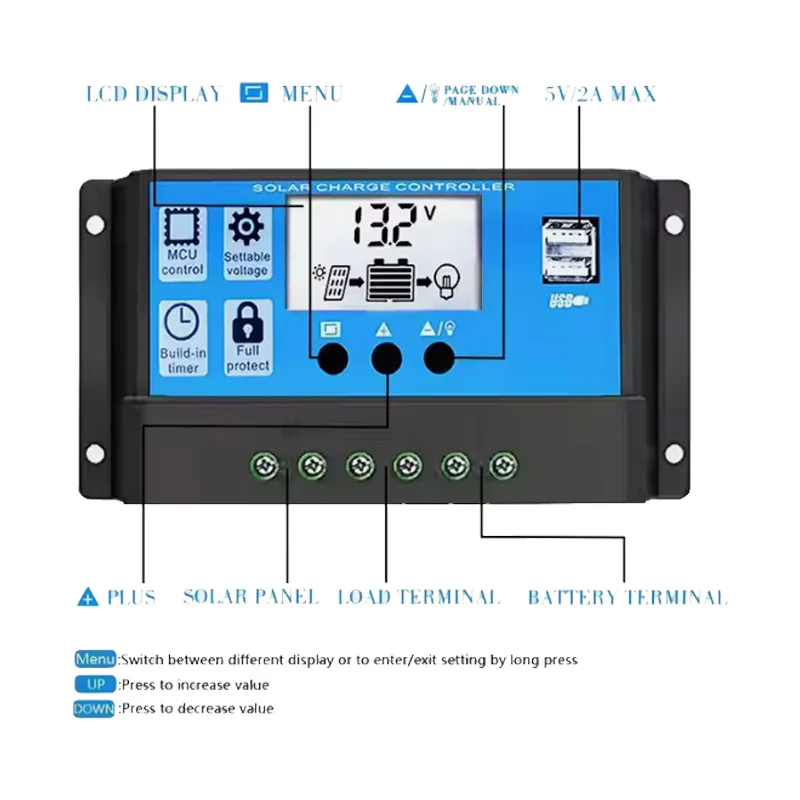

MENU:
switch between different display,or to enter/exit setting by long press.
UP: press to increase value.
DOWN:presss to decrease value.
UP: press to increase value.
DOWN:presss to decrease value.
1.press the [Down] button to ON/OFF load manully at main display.
2.the work mode is working as below:
[24H] load output 24hours
[1-23H] load on after sunset and closed after setting hours
[0H] Dusk to dawn
[24H] load output 24hours
[1-23H] load on after sunset and closed after setting hours
[0H] Dusk to dawn

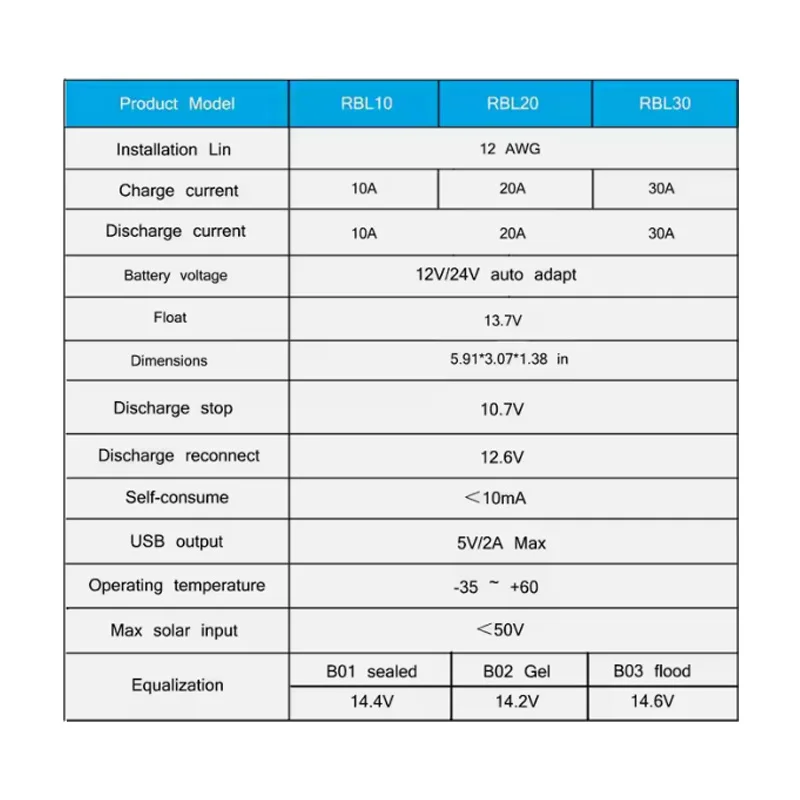

MODEL | RBL-10A | RBL-20A | RBL-30A | RBL-40A | |||
Battery Voltage | 12V 24V Auto | ||||||
Charging Current | 10A | 20A | 30A | 40A | |||
Discharging Current | 10A | 20A | 30A | 40A | |||
Max Solar input | 50V(for 24V battery) 25V(for 12V battery) | ||||||
Equalization | 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood) | ||||||
Float charge | 13.7V(defaul,adjustable) | ||||||
Discharge stop | 10.7V(defaul,adjustable) | ||||||
Discharge reconnect | 12.6V(defaul,adjustable) | ||||||
USB output | 5V/3A | ||||||
Self-consume | <10mA | ||||||
Operating temperature | -35°C~+60°C | ||||||
*all red color voltage X2 ,while using 24V system.

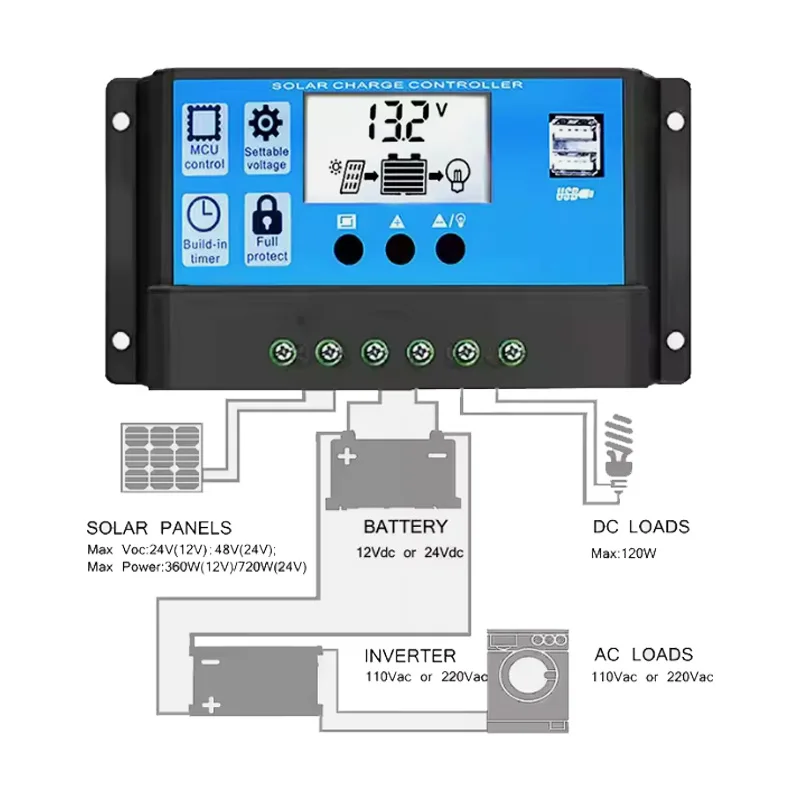

Connection:
1.Connect the battery to the charge regulator - plus and minus.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
The reverse order applies when deinstalling!
An improper sequence order can damage the controller!
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
The reverse order applies when deinstalling!
An improper sequence order can damage the controller!
Recommend Products
Company Profile
"Y&H"was established in 2016. Provide customers with one -stop solar system service.Y&H is a field of solar products,
--including hybrid inverters,
--on Grid inverters,
--OFF GRID inverters,
--MPPT/PWMsolar charging controllers,
--lithium iron phosphate batteries,
--PV components
--MC4 Connectors
Y&H has a professional and experienced technical team in the photovoltaic field, and is committed to providing high -quality products. And from Y&H, you can complete the entire set of photovoltaic equipment at one time. After -sales, warranty, etc. You only need Y&H to help you solve it.
--including hybrid inverters,
--on Grid inverters,
--OFF GRID inverters,
--MPPT/PWMsolar charging controllers,
--lithium iron phosphate batteries,
--PV components
--MC4 Connectors
Y&H has a professional and experienced technical team in the photovoltaic field, and is committed to providing high -quality products. And from Y&H, you can complete the entire set of photovoltaic equipment at one time. After -sales, warranty, etc. You only need Y&H to help you solve it.
Product packaging
Certifications
FAQ
FAQ
1. How to insatll and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Solar Inverter,Solar Charge Controller,Solar Power System,Solar Panel,Solar Lithium Ion Battery
4:What is the payment method?
We normally require a T/T advance payment. 30% deposit and 70% before shipping.
5. Can I buy one sample for testing?
Sure,we have a 8 years experience R&D team and in timely after sale service,can help you fix any technical problem or confusion.
6. How is the delivery?
Sample:2-3 working days
Order:within 7 working days depending on the order quantities
OEM order:15-20 working days after confirming the sample
7. Can you get the the solar inverter customized for us ?
Of course, brand name, machine color, designed unique patterns available for customization.
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Solar Inverter,Solar Charge Controller,Solar Power System,Solar Panel,Solar Lithium Ion Battery
4:What is the payment method?
We normally require a T/T advance payment. 30% deposit and 70% before shipping.
5. Can I buy one sample for testing?
Sure,we have a 8 years experience R&D team and in timely after sale service,can help you fix any technical problem or confusion.
6. How is the delivery?
Sample:2-3 working days
Order:within 7 working days depending on the order quantities
OEM order:15-20 working days after confirming the sample
7. Can you get the the solar inverter customized for us ?
Of course, brand name, machine color, designed unique patterns available for customization.
Похожие товары
Новый Модернизированный контроллер солнечного заряда PWM 10A 20A 30A Регулятор солнечной энергии 12V 24V автоматический двойной USB ЖК-дисплей разрядник
62,36 ₽ - 371,94 ₽
Заводская цена, 10А PWM солнечный контроллер 12 В/24 В автоматический регулятор зарядки аккумулятора для домашнего солнечного зарядного устройства
136,75 ₽ - 142,22 ₽

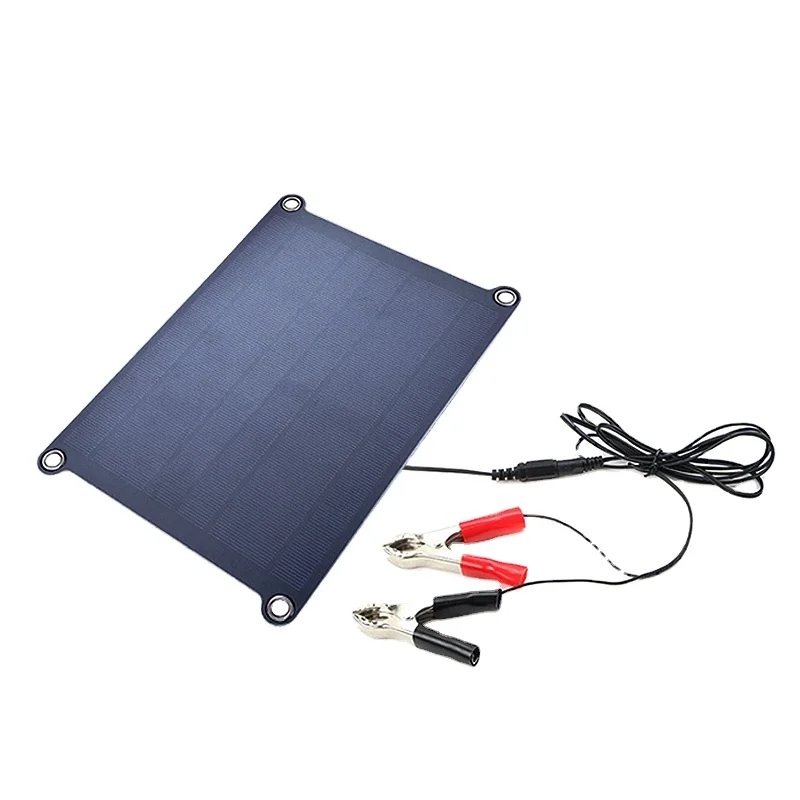

Flextech 18 в 5 Вт портативная солнечная панель для автомобильной лодки зарядное устройство для аккумулятора для автомобильного двигателя трактора
