Высокоскоростная флексографская печатная машина 6 цветов для нейлонового полимера
3 289 452,00 ₽ - 4 385 936,00 ₽

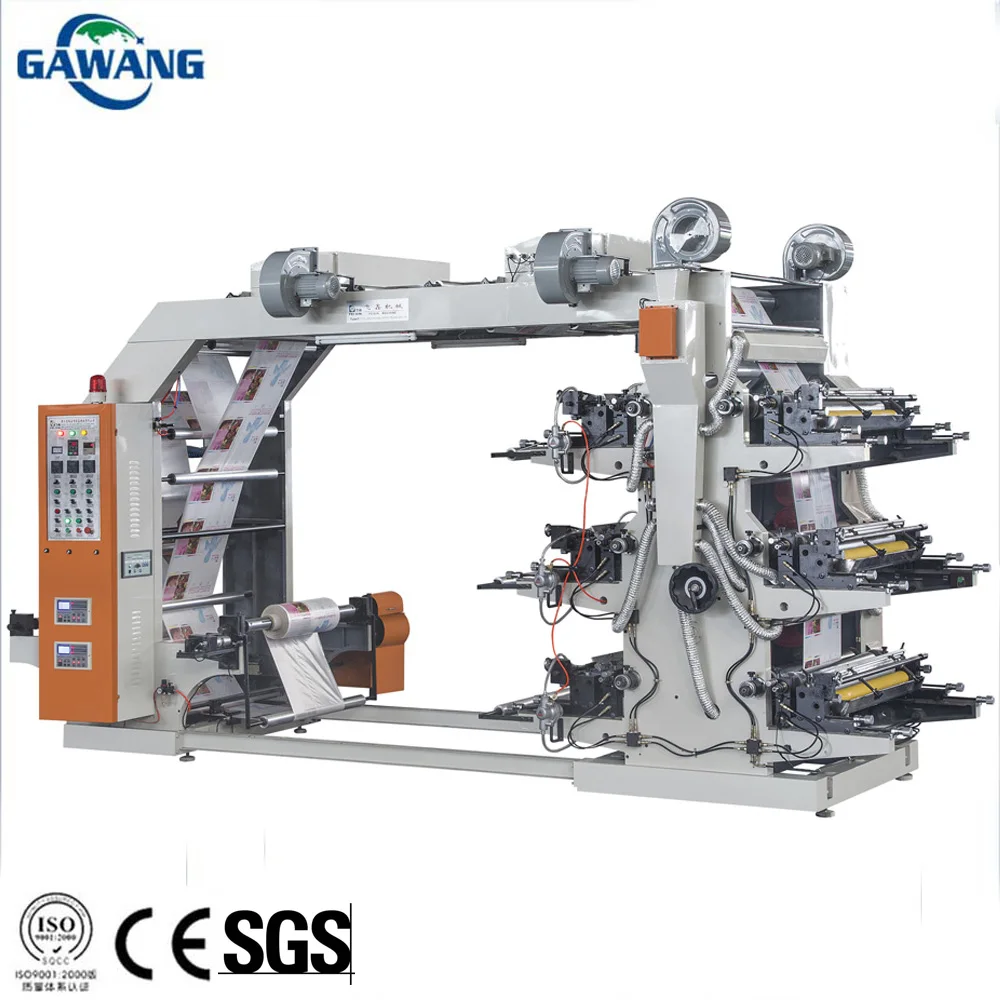

Автоматическая машина для флексографической печати 6 цветов
- Категория: >>>
- Поставщик: Ruian Maoyuan Machine Co. Ltd.
Сохранить в закладки 1601249985187:
Описание и отзывы
Характеристики
Description
High Speed Stack Type Eight / 8 Colours Flexo Printing Machine
The machine can finish material-feeding, printing, varnishing, drying, laminating, rewinding and die-cutting in a lump.It is an
ideal machine for printing note and top-grade adhesive label.
ideal machine for printing note and top-grade adhesive label.
Kraft paper | 40-350g | ||||
single-sided coated paper | 30-350g | ||||
copy paper | 15-350g | ||||
firecrackers and paper | 40-350g | ||||
Model Series | GW-HYS-series | ||||
Standard width model | 600-1000mm | ||||
Max Printing Length | 280-1000mm | ||||
Printing plate lifting system | Hydraulic Automatic | ||||
Mechanical speed | 3-100m/min | ||||
Printing Speed | 3~80m/min | ||||
Register precision | ±0.15--±0.25mm | ||||
Rewinder&Unwinder DLA | ±600mm | ||||
Main Motor | 3.75KW | ||||
Weight | About 6000kg | ||||
Plate thickness | 1.14mm.1.7mm.2.28mm.3.94mm | ||||
Unwinding is controlled by magnetic powder brake and rewinding is controlled by magnetic power clutch.
Unwinding adopts auto tension controller.
Each printing unit adopts 360° adjustment, it can independently gear and loosen,so other printing units can continue to print.
This machine with one die-cutting station ,which makes printing and die-cutting can be finished in one process.
The ink rollers will be separated from the printing rollers,and keep running when the machine stops.
It equipped with 3'' air expanding shaft on unwinding/rewinding section.
All the rollers are deal with thermal treated.
Unwinding adopts auto tension controller.
Each printing unit adopts 360° adjustment, it can independently gear and loosen,so other printing units can continue to print.
Each printing unit equips with IR dryer.
Equipped with web guide for tracking.
Equipped with web guide for tracking.
This machine with one die-cutting station ,which makes printing and die-cutting can be finished in one process.
The ink rollers will be separated from the printing rollers,and keep running when the machine stops.
The main machine inverter is imported.
It equipped with 3'' air expanding shaft on unwinding/rewinding section.
All the rollers are deal with thermal treated.
After-sales Service
More Products
Why Choose Us
Company Profile
Certifications
Exhibition
Packing and Shipping
FAQ
1.Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2.Do you have quality certificate?
Yes we have CE, etc.
3.What's the delivery time?
Around 20~30days, however, based on order.
4.Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality.
5.What's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price.
6.Does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like loading the jumbo roll paper,start the machine and cutting the paper.And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as you required.
7.If the machine's spare parts broken ,where can i get ?
We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case it broken within one year ,we will sent you for free.
We are manufacturer, and also provide the business solution to all the friends.
2.Do you have quality certificate?
Yes we have CE, etc.
3.What's the delivery time?
Around 20~30days, however, based on order.
4.Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality.
5.What's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price.
But we also accept other way like L/C , wetern union ,and do CFR&CIF etc.
6.Does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like loading the jumbo roll paper,start the machine and cutting the paper.And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as you required.
7.If the machine's spare parts broken ,where can i get ?
We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case it broken within one year ,we will sent you for free.
