Product Overview

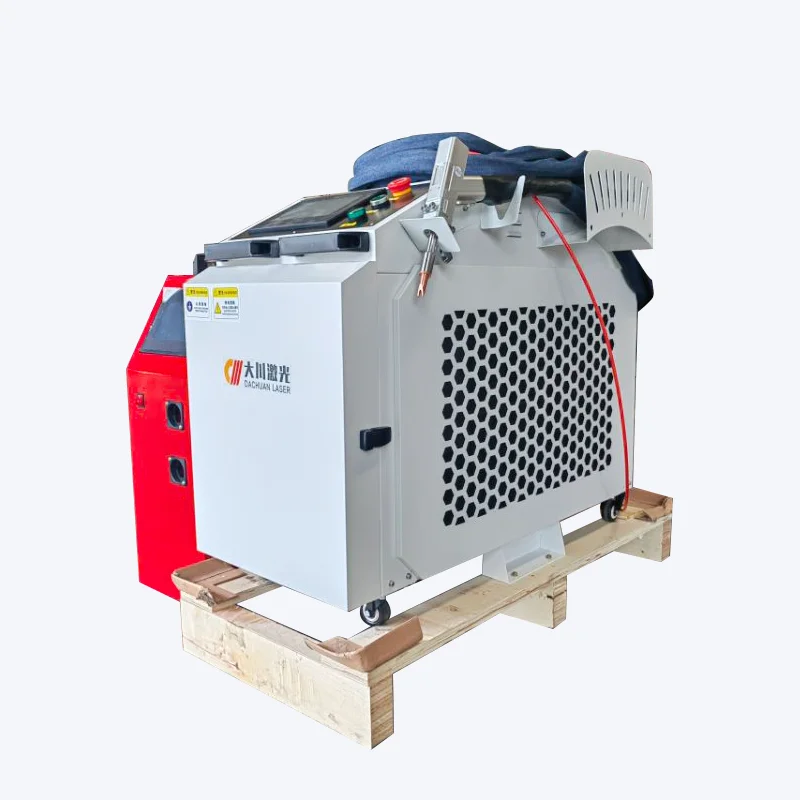

1000-3000W handheld laser welding machine
This is a handheld laser welding machine, can weld different metal materials, such as stainless steel/aluminum alloy/iron/titanium alloy and other materials, we choose the power stainless steel, the thickness of the welding is different, generally can weld 0.3-6mm thickness.
FEATURES AT A GLANCE
1, laser power: 2000W,
2, laser brand: MAX
3, welding system: super four-in-one (welding/rust removal/cleaning welding pass/cutting)
4, water cooler: Hanli
5, melting depth: (stainless steel, 1m/min,4.5mm) (aluminum alloy, 1m/min,3.5mm) (carbon steel, 1m/min,4.5mm)
6, available wire diameter: 0.8/1.0/1.2/1.6mm/
7. Gas: Argon/nitrogen
8, power demand: 220V/50HZ/60HZ
9, the whole machine power: 10KW
10, suitable material: stainless steel, iron, aluminum alloy, copper
11, product size: length 100cm* width 40cm* height 710cm
12.Packing weight: 155KG
2, laser brand: MAX
3, welding system: super four-in-one (welding/rust removal/cleaning welding pass/cutting)
4, water cooler: Hanli
5, melting depth: (stainless steel, 1m/min,4.5mm) (aluminum alloy, 1m/min,3.5mm) (carbon steel, 1m/min,4.5mm)
6, available wire diameter: 0.8/1.0/1.2/1.6mm/
7. Gas: Argon/nitrogen
8, power demand: 220V/50HZ/60HZ
9, the whole machine power: 10KW
10, suitable material: stainless steel, iron, aluminum alloy, copper
11, product size: length 100cm* width 40cm* height 710cm
12.Packing weight: 155KG
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
2000 W laser welding machine product attributes | ||
Name | Parameters | |
Device name | Handheld laser welder | |
Model number | DC-2000W | |
Laser power | 2000 watts | |
Laser brand | Chuangxin/Ryko/Keplin | |
Laser wavelength | 1080nm | |
Initiating mechanism | 1 optical fiber for 10 meters | |
Welding torch | Super Strong/Skye | |
Wire feeder | Super Strong/Skye | |
Control method (system) | Super Strong/Skye | |
Welding thickness | 0.3 5 mm | |
Function (4-in-1) | Weld/de-rust/cut/clean the weld | |
Penetration parameters | (Stainless steel, 1m/min,4.5mm) (Aluminum alloy, 1m/min,3mm) (carbon steel, 1m/min,4.5mm) | |
Positioning system | Semiconductor red light | |
Welding wire diameter | 0.8/1.0/1.2mm/1.6mm common welding wire | |
Gas protection | Argon | |
Cooling method | Hanli/Special Domain/Huaku (Water cooler) | |
Power DEMAND | 220V/50HZ/60HZ | |
Power consumption of the whole machine | ≤10KW | |
Requirements for workpiece welds | 0.8 mm or less | |
Continuous working time | ≥24H | |
Speed range | 0-120mm/s(manual speed) | |
Operating ambient temperature range | 15-38° below zero | |
Suitable material | Stainless steel, iron, aluminum alloy | |
Product size | Length 1000mm* Width 400mm* height 710mm | |
Size of wire feeder | Single wire feeding size: length 360mm* width 250mm* height 560mm, double wire feeding size: length 580mm* width 250mm* height 770mm | |
Product weight | 115KG | |
Package size | Length 1420mm x width 520mm x height 1010mm | |
With packing weight | 155KG | |
PRODUCT CONFIGURATION

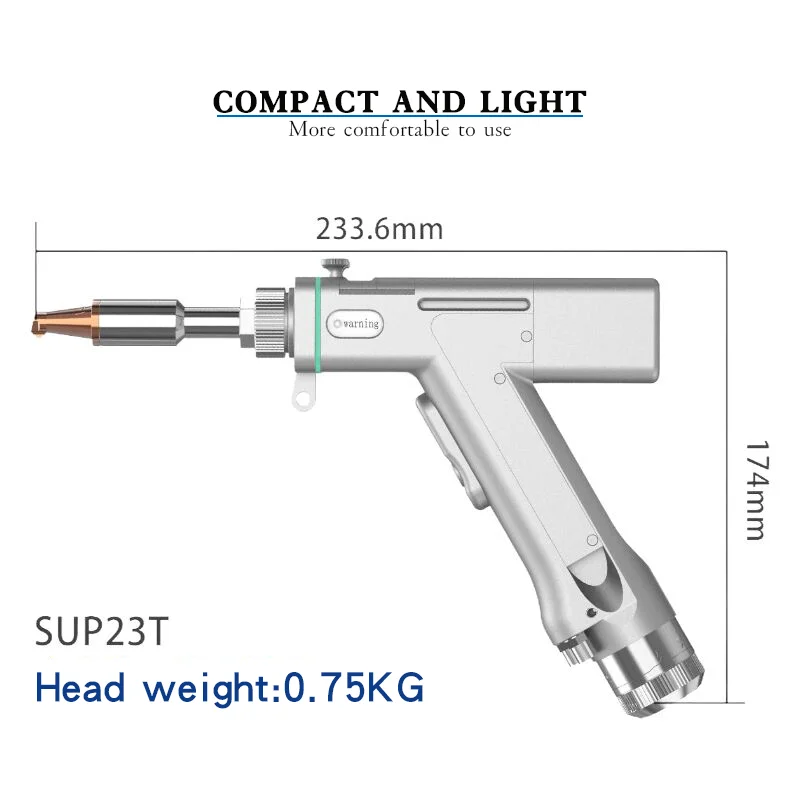

Super strong welding torch head
Hanli chiller system
MAX laser source

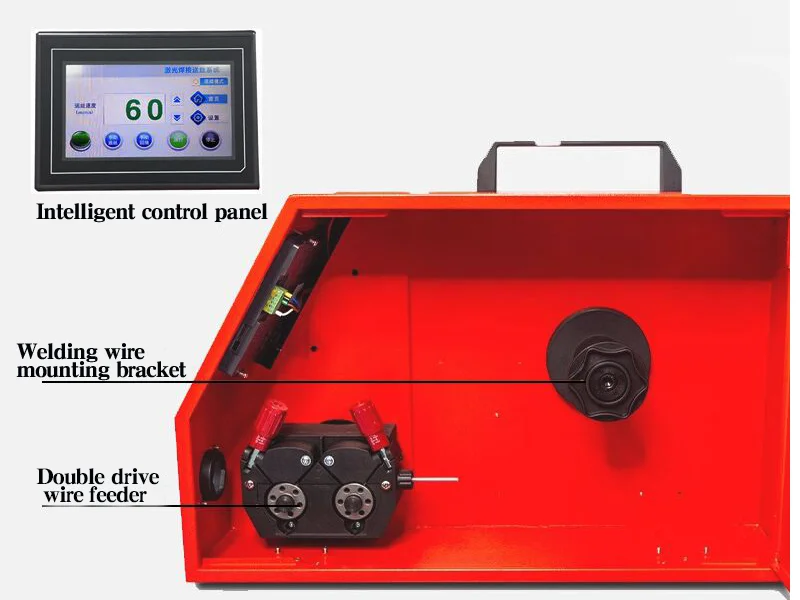

Laser wire feeder

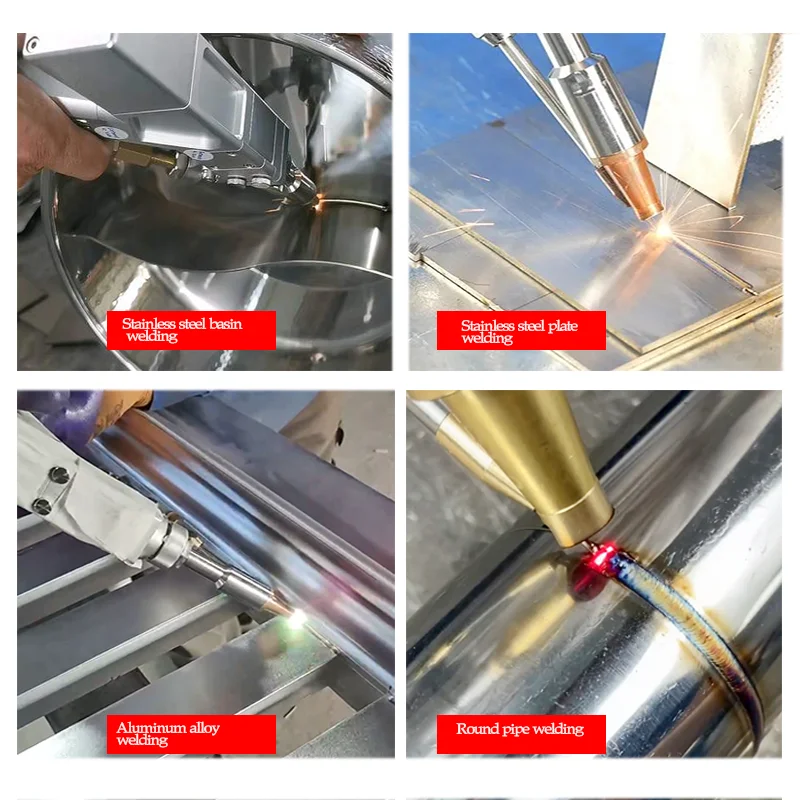

Various welding scene effect display
Laser welding machine commonly used accessories

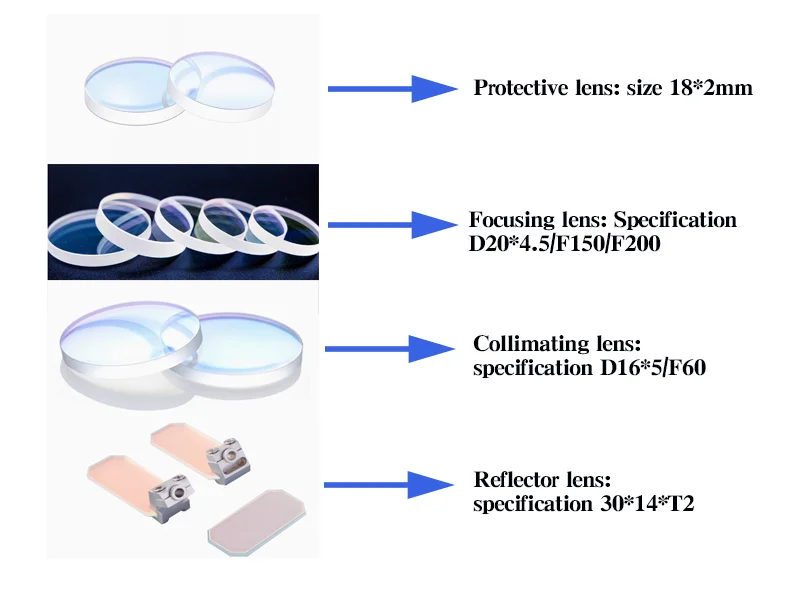

Laser welding commonly used lens specifications
Common lens specifications: protective lens 18*2, focusing lens: D20*4.5/F150, collimating lens: D16*F/F60, reflective lens: 30*14*T2
Laser welding is commonly used in various specifications of copper nozzle
Laser welding nozzle is divided into: wire feed nozzle specifications 0.8/1.0/1.2/1.6/2.0mm, outer corner nozzle and cutting nozzle.
Introduction to lens replacement
Mode of transport
FAQ
Q: How do we choose the most suitable handheld laser welding machine?
A: In order to recommend the most suitable machine model to you, please tell us the following details:
1. What material do you need to weld, such as stainless steel, carbon steel plate, aluminum alloy, etc.?
2. What thickness plate do you need to weld, and we recommend the right power according to the thickness of the material?
Q: When I receive this machine, I cannot operate it. How can I ask for help?
A: Our after-sales personnel will send you the operation video and manual of the machine, and our technical engineers will conduct training and guidance online.
If necessary, we can send engineers to your site for training, or you can send operators to our factory for training.
Q: What should I do if something goes wrong with the equipment during use?
A: Our equipment is guaranteed for 1 year for the whole machine and 2 years for the laser. Within the warranty scope, if there is any problem with the equipment, we will provide spare parts free of charge (except man-made damage). After the warranty period, we
We still offer lifetime service. If you have any questions, please let us know and we will provide you with a solution.
Q: What are the payment options?
A: We accept payment terms including: T/T, VISA, Western Union Online Bank payment.
Q: What are the shipping methods for the equipment?
A: Sea transportation is the normal way. If there are special requirements, the two sides need to confirm the final.
A: In order to recommend the most suitable machine model to you, please tell us the following details:
1. What material do you need to weld, such as stainless steel, carbon steel plate, aluminum alloy, etc.?
2. What thickness plate do you need to weld, and we recommend the right power according to the thickness of the material?
Q: When I receive this machine, I cannot operate it. How can I ask for help?
A: Our after-sales personnel will send you the operation video and manual of the machine, and our technical engineers will conduct training and guidance online.
If necessary, we can send engineers to your site for training, or you can send operators to our factory for training.
Q: What should I do if something goes wrong with the equipment during use?
A: Our equipment is guaranteed for 1 year for the whole machine and 2 years for the laser. Within the warranty scope, if there is any problem with the equipment, we will provide spare parts free of charge (except man-made damage). After the warranty period, we
We still offer lifetime service. If you have any questions, please let us know and we will provide you with a solution.
Q: What are the payment options?
A: We accept payment terms including: T/T, VISA, Western Union Online Bank payment.
Q: What are the shipping methods for the equipment?
A: Sea transportation is the normal way. If there are special requirements, the two sides need to confirm the final.
Похожие товары
Лазерный сварочный аппарат большой мощности 300 Вт автономный для продолжения работы
493 417,80 ₽ - 548 242,00 ₽
37%! Автоматический лазерный сварочный аппарат с ЧПУ 1000 Вт
274 121,00 ₽

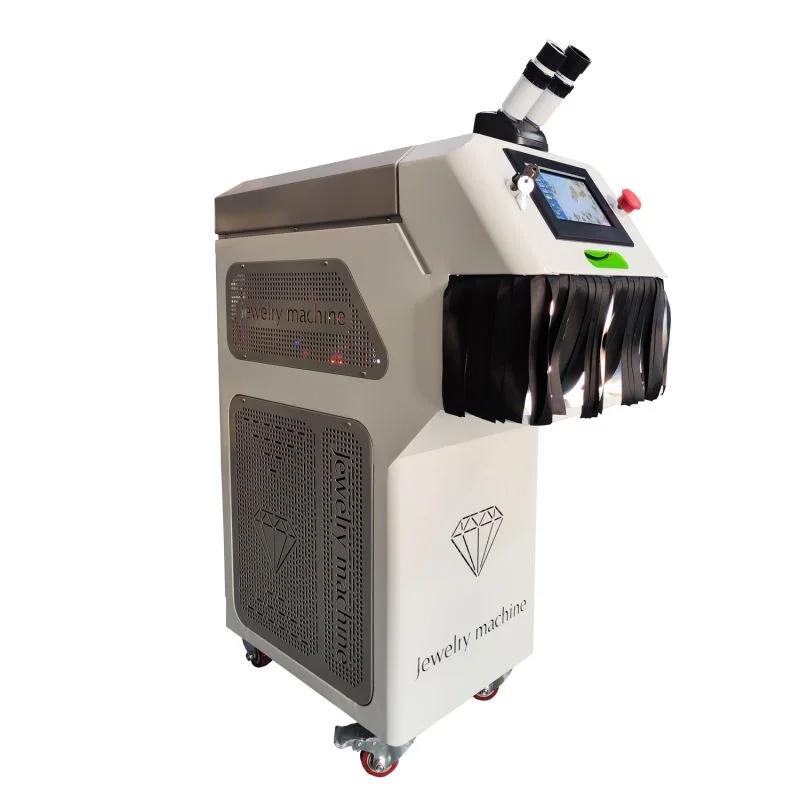

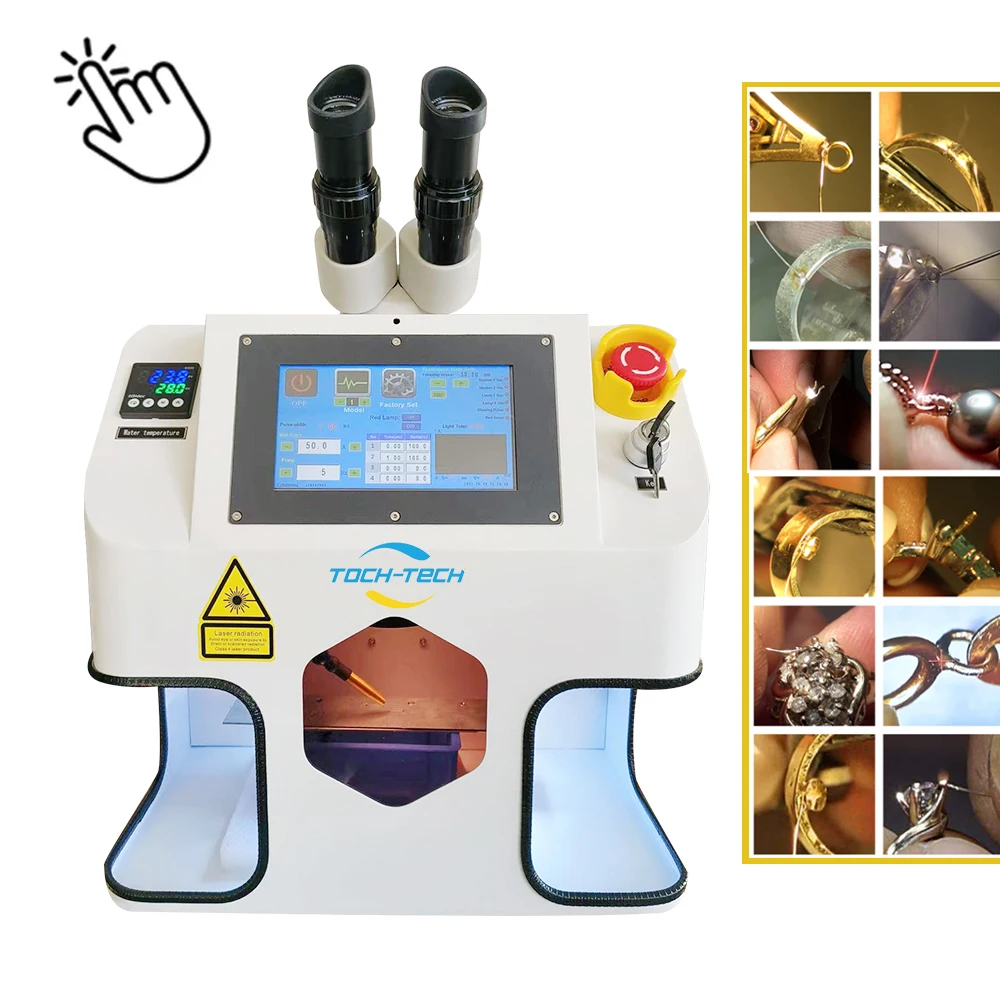

Новое поступление 200 Вт настольная лазерная точечная сварочная машина для ювелирных изделий
