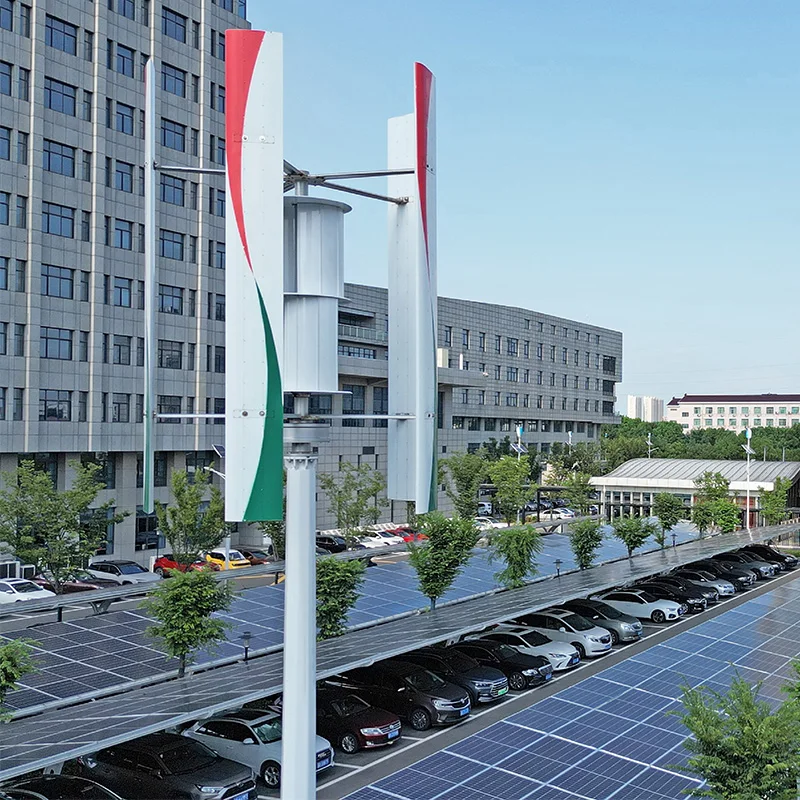

5 кВт ветровая солнечная гибридная система Вертикальная ветряная турбина генерации ветровой
- Категория: >>>
- Поставщик: Jiangsu DHC Environmental Si-Tech Co. Ltd.Jiangsu Ltd.
Сохранить в закладки 1601251447764:
Описание и отзывы
Характеристики
Product Description
5kw wind solar hybrid system vertical wind turbine wind power generation system
Solar wind energy systems is a new energy power generation system that utilizes wind energy and solar energy resources. It is wind power generator and solar cell phalanx two kinds of power generation equipment to generate electricity together.
The solar wind hybrid system uses solar cell arrays and wind generators (converting alternating current to direct current) to store the generated electrical energy in the battery pack. When the user needs electricity, the inverter converts the DC power stored in the battery pack into AC power and sends it to the user's load through the transmission line.
Technical Parameter
5KW Solar Wind Hybrid System | ||||
Product | Model | Quantity | ||
Solar panel | 550W | 8 | ||
Horizontal wind turbine | ES-M6-1000W | 1 | ||
Wind turbine controller | ES10-48 | 1 | ||
Inverter | SPF 5000ES | 1 | ||
Lithium Battery | 48V200Ah | 1 | ||
Cable for solar | PV1-F 1*4.0 | 100m | ||
Cable for wind | Three Phase 6mm^2 | 50m | ||
Kindly Reminder: * The above system configurations are for reference only. * We will design the system solution based on your installation conditions and actual requirements. | ||||
5kw wind solar hybrid system vertical wind turbine wind power generation system
1. The solar wind hybrid system is mainly composed of wind turbines, solar photovoltaic cells, controllers, batteries, inverters, AC and DC loads and other parts. The system is a composite renewable energy power generation system integrating wind energy, solar energy, battery and other energy power generation technologies and system intelligent control technology.
2. Utilizing the complementarity of wind energy and solar energy, a relatively stable output can be obtained, and the solar wind hybrid system has high stability and reliability.
Details Images
Solar Panel
* Max power: 550w
* Size: 2279*1134*35 mm
* Glass: 3.2mm Tem pered
* 25 years power output guarantee
* Size: 2279*1134*35 mm
* Glass: 3.2mm Tem pered
* 25 years power output guarantee
The photovoltaic power generation part uses the photovoltaic effect of the solar panel to convert light energy into electrical energy, then charges the battery, and converts direct current into alternating current through the inverter to supply power to the load.
Horizontal wind turbine
* 3 years warranty, 20+ year service life
* Advantage: light weight, small volume* Starting wind speed: 2m/s
* Rated wind speed: 12m/s
* Security wind speed: ≤50m/s
The wind power generation part is to use the wind turbine to convert the wind energy into mechanical energy, convert the mechanical energy into electrical energy through the wind generator, then charge the battery through the controller, and supply power to the load through the inverter.
Wind turbine controller
* DC 48V input
* Protection Function: Solar reverse charge
* protection: Solar reverse connection protection
* Battery-over-charge-protection
* Battery-reverse connection protection
* Protection Function: Solar reverse charge
* protection: Solar reverse connection protection
* Battery-over-charge-protection
* Battery-reverse connection protection
The control part continuously switches and adjusts the working state of the battery pack according to the changes in the intensity of sunshine, wind force and load.
Inverter
* SPF 5000ES
* IP65 waterproof and dust proof makes the inverter suitable for various working environments
The inverter converts the direct current in the battery into a standard 220v alternating current to ensure the normal use of alternating current load equipment. At the same time, it also has an automatic voltage stabilization function, which can improve the power supply quality of the wind-solar hybrid power generation system.
Battery
* Wall-mounted to save space
* Standard equipped with LED display, real-time understanding of battery status
* Standard equipped with LED display, real-time understanding of battery status
The battery part is composed of multiple batteries, which play two roles of energy regulation and load balance in the system at the same time.
It converts the electrical energy output by the wind power generation system and the photovoltaic power generation system into chemical energy and stores it for use when the power supply is insufficient.
Cable for wind
* Three Phase 6mm^2
* 50m
* Three Phase 6mm^2
* 50m
Cable for solar
* PV1-F 1*4.0
* 100m
* PV1-F 1*4.0
* 100m

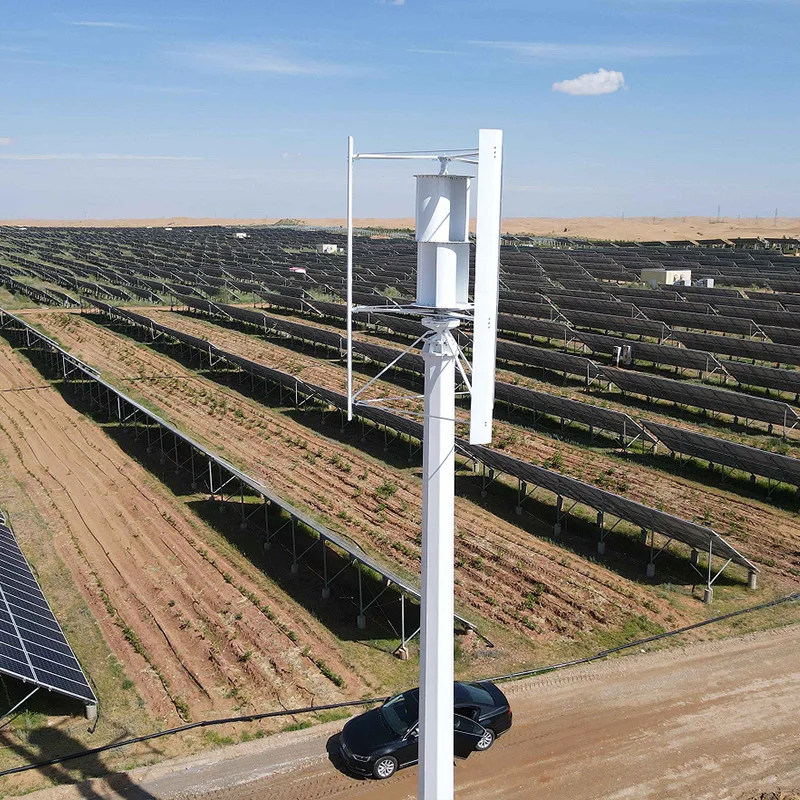

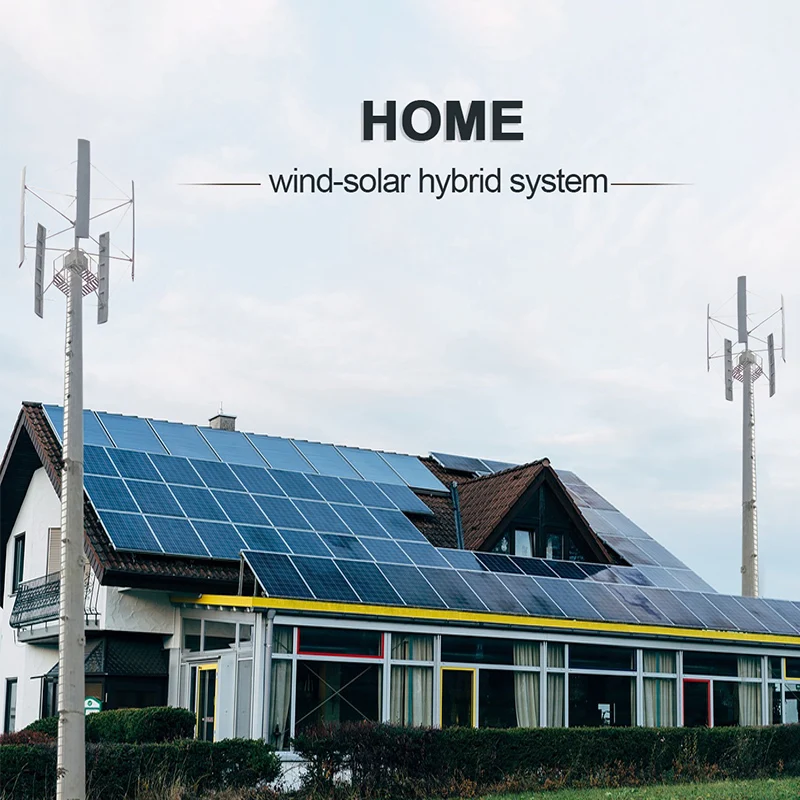

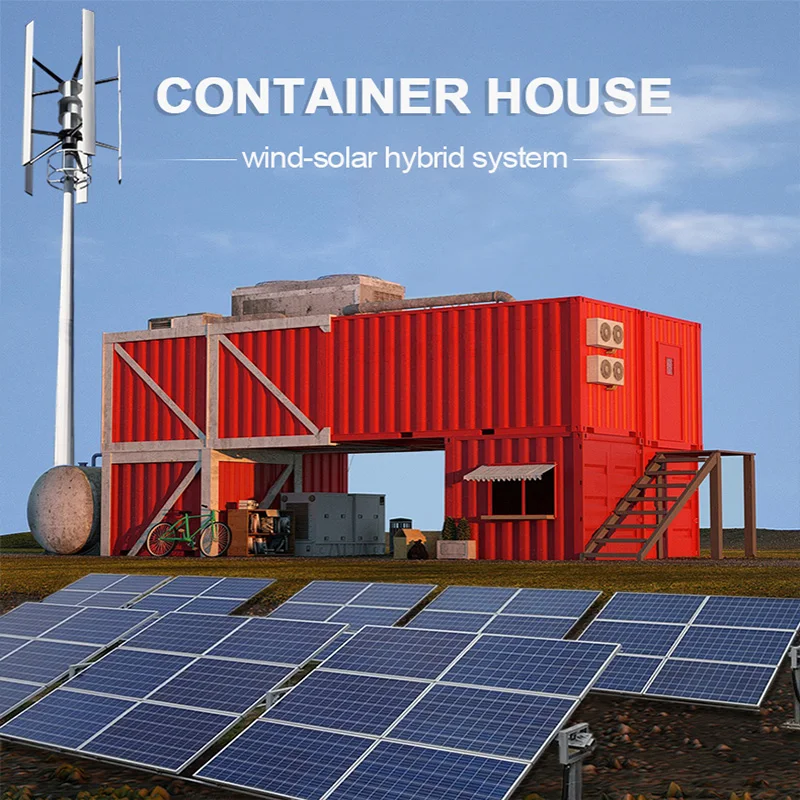

Project Cases
Project Case Display
Our company is committed to providing customers with one-stop services for wind and solar hybrid systems. The main products include 100w-100kw small and medium-sized wind generator, solar panel, photoelextric water heater and heating furnace, solar energy storage system, portable power station, etc. Our company's products sold worldwide. The company has won the unanimous recognition of consumers with satisfactory quality and perfect after-sales service. We has a professional team, which can help you solve questions.
Company Profile
Jiangsu DHC environmental SI-Tech Co., Ltd
Jiangsu DHC Environment Si-Tech Co.，Ltd. was founded in 2016 and is located in Suzhou City, Jiangsu Province. We are dedicated in environmental protect area and new energy products, and launched our own brand: Ever Saving and Qianyue, aiming at protecting the environment and saving energy. We have a wealth of industry experience and are a reliable supplier. Our cooperation factory has advanced production equipment and skilled front-line employees. The products are more safer and durable, with better appearance design, distinctive materials.
Packing & Delivery
Knowing that the development of the company depends on the innovation and quality of the products, we have established a quality management system to meet the requirements of the international quality management system. With continuously releasing the original innovations according to the market and customer needs, our company always maintains the novelty and innovative products to take the customer's thoughts and urgency into consideration. Providing excellent service for customers and meeting customer needs are our eternal pursuit!
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Business Card
Do you need solutions for solar wind hybrid system?
Just send inquiry and express your requirement, DHC technical engineer always at your service!
Похожие товары
Алмазное лезвие для резки мрамора диаметром 14 и 16 дюймов по заводской ценеАлмазное

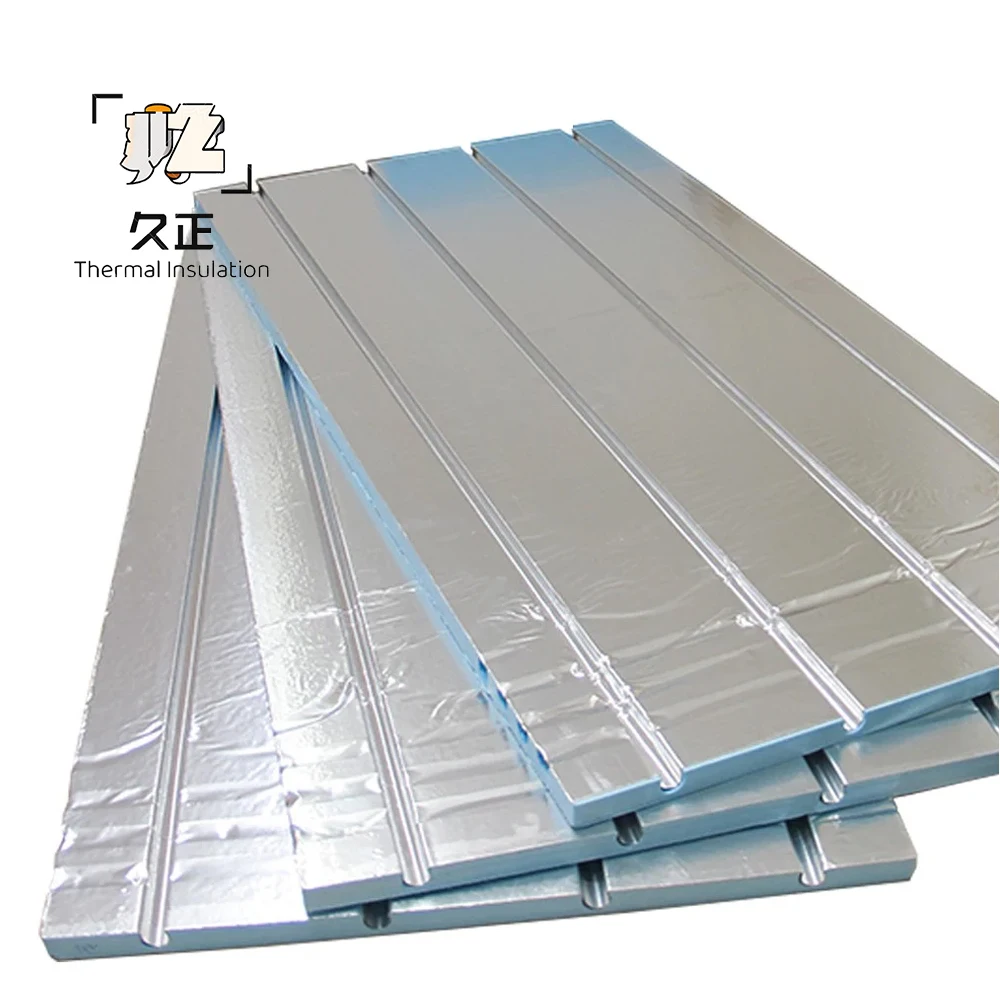

Высокая плотность сжатия XPS панель напольного отопления Alu доска с алюминиевой
314,51-729,66 ₽
Прямая заводская цена литой алюминиевый корпус Пластиковая форма для литья под

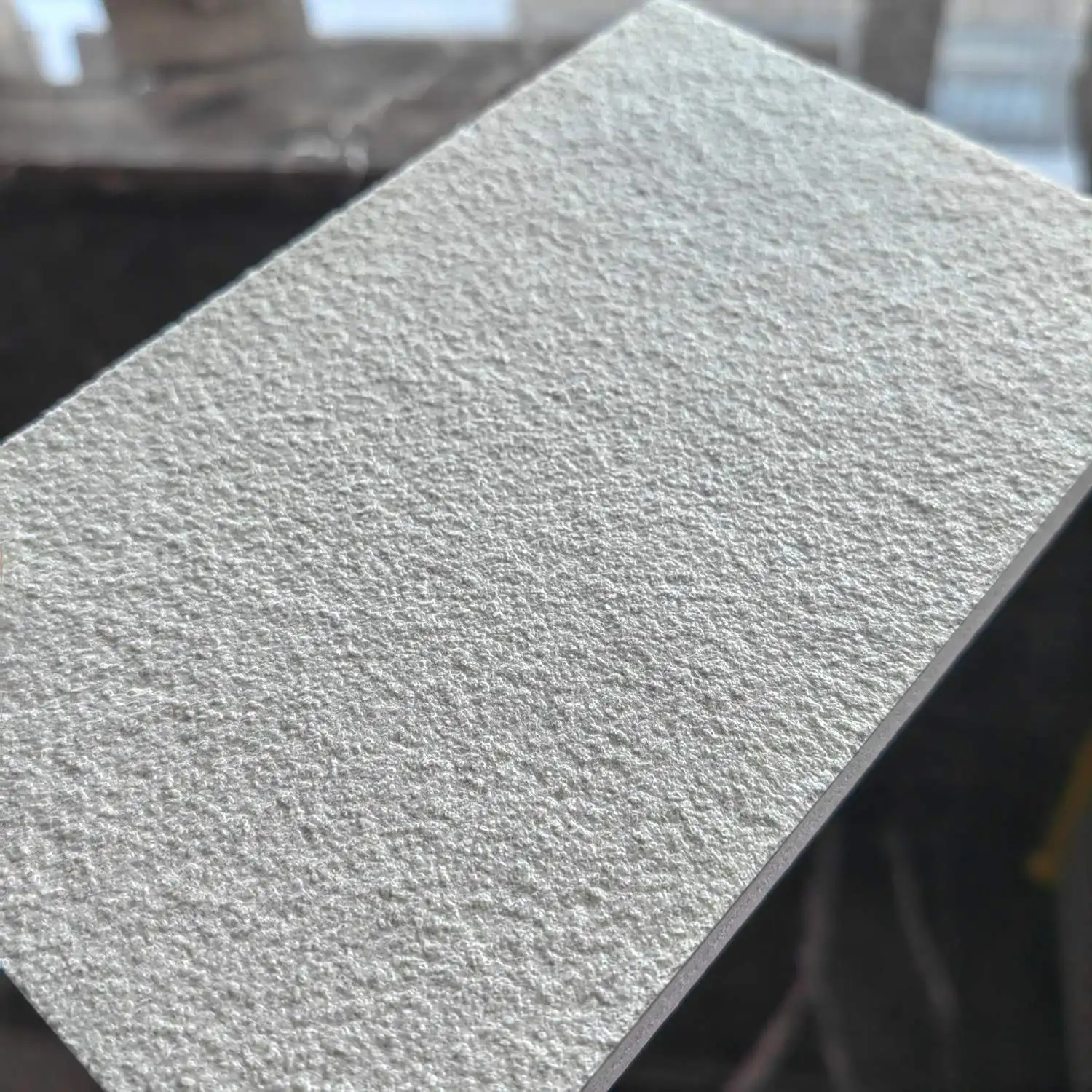

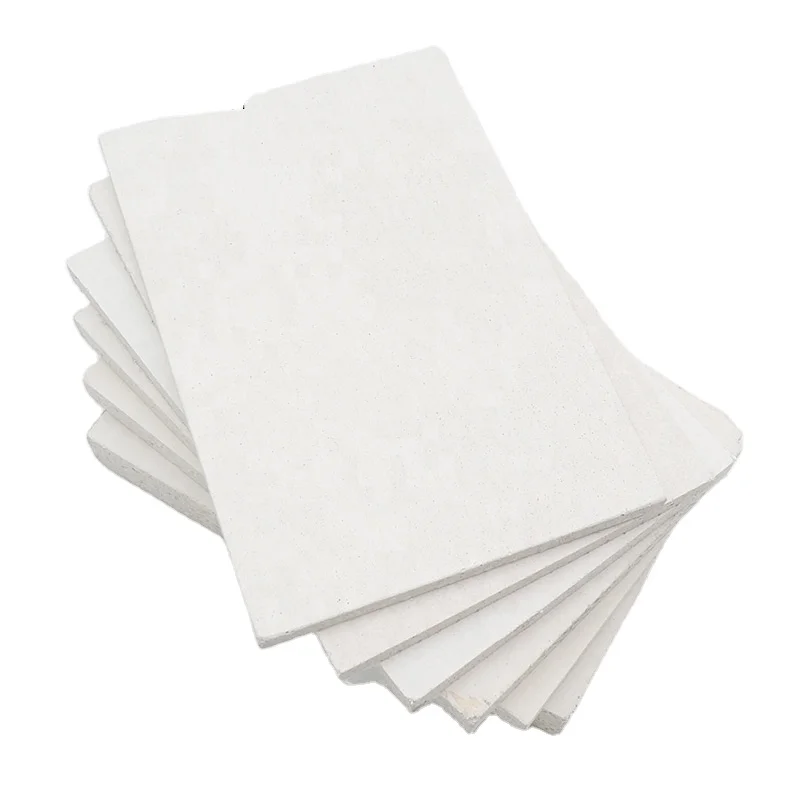

Vogue mgo листы акустическая сэндвич-панель притирочная
1 382,58 ₽

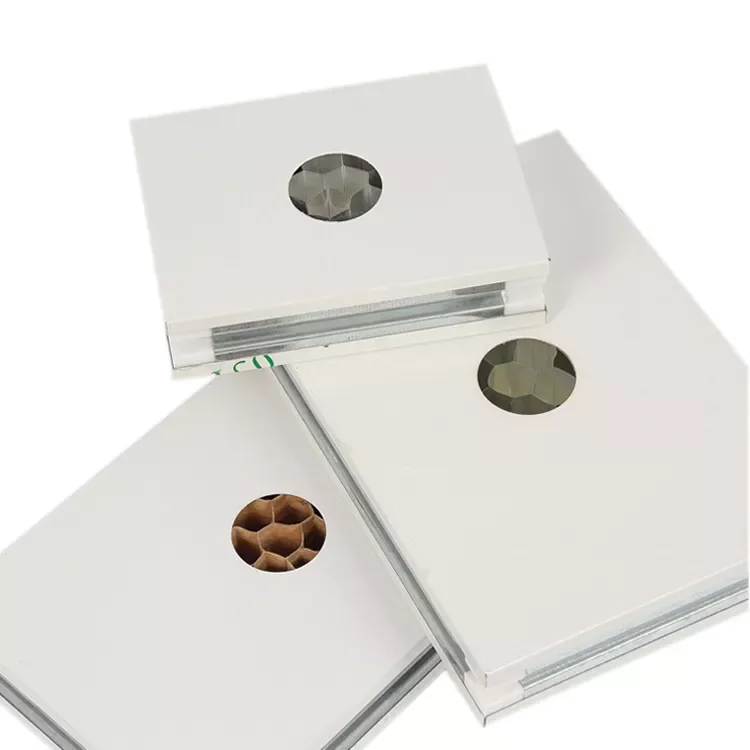

Высококачественная Красивая алюминиевая сотовая сэндвич-пластина и Сварная панель для мебели отделочных материалов
