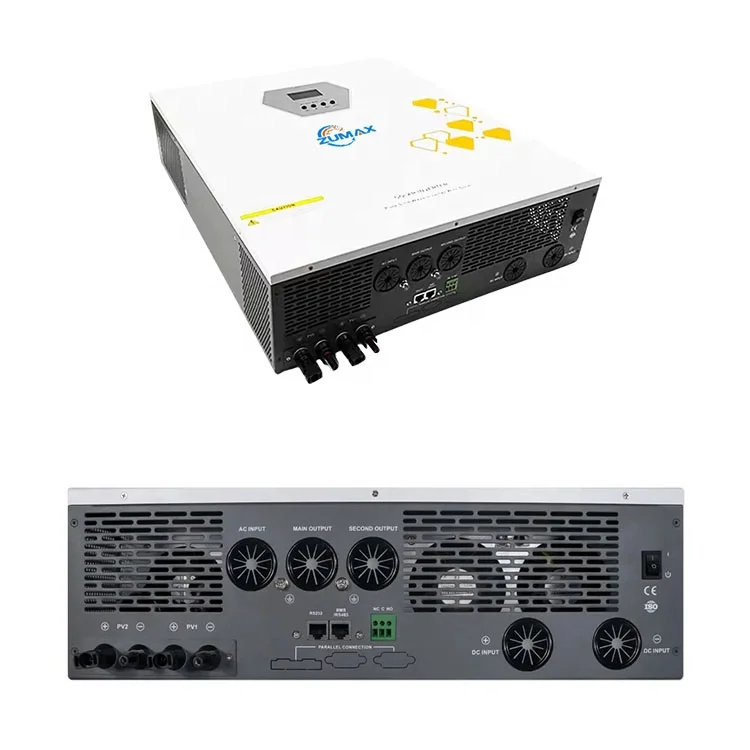

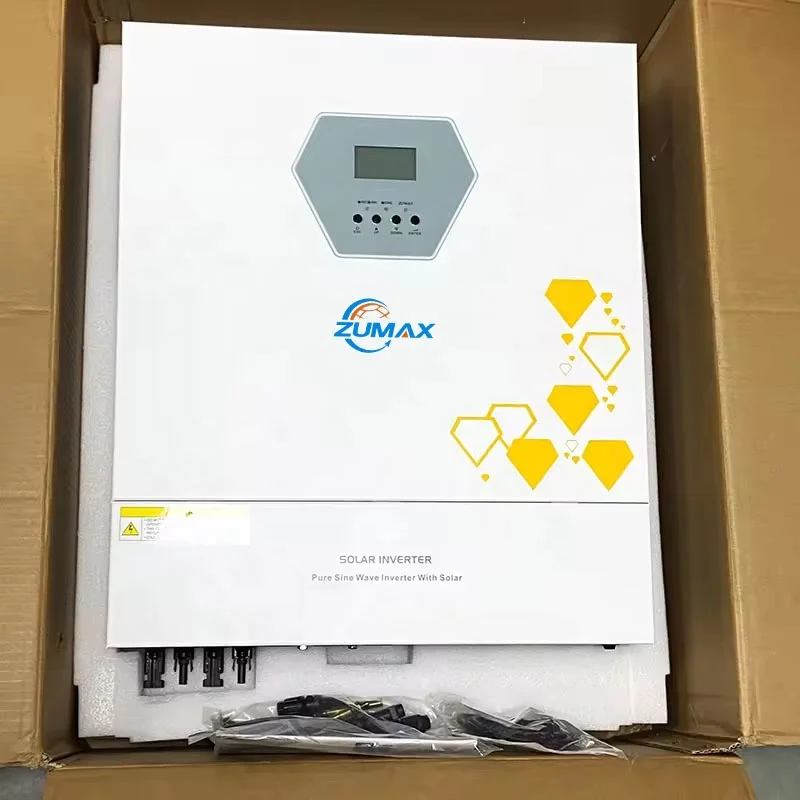

Zumax 11000 Вт 11 кВт солнечный инвертор 48 В 150 А MPPT dc в ac чистый синусоидальный бессетевой Солнечный pv Гибридный с параллельной функцией
- Категория: >>>
- Поставщик: Dongguan Zumax Technology Limited
Сохранить в закладки 1601251552055:
Описание и отзывы
Характеристики
Products Description
Main Features
▲Pure sine wave solar inverter(on/off Grid);
▲WIFI&GPRS available for IOS and Android;
▲Can achieve parallel machine expansion;
▲Built-in Lithium battery automatic activation;
▲Built-in 160A MPPT,max 11KWsolar charge;
▲High PV input voltage range(90~450VDC);
▲Built-in anti-dust kit for harsh environment;
▲Smart battery charge design to optimize battery life;
▲Dual PV INPUT(5500W+5500W).
▲Can achieve parallel machine expansion;
▲Built-in Lithium battery automatic activation;
▲Built-in 160A MPPT,max 11KWsolar charge;
▲High PV input voltage range(90~450VDC);
▲Built-in anti-dust kit for harsh environment;
▲Smart battery charge design to optimize battery life;
▲Dual PV INPUT(5500W+5500W).
About the details and price ,feel free to contact with Customer service staff.Click Here.
Product Details
MODEL:D-SERIES | 11KW | |
Phase | 1-phase(L+N+PE) | |
Parallel | MAX 6PCS | |
Maximum PV Input Power | 5500W+5500W (2*MPPT) | |
Rated Output Power | 11000W/11000VA | |
Maximum Solar Charging Current | 160A | |
GRID-TIE OPERATION（PV Input） | ||
Nominal Voltage/Maximum Voltage | 360V/500V | |
Start-up Voltage/Initial Feeding Voltage | 90V | |
MPPT Voltage Range | 90V~450V | |
Number Of MPPT Trachers/Maximum Input Current | PV1/18A, PV2/18A | |
GRID OUTPUT(AC) | ||
Nominal Output Voltage | 220/230/240VAC | |
Output Voltage Range | 195.5~253VAC | |
Nominal Output Current | 47.8A | |
Power Factor | 1 | |
Feed-in Grid Frequency Range | 49~51±1Hz | |
Maximum Conversion Efficiency | 98% | |
OFF-GRID OPERATION （AC INPUT） | ||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC / 180VAC | |
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | |
Maximum AC Input Current | 60A | |
Nominal Operating Frequency | 50/60Hz | |
BATTERY&CHARGER | ||
Nominal DC Voltage | 48VDC | |
Maximum Solar Charging Current | 150A | |
Maximum Charging Current | 160A | |
GENERAL PHYSICAL | ||
Dimension,D*W*H(mm) | 570.8x500x148.2 | |
Carton Dimension,D*W*H(mm) | 708*570*241 | |
Net Weight(Kgs) | 19.33 | |
Gross Weight(Kgs) | 22.86 | |
Communication Port | RS232/WIFI/GPRS | |
Operating Temperature | -10~50°C | |

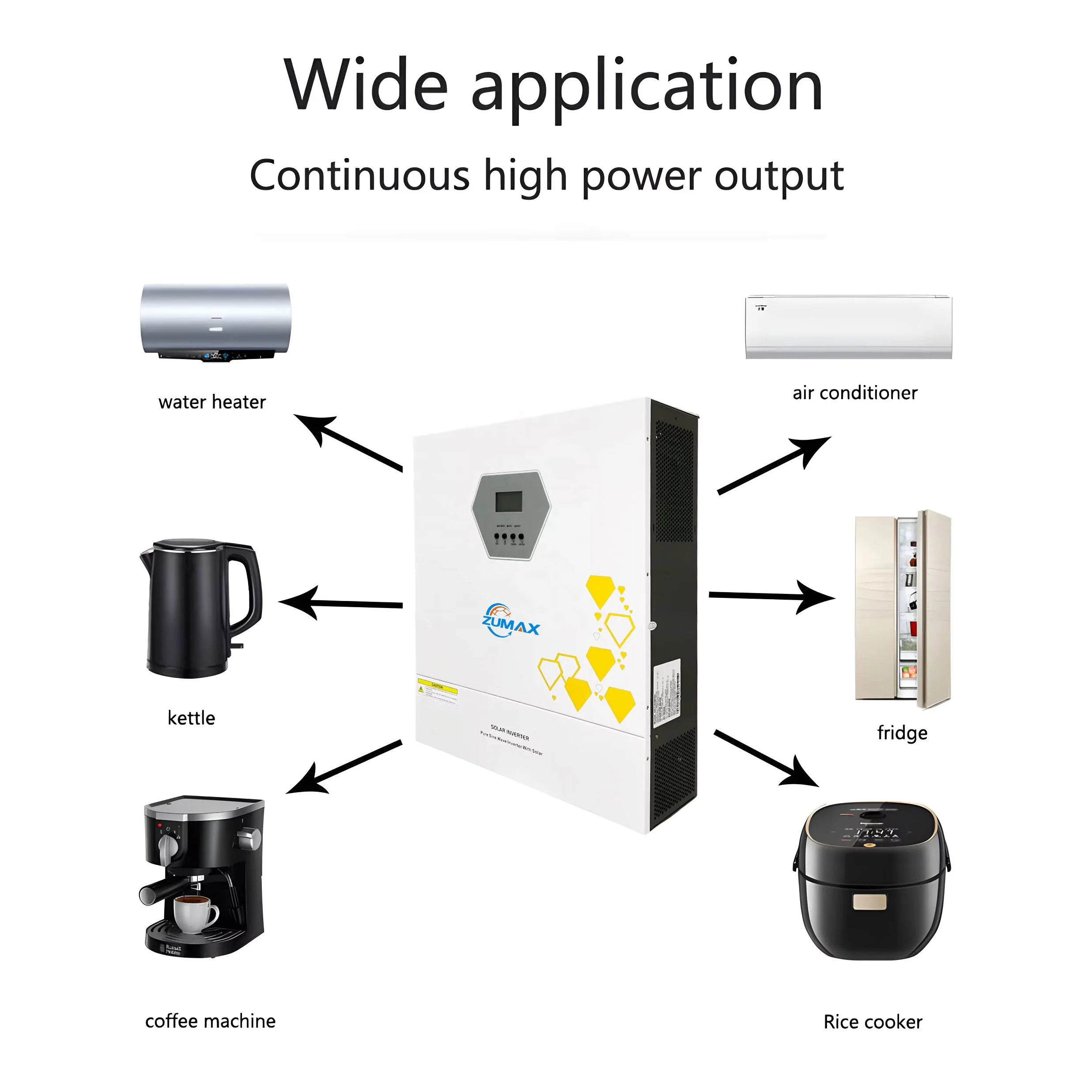

Application
Production & Delivery
Company Profile
Dongguan Zuma Technology Co., Ltd
Established in 2010, Zumax International Limited) is a high-tech enterprise concentrating in power supply, solar inverter, lithium battery,server/computer power supply and power professional research,production, sales and service. The manufacturer located in Dongguan City, Therefore, it possesses good geographical positions and convenient transportation conditions. We have our own factory building of more than 5000 square meters, and there are more than 10 senior engineers and 120 staff engaged in the professional production, Now our production has stepped into certain standardization and scope. To ensure product quality and increase production efficiency, we have introduced advanced technology and equipment from abroad and strictly carries out the international quality standards, we have already passed the ISO9001, UL, FCC, CE, CB. C / managemen and quality certificate. Our company take "Perfect Customer Service, Excellent Quality Continuous Creation" as our main principle, and our products have received warm reception from our customers. As fierce competition and decline market in power industry, our business increase as with reliable technology, good material and creative mind, which helping us win a sound reputation from our customers. Welcome to visit us.
SHIPPING |
①FedEx/DHLUPS/TNT for samples，Door-to-Door. |
②By Air or by Sea for batch goods,for FCL；Airport Port receiving. |
③Customers specifying feright forwarders or negotiable shipping methods. |
④Delivery Time：3-7 days for samples；5-25 days for batch goods. |
FAQ
Q1: Why you should choose us?
---More than 20 years Electrical Equipment factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 1-2years warranty and 1% sapre parts for free
---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,and so on
---All series product pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
---Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ,1 pcs for sample checking is available.
Q7. Do you support OEM?
---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
---More than 20 years Electrical Equipment factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 1-2years warranty and 1% sapre parts for free
---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,and so on
---All series product pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
---Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ,1 pcs for sample checking is available.
Q7. Do you support OEM?
---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Похожие товары
Deye 10 кВт 12 кВт 15 кВт 16 кВт 20 кВт 10 12 15 20 кВт 10000 Вт 20000 Вт 48 В Сплит один трехфазный 3-х включенный Гибридный солнечный инвертор
138 255,78 ₽ - 189 762,83 ₽

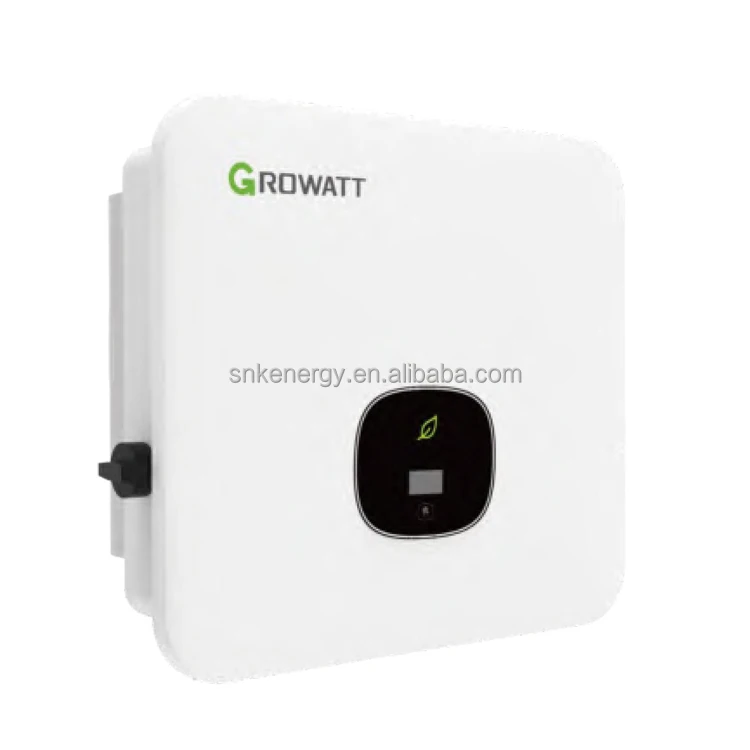

Инвертор Growatt, 10 кВт, 12 кВт, 15 кВт, 17 кВт, 20 кВт, 25 кВт, 10, 15, 20, 30, 40, 50 кВт, 3 фазы, 380 В, 400 В, на сетке, солнечный инвертор
33 615,13 ₽ - 37 952,57 ₽
6 кВт солнечный инвертор на вне сети гибридный инвертор 5 кВт 6 кВт солнечная энергетическая система стоимость

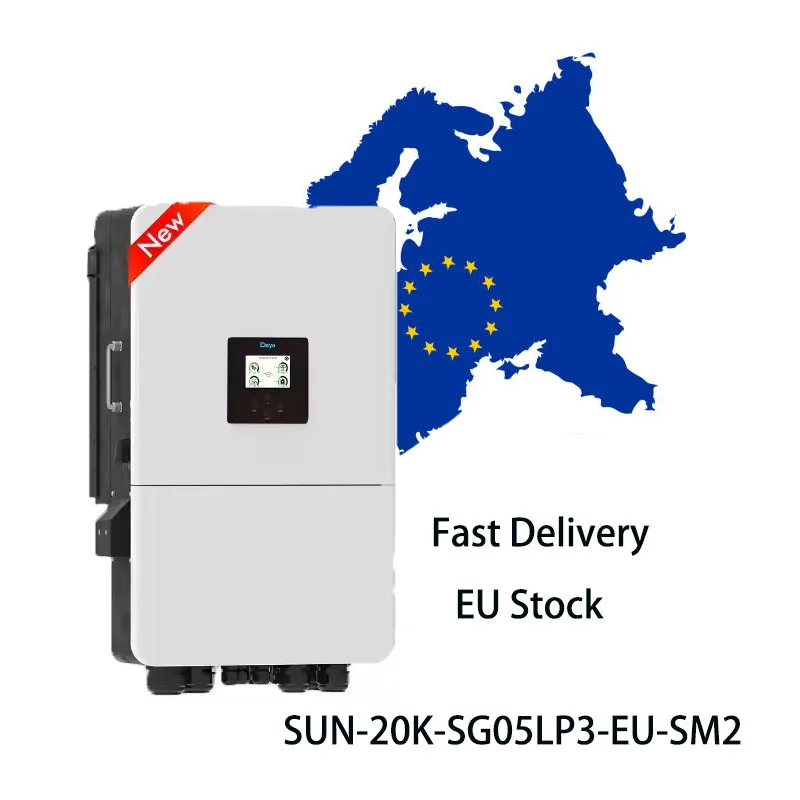

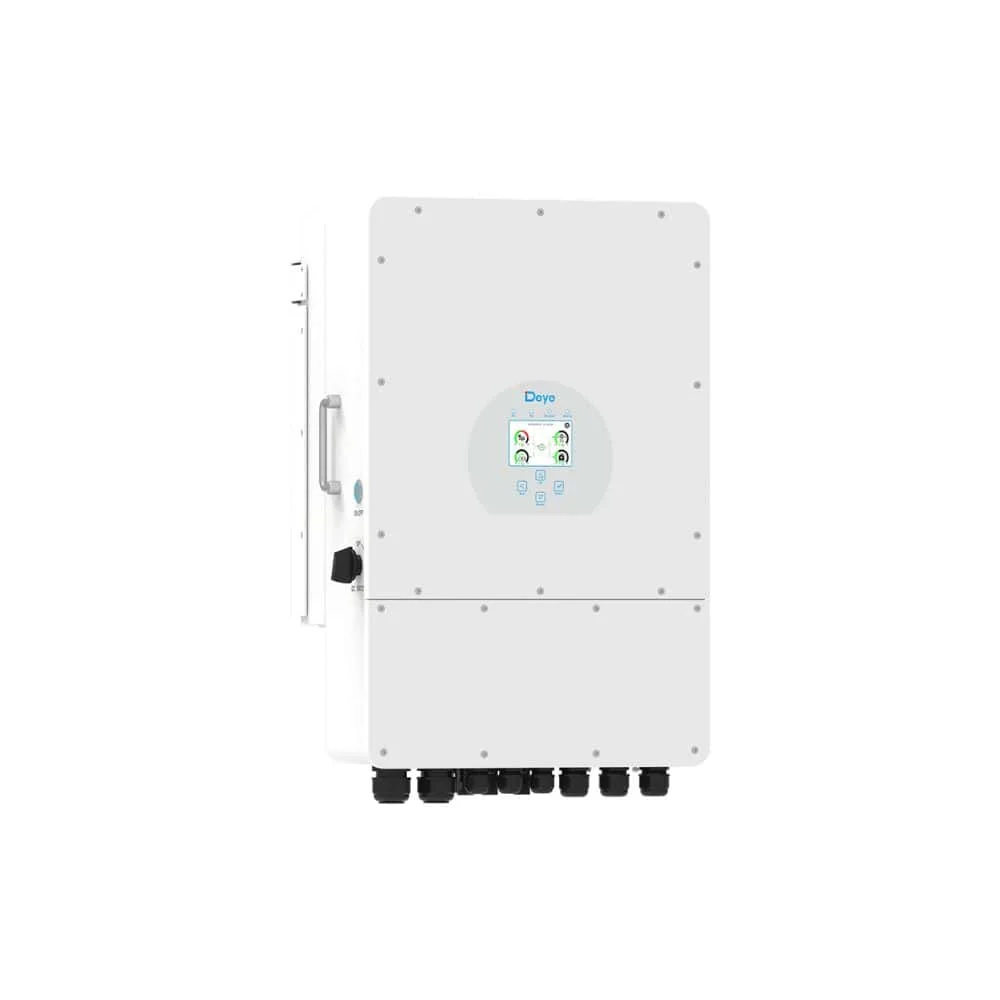

ЕС Stock- Deye 20 кВт гибридный 20 кВт 20 кВт трехфазный инвертор SUN-20K-SG05LP3-EU-BM2 20 кВт 20 кВт Гибридный инвертор 10 лет гарантии
324 765,53 ₽ - 334 416,32 ₽
Гибридный солнечный инвертор вне сети, передний инвертор, 3 кВт, 10 кВт, 15 кВт, 20 кВт, 30 кВт, инвертор для хранения энергии с батареей
146 171,60 ₽ - 154 846,47 ₽

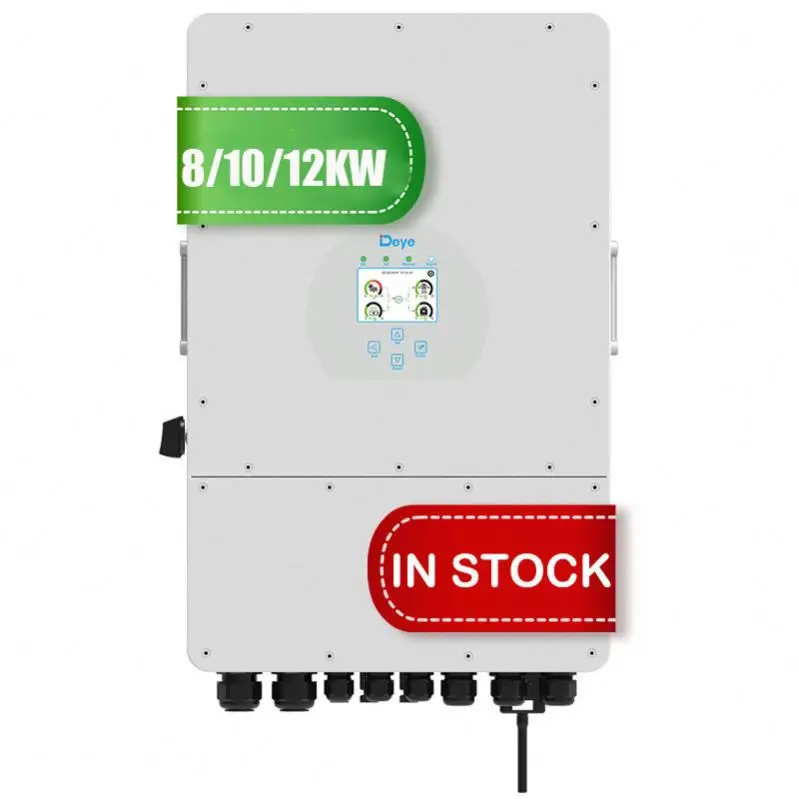

Гибридный инвертор Deye 5 6 8 10 12 кВт sun-12k-sg04lp3-eu трехфазный инвертор переменного тока 48 В Гибридный инвертор
171 220,29 ₽ - 174 364,93 ₽

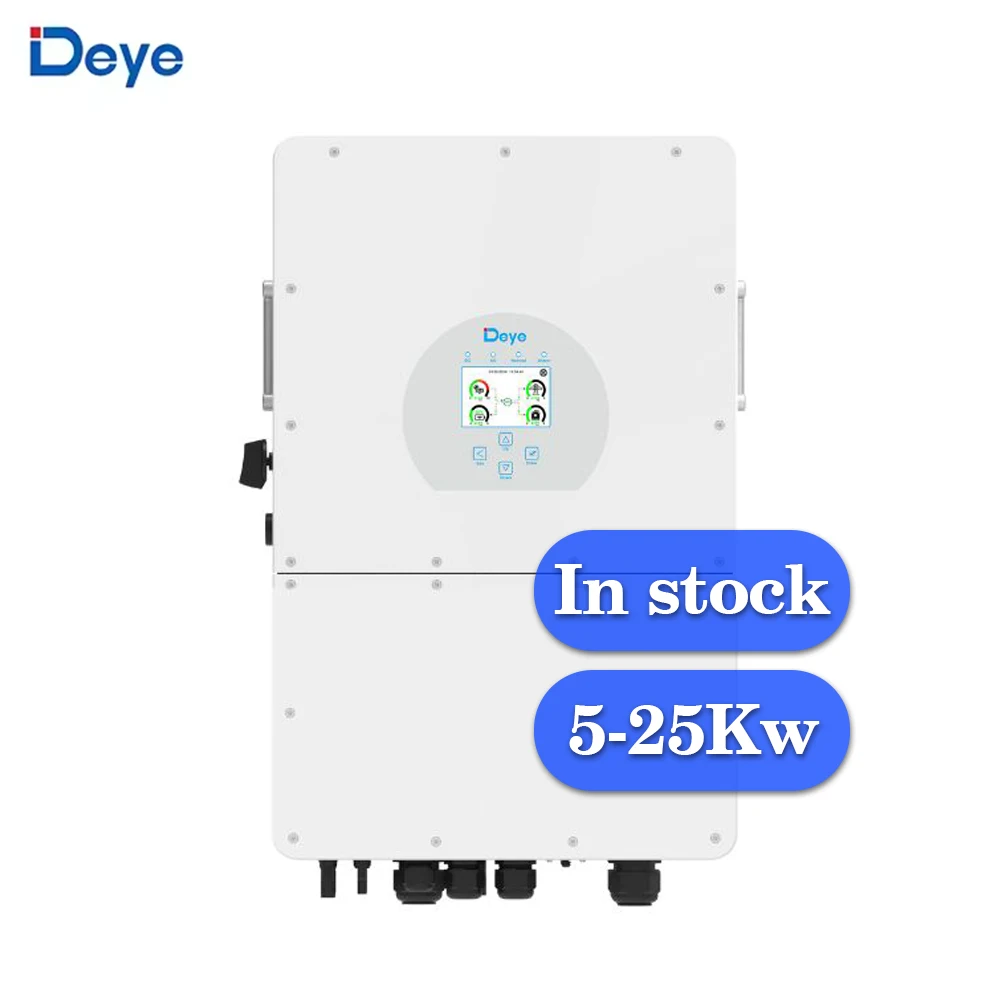

Deye трехфазный 5 кВт 6 кВт 8 кВт 10 кВт sun-25k-sg01hp3-eu-am2 Гибридный инвертор пакет 12 кВт 15 кВт 20 кВт 25 кВт включенный Солнечный инвертор
