Двойной 100 фотокниги Свадебный фотоальбом делая машину автоматический фотоальбом делая машину переплетная машина для книг
378 021,70 ₽ - 394 222,63 ₽

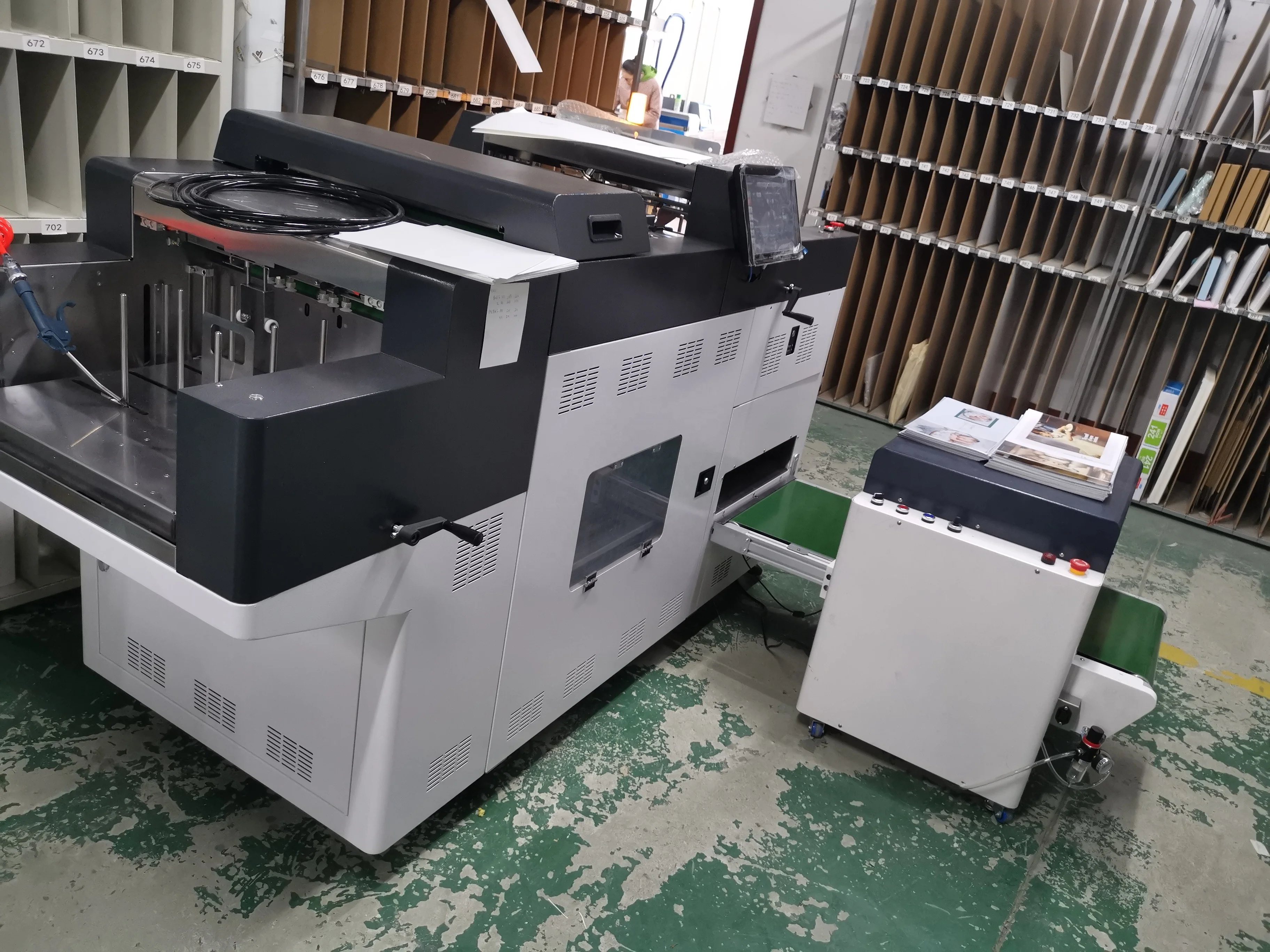

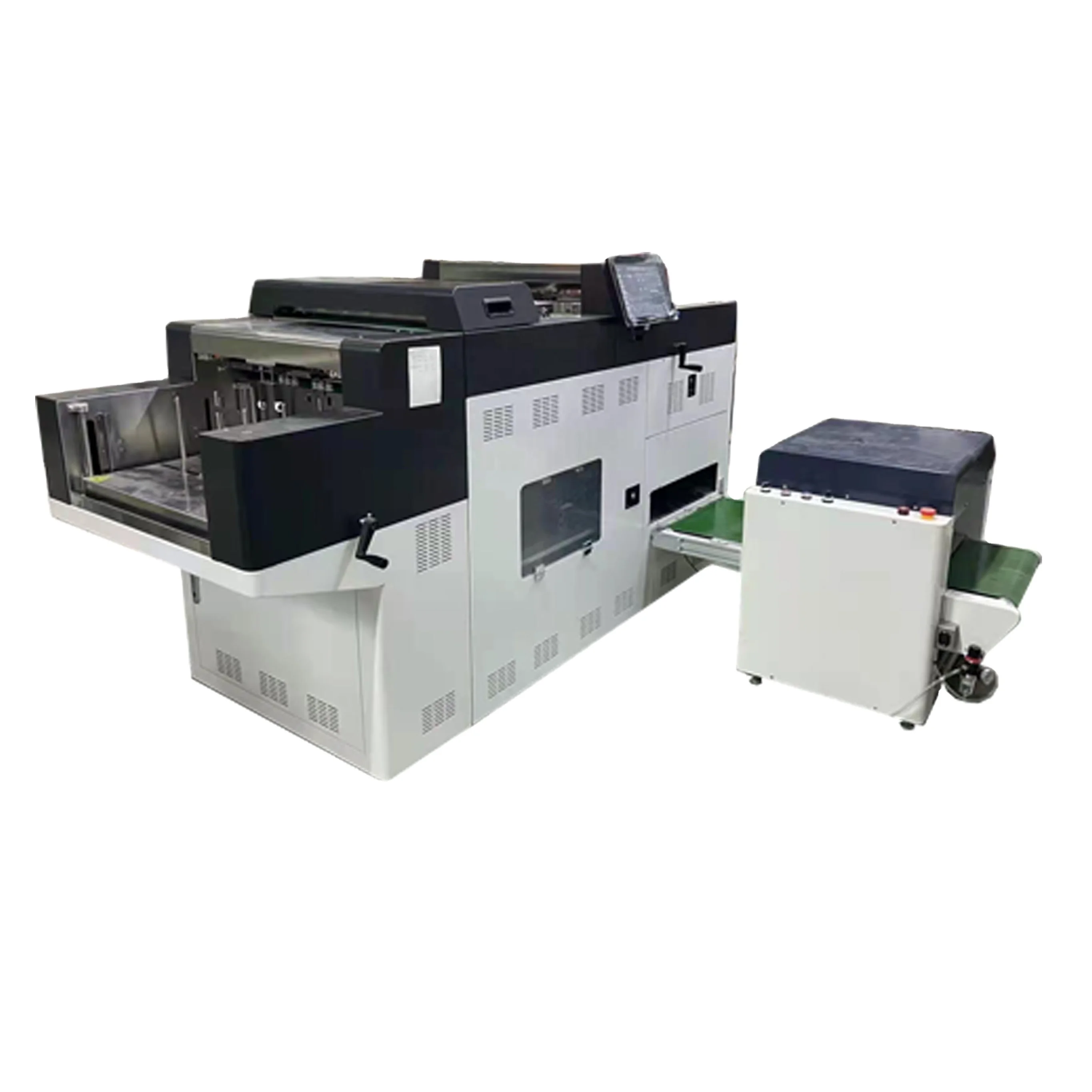

Double100 QHSF 1860 полностью автоматическая машина для изготовления альбомов переплета фотокниги
- Категория: >>>
- Поставщик: Qihe Shuangbai Digital Photographic Equipment Co. Ltd.
Сохранить в закладки 1601251650222:
Описание и отзывы
Характеристики
PRODUCTS DESCRIPTION
Fully Automatic Layflat Album Making machine
1. from Auto paper feeding to gluing to finished book block
2. 1 person can operate 10 machines
1. from Auto paper feeding to gluing to finished book block
2. 1 person can operate 10 machines
3. album inner sheets thickness ranging from 0.3mm to 1.5mm
4. photo paper can be used from systhetic paper to 300g photo paper
5. Modula design for each essencial part to allow easy maintainment
6. remotely control and easy operation
7. factory store for 24h*7 fast service
4. photo paper can be used from systhetic paper to 300g photo paper
5. Modula design for each essencial part to allow easy maintainment
6. remotely control and easy operation
7. factory store for 24h*7 fast service

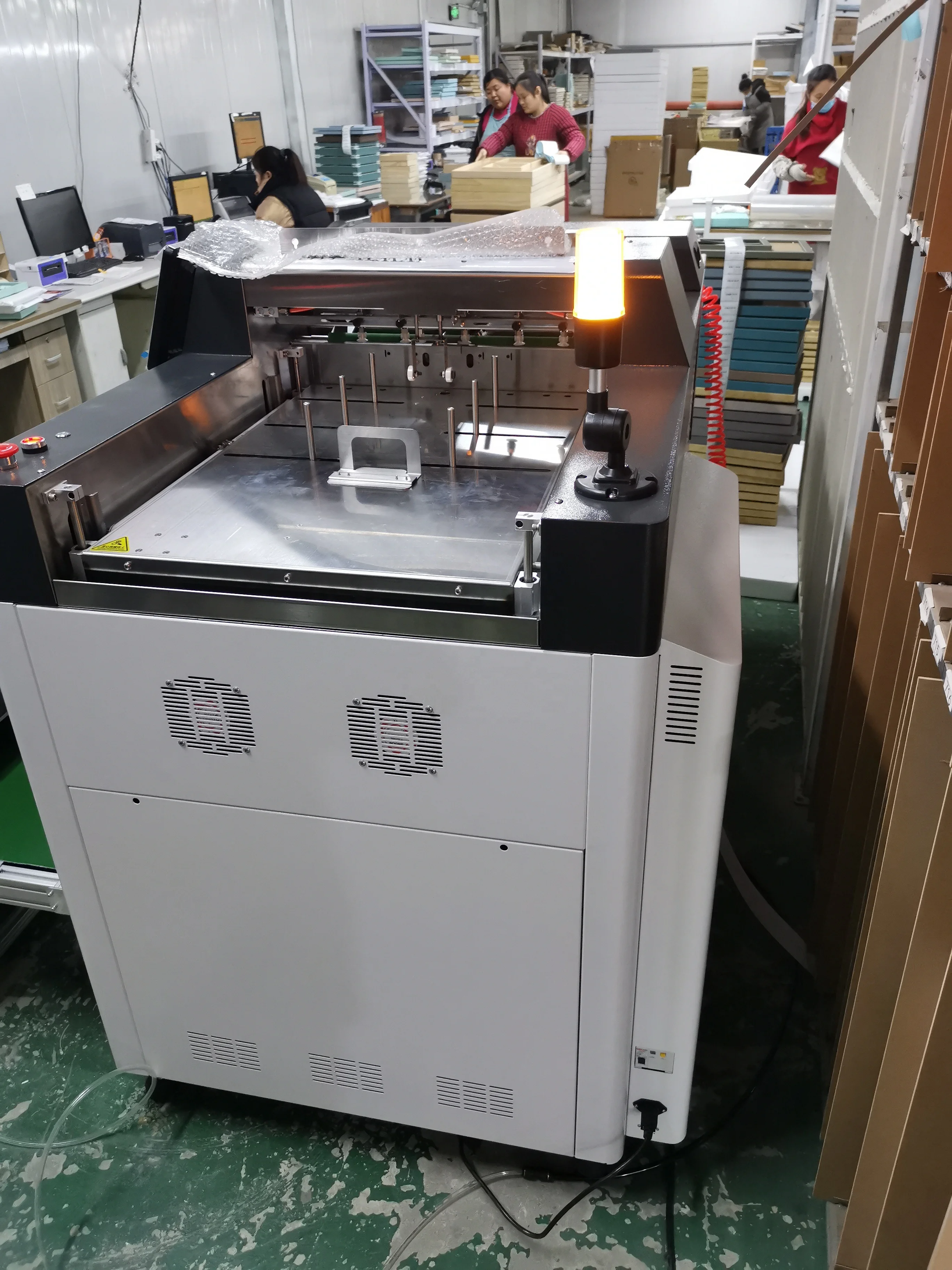

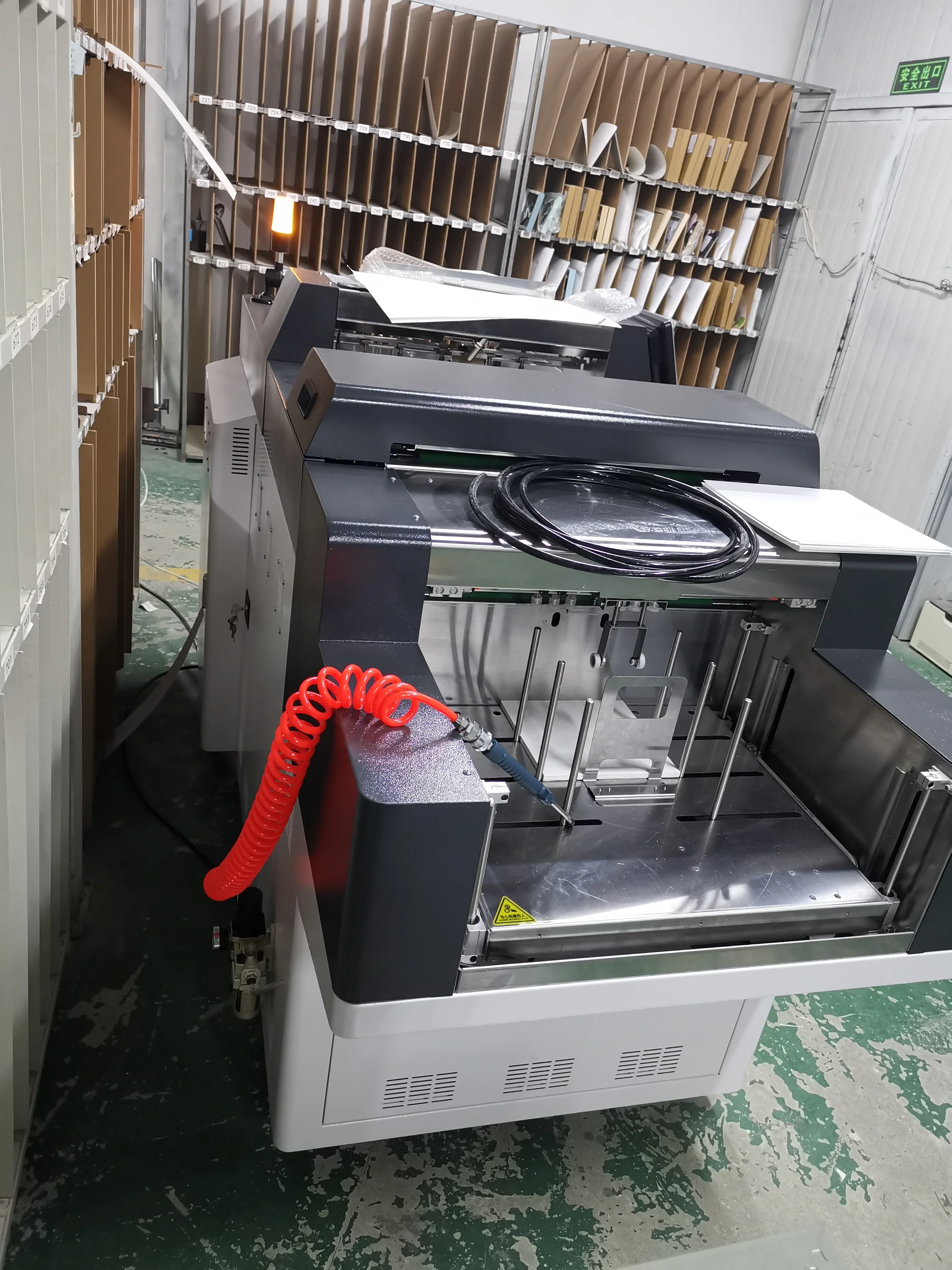

The sheet feeder of the QHFS-1860 professional comes with an integrated rear edge separator that slightly lifts the rear edge of the next sheet for the book block before it is transported. This feature makes your book block production more efficient because it enormously reduces the appearance of double sheets
Main Characteristics:
1. Book blocks up to 457 mm x 457 mm (18" x 18")
2. High-level performance: up to 600 sheets / h (depending on size)
3. Block thickness with cardboard max. 40 mm / 1.6”
4. Inlay feeder with a stacking height of 60 mm
5. Selectable number of inlays can be glued between two pages
6. Optional in-line book press perfectPress
7. Easy to operate via touchscreen
8. 4-in-1 fully automatic print finishing system
9. Creasing, folding, pressing, and gluing in only one workstep
10. Complete LayFlat book blocks manufactured from single sheets
11. 180 degree book opening
12. Easy access to every part of the system
13. Provides consistent premium quality with low production costs
14. Premium Layflat photo book technology for panoramic pages.
1. Book blocks up to 457 mm x 457 mm (18" x 18")
2. High-level performance: up to 600 sheets / h (depending on size)
3. Block thickness with cardboard max. 40 mm / 1.6”
4. Inlay feeder with a stacking height of 60 mm
5. Selectable number of inlays can be glued between two pages
6. Optional in-line book press perfectPress
7. Easy to operate via touchscreen
8. 4-in-1 fully automatic print finishing system
9. Creasing, folding, pressing, and gluing in only one workstep
10. Complete LayFlat book blocks manufactured from single sheets
11. 180 degree book opening
12. Easy access to every part of the system
13. Provides consistent premium quality with low production costs
14. Premium Layflat photo book technology for panoramic pages.
PRODUCTS SPECIFICATION
Model number | QHFS-1860 auto photo book binder |
Photo albun specification | 6X6——18X18inch |
Material thickness | 0.4-1.0 mm |
Album thickness | 6-40 mm |
Speed | 600 pieces/hour |
Dimention | 2200x1000x1350mm |
Net weight | 650 kg |
Power | 3-3.5 kw |
Power consumption | 1.8-3.5 kw |

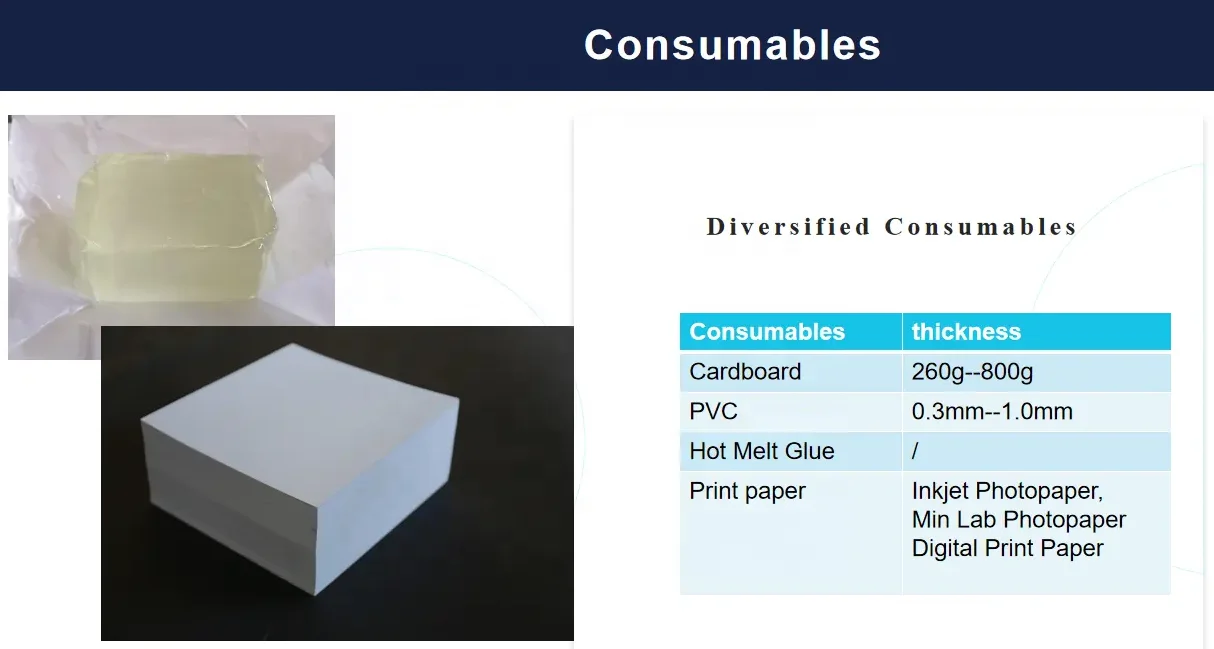

Consumables | Hot melt adhesive and inner sheets for album machine(12g-15g/m2) |
Parts consumables | Timing belt, rubber spoke, sports line (recommended to be replaced every year) |
Mode of production | CCD industrial camera visual recognition, module linkage indentation and folding, automatic alignment, automatic gluing, automatic booklet, push warehouse |
RIP resolution | ±0.01 |
Port | Network port |
PRODUCT DETAILS
Product Details and Characteristics：
1. High efficiency : large format 18*18inch，speed can reach 600 piece/hour
2. Use consumables : hot melt adhesive and inner sheets for album machine(12g-15g/㎡)
3. Automatic identification : with software support, the size specification page number can be automatically identified
4. Layflat process : hardcover craftsmanship can achieve 180 degree open
5. Good compatibility : fully compatible with ink-jet printing/min lab printing/ digital printing.
2. Use consumables : hot melt adhesive and inner sheets for album machine(12g-15g/㎡)
3. Automatic identification : with software support, the size specification page number can be automatically identified
4. Layflat process : hardcover craftsmanship can achieve 180 degree open
5. Good compatibility : fully compatible with ink-jet printing/min lab printing/ digital printing.
RELATED PRODUCT
Manual Glue Binding machine
*A4 Desktop Glue Binding Machine
*A3 Desktop Glue Binding Machine
*A3 Desktop Glue Binding Machine
Single Roller Glue Binding Machine
* D50A4-50mm A4 glue binding machine
* D60A4- 60mm A4 glue binding machine
* D60A3- 60mm A3 glue binding machine
* D60A4- 60mm A4 glue binding machine
* D60A3- 60mm A3 glue binding machine
Two Rollers with Side Gluing Binding Machine
*TC60A4- A4 glue binding machine with side gluing*TC60A3- A3 glue binding machine with side gluing
Three Rollers with Side Gluing Binding Machine
*ST60CA3 -A3 three rollers glue binding machine with side gluing
Automatic Glue Binding Machine
*S1000 - automatic cover feeding glue binding machine
Layflat Book Binding machine
*480mm window cutting machine
COMPANY INTRODUCTION
QIHE SHUANGBAI DIGITAL PHOTOGRAPHIC EQUIPMENT CO.,LTD
DOUBLE 100 starts from 1998, it is the biggest manufacturer of album making equipment and professional album consumables supplier.
Currently, the company had the following brach:Baby pastel studio, Kencoo Image, Double 100, Yong Ji Consumbles, Deli Album ect.With more than 10,000 sqm workshop for equipment production and separate logistic space for the fast and convenient dispatching goods. Double100 plays a leading roll in the digital photographic field,which have a big group for R&D to ensure the most advanced product, for the superior function and ensured quality, perfect after sale service. The equipent have been cover all over the China. Also have been export to Europe, North America, South America,Asia, Middle east, Afric, ect, around 70 countries and have got good feedback from all agent and end users. The integrated equipment produced by Double100 include many kinds of difference.machines which are mainly for wedding shop,min-lab and post production company.Also for the machines, we have 23 patents. Besides,
Double100 have been paying attention to the communcation and cooperation with other brand named companies in the international and domestic, to get the best industry developing trend. With after service department working outside installing and adjusting euipment, making sure every customer get the best service from our company. We will keep on be your best relier with the spirt pursuing the best to ensure super quality, professional service.
Currently, the company had the following brach:Baby pastel studio, Kencoo Image, Double 100, Yong Ji Consumbles, Deli Album ect.With more than 10,000 sqm workshop for equipment production and separate logistic space for the fast and convenient dispatching goods. Double100 plays a leading roll in the digital photographic field,which have a big group for R&D to ensure the most advanced product, for the superior function and ensured quality, perfect after sale service. The equipent have been cover all over the China. Also have been export to Europe, North America, South America,Asia, Middle east, Afric, ect, around 70 countries and have got good feedback from all agent and end users. The integrated equipment produced by Double100 include many kinds of difference.machines which are mainly for wedding shop,min-lab and post production company.Also for the machines, we have 23 patents. Besides,
Double100 have been paying attention to the communcation and cooperation with other brand named companies in the international and domestic, to get the best industry developing trend. With after service department working outside installing and adjusting euipment, making sure every customer get the best service from our company. We will keep on be your best relier with the spirt pursuing the best to ensure super quality, professional service.
WELCOME TO BUY OUR PRODUCTS
We pride ourselves on our commitment to quality, and rigorously test all of our machines and consumables before dispatch.Our consumables undergo a thorough pick-up process before packing, ensuring exceptional performance, and we offer a3-year warranty on all of our products.Our competitive pricing makes us the ideal choice for small and medium-sized print shops, and we ofer customized solu-tions to suit specific needs. Whether you require manual or fuly automatic machines, we have a range of options to suit your requirements.
In addition to photobook production, we offer various print effectenhancing solutions to elevate your prints.
We are the biggestand most comprehensive supplier for photobook consumablessuch as insert sheets, lamination film, and photo wood frames.
Choose Double 100 for a trusted worldwide partner in printingsolutions,with a commitment to quality and innovation that setsus apart from the competition.
We will participate in every exhibition both domestically and internationally, including those in Germany, the United States, and Shandong.
Packing&Delivery
Customer Praise
Customer Praise
Thank you for your over 20 years of support and companionship to our company. We have attained excellent results through continuous innovation and breakthroughs along the way. Double 100 will keep moving forward and serve every customer well in R&D,production and after-sales service.
FAQ
Похожие товары
Double100 QHSF-1860 полностью автоматическая Автоматическая фотомашина для переплета фотокниги Автоматическая Double100
378 021,70 ₽ - 394 222,63 ₽

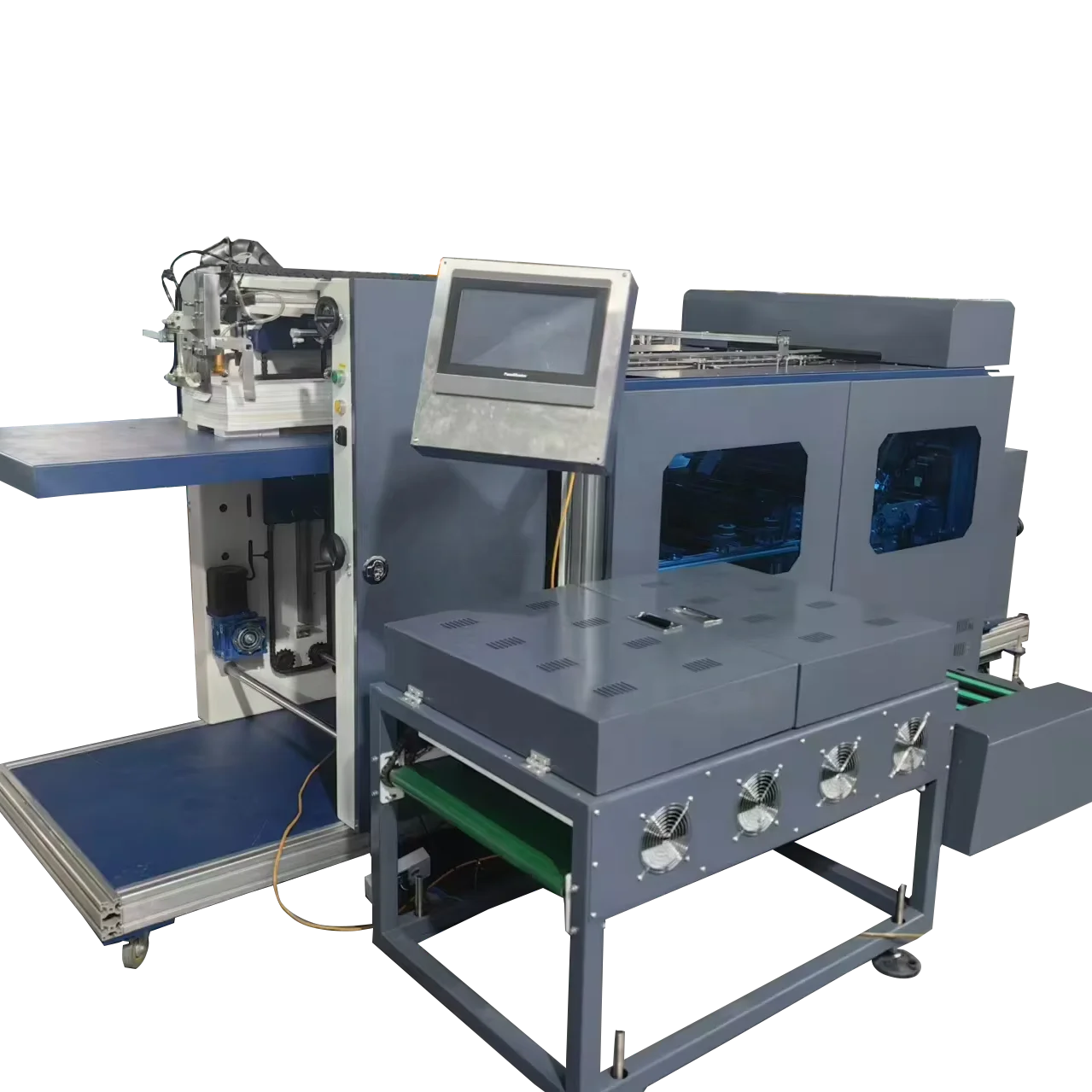

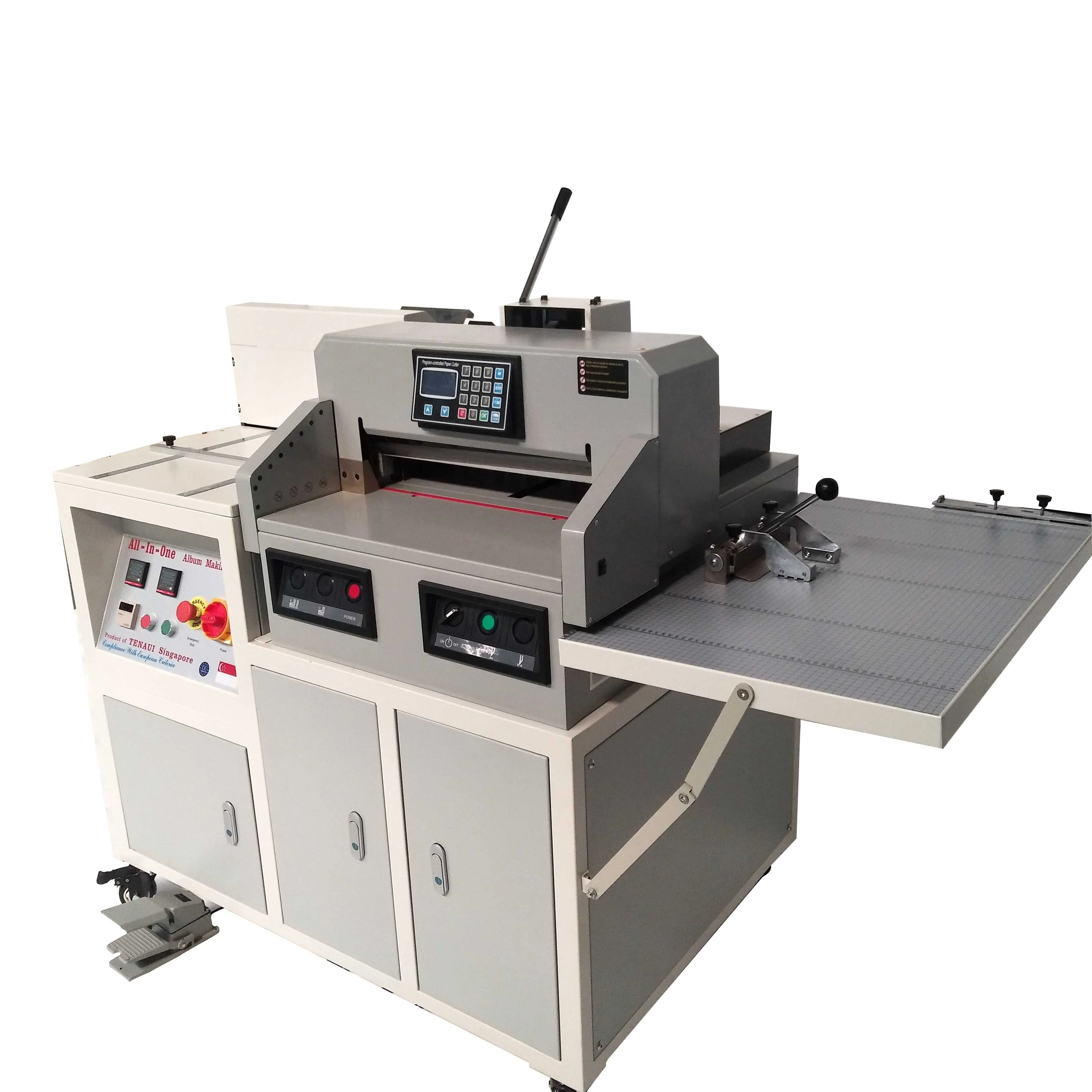

Автоматическое изготовление альбомов, фотоальбом, производитель, журнал, свадебное производство, многофункциональное оборудование
313 217,98 ₽ - 394 222,63 ₽

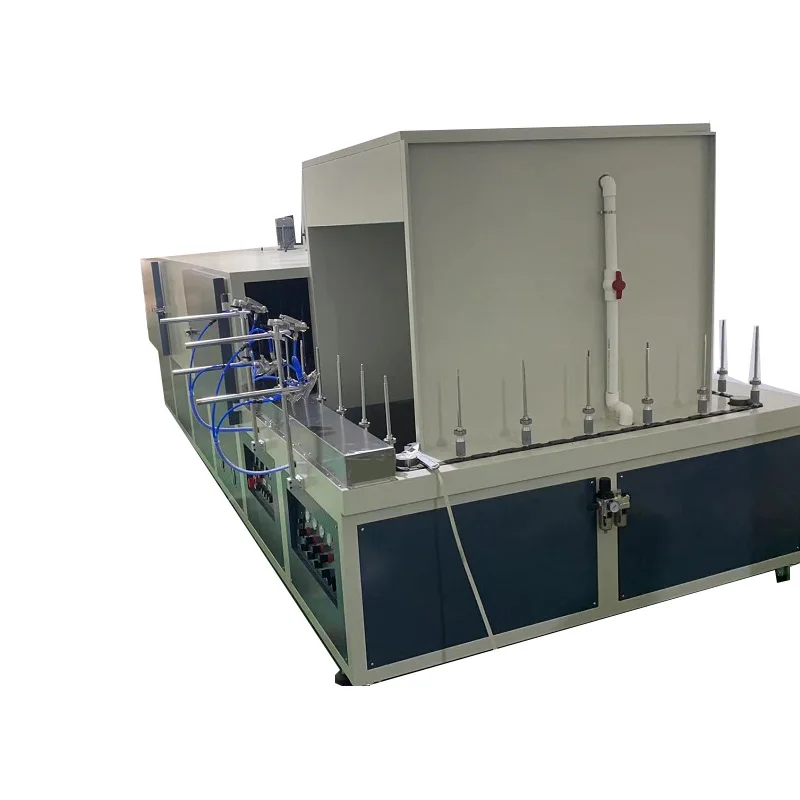

Автоматическая машина для распыления краски и УФ-ИК-отверждения, оборудование для сушки покрытий для металлопластиковой промышленности
1 442 962,84 ₽ - 2 664 296,95 ₽

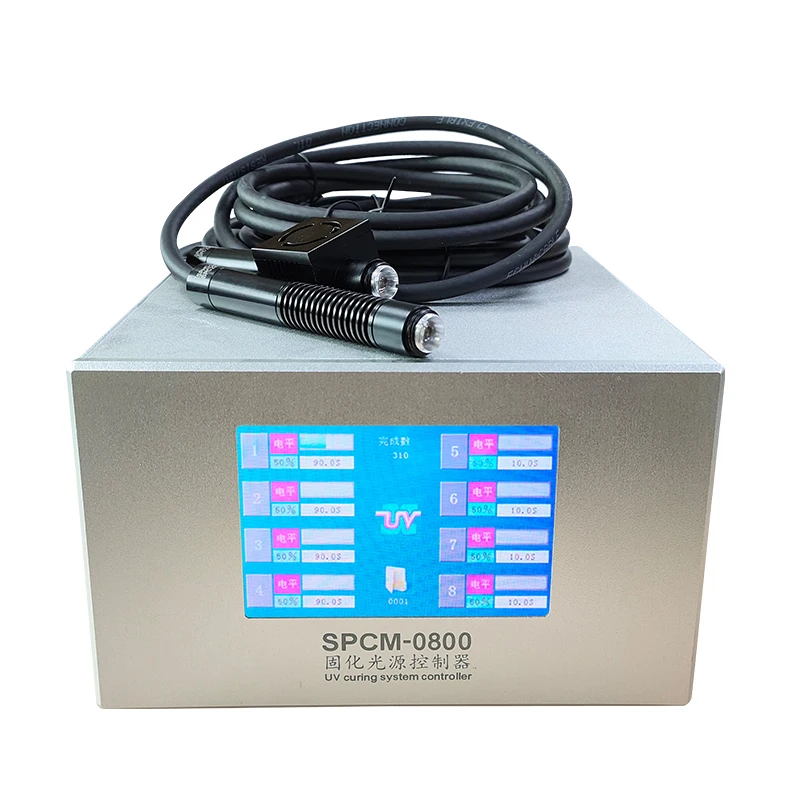

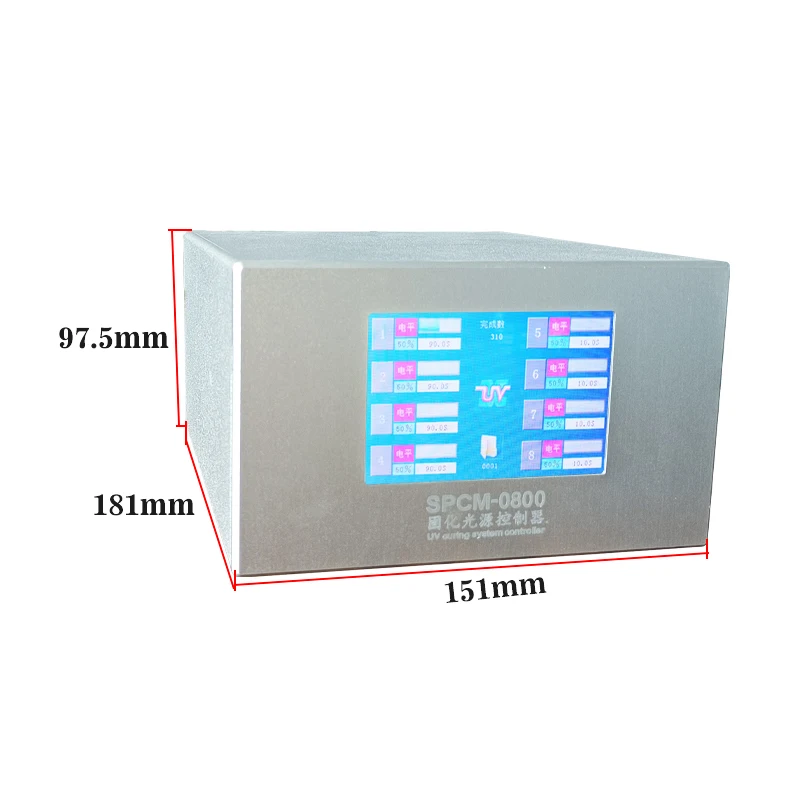

УФ-лампа для полимерного воздушного охлаждения УФ-отверждающая система с двумя облученными головками, точечный источник света, светодиодная УФ-отверждающая лампа
Небольшая ультрафиолетовая Светодиодная лампа с воздушным охлаждением, ультрафиолетовая отверждающая система с двумя облученными головками, точечный источник света, светодиодная ультрафиолетовая отверждающая лампа

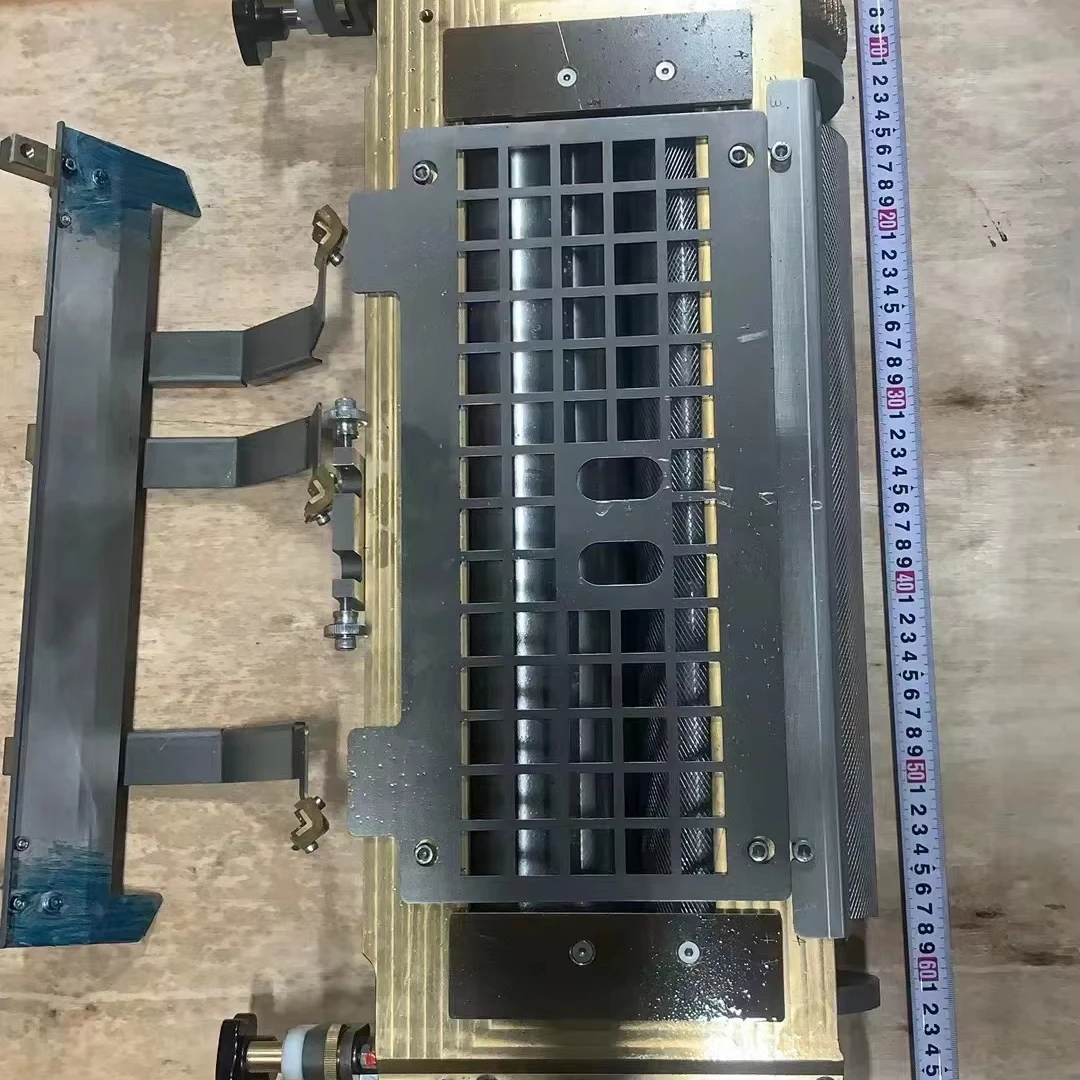

Kolbus BF511 набор клеевых роликов для Kolbus BF526 хорошая цена хорошее качество нейлоновая щетка
64 803,72 ₽

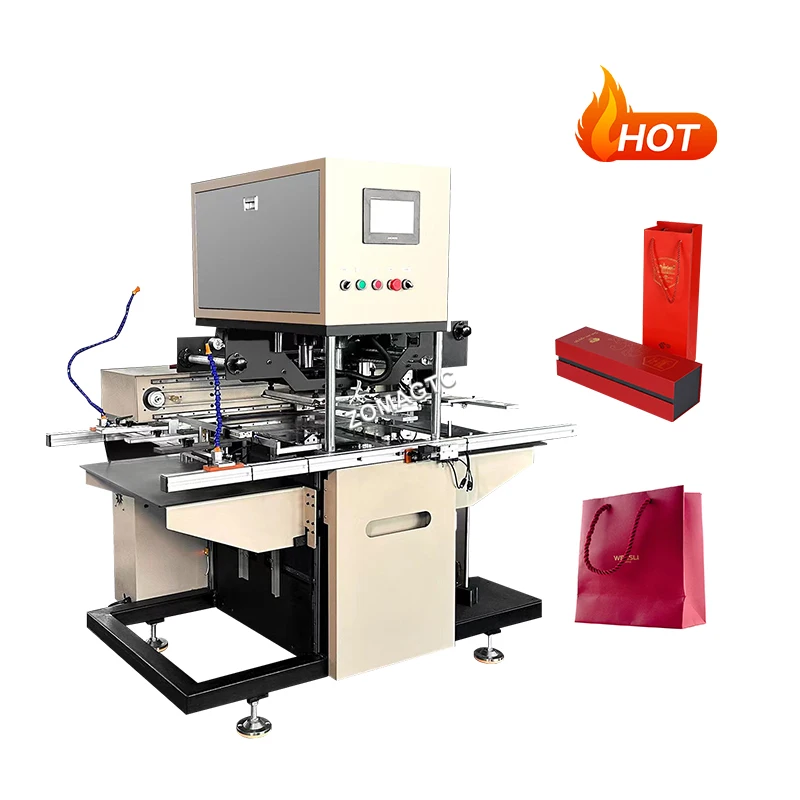

Цифровая машина для штамповки принтера горячей фольги золотого серебра, машина для штамповки фольги бронзирования, машина для термоштамповки листов бумаги
