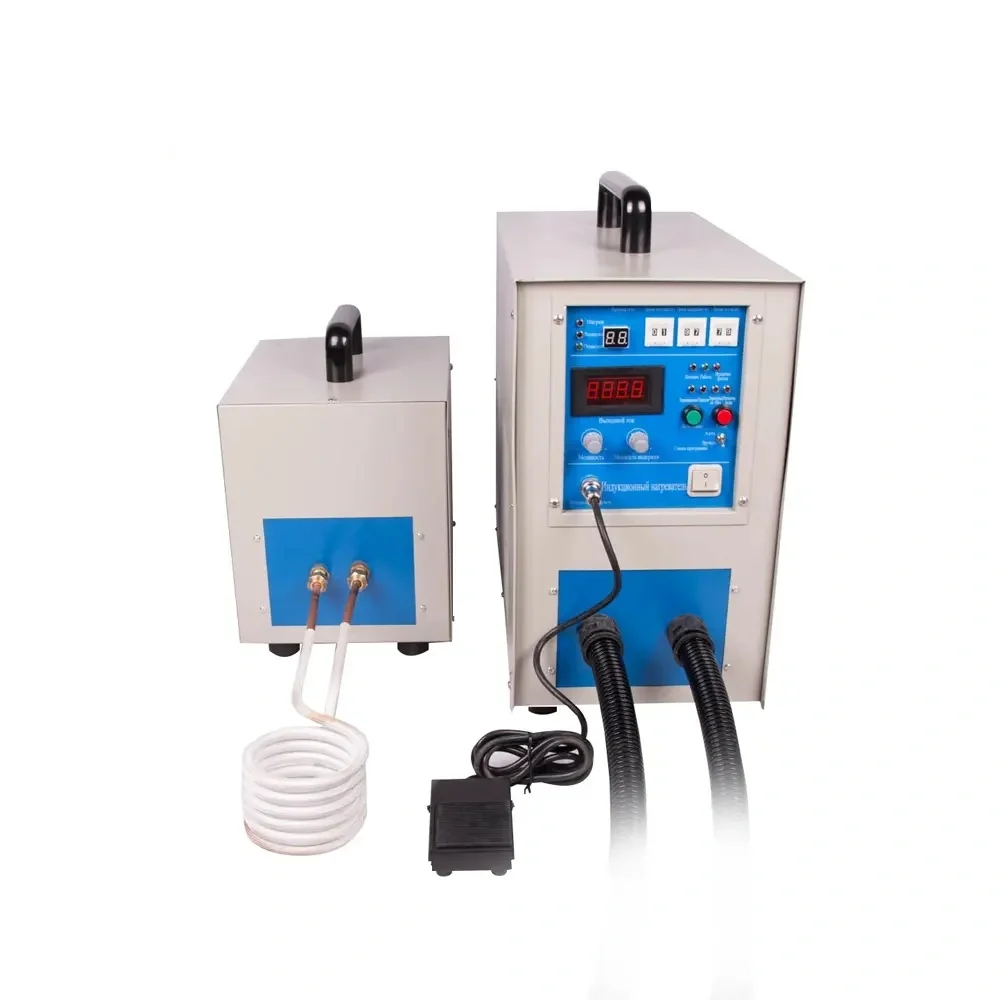

Технология IGBT высокочастотный индукционный трубный нагреватель
93 201,14 ₽ - 98 683,56 ₽
Высококачественная интеллектуальная 6 осевая Фланцевая сварочная робот рабочая станция для металлической заготовки
- Категория: >>>
- Поставщик: Wuxi Zhouxiang Complete Set Of Welding Equipment Co. Ltd.
Сохранить в закладки 1601251718303:
Описание и отзывы
Характеристики
Product Description

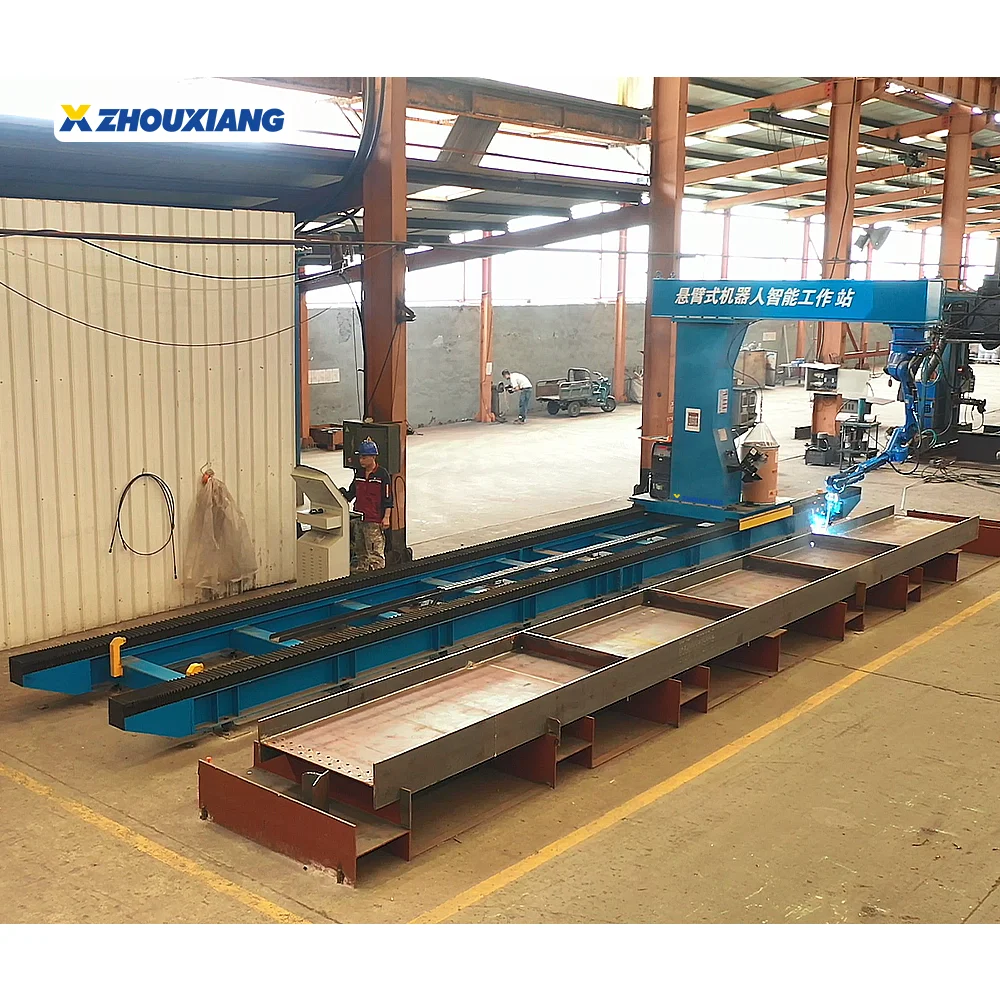

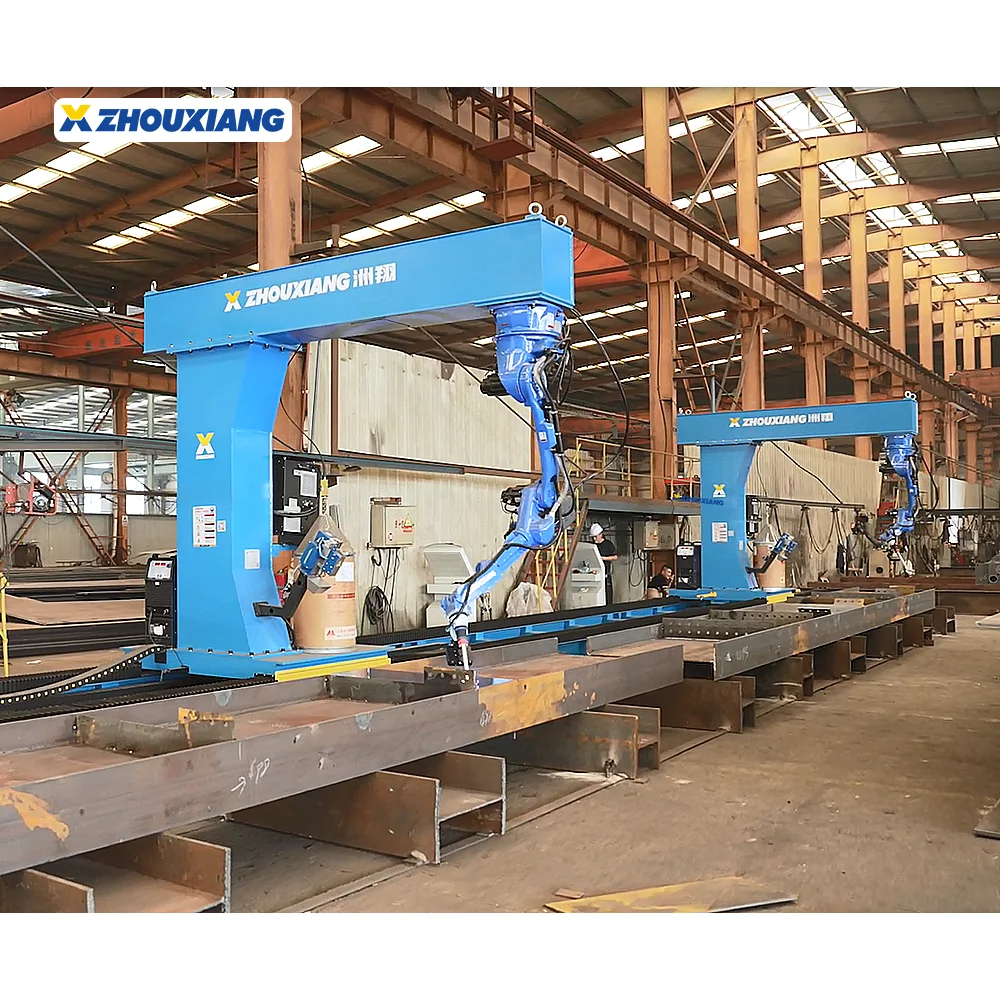

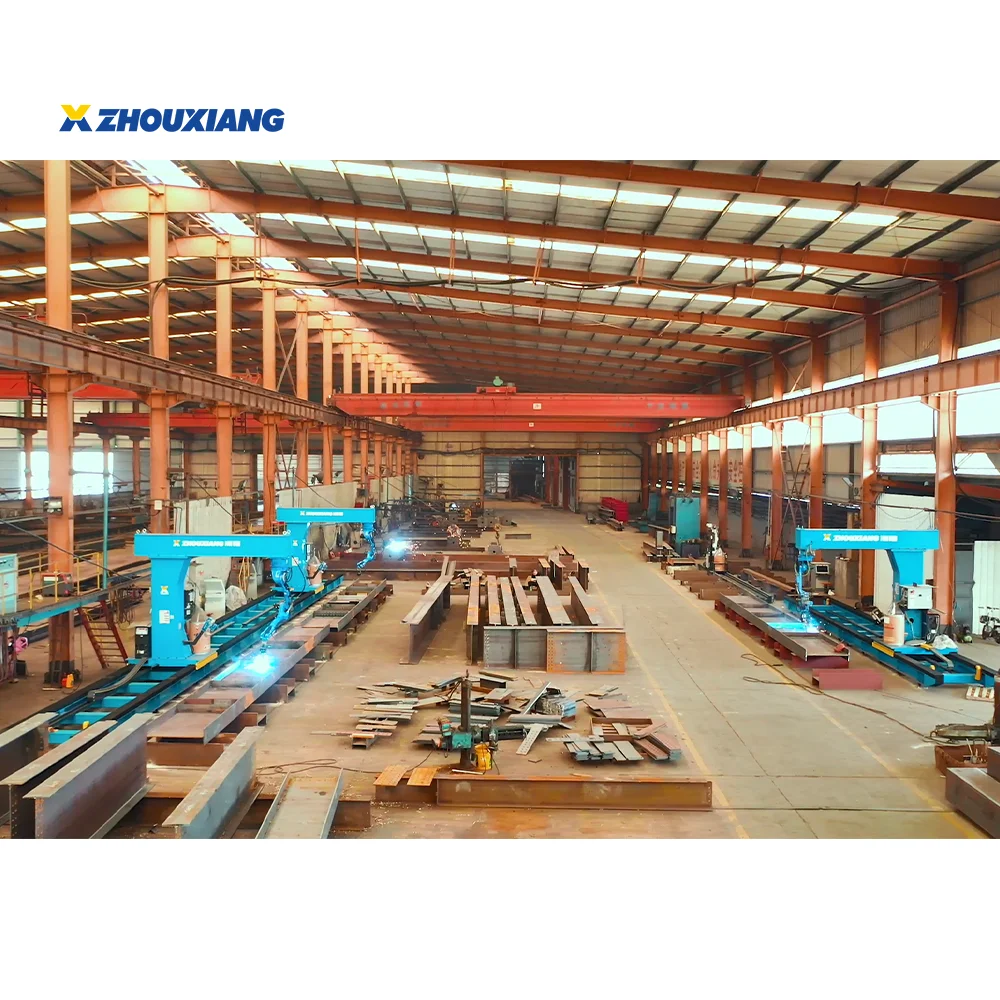

The cantilever robot intelligent welding workstation is equipped withthe Friendess teaching-free welding system and Friendess wide-view sea m tracker, which directly import the 3D model file of Tekla, SOLIDWORKS or UG, directly match the welding process parameters, automatically identify the exact position of the weld and generate the optimal welding process for welding. The ro bot is equipped with automatic gun cleaning device. Track length can be customized according to the product, the userdetermines the required track length according to the length of the workpiece, the application is more flexible; Saving Lifting Time Cantilever Intelligent Cnc Automatic Welding Robot Workstation
High Quality Intelligent 6 Axis Flange Welding Robot Workstation For Metal Workpiece
At present, it is mainly used for the welding of H beam steelordinary reinforcement plate, transverse reinforcement plate, column bottom plate, purlin support plate, corbel and other structures.
At present, it is mainly used for the welding of H beam steelordinary reinforcement plate, transverse reinforcement plate, column bottom plate, purlin support plate, corbel and other structures.
High Quality Intelligent 6 Axis Flange Welding Robot Workstation For Metal Workpiece

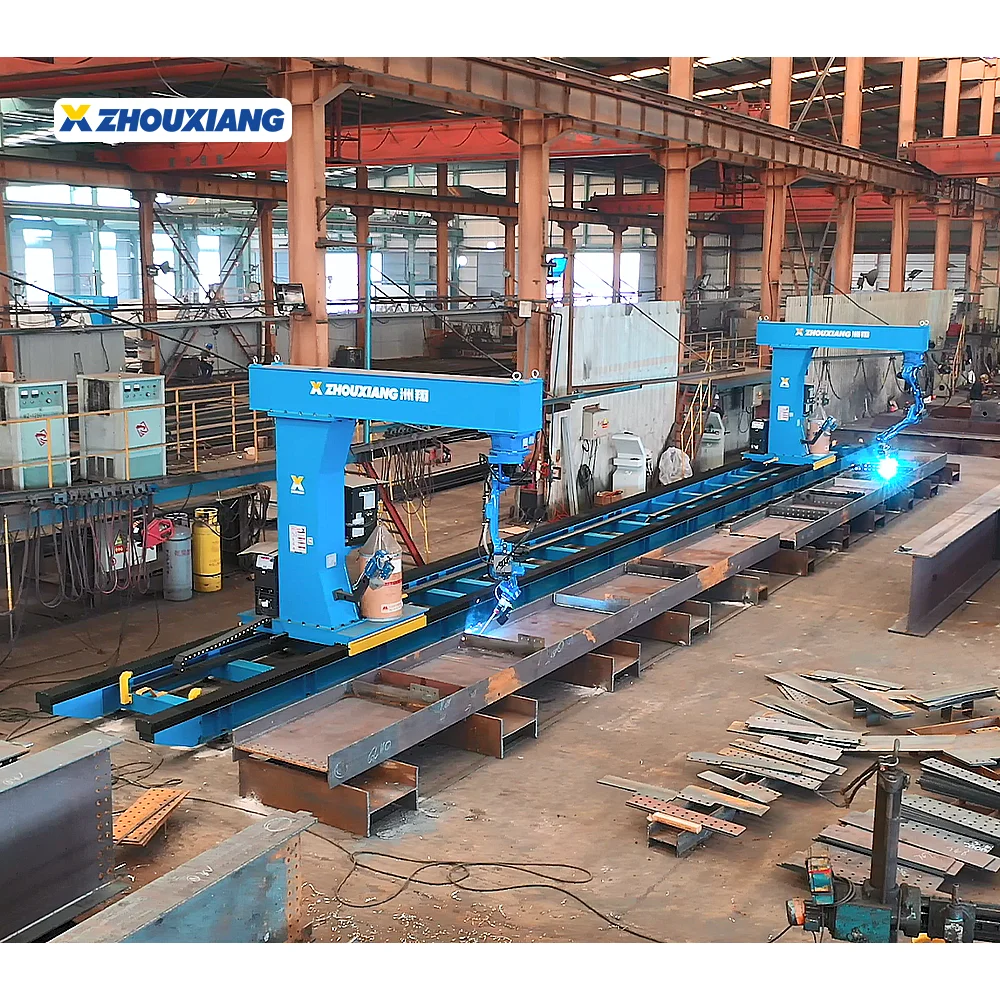

The advantage of the cantilever type is that the workpieces can belifted to the workstation in batches, saving lifting time.
Product Paramenters
Robot | MR12-2010 |
Welder | Aotai/Megmeet |
Welding gun | TRM water-cooled extended welding gun |
Control system | Friendess teaching-free welding system |
Vision system | Friendess large viewing distance sea m finder |
Rail | 12m(length can be customized) |
Application scenario | secondary processing for steel structure |
Machine spec | (7 axis)ZX-XRYH100 (8 axis) ZX-XRYHSW100 |
Total power | (7 axis) Robot 10KVA +welder 31KVA (8 axis) Robot 13KVA+welder31KVA |
Max. operating range | (7 axis)10m×1.3m×0.4m(12mground rail) (8 axis)10m×1.3m×1.2m(12m ground rail) |
Average welding efficiency | 0.3-0.5m/min(different weldingprocess, different speed) |
Robot Operation Process Factory Supplies 6 Axis Robot Welding Arm Robotic Welding Stations Robot
High Quality Intelligent 6 Axis Flange Welding Robot Workstation For Metal Workpiece
CP350V laser tracker
CP350V is an intelligent line scanning welding seam sensor. It obtains the contour information of the welding seam section through line laser scanning, and guides the robot or welding machine to automatically complete the welding. The image acquisition,
processing and welding seam identification functions are completed inside the sensor without the need for an external computer. It
has high integration and reduces the overall hardware cost of the system. Resistant to arc light and spatter, intelligently
identifies weld seams, and is easy to operate. It has an exquisite structure, compact size, high accessibility, and rich types. It
can be selected and used according to the application scenario, and the most suitable parameters can be customized. High Quality Intelligent 6 Axis Flange Welding Robot Workstation For Metal Workpiece
processing and welding seam identification functions are completed inside the sensor without the need for an external computer. It
has high integration and reduces the overall hardware cost of the system. Resistant to arc light and spatter, intelligently
identifies weld seams, and is easy to operate. It has an exquisite structure, compact size, high accessibility, and rich types. It
can be selected and used according to the application scenario, and the most suitable parameters can be customized. High Quality Intelligent 6 Axis Flange Welding Robot Workstation For Metal Workpiece
Gun Clearing System
The SC220A gun cleaning station is a device for cleaning robot welding guns. It is used to automatically clean the welding slag of
the welding gun during robot welding, automatically cut wires, and protect the welding gun nozzle and contact tip, extending the service life of the welding gun and saving money. Reduce consumable costs, maintain good welding quality, and improve welding
efficiency. Simple operation and easy to use.
Advantages of gun cleaning stations: 1. The gun clearing time is short and the system availability is high. 2. Automatically
complete the gun cleaning process without manual operation. 3. Prevent quality problems caused by contamination during welding. 4.
Equipped with robot TCP calibration needle.
the welding gun during robot welding, automatically cut wires, and protect the welding gun nozzle and contact tip, extending the service life of the welding gun and saving money. Reduce consumable costs, maintain good welding quality, and improve welding
efficiency. Simple operation and easy to use.
Advantages of gun cleaning stations: 1. The gun clearing time is short and the system availability is high. 2. Automatically
complete the gun cleaning process without manual operation. 3. Prevent quality problems caused by contamination during welding. 4.
Equipped with robot TCP calibration needle.
Robot welding software
The software can automatically extract welds from drawings without weld marking, reducing the workload of manual participation. With the high-performance 3D engine and robot controller, the automatically created points are simulated and verified to avoid collisions in actual work.
Advantage High Quality Intelligent 6 Axis Flange Welding Robot Workstation For Metal Workpiece
1.Supports teaching-free for various products such as sandwich panels, truss beams, bracket , bridge partitions, and panel stands; High Quality Intelligent 6 Axis Flange Welding Robot Workstation For Metal Workpiece
2.There is no need to mark welds at the design stage, and the target weld position can be automatically extracted by importing 3D drawings; High Quality Intelligent 6 Axis Flange Welding Robot Workstation For Metal Workpiece
3.No human intervention is required, the robot automatically completes actions such as zero return, transition, position finding, welding, counting, and gun cleaning;
4.No on-site operation is required, the program can be generated at any time and place, and remotely sent to the robot for
production according to the specified time;
5.Self-developed offline programming, 1:1 simulation of robot movements, avoids robot interference in advance and avoids collisions; High Quality Intelligent 6 Axis Flange Welding Robot Workstation For Metal Workpiece
6.Digital twin technology can display on-site robot trajectory, welding voltage, current, speed and other production information in real time. High Quality Intelligent 6 Axis Flange Welding Robot Workstation For Metal Workpiece
Advantage High Quality Intelligent 6 Axis Flange Welding Robot Workstation For Metal Workpiece
1.Supports teaching-free for various products such as sandwich panels, truss beams, bracket , bridge partitions, and panel stands; High Quality Intelligent 6 Axis Flange Welding Robot Workstation For Metal Workpiece
2.There is no need to mark welds at the design stage, and the target weld position can be automatically extracted by importing 3D drawings; High Quality Intelligent 6 Axis Flange Welding Robot Workstation For Metal Workpiece
3.No human intervention is required, the robot automatically completes actions such as zero return, transition, position finding, welding, counting, and gun cleaning;
4.No on-site operation is required, the program can be generated at any time and place, and remotely sent to the robot for
production according to the specified time;
5.Self-developed offline programming, 1:1 simulation of robot movements, avoids robot interference in advance and avoids collisions; High Quality Intelligent 6 Axis Flange Welding Robot Workstation For Metal Workpiece
6.Digital twin technology can display on-site robot trajectory, welding voltage, current, speed and other production information in real time. High Quality Intelligent 6 Axis Flange Welding Robot Workstation For Metal Workpiece
Software Operation Process
Main Product
Customer Cases
About Us
Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries.
Zhouxiang products mainly include cnc cutting machine,H beam production line,box beam production line, welding manipulator, welding rotator, welding positioner, milling machine, shot blasting machine, plate rolling machine, profile bending machine and fiber laser cutting machine etc.We have high sincerity to do business with customers all over the world and establish good friendships. High Quality Intelligent 6 Axis Flange Welding Robot Workstation For Metal Workpiece
Zhouxiang products mainly include cnc cutting machine,H beam production line,box beam production line, welding manipulator, welding rotator, welding positioner, milling machine, shot blasting machine, plate rolling machine, profile bending machine and fiber laser cutting machine etc.We have high sincerity to do business with customers all over the world and establish good friendships. High Quality Intelligent 6 Axis Flange Welding Robot Workstation For Metal Workpiece
Our Services
FAQ
1.Q: What is the minimum order quantity?
A: 1PCS.
High Quality Intelligent 6 Axis Flange Welding Robot Workstation For Metal Workpiece
2.Q: What are the payment terms?
A: L/C; T/T.
High Quality Intelligent 6 Axis Flange Welding Robot Workstation For Metal Workpiece
3.Q: How long is the delivery time?
A: 30 Days.
High Quality Intelligent 6 Axis Flange Welding Robot Workstation For Metal Workpiece
4.Q:How long is the warranty period?
A: 1 Years.
A: 1PCS.
High Quality Intelligent 6 Axis Flange Welding Robot Workstation For Metal Workpiece
2.Q: What are the payment terms?
A: L/C; T/T.
High Quality Intelligent 6 Axis Flange Welding Robot Workstation For Metal Workpiece
3.Q: How long is the delivery time?
A: 30 Days.
High Quality Intelligent 6 Axis Flange Welding Robot Workstation For Metal Workpiece
4.Q:How long is the warranty period?
A: 1 Years.
Похожие товары

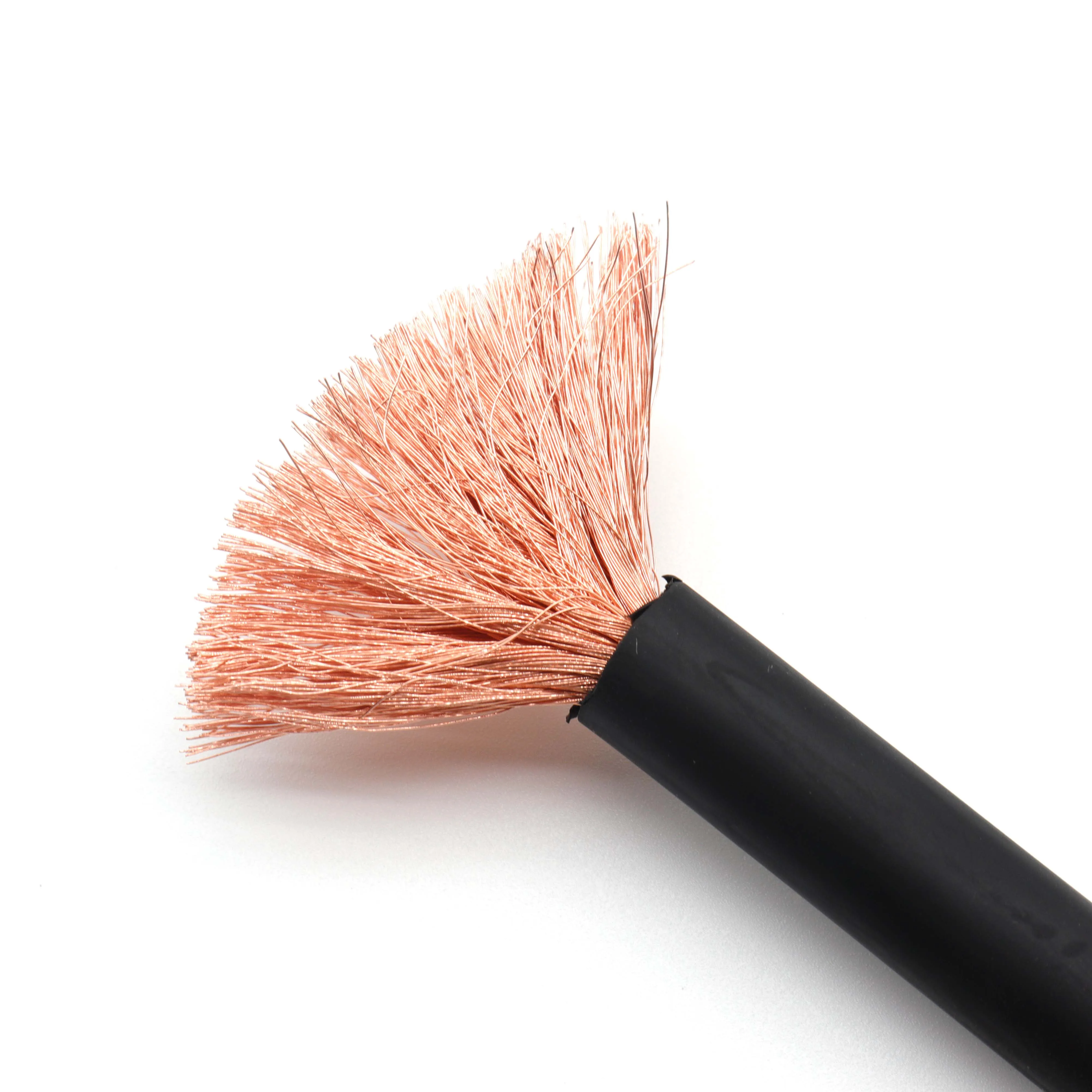

Оптовая продажа сварочный кабель 25 мм 35 мм 50 мм 70 мм дуговая сварочная машина гибкий кабель для сварочного аппарата
16,45 ₽ - 877,19 ₽

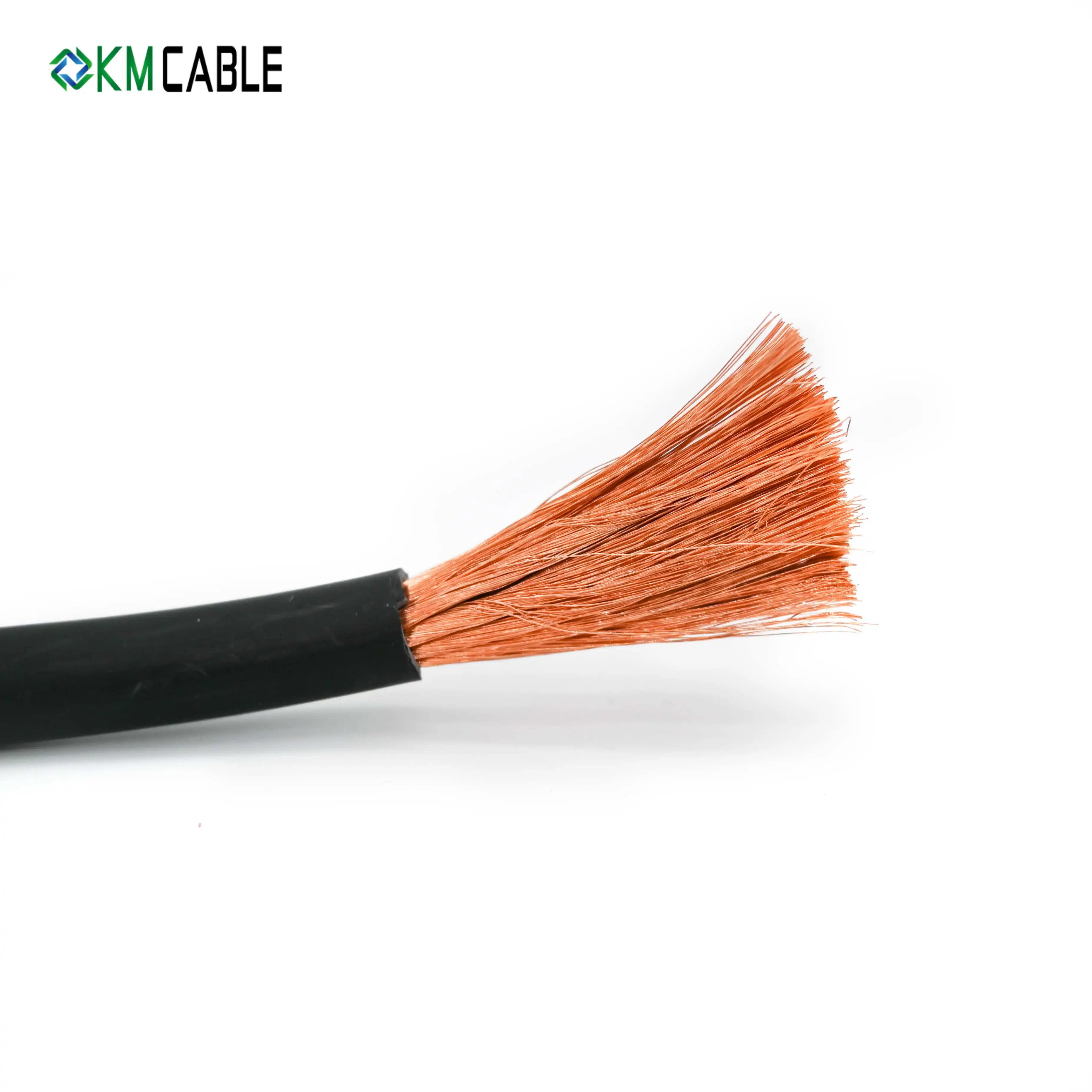

Оптовая продажа сварочный аппарат Mig гибкий кабель 2 калибра 1/0 awg 4 ga резиновый медный сварочный кабель
16,45 ₽ - 1 096,49 ₽
Ручной ручной сварочный аппарат для нержавеющей стали алюминиевая медь
54 824,20 ₽
Портативный портативный аппарат точечной сварки 800 Вт портативный ручной точечный сварочный аппарат ультразвуковой сварочный аппарат
74 560,92 ₽ - 83 332,79 ₽
Машина для стыковой сварки ювелирных изделий
657 890,40 ₽ - 767 538,80 ₽

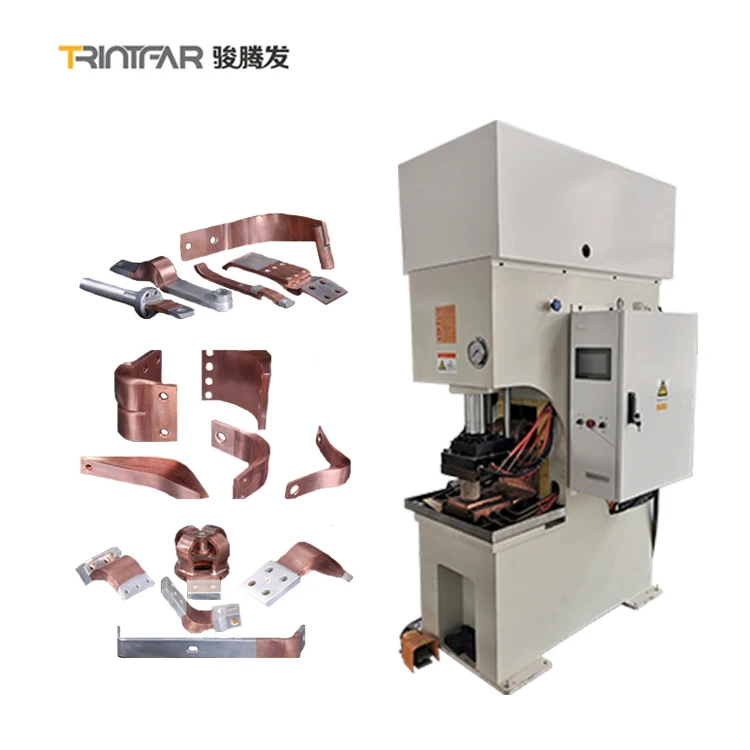

Алюминиевый листовой Конденсатор разряда сопротивление диффузии сварочный аппарат цена
548 242,00 ₽ - 877 187,20 ₽

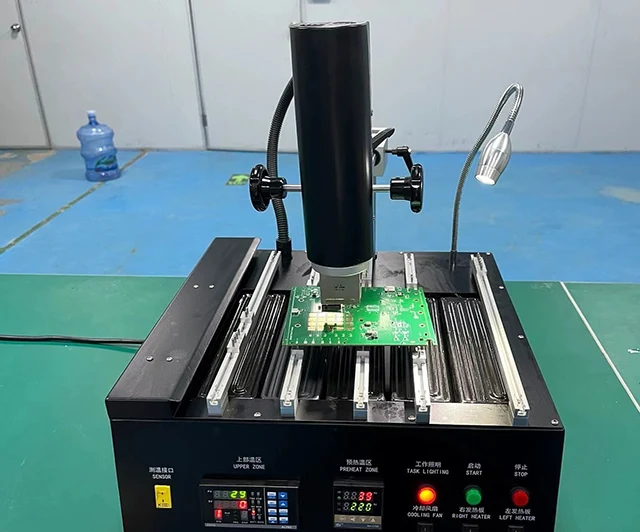

LV-02 BGA для материнской платы, 4300 Вт, сварочное оборудование
