100kwh 150kwh 200kwh коммерческая система хранения промышленных солнечных панелей с шт и литиевой батареей
8 686 349,20-10 423 958,42 ₽

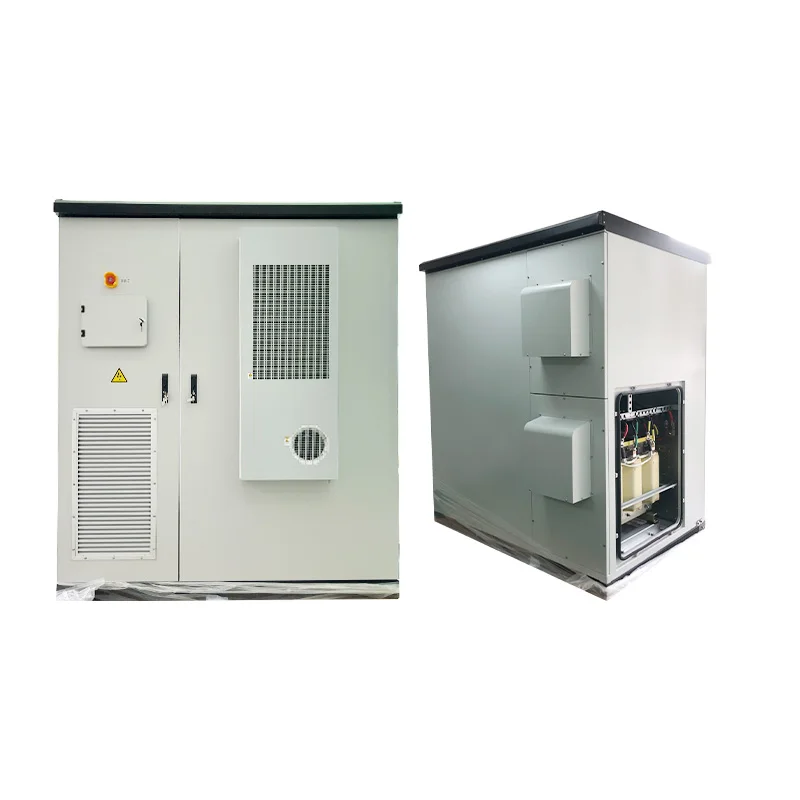

Солнечная энергетическая система с воздушным охлаждением 215 кВтч 115 2
- Категория: >>>
- Поставщик: Zhimai (shenzhen) New Energy Co. Ltd.Zhimai Ltd.
Сохранить в закладки 1601251760982:
Описание и отзывы
Характеристики
Product Description

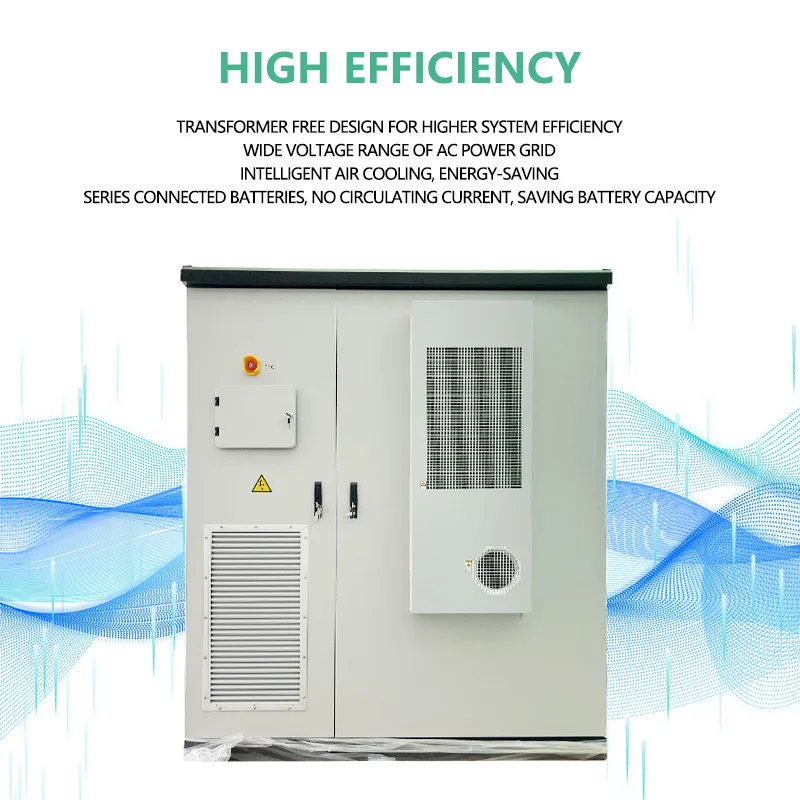

KEY STRENGTHS
✿ Highly efficient conversion*Non-isolated design to enhance system efficiency.
*Wide range of grid voltage adaptive capability.
*Intelligent air cooling, energy saving and efficiency.
*Single cluster battery system,no loop current, reduce battery loss.
*Wide range of grid voltage adaptive capability.
*Intelligent air cooling, energy saving and efficiency.
*Single cluster battery system,no loop current, reduce battery loss.
✿ Flexible application
*Modularized design, flexible matching,small footprint.
*Supports "N+1" redundancy of power modules.
*All-in-one integration for easy installation and maintenance.
*Supports "N+1" redundancy of power modules.
*All-in-one integration for easy installation and maintenance.
✿ Safe and reliable
*Perfect thermal management,fault detection and protection mechanism
*Integration of BMS, PCS, MPPT and EMS,etc.,with multiple protection of software and hardware.
*Two-stage fire protection system, all-around protection from inside to outside.
*Integration of BMS, PCS, MPPT and EMS,etc.,with multiple protection of software and hardware.
*Two-stage fire protection system, all-around protection from inside to outside.
✿ Powerful functions
*Supports active power and reactive power regulation, with fast scheduling response.
*Seamless switching between on-grid and off-grid can be realized with STS devices.
*With EMS function, it supports peak and valley arbitrage, virtual capacity increase, emergency power supply, and new energy consumption and energy application.
*Seamless switching between on-grid and off-grid can be realized with STS devices.
*With EMS function, it supports peak and valley arbitrage, virtual capacity increase, emergency power supply, and new energy consumption and energy application.
Specification

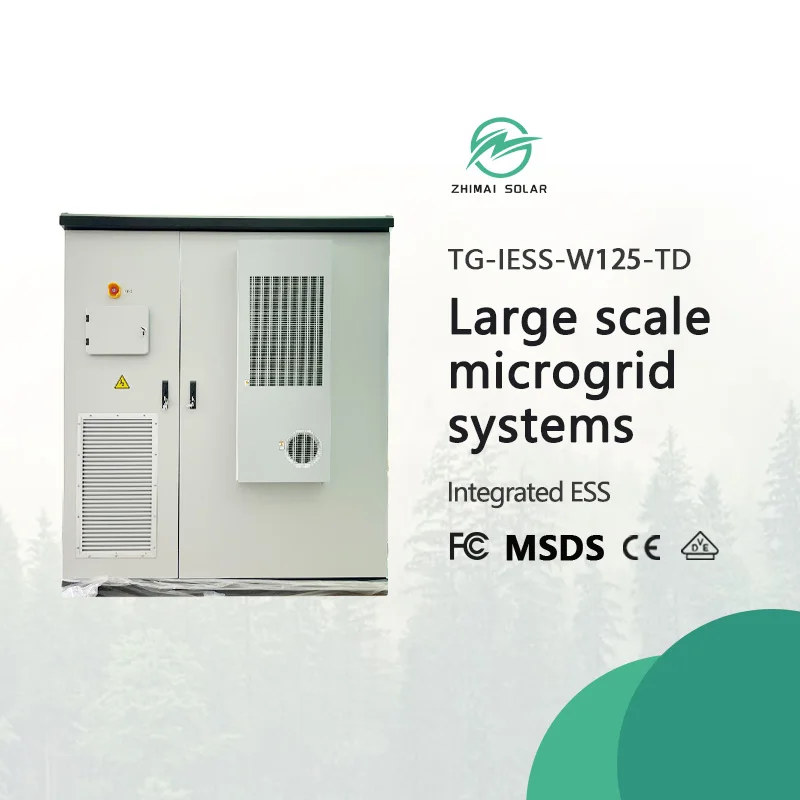

Model | IESS-W125-TD | IESS-W215-TD | ||
Battery Specifications | ||||
Battery Type | LFP | |||
Battery Capacity | 3.2V/280Ah | |||
PACK Configuration | 1P20S | |||
Number of PACKs | 7 | 12 | ||
Rated Capacity | 125kWh | 215kWh | ||
Rated Voltage | 448V | 768V | ||
Voltage Range | 392-504Vdc | 636-864Vdc | ||
Charge/Discharge Rate | 0.5C rating | |||
Test | 0.95 | |||
Cooling System | Air-cooled | |||
Fire Fighting System | Two-stage protection Standard:Aerosol + HFC-227ea.Optional:Perfluoro | |||
AC Specification | ||||
Rated Voltage | 400Vac | |||
Voltage range | 320Vac-460Vac | |||
Frequency range | 50/60±2.5Hz(50/60Hz adaptive) | |||
Grid system | 3P+N+PE | |||
Isolation transformer | No | |||
Rated power | 50kW | 100kW | ||
Peak power | 55kW | 110kW | ||
Rated current | 72A | 144A | ||
Overload capacity | ≤110% Continued operation ≤120% 1 Min | |||
Power factor | -0.99～+0.99 | |||
On-grid THDI/THDV (off-grid) | <3%, full load | |||
STS Module Power Capacity | 200kW | |||
Transmission Time (On-Off Grid) | ≤20ms | |||
PV norms | ||||
Maximum PV Input Voltage | 650Vdc | |||
Maximum PV input power | 55kW | 110kW | ||
Number of MPPTs/strings per MPPT | 1/1 | 2/1 | ||
MPPT voltage range | 200-650Vdc | |||
MPPT Current | 100A | 200A(100A/100A) | ||
MPPT efficiency | 0.99 | |||
System Specifications | ||||

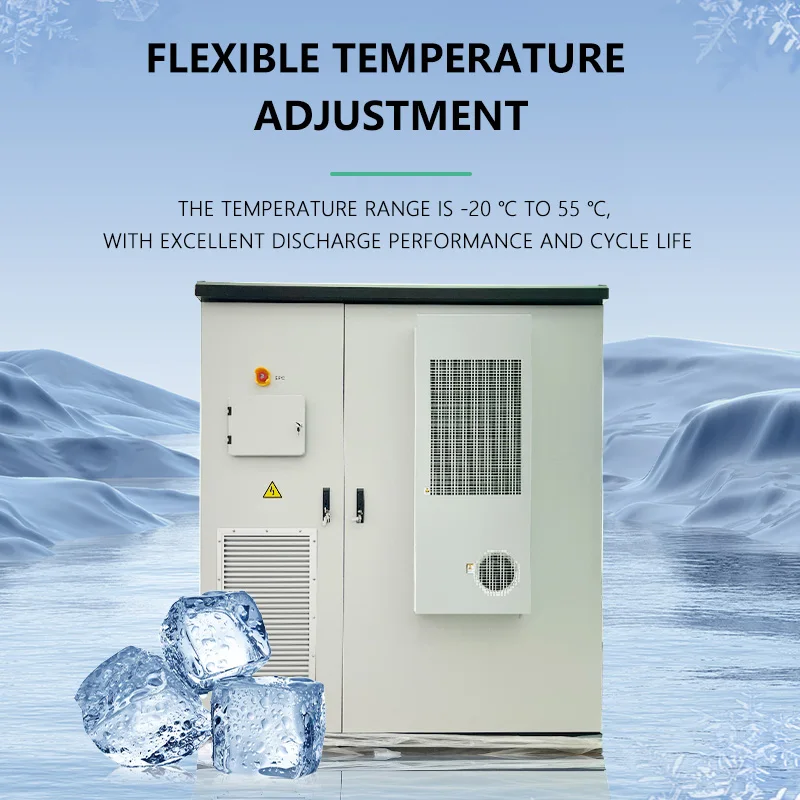

Temperature range | -25～65℃,>45℃ power derating | |||
Storage temperature | -40~75℃ | |||
Noise | <70 dB | |||
Dimensions (W*D*H) | 1850*1355*2150 mm | |||
Weight | 1800Kg | 2270Kg | ||
Protection class | IP54 | |||
Cooling method | Industry-grade air-cooled | |||
EMS | Manual mode, peak saving, virtual amplification, new energy power absorption, reverse current mode Support remote management and control | |||
Communication Protocol | Modbus RTU, Modbus TCP, IEC104, MQTT, Etc. | |||
Communication Port | RS485/RJ45/4G/WIFI/DIDO | |||
Company Profile
FAQ
✿Are you manufacturer or trading company?
We are manufacturer with more than 10 years experience and can control the production of goods quality and delivery time.
✿Do you accept small orders?
Yes. If you are a small retailer or starting up business, we are definitely willing to grow up with you. And we are looking forward to co-work with you for a long term relationship.
✿How about the price? Can you make it cheaper?
We always take the customer’s benefit as the top priority. Price is negotiable under different conditions, we are assuring you to get the most competitive price.
✿What can we provide?
We provide solar panel,solar inverter,solar battery,solar energy system.
We provide after-sales guarantee service, pre-sale free customized solar system solutions.
We provide OEM/ODM service.You can customize the product color and package with your own brand.
✿How about your delivery time?
Generally,our stock products would be shipped in 1-3 days after payment re-ceived. finally depends on order quantities.
✿What's your warranty?
All our products will be 100% test before shipment. Minimum 2 years warranty.
✿What kind of certificates your products have?
CE,FCC,ROHS,PSE,MSDS.
✿What is the payment method?
We accept payment by T/T, Credit card, Alibaba platform, Western Union and etc.
We are manufacturer with more than 10 years experience and can control the production of goods quality and delivery time.
✿Do you accept small orders?
Yes. If you are a small retailer or starting up business, we are definitely willing to grow up with you. And we are looking forward to co-work with you for a long term relationship.
✿How about the price? Can you make it cheaper?
We always take the customer’s benefit as the top priority. Price is negotiable under different conditions, we are assuring you to get the most competitive price.
✿What can we provide?
We provide solar panel,solar inverter,solar battery,solar energy system.
We provide after-sales guarantee service, pre-sale free customized solar system solutions.
We provide OEM/ODM service.You can customize the product color and package with your own brand.
✿How about your delivery time?
Generally,our stock products would be shipped in 1-3 days after payment re-ceived. finally depends on order quantities.
✿What's your warranty?
All our products will be 100% test before shipment. Minimum 2 years warranty.
✿What kind of certificates your products have?
CE,FCC,ROHS,PSE,MSDS.
✿What is the payment method?
We accept payment by T/T, Credit card, Alibaba platform, Western Union and etc.
Recommend Products
Похожие товары
Промышленный коммерческий 200 kwh 150kwh 200kwh 200kw 250kw 500kw 400 накопитель lifepo4 батарейный блок литиевая батарея
718 347,56-3 959 396,00 ₽
Лидер продаж новый оригинальный инвертор LiFeP Номинальный выход 215kwh-4 8mwh солнечный шкаф 192 В литий-ионный аккумулятор для хранения энергии
5 728 500,04-5 739 980,00 ₽

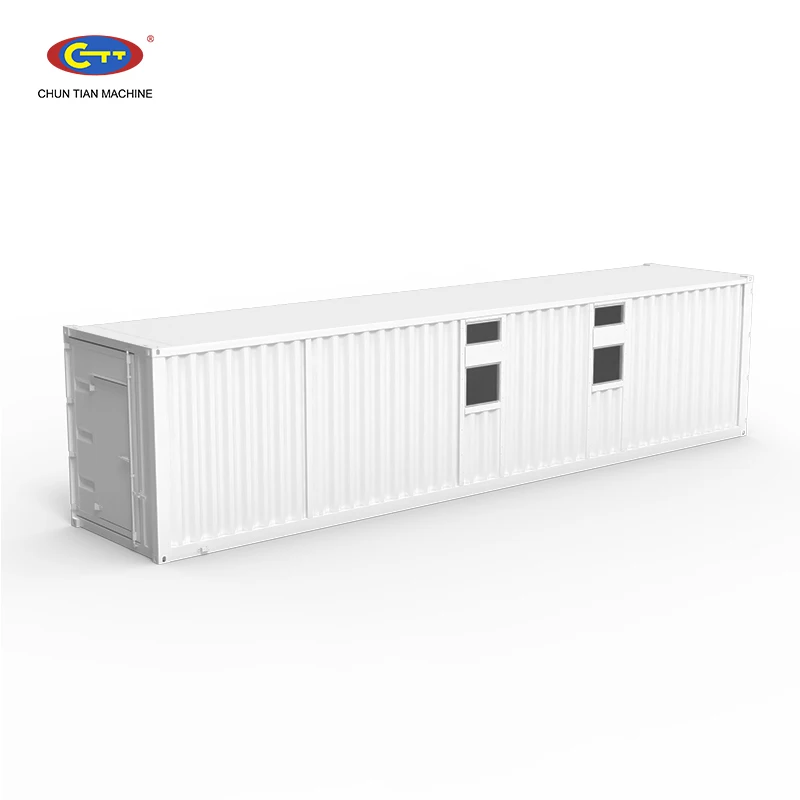

Мобильная система хранения энергии от 500 до 1 мВт · ч 20-футовые контейнерные источники питания строительные площадки для промышленного коммерческого использования
2 869 990,00 ₽

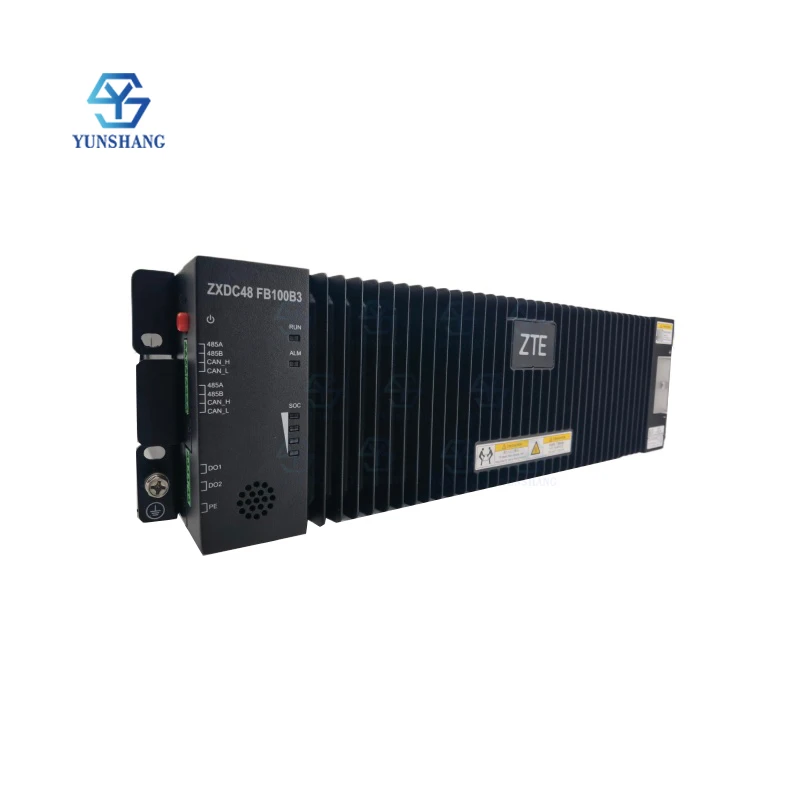

ZXDC48 FB100B3 литий-железо-фосфатный аккумулятор 48V100A фотоэлектрический Встроенный резервный источник питания литий-ионный
172 199,40-229 599,20 ₽
215.04kwh 768V 280AH система хранения энергии SCU EFS768-280
1 147 996,00-1 320 195,40 ₽
Солнечная энергетическая система 100 кВт кВтч 200 250 300
413 278,56-694 537,58 ₽

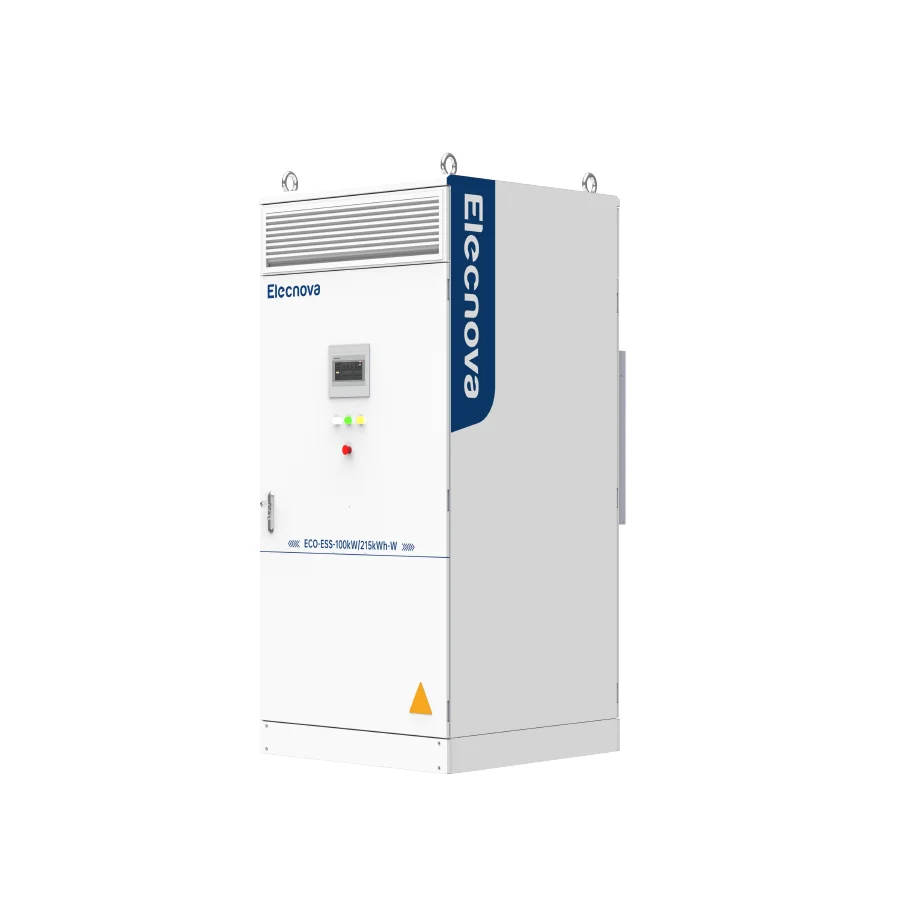

Elecnova 215kwh аккумуляторная система хранения энергии интегрированная с системой преобразования и литиевой батареей солнечной
