Солнечный инвертор Гибридный 7 кВт 8 кВт 10 кВт 15 кВт система хранения солнечной энергии 240 В переменного тока разделенная фаза Инвертор солнечной энергии инверторы солнечной энергии
7 675,39 ₽ - 19 736,72 ₽

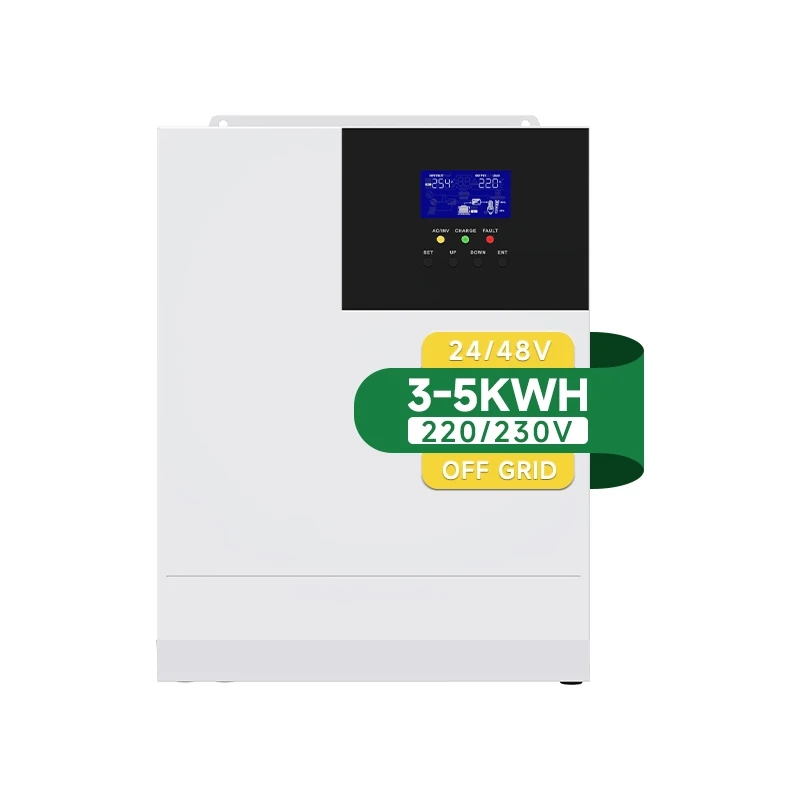

2000/3000 Вт Гибридный инвертор солнечной системы генерации для умного дома
- Категория: >>>
- Поставщик: Shenzhen Yonghui Fashion Co. Ltd.
Сохранить в закладки 1601251840610:
Описание и отзывы
Характеристики
Products Description
Description:
【Pure sine Wave Inverter】1600W Pure sine Wave Inverter 12V DC to AC 220/230/240V (Single phase/A Hot Leg 230V Output, Can't Output 110V AC), built in 80A Mppt charge controller, is a new all-in-one hybrid solar inverter charger, fit for 12V Lead-Acid (Seal, AGM,Gel, Flooded) and Lithium battery
【TECHNICAL SPECIFICATIONS】2000VA Hybrid Solar Inverter Max.PV Input Power: 2000W, Voltage range: 30-400Vdc, Max. PV Input VOC: 400V DC, Starting voltage >35V;Recommended PV cable size: 16AWG, Max.charge current: 80A. Nominal Input Frequency: 50/60Hz; Output Power: 1600W, surge Capacity: 3200W.
【MULTIPLE CHARGING MODES】Off Grid Solar Inverter have 4 charging modes are optional, i.e. Only Solar, Mains Frist , Solar Frist and Mains & Solar hybrid charging;and 3 output modes are available, i.e. Solar Frist, Mains Frist and SBU Priority, uninterrupted power supply to meet different application requirements. And compatible to mains voltage or generator power, Auto restart while AC is recovering.
【WIDE RANGE OF USES】MPPT Inverter Charger Pure sine Wave 1600W for RV Camping Boat Home Emergency ect.. Can be accessed to a variety of household and office loads, including Oven, rice cooker, lamps, televisions, fans and other AC loads.（Be careful not to install it near the bedroom, the fan will make a sound when the inverter is running.Avoid affecting your rest (expect 50-70 db)）

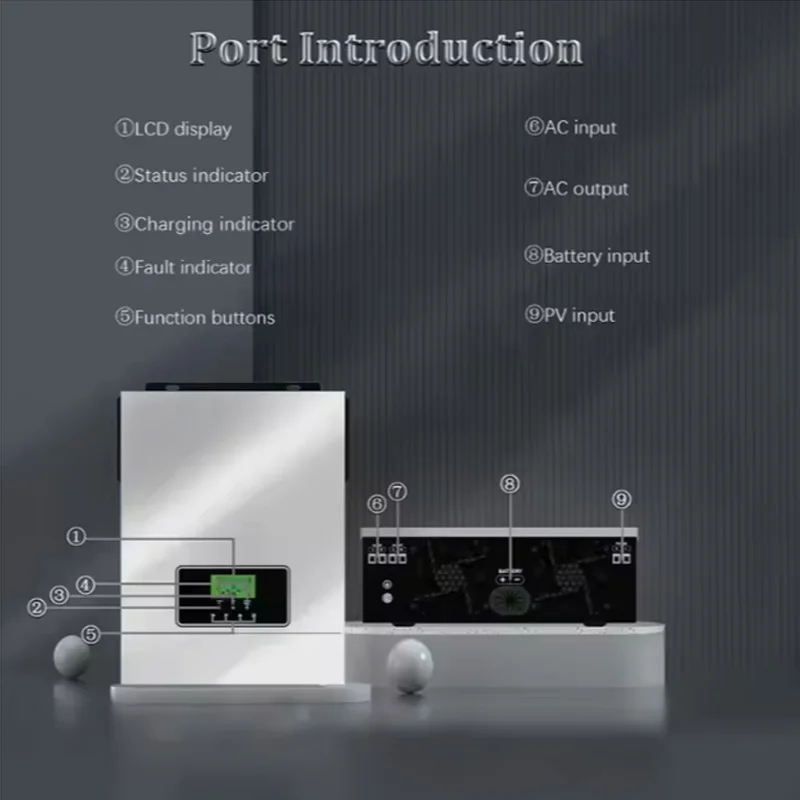

【w/LCD & LED DISPLAY】LCD display designand 3 LED indicators for dynamic display of system data and operating status, Configurable battery charging current, AC/Solar Charger priority and Load Supply Priority via LCD setting. Support WIFI remote monitoring, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere. (Not included).
This is a multi-function inverter charger, combining functions of inverter, solar charger, and battery charger to offer
uninterruptible power support with portable size.Bulit in 80amp mppt controller, which integrates solar energy storage &means charging energy storage and AC sine wave output.It can be widely used in DC to AC areas, such as solar AC power system, vehicle system, RV power supply, security monitoring system, emergency lighting system, field power system, household power system, etc.
NOTE:
The Battery Capacity OF The Correct Matching System Is Determined According To The Specific Usage Requirements OF The Load And Application Scenarios, Otherwise It will Easily Lead To Insufficient Battery Capacity Or Excessive Waste OF Power Generation.If you need storage batteries or solar panels. Y&H one-stop service for you.
【TECHNICAL SPECIFICATIONS】2000VA Hybrid Solar Inverter Max.PV Input Power: 2000W, Voltage range: 30-400Vdc, Max. PV Input VOC: 400V DC, Starting voltage >35V;Recommended PV cable size: 16AWG, Max.charge current: 80A. Nominal Input Frequency: 50/60Hz; Output Power: 1600W, surge Capacity: 3200W.
【MULTIPLE CHARGING MODES】Off Grid Solar Inverter have 4 charging modes are optional, i.e. Only Solar, Mains Frist , Solar Frist and Mains & Solar hybrid charging;and 3 output modes are available, i.e. Solar Frist, Mains Frist and SBU Priority, uninterrupted power supply to meet different application requirements. And compatible to mains voltage or generator power, Auto restart while AC is recovering.
【WIDE RANGE OF USES】MPPT Inverter Charger Pure sine Wave 1600W for RV Camping Boat Home Emergency ect.. Can be accessed to a variety of household and office loads, including Oven, rice cooker, lamps, televisions, fans and other AC loads.（Be careful not to install it near the bedroom, the fan will make a sound when the inverter is running.Avoid affecting your rest (expect 50-70 db)）
【w/LCD & LED DISPLAY】LCD display designand 3 LED indicators for dynamic display of system data and operating status, Configurable battery charging current, AC/Solar Charger priority and Load Supply Priority via LCD setting. Support WIFI remote monitoring, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere. (Not included).
This is a multi-function inverter charger, combining functions of inverter, solar charger, and battery charger to offer
uninterruptible power support with portable size.Bulit in 80amp mppt controller, which integrates solar energy storage &means charging energy storage and AC sine wave output.It can be widely used in DC to AC areas, such as solar AC power system, vehicle system, RV power supply, security monitoring system, emergency lighting system, field power system, household power system, etc.
NOTE:
The Battery Capacity OF The Correct Matching System Is Determined According To The Specific Usage Requirements OF The Load And Application Scenarios, Otherwise It will Easily Lead To Insufficient Battery Capacity Or Excessive Waste OF Power Generation.If you need storage batteries or solar panels. Y&H one-stop service for you.
Features：
Pure sine wave inverter
Programmable supply priority for PV, battery or Grid
High PV input voltage range(30~400VDC)
Reduce the cost of solar panels
Built-in Max 80A MPPT solar charge
Compatibe with lithium-ion battery

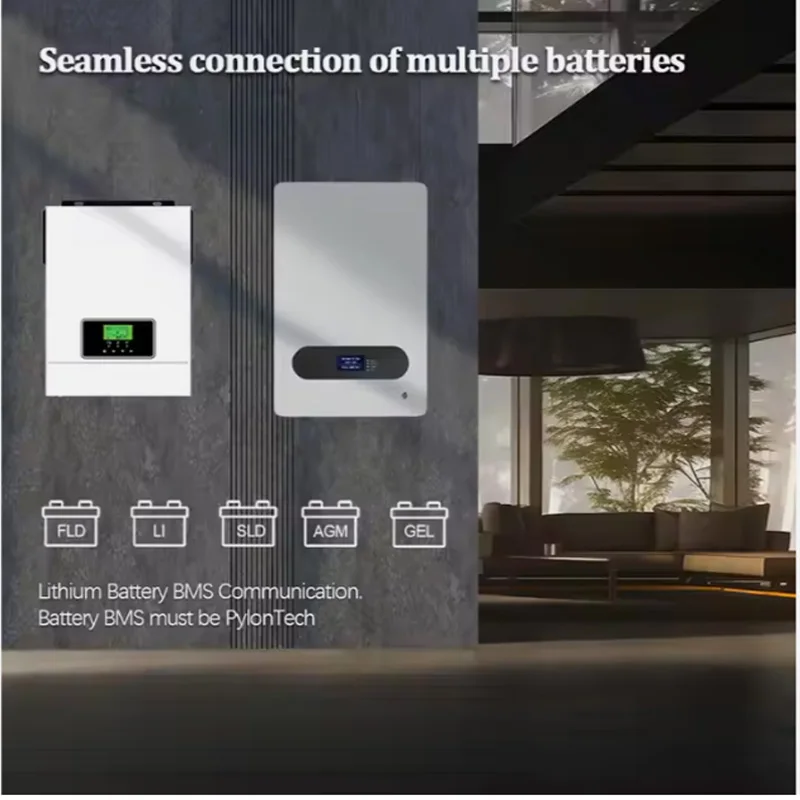

Support BMS communication with Lithium battery
Smart battery charge design to optimize battery life
Overload, high temperature,inverter output short circuit protection Intelligent fan speed adjustment
Built-in anti-dusk kit for harsh enviromen(optional)
WIFI&GPRS available for IOS and androidCold start function
Pure sine wave inverter
Programmable supply priority for PV, battery or Grid
High PV input voltage range(30~400VDC)
Reduce the cost of solar panels
Built-in Max 80A MPPT solar charge
Compatibe with lithium-ion battery
Support BMS communication with Lithium battery
Smart battery charge design to optimize battery life
Overload, high temperature,inverter output short circuit protection Intelligent fan speed adjustment
Built-in anti-dusk kit for harsh enviromen(optional)
WIFI&GPRS available for IOS and androidCold start function

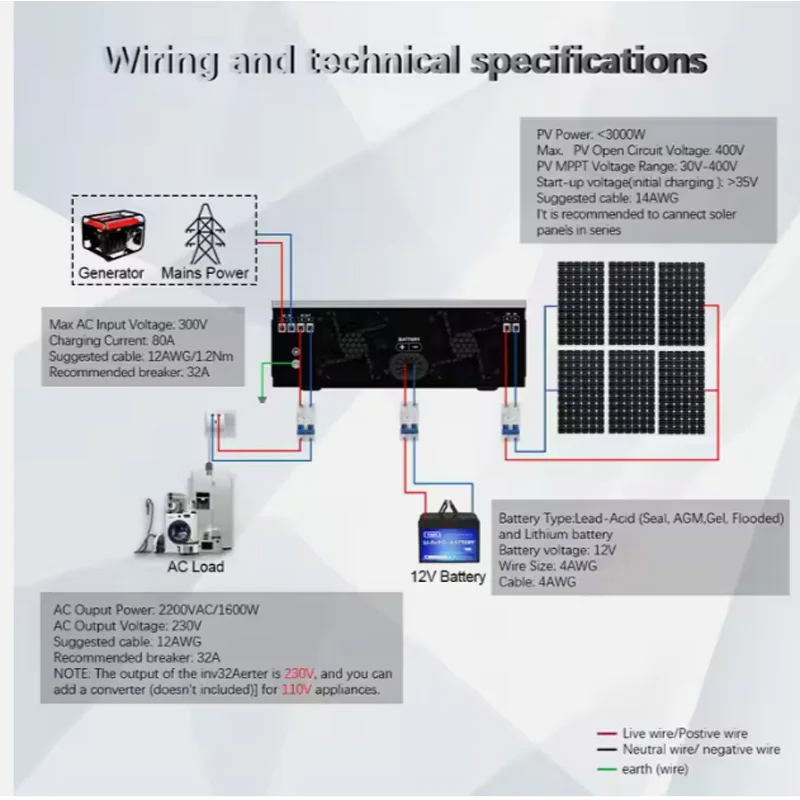

Details Images
Table 1 Line Mode Specifications | ||||
INVERTER MODEL | 12V 2KVA 1.6KW | 24V 3.2KVA 3KW | ||
Input Voltage Waveform | Sinusoidal (Utility or Generator) | |||
Nominal Input Voltage | 230Vac | |||
Max AC Input Voltage | 300Vac | |||
Nominal Input Frequency | 50Hz/ 60Hz (Auto detection) | |||
Output Short Circuit Protection | Circuit Breaker | |||
Efficiency (Line Mode) | >95% ( Rated R load, battery full charged ) | |||
Transfer Time | 10ms Typical (UPS); 20ms Typical (Appliances) | |||
Table 2 Inverter Mode Specifications | ||||
INVERTER MODEL | 12V 2KVA 1.6KW | 24V 3.2KVA 3KW | ||
Rated Output Power | 2000VA/1600W | 3200VA/3000W | ||
Output Voltage Waveform | Pure Sine Wave | |||
Output Voltage Regulation | 230Vac±5% | |||
Output Frequency | 50Hz | |||
Peak Efficiency | 0.94 | |||
Overload Protection | 5s@≥150% Ioad; 10s@≤100%〜150% Ioad | |||
Surge Capacity | 2* rated power for 5 seconds | |||
Nominal DC Input Voltage | 12Vdc | 24Vdc | ||
Cold Start Voltage | 11.5Vdc | 23.0Vdc | ||
High DC Recovery Voltage | 14.0Vdc | 32Vdc | ||
High DC Cut-Off Voltage | 16.0Vdc | 33Vdc | ||
No Load Power Consumption | <25W | <35W | ||
Table 3 Charge Mode Specifications | ||||
Utiity Charging Mode | ||||
INVERTER MODEL | 12V 2KVA 1.6KW | 24V 3.2KVA 3KW | ||
Charging AIgorithm | 3-Step | |||
Ac Charging Current (Max) | 60Amp (@V /P=230vac) | |||
Floating Charging Voltage | 13.5vdc | 27vdc | ||
MPPT Solar Charging Mode | ||||
ERTER MODEL | 12V 2KVA 1.6KW | 24V 3.2KVA 3KW | ||
Max P.V Array Power | 2000W | 3000W | ||
Nominal PV Voltage | 240vdc | |||
PV Array MPPT Voltage Range | 30~400vdc | |||
Max.PV Array Open Circuit Voltage | 400vdc | |||
Max Charging Current (AC Charger+Solar charger) | 80Amp | |||
Product Show
Recommend Products
Company Profile
"Y&H"was established in 2016. Provide customers with one -stop solar system service.Y&H is a field of solar products,
--including hybrid inverters,
--on Grid inverters,
--OFF GRID inverters,
--MPPT/PWMsolar charging controllers,
--lithium iron phosphate batteries,
--PV components
--MC4 Connectors
Y&H has a professional and experienced technical team in the photovoltaic field, and is committed to providing high -quality products. And from Y&H, you can complete the entire set of photovoltaic equipment at one time. After -sales, warranty, etc. You only need Y&H to help you solve it.
--including hybrid inverters,
--on Grid inverters,
--OFF GRID inverters,
--MPPT/PWMsolar charging controllers,
--lithium iron phosphate batteries,
--PV components
--MC4 Connectors
Y&H has a professional and experienced technical team in the photovoltaic field, and is committed to providing high -quality products. And from Y&H, you can complete the entire set of photovoltaic equipment at one time. After -sales, warranty, etc. You only need Y&H to help you solve it.
Product packaging and shipping
Certifications
FAQ
FAQ
1. How to insatll and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation
will be sent to our customers.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Solar Inverter,Solar Charge Controller,Solar Power System,Solar Panel,Solar Lithium Ion Battery
4:What is the payment method?
We normally require a T/T advance payment. 30% deposit and 70% before shipping.
5. Can I buy one sample for testing?
Sure,we have a 8 years experience R&D team and in timely after sale service,can help you fix any technical problem or confusion.
6. How is the delivery?
Sample:2-3 working days
Order:within 7 working days depending on the order quantities
OEM order:15-20 working days after confirming the sample
7. Can you get the the solar inverter customized for us ?
Of course, brand name, machine color, designed unique patterns available for customization.
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation
will be sent to our customers.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Solar Inverter,Solar Charge Controller,Solar Power System,Solar Panel,Solar Lithium Ion Battery
4:What is the payment method?
We normally require a T/T advance payment. 30% deposit and 70% before shipping.
5. Can I buy one sample for testing?
Sure,we have a 8 years experience R&D team and in timely after sale service,can help you fix any technical problem or confusion.
6. How is the delivery?
Sample:2-3 working days
Order:within 7 working days depending on the order quantities
OEM order:15-20 working days after confirming the sample
7. Can you get the the solar inverter customized for us ?
Of course, brand name, machine color, designed unique patterns available for customization.
Похожие товары
Зарядное устройство 48 В 5 кВт 120 В MPPT, высоковольтные инверторы, Япония, США, Канада, рынок, 6 комплектов
32 894,52 ₽ - 43 859,36 ₽

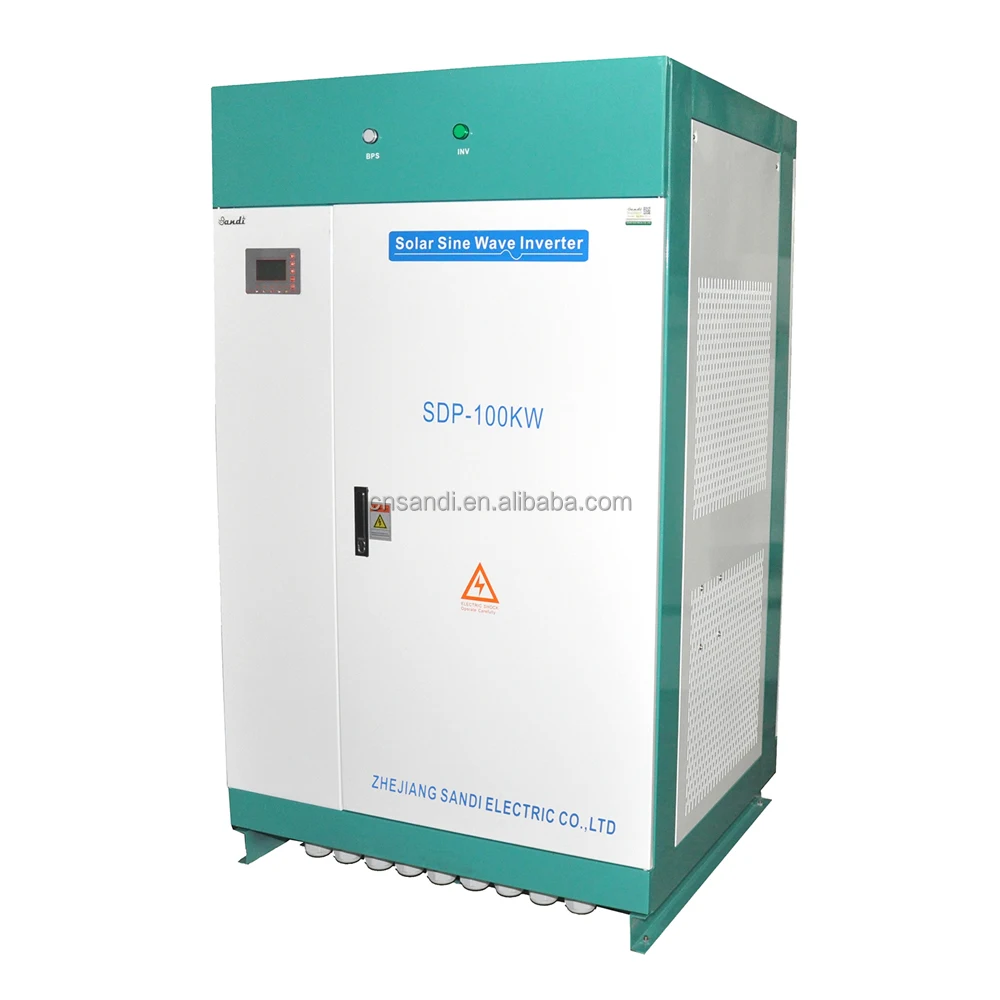

100 кВт трехфазный 480 В 60 Гц выключенный инвертор с сертификатом UL1741 и CSA22.2 для США, Канада

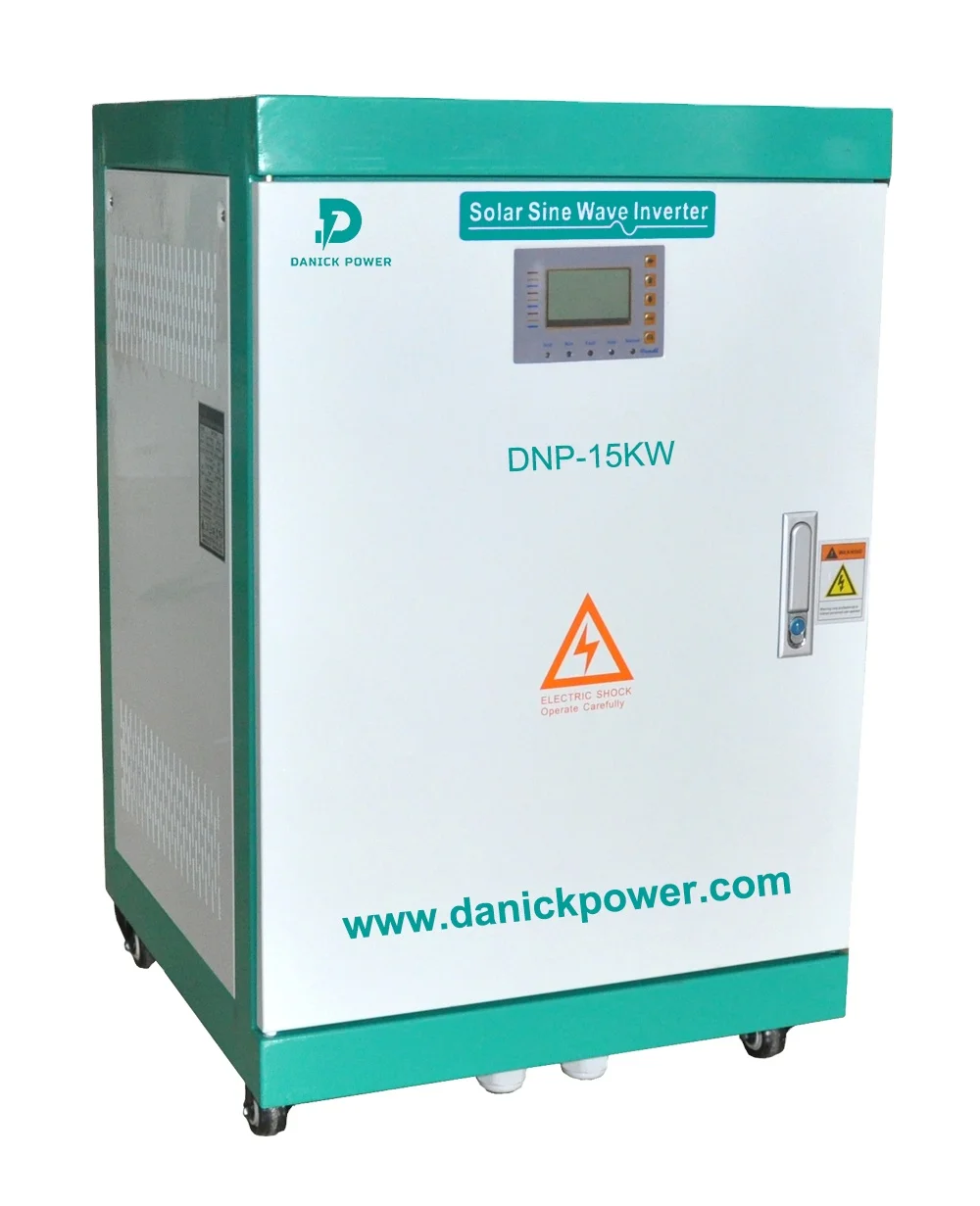

3 фазовый 208 В, 60 Гц, 15 кВт, бессетевой инвертор с сертификатом UL1741 и CSA22.2 для США, Канада

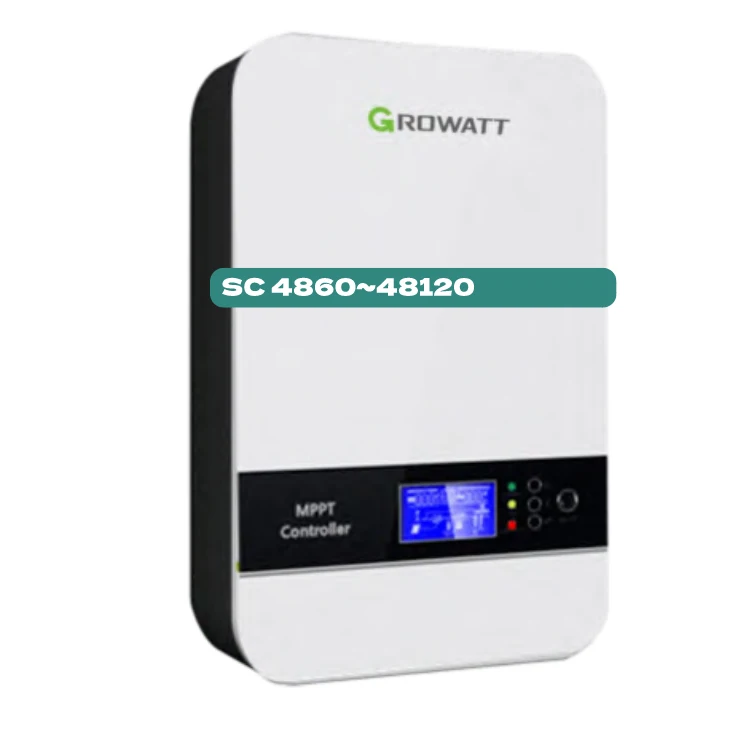

Инвертор Growatt Sc 4860-48120 Bts для сохранения аккумулятора 12/24/48 в
34 319,95 ₽ - 35 964,68 ₽

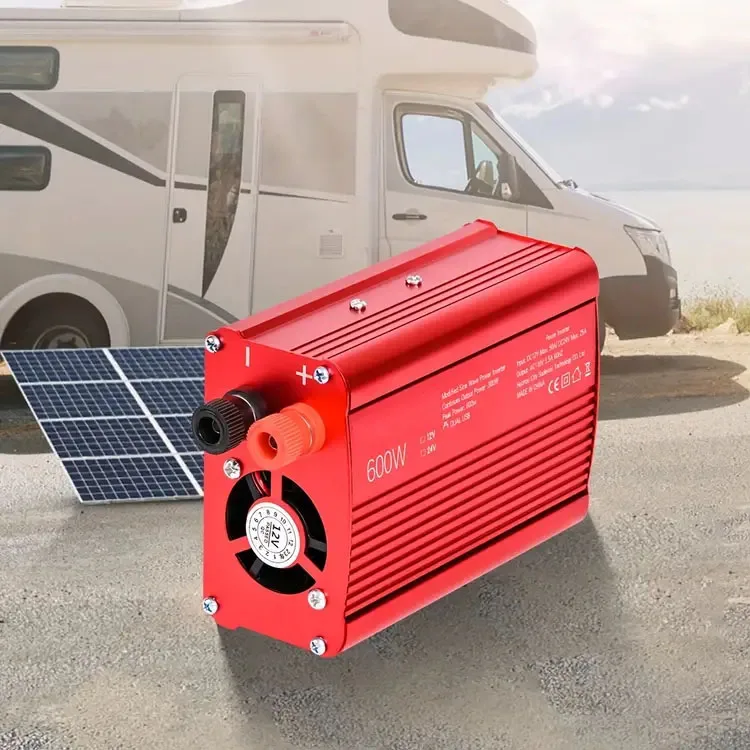

300 Вт/600 Вт преобразователь постоянного тока 12 В в переменный ток 110 В 120 В портативный автомобильный инвертор
3 157,88 ₽ - 3 596,47 ₽

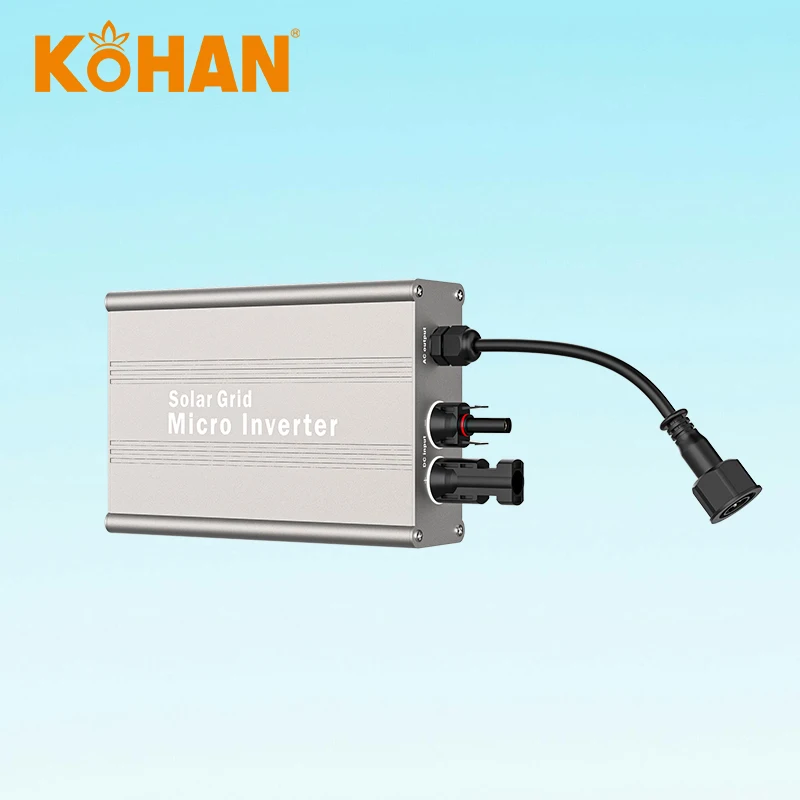

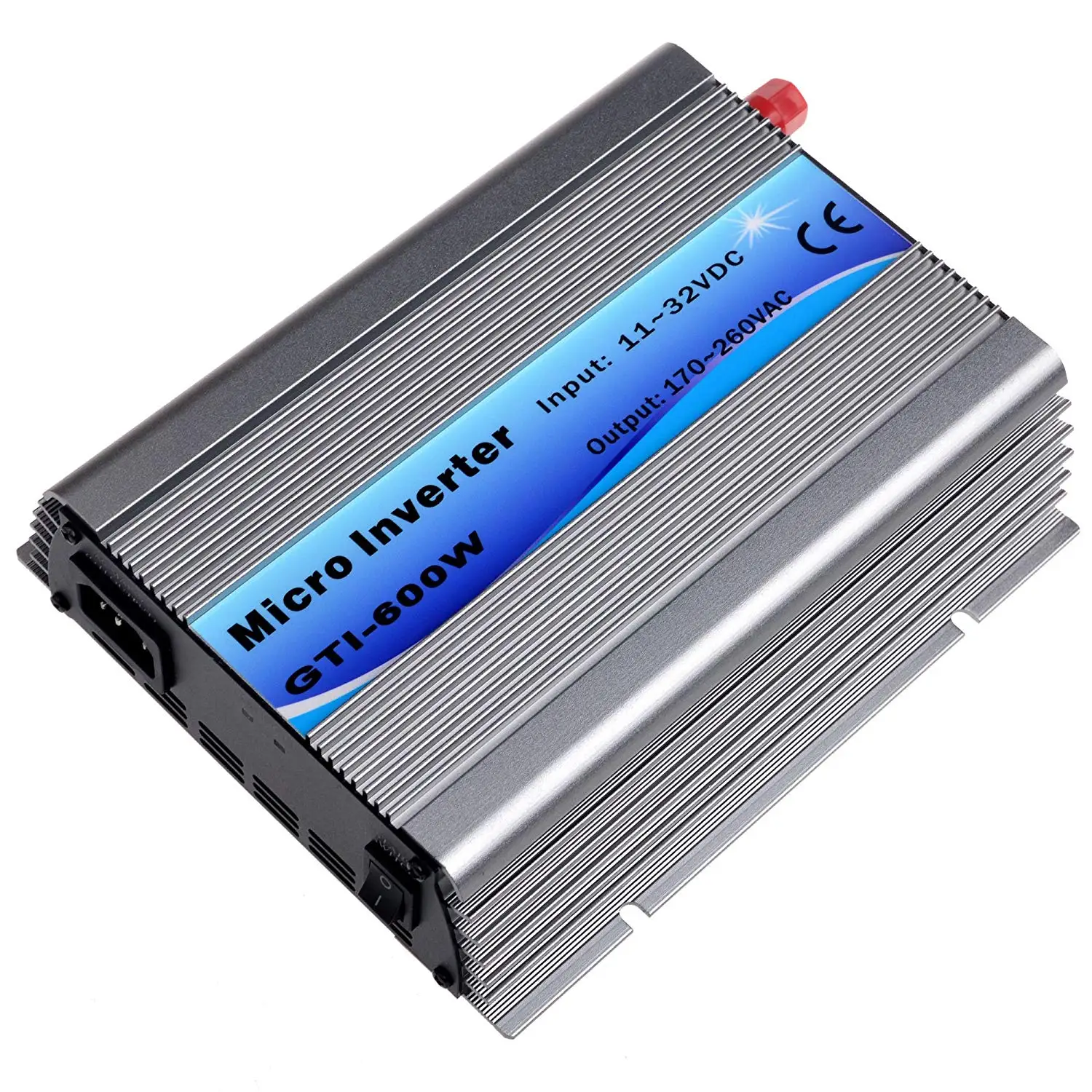

600 Вт Сетка Tie солнечной инвертор со слежением за максимальной точкой мощности, чистая синусоида микро-инверсор PV вход AC120V/220V DC15-28V для детей возрастом от 12V солнечная панель Солнечная система для дома
