Промышленная машина для очистки гидравлического масла, экскаваторная машина, масло для повторного использования
85 525,76 ₽ - 87 718,72 ₽

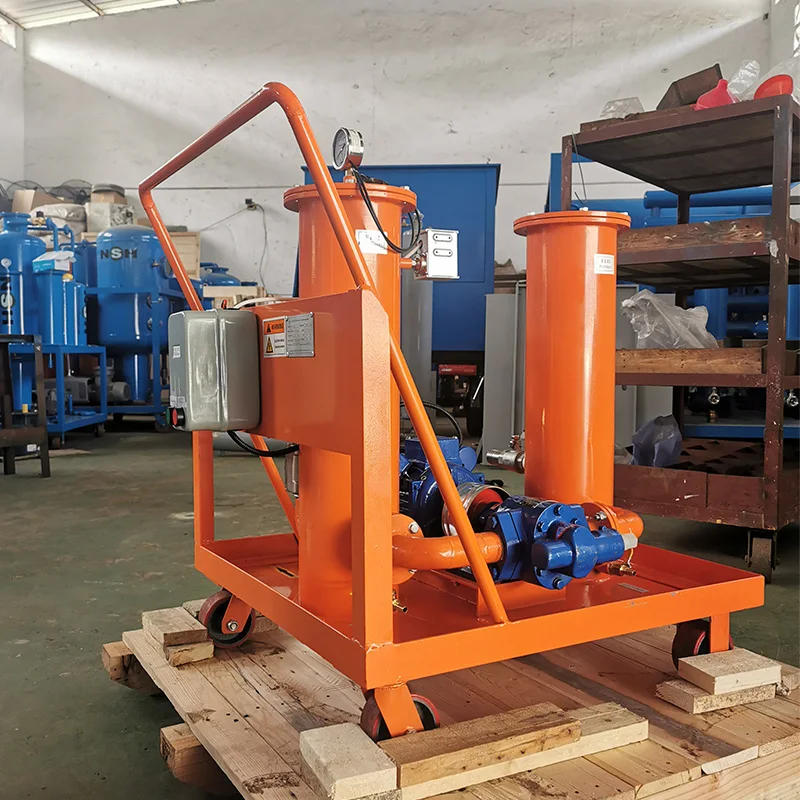

100 л/мин передвижная тележка для масляного фильтра гидравлическая система портативный промышленный очиститель масла фильтр топлива многофункциональный
- Категория: >>>
- Поставщик: Chongqing Fuootech Oil Purifier Technologies Co. Ltd.
Сохранить в закладки 1601252111895:
Описание и отзывы
Характеристики

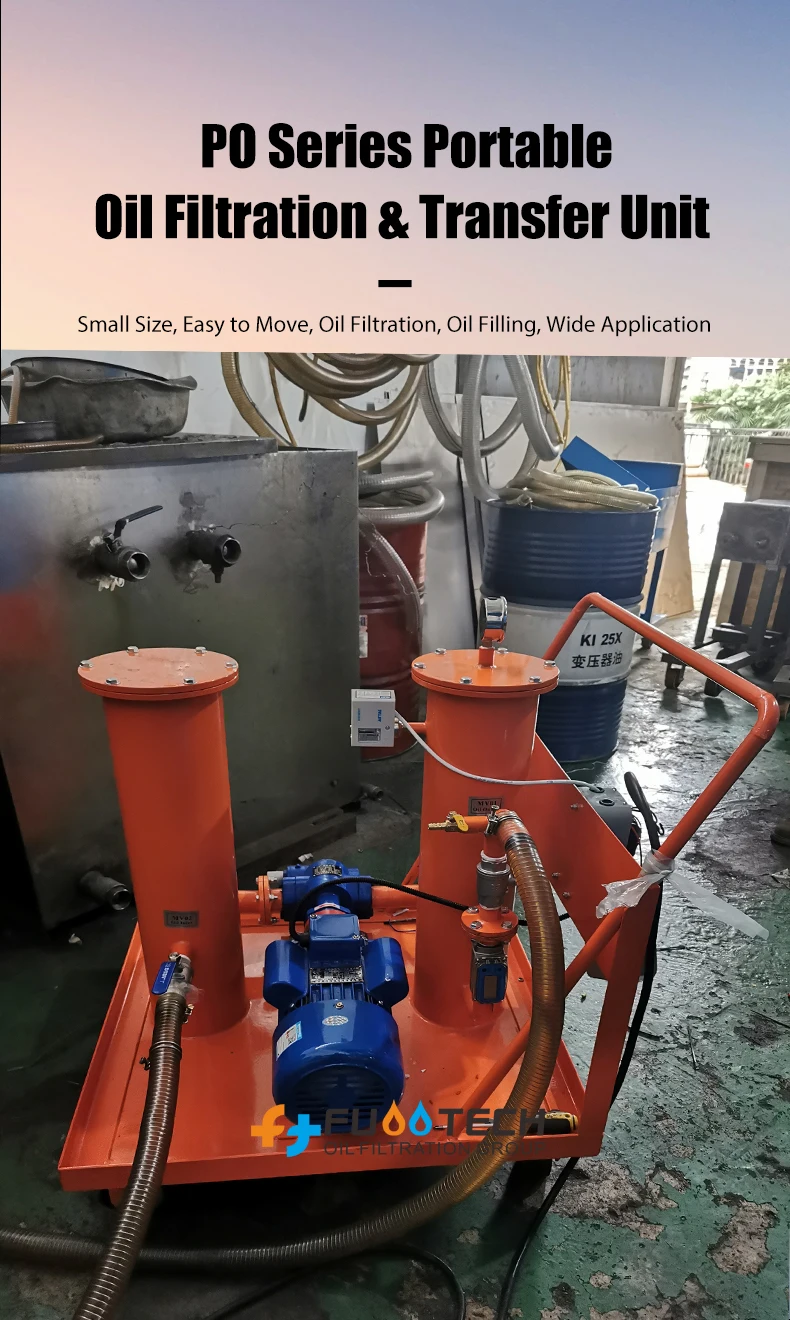

PO Series Portable High Precision Oil Filtering and Transfer Machine developed by FUOOTECH is mainly dealing with unqualified insulating oil, turbine oil, lubricating oil etc., its design is simple, compact, practical and easily to move and maintenance.
PO portable oil filter machine consists of motor-driven special gear pump and multi-stage filters for filtering dirty oils by removing various sizes of particles & impurities. Small and flexible size, easy to operate and requires no filter paper and causes no contamination to the ground. It has a wider application than ordinary filter press and has a long lifetime, being a new substitute for frame filter press.
This portable oil filtration system also can conveniently filter the oil of venous hydraulic and lubricating systems and also can be connected to the system as a bypass filter.

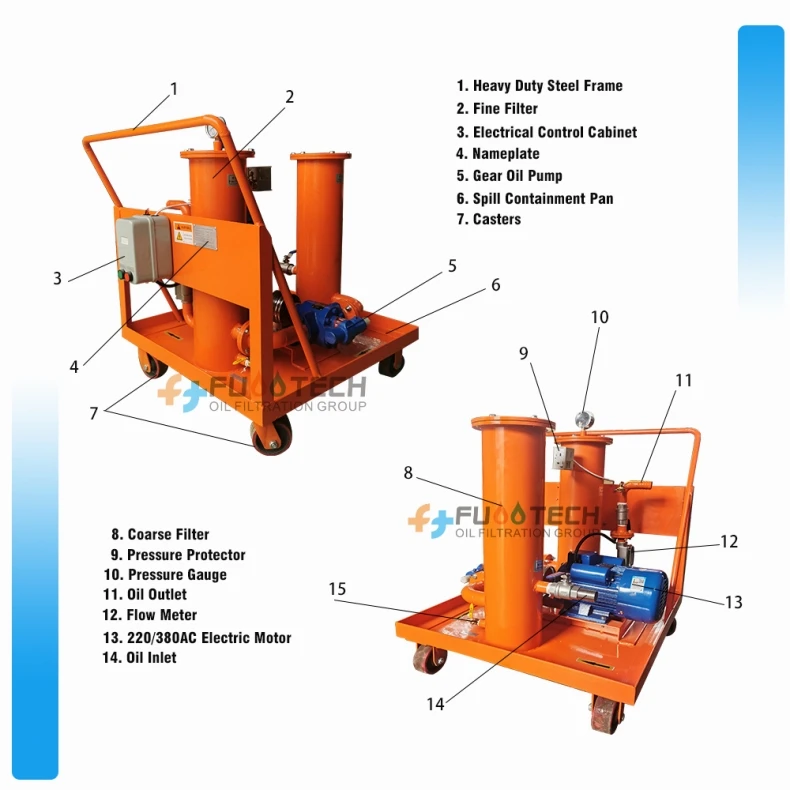

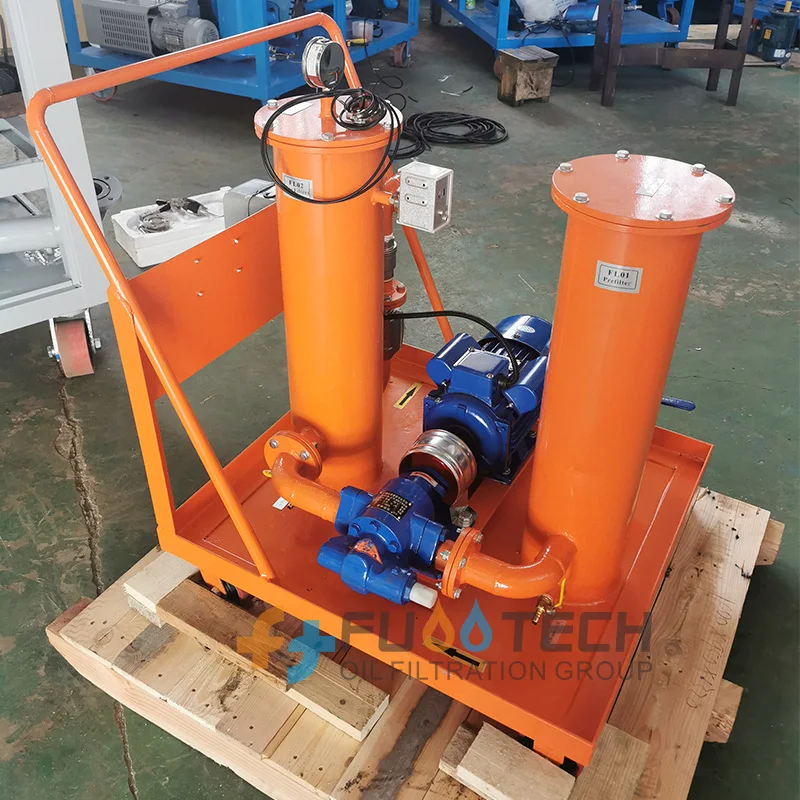

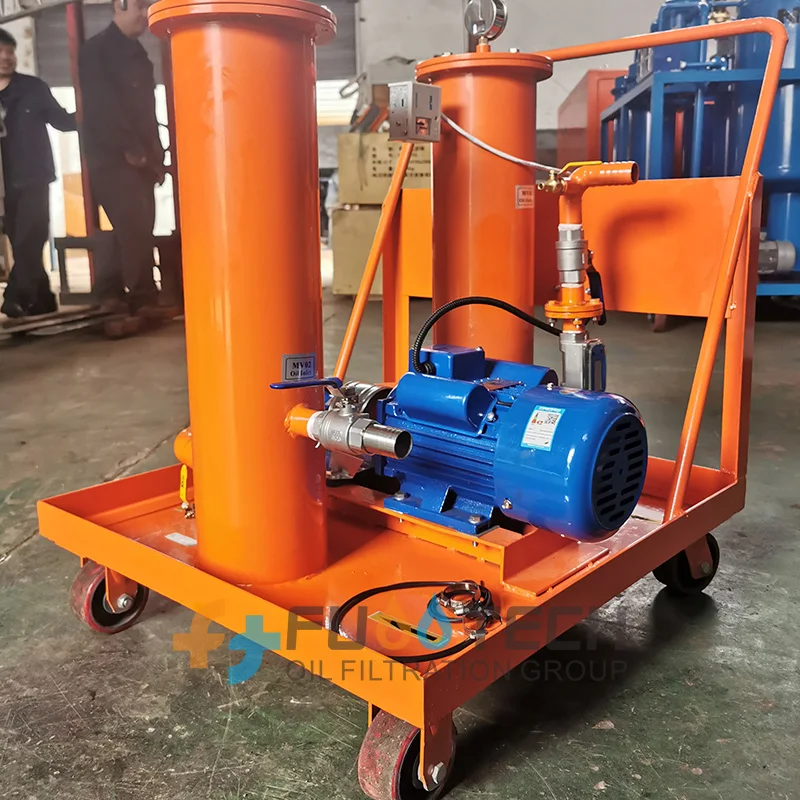

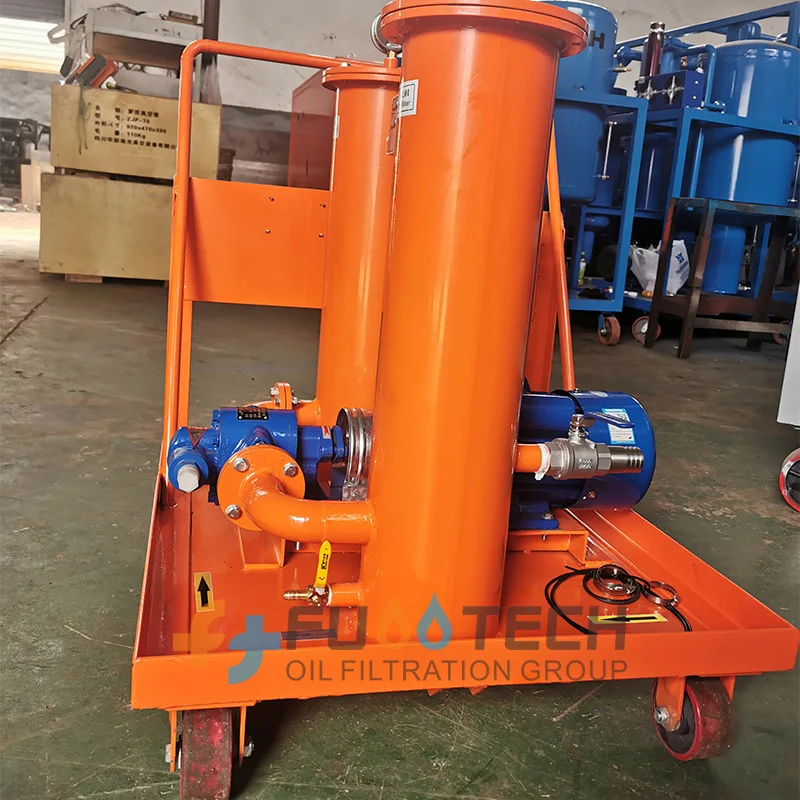

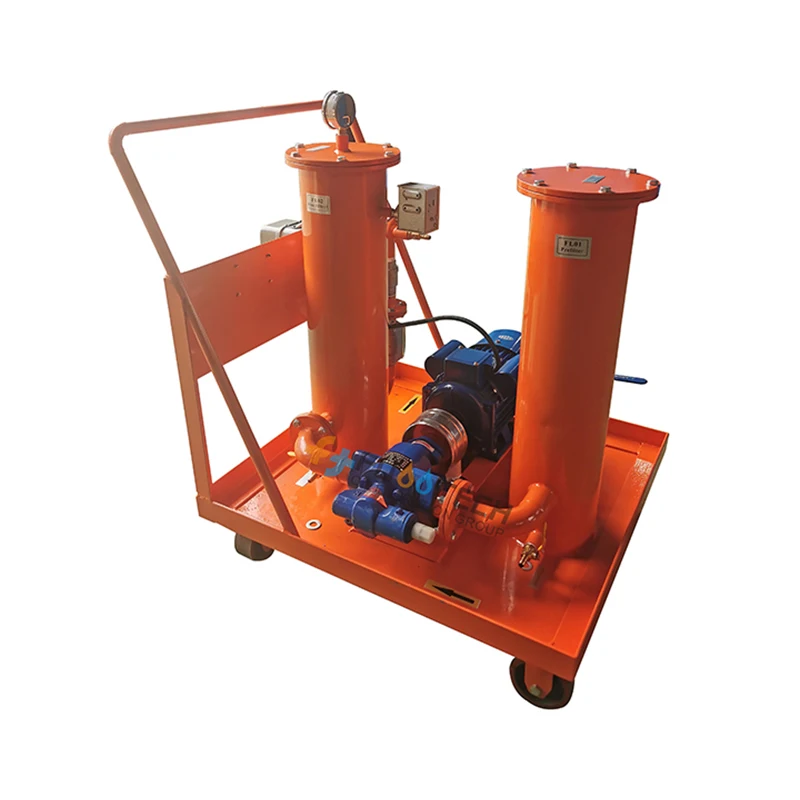

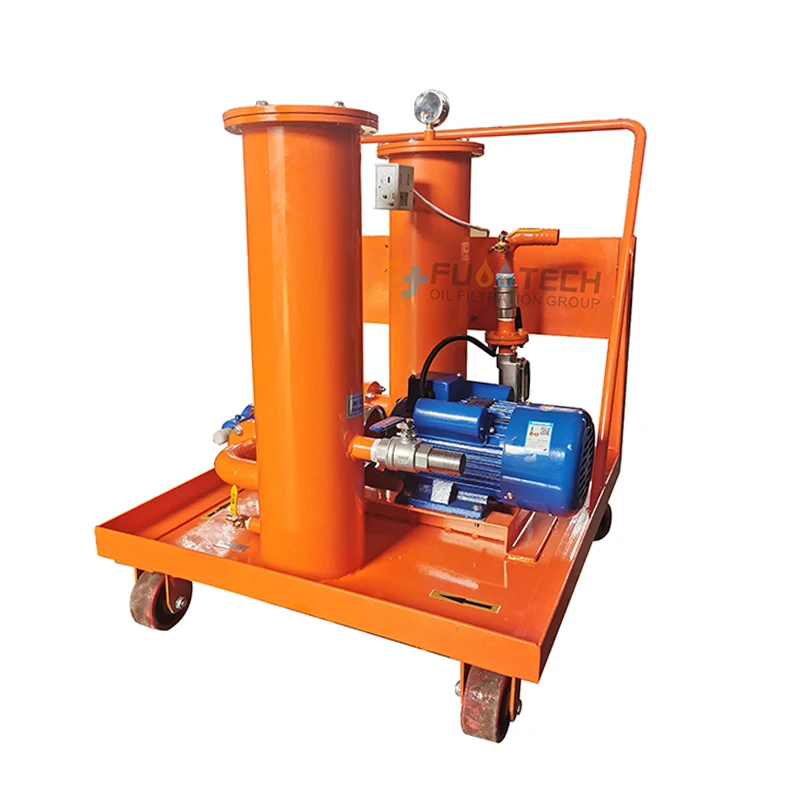

Details Images

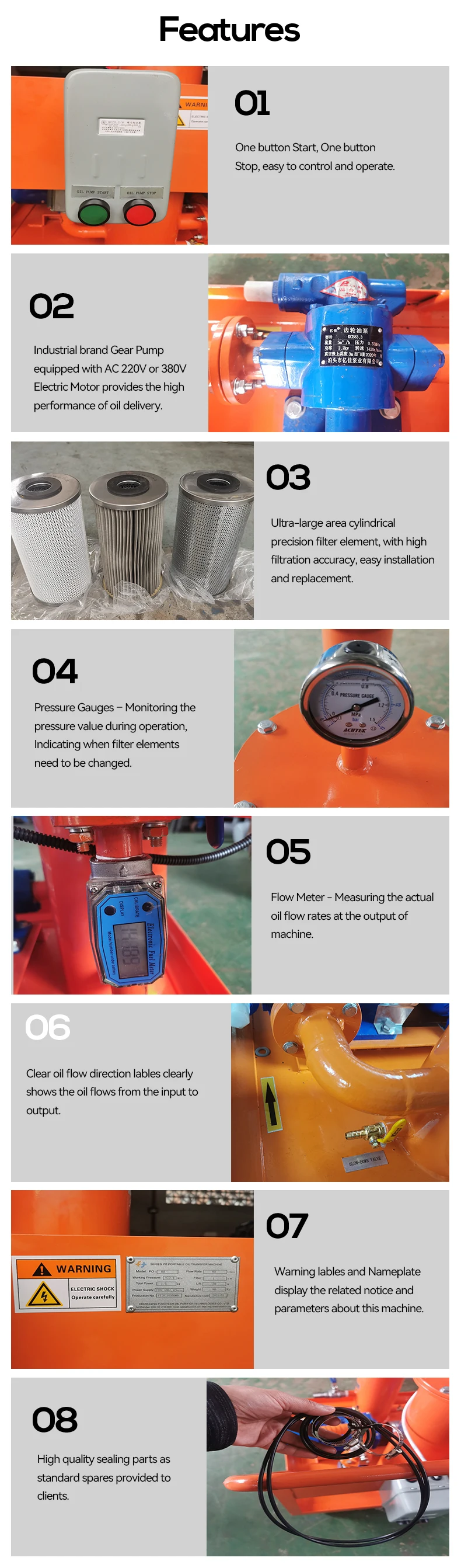

Features
1). Compact structure, small volume, light weight, easy to carry.
2). Internal use filter element to filter, repeated use, save cost, not contaminated sites.
3). Filtration precision, the product specifications can be free to choose according to need.
4). Can be made into explosion-proof type, used at dangerous working area.
5). Hi-Quality & Durable Oil Pump installed with long distance pumping capacity.
6). has large route, strong capability of holding dirt and can be used for a long time.
7). Stable and safe Operation with low noise.
8). Can be designed to include the oil storage tank, heater, trolley, full stainless steel materials, etc.
2). Internal use filter element to filter, repeated use, save cost, not contaminated sites.
3). Filtration precision, the product specifications can be free to choose according to need.
4). Can be made into explosion-proof type, used at dangerous working area.
5). Hi-Quality & Durable Oil Pump installed with long distance pumping capacity.
6). has large route, strong capability of holding dirt and can be used for a long time.
7). Stable and safe Operation with low noise.
8). Can be designed to include the oil storage tank, heater, trolley, full stainless steel materials, etc.
Product Paramenters
Item | Unit | PO-32 | PO-50 | PO-100 | PO-150 | PO-200 | PO-300 | PO-500 | PO-600 | |||||||
Flow rate | L/H | 1920 | 3000 | 6000 | 9000 | 12000 | 18000 | 30000 | 36000 | |||||||
Working Pressure | MPa | ≤ 0.4 | ||||||||||||||
Pressure when replacing filter | MPa | ＞0..2 | ||||||||||||||
Operation Temperature | ℃ | 5 ~ 80 | ||||||||||||||
Lift | m | 5 | 8 | 8 | 10 | 15 | 15 | 18 | 20 | |||||||
Cleanness | NAS | 7 | 6 | 6 | 6 | 6 | 5 | 5 | 5 | |||||||
After Filtration | Impurity size: ≤ 3 ~ 5 microns | |||||||||||||||
Power supply | 380 VAC, 50 Hz, 3 Phase (or as per required) | |||||||||||||||
Working Noise | dB (A) | ≤ 65 ~ 75 | ||||||||||||||
Motor Power | KW | 0.75 | 1.1 | 1.5 | 2.5 | 3 | 6 | 9 | 13 | |||||||
Inlet (outlet) Caliber | mm | Ф25 | Ф25 | Ф25 | Ф32 | Ф42 | Ф50 | Ф50 | Ф60 | |||||||
Weight | Kg | 95 | 105 | 120 | 130 | 140 | 160 | 300 | 370 | |||||||
Note: 1. The dimension and weight will be changed with changing of technical specs.
2. All the specs can be customized according to client's requirements.
2. All the specs can be customized according to client's requirements.
Oil Before and After Treatment
Application
Working Principle
Oil suction point is equipped with a coarse filter to protect pump, and prolong the service life of main two filters. Filter precision can be adjusted and changed according to client's actual need. This machine can do precision filtering, it usually equips three-stage filters, also can equip four or five stage filters as per user's requirements . Light weight, easy operation, it can be used as oiling machine for long distance and high-lift oiling works.
Pressure Gauge monitors the working status of machine and pollution levels continuously.
It is also used for oil transferring/ filling at working fields, suitable for field portable assignments and aerial work, while oil filling, filtration is also done at same time.
Pressure Gauge monitors the working status of machine and pollution levels continuously.
It is also used for oil transferring/ filling at working fields, suitable for field portable assignments and aerial work, while oil filling, filtration is also done at same time.
On-Site Project Photos
FAQ
Q:Are you a manufacturer or a trading company?
A: Manufacturer with our own factory.
Q: What is the method of payment?
A: Usually, we accept payment by T/T,L/C,western Union,Paypal and Alipay. Other terms of payment depend on the circumstances.
Q: How long will it take you to deliver?
A3:Spot goods will be shipped within 3 days. Large quantities of goods need to be confirmed through negotiation.
Q: Can I buy a few for my initial order?
A: Yes, we can accept trial order before official orders.
A: Manufacturer with our own factory.
Q: What is the method of payment?
A: Usually, we accept payment by T/T,L/C,western Union,Paypal and Alipay. Other terms of payment depend on the circumstances.
Q: How long will it take you to deliver?
A3:Spot goods will be shipped within 3 days. Large quantities of goods need to be confirmed through negotiation.
Q: Can I buy a few for my initial order?
A: Yes, we can accept trial order before official orders.
Q:What's the main functions of your PO Series Portable Oil Purifier?
A: Transferring lubricants to storage containers
Transferring filtered oil to a machine
Cleaning stored lubricants
Achieving new oil cleanliness standards
Reconditioning or decontaminating lubricants currently in use
Draining used oil from equipment
Providing contamination control functions like hose cleaning, power flushing, directional wand flushing and line flushing.
Q: How many pcs of filters installed in your PO Series Portable Oil Filter Cart?
A: Usually 2 pcs or 3 pcs, but can be produced as per request.
A: Transferring lubricants to storage containers
Transferring filtered oil to a machine
Cleaning stored lubricants
Achieving new oil cleanliness standards
Reconditioning or decontaminating lubricants currently in use
Draining used oil from equipment
Providing contamination control functions like hose cleaning, power flushing, directional wand flushing and line flushing.
Q: How many pcs of filters installed in your PO Series Portable Oil Filter Cart?
A: Usually 2 pcs or 3 pcs, but can be produced as per request.
Похожие товары

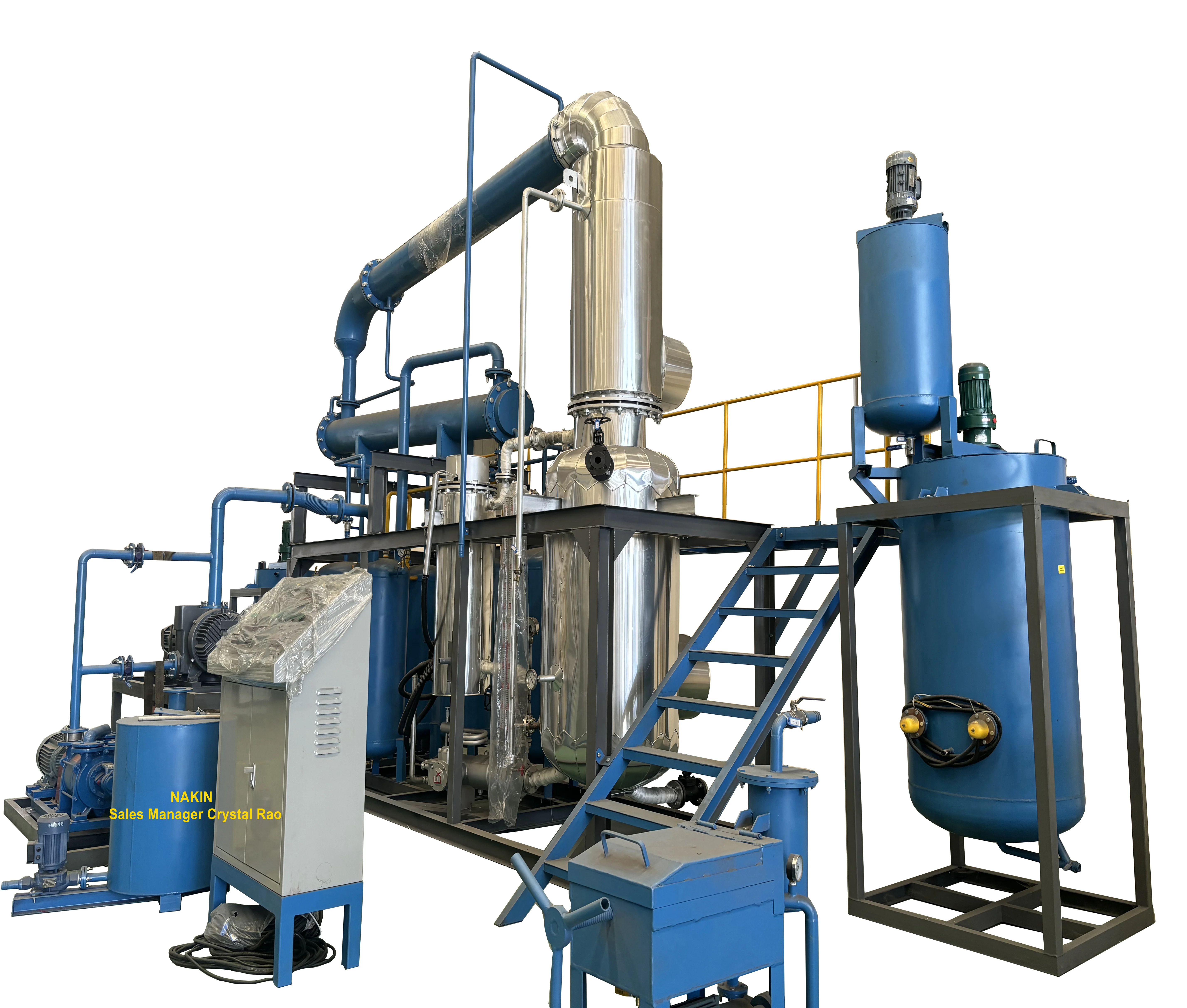

Новейший дизайн, машина для перегонки отработанного моторного масла, Пиролизное Масло для дизельной установки
6 359 607,20 ₽

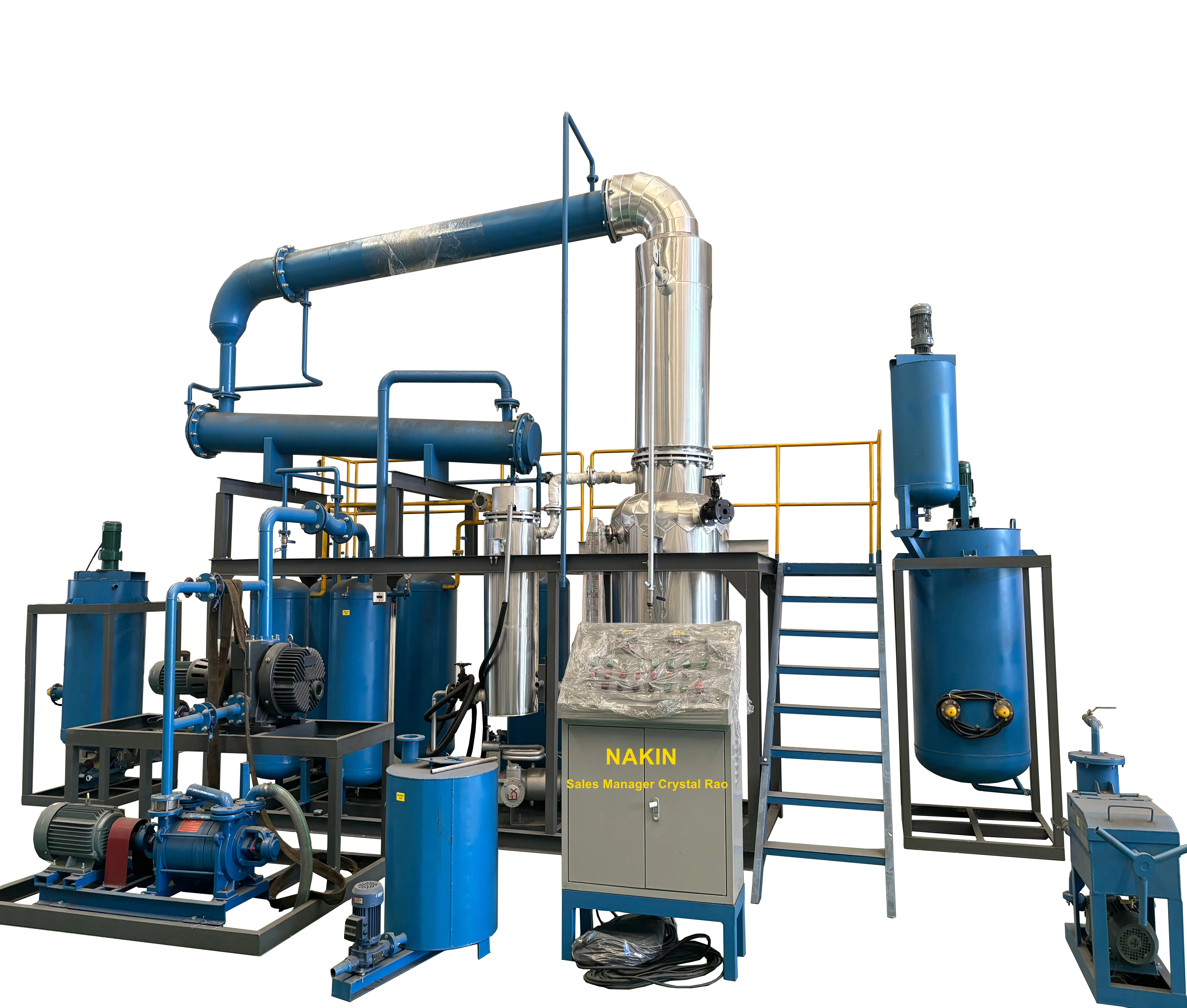

Горячая продажа подержанного моторного масла пиролизного нефтеперерабатывающего завода для дизельной дистилляционной установки
2 827 832,24 ₽ - 3 576 730,81 ₽
Мини черный двигатель машина для переработки масла используется моторная машина для очистки масла
493 417,80 ₽ - 932 011,40 ₽

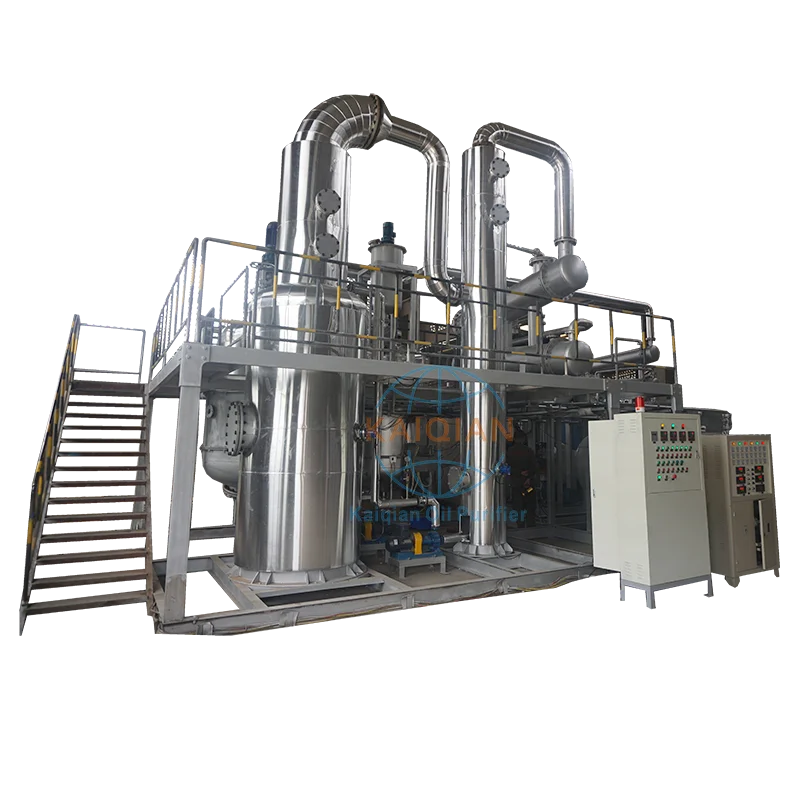

Высокоэффективная короткоходная дистилляционная установка для переработки отработанного масла на базу Oi
5 482 420,00 ₽
Смазочное масло для двигателя Mobil, переработка на новую установку для перегонки тяжелого базового масла
5 482 420,00 ₽

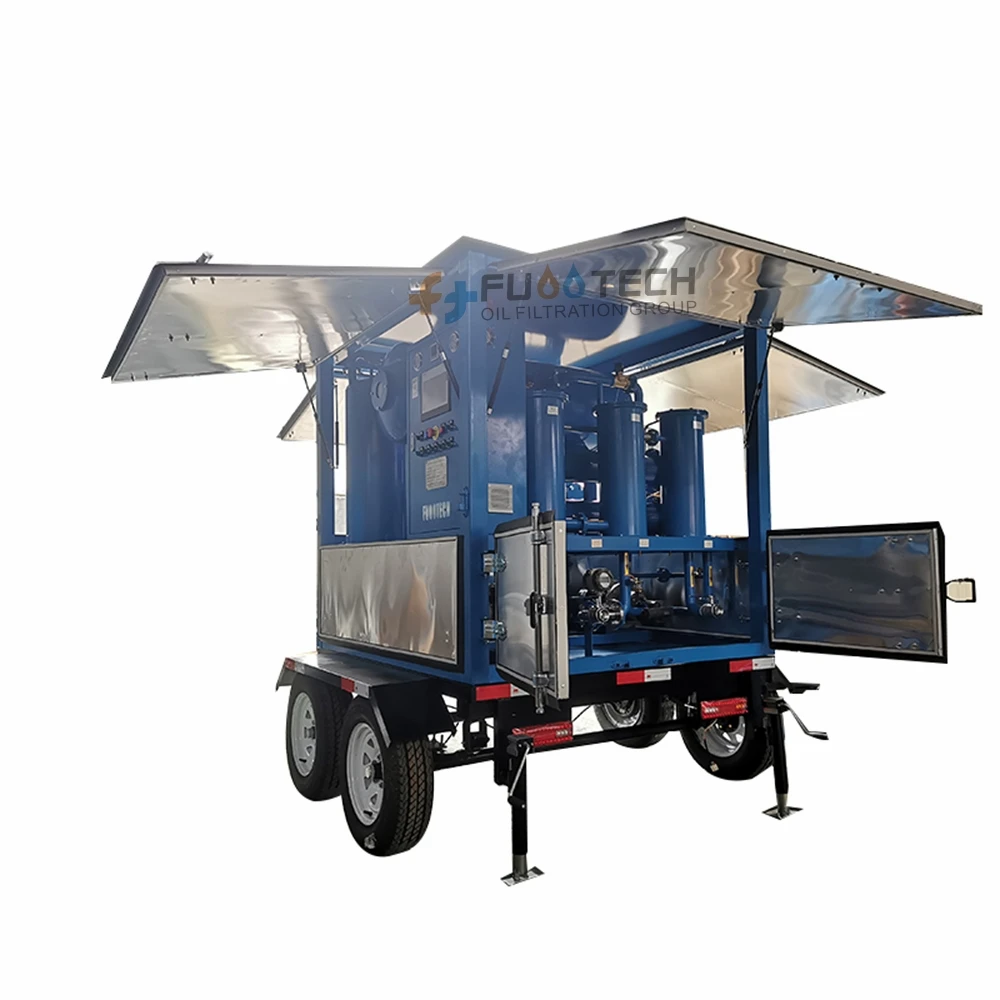

Полностью закрытый мобильный трейлер типа ZYD-T-O-150 Двухступенчатая вакуумная установка для фильтрации масла трансформатора 9000 ЛЧ/ч
