EpirocM оптовая цена шахта скважинный туннель инженерный дизельный Электрический привод сверлильный станок типа колеса
1 774 840,00 ₽ - 2 218 550,00 ₽
Буровая установка для горных работ
- Категория: >>>
- Поставщик: Fuzhou Tuowei Mechanical & Electrical Equipment Co. Ltd.
Сохранить в закладки 1601252237475:
Описание и отзывы
Характеристики
Product Description

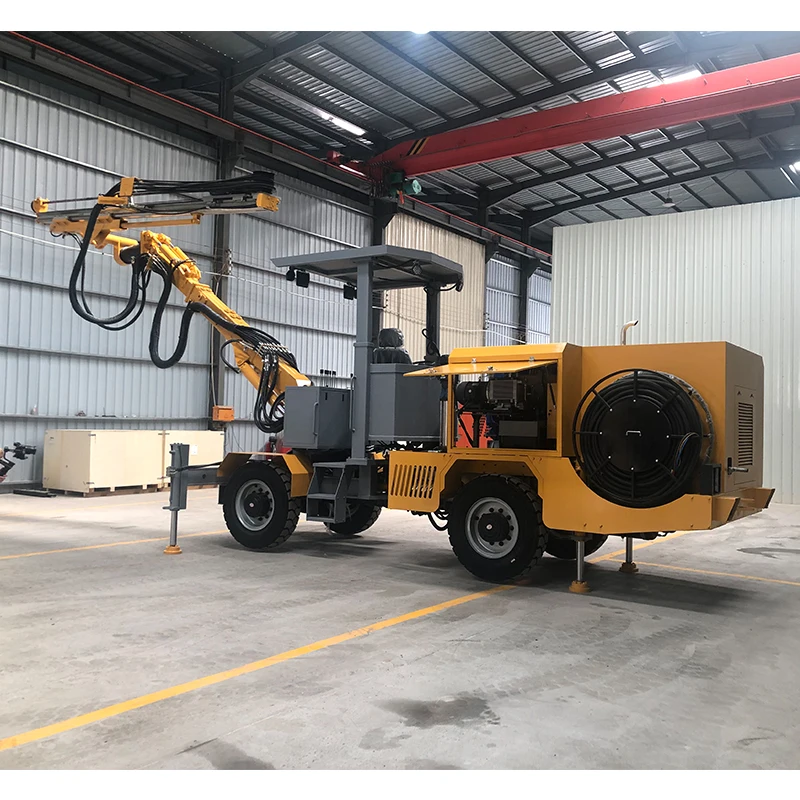

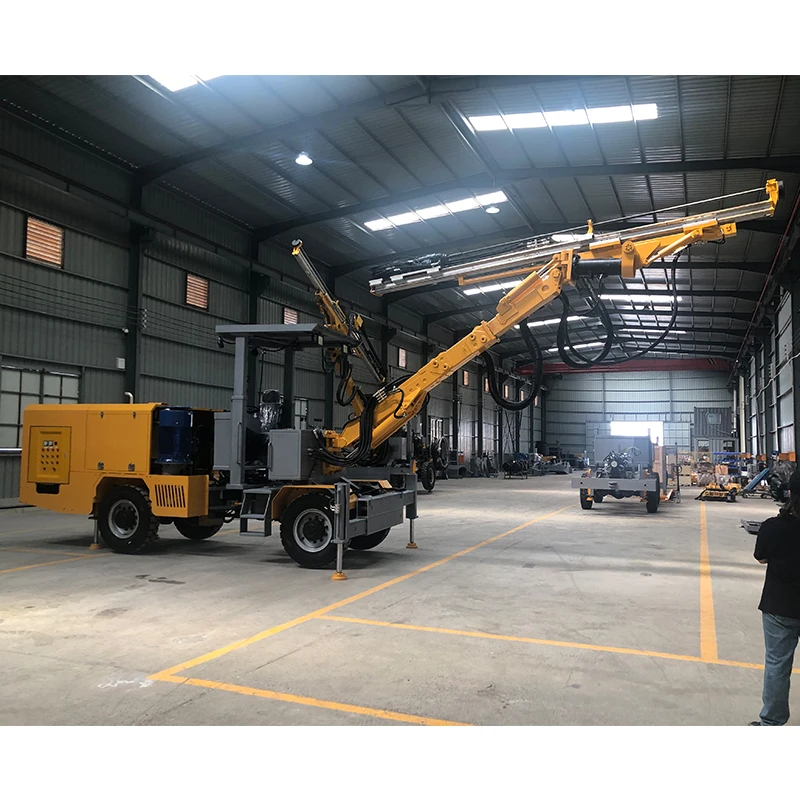

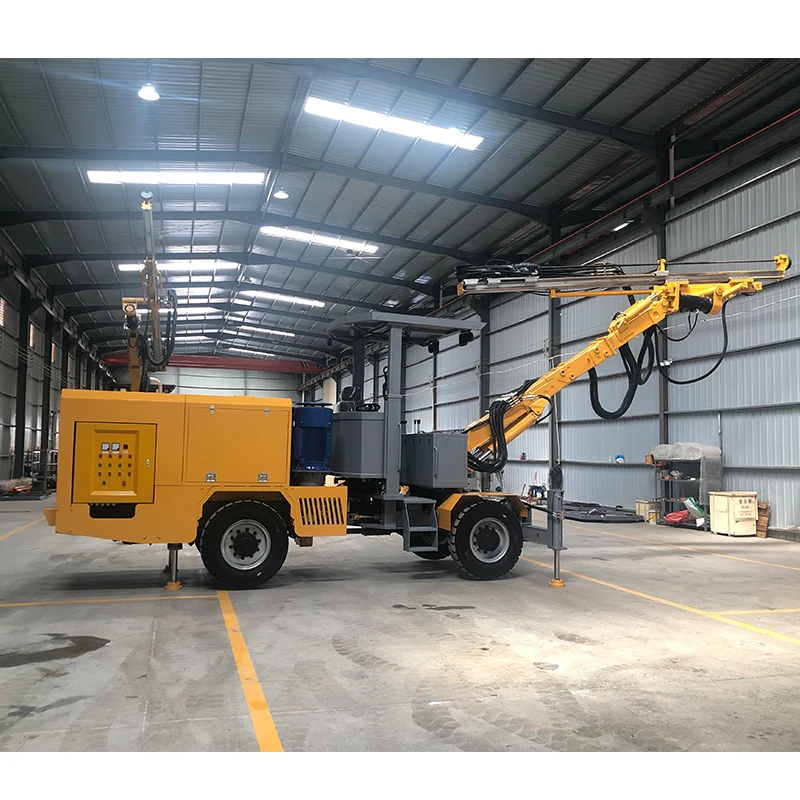

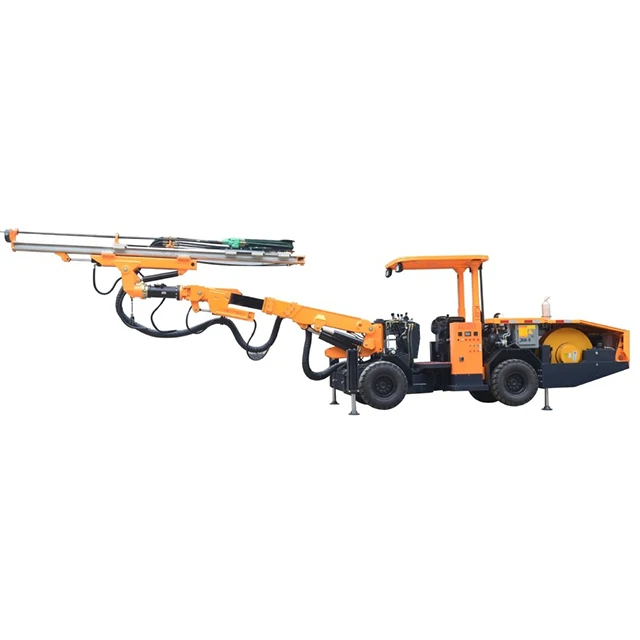

CYTJ45 KA mining hydraulic drilling jumbo is widely used in small and medium-sized underground metal mines, water conservancy and hydropower, highway and railway tunnels, chemical industry, etc. It is suitable for a wide range of rocks with a Pugh hardness off=6-16 or higher. It can work and turn in tunnels with a width of only 3.3 meters; the thruster can rotate 360° horizontally and vertically in both directions, and has the functions of opening stone doors and drilling anchor holes.
1.Hydraulic system
The entire hydraulic system is independently developed by Aivyter company, which has been tested to maximize the ability of the rock drill and has an extremely low loss rate of drill pipes and tools.
2.Series pump
The series pump adopts a well-known domestic brand, with stable quality, stable pressure output, and the ability to provide stable pressure and flow for the rock drill and boom.
3.Hydraulic oil tank
Made of carbon steel, with internal spray coating and hydraulic oil filter, it can ensure the cleanliness of the hydraulic system, and the oil tank is equipped with a maintenance port for easy maintenance.
4.Mechanical arm
The mechanical arm has undergone multiple practical tests and has excellent resistance to impact and bending. Easy to operate and high sensitivity. Adopting a double triangle structure for more accurate positioning and better stiffness.
5.Electrical control cabinet
All internal components are made of imported electrical components such as Schneider and ABB.
6.Engine, torque converter
Adopting famous brand of engine and well-known brand torque converter, with stable quality and sufficient power output.
7.Water pump
Adopting multi-stage centrifugal pumps from Southern Pump Industry, with large water volume, high head, and stable quality.
8.Tire
Adopting 14.00-24 rubber inflatable tires, with strong load-bearing capacity and stable quality.
9.Radiator
9.Radiator
Adopting water-cooled radiators with high heat dissipation efficiency to ensure stable oil temperature.
Product Paramenters
Parameters of drill jumbo | |||||||||||
Applicable section | 3000x3000-5050x4500 mm | Minimum turning radius | Inside:3450/Outside: 5450mm | ||||||||
Dimensions L*W*H | 10600x1710x2085(2795)mm | Climbing ability | 14° | ||||||||
Ground clearance | 320 mm | Running speed | ≤7.2 kM/h | ||||||||
Weight | 11500 KGS | Cable length | 70 m | ||||||||
Specifications of Rock drill | |||||||||||
Rock drill | RD19M | ||||||||||
Impact power | 18 kw | ||||||||||
Impact frequency | 57 Hz | ||||||||||
Impact pressure | 130-200 bar | ||||||||||
Rotary system | Independent rotation | ||||||||||
Rotation speed | 0-220 r/min | ||||||||||
Rotation torque (max) | 1050 Nm | ||||||||||
Thruster | |||||||||||
Rock drill | RD19M | ||||||||||
Total length | 4820/5450 mm | ||||||||||
Drill rod length | 3090/3700 mm | ||||||||||
Depth of hole | 2770/3370 mm | ||||||||||
Weight | 530/590 kg | ||||||||||
Propulsion force | 13 KN | ||||||||||
Drilling arm | |||||||||||
Compensation itinerary | 1250 mm | Pitch angle | +60°/-30° | ||||||||
Horizontal hole | Complete coverage | Swing angle | ±35° | ||||||||
Sliding frame rotation | ±180° | Drilling arm weight | 1645 kg | ||||||||
Hydro-pneumatic system | |||||||||||
Maximum displacement of water pump (12 bar) | 4 m³/h | ||||||||||
Air flow | 1 m³/min | ||||||||||
Motor drive | |||||||||||
Electrical system | |||||||||||
Total installed power | 65.5 kW | ||||||||||
Main motor power | 55 kW | ||||||||||
Voltage | 380V(Customizable) | ||||||||||
Hydraulic system | |||||||||||
Closed hydrostatic drive walking system | |||||||||||
Hydraulic direct control operating system | |||||||||||
Equipped with anti-stuck function | |||||||||||
Chassis | |||||||||||
Engine | Famous brand | ||||||||||
Rated output power (2200r/min) | 60 kW | ||||||||||
Company Information
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: No. 15 Xiandong Road, Lianggang Industrial Zone, Changle District, Fuzhou City, Fujian Province
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: What is the payment deadline?
A6: T/T, L/C, Western Union, etc. We can also accept USD, RMB and other currencies.
Q7: Can you accept OEM orders?
A7: Yes, with professional design team, OEM orders are highly welcome.
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: No. 15 Xiandong Road, Lianggang Industrial Zone, Changle District, Fuzhou City, Fujian Province
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: What is the payment deadline?
A6: T/T, L/C, Western Union, etc. We can also accept USD, RMB and other currencies.
Q7: Can you accept OEM orders?
A7: Yes, with professional design team, OEM orders are highly welcome.
Похожие товары
Заводская производная круглая угольная шахта DTH буровая установка гусеничного типа полностью гидравлические установки
6 655 650,00 ₽ - 7 764 925,00 ₽

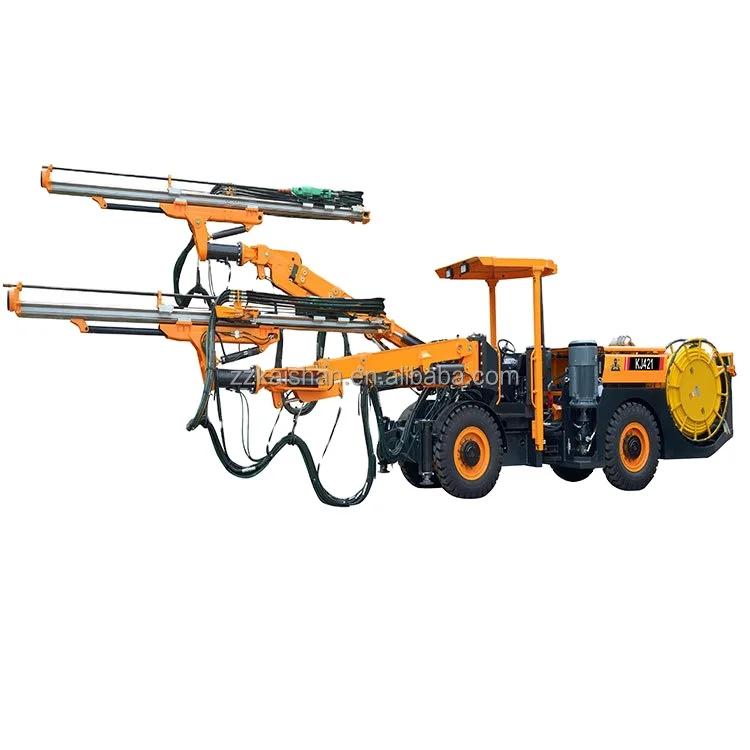

KJ421 CYTJ45-2 скважинный двойной бум полный гидравлический подземного тоннеля буровая установка
