MITSCN завод 230VAC 60 Гц Выходная частота 10 кВт 11 однофазный солнечный гибридный инвертор MPPT контроллер переменного тока для дома
- Категория: >>>
- Поставщик: Beijing Mitscn Co. Ltd.
Сохранить в закладки 1601252307229:
Описание и отзывы
Характеристики
Product Description
MITSCN Factory 230VAC 60Hz Output Frequency 10KW 11KW Single Phase Solar Hybrid Inverter MPPT Controller AC Inverter for House
Smart LCD setting(Working modes, Charge Current, Charge voltage, etc.)
• Built-in MPPT solar charge controller 100A
• MPPT efficiency max 98%
• Powerful charge rate up to 80Amp
• DC start &Automatic Self-Diagnostic Function
• USB monitoring function
• Supporting AGS, BTS port
• Compatible to generator
PV3500 TLV series is a multi-function inverter ,combining functions of inverter and MPPT solar charger controller, solar charger and battery charger
to offer uninterruptible power support. The comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery
charging current, AC/solar charger priority, and selectable input voltage based on different applications.
• Built-in MPPT solar charge controller 100A
• MPPT efficiency max 98%
• Powerful charge rate up to 80Amp
• DC start &Automatic Self-Diagnostic Function
• USB monitoring function
• Supporting AGS, BTS port
• Compatible to generator
PV3500 TLV series is a multi-function inverter ,combining functions of inverter and MPPT solar charger controller, solar charger and battery charger
to offer uninterruptible power support. The comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery
charging current, AC/solar charger priority, and selectable input voltage based on different applications.
Specification
MODEL | PV35-8048 TLV | PV35-10048 TLV | ||||||
Default Battery System Voltage | 48VDC | 48VDC | ||||||
Inverter Output | Rated Power | 8kw | 10kw | |||||
Surge Power | 2400VA | 30000VA | ||||||
Capable Of Starting Electric Motor | 4HP | 5HP | ||||||
Waveform | Pure sine wave /same as input(bypass mode) | |||||||
Nominal Output Voltage RMS | 100V/110V/120V/200V/220V/240V | |||||||
Output Frequency | 50Hz / 60Hz ±0.3 | |||||||
Inverter Efficency(Peak) | >88% | |||||||
Line Mode Efficiency | >95% | |||||||
Power factor | 1 | |||||||
Typical Transfer Time | 20ms(max) | |||||||
AC Input | Voltage | 220V/230V/240V | ||||||
Selectable Voltage Range | 90-280 VAC (APL) | |||||||
Frequency Range | 50Hz / 60Hz | |||||||
Low Battery voltage cut off | 40-48VDC for 48VDC mode | |||||||
Low Battery voltage recover | 42-50VDC for 48VDC mode | |||||||
High Battery Voltage cut off | 60VDC for 48VDC mode | |||||||
High Battery Voltage Recover | 57VDC for 48VDC mode | |||||||
Idie Consumption-Search Mode | < 60W when power saver on | |||||||
CHARGER | Output Voltage | Depends on battery type | ||||||
Charge AC Input Breaker Rating | 80A | 80A | ||||||
Overcharge Protection S.D. | 31.4VDC for 24VDC mode (62.8VDC for 48VDC mode ) | |||||||
Maximum Charge Current | 60A | 70A | ||||||
BTS | Continuous output power | Yes Variances in charging voltage & S.D. voltage base on the battery temperature | ||||||
BYPASS & PROTECTION | Input Voltage Waveform | Sine wave (grid or generator) | ||||||
Nominal Input Frequency | 50Hz or 60Hz | |||||||
Overload Protection (SMPS Load) | Circuit breaker | |||||||
Output Short Circuit Protection | Circuit breaker | |||||||
Bypass breaker rating | 63A | |||||||
Max bypass current | 80Amp | |||||||
SOLAR CHARGER | Maximum PV Array Open Circuit Voltage | 145VDC | ||||||
Maximum PV Charge Current | 100A | |||||||
DC Voltage | 48V | |||||||
Maximum PV Array Power | 5000W(10000W for 200A optional) 2000W 1000W 2000W | |||||||
MPPT Range @ Operating Voltage | 64~145VDC | |||||||
Standby Power Consumption | <2W | |||||||
MECHANICAL SPECIFICATIONS | Machine Dimensions(W*H*D)(mm) | 670*410*215mm 322*486*134 309*505*147 309*505*147 | ||||||
Package Dimensions(W*H*D)(mm) | 884*618*443mm 426*560*260.5 375*655*269 375*655*269 | |||||||
Net Weight(kg) | 69+2.5 | 75.75+2.5 | ||||||
Gross Weight(kg) | 82.5+2.5 | 89+2.5 | ||||||
OTHER | Audible Noise | 60dB MAX | ||||||
Display | LED+LCD | |||||||
Operating Temperature | 0°C~40°C | |||||||
Storage Temperature | -15°C -60°C | |||||||

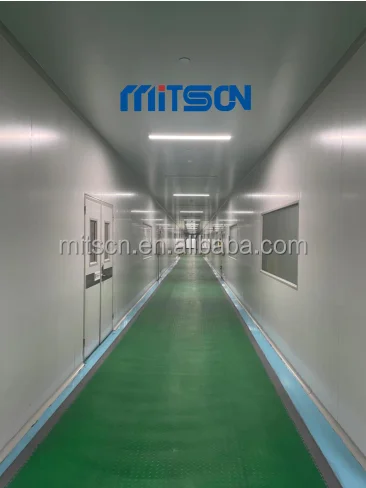

Company Profile

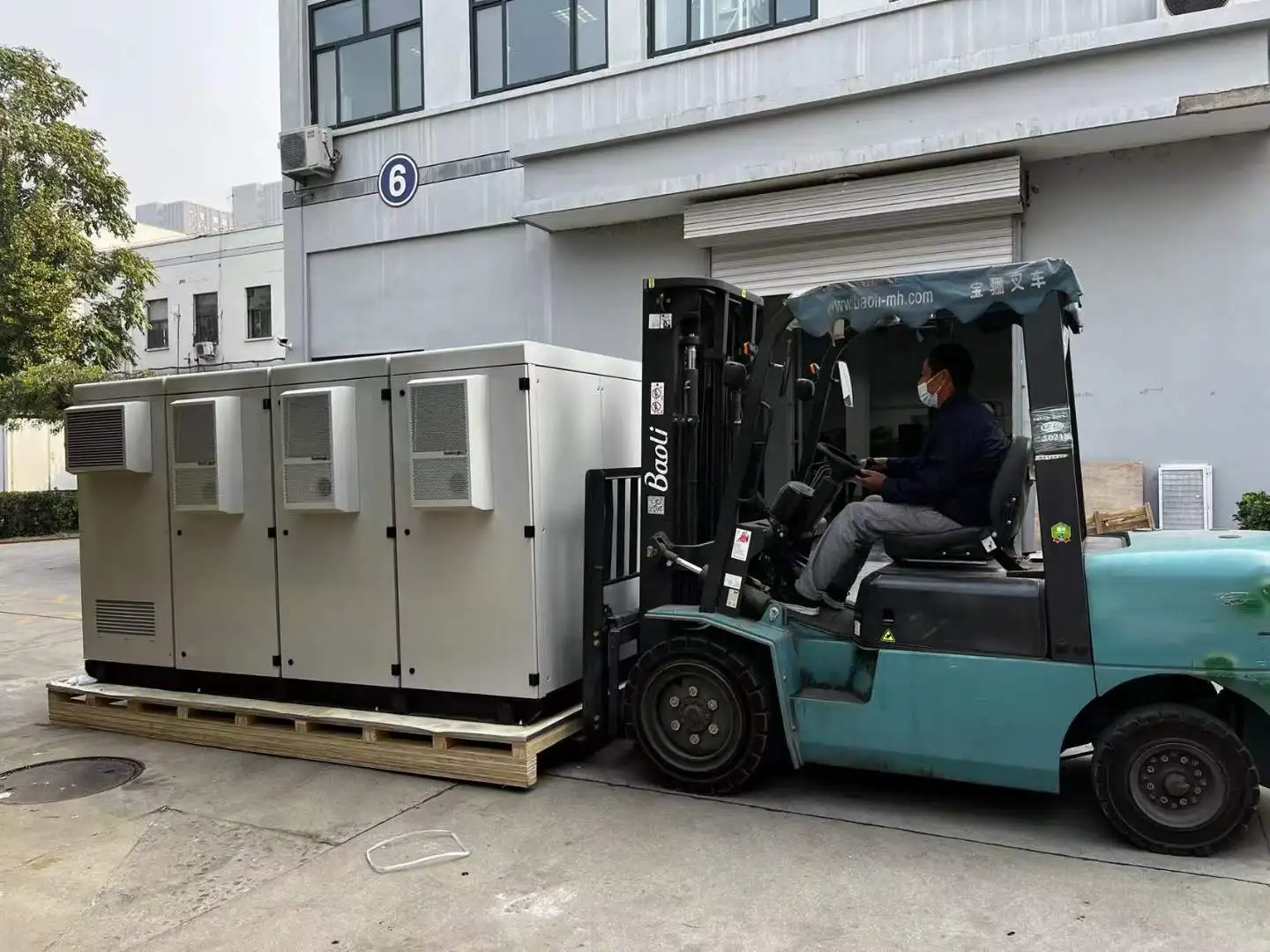

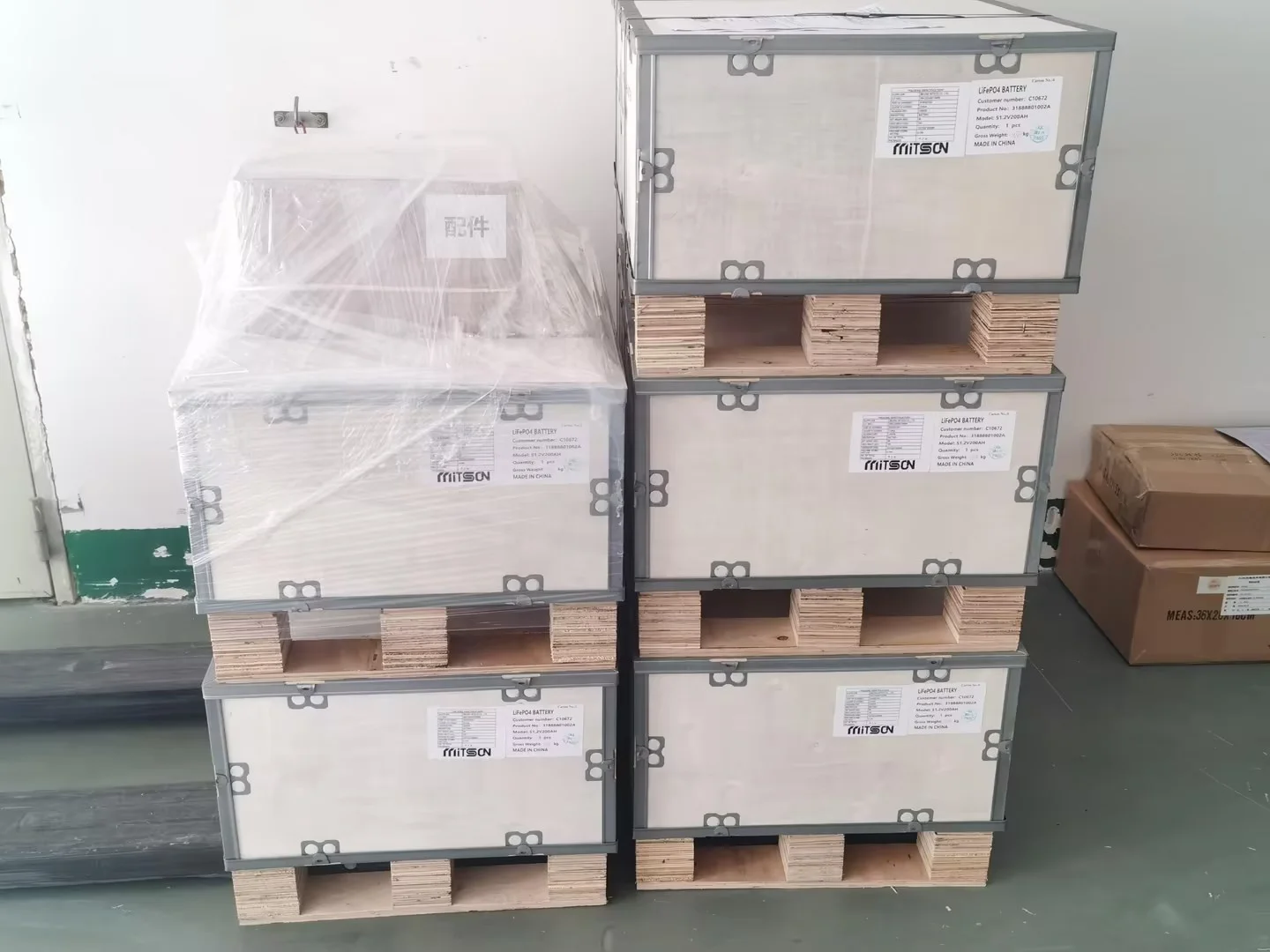

Packing & Delivery
FAQ
1. Are the batteries GRADE-A,Brand NEW?
This item is 3.2v 280Ah item,the QR code is intact,Grade A,Brand new. .
2.Are the batteries come with busbars+bolts?
The price come with Bus bars and Bolts,One Battery will come with one set bus bar and bolt.
3.Can you test each battery PRIOR to shipping?
We will test all the battery Voltage and Internal resistance before shipping.
4.What kind of the package of the cells?
They will come with well package,each cell into thickness PE foam or bag,then into 5 layers strong carton.
5.How can I place the order?
Usually we accept alibaba trade assurance order online. For the RTS(ready for ship) product if there is clear shipping cost or free shipping to your country you can place order and pay directly after reading for all the details,or you can provide your
shipping informtion to our sales they will creat online order for you.
6.How can I do if I need more help for the order?
You can chat our sales online or send inquiry email,we will respond you ASAP
This item is 3.2v 280Ah item,the QR code is intact,Grade A,Brand new. .
2.Are the batteries come with busbars+bolts?
The price come with Bus bars and Bolts,One Battery will come with one set bus bar and bolt.
3.Can you test each battery PRIOR to shipping?
We will test all the battery Voltage and Internal resistance before shipping.
4.What kind of the package of the cells?
They will come with well package,each cell into thickness PE foam or bag,then into 5 layers strong carton.
5.How can I place the order?
Usually we accept alibaba trade assurance order online. For the RTS(ready for ship) product if there is clear shipping cost or free shipping to your country you can place order and pay directly after reading for all the details,or you can provide your
shipping informtion to our sales they will creat online order for you.
6.How can I do if I need more help for the order?
You can chat our sales online or send inquiry email,we will respond you ASAP
Похожие товары
Growatt 10,2 кВт 48 В сенсорная кнопка 230VAC двойной выход на сетку 160A чистая Синусоидальная волна 10 кВт Гибридный солнечный инвертор
33 911,96 ₽ - 38 287,69 ₽
Инвертор OTAO, гибридный солнечный инвертор, инвертор немодулированного синусоидального сигнала, кВт, 24 В, В переменного тока, с Wi-Fi, MPPT, инверторы солнечных батарей

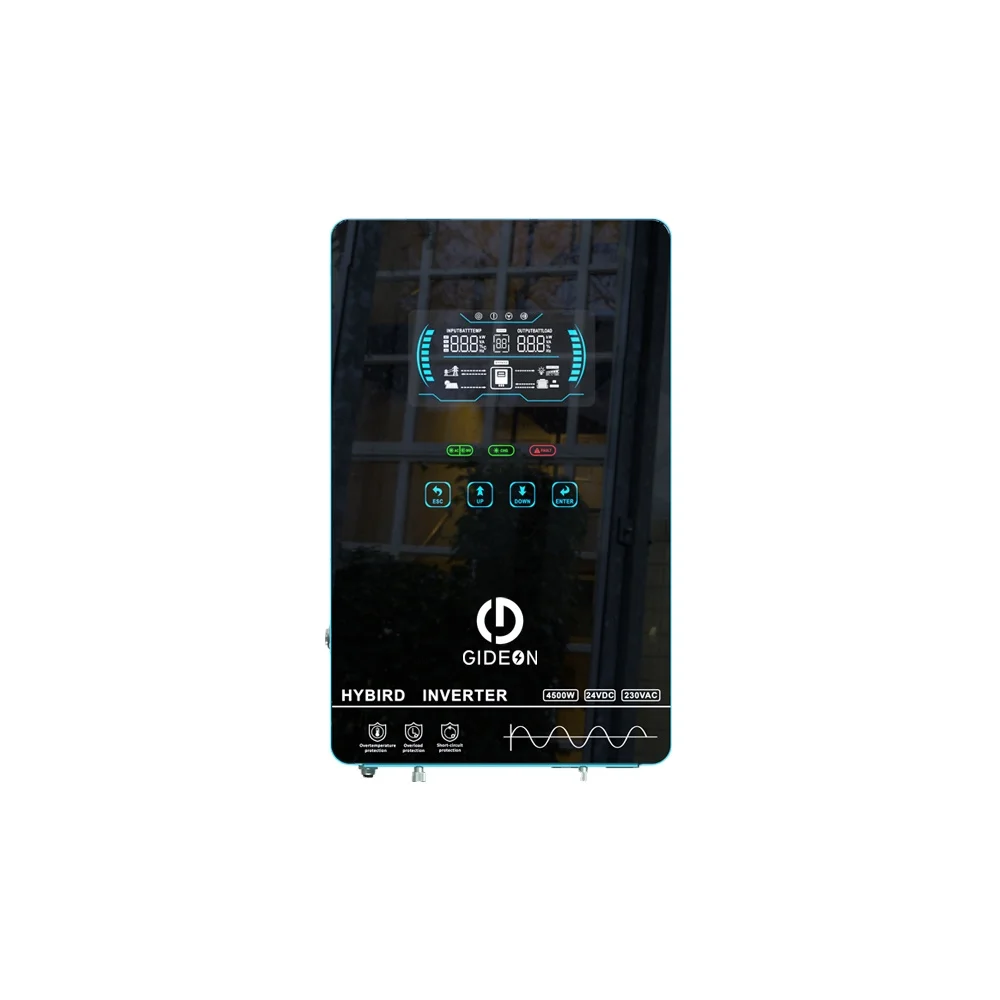

MPPT солнечный инвертор, гибридный 4500 Вт 24VDC до 230VAC, чистый синусоидальный выход, солнечный инвертор
